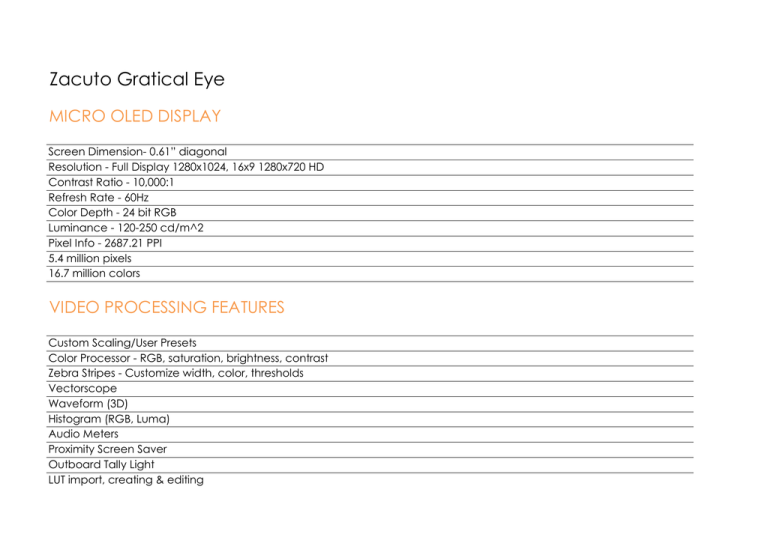

Zacuto Gratical Eye

MICRO OLED DISPLAY

Screen Dimension- 0.61” diagonal

Resolution - Full Display 1280x1024, 16x9 1280x720 HD

Contrast Ratio - 10,000:1

Refresh Rate - 60Hz

Color Depth - 24 bit RGB

Luminance - 120-250 cd/m^2

Pixel Info - 2687.21 PPI

5.4 million pixels

16.7 million colors

VIDEO PROCESSING FEATURES

Custom Scaling/User Presets

Color Processor - RGB, saturation, brightness, contrast

Zebra Stripes - Customize width, color, thresholds

Vectorscope

Waveform (3D)

Histogram (RGB, Luma)

Audio Meters

Proximity Screen Saver

Outboard Tally Light

LUT import, creating & editing

Red Line Peaking (multi-color)

Multi Level intense focus assist peaking

False Color

Frame Store Feature

Test Pattern (color bars & Macbeth)

Four programmable buttons

Frame Rates - 23.98p, 23.98PsF, 24p, 24PsF, 25p, 25PsF, 29.97PsF, 30 PsF,50i, 50p, 59.94i, 60i, 60p

CONNECTIONS

HD-SDI Input - Resolutions up to 1080p/60

(Optional HDMI converter)

POWER

Compatible with either polarity 2 pin LEMO

75Wh battery will power the Eye for 14 hours

Power Voltage Input 12-16.8V
