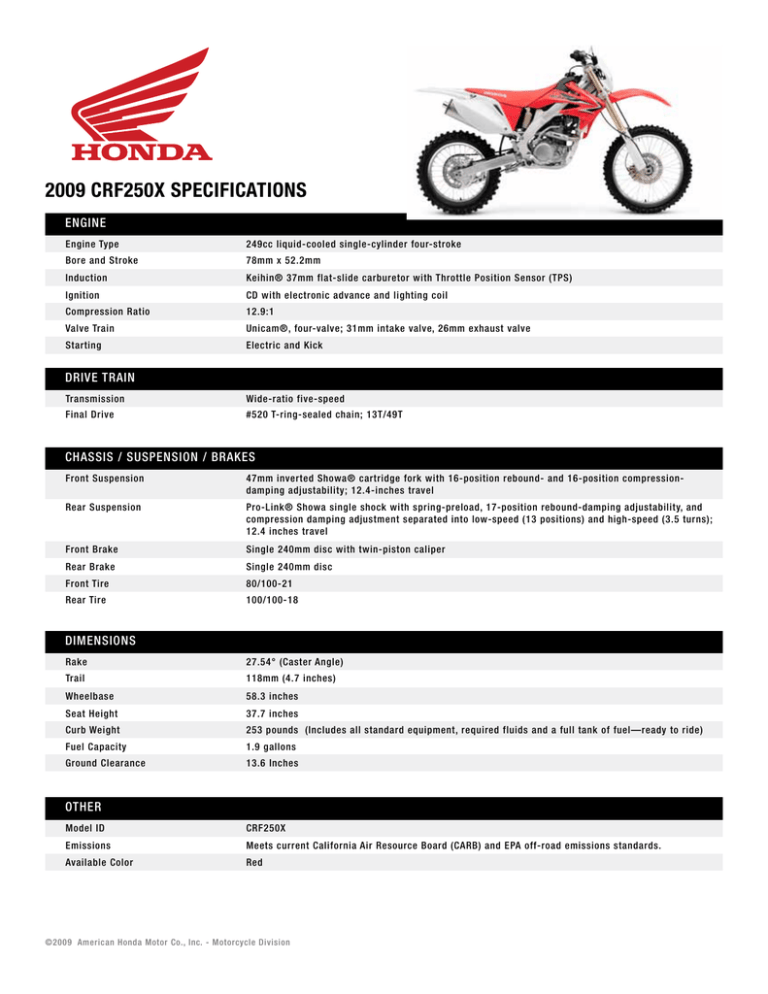

2009 CRF250X Specifications
Engine
Engine Type
249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke
78mm x 52.2mm
Induction
Keihin® 37mm flat-slide carburetor with Throttle Position Sensor (TPS)
Ignition
CD with electronic advance and lighting coil
Compression Ratio
12.9:1
Valve Train
Unicam®, four-valve; 31mm intake valve, 26mm exhaust valve
Starting
Electric and Kick
DRIVE TRAIN
Transmission
Wide-ratio five-speed
Final Drive
#520 T-ring-sealed chain; 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension
47mm inverted Showa® cartridge fork with 16-position rebound- and 16-position compression- damping adjustability; 12.4-inches travel
Rear Suspension
Pro-Link® Showa single shock with spring-preload, 17-position rebound-damping adjustability, and
compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns);
12.4 inches travel
Front Brake
Single 240mm disc with twin-piston caliper
Rear Brake
Single 240mm disc
Front Tire
80/100-21
Rear Tire
100/100-18
DIMENSIONS
Rake
27.54° (Caster Angle)
Trail
118mm (4.7 inches)
Wheelbase
58.3 inches
Seat Height
37.7 inches
Curb Weight
253 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
1.9 gallons
Ground Clearance
13.6 Inches
OTHER
Model ID
CRF250X
Emissions
Meets current California Air Resource Board (CARB) and EPA off-road emissions standards.
Available Color
Red
©2009 American Honda Motor Co., Inc. - Motorcycle Division
