data sheet
Campro

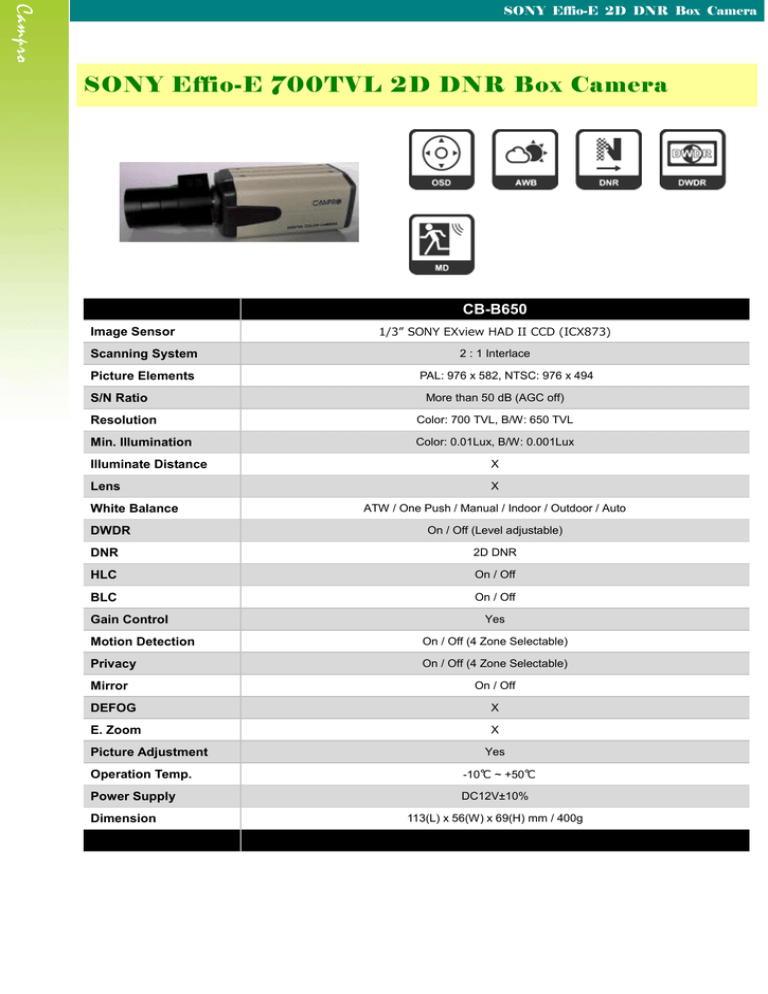

SONY Effio-E 2D DNR Box Camera
SONY Effio-E 700TVL 2D DNR Box Camera
CB-B650
Image Sensor
Scanning System
Picture Elements
S/N Ratio
1/3” SONY EXview HAD II CCD (ICX873)
2 : 1 Interlace
PAL: 976 x 582, NTSC: 976 x 494
More than 50 dB (AGC off)
Resolution
Color: 700 TVL, B/W: 650 TVL
Min. Illumination
Color: 0.01Lux, B/W: 0.001Lux
Illuminate Distance
X
Lens
X
White Balance
DWDR
ATW / One Push / Manual / Indoor / Outdoor / Auto
On / Off (Level adjustable)
DNR
2D DNR
HLC
On / Off
BLC
On / Off
Gain Control
Yes
Motion Detection
On / Off (4 Zone Selectable)
Privacy
On / Off (4 Zone Selectable)
Mirror
On / Off
DEFOG
X
E. Zoom
X
Picture Adjustment
Yes
Operation Temp.
-10℃ ~ +50℃
Power Supply
DC12V±10%
Dimension
113(L) x 56(W) x 69(H) mm / 400g
