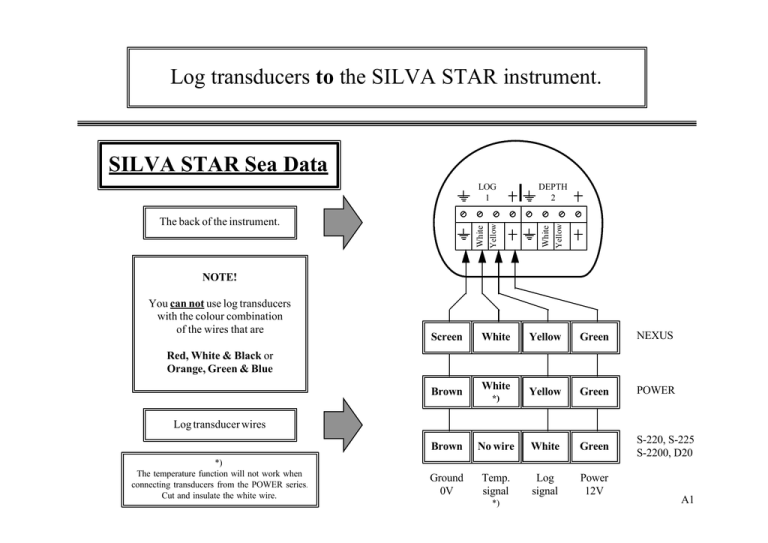

Log transducers to the SILVA STAR instrument.
SILVA STAR Sea Data
White
Screen
White
Yellow
Green
NEXUS
Brown
White
Yellow
Green
POWER
Brown
No wire
White
Green
S-220, S-225
S-2200, D20
Ground
0V
Temp.
signal
Log
signal
Power
12V
White
Yellow
The back of the instrument.
DEPTH
2
Yellow
LOG
1
NOTE!
You can not use log transducers
with the colour combination
of the wires that are
Red, White & Black or
Orange, Green & Blue
*)
Log transducer wires
*)
The temperature function will not work when
connecting transducers from the POWER series.
Cut and insulate the white wire.
*)
A1
