7160-0330
KEYBOARD MOUNT - QUICK RELEASE
Printing Spec: PS-001
The 7160-0330 keyboard tray is a universal keyboard mount that can be used to hold just about any size
keyboard. The keyboard tray has a hole pattern that matches the current Panasonic keyboard that is used with the
PDRC display, the TG3 keyboard, the iKey FT-88-911-TP, and many keyboards with a 30mm x 38mm AMPs
pattern. There are strips of adhesive backed Dual Lock located in the hardware bag for customers that choose to
use the keyboard tray with keyboards other than those listed.
Tools Needed
Phillips head screw driver
7/16-in wrench

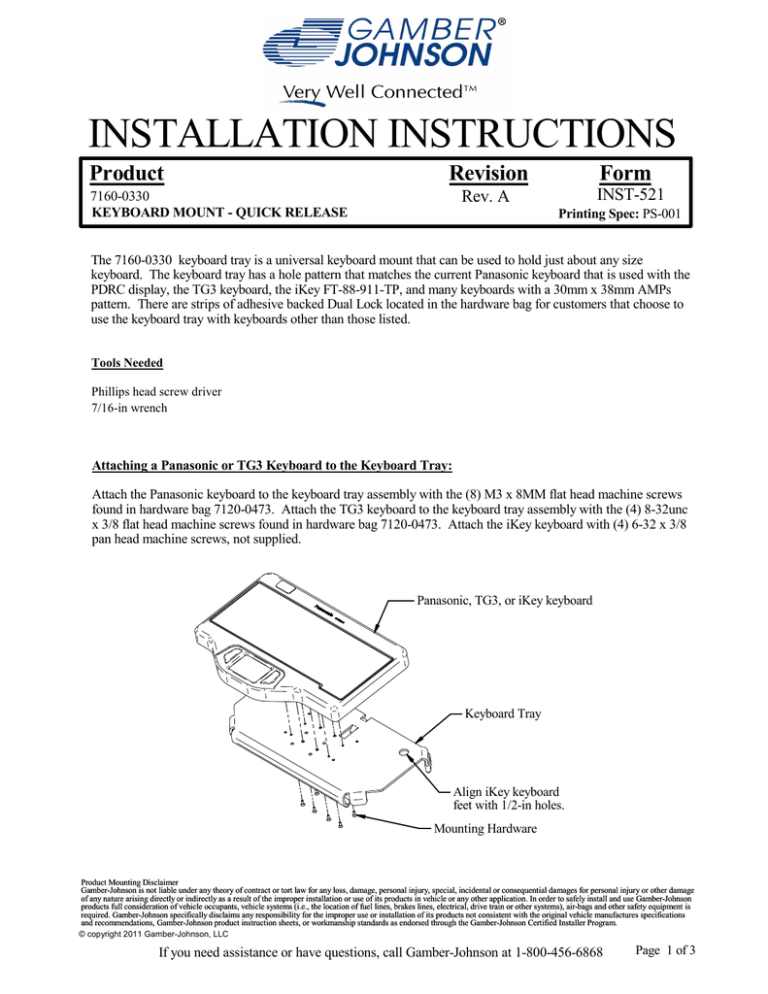

Attaching a Panasonic or TG3 Keyboard to the Keyboard Tray:
Attach the Panasonic keyboard to the keyboard tray assembly with the (8) M3 x 8MM flat head machine screws
found in hardware bag 7120-0473. Attach the TG3 keyboard to the keyboard tray assembly with the (4) 8-32unc
x 3/8 flat head machine screws found in hardware bag 7120-0473. Attach the iKey keyboard with (4) 6-32 x 3/8
pan head machine screws, not supplied.
Panasonic, TG3, or iKey keyboard
Keyboard Tray
Align iKey keyboard
feet with 1/2-in holes.
Mounting Hardware
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2011 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Page 1 of 3
Attaching a Universal Keyboard to the Keyboard Tray:
Attach the keyboard to the keyboard tray with the 1 x 10-in strips of Dual Lock found in hardware bag
7120-0473. There are (4) 10" long pieces of dual lock in the hardware bag.
1. If not preassembled by the factory; attach the pieces of dual lock together to form two pieces that have the
release liners on the out side.
2. Without removing the release liners place the pair of dual lock strips on the keyboard tray and place the
keyboard on top to make sure the Dual lock is located in the correct place for your application.
3. Once the location of the keyboard has been determined, remove the release liner from one side of the dual
lock strips and attach the strips to the keyboard tray.
4. Remove the remaining release liners from the top sides of the dual lock strips and attach the keyboard.
Various keyboard types
Adhesive backed Dual Lock
Keyboard Tray
Removing the Keyboard Tray from the Base:
The keyboard tray with the keyboard attached can be removed from the base mount by activating the latch at the
back of the tray. Rotate the keyboard up about 30 degrees to easily seperate the tray and base.
Rotate up
then seperate.
Activate latch
Caution:
Prevent the keyboard tray from entering the airbag zone of the vehicle. Ensure the loose keyboard tray is
secured to the keyboard base before moving the vehicle.
Page 2 of 3
Secure Cables to Keyboard Tray:
Secure the keyboard cable to the keyboard tray using a cable tie.
Cable tie hole
Cable tie hole
Attaching the Keyboard Mount to the Mounting Surface:
The keyboard mount has a tilt/mounting bracket that allows for mounting the support on any
flat surface ranging from horizontal to vertical. Attach the tilt/mounting bracket using
1/4-20unc hex bolts, washers, and nuts that were provided in hardware bag 7120-0232.
NOTE: The bolt provided may be to long or short for your application. Should that
condition occur please substitute an appropriate length which can be purchased at any
hardware store.
Cover bracket
Mounting flange for
vertical to 45v
mounting surfaces
Mounting flange for
horizontal to 45v
mounting surfaces
#6-32unc mounting hardware
Page 3 of 3
