REV.
1
A
DESCRIPTION
RELEASED TO PRODUCTION
BY
CHECKED BY
PMELAYA
-----

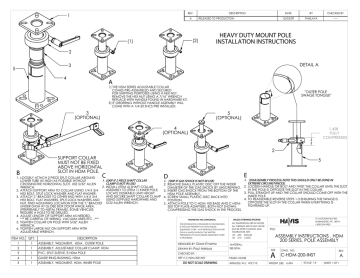

HEAVY DUTY MOUNT POLE
INSTALLATION INSTRUCTIONS
(2)
(1)
DATE
12/03/09
2
DETAIL A
3
5
4
A
1) THE HDM SERIES ADJUSTABLE COLLAR
COMES PRE-ASSEMBLED AND SECURED
FOR SHIPPING PURPOSES USING A HEX NUT.
REMOVE THE HEX NUT USING A 7/16" WRENCH
REPLACE WITH HANDLE FOUND IN HARDWARE KIT.
2) IF ORDERING WITHOUT HANDLE ASSEMBLY WILL
COME WITH A 1/4-20 SHCS PRE INSTALLED.
A
3
(OPTIONAL)
"OUTER POLE
SWAGE TONGUE"
5
(OPTIONAL)
4
(OPTIONAL)
1.428
FULLY
COMPRESSED
2
SUPPORT COLLAR
MUST NOT BE FIXED
ABOVE HORIZONTAL
SLOT IN HDM POLE.
B
C
1. LOOSELY ATTACH 2 PIECE SPLIT COLLAR AROUND
1.
LOWER TUBE AS HIGH AS POSSIBLE WITHOUT
CROSSINGTHE HORIZONTAL SLOT. USE 5/32" ALLEN
2.
WRENCH.
2. ATTACH SUPPORT ARM TO COLLAR USING 1/4 X 3/4
HEX BOLT, SPLIT LOCK WASHER AND FLAT WASHER.
3. ATTACH "L" BRACKET TO OTHER END WITH 1/4 X 3/4
HEX BOLT, FLAT WASHERS, SPLIT LOCK WASHERS AND
NUT. FIND MOUNTING LOCATION FOR THE "L" BRACKET
UNDER DASH AT GLOBE BOX DOOR HINGE AREA.
(PREFERABLY TO METAL FRAME). SOME VEHICLES
REQUIRE A HOLE TO BE DRILLED.
4. ADJUST LENGTH OF SUPPORT ARM AS NEEDED.
*** BE CAREFUL OF WIRING, VACUUM LINES ETC ..***
5. TIGHTEN COLLAR ON POLE WITH 5/32" ALLEN
WRENCH.
6. TIGHTEN LARGE NUT ON SUPPORT ARM WITH
ADJUSTABLE WRENCH.
ITEM NO. QTY.
5
(SKIP IF 2 PIECE SHAFT COLLAR
CLAMP IS NOT IN USE)
INSTALL (ITEM 4) SHAFT COLLAR
ASSEMBLY TO (ITEM 1) INNER POLE.
LOCATE DESIRABLE LIMIT HEIGHT
AND SECURE SHAFT COLLAR CLAMP
USING SUPPLIED HARDWARE AND
5/32 ALLEN WRENCH.
DESCRIPTION
E
D
1. (SKIP IF GAS SHOCK IS NOT IN USE)
2. REMOVE SMALL PLASTIC DISC OFF THE WIDER
DIAMETER OF THE GAS SHOCK BY UNSCREWING.
3. INSERT GAS SHOCK FROM THE BOTTOM OF THE
HDM POLE ASSEMBLY.
4. SCREW SMALL PLASTIC DISC BACK INTO
POSITION.
5. ATTACH POLE TO C-HDM-100 BASE AND C-HDM300 TOP PLATE ADAPTERS, BOTH NOT SHOWN.
COMPRESSING THE GAS SHOCK IN THE PROCESS.
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF HAVIS SHIELDS
EQUIPMENT CORP. ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF HAVIS SHIELDS EQUIPMENT CORP.
IS PROHIBITED.
1
1
ASSEMBLY, WELDMENT, HDM , OUTER POLE
2
1
ASSEMBLY, ADJUSTABLE COLLAR CLAMP, HDM
3
1
PVC, SPLIT SLEEVE, E-HDM POLE
CHECKED BY: -
4
1
GUIDE RING BUSHING, HDM
REF # C-HDM-200-INST
5
1
ASSEMBLY, WELDMENT, HDM, INNER POLE
DESIGNED BY: Dave E'nama
DRAWN BY: Paul Melaya
DO NOT SCALE DRAWING
1. (DISASSEMBLY PROCESS; NOTE THIS SHOULD ONLY BE DONE IN
EXTREME CIRCUMSTANCES).
2. LOOSEN HANDLE OR BOLT AND TWIST THE COLLAR UNTIL THE SLOT
IN THE POLE IS OPPOSITE THE SLOT IN THE COLLAR.
3. PULL STRAIGHT UP AND THE COLLAR SHOULD COME OFF WITH THE
INNER POLE.
4. TO REASSEMBLE REVERSE STEPS 1-3 ENSURING THE SWAGE IS
OPPOSITE THE SLOT IN THE COLLAR WHEN EVERYTHING IS
TIGHTENED UP.
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
ALL THREADS ARE IN UNC-2B OR
UNF-2B AFTER COATING AND
TOLERANCES ARE:
.XX .XXX ANGLES
.02 .010 .5 DEG
MATERIAL:
SEE BOM
FINISH: NONE
AREA(SQ. IN.): 472.710
TITLE:
ASSEMBLY INSTRUCTIONS , HDM
200 SERIES, POLE ASSEMBLY
SIZE
A
DWG. NO.
C-HDM-200-INST
WEIGHT (LB): 6.434
SCALE: 1:4
REV
A
SHEET 1 OF 1
