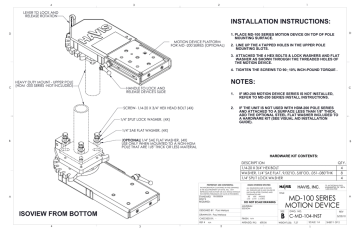

INSTALLATION INSTRUCTIONS:
D
MOTION DEVICE PLATFORM
FOR MD -200 SERIES (OPTIONAL)
D
1. PLACE MD-100 SERIES MOTION DEVICE ON TOP OF POLE
MOUNTING SURFACE.
2. LINE UP THE 4 TAPPED HOLES IN THE UPPER POLE
MOUNTING SLOTS.
3. ATTACHED THE 4 HEX BOLTS & LOCK WASHERS AND FLAT
WASHER AS SHOWN THROUGH THE THREADED HOLES OF
THE MOTION DEVICE.
4. TIGHTEN THE SCREWS TO 90 10% INCH-POUND TORQUE .
C
HEAVY DUTY MOUNT - UPPER POLE
(HDM -200 SERIES -NOT INCLUDED)
NOTES:
HANDLE TO LOCK AND
RELEASE DEVICE'S SLIDE
SCREW- 1/4-20 X 3/4" HEX HEAD BOLT (4X)
C
1.
IF MD-200 MOTION DEVICE SERIES IS NOT INSTALLED,
REFER TO MD-200 SERIES INSTALL INSTRUCTIONS.
2.
IF THE UNIT IS NOT USED WITH HDM-200 POLE SERIES
AND ATTACHED TO A SURFACE LESS THAN 1/8" THICK,
ADD THE OPTIONAL STEEL FLAT WASHER INCLUDED TO
A HARDWARE KIT (SEE VISUAL AID INSTALLATION
GUIDE).
1/4" SPLIT LOCK WASHER, (4X)
1/4" SAE FLAT WASHER, (4X)
(OPTIONAL)1/4" SAE FLAT WASHER, (4X)
USE ONLY WHEN MOUNTED TO A NON-HDM
POLE THAT ARE 1/8" THICK OR LESS MATERIAL
B
B
HARDWARE KIT CONTENTS:
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF HAVIS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF HAVIS IS PROHIBITED.
A
STANDARD
SPEC'S
REQUIRED:
98-000004
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
ALL THREADS ARE IN UNC-2A/2B OR
UNF-2A/2B AFTER COATING AND
TOLERANCES ARE:
.XX
.XXX ANGLES
.02
.010
.5 DEG
HAVIS, INC.
TITLE:
DO NOT SCALE DRAWING
MATERIAL:
DESIGNED BY: Paul Melaya
ISOVIEW FROM BOTTOM
4
SEE BOM
SIZE
B
DRAWN BY: Paul Melaya
3
CHECKED BY: -
FINISH:
REF #
AREA(SQ. IN.):
N/A
2
N/A
600.56
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
MD-100 SERIES
MOTION DEVICE
DWG. NO.
C-MD-104-INST
WEIGHT (LB): 7.27
SCALE: 1:4
1
REV
3/23/10
SHEET 1 OF 2
A
1
2
3
4
INSTALLATION - OPTION 2
(90 DEG. ROTATION)
INSTALLATION -OPTION 1
(180 DEG. ROTATION)
STANDARD ASSEMBLY
INSTALLATION - OPTION 3
(360 DEG. ROTATION)
NOT RECOMMENDED FOR ANY DEVICE
HEAVIER THAN A KEYBOARD
1/4-20 X 5/8" PAN HEAD SCREW (2X) TORQUE TO 60 inch-pound 10%
(MOUNTED WITH OPTIONAL DEVICE)
NYLOCK NUT TORQUE INDUSTRY STANDARD
1/4-20 X 5/8" PAN HEAD SCREW (2X) TORQUE TO 60 inch-pound 10%
OPTIONAL DEVICE MOUNTED TO COMES
(MOUNTED WITH OPTIONAL DEVICE)
1/4-20 NYLOCK NUT( 3X)
WITH EITHER 1/4-20 OR 5/16-18 HARDWARE
1/4-20 X 7/16 SHOULDER BOLT
TORQUE TO INDUSTRY STANDARD
TORQUE TO 75 inch-pound 10%
D
D
1/4" FLAT STEEL WASHER (2X)
5/16" BELLEVILLE SS WASHER
(SEE DETAIL "A")
1/4-20 X 3/4" SOCKET HEAD SCREW
TORQUE TO 15 inch-pound 10%
1/4" STEEL FLAT WASHER
1/4" NYLON WASHER (2X)
1/4" BRASS WASHER
5/16" BELLEVILLE SS WASHER
(SEE DETAIL "A")
1/4-20 X 3/4" CARRIAGE BOLT (3X)
C
HDM LARGE
NYLON WASHER
C-MD-100
HDM LARGE
NYLON WASHER
5/16" BELLEVILLE SS WASHER
(SEE DETAIL "A")
HDM LARGE
NYLON WASHER
(5/16" BELLEVILE SS WASHER)
MAKE SURE THE CONICAL SHAPE OF WASHER IS FACING
THE NYLOCK OR SCREW'S HEAD IN ORDER FOR THE
MOUNT TO PERFORM PROPERLY
NYLON WASHER
1/4 STEEL WASHER
C
DETAIL A
SCALE 1 : 1
HOW TO REPLACE HANDLE
ADJUSTABLE HANDLE
SPACER
B
NYLON WASHER
CARRIAGE BOLT
Note: (If C-MD-200 is already pre-mounted on a motion
device (C-MD-100 series), skip to step 4.)
Note: (If Adjustable handle is not needed, skip to step 4.)
General installation Guide:
Replacing Handle installation Guide:
1.
1.
2.
3.
4.
Place HDM Large Nylon Washer on top of motion
device or pole assembly or any desired mounting
module . Align mounting holes as shown.
Place any MD-200 series on top of large HDM Large
Nylon Washer making sure to align holes in MD-200
with holes in HDM large Nylon Washer.
Arrange supplied hardware specified dictated by
desired mounting application with recommended
Torque guide.
Mount Docking Station on top of Upper Bracket of CMD-200 series and secure using (2) 1/4-20 Pan Head
Screws. Torque as shown.
2.
3.
4.
Remove adjustable handle and carriage bolt, but keep steel washer, nylon
washer and adjustable handle for re-use.
Replace spacer and carriage bolt with appropriate length or desired usage.
Re-arrange hardwares and assemble adjustable locking mechanism as shown.
If no handle is required, removed adjustable handle, carriage bolt and spacer.
Replace carriage bolt with 3/4" length. In lieu of adjustable handle change with
supplied 1/4-20 nylock nut. Keep nylon washer and steel washer assembled as
it shown.
PROPRIETARY AND CONFIDENTIAL
A
STANDARD
SPEC'S
REQUIRED:
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND
INSTALLATION IN MIND. HOWEVER, IT IS THE SOLE RESPONSIBILITY OF THE
OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND DOCKING
EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT
INTERFERE WITH VEHICLE OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW
OF DRIVING CONDITIONS, OR IN ANY WAY DEGRADE OCCUPANT SAFETY. IMPROPER
INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN ACCIDENT.
INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS.
COMPUTERS AND MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN
THEIR SAFE DRIVING POSITIONS BEFORE OPERATING VEHICLE.
4
END VIEW DETAIL OF
5/16" BELLEVILLE SS WASHER
HARDWARE KIT CONTENTS:
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF HAVIS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF HAVIS IS PROHIBITED.
98-000004
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
ALL THREADS ARE IN UNC-2A/2B OR
UNF-2A/2B AFTER COATING AND
TOLERANCES ARE:
.XX
.XXX ANGLES
.02
.010
.5 DEG
HAVIS, INC.
MATERIAL:
DESIGNED BY: Paul Melaya
SIZE
B
DRAWN BY: Paul Melaya
3
CHECKED BY: -
FINISH:
REF #
AREA(SQ. IN.):
N/A
2
N/A
711.34
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
TITLE:
DO NOT SCALE DRAWING
SEE BOM
B
A
MD-200 SERIES
MOTION DEVICE
DWG. NO.
C-MD-201-203-INST
WEIGHT (LB): 8.18
SCALE: 1:5
1
REV
3/23/10
SHEET 2 OF 2
A
