Panasonic C-PM-106 Installation Instructions

Panasonic C-PM-106 Installation Instructions
8
V I EW A
5
6
7
4
3
VIEW B
HOOKS
2
1

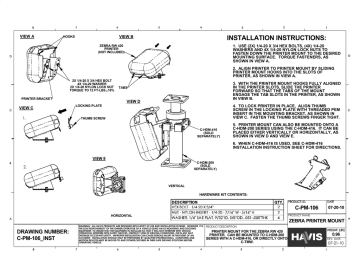

INSTALLATION INSTRUCTIONS:
1. USE (2X) 1/4-20 X 3/4 HEX BOLTS, (4X) 1/4-20
WASHERS AND 4X 1/4-20 NYLON LOCK NUTS TO
FASTEN DOWN THE PRINTER MOUNT TO THE DESIRED
MOUNTING SURFACE. TORQUE FASTENERS, AS
SHOWN IN VIEW A.
ZEBRA RW 420
PRINTER
(NOT INCLUDED)
D
D
2. ALIGN PRINTER TO PRINTER MOUNT BY SLIDING
PRINTER MOUNT HOOKS INTO THE SLOTS OF
PRINTER, AS SHOWN IN VIEW A.
2X 1/4-20 X 3/4 HEX BOLT
4X 1/4-20 WASHER
2X 1/4-20 NYLON LOCK NUT
TORQUE TO 12 FT-LBS 10%
PRINTER BRACKET
C
VIEW C
3. WITH THE PRINTER MOUNT HOOKS FULLY ALIGNED
IN THE PRINTER SLOTS, SLIDE THE PRINTER
FORWARD SO THAT THE TABS OF THE MOUNT
ENGAGE THE TAB SLOTS IN THE PRINTER, AS SHOWN
IN VIEW B.
TABS
VIEW D
LOCKING PLATE
1.
4. TO LOCK PRINTER IN PLACE, ALIGN THUMB
SCREW IN THE LOCKING PLATE WITH THREADED PEM
INSERT IN THE MOUNTING BRACKET, AS SHOWN IN
VIEW C. FASTEN THE THUMB SCREWS FINGER TIGHT.
THUMB SCREW
C-HDM-416
(SOLD
SEPARATELY)
C
5. PRINTER MOUNT CAN ALSO BE MOUNTED ONTO A
C-HDM-200 SERIES USING THE C-HDM-416. IT CAN BE
PLACED EITHER VERTICALLY OR HORIZONTALLY, AS
SHOWN IN VIEW D AND VIEW E.
6. WHEN C-HDM-416 IS USED, SEE C-HDM-416
INSTALLATION INSTRUCTION SHEET FOR DIRECTIONS.
VIEW E
B
C-HDM-200
(SOLD
SEPARATELY)
2.
B
VERTICAL
HARDWARE KIT CONTENTS:
DATE
PRODUCT I.D.
C-PM-106
PRODUCT NAME
HORIZONTAL
A
07-20-10
ZEBRA PRINTER MOUNT
WARNING: ALL HAVIS PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER, IT IS
THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS MOUNTING AND DOCKING
EQUIPMENT, TO INSURE THAT THE EQUIPMENT IN INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
DRAWING NUMBER:
C-PM-106_INST
8
7
6
5
4
PRODUCT DESCRIPTION
WEIGHT: (LBS)
PRINTER MOUNT FOR THE ZEBRA RW 420
PRINTER. CAN BE MOUNTED TO C-HDM-200
SERIES WITH A C-HDM-416, OR DIRECTLY ONTO
C-TMW.
3
2
0.96
REV. DATE
07-21-10
1
A
