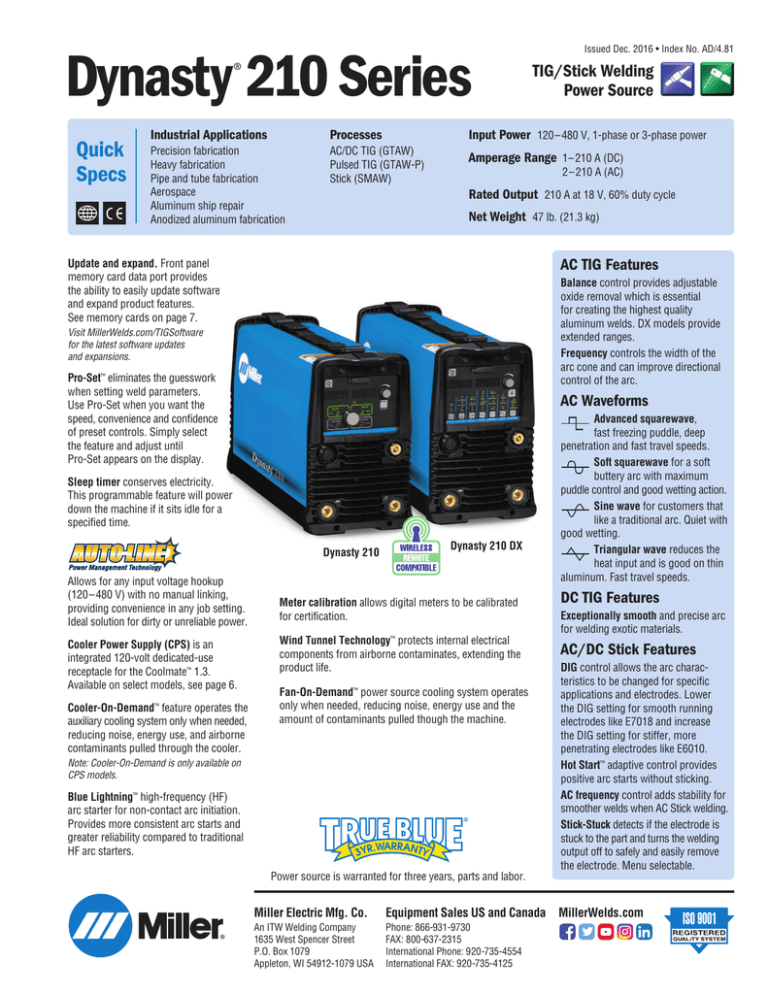

Dynasty® 210 Series

Dynasty® 210 Series
Issued Dec. 2016 • Index No. AD/4.81
Dynasty 210 Series
®
Quick
Specs
Industrial Applications
Processes
Precision fabrication
Heavy fabrication
Pipe and tube fabrication
Aerospace
Aluminum ship repair
Anodized aluminum fabrication
AC/DC TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Input Power 120–480 V, 1-phase or 3-phase power
Amperage Range 1–210 A (DC)
2–210 A (AC)
Rated Output 210 A at 18 V, 60% duty cycle
Net Weight 47 lb. (21.3 kg)
Update and expand. Front panel
memory card data port provides
the ability to easily update software
and expand product features.
See memory cards on page 7.
AC TIG Features
Balance control provides adjustable
oxide removal which is essential
for creating the highest quality
aluminum welds. DX models provide
extended ranges.
Frequency controls the width of the
arc cone and can improve directional
control of the arc.
Visit MillerWelds.com/TIGSoftware
for the latest software updates
and expansions.
Pro-Set™ eliminates the guesswork
when setting weld parameters.
Use Pro-Set when you want the
speed, convenience and confidence
of preset controls. Simply select
the feature and adjust until
Pro-Set appears on the display.
AC Waveforms
Sleep timer conserves electricity.
This programmable feature will power
down the machine if it sits idle for a
specified time.
Dynasty 210
Allows for any input voltage hookup
(120–480 V) with no manual linking,
providing convenience in any job setting.
Ideal solution for dirty or unreliable power.
Cooler Power Supply (CPS) is an
integrated 120-volt dedicated-use
receptacle for the Coolmate™ 1.3.
Available on select models, see page 6.
Cooler-On-Demand™ feature operates the
auxiliary cooling system only when needed,
reducing noise, energy use, and airborne
contaminants pulled through the cooler.
TIG/Stick Welding
Power Source
Dynasty 210 DX
Meter calibration allows digital meters to be calibrated
for certification.
Wind Tunnel Technology™ protects internal electrical
components from airborne contaminates, extending the
product life.
Fan-On-Demand™ power source cooling system operates
only when needed, reducing noise, energy use and the
amount of contaminants pulled though the machine.
Note: Cooler-On-Demand is only available on
CPS models.
Blue Lightning™ high-frequency (HF)
arc starter for non-contact arc initiation.
Provides more consistent arc starts and
greater reliability compared to traditional
HF arc starters.
Advanced squarewave,
fast freezing puddle, deep
penetration and fast travel speeds.
Soft squarewave for a soft
buttery arc with maximum
puddle control and good wetting action.
Sine wave for customers that
like a traditional arc. Quiet with
good wetting.
Triangular wave reduces the
heat input and is good on thin
aluminum. Fast travel speeds.
DC TIG Features
Exceptionally smooth and precise arc
for welding exotic materials.
AC/DC Stick Features
DIG control allows the arc characteristics to be changed for specific
applications and electrodes. Lower
the DIG setting for smooth running
electrodes like E7018 and increase
the DIG setting for stiffer, more
penetrating electrodes like E6010.
Hot Start™ adaptive control provides
positive arc starts without sticking.
AC frequency control adds stability for
smoother welds when AC Stick welding.
Stick-Stuck detects if the electrode is
stuck to the part and turns the welding
output off to safely and easily remove
the electrode. Menu selectable.
Power source is warranted for three years, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada MillerWelds.com
An ITW Welding Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
Specifications (Subject to change without notice.)
Welding
Amperage
Range
Rated Output
Phase
Amps Input at Rated Load Output, 50/60 Hz
120 V 208 V 240 V 400 V 480 V KVA KW
2–210 A (AC)
1–210 A (DC)
210 A at 18.4 V,
60% duty cycle
3-phase
—
16
14
9
7
6.0 5.8
1-phase
—
28
24
14
12
5.8 5.8
120 V
2–210 A (AC)
1–210 A (DC)
125 A at 15 V,
60% duty cycle
1-phase
26
—
—
—
—
3.2 3.1
208–480 V
5–210 A
160 A at 26.4 V,
60% duty cycle
3-phase
—
17
15
9
7
6.1 5.8
1-phase
—
29
25
15
12
6.0 6.0
90 A at 23.6 V,
60% duty cycle
1-phase
28
—
—
—
—
3.3 3.3
Welding
Mode
Input
Power
TIG
(GTAW)
208–480 V
Stick
(SMAW)
120 V
5–100 A
Max. OpenCircuit
Voltage
80 VDC
(11 VDC*)
Dimensions
H: 13.6 in.
(346 mm)
W: 8.6 in.
(219 mm)
D: 22.5 in.
(569 mm)
Net
Weight
47 lb.
(21.3 kg)
50 lb.
(22.7 kg)
with CPS
*Low OCV sense voltage for stick and Lift-Arc ™ TIG.
IP23 rating — This equipment is designed for outdoor use. It may be stored, but is not intended to be used outside during precipitation unless sheltered.
Operating temperature range is 14 to 104° F (-10 to 40° C). Storage temperature range is -22 to 149° F (-30 to 65° C). Portions of the preceding text are contained in
EN 60974-1: “Welding power sources for arc welding equipment.”
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
All CE models conform to the applicable parts of the IEC 60974 series of standards.
Performance Data
Input
Power
TIG (GTAW)
Duty Cycle
Stick (SMAW)
Duty Cycle
AC TIG Material
Thickness Range
DC TIG Material
Thickness Range
Stick Electrode
Maximum Diameter
Generator
Requirement
208–480 V
210 A, 60%
175 A, 100%
210 A, 30%
160 A, 60%
125 A, 100%
0.012 –1/4 in.
(0.3 – 6.4 mm)
0.002 –1/4 in.
(0.05 – 6.4 mm)
6010: 3/16 in. (4.8 mm)
7018: 5/32 in. (4.0 mm)
7024: 5/32 in. (4.0 mm)
9 kW
120 V
150 A, 40%
125 A, 60%
100 A, 100%
100 A, 40%
90 A, 60%
75 A, 100%
Coolmate 1.3 Cooler
™
• Dynasty® models with CPS turn Coolmate 1.3
on and off
• Power indicator light
• Fluid level sight window
• Rustproof polyethylene-molded coolant tank
and filler spout
• 1/4 hp motor is thermally protected to guard
against overheating
2
• Efficient fin and tube heat exchanger
• Factory-set pressure relief valve (55 psi)
maintains consistent pressure during operation
• Filter and coolant filling spout are conveniently
located
• Brass-body, positive displacement rotary vane
pump provides consistent coolant flow and
pressure rating with long pump-life expectancy
Input Power
Maximum Current Draw
Maximum Cooling Capacity
Rated Cooling Capacity
Tank Capacity
Dimensions
Net Weight
115 V, 60 Hz
4.7 A (60 Hz)
3,400 W (11,600 Btu/hr.)
3.8 qt./min. (3.6 L/min.)
1,330 W (4,540 Btu/hr.)
1.1 qt./min. (1 L/min.)
1.3 gal. (4.9 L)
H: 11.25 in. (286 mm)
W: 10.375 in. (264 mm)
D: 24 in. (610 mm)
43 lb.
(20 kg)
Weldcraft W-250 (WP-20) TIG Torch
™
• Efficient around-the-head cooling design
extends torch life and minimizes downtime
due to overheating
• Lightweight, compact body design for
increased comfort and control
Cooling Method
AC Rating
DC Rating
Consumables
Electrode Range
Water-cooled
180 A, 100% duty cycle
250 A, 100% duty cycle
13N
.020 –1/8 in. (0.5–3.2 mm)
TIG Upgrade Chart
Why Upgrade?
Maximum Thickness Capacity
Pulse Control
AC Frequency Control
(Aluminum TIG)
AC Balance Control
(Aluminum TIG)
Syncrowave 210 UPGRADE Dynasty 210 UPGRADE Dynasty 210 DX
1/4 in. aluminum
1/4 in. aluminum
Off–50 PPS
(Expandable Off–150)
Off–250 PPS
Off–500 PPS
Fixed at 100 Hz
(Expandable 60 – 150 Hz)
Variable 70 – 150 Hz
Variable 20 – 400 Hz
60 – 80%
60 – 80%
50 – 99%
AC Waveforms
(Aluminum TIG)
Soft squarewave
Soft squarewave
Advanced squarewave
Soft squarewave
Sine wave
Triangular wave
Portability
133.5 lb. (61 kg)
47 lb. (21.3 kg)
carry or cart
Auto-Line™
120–240 V
1-phase only
Auto-Line™
120–480 V
1-phase or 3-phase
Power Flexibility
Dynasty 210 Benefits
Same material thickness capacity.
Provides more arc stability.
Higher frequencies provide better arc control
and faster travel speeds.
Extended Balance control provides more
versatility on specialty materials.
Advanced squarewave = Travel faster
Soft squarewave = Maximum puddle control
Sine wave = Traditional characteristics
Triangular wave = Reduced heat input
Reduced size and weight provides improved
mobility/portability.
Auto-Line™ allows the unit to operate on any
voltage. 1-phase or 3-phase. Even generators!
3
Dynasty 210 Control Panel
®
7
1
8
2
9
3
4
10
5
11
12
6
13
1. Standby Switch
7. Memory Card Port
2. Voltmeter Display
8. Activity Indicator
3. Ammeter Display
9. Encoder Control
4. Output Contactor “On” Indicator
10. Menu Button
5. AC TIG Process Menu Parameters
Amperage
2 – 210 A**
Balance*
60 – 80%
Frequency*
70 –150 Hz
Postflow
Auto/Off – 50 seconds
11. DC TIG Process Menu Parameters
Amperage
1–210 A**
Pulse*
Off–250 PPS
Postflow
Auto/Off–50 seconds
6. AC Stick Process Menu Parameters
Amperage
5 – 210 A
DIG*
Off –100%
12. DC Stick Process Menu Parameters
Amperage
5–210 A
DIG*
Off–100%
13. Process Selector
*Pro-Set parameter selectable. **Amperage range is tungsten size dependent.
User Menu (Hold Menu button three seconds.)
Tech Menu (Hold Menu button five seconds.)
AC TIG
1. Start = HF/Lift Arc
2. Tungsten Size = .020 –1/8 in. or .05 – 3.2 mm
3. Remote Trigger = STD/HOLD/OUTPUT ON
1. Arc Time
AC Stick
1. Hot Start = ON/OFF
2. Remote Trigger = OUTPUT ON/STD
DC TIG
1. Start = Lift Arc/HF
2. Tungsten Size = .020 –1/8 in. or .05 – 3.2 mm
3. Remote Trigger = STD/HOLD/OUTPUT ON
DC Stick
1. Hot Start = ON/OFF
2. Remote Trigger = OUTPUT ON/STD
4
0.0–9,999 hours
0.0–59 minutes
0–999,999 cycles
Resettable
2. Error Log = Error event recorder
3. Sleep Timer = 1/5/10/15/30/45MIN/1HR
4. Stick Stuc = OFF/ON
5. OCV = LOW/NORM
6. Cooler Power = AUTO/OFF (only on Dynasty models with CPS)
7. Machine Reset
8. Software Number
9. Serial Number
Dynasty 210 DX Control Panel
®
8
1
9
2
10
3
11
1. Standby Switch
2. Voltmeter Display
3. Ammeter Display
4. Polarity
5. Process/
Arc Starting
6. Output Control
4
12
5
6
7
13
14
AC/DC
TIG: HF impulse, Lift-Arc
Stick: Adaptive Hot Start
Standard remote,
2T trigger hold,
Output on
7. Pulser Control
Pulses per Second* DC : 0.1– 500 PPS
AC : 0.1– 500 PPS
Peak Time*
5 – 95%
Background Amps* 5 – 95%
8. Memory Card Port
9. Activity Indicator
10. Encoder Control
11. Amperage Button
TIG AC
2–210 A**
TIG DC
1–210 A**
Stick
5–210 A
12. AC Waveshape
Balance*
Ball (30%), 50–99% EN
Frequency*
20–400 Hz
13. Gas/DIG
Preflow
0.0–25.0 seconds
Postflow
Auto/Off–50 seconds
DIG*
Off–100%
14. Sequencer Control
Initial Amps
AC: 2–210 A**
DC: 1–210 A**
Initial Time
0.0–25.0 seconds
Initial Slope
0.0–50.0 seconds
Weld Time
0.0–999 seconds
Final Slope
0.0–50.0 seconds
Final Amps
AC: 2–210 A**
DC: 1–210 A**
Final Time
0.0–25.0 seconds
*Pro-Set parameter selectable. **Amperage range is tungsten size dependent.
User Menu (Press Gas and Amperage buttons.)
Tech Menu (Hold Gas and Amperage buttons three seconds.)
1. Tungsten Size = .020 –1/8 in./GEN or .05 – 3.2 mm
2. Remote Trigger = 2T/3T/4T/4TL/4TE/4Tm
3. Wave Form = SOFT/ADVS/SINE/TRI
4. Stick Hot Start = ON/OFF
1. Arc Time
0.0–9,999 hours
0.0–59 minutes
0–999,999 cycles
Resettable
2. Error Log = Error event recorder
3. Sleep Timer = 1/5/10/15/30/45MIN/1HR
4. Stick Stuc = OFF/ON
5. OCV = LOW/NORM
6. Weld Timers = OFF/ON
7. Cooler Power = AUTO/ON/OFF (only on models with CPS)
8. Locks = OFF/1–4
9. External Pulse Control = OFF/ON
10. Machine Reset
11. Software Number
12. Serial Number
5
Dynasty 210 Models/Packages
®
Build an
Air-Cooled
Package
Select desired
stock number
for each step.
907685
Dynasty shown.
301311
kit shown.
Step #1 • Select Dynasty
Dynasty 210
Dynasty 210 (CPS)
Dynasty 210 DX
Dynasty 210 DX (CPS)
907685
907685002
907686
907686002
Step #2 • Select Contractor Kit
Note: For models without the
Cooler Power Supply (CPS), the
Coolmate 1.3 must be powered through
an external 120-volt facility power.
Dynasty comes with adjustable shoulder strap, 8 ft. power cord (no plug),
quick reference guide and two 50 mm Dinse-style connectors.
Build a
Water-Cooled
Package
Select desired
stock number
for each step.
Foot Control Contractor Kit
Fingertip Control Contractor Kit
See page 7 for kit contents.
907685001
Dynasty 210
TIGRunner® shown
with four bottles
of 043810
Low-Conductivity
Coolant.
300429 remote shown.
Step #1 • Select Dynasty TIGRunner® and Coolant
Wireless Foot (recommended)
RFCS-14 HD Foot
RCC-14 E/W Fingertip
RCCS-14 N/S Fingertip
RMS-14 Pushbutton
RMLS-14 Momentary/Maintained
RHC-14 Hand
Wireless Hand
Dynasty TIGRunner comes with 8 ft. power cord (no plug),
quick reference guide, Coolmate™ 1.3 and Small Runner™ cart.
See page 7 for remote descriptions.
Use a single stock number
to order a complete
preconfigured system.
6
300185 kit shown.
Step #2 • Select Remote Control
Dynasty 210 (CPS) TIGRunner
907685001
Dynasty 210 DX (CPS) TIGRunner
907686001
&
Low-Conductivity Coolant
043810
(Must be ordered in quantities of four.)
Preconfigured
Water-Cooled
Packages
301309
301311
300429
194744
151086
043688
187208
129337
242211020
300430
Step #3 • Select Torch Kit
W-250 Kit
300185
(recommended for 210 model)
W-280 Kit
300990
See page 7 for kit contents.
Select Water-Cooled Complete Package
951669
package shown.
Dynasty 210 (CPS) Complete with Foot Control
Dynasty 210 (CPS) Complete with Wireless Foot Control
Dynasty 210 DX (CPS) Complete with Foot Control
Dynasty 210 DX (CPS) Complete with Wireless Foot Control
951666
951667
951668
951669
Comes with:
• 8 ft. power cord (no plug)
• Quick reference guide
• Coolmate™ 1.3 300972
• Coolant (4 one-gallon bottles of 043810)
• Small Runner™ cart 301318
• Remote control 194744 (foot) OR remote control 300429 (wireless foot)
• W-250 torch kit 300185 (see page 7 for contents)
Genuine Miller Accessories
®
Protective Cover 301382
Fits Dynasty 210/280 and Maxstar 280.
TIG Torches, Kits and Connectors
2-Wheel Trolley Cart 300971
Easy-to-maneuver two-wheel
cart features single-cylinder
rack, chain for cylinder, cable
holders, torch holder, storage
area, and filler rod storage area.
Works with Dynasty®/Maxstar®
210 and 280 with Coolmate 1.3
cooler. Straps also included for mounting
Dynasty/Maxstar 200 with Coolmate 1 cooler.
Small Runner Cart
301318
Designed for Dynasty/Maxstar
210 and 280 with or without
Coolmate 1.3 cooler. Cart
features single-cylinder rack,
foot pedal holder, two
cable/torch holders, and two
TIG filler rod holders.
Contractor Kits
301309 150 A RFCS-14 HD Foot Pedal Kit
301311 150 A RCCS-14 Fingertip Kit
All-in-one TIG/stick welding kit comes with either
a RFCS-14 HD foot control OR RCCS-14 fingertip
control, Weldcraft™ A-150 TIG torch, 200-amp
stick electrode holder and 300-amp work clamp
with 15-foot (4.6 m) cables, flow gauge regulator
with 12-foot (3.7 m) gas hose, gas hose coupler,
AK2C torch accessory kit and TIG torch connector.
Weldcraft™ A-150 (WP-17)
TIG Torch
WP-17-12-R (12 ft.)
WP-17-25-R (25 ft.)
150-amp air-cooled torch.
Torch body gas valve
models are available.
™
Coolmate™ 1.3
300972 120 V
1.3-gallon cooler designed to
cool torches up to 280 amps.
Performance TIG Gloves
263345 X-Small
263346 Small
263347 Medium
263348 Large
263349 X-Large
Completely unlined, goat grain
leather with triple-padded palm.
Note: A-150 (WP-17) torches require 195378 connector.
Air-Cooled TIG Torch Connectors
195378* All air-cooled torches (except A-200)
195379 A-200 (WP-26)
50 mm Dinse-style for one-piece air-cooled torch.
*A-80 (WP-24) torches require 24-5 connector.
Water-Cooled Torch Kits
300185 W-250 (recommended)
300990 W-280
Kit comes with Weldcraft™ 25-foot (7.6 m) TIG
torch with Dinse-style connector, torch cable
cover, work clamp with 15-foot (4.6 m) cable,
flowmeter regulator with gas hose and torch
accessory kit (1/16-, 3/32- and 1/8-inch 2% ceriated
tungsten, nozzles, collets and collet bodies).
Weldcraft™ W-225 Modular
(WP-225) TIG Torch
WP-225-12-R (12 ft.)
WP-225-25-R (25 ft.)
225-amp water-cooled
torch. Includes 1726 and
9-70 torch heads.
Memory Cards
Memory Card Expansion
301235 Independent AC Expansion
Allows EP and EN amperages and waveforms to
be set independently to precisely control heat
input to the work and electrode.
301151 14-Pin Automation Expansion
Provides the ability to access common automation
functions through the 14-pin connection.
301152 14-Pin Modbus® Expansion
Provides the ability to access basic and advanced
functions through the 14-pin connection.
Memory Card (Blank) 301080
A blank, commercially available memory card used
for transferring software updates and expandable
features from your computer to the machine.
Note: W-225 Modular (WP-225) torch requires
195377 connector.
Water-Cooled TIG Torch Connector 195377
50 mm Dinse-style with water return line. For
use with all Weldcraft™ water-cooled torches.
Remote Controls and Switches
Wireless Remote Foot Control 300429
For remote current and contactor control. Receiver
plugs directly into the 14-pin receptacle of Miller
machine. 90-foot (27.4 m) operating range.
RFCS-14 HD Foot Control 194744
Maximum flexibility is accomplished with a
reconfigurable cord that can exit the front, back
or either side of the pedal. Foot pedal provides
remote current and contactor control. Includes
20-foot (6 m) cord and 14-pin plug.
RCC-14 Remote Contactor and Current Control
151086
East/west rotary-motion fingertip control attaches
to TIG torch using two hook-and-loop fasteners.
Includes 26.5-foot (8 m) cord and 14-pin plug.
RCCS-14 Remote Contactor and Current Control
043688
North/south rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
RMS-14 On/Off Control 187208
Momentary-contact switch for contactor
control. Rubber-covered pushbutton dome
switch ideal for repetitive on-off applications.
Includes 26.5-foot (8 m) cord and 14-pin plug.
RMLS-14 Switch 129337
Momentary- and maintained-contact rocker
switch for contactor control. Push forward for
maintained contact and backward for momentary
contact. Includes 26.5-foot (8 m) cord and
14-pin plug.
RHC-14 Hand Control 242211020
Miniature hand control for remote current and
contactor control. Dimensions: 4 x 4 x 3.25 inches
(102 x 102 x 83 mm). Includes 20-foot (6 m)
cord and 14-pin plug.
Wireless Remote Hand Control
300430
For remote current and contactor
control. Receiver plugs directly
into the 14-pin receptacle of Miller
machine. 300-foot (91.4 m) operating range.
Educational Materials
To order, please call Miller Literature at 866-931-9732
or visit MillerWelds.com/resources/tools.
Gas Tungsten Arc Welding (TIG) Publication
250833
Setup DVD 251116
Video topics include tungsten selection, setup
menus, DC pulse, sequencer, balance and
frequency settings.
Tungsten
Tungsten
Amp Range
2% Ceriated (AC/DC)
2% Lanthanated (AC/DC)
1/16 in. (1.6 mm)
70 –150 A
WC116X7
WL2116X7
3/32 in. (2.4 mm)
140 – 250 A
WC332X7
WL2332X7
1/8 in. (3.2 mm)
225 – 400 A
WC018X7
WL2018X7
5/32 in. (4.0 mm)
300 – 500 A
WC532X7
WL2532X7
7
Ordering Information
Equipment and Options
Stock No.
Description
Dynasty 210
Dynasty® 210 (CPS)
Dynasty® 210 DX
Dynasty® 210 DX (CPS)
Dynasty® 210 DX (CPS) International
907685
907685002
907686
907686002
907686003
Auto-Line 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
Auto-Line™ 120 – 480 V, 50/60 Hz, CE. 8 ft. power cord
Water-Cooled Packages
Dynasty® 210 (CPS) TIGRunner®
907685001
Dynasty® 210 DX (CPS) TIGRunner®
907686001
Dynasty® 210 (CPS) Complete w/Foot Control
Dynasty® 210 (CPS) Complete
with Wireless Foot Control
Dynasty® 210 DX (CPS) Complete w/Foot Control
Dynasty® 210 DX (CPS) Complete
with Wireless Foot Control
951666
951667
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
(Torch kit, accessories and coolant sold separately)
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
(Torch kit, accessories and coolant sold separately)
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
951668
951669
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
Auto-Line™ 120 – 480 V, 50/60 Hz, CSA. 8 ft. power cord
301382
300971
301318
300972
043810
For Dynasty 210/280 and Maxstar 280
See page 7
See page 7
120 V, 60 Hz, CSA. Requires coolant
1-gallon plastic bottle. Protects against freezing to
-37° Fahrenheit (-38° C) or boiling to 227° Fahrenheit (108° C)
See page 7
See page 7
301309
301311
WP-17-12-R
WP-17-25-R
WP-26-12-R
WP-26-25-R
195378
Foot pedal
Fingertip
12 ft. (3.7 m) cable. Requires 195378 connector
25 ft. (7.6 m) cable. Requires 195378 connector
12 ft. (3.7 m) cable. Requires 195379 connector
25 ft. (7.6 m) cable. Requires 195379 connector
Connects all air-cooled Weldcraft™ torches (except A-200) to
Dinse-style connector. A-80 (WP-24) torches require 24-5 connector
Connects Weldcraft™ A-200 (WP-26) torch to Dinse-style connector
W-250 (Recommended for Dynasty 210)
W-280
12 ft. (3.7 m) cable. Requires 195377 connector
25 ft. (7.6 m) cable. Requires 195377 connector
Connects Weldcraft™ water-cooled torches to Dinse-style connector
See page 7
®
Accessories
Protective Cover
2-Wheel Trolley Cart
Small Runner™ Cart
Coolmate™ 1.3
TIG Coolant (Must be ordered in quantities of four)
TIG Gloves
Memory Cards
TIG Torches, Kits and Connectors
Air-Cooled Contractor Kits
Weldcraft™ A-150 (WP-17) TIG Torch
Weldcraft™ A-200 (WP-26) TIG Torch
Air-Cooled TIG Torch Connectors
Water-Cooled Torch Kits
Weldcraft™ W-225 Modular (WP-225) TIG Torch
Water-Cooled TIG Torch Connector
Tungsten
195379
300185
300990
WP-225-12-R
WP-225-25-R
195377
Remote Controls
Wireless Remote Foot Control
RFCS-14 HD
RCC-14
RCCS-14
RMS-14
RMLS-14
RHC-14
Wireless Remote Hand Control
300429
194744
151086
043688
187208
129337
242211020
300430
Educational Materials
Gas Tungsten Arc Welding (TIG) Publication
Setup DVD
250833
251116
Date:
Distributed by:
© 2016 Miller Electric Mfg. Co.
Qty.
™
Foot control with wireless 90 ft. (27.4 m) operating range
Heavy-duty foot control
Side-to-side (east/west) fingertip control
North/south fingertip control
Momentary rubber dome switch
Momentary/maintained rocker switch
Hand control
Hand control with wireless 300 ft. (91.4 m) operating range
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
