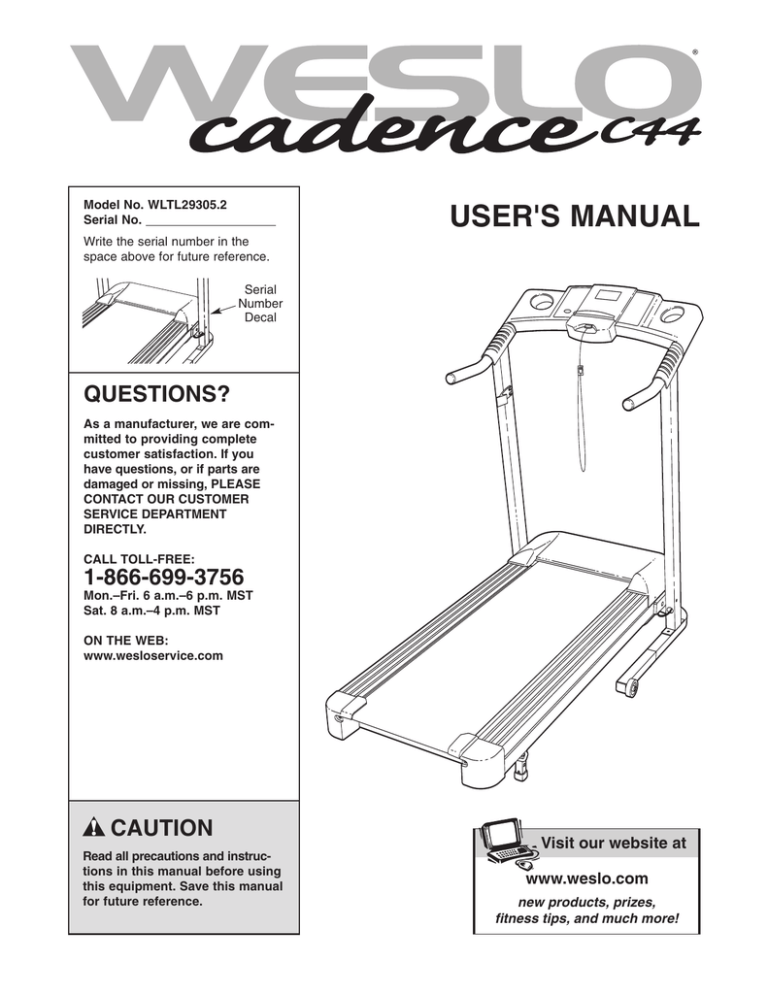

Model No. WLTL29305.2
Serial No.
USER'S MANUAL
Write the serial number in the
space above for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.wesloservice.com
CAUTION
Visit our website at
Read all precautions and instructions in this manual before using
www.proform.com
this equipment. Save this manual
for future reference.
new products, prizes,
fitness tips, and much more!
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
A PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WESLO is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read
the following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage,
place a mat under the treadmill.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See page
16 if the treadmill is not working properly.)
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
15. Read, understand, and test the emergency
stop procedure before using the treadmill
(see STEP-BY-STEP CONSOLE OPERATION
on page 11).
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
8. Never allow more than one person on the
treadmill at a time.
18. The pulse sensor is not a medical device.
Various factors, including your movement, may
affect the accuracy of heart rate readings. The
pulse sensor is intended only as an exercise
aid in determining heart rate trends in general.
9. Wear appropriate exercise clothes when using
the treadmill. Do not wear loose clothes that
could become caught in the treadmill. Athletic
support clothes are recommended for both
men and women. Always wear athletic shoes.
Never use the treadmill with bare feet, wearing only stockings, or in sandals.
19. Never leave the treadmill unattended while it is
running. Always remove the key and unplug the
power cord when the treadmill is not in use.
10. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO MOVE
THE TREADMILL on page 14.) You must be
able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local WESLO dealer or call the toll-free
telephone number on the front cover of this
manual and order part number 146148, or see
your local electronics store.
21. Do not change the incline of the treadmill by
placing objects under the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
3
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. Never drop or insert any object into any
opening.
25.
DANGER: Always unplug the power
26. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
WARNING:
Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on the treadmill. If a decal is missing, or if it is not legible, call
the toll-free telephone number on the front cover of this manual and order a free replacement decal.
Apply the decal in the location shown. Note: The decals are not shown at actual size.
50%
4
BEFORE YOU BEGIN
Thank you for selecting the WESLO® CADENCE C44
treadmill. The CADENCE C44 treadmill combines
advanced technology with innovative design to let you
enjoy an excellent form of cardiovascular exercise in
the convenience and privacy of your home. And when
you’re not exercising, the unique CADENCE C44 can
be folded up, requiring less than half the floor space of
other treadmills.
number and serial number before calling. The model
number of the treadmill is WLTL29305.2. The serial
number can be found on a decal attached to the
treadmill (see the front cover of this manual for the
location).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.wesloservice.com/registration.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Accessory Tray
Water Bottle Holder*
Key/Clip
Handrail
Storage Latch
FRONT
Upright
Reset/Off
Circuit Breaker
Walking Belt
Power Cord
Foot Rails
RIGHT SIDE
BACK
Incline Pin
Incline Leg
Rear Roller
Adjustment Bolts
5
*No water bottle is included
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not
affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a
soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches
and your own phillips screwdriver
,
two adjustable wrenches
, and needlenose pliers
. To avoid damaging plastic
parts, do not use power tools for assembly.
To identify the assembly hardware, see the PART IDENTIFICATION CHART in the center of this manual.
1. Attach six Base Pads (63) to the undersides of the Base
(46) and the Extension Legs (56) with six 3/4” Tek
Screws (3). Note: There are small holes for attaching the
Base Pads only in the undersides of the Base and the
Extension Legs.
1
3
63
46
3
3
63
3
63
56
63
2. Insert an Extension Leg (56) into each end of the Base
(46). Attach each Extension Leg with two Extension Leg
Screws (89).
Attach a Wheel (68) to the outer side of each Extension
Leg (56) with a Wheel Bolt (67), a 3/8” Washer (66), and
a 3/8” Nut (61) as shown. Note: Do not overtighten the
Wheel Bolts; the Wheels should turn freely.
2
89
67
56
46
89
61
68
66
56
61
66
67
68
6
3. Have a second person hold the Base (46) in a vertical
position as shown. Hold the Right Upright (62) against
the Base so the indicated large hole is in the position
shown. Attach the Right Upright with two Upright Bolts
(65), two 3/8” Washers (66), and two 3/8” Nuts (61) as
shown. Do not tighten the Upright Bolts yet.
3
66
65
62
Attach the Left Upright (not shown) to the Base (46) in
the same way. Note: The Left Upright does not have a
large hole.
46
Large
Hole
4. Hold a Frame Spacer (27) against the right side of the
Frame (79) as shown. Insert a Frame Bolt (70) into the
frame bolt hole in the Upright Spacer and the Frame.
Next, tighten a Spacer Screw (45) into the Upright
Spacer and the Frame. Then, remove the Frame Bolt.
Repeat this step on the other side of the Frame.
61
65 66
4
27
45
70
79
5. Position the Base (46) over the Frame (79) as shown.
Insert the Wire Harness (60) into the large hole in the
Right Upright (62) and out of the top.
5
62
46
60
Large
79 Hole
6. Raise the Right Upright (62) and the Left Upright (not
shown) so the Base (46) is flat on the floor. Make sure
that the upper end of the Wire Harness (not shown)
does not fall into the Right Upright.
With the help of a second person, lift and hold the Frame
(79) between the Right Upright (62) and the Left Upright
(not shown). Finger tighten a Frame Bolt (70) with a
Washer (66) and a 3/8” Star Washer (29) through the
Right Upright and the Frame Spacer (27) and into the
Frame. Do not tighten the Frame Bolt yet. Repeat this
step on the left side of the treadmill.
7
6
62
46
29
66
27
79
70
7. Hold one of the Handrails (59) near the Right Upright
(62). Route the Wire Harness (60) into the hole in the
bottom of the Handrail and out of the hole in the left side
as shown. Then, remove the colored tie from the end of
the Wire Harness.
7
Ground Wire
69
60
42
78
Set the Handrail (59) on the Right Upright (62), and tighten a Handrail Bolt (42) with a 5/16” Star Washer (78) into
the Handrail and the Right Upright. Make sure that the
Wire Harness (60) does not get pinched. Firmly tighten
the Handrail Bolt. Attach the end of the ground wire to
the Handrail with the Silver Ground Screw (69).
59
62
Attach the other Handrail (not shown) to the Left Upright
(not shown) as described above. Note: There is not a
wire on the left side.
8. Set the Console Base (52) on the Handrails (59). Thread
four 3/4” Screws (2) into the Handrails and the Console
Base. After you have started all four Screws, tighten the
Screws until they are snug; do not overtighten the
Screws. Note: It may be helpful to press down on the
top of the Console Base above the Handrails as you
tighten the Screws.
8
52
59
Insert the Wire Harness (60) through the two indicated
plastic ties on the Console Base (52) and up through the
opening in the Console Base as shown.
9. Hold the Console (55) near the Console Base (52).
Touch the right Handrail (59) to discharge any static.
Insert the Wire Harness (60) through the plastic tie
labeled “C” in the drawing at the right. Next, locate the
connector on the Wire Harness. Plug the Wire Harness
into the connector labeled “A” in the drawing at the right
and in the inset drawing. The connectors should slide
together easily and snap into place. If they do not,
turn the connector on the Wire Harness and try again. IF
THE CONNECTOR IS NOT INSERTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Pull any slack in the Wire Harness (60) through the plastic tie labeled “C,” and securely tighten the plastic tie
around the Wire Harness. Cut off the end of the plastic
tie.
8
59
60
Plastic Ties
2
2
9
55
A
Tie C
59
52
60
60
A
10. Set the Console (55) in the Console Base (52). Make
sure that no wires are pinched. Insert as much of the
Wire Harness (60) as possible down into the hole in the
right Handrail (59). Securely tighten the plastic tie
nearest to the right Handrail. Next, pull any excess
Wire Harness between the plastic ties tight, and tighten
the other plastic tie. Cut off the ends of the plastic ties.
10
Ties
2
52
Attach the Console (55) to the Console Base (52) with
seven 3/4” Screws (2) in the locations shown. Note:
There should not be a Screw in the hole indicated
by the arrow. Do not overtighten the Screws.
No
Screw
55
60
2
2
59
11. Lower the Uprights (53, 62) until the Handrails (59) are
touching the floor.
11
70
53, 62
See the lower drawing. Position the Uprights (53, 62) so
the treadmill Frame (79) is centered between them.
65
Firmly tighten the four Upright Bolts (65) and the two
Frame Bolts (70). Be careful not to overtighten the
Frame Bolts.
59
Top View
62
53
79
12. With the help of a second person, carefully raise the
Left Upright (53) and Right Upright (not shown), to a
vertical position. Attach the Storage Latch (48) to the
Left Upright (53) with two 3/4” Screws (2).
12
53
48
2
13. Make sure that all parts used in assembly are properly tightened before you use the treadmill. Keep
the included allen wrench in a secure place; the allen wrench is used to adjust the walking belt (see page
17). To protect the floor or carpet, place a mat under the treadmill.
9
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
least resistance for electric current to reduce the risk
of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into a surge
suppressor, and plug the surge suppressor into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
DANGER:
Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances being turned on or off. To decrease the possibility of your treadmill being damaged, always
use a surge suppressor with your treadmill (see
drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call the
toll-free telephone number on the front cover of
this manual and order part number 146148, or see
your local electronics store.
Grounding Pin
Grounded Outlet
Grounding Plug
2
Grounded Outlet Box
Adapter
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have
a UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed, accelerate or stop
unexpectedly, which may result in a fall and serious injury.
Surge Suppressor
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet
box covers are not grounded. Contact a qualified
electrician to determine if the outlet box cover is
grounded before using an adapter.
This product must be grounded. If it should malfunction or break down, grounding provides a path of
10
STEP-BY-STEP CONSOLE OPERATION
Follow the steps below to operate the console.
Note: If there is a sheet of clear plastic on the console,
remove the plastic. The first time the treadmill is used,
observe the alignment of the walking belt, and align the
walking belt if necessary (see page 17).
1
Insert the key into the console.
See the instructions at the left.
2
Start the walking belt.
To start the walking belt, press the Speed
increase button or the Walk, Jog, Run, or Cool
Down button.
If the Speed
increase button is
pressed, the walking belt will begin to
move at 1 mph. As
you exercise,
change the speed
of the walking belt
as desired by pressing the Speed increase and
decrease buttons. Each time a button is pressed,
the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in
increments of 0.5 mph.
Before operating the
console, make sure
that the power cord is
Reset
properly plugged in
(see page 10). In
addition, locate the
reset/off circuit breaker on the treadmill frame near the power cord, and
make sure that the circuit breaker is in the reset position.
If the Walk, Jog, Run, or Cool Down button is
pressed, the walking belt will gradually change
speed until it reaches the selected speed setting.
To stop the walking belt, press the Stop button.
(Important: Press the left or right side of the
Stop button; pressing the center of the Stop
button will not stop the walking belt.) The time
will begin to flash in the display. To restart the
walking belt, press the Speed increase button or
the Walk, Jog, Run, or Cool Down button.
Next, stand on the foot
rails of the treadmill.
Clip
Find the clip attached
Key
to the key, and slide
the clip onto the waistband of your clothes.
Then, insert the key
into the console. After
a moment, the display
will light. Important:
In an emergency situation, the key can be pulled
from the console, causing the walking belt to slow
to a stop. Test the clip by carefully taking a few
steps backward; if the key is not pulled from the
console, adjust the position of the clip.
Note: The console can display speed and distance in either miles or kilometers (see step 3
on page 12). For simplicity, all instructions in
this section refer to miles.
11
3
Note: The console can display distance and
speed in either miles or kilometers. An “mph” or a
“km/h” will appear in the display when the Speed
mode is displayed to show which unit of measurement is selected. To change the unit of measurement, first hold down the Stop button while inserting the key into the console; continue to hold
down the Stop
button until an “E”
(for English) or an
“M” (for metric)
appear in the display. Press the
Speed increase
button to change
the unit of measurement. When the desired unit of
measurement is selected, remove the key and
reinsert it.
Follow your progress with the display.
The display features seven modes:
• Time—This mode displays the elapsed time.
• Distance—This mode displays the distance that
you have walked or run.
• Fat Calories—This mode displays the approximate number of fat calories you have burned
(see FAT BURNING on page 18).
• Calories—This mode displays the approximate
number of calories you have burned.
• Speed—This mode displays the speed of the
walking belt.
• Pulse—This mode displays your heart rate
when you use the pulse sensor.
To reset the displays, press the Stop button,
remove the key, and then reinsert the key.
• Scan—This mode displays the time, distance,
fat calories, calories, speed, and pulse modes,
for a few seconds each, in a repeating cycle.
Note: The pulse mode will be displayed only
while the pulse sensor is being used.
4
Measure your heart rate if desired.
To measure your
Pulse Sensor
heart rate, stand
on the foot rails
and place your
thumb on the
pulse sensor. Do
not press too
hard, or the circulation in your thumb will be restricted and
your pulse will not be detected. After a few seconds, the heart-shaped indicator in the display will
begin to flash each time your heart beats, one or
two dashes will appear, and then your heart rate
will be shown. Hold your thumb on the pulse sensor for about 15 seconds for the most accurate
reading.
Each time the
Mode Indicators
key is inserted
into the console,
the Scan mode
will be selected.
One mode indicator will appear
below the word
SCAN to show
that the scan
mode is selected, and a second mode indicator
will show which mode is currently displayed.
Note: If you have selected a different mode,
repeatedly press the MODE button to reselect the
scan mode.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds. Then, place your thumb on the pulse sensor
as described above. Remember to stand still while
measuring your heart rate.
To select the
Time, Distance,
Fat Calories,
Calories, Speed,
or Pulse mode
for continuous
display, repeatedly press the
MODE button. The mode indicators will show
which mode is selected. Make sure that there is
not a mode indicator below the word SCAN.
5
When you are finished exercising, remove the
key.
Step onto the foot rails, press the Stop button, and
remove the key from the console. Keep the key in a
secure place. Then, move the reset/off circuit
breaker to the off position and unplug the power
cord.
12
HOW TO CHANGE THE INCLINE OF THE
TREADMILL
Incline
Pin
To vary the intensity of your exercise, the incline of
the treadmill can be changed; there are three incline
levels. Before changing the incline, remove the key
and unplug the power cord. Next, fold the treadmill
to the storage position (see HOW TO FOLD THE
TREADMILL FOR STORAGE on page 14).
Incline
Pin
Incline
Pin
To change the incline, first remove the incline pin from
one of the incline legs as shown at the right. Next,
adjust the incline leg to the desired height, and fully
reinsert the incline pin. Make sure that the incline pin
is in the “locked” position shown in the inset drawing.
CAUTION: Before using the treadmill, make sure
that both incline legs are at the same height. Do
not use the treadmill with the incline pins
removed. After you have adjusted the incline legs,
lower the treadmill (see HOW TO LOWER THE
TREADMILL FOR USE on page 15).
Adjust the other incline leg in the same way. Make
sure that both incline pins are inserted from the
direction shown in the drawing.
13
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord.
CAUTION: You must be able to safely lift 45 pounds (20
kg) in order to raise, lower or move the treadmill.
1. Hold the treadmill with your hands in the location shown
by the arrow at the right. To decrease the possibility of
injury, bend your legs and keep your back straight.
As you raise the frame, make sure to lift with your
legs rather than your back. Raise the frame about
halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left thumb, press the storage
latch to the left. Raise the frame until the storage latch
closes over the catch. Make sure that the storage latch
is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.
Closed
Storage
Latch
Catch
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
storage latch is fully engaged over the catch.
1. Hold the handrails, and place one foot against one of the
wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not move the treadmill over
an uneven surface.
3. Place one foot against one of the wheels, and carefully
lower the treadmill to the storage position.
14
Handrails
Front
Wheels
Base
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand.
Press the storage latch to the left. Pivot the frame down
until the frame and the foot rail are past the storage
latch.
Closed
Storage
Latch
Catch
2. Hold the frame firmly with both hands, and lower the
frame to the floor. Do not drop the frame to the floor.
To decrease the possibility of injury, bend your legs
and keep your back straight.
15
MAINTENANCE AND TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call the toll-free telephone number on the
front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. Important: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has
tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
c
Tripped
Reset
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see 1. c.
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, see the front cover of this manual.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG
THE POWER CORD. Remove the screws from the
hood. Carefully remove the hood. Locate the Reed
Switch (76) and the Magnet (47) on the left side of
the Pulley (77). Turn the Pulley until the Magnet is
aligned with the Reed Switch. Make sure that the
gap between the Magnet and the Reed Switch is
about 1/8”. If necessary, loosen the Screw (17),
move the Reed Switch slightly, and then retighten
the Screw. Reattach the hood, and run the treadmill
for a few minutes to check for a correct speed reading.
16
a
1/8”
17
77
76
Top View
47
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page
10.
b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the allen wrench, turn
both rear roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt 2
to 3 inches off the walking platform. Be careful to
keep the walking belt centered. Then, plug in the
power cord, insert the key, and run the treadmill for a
few minutes. Repeat until the walking belt is properly
tightened.
b
2”–3”
Rear Roller Bolts
c. If the walking belt still slows when walked on, see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
17
a
b
CONDITIONING GUIDELINES
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the
treadmill until your heart rate is near the lowest number in your training zone.
WARNING:
Before beginning
this or any exercise program, consult your
physician. This is especially important for
individuals over the age of 35 or individuals
with pre-existing health problems.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
The following guidelines will help you to plan your
exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
WORKOUT GUIDELINES
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up
increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—
never hold your breath.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent postexercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months, you may complete up to five workouts each week if desired. The
key to success is to make exercise a regular and
enjoyable part of your everyday life.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body
18
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
1
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
2
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for
each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
19
5
PART IDENTIFICATION CHART
Remove this chart and use it to identify small parts during assembly. Save
this chart and the EXPLODED DRAWING/PART LIST for future reference.
5/16” Star
Washer (78)–2
3/8” Star
Washer (29)–2
3/4” Screw (2)–13
3/4” Tek Screw (3)–6
Handrail Bolt (42)–2
Upright Bolt (65)–4
3/8” Washer
(66)–8
3/8” Nut (61)–6
Extension Leg
Screw (89)–4
Wheel Bolt (67)–2
Frame Bolt (70)–2
Silver Ground
Screw (69)–1
Spacer Screw
(45)–2
PART LIST—Model No. WLTL29305.2
Key No. Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
1
14
13
5
1
1
1
2
4
4
2
2
1
2
4
1
1
2
1
1
2
1
1
1
1
1
2
1
2
1
1
13
1
2
1
1
2
2
1
2
1
2
8
2
2
1
1
Description
Key No. Qty.
Motor Hood
3/4” Screw
3/4” Tek Screw
8” Cable Tie
Cable Tie
Clamp Screw
Cable Tie Clamp
Foot Rail
Isolator
Front Platform Screw
Rear Roller Star Washer
Incline Leg Washer
Catch
Belt Guide
Belt Guide Screw
Reed Switch Clip
Reed Switch Screw
Hood Anchor
Drive Motor
Pulley/Flywheel/Fan
Frame U-nut
Motor Tension Bolt
Motor Tension Washer
Motor Star Washer
Motor Tension Nut
Motor Pivot Bolt
Frame Spacer
Power Cord Grommet
3/8” Star Washer
Power Cord
Controller
Electronic Screw
Choke
Handrail Endcap
Electronics Bracket
Reset/Off Circuit Breaker
Base Leg Endcap
Rear Roller Adjustment Washer
Front Roller Adjustment Bolt
Plastic Fastener
Motor Belt
Handrail Bolt
Isolator Screw
U-nut
Spacer Screw
Upright Base
Magnet
48
1
49
1
50
1
1
51
52
1
53
1
54
1
55
1
56
2
57
4
58
1
59
2
1
60
61
6
62
1
63
6
64
1
65
4
66
8
67
2
68
2
69
1
70
2
71
1
72
1
73
1
74
1
75
1
76
1
77
1
78
2
79
1
2
80
81
2
82
2
83
1
1
84
85
1
86
2
2
87
88
2
89
4
1
90
91
2
#
1
#
1
Note: “#” indicates
R0408A
Description
Storage Latch
Left Endcap
Ground Wire
Key/Clip
Console Base
Left Upright
Battery Cover
Console
Extension Leg
Hood Screw
Upright Grommet
Handrail
Wire Harness
3/8” Nut
Right Upright
Base Pad
Allen Wrench
Upright Bolt
3/8” Washer
Wheel Bolt
Wheel
Ground Screw
Frame Bolt
Motor Pivot Nut
Walking Belt
Belly Pan
Walking Board
Large Warning Decal
Reed Switch/Sensor Wire
Drive Roller/Pulley
5/16” Star Washer
Frame
Incline Pin
Incline Leg
Incline Leg Cap
Right Endcap
Hole Plug
Rear Roller
Rear Roller Adjustment Bolt
Catch Screw
Rear Platform Screw
Base Leg Screw
Front Roller Star Washer
Electronic Bracket Star Washer
4” White Wire, M/F
User’s Manual
a non-illustrated part.
Specifications are subject to change without notice. See the back cover of the user’s manual for information
about ordering replacement parts.
86
64
11
38
80
49
75
57
3
12
86
82
40
88
81
87
9
7
3
5
11
83
38
85
13
4
1
3
14
12
82
40
81
43
10
15
8
57
88
9
45
57
74
10
32
50
79
43
80
57
27
72
10
47
76
20
41
77
16
43
17
21
19
24
61
23
22
9
8
3
43
26
32
21
18
28
3
15
14
10
25
29
3
73
9
90
18
3
36
30
39
38
84
31
45
37
67
27
33
32
34
51
68
59
66
91
32
61
56
35
48
42
78
52
32
63
3
63
3
32
2
66
37
61
66
65
29
70
44
66
89
2
2
68
61
34
2
67
56
66
53
54
3
63
65
59
2
44
63
3
65
46
78
42
69
63
3
60
2
66
89
60 58
29
61
62
66
55
66
65
3
63
70
2
EXPLODED DRAWING—Model No. WLTL29305.2
R0408A
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information:
• the MODEL NUMBER of the product (WLTL29305.2)
• the NAME of the product (WESLO CADENCE C44 treadmill)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The drive motor is warranted for one (1) years after
the date of purchase. Parts and labor are warranted for ninety (90) days after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; to products
used for commercial or rental purposes; or to products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 239859 R0408A
Printed in USA © 2008 ICON IP, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
