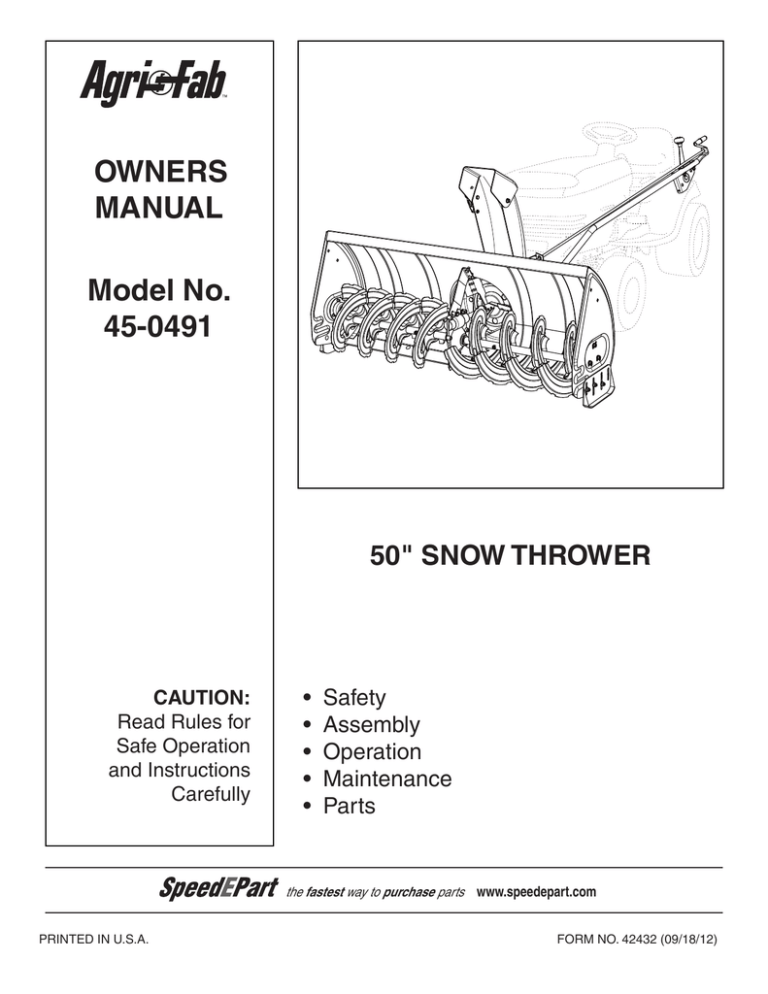

OWNERS

MANUAL

Model No.

45-0491

50" SNOW THROWER

CAUTION:

Read Rules for

Safe Operation and Instructions

Carefully

• Safety

• Assembly

• Operation

• Maintenance

• Parts

PRINTED IN U.S.A. the

fastest way to purchase parts www.speedepart.com

FORM NO. 42432 (09/18/12)

TABLE OF CONTENTS

ACCESSORIES ...............................................................2

SAFETY RULES ..............................................................3

FULL SIZE HARDWARE CHART .................................4,5

CARTON CONTENTS .....................................................6

ASSEMBLY ......................................................................7

OPERATION ..................................................................18

MAINTENANCE ............................................................19

SERVICE AND ADJUSTMENTS ...................................20

STORAGE .....................................................................21

TROUBLESHOOTING ...................................................21

REPAIR PARTS ILLUSTRATION ........................22,24,26

REPAIR PARTS LIST...........................................23,25,26

SLOPE GUIDE ..............................................................27

PARTS ORDERING/SERVICE ...................BACK COVER

IMPORTANT:

Rear wheel weights and tire chains are required to provide extra traction and stability when using this snow thrower attachment. These items are available where you purchased your tractor.

WHEEL WEIGHTS TIRE CHAINS

2

SAFETY

Read and understand the operating instructions before using.

Keep the area of operation clear of all persons, especially small children and pets.

Thoroughly inspect the area to be cleared and remove all door mats, sleds, boards, wires and other foreign objects. Use extreme caution when operating on or crossing gravel surfaces. Never direct discharge at bystanders or allow anyone in front of the snow thrower.

184045

199682

Do not place hands near rotating parts. Keep clear of the discharge opening at all times.

199683

Do not place feet near rotating parts.

• Never allow children to operate the equipment.

• Never allow adults to operate the equipment without proper instruction.

• Disengage all clutches and shift into neutral before starting engine.

• Do not operate equipment without wearing adequate winter outer garments.

• Wear substantial footwear which will protect feet and improve footing on slippery surfaces.

• Check fuel before starting the engine. Do not remove the fuel cap or fill the fuel tank while the engine is running or hot. Do not fill the fuel tank indoors.

Gasoline is an extremely flammable fuel.

• Make sure the snow thrower height is adjusted to clear the type surface it will be used on.

• Do not use the snow thrower without wheel weights attached to the tractor.

• Never make any adjustments while the engine is running.

• Always wear safety glasses or eye shield during operation or while performing adjustment or repair.

• Do not place hands or feet near rotating parts. Keep clear of the discharge opening at all times.

• Do not carry passengers.

• After striking a foreign object, stop the engine, remove the wire from the spark plug and then thoroughly inspect the snow thrower for damage. Repair any damage before restarting and operating the snow thrower.

• If the snow thrower starts to vibrate abnormally, stop the engine immediately and check for the cause.

Vibration is generally a warning of trouble.

• Stop the engine whenever you leave the operating position, before unclogging the snow thrower or making any adjustments or inspections.

3

• Take all possible precautions when leaving the unit unattended. Disengage the attachment clutch lever or switch, lower the snow thrower, shift into neutral, set the parking brake, stop the engine and remove the key.

• When cleaning, repairing or inspecting, make certain all moving parts have stopped. Disconnect the spark plug wire and keep it away from the plug to prevent accidental starting.

• Do not run engine indoors except when transporting the snow thrower in or out of the building. Open the outside doors. Exhaust fumes are dangerous.

• Do not clear snow across the face of slopes. Exercise extreme caution when changing direction on slopes.

Do not attempt to clear steep slopes. Refer to the slope guide on page 35 of this manual.

• Never operate the snow thrower without guards, plates or other safety protection devices in place.

• Never operate the snow thrower near glass enclosures, automobiles, window wells, drop offs etc. without proper adjustment of the snow thrower discharge angle.

• Never run the snow thrower into snow at high speeds.

• Do not overload the snow thrower capacity by attempting to clear snow at too fast a rate.

• Never operate the snow thrower at high transport speed on slippery surfaces. Look behind and use care when backing up.

• Watch for traffic and stay alert when crossing or operating near roadways.

• Disengage power to the snow thrower when transporting or when not in use.

• Use only attachments and accessories approved by the manufacturer of the snow thrower (such as wheel weights, counter weights, cabs etc.)

• Never operate the snow thrower without good visibility.

HARDWARE PACKAGE CONTENTS

ATTENTION:

The hardware bags may contain some bolts and nuts which do not appear on this page or the following page. Those bolts and nuts will not be needed for the assembly of your snow thrower.

SHOWN ACTUAL SIZE

A

43063

B

43182

C

43661

D

47630

E

F

48106

G

710-0890A

46938

N

49933

H

43350

I

44215

J

43682

K

44326

L

43080

M

O

P

Q

R

R19171616

44695

43088

S

43003

43081

T

43082

U

43070

47810

V

47572

R19172410

W

X

47598

4

46959

43038

Y

731-0851A

NOT SHOWN ACTUAL SIZE

Z

AA

47134

43055

BB

DD

711-0332

EE

II

JJ

1643-60

FF

47788

23727

GG

726-0178

KK

43343

HH

25780

HA23761

LL

CC

46963

IMPORTANT:

Not all items supplied in the hardware bags will be needed for your particular tractor. Unneeded items may be discarded after you have completed assembly and checked operation of unit. DO NOT DISCARD the two spare shear bolts (F) and 5/16" nylock nuts (Y). Refer to the Service and Adjustments section on page 20.

P

Q

R

S

M

N

O

K

L

H

I

J

REF. QTY. DESCRIPTION

A 1 Hex Bolt, 3/8" x 3-1/4"

B 4 Hex Bolt, 5/16" x 1"

C

D

E

F

G

4

6

2

2

2

Hex Bolt, 5/16" x 3/4"

Hex Bolt, 1/4" x 1"

Hex Bolt, 5/16" x 3/4" (Thread Forming)

Shear Bolt (spare parts)

Shoulder Bolt, Hex Head

2

6

2

2

4

Shoulder Bolt, Round Head

Carriage Bolt, 3/8" x 1"

Carriage Bolt, 5/16" x 1-3/4"

Carriage Bolt , 5/16" x 1-1/4"

Carriage Bolt, 5/16" x 1"

1 Carriage Bolt, 5/16" x 3/4"

1 Washer, 1/2" x 1"

7 Washer, 1/4"

19 Washer, 5/16" (Extra washers included)

3 Washer, 3/8" Standard

4 Washer, 1/2" x 1-1/2"

2 Bowed Washer

FF

GG

HH

II

JJ

KK

LL

AA

BB

CC

DD

EE

REF. QTY. DESCRIPTION

T 1 Lock Washer, 3/8"

U 2 Hex Lock Nut, 3/8"

V

W

X

Y

Z

19

10

6

1

3

Nylock Nut, 5/16" (2 spare parts)

Flanged Nut, 3/8"

Flanged Nut, 1/4"

Spring

Chute Keeper

2

1

6

2

2

Hairpin Cotter, 5/64"

Hairpin Cotter, 3/32"

Hairpin Cotter

Lock Pin

Clevis Pin, 1/2" x 7/8"

1 Plastic Cap

1 Spacer, 1/4"

1 Spacer, 3/8"

2 Chain, Tensioning

2 Tail Reflector

8 Nylon Tie

1 Cable Clip

5

CARTON CONTENTS

1. Housing Assembly

2. Chute Crank Rod Assembly

3. Support Tube, Crank Rod

4. Winch Assembly

5. Anti-rotation Bracket.

6. Front Pulley Frame Bracket (2)

7. Rear Pulley Frame Bracket (2)

8. V-Belt, Drive 56" (#48138)

9. V-Belt, Drive 55" (#46989)

10. V-Belt, Auger (Attached to Housing Assembly)

11. Clutch Idler Assembly

12. Cable Bracket

13. L.H. Hanger Bracket

14. R.H. Hanger Bracket

15. Pulley

16. Chute and Control Cable Assembly

17. Right Hand Side Plate

18. Left Hand Side Plate

19. Switch Mounting Assembly

20. Wire Harness

48138

46989

8

9

47846

19

10

1

25678

2

11

13

4

24394

12

27016

24558

14

5

15

6

65367

17

65450

18

48883

25679

20

67714 42554

3

7

25728

16

6

TOOLS REQUIRED FOR ASSEMBLY

(2) 7/16" Wrenches

(2) 1/2" Wrenches

(2) 9/16" Wrenches

(2) 3/4" Wrenches

(1) Screw Driver

(1) Knife

ASSEMBLY

ATTACHING PARTS TO TRACTOR FRAME

STEP 1: (SEE FIGURE 1)

• Align the Winch and Bracket Assembly with the front of the tractor frame and install two 3/8" x 1" carriage bolts through each side of the tractor frame and the bracket.

Do not install any nuts yet.

REMOVAL OF PARTS FROM CARTON

• Remove all loose parts, parts bags and hardware bags from the carton. Lay out and identify parts and hardware using the illustrations on pages 4, 5 and 6.

IMPORTANT:

Not all items supplied in the hardware bag will be needed for your particular tractor. Unneeded items may be discarded after you have completed assembly and checked operation of unit.

DO NOT

DISCARD the two spare shear bolts and 5/16" nylock nuts. Refer to the Service and Adjustments section on page 20.

FIGURE 1

3/8" x 1"

CARRIAGE BOLTS (4)

RIGHT SIDE VIEW

CAUTION

: Before starting to assemble the snow thrower, remove the spark plug wire(s), set the parking brake and remove the key from the tractor ignition.

CAUTION: Do not begin assembling until the tractor engine, muffler and exhaust deflector have been allowed to cool off.

STEP 2: (SEE FIGURE 2)

• On each side of the tractor frame insert a 3/8" x 1" carriage bolt and a 5/16" x 1" carriage bolt through the holes shown.

• Install a 1/2" x 1-1/2" washer onto each bolt unless there is an engine mounting plate present (depicted with dotted lines). If there is a plate, do not install a washer on the 3/8" bolt inserted through the plate.

TRACTOR PREPARATION

Before performing these instructions, refer to the Service and Adjustments section of your tractor owner's manual for specific safety instructions.

1/2" x 1-1/2"

WASHER

• Allow engine, muffler and exhaust deflector to cool before beginning.

• Remove any front or rear attachment which is mounted to your tractor.

• Remove the mower deck. Refer to your tractor owner's manual for removal instructions. Mark all loose parts and save for reassembly.

• Remove the tractor hood. Refer to your tractor owner's manual for removal instructions.

IMPORTANT: Right hand (R.H.) and left hand (L.H.) side of the tractor are determined from the operators position while seated on the tractor.

7

5/16" x 1"

CARRIAGE

BOLT

FIGURE 2

3/8" x 1"

CARRIAGE

BOLT

RIGHT SIDE VIEW

STEP 3: (SEE FIGURE 3)

• Install a hex head shoulder bolt, a 3/8" washer and a

3/8" flanged lock nut in the R.H. and L.H. Side Plates.

LH. SIDE PLATE

R.H. SIDE PLATE

SHOULDER

BOLT

FIGURE 3

3/8" WASHER

3/8" FLANGED

NUT

RIGHT SIDE VIEW

STEP 5: (SEE FIGURE 5)

• Remove the two screws in the right side of the plastic dash housing.

• Install the cable clip onto the rocker switch wiring.

Attach the switch mounting assembly and clip to the side of the plastic dash housing, using the two screws.

CONNECTING THE RELAY BOX

STEP 6: (SEE FIGURE 5)

FRONT MOUNTED BATTERY ONLY

• Position the wire harness relay box against the front of the battery tray on the right hand side. Attach it to the slot in the top of the battery tray using a plastic tie.

• Connect the long black wire on the wire harness to the negative post on the battery.

• Connect the red wire (with circuit breaker) to the positive post on the battery.

SWITCH

ASSEMBLY

STEP 6: (SEE FIGURE 6)

HINT: Do not completely tighten the plastic ties until so instructed in step 7.

• Position the wire harness' black relay box against the front of the battery tray on the right hand side. Attach it to the slot in the top of the battery tray using a plastic tie.

• Route the end of the wire harness with the green and black wires around behind the tractor's wiring and then forward along the right side of the tractor.

• Loosely attach the wire harness to rear of the right hand side plate installed in step 4, and to the right front corner of the tractor frame using two plastic ties.

• Route the other end of the wire harness with the brown and black wires around behind the battery cable on the left side of the battery and then along the left side of the tractor.

• Loosely attach the wire harness to the hole at the bottom left corner of the lower dash using a plastic tie.

• Loosely attach the wire harness to the rear of the left hand side plate installed in step 4, and to the left front corner of the tractor frame, using two plastic ties.

STEP 4: (SEE FIGURE 4)

Place the R.H. Side Plate onto the bolts you inserted into the tractor frame. Install three 3/8" flanged lock nuts and one 5/16" nylock nut onto the bolts.

Tighten.

Repeat for the L.H. Side Plate.

HINT: To help prevent the carriage bolts from spinning, push against the head of the bolt while tightening to keep the square neck of the bolt seated in the square hole.

3/8" FLANGED

LOCK NUT

CABLE CLIP

ORIGINAL

SCREWS

ATTACH RELAY

BOX TO SLOT

ATTACH WIRE

HARNESS HERE

FIGURE 5 RIGHT SIDE VIEW

5/16" NYLOCK

NUT

FIGURE 4 RIGHT SIDE VIEW

8

STEP 7:

REAR MOUNTED BATTERY ONLY

• Mount the wire harness relay box in front of the solenoid on the right hand side of the gas tank, attaching it with a plastic tie.

• Attach the long black wire of the wire harness under the head of the screw that fastens down the right hand side of the gas tank.

• Attach the red wire (with circuit breaker) to the rear solenoid terminal where the battery cable is attached.

• Connect the short red, black and green wires to the three wires of the switch mounting assembly, joining together like colored wires.

INSTALL HANGER BRACKETS AND SHOULDER

BOLTS TO OUTSIDE OF FRAME

STEP 9: (SEE FIGURE 7)

• Remove the bolt, if present, in the hole directly behind the brake rod on the left side of the tractor frame.

• Attach the L.H. Hanger Bracket (tube facing out) to the hole using a 5/16" x 3/4" self threading bolt.

• Install a round head shoulder bolt into the hole that is

9-1/2" to the rear of the bolt you just installed. Secure it with a 3/8" flange nut on the inside of the frame.

BRAKE ROD

5/16" x 3/4" SELF

THREADING BOLT

INSTALLING THE WIRE HARNESS

STEP 8:

• Connect the three wires of the switch mounting assembly to the wires with mating connectors from the wire harness, joining together like colored wires.

• Route the end of the wire harness with the green and black wires around behind the tractor's wiring and then forward along the right side of the tractor.

• Route the other end of the wire harness around to the left side of the tractor.

• Loosely attach the wire harness to rear of each side plate installed in step 4, and to the front corners of the tractor frame using two plastic ties per side.

• Connect the wire harness to the winch motor using the pre-assembled nut and washers. Place the brown wire on the top terminal and the black wire on the bottom terminal. See figure 6.

• Tighten the plastic ties.

NUT

WASHER

BROWN WIRE

WASHER

WASHER

BLACK WIRE

WASHER

NUT

FIGURE 7

L.H. HANGER

BRACKET

SHOULDER

BOLT

3/8" FLANGED

NUT

LEFT SIDE VIEW

STEP 10: (SEE FIGURE 8)

• Remove the bracket, if present, from the hole directly behind the end of the brake rod on the right side of the tractor frame. Store the bracket and bolt.

• Attach the R.H. Hanger Bracket to the hole using a

5/16" x 3/4" self threading bolt.

• Install a round head shoulder bolt into the hole that is

9-1/2" to the rear of the bolt you just installed. Secure it with a 3/8" flange nut on the inside of the frame.

5/16" x 3/4" SELF

THREADING BOLT

R.H. HANGER

BRACKET

RIGHT END OF

BRAKE ROD

SHOULDER

BOLT

FIGURE 6 RIGHT SIDE VIEW

9

FIGURE 8

3/8" FLANGED

NUT

RIGHT SIDE VIEW

THIS SECTION IS FOR TRACTORS WITH A

MANUAL ATTACHMENT CLUTCH

If your tractor has an electric attachment clutch go to step 18 on page 12.

STEP 11: (SEE FIGURE 9)

• Attach the cable bracket to the double hole in the clutch/idler assembly as shown, using a 5/16" x 3/4" carriage bolt and a 5/16" nylock nut. Place the bolt in the front hole of the bracket and in the end of the hole closest to the pulley.

Do not tighten yet.

5/16" x 3/4"

CARRIAGE BOLT

CABLE

BRACKET

STEP 13: (SEE FIGURE 11)

• Attach each rear pulley frame bracket to the inside of the clutch/idler assembly using two 5/16" x 3/4" hex bolts, 5/16" washers and 5/16" nylock nuts.

• Attach each front pulley frame bracket to the inside of the clutch/idler assembly using two 5/16" x 1" hex bolts, four 5/16" washers and two 5/16" nylock nuts.

5/16" x 1"

HEX BOLT

(2) 5/16"

WASHERS

5/16" x 3/4"

HEX BOLT

5/16" WASHER

FIGURE 11

5/16"

NYLOCK

NUT

5/16" NYLOCK

NUT

FIGURE 9

STEP 12: (SEE FIGURE 10)

• Attach the pulley (long end of hub facing down) and the 3/8" spacer to the clutch/idler assembly. Use a 3/8" x 3-1/4" hex bolt, a 3/8" washer, a 3/8" lock washer and a 3/8" hex lock nut.

• Insert a tensioning chain through the hole shown and attach the end link to the spring on the lower idler arm.

3/8" HEX LOCK NUT

3/8" LOCKWASHER

PULLEY

3/8" SPACER

3/8"

WASHER

LONG END

OF HUB

3/8" x 3-1/4"

HEX BOLT

STEP 14: (SEE FIGURE 12)

• Two different length drive belts are included with your snow thrower. Use the longer, 56" drive belt ( #48138) on tractors with manual attachment clutches.

• Slightly loosen the hex bolt next to the flat idler pulley.

Install the drive belt down between the hex bolt and the flat idler pulley with the flat side of the belt against the pulley. Retighten the hex bolt.

• Loop the belt around the large V-pulley, placing it between the V-pulley and the hex bolt next to the pulley.

Place the belt to the inside of the other flat idler pulley.

HEX BOLTS

FLAT IDLER

PULLEYS

FIGURE 10

TENSIONING CHAIN

10

(#48138)

DRIVE BELT

FIGURE 12

STOP

Did you select the correct drive belt for your tractor? Using the wrong length belt may cause premature bearing or belt failure.

STEP 15: (SEE FIGURE 13)

• Find the cable clip that is attached to the left side of the tractor frame underneath the footrest. Open the clip and remove the mower clutch cable.

Do not

remove the clip from the tractor frame. The cable reattaches to the clip when using the mower deck.

• Move the attachment clutch lever on the dash panel to the disengaged position.

• Place the clutch/idler assembly on the floor on the left side of the tractor.

• Attach the tractor's mower clutch cable to the cable bracket on the clutch/idler assembly. Secure the cable housing guide (groove down) to the cable bracket using the original collar and retainer spring.

• Place a 1/4" spacer on the welded pin on the idler arm. Hook the end of the clutch cable spring over the pin and secure it with a 1/4" washer and a 5/64" hair cotter pin.

• Align cable bracket with welded pin and tighten the nut assembled in step 11.

PIVOT LOCK PIN

(use this hole)

1/8" HAIRPIN

COTTER

L.H. HANGER

BRACKET

NYLON TIE

SHOULDER

BOLT

MOWER

CLUTCH

CABLE

FIGURE 14 VIEWED FROM LEFT SIDE

5/64" HAIR

COTTER PIN

1/4" WASHER

1/4" SPACER

STEP 17: (SEE FIGURE 15)

• Assemble the drive belt onto the engine pulley, routing it through the engine pulley belt keepers.

HINT: You may need to remove the belt from the large pulley on the clutch/idler assembly in order to assemble it onto the engine pulley. When re-assembling the belt onto the large pulley, be sure the belt is between the large pulley and the hex bolt next to it.

Go to step 24 on page 14.

TRACTOR'S

CLUTCH CABLE

CABLE

BRACKET

FIGURE 13

LEFT SIDE

OF TRACTOR

ATTACH CLUTCH IDLER ASSEMBLY TO TRACTOR

STEP 16: (SEE FIGURE 14)

• Attach the clutch/idler assembly to the tractor frame.

Hook the notched rear pulley frame brackets onto the two shoulder bolts assembled to the outside of the tractor frame. Lift the front of the assembly and attach it to the R.H. and L.H. hanger brackets using two pivot lock pins and 1/8" hairpin cotters.

• Loosely attach the mower clutch cable to the left side of the tractor frame with a nylon tie.

Do not pull the nylon tie completely tight. The cable may need to be removed from the nylon tie when using the mower deck.

ENGINE

PULLEY

11

FIGURE 15

HEX BOLT

ENGINE

PULLEY

BELT KEEPERS

FLAT IDLER

PULLEY

VIEWED FROM UNDERNEATH

THIS SECTION IS FOR TRACTORS WITH AN

ELECTRIC ATTACHMENT CLUTCH

STEP 18: (SEE FIGURE 16)

• Turn the clutch idler assembly upside down.

• Hook the spring onto the end of the bolt that extends through the nut on the bottom of the upper idler arm. Install a 3/8" hex lock nut onto the bolt, leaving enough space for the spring to pivot.

SPRING

3/8" HEX

LOCK NUT

STEP 20: (SEE FIGURE 18)

• Attach each rear pulley frame bracket to the inside of the clutch/idler assembly using two 5/16" x 3/4" hex bolts, 5/16" washers and 5/16" nylock nuts.

• Attach each front pulley frame bracket to the inside of the clutch/idler assembly using two 5/16" x 1" hex bolts, four 5/16" washers and two 5/16" nylock nuts.

5/16" x 1" HEX BOLT

(2) 5/16" WASHERS

ATTACH

SPRING

HERE

FIGURE 16 BOTTOM VIEW

STEP 19: (SEE FIGURE 17)

• Insert tensioning chains through the holes shown and attach to the springs on the upper and lower idler arms.

• Install a 3/32" hairpin cotter in the chain attached to the upper idler arm, placing it in the fifth link from the spring.

TENSIONING CHAIN (upper idler arm)

3/32" HAIRPIN

COTTER IN

5th LINK

5/16"

NYLOCK NUT

5/16" x 3/4"

HEX BOLT

5/16" WASHER

5/16" NYLOCK NUT

FIGURE 18

STEP 21: (SEE FIGURE 19)

• Two different length drive belts are included with your snow thrower. Use the shorter, 55" drive belt (

#46989) on tractors with electric clutches.

• Turn the clutch/idler assembly right side up.

• Slightly loosen the hex bolt next to the flat idler pulley.

Install the drive belt between the hex bolt and the flat idler pulley. Retighten the hex bolt.

• Loop the belt around the large V-pulley, placing it between the V-pulley and the hex bolt next to the pulley.

HEX BOLTS

FLAT IDLER

PULLEY

FIGURE 17

TENSIONING CHAIN (lower idler arm)

12

(#46989)

DRIVE BELT

FIGURE 19

STOP

Did you choose the correct drive belt for your tractor? Using the wrong length belt may cause premature bearing or belt failure.

TABLE 1

STEP 22: (SEE FIGURE 20)

• Attach the clutch/idler assembly to the tractor frame.

Hook the notched rear pulley frame brackets onto the two shoulder bolts assembled to the outside of the tractor frame. Lift the front of the assembly and attach it to the R.H. and L.H. hanger brackets using two pivot lock pins and 1/8" hairpin cotters.

PIVOT LOCK PIN

(use second hole)

L.H. HANGER

BRACKET

1/8" HAIRPIN

COTTER

SHOULDER

BOLT

STEP 23: (SEE FIGURE 21)

• Assemble the drive belt onto the engine pulley. You may need to remove the belt from the large pulley on the clutch/idler assembly in order to assemble it onto the engine pulley. When re-assembling the belt onto the large pulley, be sure the belt is between the large pulley and the hex bolt next to it.

• Place tension on the belt by pulling the left side tensioning chain out as far as the 3/32" hairpin cotter that was installed in the chain in step 17 will allow.

Secure the chain in this position by inserting a 1/8" hairpin cotter through the chain.

NOTE; To prevent the chain from dragging on the ground, loop the end of the chain though the pivot lock pin. Refer to figure 31 on page 16.

Go to step 24 on page 14.

LEFT SIDE

OF TRACTOR

HEX BOLTS

TENSIONING

CHAIN

FIGURE 20 VIEWED FROM LEFT SIDE

1/8"

HAIRPIN

COTTER

ENGINE

PULLEY

FIGURE 21

FLAT IDLER

PULLEY

VIEWED FROM UNDERNEATH

13

STEP 24: (SEE FIGURE 22)

• Remove the nylon tie which fastens the chute crank rod to the crank rod support tube.

• Assemble the crank rod support tube to the bracket on the left side of the discharge housing using two

5/16" x 1-1/4" carriage bolts, and 5/16" Nylock nuts.

DISCHARGE

HOUSING

5/16" x 1-1/4"

CARRIAGE BOLT

5/16" NYLOCK NUT

FIGURE 22

CRANK ROD

SUPPORT TUBE

LEFT SIDE VIEW

STEP 26: (SEE FIGURE 24)

• Attach the chute crank rod assembly brackets to the plastic bracket on the left side of the discharge housing. Align the chute crank bracket beneath the rod support bracket and assemble both to the plastic bracket using two 5/16" x 1" carriage bolts, 5/16" washers and 5/16" Nylock nuts.

Do not tighten yet.

CHUTE CRANK

BRACKET

5/16" x 1"

CARRIAGE BOLT

SPIRAL

ROD

SUPPORT

BRACKET

5/16" WASHER

CHUTE

CRANK

ROD

FIGURE 24

5/16" NYLOCK NUT

LEFT SIDE VIEW

STEP 25: (SEE FIGURE 23)

• Attach the chute tilt control assembly to the top side of the crank support tube using two 5/16" x 1-3/4" carriage bolts, bowed washers and 5/16" Nylock nuts.

CHUTE CRANK ROD

CRANK SUPPORT TUBE

TILT CONTROL HANDLE

5/16" x 1-3/4"

CARRIAGE BOLT

BOWED WASHER

TILT

CONTROL

ASSEMBLY

FIGURE 23

5/16" NYLOCK NUT

LEFT SIDE VIEW

14

STEP 27: (SEE FIGURE 25)

• Coat the top of the ring around the discharge opening with general purpose grease.

• Place the discharge chute (facing forward) onto the ring. Place the anti-rotation bracket on top of the chute flange, aligning it with the holes on the right hand side of the flange. Attach the three chute keepers (right side up as shown) to the bottom of the flange using six 1/4" x 1" hex bolts, 1/4" flat washers and 1/4" flanged lock nuts. Tighten carefully so that the nuts are snug but do not dig into the plastic chute keepers.

• Place the plastic cap onto the short end of the antirotation bracket.

• Position the crank rod spiral (see figure 24 on page

14) so that it does not rub against the bottoms of the notches in the chute flange. Tighten the nuts.

• Check if the crank rod rotates the chute freely. If not, loosen by 1/4 turn each of the six hex bolts holding the chute keepers to the chute flange.

• Secure the control cables to the crank rod support tube using two nylon ties.

1/4" x 1"

HEX BOLT

1/4" FLAT

WASHER

PLASTIC CAP

ANTI-ROTATION

BRACKET

FLANGE

GREASED

SURFACE

CHUTE KEEPER

1/4" FLANGED

LOCK NUT

FIGURE 25 RIGHT SIDE VIEW

ATTACHING SNOW THROWER TO TRACTOR

STEP 28: (SEE FIGURE 26)

• Place the snow thrower on a flat, level surface.

• Extend the auger belt out behind the snow thrower, leaving the belt assembled to the snow thrower pulleys.

• Roll the tractor up behind the snow thrower, centering it between the snow thrower's mounting plates.

• Lift up on the crank rod support tube to raise the rear of the snow thrower and align the notches in the mounting plates align with the shoulder bolts in the tractor's side plates. Roll the tractor forward, guiding the shoulder bolts into the notches.

• Install the two 1/2" x 7/8" clevis pins and 1/8" hairpin cotters to secure the snow thrower to the tractor.

1/8" HAIRPIN

COTTER

1/2" x 7/8"

CLEVIS PIN

FIGURE 26 RIGHT SIDE VIEW

STEP 29: (SEE FIGURE 27)

• Connect the terminals of the wire harness attached to the tractor with the wire terminals of the limit switches on the snow thrower.

WIRE HARNESS

TERMINALS

LIMIT SWITCH

TERMINALS

15

FIGURE 27 RIGHT SIDE VIEW

STEP 30: (SEE FIGURE 28)

• Place the end of the winch cable onto the lift link.

Place a 1/2" washer onto the link and install a 5/64" hairpin cotter.

HINT: Push on the lift stop plate to rotate the lift link into better position to install the winch cable.

WINCH CABLE

5/64" HAIRPIN

COTTER

LIFT LINK

1/2" WASHER

INSTALLING THE AUGER BELT

STEP 32: (SEE FIGURE 30)

• Start with the snow thrower lowered to the ground.

• Swing the idler arm over to the L.H. side of the tractor.

• Place the auger belt around the rear V-pulley and between the two idler arm pulleys. The "V" side of the belt must be seated in the grooves of the V-pulleys.

HINT: If the belt is too tight to assemble, try temporarily releasing the spring tension on the upper drive belt and then turning the rear pulley while rolling the auger belt onto it. If the belt is still too tight to assemble, try raising the snow thrower to see if the belt is looser in that position.

LEFT SIDE

OF TRACTOR

LIFT STOP

PLATE

PUSH HERE

FIGURE 28 VIEWED FROM UNDERNEATH

STEP 31: (SEE FIGURE 29)

• Check to make sure the auger belt is still properly seated around the snow thrower's auger pulley and idler pulleys.

REAR

PULLEY

IDLER ARM

FLAT PULLEY

IDLER ARM V-PULLEY

AUGER

BELT

VIEWED FROM UNDERNEATH FIGURE 30

BELT ROUTING DIAGRAM

TWIST

1/4 TURN

IDLER

PULLEY

AUGER PULLEY

TWIST

1/4 TURN

IDLER

PULLEY

ENGINE PULLEY

FIGURE 29

16

INSTALLING THE ATTACHMENT PIN

STEP 58: (REFER BACK TO FIGURE 54 ON PAGE 24)

• Lift the front of the snow blower to align the holes in the mounting plates and the side plates. From the left side of the tractor insert the attachment pin through the holes. Secure it with by reinstalling the 1/8" hairpin cotter.

SETTING THE AUGER BELT TENSION

STEP 33: (SEE FIGURE 31)

• Pull the right side tensioning chain until the end of the spring is pulled into the hole in the side of the Clutch/

Idler assembly. Install a 1/8" hairpin cotter through the end of the spring, securing it on the outside of the

Clutch/Idler assembly.

IMPORTANT: For correct belt tension, the 1/8" hairpin

cotter must attach to the end of the spring, not to the chain.

NOTE; To prevent the chain from dragging on the ground, loop the end of the chain though the pivot lock pin. Refer to figure 30 on page 16.

RIGHT SIDE OF TRACTOR

1/8" HAIRPIN COTTER

ATTACH REFLECTORS TO REAR FENDER

STEP 34: (SEE FIGURE 32)

• If your tractor is not equipped with rear reflectors, assemble the supplied rear reflectors to the rear fender. Place the reflectors as close to the bottom of the fender and as far apart as the shape of the fender will allow.

REAR REFLECTORS

FIGURE 32

IDLER FLAT PULLER

AUGER BELT

FIGURE 31 VIEWED FROM UNDERNEATH

CHECKLIST

Before you operate your snow thrower, please review the following checklist to help ensure that you will obtain the best performance from your snow thrower.

• Make sure all assembly instructions have been completed with all bolts and nuts properly tightened.

• Make sure the correct drive belt was installed.

• Make sure the drive belt and auger belt are routed properly around pulleys and inside all belt keepers.

• Check discharge chute for proper rotation.

• Check operation of tilt control for upper chute.

• Verify that the snow thrower raises and lowers properly.

• Check skid shoe adjustment. (Refer to the Service and Adjustments section.)

17

OPERATION

KNOW YOUR SNOW THROWER

Read this owner's manual and safety rules before operating your snow thrower.

Compare the illustration below with your snow thrower to familiarize yourself with the various controls and their locations.

CHUTE TILT HANDLE

TOGGLE SWITCH

CRANK ROD

UPPER CHUTE

LOWER CHUTE

SCRAPER PLATE

SPIRAL AUGERS, R.H. & L.H.

CHUTE TILT HANDLE Pivots the Upper Chute up or down to control the angle and distance of discharge.

CRANK ROD Rotates the Lower and Upper Chutes to

control the direction of discharge.

TOGGLE SWITCH Used to raise or lower the snow thrower

to transport or operating position.

UPPER AND LOWER DISCHARGE CHUTE Controls

direction and height of snow discharge.

BEFORE STARTING

• Use the end of assembly checklist to verify that all instructions have been properly completed.

• Make sure the skid shoes are adjusted to maintain adequate ground clearance between the snow thrower and the type of surface to be cleared. (Refer to the Service and Adjustments section.)

• Make sure the tractor engine has the correct oil for winter operation (SAE 5W-30). Refer to tractor owner's manual.

HOW TO START YOUR SNOW THROWER

• The tractor should be sitting with the engine running at full throttle. Move the attachment clutch to the engaged position, starting the snow thrower before the tractor clutch is engaged.

HOW TO STOP YOUR SNOW THROWER

• To stop the snow thrower, disengage the tractor's attachment clutch lever for manual clutches or the clutch switch for electric clutches. Refer to your tractor owner's manual.

18

SKID SHOE

SCRAPER PLATE Replaceable plate that absorbs

wear and impact from contact with ground.

SKID SHOE Controls amount of clearance between

the scraper plate and the ground.

SPIRAL AUGER, R.H. & L.H. Feed snow to the

impeller fan at the center of the housing.

HOW TO USE YOUR SNOW THROWER

CAUTION

: Never direct discharge towards bystanders or windows. Do not allow anyone in front of unit.

CONTROLLING SNOW DISCHARGE

• To control the direction snow is thrown, the discharge chute has 180 degrees of rotation. Turn the crank rod to rotate the chute to the right or the left.

• To control the distance snow is thrown, the upper section of the discharge chute pivots up and down.

Push forward on the chute tilt handle to pivot the chute down, decreasing the distance snow is thrown.

Pull back on the handle to pivot the chute up, increasing the distance snow is thrown.

RAISING AND LOWERING

• Use the toggle switch attached to the side of the tractor's dash to raise or lower the snow thrower. The winch motor will shut off when the snow thrower is in either the up or down position.

CAUTION

: Do not operate the snow thrower without rear wheel weights attached to the tractor to provide extra traction and stability.

REMOVING SNOW

Snow removal conditions vary greatly from light fluffy snowfall to wet heavy snow. Operating instructions must be flexible to fit the conditions encountered. The operator must adapt the lawn tractor and snow thrower to depth of snow, wind direction, temperature and surface conditions.

• Before beginning operation, thoroughly inspect the area of operation and remove all door mats, sleds, boards, wires and other foreign objects.

• The spiral auger speed is directly related to engine speed. For maximum snow removal and discharge, maintain high engine r.p.m. (full throttle). It is advisable to operate the lawn tractor at a slow ground speed

(1st gear) for safe and efficient snow removal.

• In deep, drifted or banked snow it will be necessary to use full throttle and a slow ground speed (1st gear).

Drive forward into the snow, depress the tractor's clutch-brake pedal and allow the spiral auger to clear the snow. Repeat this method until a path is cleared.

On the second pass, overlap the first enough to allow the snow thrower to handle the snow without repeated stopping and starting of forward motion.

• In extremely deep snow, raise the snow thrower up to the transport position to remove the top layer of snow. Drive forward only until the front tires reach the uncleared bottom layer of snow. Stop and allow the snow to clear out of the spiral auger. Back up and then lower the snow thrower to the ground. Drive the tractor forward until the snow again becomes too deep. Repeating this process into and out of drifts will eventually clear even the deepest of snow piles.

• If the snow thrower becomes clogged with snow or jammed with a foreign object, disengage the snow thrower immediately and shut off the tractor engine.

Use a wooden stick to unclog the snow thrower before resuming operation.

DANGER

: Shut off engine and disengage snow thrower before unclogging discharge chute. Unclog using a wooden stick, not your hands.

OPERATING TIPS

• Discharge snow down wind whenever possible.

• To help prevent snow from sticking to the snow thrower, allow the snow thrower to reach outdoor temperature before using it. A light coat of wax may also be applied to the inside surface of the snow thrower housing and discharge chute.

• Use tire chains to improve traction.

• Use rear wheel weights to improve traction.

• Before the first snowfall, remove all stones, sticks and other objects which could become hidden by the snow.

Permanent obstacles should be marked for visibility.

• Overlap each pass slightly to assure complete snow removal.

MAINTENANCE

CUSTOMER RESPONSIBILITIES

• Read and follow the maintenance schedule and the maintenance procedures listed in this section.

MAINTENANCE SCHEDULE

Fill in dates as you

complete regular service.

X

Bef ore each use ery season

Bef ore stor

Check for loose fasteners

Check scraper and shoes for wear X X

Cleaning X

Lubrication Section X age

LUBRICATION

Oil all pivot points on the snow thrower.

• Oil the pivot points of the two idler arms on the clutch/ idler assembly.

• Apply penetrating oil to the control cables of the discharge chute.

• Apply a good grade of spray lubricant to the chute tilt control assembly.

19

Service Dates

CHECK SCRAPER AND SHOES FOR WEAR

(Refer to figures 33 and 34 on page 20.)

• The scraper plate and skid shoes on the bottom of the snow thrower are subject to wear. To prevent damage to the spiral auger housing, replace plate and shoes before wear is excessive.

SERVICE AND ADJUSTMENTS

CAUTION

: Before servicing or adjusting the snow thrower, shut off the engine, remove the spark plug wire(s), set the parking brake and remove the key from the tractor ignition.

REPLACING AUGER BELT

• Disengage the tractor's attachment clutch.

• Lower the snow thrower to the ground.

• Release the spring tension from the auger belt idler arm on the bottom of the clutch/idler assembly.

• Remove the auger drive belt from the clutch/idler assembly and from the spiral auger housing.

• Install new belt over top of large auger drive pulley and under the two side idler pulleys. Twist the belt 1/4 turn to seat the "V" of the belt in the groove of each idler pulley. Refer to figure 29 on page 16.

• Assemble the belt onto the clutch/idler assembly.

ADJUSTING SKID SHOES

• The skid shoes regulate the distance between the scraper plate and the plowing surface. When removing snow from a gravel driveway or and uneven surface, keep the scraper plate as high above the surface as possible to prevent possible damage to the spiral auger. On a blacktop or concrete surface, keep the scraper plate as close to the surface as possible.

• To adjust the skid shoes, raise the snow thrower off the ground and place a block under each end of the scraper plate. Loosen the six hex nuts securing the skid shoes to the housing. Adjust the skid shoes up or down and retighten the nuts securely. Adjust both skid shoes to the same height to keep the housing and the scraper plate level. See figure 33.

SHEAR BOLT AND

HEX LOCK NUT

SCRAPER PLATE

FIGURE 34

GEAR HOUSING SKID SHOE

ADJUSTING LIFT HEIGHT, LEVELING

The snow thrower is equipped with two threaded lift links for adjusting the lift height and leveling of the snow thrower in the raised position.

TO ADJUST THE LIFT HEIGHT:

• Raise the snow thrower to the highest position.

• Check the clearance between the rear of the idler bracket (item 24, page 22) and the lift shaft assembly

(item 1, page 24). A minimum 1/16" clearance in the raised position is necessary to avoid possible damage to the lift system.

• To increase the lift height, tighten the nuts on the bottom of both lift links equally until the maximum lift height is obtained. The maximum lift height is approximately 4 inches ground clearance for GT tractors and 3 inches for YT tractors.

TO LEVEL WHEN RAISED:

• To keep the snow thrower level in the raised position, loosen the nut at the bottom of the lift link on the high side of the snow thrower until the snow thrower is approximately level. It is not critical that the snow thrower be exactly level in the raised position, it will level out when it is lowered to the ground.

FIGURE 33

SPIRAL AUGERS

• The spiral augers are secured to the auger shaft with two shear bolts and nylock nuts. The bolts are designed to shear if an object or ice jams the augers.

• If the augers will not turn, check to see if the shear bolts have sheared. See figure 34. Two replacement shear bolts and nylock nuts have been provided with the snow thrower. For future use order part number

710-0890A shear bolt and number 47810 nylock nut.

20

STORAGE RECOMMENDATIONS

• Lower the snow thrower to the ground.

• Remove the snow thrower from the tractor.

• Clean the snow thrower thoroughly. Wash off any salt deposit which may have dried on the thrower and housing.

• Any bare metal that has become exposed should be painted or coated with a light oil to prevent rust.

• Store in a dry place.

REMOVING THE SPIRAL AUGER HOUSING

• Lower the snow thrower to the ground.

• Release the spring tension from the auger belt idler arm on the bottom of the clutch/idler assembly.

• Remove the auger drive belt from the clutch/idler assembly. See figure 30 on page 16.

• Disconnect the wires of the snow thrower limit switches from the wire harness attached to the tractor.

• Remove the two clevis pins that attach the snow thrower to the tractor. See figure 26 on page 15.

• Pull the snow thrower off of the front of the tractor.

STORAGE

PARTS TO REMOVE AT END OF SEASON

• Remove the clutch/idler assembly. (The two hanger brackets and the two shoulder bolts may be left attached to the tractor frame.)

• Remove the drive belt from the engine pulley.

• If a front mounted attachment is to be used, remove the side plates and the winch and bracket assembly from the tractor. Be sure to re-install any bolts that were removed from the tractor frame when the snow thrower was installed.

TROUBLESHOOTING

PROBLEM

Spiral augers don't turn

Clogged discharge chute

Snow thrower stalls tractor engine

Front wheels slide instead of steering

CAUSE

1. Upper or lower V belt too loose.

2. Upper or lower V belt broken.

3. Shear bolts are sheared.

1. Tractor ground speed too fast .

2. Tractor throttle set too low.

3. Snow too deep.

4. Snow melts during contact with

the snow thrower.

1. Object jammed in spiral auger .

2. Hard or heavy snow.

Not enough traction at front wheels.

CORRECTION

1. Increase tension on V belt.

2. Replace V belt.

3. Replace shear bolts.

1. Use lower tractor gear.

2. Increase to full throttle.

3. Raise the snow thrower.

4. Allow snow thrower to cool to

outdoor temperature before using .

1. Stop engine, disengage the snow

thrower clutch and clear the auger.

2. Increase to full throttle and decrease ground speed.

1. Increase scraper plate clearance

by lowering skid shoes.

Snow thrower rides up over snow.

1. Tractor ground speed too fast. 1. Reduce ground speed.

2. Bottom snow is icy or hard packed. 2. Lower the skid shoes so that front

of skid shoe is lower than the rear.

21

PARTS

21

47

43

49

REPAIR PARTS FOR MODEL 45-0491 50" SNOW THROWER

1

60

48

34

36

59

58

5

48 60

12

13

14

15

10

2

6

42

15

14

31

47

4

7

3

8

44

43

49

47

45

57

45

37

48

32

9

32

45

34

18

35

48

37

48

45

17

48 56

38

19

20

28

53

39

51

29

45

30

27

45

45

41

25

46

48

23

54

45

48

38

22

48

45

52

33

38

21

24

40

55

26

50

46

50

26

55

40

48

45

25

22

16

11

REPAIR PARTS FOR MODEL 45-0491 50" SNOW THROWER

REF PART NO QTY DESCRIPTION

1 731-0921 1 Chute, Upper

2 731-1300C 1 Chute, Lower

3 731-1379A 1 Chute Adapter

4 731-0851A 3 Chute Keeper

5 784-5594 1 Bracket, Cable

6 731-1313C 1 Guide, Cable

7 24394

8 1643-60

1 Bracket, Chute Anti-rotation

1 Plastic Cap

21

22

23

24

25

9 705-5226 1 Chute Reinforcement

10 65685 1 Spiral Assembly, L.H.

11 65684 1 Spiral Assembly, R.H.

12 784-5618 2 Housing, Bearing

13 47615 2 Bearing, Flange

14 43009 6 Washer, .785" x 1.57" x .057"

15 741-0493A 4 Bearing, Split, 3/4"

16 25942 1 Shaft, Auger Gearbox

17

18

19

20

71464

25937

63768

65683

1

1

1

1

Gear Assembly

Center Brace, Gearbox

Impeller Assembly

Housing Assembly

24279

25940

24816

27280

24466

2 Skid Shoe

1 Scraper Plate

1 Cover, Belt

1 Bracket, Idler

2 Bracket, Down Stop

26

27

28

47044

24280

47026

2 Pulley, V Type 4"

1 Support Tube Bracket

1 Pulley, V Type

29 05931 1 Housing, Bearing

30 741-0309 1 Bearing, Ball

31 43661 6 Hex Bolt, 1/4-20 x 1"

REF PART NO QTY

32 44950 4

DESCRIPTION

Carriage Bolt, 1/4-20 x 3/4"

33

34

47630

43182

6

3

Bolt, Self-Tap 5/16" x 3/4"

Hex Bolt, 5/16-18 x 3/4"

35

36

43840

43085

2

1

Hex Bolt, 5/16-18 x 1-1/4"

Hex Bolt, 5/16-18 x 1-1/2"

37 710-0890A 2 Bolt, Shear 5/16-18 x 1-1/2"

38

39

44326

44377

1

5 Carriage Bolt, 5/16-18 x 1"

1 Hex Bolt, 3/8-24 x 1"

40

41

41576

48106

2

2

Hex Bolt, 3/8-16 x 1-3/4"

Bolt, Shoulder

42 710-0896 1 Screw, 1/4-14 x 5/8"

43

44

47189

47598

4 Hex Nut, 1/4-20 Nylock

6 Hex Lock Nut, 1/4" Flanged

45 47810 30 Hex Nut, 5/16-18 Nylock

46 HA21362 4 Hex Nut, 3/8-16 Nylock

47 43088 10 Washer, 1/4"

48

49

43081

48015

28 Washer, 5/16" Std. Wrt.

4 Washer, Nylon

50 43070 2 Washer, 3/8"

51 736-0247 1 Washer,

52

53

43086

43003

6

1

Lock Washer, 5/16"

Washer, Lock 3/8"

54 750-0437 1 Bushing

55 711-0242 2 Spacer

56 715-0114 2 Spiral Pin, 1/4" x 1-1/2" Lg.

57 HA20185 1 #61 Woodruff Key

58 746-0929 1 Cable, Chute Control With Clip

59 746-0928 1 Cable, Chute Control

60 43064

42432

2 Hex Lock Nut, 5/16-18

1 Owner's Manual

23

REPAIR PARTS FOR MODEL 45-0491 50" SNOW THROWER

41

40

40

39

43

45

43

42

48

69

47

46

65

53

63

50

38

63

51

40

67

63

25

63

25

49 53

52

60

60

6

6

14

6

13

9

56

12

8

10

3

62

17

18

54

30

4

32

11

62

19

70

35

37

36

37

31

30

4

2

68

64

72

65

59

10

15

16

8

1

7

10

8

15

10

8

2

14

6

19

70

71

6

8

27

26

3

55

18

17

10

5

34

21

24

33

20

21

63

34

13

6

63

33

76

12 29

22

75

59

72

44

66

74

30

61

62

62

61

57

58

30

23

28

73

24

REPAIR PARTS FOR MODEL 45-0491 50" SNOW THROWER

REF PART NO QTY

1 67620 1

DESCRIPTION

Lift Shaft Assembly

2

3

710-0865

710-0367

2

2

Hex Bolt, 1/2-13 x 1"

Hex Bolt, 5/8-11 x 1-1/2"

6

7

8

4

5

711-0332

712-0261

43262

47134

142

2

1

6

1

4

Pin, Bracket Lift

Nut, Nylock Hex 5/8-11

Nut, Hex Lock 1/2-13

Pin, Hair Cotter 5/64"

Pin, Cotter 1/8" x 3/4"

9 43093 1 Pin, Cotter 1/8" x 1-1/2"

10 R19171616 5 Washer, 17/32" x 1"

16

17

18

19

20

21

22

11 43350

12 741-0192

13 783-0380

14 783-0381

15 67598

24311

47599

43086

24807

27388

42553

67614

6

2

2

2

2

Carriage Bolt, 3/8-16 x 1"

Bearing, Flange With Flats

Link, 15.80" Long

Link, 11.75" Long

Lift Link

1 Rod, Spacer

2 Hex Bolt, 5/16-18 x 1" (Locking)

2 Lock Washer, 5/16"

2 Lift Trunnion

1 Bracket, Stop Switch Mounting

2 Switch

1 Lift Stop Assembly

28

29

30

31

32

23

24

25

67628

42570

47788

1

1

2

Bracket, Winch Mounting

Winch

Reflector, Rear

26 27400 1 Cover, Cable

27 HA9411666 1 Screw, 10-16 x 1/2"

43063

47631

43343

25678

25679

2

1

4

1

1

Hex Bolt 5/16-18 x 1"

Bolt, Hex 3/8-16 x 1" Self Thd.

Pin, Haircotter #4 (1/8")

Plate, Side (R.H.)

Plate, Side (L.H.)

33

34

43346

47171

35 HA20186

36

37

38

24564

48714

47027

4 Bolt, Slotted Head 10-32 X 5/8"

4 Nut, Nylock Hex 10-32

1 Spring, Idler

1 Washer, Special

2 Nut, Nylock Hex Jam 5/8-11

1 Tube, Crank Rod Support

REF PART NO QTY

39 24393 1

DESCRIPTION

Bracket, Chute Crank

40 741-0475 3 Bushing, 3/8" Plastic

41 703-2735A 1 Bracket, Chute Crank

42 720-0201A 1 Knob, Crank

43 44917 2 Palnut, 3/8"

44

45

43070

63579

2

1

Washer, 3/8"

Assembly, Chute Crank Rod

46 784-5604A 1 Handle, Chute Tilt

47 720-04039 1 Knob

48 603-0302 1 Assembly, Chute Tilt Bracket

49 731-1313C 1 Guide, Cable

50 746-0929 1 Cable, Chute Control with Clip

51 746-0928 1 Cable, Chute Control

52

53

43064

43081

2 Nut, Hex Lock 5/16-18

3 Washer, 5/16"

54

55

56

24285

24284

43601

57

58

65367

65450

59 46730

60 726-0178

1

1

1

Plate, Mounting (L.H.)

Plate, Mounting (R.H.)

Washer, 1.59" x 1.032" x .060"

1 Hanger Bracket Assembly, L.H.

1 Hanger Bracket Assembly, R.H.

2 Bolt, Hex 5/16-18 x 3/4" Self Thd.

9 Tie, Nylon

61

62

63

49933

47572

47810

2 Shoulder Bolt, Round Head

10 Nut, Flanged Lock 3/8-16

12 Nut, Nylock Hex 5/16-18

64 R19172410 4 Washer, 1/2"

65 44326 4 Carriage Bolt, 5/16-18 x 1"

66

67

68

48106

44695

43682

69 44215

70 HA21362

2

2

2

2

2

Bolt, Shoulder

Washer, Bowed

Carriage Bolt, 5/16-18 x 1-1/4"

Carriage Bolt, 5/16-18 x 1-3/4"

Hex Nut, 3/8-16 Nylock

71

72

73

43182

43038

42554

74

75

42555

67714

76 HA23761

2 Bolt, Hex 5/16-18 x 3/4

2 Pin, Pivot Lock

1 Wire Harness

1 Wire Harness Extension

1 Switch Mounting Assembly

1 Cable Clip

25

REPAIR PARTS FOR MODEL 45-0491 50" SNOW THROWER

REF PART NO QTY

1 43080 1

DESCRIPTION

Carriage Bolt, 5/16-18 x 3/4"

2

3

47810

43083

12 Hex Nut, 5/16-18 Nylock

2 Hex Nut, 5/16-18

4

5

6

7

8

43086

43081

26943

63904

24286

4 Lock Washer, 5/16"

12 Washer, 5/16" Std. Wrt.

1 Frame, Clutch and Pulley

1 Idler Arm Assembly

1 Spacer, Pivot

26

50

51

52

53

54

55

56

57

45

46

47

48

49

40

41

42

43

44

49870

43178

43177

48883

25728

43182

43063

27016

43343

47134

46938

25780

47620

47607

23625

43509

47605

24558

REF PART NO QTY

9 63762 1

DESCRIPTION

Idler Bracket Assembly

10

11

43015

46981

1

1

Hex Nut, 3/8-16

Pulley, V Type 9"

12

13

43082

46982

8

1

Nut, Hex Lock, 3/8-16

Pulley, V Type 5-1/2"

14 738-0680 1 Shaft

15 750-0456 1 Spacer

16 750-0660 1 Spacer

17 43003 6 Lock Washer, 3/8"

18 714-0161 2 Key

19 741-0919 2 Bearing, Ball

20 08253B 1 Housing, Bearing

21 15296A 1 Housing, Open Bearing

22 14088B

23 44377

1 Spacer, Spindle

2 Hex Bolt, 3/8-24 x 1"

33

34

35

36

37

38

39

28

29

30

31

32

24 736-0247 2 Washer

25 43063 3 Hex Bolt, 5/16-18 x 1"

26 46989 1 Belt, V Type Drive (55")

27

48138

47846

1 Belt, V Type Drive (56")

1 Belt, V Type Auger

47044

47025

43432

43054

24571

1

1

1

3

1

Pulley, V Type 4"

Hex Bolt, 5/16-18 x 3-1/2"

Hex Bolt, 3/8-16 x 2-1/2"

Hex Bolt, 3/8-16 x 2"

Spacer

24472

43070

46959

46963

43055

23727

43088

1 Spacer, Pivot

8 Washer, 3/8"

1 Spring

2 Chain

1 Pin, Hair Cotter, 3/32"

1 Spacer

1 Washer, 1/4"

2 Pin, Hair Cotter #4 (1/8")

1 Pin, Hair Cotter 5/64"

1 Hex Bolt, 3/8-16 x 3-1/4"

1 Spacer

1 Spring

1 Spring, Torsion

1 Spacer

1 Hex Bolt, 3/8-16 x 2-3/4" Lg.

1 Washer, Flat 3/8"

1 Cable Bracket

1 Hex Bolt, 1/4-20 x 2-1/2"

2 Hex Nut, 1/4-20

1 Lock Washer, 1/4"

3 Pulley, Flat 3-5/8"

2 Rear Pulley Frame Bracket

4 Hex Bolt, 5/16-18 x 3/4"

4 Hex Bolt, 5/16-18 x 1"

2 Front Pulley Frame Bracket

SLOPE GUIDE

(Keep this sheet in a safe place for future reference.)

Use this guide to determine if a slope is safe for the operation of your tractor and snow thrower. Refer also to the instructions in your vehicle owners manual.

27

E

P

E

R

E

G

E

G

E

S

N

R

P

E

E

E

D

E

O

G

N

© 2012 Agri-Fab, Inc.

the

fastest way to purchase parts www.speedepart.com

REPAIR PARTS

Agri-Fab, Inc.

809 South Hamilton

Sullivan, IL. 61951

217-728-8388 www.agri-fab.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
