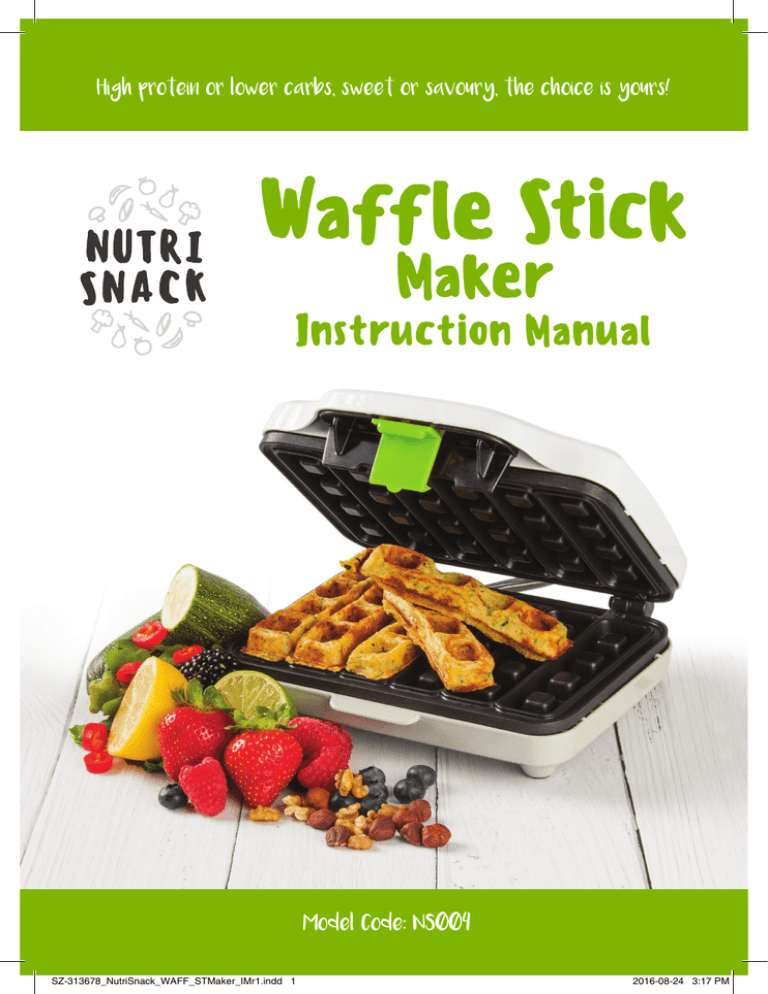

Waffle Stick
High protein or lower carbs, sweet or savoury, the choice is yours!
Waffle Stick
Maker
Instruction Manual
Model Code: NS004
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 1
2016-08-24 3:17 PM
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 2
2016-08-24 3:17 PM
Introduction
Thank you for purchasing this product
You may already be familiar with using a similar product, but do please take time to read these
instructions - they have been written to ensure you get the very best from your purchase.
Safety is Important
To ensure your safety and the safety of others, please read the Product Safety and Electrical Safety
information before you operate this product. Keep these instructions in a safe place for future reference.
Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Before First Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Using Your Waffle Stick Maker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Care and Cleaning Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Guarantee. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Due to our policy of continuous improvement, the actual product may differ slightly
from the one illustrated in this booklet.
1
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 1
2016-08-24 3:17 PM
Product Safety
Please read these instructions before operating the appliance.
✗✗ Never immerse the appliance, cord or plug into
✓✓ This appliance can be used by children
water or any other liquid. This is to protect
aged from 8 years and above and persons
against electrical shock.
with reduced physical, sensory or mental
capabilities or lack of experience or knowledge ✗✗ Never use this appliance for other than
if they have been given supervision or
intended use. This appliance is for household
instruction concerning use of the appliance in a
use only.
safe way and understand the hazards involved.
✗✗ Never allow young children to use this
✓✓ Always use this appliance on a stable, level
appliance. Close supervision is necessary
surface, close to a power socket and out of
when this appliance is in use near children.
reach of children.
✗✗ Never let the power cord hang over the edge
✓✓ Always ensure that hands are dry before
of a worktop, touch hot surfaces or become
handling the plug or switching on
knotted, trapped or pinched.
the appliance.
✗✗ Never place on or near heat sources.
✓✓ Always carry out regular checks on the
✗✗ Never leave this appliance unattended
appliance and power cord. Should there be
during use.
any signs of damage, do not attempt to use
✗✗ Never touch the external surfaces of the
or repair. This appliance has no user
appliance during use as they may become
serviceable parts.
very hot.
✓✓ Always grease the Waffle Stick Maker before
✗✗ Never allow this appliance to touch
flammable materials when in use,
as this may be a fire risk.
filling with batter; this will aid the removal of
the cooked waffle.
✓✓ Always unplug this unit when not in use and
before cleaning.
✗✗ Never operate the appliance by means of an
external timer.
✓✓ Always allow the appliance to fully cool down
before cleaning or storing.
✗✗ Never overfill the cooking plate. This may
result in the lid popping open and result in
soggy waffles.
✗✗ Never use this appliance outdoors.
2
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 2
2016-08-24 3:17 PM
Electrical Safety
WARNING! Read these instructions thoroughly before using this appliance or
connecting it to the mains supply.
A 13 amp BS1362 ASTA approved fuse must be fitted.
This appliance must be earthed.
There are no user-serviceable parts inside this appliance.
Always refer servicing to qualified service personnel.
The mains lead of this product is not replaceable by the user. If the mains lead is damaged,
the entire appliance should be returned to an approved Service Centre for repair.
Do not allow this product to be exposed to rain or moisture during use or storage.
Before switching on, make sure that the voltage of your electricity supply is the same as that indicated
on the rating plate. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug,
the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used
until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be
cut off and a replacement fitted, following the wiring instructions shown. The old plug must be disposed
of safely because inserting it into a 13 amp socket could cause an electrical hazard.
3
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 3
2016-08-24 3:17 PM
Electrical Safety
The wires in the power cable of this product are coloured in accordance with
the following code:
Blue = Neutral Brown = Live
Green/Yellow = Earth
If the markings on the terminals of your plug do not correspond to the colours of the wires in the
power cable, proceed as follows:
• The wire which is coloured Blue must be connected to the terminal which is marked
N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked L or coloured Red.
• The wire which is coloured Green/Yellow must be connected to the terminal which
is marked with the earth symbol ( ) or coloured Green, or Green/Yellow.
Plug should be BS1363/A approved.
Fit a 13 Amp fuse.
EARTH
(Green/Yellow)
13 Amp Fuse
NEUTRAL
(Blue)
LIVE
(Brown)
Ensure that the outer sheath of the cable
is firmly held by the clamp.
4
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 4
2016-08-24 3:17 PM
Features
1. RED POWER LIGHT
This illuminates when your Waffle Stick Maker is plugged into mains supply.
2. GREEN READY-TO-COOK LIGHT
This will illuminate when the Waffle Stick Maker is ready to use, which will take
approximately 2-3 minutes.
3. LID HANDLE WITH A LOCKING LATCH
This allows you to open and close the appliance and the latch keeps the plates closed
during cooking and storage.
4. UPPER NON-STICK COOKING PLATE
5. LOWER NON-STICK COOKING PLATE
1
2
3
4
5
220-240V~50/60Hz 900W
Due to our policy of continuous improvement, the actual product may differ slightly
from the one illustrated in this booklet.
5
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 5
2016-08-24 3:17 PM
Before First Use
CAUTION: Do not immerse the Waffle Stick Maker MAIN BODY, POWER CORD or the PLUG in
water or any other liquids.
Before using your Waffle Stick Maker for the first time, remove any packaging material and promotional
labels. You may wish to keep the packaging for future use.
Ensure the Waffle Stick Maker is switched off at the power outlet and the power cord is unplugged.
Check that the cooking plates are clean and free of manufacturing dust, by wiping each mould with a
slightly damp soft cloth.
Wipe the outside of your Waffle Stick Maker with a slightly damp soft cloth.
When the unit is heated for the first time it may emit a little smoke, this is normal and no cause
for concern, it is simply manufacturing dust being burnt off the heating element and will disappear
after the first use.
Instructions for Use
CAUTION: The surface of your Waffle Stick Maker will become hot, so exercise caution.
Steam may escape during cooking and when lifting the lid. This is normal, but take care.
Use oven gloves to open and close the lid.
1. Pre-heat your Waffle Stick Maker. The red light will illuminate immediately. When the green light
illuminates (allow 2-3 minutes), your Waffle Stick Maker is ready to use. The green light will cycle
on and off as the unit maintains baking temperatures.
2. For best results, lightly coat the plates with a vegetable spray oil. Spray the plates before cooking
each batch of waffle sticks; this will aid the removal of the waffle sticks. Add a generous spoonful of
batter to the moulds and spread slightly with a spatula. It is important not to overfill, as the mixture
will expand when baked. Just ensure there is enough waffle batter to fill the base of the plates, this
way you will get a good sized well risen waffle stick.
3. Close the lid and secure the latch.
4. Cook the waffle sticks for between 2-7 minutes. Cooking time will depend on your recipe.
During cooking steam will escape, when the waffles stop steaming this is a good indicator
that they are ready.
5. Open the latch and lift the lid gently, if it pulls slightly they are not ready, continue the cook for 30
seconds and test again. The waffle should be golden and crispy, if necessary close the lid again and
continue cooking for 30 seconds at a time. Use a heatproof plastic or wooden spatula to remove the
waffles. To keep waffle sticks crispy, put them in a pre-heated oven directly on the racks,
at 90-120ºC for up to 20 minutes.
6. If additional waffles are to be baked, wipe the cooking plate clean with a dry cloth or kitchen paper
to remove any residue, and repeat the process above. Waffles may bake faster as extra heat has
been retained, so it may be necessary to reduce the cooking time.
7. When all the waffles have been baked, unplug the machine and leave to cool completely
before cleaning.
6
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 6
2016-08-24 3:17 PM
WAFFLE BAKING TIPS
• Do not open the Waffle Stick Maker during the first minute of baking or the waffles will separate.
Completely bake the waffles before removing.
• When the waffles are done, the top lid should lift easily. Lift the lid gently; if it pulls, continue
cooking for 30 seconds and test again.
• When preparing the waffle batter, do not over-mix or the waffles will be tough. Stir the batter only
until the large lumps of dry ingredients disappear.
• The optimal amount of batter to produce a full shaped waffle, without overflowing, will vary with
different waffle batters.
• For more evenly shaped waffles; spread thick batters to the outer edge of the moulds using a
spatula before closing the lid.
• To retain crispness, cool the waffles on a wire rack.
• To keep waffles hot and crispy, place them directly on the racks in the oven at between 90-120°C,
these will keep for about 20 minutes before they begin to dry out. This is especially good if you want
to serve all the waffle sticks at once for breakfast.
• Cooled waffles can be re-warmed and crisped up by popping them into a toaster on the lowest setting, or by returning them to the hot waffle maker. Place them back in the waffle maker on the lower
cooking plate to match the moulds and heat for 1-2 minutes, taking care not to burn them.
• Cooked waffles freeze well, firstly cool them completely on a wire rack and store them in a plastic
freezer bag, separate each waffle with a piece of baking parchment. Frozen waffles can be re-heated in the oven or toaster until hot and crisp.
Care & Cleaning Instructions
Before cleaning your Waffle Stick Maker unplug it from the mains supply and allow it to cool down
completely. There are no parts to disassemble for cleaning.
Never immerse the appliance in water or other liquids.
Never place the Waffle Stick Maker in the dishwasher.
CARING FOR YOUR APPLIANCE
The cooking plates should be conditioned with oil before each use, do this by lightly spraying the plates
with a vegetable oil spray.
To protect the premium quality non-stick surfaces, only use heat-proof non-metallic utensils to remove
the waffle sticks. The use of plastic or nylon utensils that are not marked as heat-proof may melt and
damage the cooking surface.
7
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 7
2016-08-24 3:17 PM
CLEANING
1. Using a non-metallic utensil, gently scrape any residue off the surface of the plates and wipe the
plates with a damp cloth.
2. To remove any stubborn residues, pour a small amount of cooking oil onto the hardened batter.
Allow to set for 5 minutes, and then wipe the softened batter off with a soft cloth.
3. Do not use coarse scouring pads or steel wool for cleaning as these will damage the surface, only
use products suitable for use on non-stick surfaces.
4. Use a soft damp cloth to clean the exterior. Dry thoroughly.
STORAGE
Ensure that the Waffle Stick Maker has completely cooled down and is clean before storing away. Store
your appliance in its packing box or in a clean dry place. The power cable may be wound under the
bottom of the appliance. It can be placed in a vertical position for neat and compact storage.
SERVICING
If you drop or damage your Waffle Stick Maker it should not be used until it has been examined by an
authorised service centre or appliance technician. Always refer servicing to qualified service personnel.
GUARANTEE
This product is guaranteed for 1 year from the date of original purchase. If any defect arises due to
faulty materials or workmanship, the unit will be replaced or refunded at our discretion.
The following conditions apply:
• The product must be returned to the retailer with original proof of purchase.
• The product must be installed and used in accordance with the instructions
contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• We accept no responsibility for incidental or consequential loss or damage.
• Valid in the UK only.
Customer Helpline: 0345 467 6743
For technical queries, please contact:
MPL Home, IMEX, 575-599, Maxted Rd., Hemel Hempstead, HP2 7DX
This product is manufactured to comply with the radio interference requirements of EMC Directive 2014/30/EU.
8
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 8
2016-08-24 3:17 PM
GUIDELINES FOR PROTECTION
OF THE ENVIRONMENT
At the end of the useful life of the appliance, it should not be disposed of with general household waste.
Check with your Local Authority or retailer for recycling advice in your local area.
This symbol on appliance, instruction manual and packaging puts your attention to this
important issue. The materials used in this appliance can be recycled. By recycling used
domestic appliances you contribute an important push to the protection of our environment.
Ask your local authorities for information regarding the point of collection.
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 9
2016-08-24 3:17 PM
SZ-313678_NutriSnack_WAFF_STMaker_IMr1.indd 10
2016-08-24 3:17 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
