White paper | Xperia™ ion
Purpose of this document
Sony product White papers are intended to give an overview of a product and provide details in relevant
areas of technology.
Document history
Version
January 2012
Second released version
Version 2
July 2012
Third released version
Version 3
Sony Mobile Developer World
For the latest technical documentation and development tools, go to http://developer.sonymobile.com/
wp.
This document is published by Sony Mobile
Communications AB, without any warranty*.
Improvements and changes to this text
necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Mobile Communications
AB at any time and without notice. Such changes
will, however, be incorporated into new editions
of this document. Printed versions are to be
regarded as temporary reference copies only.
This White paper is published by:
Sony Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonymobile.com
© Sony Mobile Communications AB, 2009-2012.
All rights reserved. You are hereby granted a
license to download and/or print a copy of this
document.
Any rights not expressly granted herein are
reserved.
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall Sony or
its licensors be liable for incidental or
consequential damages of any nature, including
but not limited to lost profits or commercial loss,
arising out of the use of the information in this
document.
Second released version (January 2012)
Publication number: 1256-1279.1
2
July 2012
White paper | Xperia™ ion
Table of contents
Product overview ........................................................................................................2
Sony Xperia™ ion – Experience Intense Power ....................................................2
Signature features .................................................................................................4
Facts – dimensions, weight, performance and networks ......................................5
Categorised feature list ..........................................................................................7
Technologies in detail .................................................................................................9
Device-to-device communications (local) .............................................................9
Bluetooth™ wireless technology ........................................................................9
Wi-Fi® ...............................................................................................................10
DLNA Certified® (Digital Living Home Alliance)................................................11
Messaging ...........................................................................................................12
MMS (Multimedia Messaging Service)..............................................................12
Email .................................................................................................................12
Positioning – location based services .................................................................13
Provisioning (OMA CP) ........................................................................................13
Multimedia (audio, image and video) ...................................................................14
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................15
Web browser .......................................................................................................16
Trademarks and acknowledgements ..................................................................17
1
July 2012
White paper | Xperia™ ion
Product overview
Sony Xperia™ ion – Experience Intense Power
There’s fast, and then there’s fast. So why wait? Browse the web and download apps at incredible
speeds. Shoot HD videos, take pictures in a snap, and share them all on the stunning 4.6” HD screen. In
just a few clicks, enter a wider world of movies, music, and games. With the Sony Entertainment Network,
boredom is never an option.
Get what you want...fast
Get what you want without the wait. Browse the web, stream music, watch videos. Download your
favorite games and apps. All in an instant. On AT&T’s LTE network and a 1.5 GHz dual processor, the
Xperia™ Ion keeps you connected. Always. And fast.
See every detail
Experience videos, photos and your favorite TV shows in vivid, bright colors on the stunning 4.6” HD
Reality Display with Mobile BRAVIA® Engine. Crisp images. No jagged edges. With reduced light
reflection, the picture stays clear when you're outdoors too. Merely the best entertainment experience in
HD.
Snap your shots in an instant
Some events are too good to miss. Now you don’t have to. Activate your 12MP camera and take your first
shot in just over a second. Keep shooting with only one second between shots. No delays. No missed
moments. Even in low light conditions, the Exmor R™ for mobile camera sensor lightens up any gloomy
day.
Show it like it is
Vacation videos, baby's first steps…record it all in brilliant HD video with one touch of a button. Connect
your Xperia ™ ion to an HD TV and relive those moments from the comfort of your couch. Want to share
moments together? Chat away on the front-facing HD chat-cam. Perfect for video calls.
2
July 2012
White paper | Xperia™ ion
Sony Entertainment Network. Your ultimate source for digital entertainment
Hot tracks, latest films. Enjoy millions of songs and thousands of movies. It’s all on Sony Entertainment
Network services - Music Unlimited™ and Videos Unlimited, exclusive to Xperia™ smartphones. No trips
to the store. No lines. No late fees. Just pure entertainment.
Enjoy everything with one account. It’s the perfect fit for a life full of entertainment.
* Sony Entertainment Network with Video Unlimited™ and Music Unlimited™ are not available in all
markets.
3
July 2012
White paper | Xperia™ ion
Signature features
The sony Xperia™ ion comes with a range of Sony features as standard. Below is a summary of the key
signature features.
Xperia™ Timescape™
Communication made easy
The Timescape™ application manages all your communication with one person in one place. You can
effortlessly browse by category your Facebook™, Twitter™, email and text communications, as well as
view your photos. Now everything is all together and in chronological order, so you don't have to open
different applications to see what's going on.
Xperia™ Infinite button
Everything you want – from everywhere
Tap the infinite button in the Timescape™ application and smart filter each category of communication by
person. For example, when viewing a text message from a friend in Timescape™, tap the infinite button to
view a list of all chat messages with that friend.
Xperia™ Local connectivity
More control over your media
Using Sony Local connectivity, you can exercise more control over how media files get transferred and
stored. For example, you can select MTP mode to transfer files if you want to limit the risk of data corruption or select MSC mode if you want to have more control over the data storage.
Xperia™ Home screen application
The place you call Home
Customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items.
Where’s best for you? Email top right? Music player bottom left? You decide. With four extensions to your
Home screen, you’ve got plenty of space to put things where you want. Just remember to flick left or right
to find them.
4
July 2012
White paper | Xperia™ ion
Facts – dimensions, weight, performance and
networks
Operating system
Google™ Android™ 2.3 (Gingerbread)
Processor
1.5 GHz Qualcomm MSM8260 Dual Core
GPU
Adreno 220
Size
133 x 68 x 10.8 mm
Weight
144 grams
Available colours
Black
SIM card
Micro SIM
Main screen
Colours
16,000,000 colour TFT
Resolution
1280x720 pixels
Size (diagonal)
4.55 inches
Scratch-resistant
Shatter proof sheet on scratch-resistant glass
Input mechanisms
Text input
On-screen QWERTY keyboard
Touch screen
Capacitive
Touch gesture
Yes – multi-touch, up to 4 fingers supported
Memory
Internal phone storage
1 GB
RAM
1 GB
Flash memory
16 GB eMMC
Expansion slot
microSD™ card, up to 32 GB
Camera
Camera resolution
12.1 MP
Digital zoom
16x
Photo flash
No
Video recording
Yes – HD 1080p
Video chat camera
Yes
Front Camera
Yes – HD 720p for video chat and 1.3 MP for camera capture
Sensors
Accelerometer
Yes
5
July 2012
White paper | Xperia™ ion
Proximity sensor
Yes
Ambient light sensor
Yes
Magnetometer
Yes
Gyroscope
Yes
Networks
LT28at
UMTS HSPA+ 850 (Band V), 1900 (Band II), 2100 (Band I)
GSM EDGE 850, 900, 1800, 1900
LTE Band IV and Band XVII
Data transfer speeds
GSM EDGE
Up to 237 kbps
UMTS HSPA cat 6 (upload)
Up to 5.8 Mbps
UMTS HSPA cat 14(download) Up to 21.1 Mbps
LTE cat3
Up to 50 Mbps (upload), up to 100 Mbps (download)
Talk time (GSM)
Up to 10 hours*
Standby time (GSM)
Up to 400 hours*
Talk time (UMTS)
Up to 4 hours*
Standby time (UMTS)
Up to 350 hours*
Music listening time
Up to 12 hours*
Video playback time
Up to 3 hours*
Embedded Battery
1900 mAh typical
1840 mAh minimum
* Values are according to GSM Association Battery Life Measurement Technique.
NOTE: Battery performance may vary depending on network conditions and configurations, and phone
usage.
6
July 2012
White paper | Xperia™ ion
Categorised feature list
Camera
Music
Internet
3D Sweep Panorama™
12.1 megapixel camera
16x digital zoom
Auto focus
Face detection
Flash/Pulse LED
Front-facing camera (VGA)
Geotagging
HD video recording (1080p)
Image stabiliser
Red-eye reduction
Self-timer
Scene recognition
Send to web
Smile Shutter™
Sony Exmor R™ for mobile image
sensor
Sweep Panorama™
Sweep Multi Angle
Touch capture
Touch focus
Video light
Video recording
Album art
Bluetooth™ stereo (A2DP)
Music tones (MP3/AAC)
Music Player
Shazam™ service*
xLoud™ Experience
Bookmarks
Google™ search*
Google Play™
Google Voice™ Search*
Google Maps™ for Mobile with
Navigation, Places and Latitude™*
Pan & zoom
Web browser (WebKit™)
Communication
Messaging
Design
Call list
Facebook™ application*
Google Talk™ application*
Noise suppression
Polyphonic ringtones
Xperia™ Timescape™
Speakerphone
Twitter™ (Timescape™
integration)*
Xperia™ with Facebook™
Vibrating alert
Conversations
Email
Gmail™*
Messaging
Multimedia messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Auto rotation
Gesture input
Gyroscope
Keyboard (on-screen, QWERTY)
Reality Display with Sony Mobile
BRAVIA® ENGINE
Screenshot capturing
Wallpaper
7
July 2012
White paper | Xperia™ ion
Entertainment
Organiser
Connectivity
3D Album
3D games
Accelerated Adobe Flash Video
Google Media Uploader
Media browser
Motion gaming
Radio (FM radio with RDS)
Sony Entertainment Networks*
TV launcher
YPmobile
YouTube™*
Airplane mode
AT&T Address book
Alarm clock
Calculator
Calendar
Contacts
Document readers
eCompass™
Infinite button
LiveWare™ manager
Notes
OfficeSuite
Setup guide
Stopwatch
Tasks
Timer
3.5 mm audio jack (CTIA)
aGPS*
ANT+ sports fitness
Bluetooth™ wireless technology
DLNA Certified®
GLONASS*
HDMI support
Media Transfer Protocol support
Micro USB support
Native USB tethering
NFC
USB High speed 2.0 support
USB host
Wi-Fi®
Wi-Fi® Hotspot functionallity
* This service is not available in all markets.
8
July 2012
White paper | Xperia™ ion
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Mobile Developer World or
your Sony contact person where applicable.
Device-to-device communications (local)
Bluetooth™ wireless technology
Bluetooth™ profiles supported
Advanced Audio Distribution Profile v1.2
Audio/Video Remote Control Profile v1.0
Handsfree Profile v1.5
Headset Profile v1.1
Object Push Profile v1.1
Phonebook Access Profile v1.0
Core version and supported
core features
Advanced Audio 2.1 + EDR
Connectable devices
Products supporting at least one of the profiles above.
More information:
http://developer.sonymobile.com/wp
www.bluetooth.com
9
July 2012

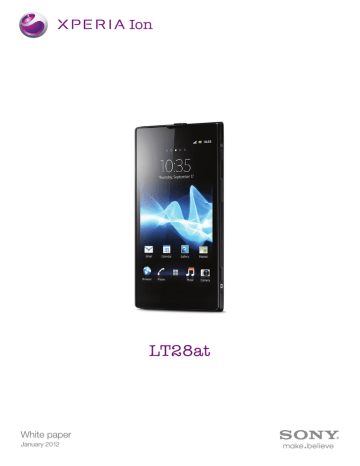

White paper | Xperia™ ion
Wi-Fi®
Supported standards
IEEE 802.11b/g/n and Wi-Fi®
Connectable devices
Wi-Fi® access points
Frequency band
2.4 GHz
Data transfer rate
Up to 72 Mbit/s
Security
WEP 64 bit
WEP 128 bit
TKIP
CCMP (AES)
Open Authentication
Shared Authentication
EAP-SIM
EAP-TLS
EAP-TTLS/MSCHAPv2
PEAPv0/EAP-MSCHAPv2
PEAPv1/EAP-GTC
WPA Personal and WPA2 Personal
WPA Enterprise and WPA2 Enterprise
Encryption
WEP, TKIP and AES
Power save
WMM-UAPSD
QoS, WMM
10
July 2012
White paper | Xperia™ ion
DLNA Certified® (Digital Living Home Alliance)
Supported Device Classes
M-DMS – Mobile Digital Media Server
Media Types: images
Summary: The digital media server exposes the media
files in your phone to a Wi-Fi® network. The files can
then be accessed from other DLNA Certified® clients.
+PU+
Media Types: image, video and music
Summary: Play media in the phone on another device,
such as a TV or computer using 2 box push technology.
+PU+ is integrated in the Gallery and Music applications.
M-DMP – Mobile Digital Media Player
Media Types: image, video and music
Summary: Play content stored on another device, for
example, a server or a PC, directly on the phone.
Supported Bearers
Wi-Fi®
DRM Support
The DLNA Certified® implementation does not support
DRM-protected content.
11
July 2012
White paper | Xperia™ ion
Messaging
MMS (Multimedia Messaging Service)
According to OMA Multimedia Messaging Service v1.0 + SMIL
Email
Bearer type (IP)
GPRS, EGPRS, UMTS
Character sets
BIG5 Traditional Chinese
GB18030
ISO-2022-JP Japanese
ISO-8859-1
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO 8859-11
KOI8-R Cyrillic
Shift_JIS Japanese
USASCII
UTF-16
UTF-8
Windows® 874
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1258 Vietnamese
Protocols
POP3 and IMAP4
Push email
Microsoft® Exchange ActiveSync® (EAS)
Secure email
SSL/TLS, both port methods (POPS/IMAPS) and STARTTLS
HTML mail
Yes (read only)
More information:
http://developer.sonymobile.com/wp
www.openmobilealliance.org
12
July 2012
White paper | Xperia™ ion
Positioning – location based services
Supported standards:
• OMA Secure User Plane Location (SUPL) v1.0
• 3GPP™ Control Plane location (incl. Emergency location)
• Qualcomm® GPSOneXtra™
Supported satellite systems:
• GPS
• GLONASS*
* NOTE: GPS and GLONASS are used together to calculate the position. Positioning is more robust and
accurate in most conditions, if both systems are active. The benefits of using GLONASS are automatically
available for all applications using the Satellite Positioning API ("GPS Provider" in Android terminology).
Provisioning (OMA CP)
OMA CP version 1.1
13
July 2012
White paper | Xperia™ ion
Multimedia (audio, image and video)
Audio Playback
Audio Recording
Image Playback
Image Capture
Video Playback
Decoder format
Supported in file format
Audio decoding MPEG-1/2/2.5,
audio layer 3
MP3 (.mp3), 3GPP (.3gp),
MP4 (.mp4, .m4a)
AAC, AAC+, eAAC+
3GPP (.3gp), MP4 (.mp4)
AMR-NB, AMR-WB
3GPP (.3gp)
General MIDI (GM)
SMF (.mid)
Linear PCM 16bit
WAV (.wav)
OTA
OTA (.ota)
Ogg vorbis
Ogg vorbis (.ogg)
Encoder format
Supported in file format
AMR-NB, AMR-WB
3GPP (.3gp), MP4 (.mp4),
AMR (.amr)
AMR-NB, AMR-WB, AAC-LC
stereo, sample rate 48 kHz bit rate
128 kbps
3GPP (.3gp), MP4 (.mp4)
Decoder format
Supported in file format
1, 4, 8, 16, 24 and 32 bpp and RLE
encoded formats
BMP (.bmp)
Single and multi-frame, bitmap
mask support (GIF87a format and
GIF89a format)
GIF (.gif)
Joint Photographic Experts Group
JPEG (.jpg)
Portable Network Graphics Bitmap
mask support
PNG (.png)
Wireless Bitmap
WBMP (.wbmp)
Encoder format
Supported in file format
Joint Photographic Experts Group
JPEG (.jpg)
Decoder format
Supported in file format
MPEG-4 Simple Profile Level 6,
Advanced Simple Profile Level 5
3GPP (.3gp), MP4 (.mp4)
H.264 High Profile Level 3.2
3GPP (.3gp), MP4 (.mp4)
H.263 Profile 0 Level 70
3GPP (.3gp)
14
July 2012
White paper | Xperia™ ion
Video Recording
Encoder format
Supported in file format
Video H.263 Profile 0, H.264
Baseline Profile
Audio: AAC-LC stereo, sample rate
48 kHz bit rate 128 kbps, AMR-NB
3GPP (.3gp), MP4 (.mp4)
Audio/Video Streaming
Streaming transport
RTSP according to 3GPP™
HTTP streaming
DRM
DRM (Digital Rights Management) –
features the rights and copy
protection of downloaded content
OMA DRM 1.0 Marlin DRM
Synchronisation (OMA DS, EAS, Google Sync™)
OMA Data Synchronisation protocol versions 1.1.2 and 1.2
OMA Data Formats: vCard 2.1, vCalendar 1.0
Microsoft® Exchange ActiveSync® protocol version 2.5
Microsoft® Exchange ActiveSync® protocol version 12
Microsoft® Exchange ActiveSync® protocol version 12.1
Google Sync™
Related information:
http://developer.sonymobile.com/wp
15
July 2012
White paper | Xperia™ ion
Web browser
Browser version
Android 2.3 Browser (Based on WebKit™)
Navigation/rendering
Adobe™ Flash™ 11*
Full page PC rendering
Landscape/portrait rendering
Pan & Zoom
Sharing links using NFC
Search
Internet Search
Browser compliancy
CSS 2.0
CSS 2.1
CSS 3.0
DOM 2.0
DOM 3.0
HTML version. 4.0
HTML version. 5.0
JavaScript 1.7/ECMA-script 262 3rd edition
WebGL 1.0
XHTML Basic version 1.0
XHTML 1.1
Supported Device API
Geo-location API
Protocol compliancy
Gzip
HTTP/1.1
OMA Download 1.0
TLS 1.0 and SSL 3.0
* Updates are distributed via Android market™.
Related information:
http://developer.sonymobile.com/wp
16
July 2012
White paper | Xperia™ ion
Trademarks and acknowledgements
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property
of their respective owners.
Visit www.sonymobile.com for more information.
17
July 2012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
