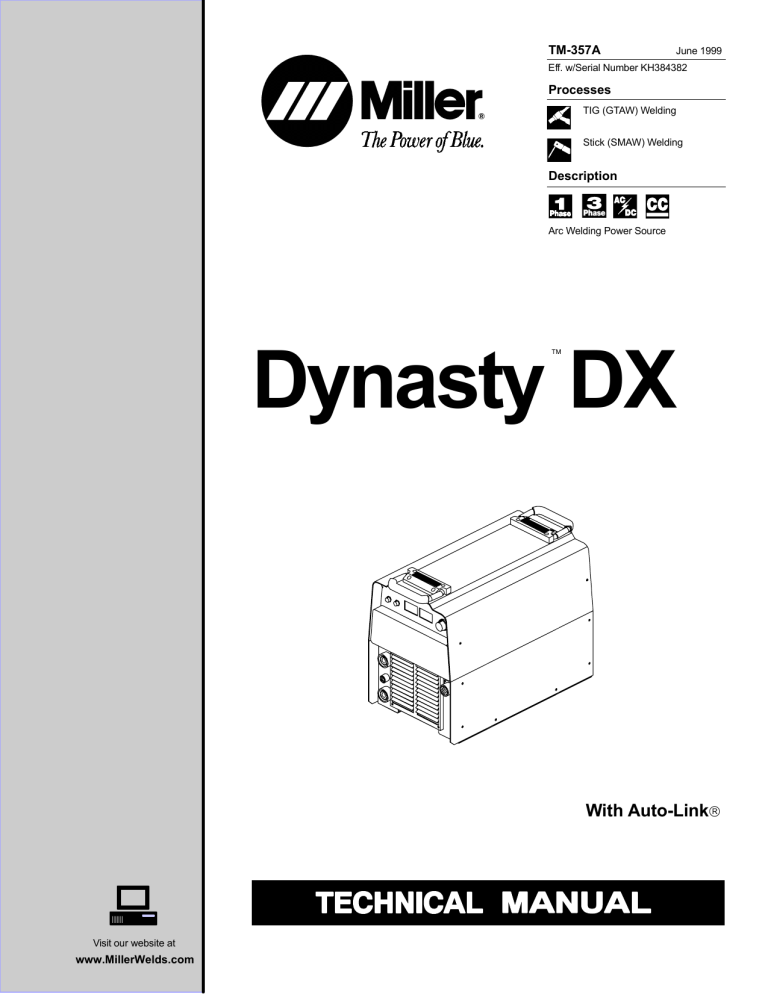

TM-357A, Dynasty DX

TM-357A, Dynasty DX

Visit our website at

www.MillerWelds.com

TM-357A

June 1999

Eff. w/Serial Number KH384382

Processes

TIG (GTAW) Welding

Stick (SMAW) Welding

Description

Arc Welding Power Source

Dynasty DX

With Auto-Link

TABLE OF CONTENTS

SECTION 1 – SAFETY PRECAUTIONS FOR SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1. Symbol Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2. Servicing Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-3. EMF Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2 – INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2. Duty Cycle and Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3. Volt-Ampere Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-4. Selecting a Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-5. Weld Output Terminals and Selecting Cable Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-6. Remote 14 Receptacle Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-7. 115 Volts AC Duplex Receptacle (Optional), Power Switch Location, and Circuit

Breaker CB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-8. Electrical Service Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-9. Connecting Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3 – OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1. Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2. AC/Balance Control

3-3. Meter Function

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4. Output Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5. Sequence Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6. Lift-Arc and HF TIG Start Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4 – THEORY OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5 – PRE-POWER CHECKLIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-1. Checking Unit Before Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2. Input Rectifier SR1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-3. Tank Capacitor C1 and Input Capacitors C3, C4

5-4. Output Diodes D1, D2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-5. IGBT Modules PM1, PM2, PM3, PM4

5-6. Diodes D1, D2, D3, D4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-7. Contactors W1, W2 (230/460 V Models Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6 – TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-1. Troubleshooting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-2. Troubleshooting Circuit Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-3. Waveforms for Sections 6-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-4. Control Board PC1 Testing Information (Use with Section 6-5) . . . . . . . . . . . . . . . . . . . . . . . . .

6-5. Control Board PC1 Test Point Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-6. Display Board PC3 Testing Information (Use with Section 6-7) . . . . . . . . . . . . . . . . . . . . . . . . .

6-7. Display Board PC3 Test Point Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-8. Interconnecting Board PC2 Testing Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-9. High-Frequency Board PC7 Testing Information (Use with Section 6-10)

6-10.High-Frequency Board PC7 Test Point Values

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-11.Clamp Board PC8 Testing Information (Use with Section 6-12) . . . . . . . . . . . . . . . . . . . . . . . .

6-12.Clamp Board PC8 Test Point Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-13.Secondary IGBT Board PC6 Testing Information (Use with Section 6-14) . . . . . . . . . . . . . . . .

6-14.Secondary IGBT Board PC6 Test Point Values With Contactor Off . . . . . . . . . . . . . . . . . . . . .

SECTION 7 – MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7-2. Blowing Out Inside of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7-3. Overload Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7-4. Voltmeter/Ammeter Help Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7-5. Measuring Input Capacitor Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 8 – HIGH FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-1. Welding Processes Requiring High Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-2. Incorrect Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-3. Correct Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 9 – ELECTRICAL DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 10 – PARTS LIST For KH384382 Thru KJ150395 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 11 – PARTS LIST For KJ150396 And Following . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41

41

41

42

38

38

38

39

40

29

30

31

32

33

34

20

20

22

24

26

27

35

36

37

43

68

74

12

14

14

14

15

15

16

18

19

9

9

10

10

10

11

11

7

7

8

5

6

6

3

4

3

3

1

1

1

2

TM-357-A

SECTION 1 – SAFETY PRECAUTIONS FOR SERVICING

1-1.

Symbol Usage

OM-357D 4/98, safety_stm 5/97

Means Warning! Watch Out! There are possible hazards with this procedure! The possible hazards are shown in the adjoining symbols.

Y

Marks a special safety message.

.

Means “Note”; not safety related.

This group of symbols means Warning! Watch Out! possible

ELECTRIC SHOCK, MOVING PARTS, and HOT PARTS hazards.

Consult symbols and related instructions below for necessary actions to avoid the hazards.

1-2.

Servicing Hazards

Y

The symbols shown below are used throughout this manual to call attention to and identify possible hazards. When you see the symbol, watch out, and follow the related instructions to avoid the hazard.

Y

Only qualified persons should service, test, maintain, and repair this unit.

Y

During servicing, keep everybody, especially children, away.

FLYING METAL can injure eyes.

D

Wear safety glasses with side shields or face shield during servicing.

D

Be careful not to short metal tools, parts, or wires together during testing and servicing.

HOT PARTS can cause severe burns.

D

Do not touch hot parts bare handed.

D

Allow cooling period before working on welding gun or torch.

ELECTRIC SHOCK can kill.

D

Do not touch live electrical parts.

D

Turn Off welding power source and wire feeder and disconnect and lockout input power using line disconnect switch, circuit breakers, or by removing plug from receptacle, or stop engine before servicing unless the procedure specifically requires an energized unit.

D

Insulate yourself from ground by standing or working on dry insulating mats big enough to prevent contact with the ground.

D

Do not leave live unit unattended.

D

If this procedure requires an energized unit, have only personnel familiar with and following standard safety practices do the job.

D

When testing a live unit, use the one-hand method. Do not put both hands inside unit. Keep one hand free.

D

Disconnect input power conductors from deenergized supply line

BEFORE moving a welding power source.

SIGNIFICANT DC VOLTAGE exists after removal of input power on inverters.

D

Turn Off inverter, disconnect input power, and discharge input capacitors according to instructions in Maintenance Section before touching any parts.

EXPLODING PARTS can cause injury.

D

Failed parts can explode or cause other parts to explode when power is applied to inverters.

D

Always wear a face shield and long sleeves when servicing inverters.

SHOCK HAZARD from testing.

D

Turn Off welding power source and wire feeder or stop engine before making or changing meter lead connections.

D

Use at least one meter lead that has a selfretaining spring clip such as an alligator clip.

D

Read instructions for test equipment.

STATIC (ESD) can damage PC boards.

D

Put on grounded wrist strap BEFORE handling boards or parts.

D

Use proper static-proof bags and boxes to store, move, or ship PC boards.

FALLING UNIT can cause injury.

D

Use lifting eye to lift unit only, NOT running gear, gas cylinders, or any other accessories.

D

Use equipment of adequate capacity to lift and support unit.

D

If using lift forks to move unit, be sure forks are long enough to extend beyond opposite side of unit.

Dynasty DX

FIRE OR EXPLOSION hazard.

D

Do not place unit on, over, or near combustible surfaces.

D

Do not service unit near flammables.

MOVING PARTS can cause injury.

D

Keep away from moving parts such as fans.

D

Keep all doors, panels, covers, and guards closed and securely in place.

TM-357 Page 1

MOVING PARTS can cause injury.

D

Keep away from moving parts.

D

Keep away from pinch points such as drive rolls.

MAGNETIC FIELDS can affect pacemakers.

D

Pacemaker wearers keep away from servicing areas until consulting your doctor.

H.F. RADIATION can cause interference.

D

High-frequency (H.F.) can interfere with radio navigation, safety services, computers, and communications equipment.

D

Have only qualified persons familiar with electronic equipment install, test, and service

H.F. producing units.

D

The user is responsible for having a qualified electrician promptly correct any interference problem resulting from the installation.

D

If notified by the FCC about interference, stop using the equipment at once.

D

Have the installation regularly checked and maintained.

D

Keep high-frequency source doors and panels tightly shut, keep spark gaps at correct setting, and use grounding and shielding to minimize the possibility of interference.

OVERUSE can cause OVER-

HEATING.

D

Allow cooling period; follow rated duty cycle.

D

Reduce current or reduce duty cycle before starting to weld again.

D

Do not block or filter airflow to unit.

1-3.

EMF Information

Considerations About Welding And The Effects Of Low Frequency

Electric And Magnetic Fields

Welding current, as it flows through welding cables, will cause electromagnetic fields. There has been and still is some concern about such fields. However, after examining more than 500 studies spanning 17 years of research, a special blue ribbon committee of the National

Research Council concluded that: “The body of evidence, in the committee’s judgment, has not demonstrated that exposure to powerfrequency electric and magnetic fields is a human-health hazard.”

However, studies are still going forth and evidence continues to be examined. Until the final conclusions of the research are reached, you may wish to minimize your exposure to electromagnetic fields when welding or cutting.

To reduce magnetic fields in the workplace, use the following procedures:

READ INSTRUCTIONS.

D

Use MILLER Testing Booklet (Part No. 150

853) when servicing this unit.

D

Consult the Owner’s Manual for welding safety precautions.

D

Use only genuine MILLER replacement parts.

1.

Keep cables close together by twisting or taping them.

2.

Arrange cables to one side and away from the operator.

3.

Do not coil or drape cables around your body.

4.

Keep welding power source and cables as far away from operator as practical.

5.

Connect work clamp to workpiece as close to the weld as possible.

About Pacemakers:

Pacemaker wearers consult your doctor first. If cleared by your doctor, then following the above procedures is recommended.

TM-357 Page 2 Dynasty DX

SECTION 2 – INSTALLATION

2-1.

Specifications

Input Power

Three Phase

Single Phase

Rated Welding Output

250 A @ 30 Volts AC, 40%

Duty Cycle

200 A @ 28 Volts DC, 40%

Duty Cycle

250 A @ 30 Volts AC, 40%

Duty Cycle

200 A @ 28 Volts DC, 40%

Duty Cycle

*While idling

Range

5–300

5–300

2-2.

Duty Cycle and Overheating

Maximum

Open-Circuit

Voltage DC

90

90

Amperes Input at Rated Load Output 60 Hz

230 V 460 V KVA KW

26.3

*.27

20.5

*.27

17.9

*.15

13.4

*.15

14.2

*.09

8.4

*.09

10.5

*.04

7.6

*.04

62.6

*.33

44

*.33

32.2

*.18

25.8

*.18

14.8

*.10

11.9

*.1

10.4

*.07

8.1

*.07

Duty Cycle is percentage of 10 minutes that unit can weld at rated load without overheating.

If unit overheats, output stops, a

Help message is displayed (see

Section 7-4), and cooling fan runs.

Wait fifteen minutes for unit to cool.

Reduce amperage or voltage, or duty cycle before welding.

Y

Exceeding duty cycle can damage unit and void warranty.

250 A @ 40% Duty Cycle For AC

200 A @ 40% Duty Cycle For DC

Overheating

4 Minutes Welding

0

Minutes

15

6 Minutes Resting

OR

A or V

Reduce Duty Cycle sduty1 5/95 / SA-185 794

Dynasty DX TM-357 Page 3

2-3.

Volt-Ampere Curves

Volt-ampere curves show minimum and maximum voltage and amperage output capabilities of unit.

Curves of other settings fall between curves shown.

TM-357 Page 4

SA-185 793 / SA-186 294

Dynasty DX

2-4.

Selecting a Location

Dimensions And Weight

90 lb (40.7 kg)

24 in

(610 mm)

17 in

(432 mm)

Movement

1

1

12-1/2 in

(318 mm)

Y

Do not move or operate unit where it could tip.

2

Location

1 Lifting Handles

Use handles to lift unit.

2 Hand Cart

Use cart or similar device to move unit.

3 Rating Label

Use rating label to determine input power needs.

4 Line Disconnect Device

Locate unit near correct input power supply.

Y

Special installation may be required where gasoline or volatile liquids are present – see NEC Article 511 or CEC

Section 20.

4

18 in

(460 mm)

3

18 in

(460 mm) loc_2 3/96 - ST-801 708-A

Dynasty DX TM-357 Page 5

2-5.

Weld Output Terminals and Selecting Cable Sizes

Weld Output

Terminals

Welding

Amperes

Total Cable (Copper) Length In Weld Circuit Not Exceeding

100 ft (30 m) Or Less

150 ft

(45 m)

200 ft

(60 m)

250 ft

(70 m)

300 ft

(90 m)

350 ft

(105 m)

10 – 60%

Duty

Cycle

60 – 100%

Duty Cycle

10 – 100% Duty Cycle

4 4 4 3 2 1 1/0

400 ft

(120 m)

1/0 100

150 3

3

3

2

2

1

1

1/0

1/0

2/0

2/0

3/0

3/0

4/0

3/0

4/0 200

250 2 1 1/0 2/0 3/0 4/0 2-2/0 2-2/0

300 1 1/0 2/0 3/0 4/0 2-2/0 2-3/0 2-3/0

Work

Electrode

350 1/0 2/0 3/0 4/0 2-2/0 2-3/0 2-3/0 2-4/0

*Weld cable size (AWG) is based on either a 4 volts or less drop or a current density of at least 300 circular mils per ampere. Contact your distributor for the mm

2

equivalent weld cable sizes.

NOTE: For proper installation of gas hose, the use of a quick connect torch (such as Weldcraft QWP-17 or QWP-20), is recommened.

S-0007E

2-6.

Remote 14 Receptacle Information

B

A

K

C

L

D

M

N

E

J

I

F

G

H

ST-801 708-A

REMOTE

OUTPUT

CONTROL

AMPERAGE

VOLTAGE

GND

Socket*

A

Socket Information

Contactor control, 24 volts dc.

B Contact closure to A completes 24 volts dc contactor control circuit, and enables output.

D

E

C

M

F

H

K

Output to remote control; 0 to +10 volts dc output to remote control.

Remote control circuit common.

0 to +10 volts dc input command signal from remote control.

Not used.

Current feedback; +1 volt dc per 100 amperes.

Voltage feedback; +1 volt dc per 10 output receptacle volts.

Chassis common.

*The remaining sockets are not used.

TM-357 Page 6 Dynasty DX

2-7.

115 Volts AC Duplex Receptacle (Optional), Power Switch Location, and Circuit

Breaker CB1

3

1

2

1 115 V 10 A AC Receptacle

2 Circuit Breaker CB1

CB1 protects the 115 volts ac duplex receptacle from overload.

Press button to reset breaker.

3 Power On/Off Switch

ST-801 866-A

2-8.

Electrical Service Guide

NOTE

Actual input voltage cannot exceed

±

15% of indicated required input voltage. If actual input voltage is outside of this range, no output is available.

Input Voltage

Input Amperes At Rated Output

Max Recommended Standard Fuse Or Circuit Breaker

Rating In Amperes

Min Input Conductor Size In AWG/Kcmil

Max Recommended Input Conductor Length In Feet

(Meters)

Min Grounding Conductor Size In AWG/Kcmil

Reference: 1996 National Electrical Code (NEC).

AC

DC

Three-Phase

230

26.5

20.5

460

17.9

13.4

50 25

10

104 (32)

10

14

165 (50)

14

Single-Phase

230

62.6

44

460

32.2

25.8

100 50

8

90 (27)

8

10

241 (74)

10

S-0092J

Dynasty DX TM-357 Page 7

2-9.

Connecting Input Power

3

Green 1

Y

Always connect grounding conductor first.

= GND/PE

L1

L2

L3

2

Green

Tools Needed:

3/8 in

3/8 in

1

2

Check input voltage available at site.

1 Input And Grounding

Conductors

2 Line Disconnect Device

See Section 2-8.

For single-phase operation:

3 Black And White Input

Conductor

4 Red Input Conductor

5 Insulation Sleeving

6 Electrical Tape

Insulate and isolate red conductor as shown.

Y

Always connect green wire to supply grounding terminal, never to a line terminal.

For three-phase operation:

Connect black, white, and red wires

(L1, L2, L3) to line terminals.

Y

Always connect green wire to supply grounding terminal, never to a line terminal.

L1

L2

1

1

3

4

Green

1

6

5

TM-357 Page 8

input_2 3/96 - ST-801 709-A

Dynasty DX

3-1.

Controls

1 2

SECTION 3 – OPERATION

3 4

5

13

12

6

7

8

11 10 14 9

Ref. ST-187 198

1 AC Frequency Control

Range is 20 to 250 hertz. For most applications, increasing frequency improves arc stability.

2 Balance/DIG Control

Control functions as a balance control for

GTAW (TIG) process, and in the DIG mode for SMAW (STICK) process, depending on position of Process control.

Balance Mode:

See Section 3-2.

DIG Mode:

When set lower, short-circuit amperage at low arc voltage is the same as normal welding amperage.

When set higher, short-circuit amperage is increased at low arc voltage to help with arc starting and making overhead or vertical welds, as well as to reduce sticking while welding.

3 Voltmeter (see Section 3-3)

Voltmeter displays voltage (to the nearest 0.1

V) at the weld output terminals, but not necessarily the welding arc due to cable resistance, poor connections, etc.

4 Ammeter (see Section 3-3)

Use ammeter to preset amperage. Meter displays weld amperage output of unit when welding.

5 Amperage Adjustment Control

Turn control clockwise to increase amperage from 5 to 300 amps.

6 Output Control Switch

See Section 3-4.

7 Amperage Control Switch

For front panel control, place switch in Panel position.

For remote control, make connections to remote 14 receptacle, and place switch in

Remote 14 position.

8 Trigger Hold

To start weld, press and release gun trigger within three seconds after an arc has been struck. To end weld, press and release gun trigger. If gun trigger is not released within 3 seconds, unit switches to standard trigger control operation.

9 Process Control

Use control to select either of the GTAW

(TIG) welding process and polarity, or the

SMAW (Stick) welding process.

Selecting any GTAW (TIG) position enables the gas valve, which is disabled when SMAW

(Stick) position is selected.

10 Sequence Control

See Section 3-5.

11 Start A (Amperage) Control

Use control to select a starting amperage that is different from the weld amperage.

12 Start t (Amperage Time) Control

Use control to select length of time in seconds that amperage remains at start amperage before changing to weld amperage.

For example, to select start amperage of 300

A for 3 seconds and weld amperage of 200

A: Set Start A amperage control to 300 A, set

Start t time control to 3 seconds, and set front panel or remote amperage control to 200 A.

13 Crater Control

Control sets length of time in seconds to taper weld output from weld amperage setting to 0 A .

14 Postflow Control

Control sets length of time in seconds gas flows after the welding stops.

Dynasty DX TM-357 Page 9

3-2.

AC/Balance Control

Max Penetration

At 20 Hz

100

Max Penetration

At 250 Hz

Balance Control Waveform Examples

1% Electrode

Positive

99% Electrode

Negative

È È È

È ÈÈÈ È ÈÈÈÈ È ÈÈÈ

ÈÈÈ ÈÈÈÈ ÈÈÈ

10% Electrode

Positive

ÈÈ È ÈÈ

90% Electrode

Negative

È ÈÈÈ ÈÈ ÈÈÈ ÈÈ ÈÈÈ

ÈÈÈ ÈÈÈ ÈÈÈ

100

Max Cleaning At

All Hz

0

50% Electrode

Positive

ÈÈÈ ÈÈÈ ÈÈ

ÈÈÈ ÈÈÈ ÈÈ ÈÈ ÈÈ

50% Electrode

Negative

ÈÈ ÈÈ

ÈÈ ÈÈ

3-3.

Meter Function

Mode

On

Lift On

HF Remote

Lift Remote

Remote

Meter Reading At Idle

V

80.0

Actual Volts (OCV)

A

85

Preset Amps

V

7.0

Actual Volts

V

Blank

V

A

85

Preset Amps

A

85

Preset Amps

Blank

V

Blank

A

85

Preset Amps

A

85

Preset Amps

3-4.

Output Switch Settings

Output Switch Setting

On

Lift On

HF Remote

Lift Remote

Remote

TM-357 Page 10

Process

SMAW (Stick)

GTAW (TIG) With Lift-Arc Start – See Section

3-6

GTAW (TIG) With HF Start – See Section 3-6

GTAW (TIG)

SMAW (Stick)

Balance Control:

Control changes the ac output square wave.

Adjust setting for deeper penetration or more cleaning action.

Meter Reading While Welding

V

24.5

Actual Volts

A

85

Actual Amps

V

10.3

Actual Volts

V

10.3

Actual Volts

V

10.3

Actual Volts

V

24.5

Actual Volts

A

85

Actual Amps

A

85

Actual Amps

A

85

Actual Amps

A

85

Actual Amps

Output On/Off Control

Electrode Hot

Electrode Hot

At Remote 14

At Remote 14

At Remote 14

Dynasty DX

3-5.

Sequence Control

Control Position

Off

Allows These Controls To Be Functional

Crater

Start/Crater

Postflow t – 0-50 Seconds

Start t (Time) – 0-15 Seconds

Start A (Amperage0 – 0-300 Amps

Postflow – 0-50 Seconds

Crater t – 0-15 Seconds

Postflow t – 0-50 Seconds

Start t (Time) – 0-15 Seconds

Start A (Amperage) – 0-300 Amps

Crater t – 0-15 Seconds

Postflow – 0-50 Seconds

3-6.

Lift-Arc and HF TIG Start Procedures

SMAW (Stick)/GTAW (TIG)

Stick

TIG

Stick/TIG

TIG

TIG

TIG

1 2

“Touch”

1 – 2

Seconds

Do NOT Strike Like A Match!

With Output Switch in Lift On position, start arc as follows:

1 TIG Electrode

2 Workpiece

Touch tungsten electrode to workpiece at weld start point, hold

electrode to workpiece for 1-2

seconds, and slowly lift electrode.

An arc will form when electrode is lifted.

Normal open-circuit voltage is not present before tungsten electrode touches workpiece; only a low sensing voltage is present between electrode and workpiece. The solid-state output contactor does not energize until after electrode is touching workpiece. This allows electrode to touch workpiece without overheating, sticking, or getting contaminated.

With Output Switch in HF Remote position, start arc as follows:

High frequency turns on to help start arc when contactor is energized. High frequency turns off when arc is started, and turns on whenever arc is broken to help restart arc.

Ref. ST-156 279

Dynasty DX TM-357 Page 11

SECTION 4 – THEORY OF OPERATION

1 Power Switch S1

Provides on/off control of welding power source.

2 Input Rectifier SR1

Changes the ac line input power to full-wave rectified dc.

3 Control Transformer T2

Supplies power to control board

PC1, interconnecting board PC2,

Remote 14 receptacle RC1, and

Three-Phase

Line Input

Power

HF board PC7.

4 Circuit Breaker CB1

Provides overload protection for optional 115 volt ac receptacle.

5 Circuit Breaker CB2

Prior to Serial No. KJ037293, provides overload protection for 24 volts ac portion of Remote 14 receptacle RC1.

6 115 Volt AC Receptacle

Connects auxiliary equipment to welding power source.

7 Remote 14 Receptacle RC1

Connects remote amperage or voltage, and contactor controls.

8 Control Board PC1

Controls weld output by changing gate pulses (frequency of pulses) to

IGBT power modules PM1 and

PM2 after comparing current feedback to reference level set by R5 on

PC3.

9 460 V Input Contactor W1

Connects the 220 volts ac secondary voltage from T2 to interconnecting board PC2 to balance voltage on input capacitors C3 and C4.

10 230 V Auto-Link Contactor

W2

Provides automatic linking for different input voltages. W2 sets power circuit for correct input voltage.

W2A sets T2 primary.

11 Fan Motor FM

Provides cooling of internal components.

12 Display Board PC3 (See

Section 3-1)

Consists of voltmeter V, ammeter

A, Amperage Adjustment control

R5, Amperage Control switch S1,

AC Frequency control R81, Balance/Dig control R82, Start Time control R83, Start Amperage control R85, Crater Time control R84,

Postflow Time control R86, Sequence Control switch S4, Process

Select switch S3, Output Select switch S2, and Trigger Hold switch

S5.

7

6

115 Volts AC

Receptacle

Remote 14

Receptacle

RC1

1

AC

R83

Power

Switch

12

Frequency

Control R81

Start Time

Control

S1

Sequence

Control

Switch S4

4

5

10

3

Auto-Link

Contacts

W2, W2A

115

VAC

Circuit

Breaker

CB1

Circuit

Breaker

CB2

SCR/

Integrated

Rectifier SR1

Transformer T2

24

VAC

Balance/Dig

Control R82

Start

2

Crater Time

Control R84

Amperage

Control

Control R85

18

VAC

Center-

Tapped

8

W1

9

Cable

460 V Input

Contactor W1

Ribbon

Voltmeter

V

Process

Control

Switch S3

Postflow

220

VAC

220

VAC

Control R86

13

15

17

10

A

Input

Capacitors

C3, C4

S5

Interconnecting

Board PC2

IGBT Power

Module PM1

16

IGBT Board

PC4

Gating

Signals

Control Board PC1

Output

230 V

Auto-Link

Contactor W2

Display Board PC3

Ammeter

Control

Switch S2

Trigger

Hold Switch

14

17

16

IGBT Power

Module PM2

IGBT Board

11

Inductors

L1, L3, L4

PC5

Gating

Signals

Fan Motor

FM

Amperage

Adjustment

Control R5

Amperage

Control

Switch S1

TM-357 Page 12 Dynasty DX

18

Current

Transformer

CT1

T1 Primary

Current

Feedback

Current

Feedback

Voltage Feedback

Voltage Feedback

19

Main

Transformer

T1

21

Stabilizer

Z1

22

Hall

Device

HD1

24

Clamp Board

PC8

27

Work

Weld Output

Receptacle

Work

23

20

Output

Diodes

D1, D2

IGBT Switching Modules

PM3, PM4

26

HF

Coupling Coil

T3

27

Electrode

Weld Output

Receptacle

Electrode

AC Or DC Control Circuits

3

φ

Power

25

HF Board

PC7

13 Input Capacitors C3, C4

Filter the dc output voltage of SR1.

14 Inductors L1, L3, L4

L1 limits peak current in SR1, C3, and C4. L3 and L4 limit voltage and current in IGBT’s during turn-on and turn-off.

15 Interconnecting Board PC2

Provides electrical connections for

SR1, T1, C3, C4, L1, L3, L4, and

IGBT’s. Precharge and bleeder resistors are mounted on PC2.

16 IGBT Boards PC4, PC5

Provide interconnection of gate pulses from PC1 to PM1 and PM2.

17 IGBT Power Modules PM1,

PM2

Use very fast on/off switching action to effectively turn the dc into ac.

18 Current Transformer CT1

Provides current feedback to PC1 from the primary of T1 for control circuit timing and to limit primary current.

19 Main Transformer T1

Energizes by on/off switching action of PM1 and PM2, and supplies power to weld output circuit.

20 Output Diodes D1, D2

Rectify output of T1.

21 Stabilizer Z1

Smooths out welding current.

22 Hall Device HD1

Provides weld or secondary current feedback signal to PC1.

23 IGBT Switching Modules PM3

And PM4

Use very fast on/off switching action to effectively turn the dc into ac output; also control AC balance.

24 Clamp Board PC8

Clamps voltage spikes created by

AC switching to protect switching

IGBT’s PM3 and PM4.

25 HF Board PC7

Creates the high-frequency (HF) energy to start the arc.

26 HF Coupling Coil T3

Couples HF energy created on PC7 to weld output circuit.

27 Electrode And Work Weld

Output Receptacles

Provide weld output and allow changing of output polarity.

Weld Current Circuit

Optional

Dynasty DX TM-357 Page 13

SECTION 5 – PRE-POWER CHECKLIST

5-1.

Checking Unit Before Applying Power

.

See Section 6-2 for test points and values and Section

10 for parts location.

Y

Discharge input capacitors according to Section 7-5 and be sure voltage is near zero before touching any parts.

Y

Before troubleshooting or applying power to unit, complete following checks to avoid causing further damage.

Y

Although control board PC1 and hall device HD1 are briefly checked in this procedure, more complete tests may be needed later for these parts. This check is simply to get a basic okay to power up unit.

5-2.

Input Rectifier SR1

Power Switch S1

Negative (–)

SCR (–)

Gate

Positive (+)

+

G

R2

T

S

R

Input Rectifier SR1

AC (L1)

AC (L2)

AC (L3)

Y

Read and follow safety information in Section 5-1 before proceeding.

.

Resistance values are based on in-circuit measurements.

1 Visually inspect SR1 for damage.

2 Check 6 diodes (diode test).

Check from each ac terminal to the positive (+) terminal and from each ac terminal to the negative (–) terminal.

3 Check precharge SCR (ohms position). Connect negative lead to SCR (–) terminal and positive lead to positive (+) terminal. Resistance should be 200 ohms

±

10%. Connect a jumper between positive (+) and gate terminals.

Resistance should be approximately 35 ohms.

4 If results are in doubt, use an

IGBT tester (MILLER Part No.

043 553) to test the SCR portion of SR1 as follows:

A. Disconnect plug PLG13 from receptacle RC1 on interconnecting board PC2.

B. Connect red clip to positive

(+) terminal.

C. Connect black clip to SCR

(–) terminal.

D. Connect yellow clip to gate terminal.

5 If SR1 is defective, check the three poles of power switch

S1 (switch off = OL, switch on

= 0 ohms).

ST-801 550 / Ref. SD-183 484

TM-357 Page 14 Dynasty DX

5-3.

Tank Capacitor C1 and Input Capacitors C3, C4

Input Capacitors C3, C4

Tank Capacitor C1

5-4.

Output Diodes D1, D2

Y

Read and follow safety information in Section 5-1 before proceeding.

.

This is not a conclusive test.

For best results use a capacitor tester to check capacitance.

.

If either C3 or C4 is shorted, remove interconnecting board

PC2 and check IGBT’s PM1 and PM2.

1 Check C1, C3, and C4 for a short (ohms position).

ST-801 550

Y

Read and follow safety information in Section 5-1 before proceeding.

1 Test diodes individually according to the Diode Testing

Procedure in the MILLER

Testing Booklet (Part No. 150

853).

Dynasty DX

Diodes D1, D2

Weld Output

Receptacles

Ref. SD-183 484 / ST-802 037

TM-357 Page 15

5-5.

IGBT Modules PM1, PM2, PM3, PM4

Best Test For PM1 And PM2 (Use MILLER

IGBT tester #043553)

Y

Read and follow safety information in

Section 5-1 before proceeding.

.

It is not necessary to remove interconnecting board PC2 to test the IGBT’s unless input capacitor C3 or C4 is shorted.

1 Disconnect gate lead plug PLG5 from receptacle RC5 on control board PC1.

Test PM1 as follows:

2 Connect red tester lead to C1, black tester lead to E1, and yellow tester lead to gate

(PLG5–pin 10). Next, connect red lead to

C2, black lead to E2, and yellow tester lead to gate (PLG5–pin 7).

Test PM2 as follows:

3 Connect red tester lead to C1, black lead to E1, and yellow lead to gate (PLG5– pin

6). Next, connect red lead to C2, black lead to E2, and yellow lead to gate

(PLG5–pin 9).

Connect PLG5 to RC5.

If IGBT’s 1 or 2 are defective, check D1, D2, D3, and D4 on PC2 (see Section 5-6). Also check

W1 and W2 in 230/460 volt models (see Section

5-7).

Proceed to top of next page to test PM3 and

PM4.

PLG5

Receptacle

RC5

Alternate Test For PM1 And PM2 (Use standard digital meter set to ohms position)

Y

Read and follow safety information in

Section 5-1 before

proceeding.

.

It is not necessary to remove interconnecting board PC2 to test the IGBT’s unless input capacitor C3 or C4 is shorted.

1 Disconnect gate lead plug PLG5 from receptacle RC5 on control board PC1.

2 For PM1 and PM2, measure between C1 and E1, and then between C2 and E2 (a high resistance means device is okay, zero ohms means device is shorted)

3 For PM1, check for 100K ohms resistance

(+/– 10%) between the following:

E1 and PLG5–pin 10

E2 and PLG5–pin 7

4 For PM2, check for 100K ohms resistance

(+/– 10%) between the following:

E1 and PLG5–pin 6

E2 and PLG5–pin 9

Terminal

C1

Connect PLG5 to–RC5.

If IGBT’s 1 or 2 are defective, check D1, D2, D3, and D4 on PC2 (see Section 5-6). Also check

W1 and W2 in 230/460 volt models (see Section

5-7).

Terminal

E2

Proceed to bottom of next page to test PM3 and

PM4.

Terminal

C2/E1

Bottom View

Tab Lock

IGBT Module PM1 Or PM2

Control Board PC1

TM-357 Page 16

Rear Of Unit

ST-802 275 / Ref. SD-183 484 / SA-188 731-A

Dynasty DX

Control Board PC1

PLG7

Receptacle

RC7

Bottom View

Tab Lock

Terminal

C2/E1

Terminal

E2

Terminal

C1

ST-802 037 / ST-802 408 / SA-188 731-A

Dynasty DX

Front Of Unit

Terminal

C2/E1

Terminal

E2

Terminal

C1

Best Test For PM3 And PM4 (Use

MILLER IGBT tester #043553)

(Continued)

Y

Read and follow safety information in Section 5-1 before proceeding.

1 Visually inspect PM3 and

PM4 for damage.

2 Disconnect gate lead plug

PLG7 from receptacle RC7 on control board PC1.

.

Make sure meter probes make good electrical contact. Black paint on bolts may act as an insulator.

Test PM3 as follows:

3 Connect red tester lead to C1, black tester lead to E1, and yellow tester lead to gate

(PLG7–pin 12). Next, connect red lead to C2, black lead to

E2, and yellow tester lead to gate (PLG7–pin 3).

Test PM4 as follows:

4 Connect red tester lead to C1, black lead to E1, and yellow lead to gate (PLG7– pin 6).

Next, connect red lead to C2, black lead to E2, and yellow lead to gate (PLG7– pin 9).

Connect PLG7 to RC7.

Alternate Test For PM3 And PM4

(Use standard digital meter set to ohms position) (Continued)

Y

Read and follow safety information in Section 5-1 before proceeding.

1 Visually inspect PM3 and

PM4 for damage.

2 Disconnect gate lead plug

PLG7 from receptacle RC7 on control board PC1.

.

Make sure meter probes make good electrical contact. Black paint on bolts may act as an insulator.

3 For PM3 and PM4, measure between C1 and E1, and then between C2 and E2 (a high resistance means device is okay, zero ohms means device is shorted)

4 For PM3, check for 100K ohms resistance (+/– 10%) between the following:

E1 and PLG7–pin 12

E2 and PLG7–pin 3

5 For PM4, check for 100K ohms resistance (+/– 10%) between the following:

E1 and PLG7–pin 6

E2 and PLG7–pin 9

Connect PLG7 to RC7.

TM-357 Page 17

5-6.

Diodes D1, D2, D3, D4

Y

Read and follow safety information in Section 5-1 before proceeding.

1 Check D1 and D2 on PC2 for

2000 ohms

±

10% in 230/460 volt models or 400 ohms

±

10% in 460/575 volt models

(ohms position).

2 Check D3 and D4 on PC2

(diode test).

Diode

D3

Diode

D4

TM-357 Page 18

Diode

D1

Diode

D2

Interconnecting Board PC2

ST-801 550 / SC-183 621-A

Dynasty DX

5-7.

Contactors W1, W2 (230/460 V Models Only)

Y

Read and follow safety information in Section 5-1 before proceeding.

1 Check normally-open contacts of W1 and W2 to be sure contacts are not stuck shut (ohms position).

Normally-Open

Contacts Of 460 V

Input Contactor W1

Normally-Open

Contacts Of 230 V

Auto-Link Contactor W2

Dynasty DX

Interconnecting Board PC2

ST-801 550 / SC-183 621-A

TM-357 Page 19

SECTION 6 – TROUBLESHOOTING

6-1.

Troubleshooting Table

.

See Section 6-2 for test points and values and Section 10 for parts location.

.

Use MILLER Testing Booklet (Part No. 150 853) when servicing this unit.

No weld output; unit completely inoperative.

Trouble

No weld output; meter display On.

Remedy

Place line disconnect switch in On position (see Section 2-9).

Check and replace line fuse(s), if necessary, or reset circuit breaker (see Section 2-9).

Check for proper input power connections (see Section 2-9).

Check continuity of Power switch S1, and replace if necessary.

Check control transformer T2 for signs of winding failure. Check continuity across windings, and check for proper connections. Check secondary voltages. Replace T2 if necessary.

If using remote control, be sure Amperage Control Switch S2 is in the Remote 14 position.

Unit overheated and HELP 3 or HELP 5 screen is displayed. Allow unit to cool with fan On (see Section 2-2).

Check, repair, or replace remote control.

For 230/460 volt models, check coil voltage and connections of contactors W1 and W2. Check continuity of coils and condition of contacts. Replace W1 and W2 if necessary.

For 460/575 volt models, check coil voltage and connections of contactor CR1. Check continuity of coil and condition of contacts. Replace CR1 if necessary.

Check input and output voltages of hall device HD1 (see Section 6-2). Replace HD1 if necessary.

Check output diodes D1 and D2, and replace if necessary (see Section 5-4).

Check input integrated rectifier SR1, and replace if necessary (see Section 5-2).

Check IGBT modules PM1, PM2, PM3, and PM4, and replace if necessary (see Section 5-1).

Low weld output with no control.

Check control board PC1 and connections, and replace if necessary (see Section 6-4).

Check position of Amperage Control Switch S2 (see Section 3-1).

Check input and output voltages of hall device HD1 (see Section 6-2). Replace HD1 if necessary.

Check control board PC1 and connections, and replace if necessary (see Section 6-4).

Check display board PC3 and connections, and replace if necessary (see Section 6-6).

Maximum weld output with no control.

Check input and output voltages of hall device HD1 (see Section 6-2). Replace HD1 if necessary.

Limited output and low open-circuit voltage.

Erratic or improper weld output.

Check control board PC1 and connections, and replace if necessary (see Section 6-4).

Check display board PC3 and connections, and replace if necessary (see Section 6-6).

Check incoming power for correct voltage (see Section 2-8). Replace line fuse(s), if necessary, or reset circuit breaker (see Section 2-9).

Check for proper input and output connections.

If using remote amperage control, check position of Amperage Control R5.

Check control board PC1 and connections, and replace if necessary (see Section 6-4).

Check display board PC3 and connections, and replace if necessary (see Section 6-6).

Use proper size and type of weld cable (see Section 2-5).

Clean and tighten all weld connections.

TM-357 Page 20 Dynasty DX

Trouble

Check for proper input and output connections.

Remedy

Replace electrode.

Check resistance and connections of remote amperage control potentiometer, and replace if necessary.

Check input and output voltages of hall device HD1 (see Section 6-2). Replace HD1 if necessary.

Check control board PC1 and connections, and replace if necessary (see Section 6-4).

Reset circuit breaker CB2 if necessary (see Section 7-3).

Prior to Serial No. KJ037293, no 24 volts ac output at Remote 14 receptacle RC1.

Check receptacle wiring and connections.

No 115 volts ac output at optional duReset circuit breaker CB1 if necessary (see Section 2-7).

plex receptacle.

Check receptacle(s) wiring and connections.

Fan motor does not run after approxiCheck and clear blocked fan blade mately four minutes of operation at rated load.

Check thermistors RT1 and RT2 on display board PC3 (see Section 6-6).

Wandering arc; poor control of arc direction.

Tungsten electrode oxidizing and not remaining bright after conclusion of weld.

Check fan motor FM, and replace if necessary.

Use proper size tungsten.

Use properly prepared tungsten.

Reduce gas flow rate.

Shield weld zone from drafts.

Increase postflow time.

Check and tighten all gas fittings.

Water in torch. Refer to torch manual.

Dynasty DX TM-357 Page 21

6-2.

Troubleshooting Circuit Diagram

Y

Discharge input capacitors according to Section 7-5, and be sure voltage is near zero before touching any parts.

Test Equipment Needed:

.

No calibration available for voltmeter V or ammeter A.

V8

R1

R2

See Section 6-8 for

PC2 information

V9

V10

R3

R4

V2

V1

V7

See Section

5-5 for PC5 information

V3 V5 V6

V4

V11

V12

See Section

5-5 for PC4 information

460 V Input

Contactor W1

R7 R8

230 V

Auto-Link

Contactor W2

V13

See Section 4 for RC1 information

See Section 6-6 for PC3 data

See Section 6-6 for RT1, RT2 information

See Section

6-4 for

PC1 data

TM-357 Page 22 Dynasty DX

Resistance Values a) Tolerance –

±

10% unless specified b) Turn Off unit and disconnect input power before checking resistance

R1 thru R6 Less than 1 ohm

R7, R8 7.5 ohms

R5

Voltage Readings a) Tolerance – specified

±

10% unless b) Reference – to circuit common

(lead 42) unless noted c) Wiring Diagram – see Section 9

See Section 6-11 for

PC8 information

See Section 6-9 for PC7 information

V18

V1, V2 230 volts ac

V3 24 volts ac

V4 115 volts ac

V5, V6 18 volts ac

V7

V8

220 volts ac

325 volts dc with 230 volts ac input power, 650 volts dc with

460 volts ac input power

V9, V10 325 volts dc

V11* 0 volts dc with 230 volts ac input power, 3.8 volts dc with

460 volts ac input power

V12*

V13

3.8 volts dc with 230 volts ac input power, 0 volts dc with

460 volts ac input power

28 volts dc when fan FM is running

V14

V15

V16

V17

+1 volt dc per 100 amperes of weld output

–15 volts dc

+15 volts dc

87 volts dc open-circuit voltage

R10

V18 325 volts dc

* Pulsed dc values – measurements will vary.

R9

V17, A, B, C, D

See Section 6-3 for waveforms

A, B, C, D

R6

Dynasty DX

V14 V15 V16

See Section 6-13 for PC6 information

SD-189 922

TM-357 Page 23

6-3.

Waveforms for Sections 6-2

10

µ

s 50 V

gnd gnd

2.5 ms 20 V

gnd

A. DC Open-Circuit Voltage (86.7 VDC)

2.5 ms 20 V

B. AC Maximum Cleaning, 30 Volts AC, 250

Amperes, 140 Hertz (Resistive Load)

2.5

µ

s 20V

gnd

C. AC Maximum Penetration, 30 Volts AC,

250 Amperes, 140 Hertz (Resistive Load)

D. DC, 28 Volts DC, 200 Amperes, (Resistive Load)

Test Equipment Needed:

TM-357 Page 24 Dynasty DX

Notes

Dynasty DX TM-357 Page 25

6-4.

Control Board PC1 Testing Information (Use with Section 6-5)

3

7 4 1

6

Y

Discharge input capacitors according to Section 7-5, and be sure voltage is near zero before touching any parts.

Be sure plugs are secure before testing. See Section 6-5 for specific values during testing.

1 Control Board PC1

2 Receptacle RC1

3 Receptacle RC2

4 Receptacle RC3

5 Receptacle RC4

6 Receptacle RC5

7 Receptacle RC6

8 Receptacle RC7

9 Receptacle RC8

10 Receptacle RC9

11 Receptacle RC10

12 Receptacle RC11

9

12

8

11

10 5

2

TM-357 Page 26

Test Equipment Needed:

ST-802 035 / SC-188 731-A

Dynasty DX

4

5

6

1

2

3

9

10

7

8

22

23

24

19

20

21

13

14

15

10

11

12

16

17

18

7

8

5

6

9

3

4

6-5.

Control Board PC1 Test Point Values

Receptacle

RC1

RC2

Dynasty DX

Pin

1

2

PC1 Voltage Readings a) Tolerance –

±

10% unless specified b) Reference – to circuit common

(lead 42) unless noted

Value

+24 volts dc output

+15 volts dc under load with the Process Switch S6 in either DC (+) position, 0 volts dc with S6 in either DC (–) position. For either AC position of S6, 0 to +15 volts dc under load depending on settings of Balance and AC Freq. Controls.

+24 volts dc output

+1 volt dc input per 10 volts dc of weld output

–24 volts dc output

+15 volts dc input when HELP 1 screen is displayed, 0 volts dc with normal conditions

–24 volts dc output

0 to +10 volts dc input from min to max of Balance/Dig control R2

Circuit common

Circuit common

–24 volts dc input with fan motor FM off, –10 volts dc with fan motor FM on

Zero (0) volts dc input during normal operation, +15 volts dc input when HELP 8 screen is displayed

+15 volts dc input with Mode switch S3 in lift arc position

+15 volts dc input during normal operation, 0 volts dc input when HELP 6 screen is displayed

+15 volts dc input with Process switch S3 in Stick position, 0 volts dc input with S3 in Tig position

+15 volts dc input during normal operation, 0 volts dc input when HELP 7 screen is displayed

+15 volts dc input with output on, 0 volts dc input with output off

+15 volts dc input with Mode switch S3 in droop (stick) position, 0 volts dc input with S3 in GTAW position

+15 volts dc input with High Frequency on, 0 volts dc input with High Frequency off.

+1 volt dc output per 100 amperes of weld output

–24 volts dc input with gas valve GS1 deenergized, –10 volts dc input with GS1 energized.

0 to +10 volts dc input from min to max of Amperage Adjustment control R8

Not used

Not used

–15 volts dc

18 volts ac input with respect to pin RC2-6

18 volts ac input with respect to pin RC2-6

Circuit common

+1 volt dc input per 100 amperes of weld output

Center tap for 18 volts ac secondary windings of control transformer T2

+15 volts dc

Circuit common

Circuit common for RC2-10

–24 volts dc with respect to pin RC2-9 with gas valve GS1 energized

TM-357 Page 27

Receptacle

RC3

RC4

RC5

RC6

RC7

RC8

RC9

RC10

10

11

8

9

12

1

5

6

7

1

2

3

4

2

3

4

1

2

1

2

3

6

7

8

3

4

5

Pin

1

2

Value

Do not measure – high voltage present.

+28 volts dc output with respect to pin RC4-2 when fan motor FM is running

–28 volts dc output (Return circuit for FM) with respect to pin RC4-1

Make no connections – damage to test equipment or components can occur.

Do not measure – high voltage present.

Test without contactor energized and without any load.

Arc voltage

Arc voltage

–15 volts dc with respect to pin RC7-4

Circuit common for pin RC7-3

–15 volts dc with respect to pin RC7-6

Circuit common for pin RC7-5

–7.5 volts dc with respect to pin RC7-8 with Output Switch S7 in Lift Arc On position

+7.5 volts dc with respect to pin RC7-7 with Output Switch S7 in Lift Arc On position

+15 volts dc with respect to pin RC7-10

Circuit common for pin RC7-9

+15 volts dc with respect to pin RC7-12

Circuit common for pin RC7-11

0 volts dc with 230 volts ac input power, 3.8 volts dc with 460 volts ac input power with respect to pin

RC8-5 (contactor W1 coil)

3.8 volts dc with 230 volts ac input power, 0 volts dc with 460 volts ac input power with respect to pin

RC8-6 (contactor W2 coil)

Reference for pins RC8-4 and RC8-8

0 volts dc during precharge, +27 volts dc after precharge with respect to pin RC8-3

Reference with respect to pin RC8-1 (contactor W1 coil)

Reference with respect to pin RC8-2 (contactor W2 coil)

Not used

0 volts dc after precharge, + 0.6 volts dc at power-up with respect to pin RC8-3

750 Hz waveform with respect to pin RC9-3 (High Frequency gate pulses to HF board PC7)

Not used

Circuit common for pin RC9-1 (High Frequency gate pulses to HF board PC7)

+15 volts dc with contactor energized, 0 volts dc at clamp shutdown

Not used

Not used

Circuit common

TM-357 Page 28 Dynasty DX

6-6.

Display Board PC3 Testing Information (Use with Section 6-7)

Y

Discharge input capacitors according to Section 7-5, and be sure voltage is near zero before touching any parts.

Be sure plugs are secure before testing. See

Section 6-7 for specific values during testing.

1 Display Board PC3

2 Receptacle RC1

3 Receptacle RC2

4 Receptacle RC4

Connection point for thermistor RT1.

5 Receptacle RC5

Connection point for thermistor RT2.

6 Voltmeter V

7 Ammeter A

.

No calibration available for voltmeter V or ammeter A.

8 Amperage Adjustment Control R8

9 Balance/Dig Control R2

10 Process Switch S3

11 Output Switch S2

12 Amps Switch S1

13 Start/Crater Switch S4

9

6

7

2

8

1

12

4 13

Dynasty DX

10 11 5 3 RC3

Test Equipment Needed:

ST- 802 035 / SC-189 538

TM-357 Page 29

6-7.

Display Board PC3 Test Point Values

Receptacle

RC1

RC2

RC4

RC5

7

8

1, 2

1, 2

4

5

6

2

3

24

1

19

20

21

22

23

Pin

1

2

14

15

16

17

18

9

10

11

12

13

7

8

5

6

3

4

PC3 Voltage Readings a) Tolerance –

±

10% unless specified b) Reference – to circuit common

(lead 42) unless noted

Value

+24 volts dc input

+15 volts dc under load with the Process Switch S6 in either DC (+) position;.0 volts dc with S6 in either DC (–) position. For either AC position of S6, 0 to +15 volts dc under load depending on settings of Balance and AC Freq. Controls.

+24 volts dc input

+1 volt dc input per 10 volts dc of weld output

–24 volts dc input

+15 volts dc input when HELP 1 screen is displayed, 0 volts dc with normal conditions

–24 volts dc input

0 to +10 volts dc output from min to max of Balance/Dig control R44

Circuit common

Circuit common

–24 volts dc output with fan motor FM off, –10 volts dc with fan motor FM on

Zero (0) volts dc input during normal operation, +15 volts dc input when HELP 8 screen is displayed

+15 volts dc output with Mode switch S3 in lift arc position

+15 volts dc input during normal operation, 0 volts dc input when HELP 6 screen is displayed

+15 volts dc output with Process switch S3 in Stick position, 0 volts dc input with S3 in Tig position

+15 volts dc input during normal operation, 0 volts dc input when HELP 7 screen is displayed

+15 volts dc output with output on, 0 volts dc input with output off

+15 volts dc with Mode switch S3 in droop (stick) position, 0 volts dc input with S3 in GMAW or

GTAW position

+15 volts dc output with High Frequency on, 0 volts dc input with High Frequency off.

+1 volt dc input per 100 amperes of weld output

–24 volts dc output with gas valve GS1 deenergized, –10 volts dc input with GS1 energized.

0 to +10 volts dc output from min to max of Amperage Adjustment control R2

Not used

Not used

0 to +10 volts dc output from min to max of Amperage Adjustment Control R2

Circuit common

Reference common

Not used

+1 volt dc output per 10 volts dc of weld output

+1 volt dc output per 100 amperes of actual or preset amperage output

0 to +10 volts dc input from min to max of Remote Amperage Adjustment Control

24 volts dc input, contactor

Approximately 33 k ohms at 68

°

F (20

°

C) with thermistors plugged in

Approximately 33 k ohms at 68

°

F (20

°

C) with thermistors plugged in

TM-357 Page 30 Dynasty DX

6-8.

Interconnecting Board PC2 Testing Information

1

4

Y

Discharge input capacitors according to Section 7-5, and be sure voltage is near zero before touching any parts.

.

Be sure to use torque values indicated on PC2 when servicing. Use component-to-heat sink torque value of 26 in-lb when servicing SR1 and

IGBT’s PM1 and PM2.

.

No test point values provided for this PC board.

1 Interconnecting Board PC2

2 Receptacle RC1

3 Receptacle RC2

4 Receptacle RC3

3

Dynasty DX

2

Test Equipment Needed:

ST-802 035 / Ref. SC-183 621-A

TM-357 Page 31

3

2

6-9.

High-Frequency Board PC7 Testing Information (Use with Section 6-10)

1

Y

Discharge input capacitors according to Section 7-5, and be sure voltage is near zero before touching any parts.

Be sure plugs are secure before testing. See Section 6-10 for specific values during testing.

1 High-Frequency Board PC7

2 Receptacle RC1

3 Receptacle RC2

4 Receptacle RC3

5 Receptacle RC4

6 Spark Gap—Set At 0.010 in

(0.254 mm)

4

5

6

TM-357 Page 32

Test Equipment Needed:

ST-802 035 / SC-186 808-B

Dynasty DX

6-10. High-Frequency Board PC7 Test Point Values

Receptacle

RC1

RC2

RC3

RC4

3

4

1

2

7

8

5

6

Pin

1

2

3

4

1

1

PC7 Voltage Readings

Value

220 volts ac with respect to pin RC1-5

220 volts ac with respect to pin RC1-5

325 volts dc with respect to pin RC1-8

325 volts dc with respect to pin RC1-8

220 volts ac with respect to pin RC1-1

220 volts ac with respect to pin RC1-1

325 volts dc with respect to pin RC1-4

325 volts dc with respect to pin RC1-4

740 Hz pulse waveform with respect to pin RC2-2

740 Hz pulse waveform with respect to pin RC2-1

Reference common

Not used

Do not measure – high voltage present.

Do not measure – high voltage present.

a) Tolerance –

±

10% unless specified b) Reference – to circuit common

(lead 42) unless noted

Dynasty DX TM-357 Page 33

6-11. Clamp Board PC8 Testing Information (Use with Section 6-12)

Y

Discharge input capacitors according to Section 7-5, and be sure voltage is near zero before touching any parts.

Be sure plugs are secure before testing. See Section 6-12 for specific values during testing.

1 Clamp Board PC8

2 Receptacle RC1

3 Receptacle RC2

1

3

2

TM-357 Page 34

Test Equipment Needed:

ST-802 035 / SC-182 189-B

Dynasty DX

6-12. Clamp Board PC8 Test Point Values

Receptacle

RC1

RC2

Pin

1

2

3

4

1

2

5

6

3

4

PC8 Voltage Readings a) Tolerance –

±

10% unless specified b) Reference – to circuit common

(lead 42) unless noted

Value

Common

Clamp voltage with respect to pin RC1-3

Clamp voltage with respect to pin RC1-2

+15 volts dc with contactor energized, 0 volts dc with contactor deenergized

+325 volts dc with respect to pin RC1-6

–325 volts dc with respect to pin RC1-5

+325 volts dc with respect to pin RC2-2

–325 volts dc with respect to pin RC2-1

–325 volts dc with respect to pin RC2-4

+325 volts dc with respect to pin RC2-3

Dynasty DX TM-357 Page 35

6-13. Secondary IGBT Board PC6 Testing Information (Use with Section 6-14)

Y

Discharge input capacitors according to Section 7-5, and be sure voltage is near zero before touching any parts.

Be sure plugs are secure before testing. See Section 6-14 for specific values during testing.

1 Secondary IGBT Board PC6

2 Receptacle RC1

1

2

TM-357 Page 36

Test Equipment Needed:

ST-802 037 / SC-182 193-A

Dynasty DX

6-14. Secondary IGBT Board PC6 Test Point Values With Contactor Off

PC6 Voltage Readings a) Tolerance –

±

10% unless specified b) Reference – to circuit common

(lead 42) unless noted

Receptacle

RC1

Pin

7

8

5

6

9

10

1

2

3

4

Value

Test without contactor energized and without any load.

Circuit common for pin RC1-6

Circuit common for pin RC1-3

–15 volts dc with respect to pin RC1-2

Clamp voltage signal to board PC6

Clamp voltage signal to board PC6

+15 volts dc with respect to pin RC1-1

Circuit common for pin RC1-8

–15 volts dc with respect to pin RC1-7

+15 volts dc with respect to pin RC1-10

Circuit common for pin RC1-9

Dynasty DX TM-357 Page 37

SECTION 7 – MAINTENANCE

7-1.

Routine Maintenance

Y

Disconnect power before maintaining.

3 Months

Replace unreadable labels.

Replace damaged gas hose.

Clean and tighten weld terminals.

Repair or replace cracked cables and cords.

6 Months

Blow out inside. During heavy service, clean monthly.

7-2.

Blowing Out Inside of Unit

Y

Do not remove case when blowing out inside of unit.

To blow out unit, direct airflow through front and back louvers as shown.

7-3.

Overload Protection

TM-357 Page 38

1 2

ST-801 708-A

1 Circuit Breaker CB1

CB1 is part of the factory auxiliary power option and protects the optional 115 volts ac duplex receptacle from overload.

2 Circuit Breaker CB2

Prior to Serial No. KJ037293, CB2 protects the 24 volts ac portion of

Remote 14 receptacle RC1 from overload.

Press button to reset either circuit breaker.

ST-801 866

Dynasty DX

7-4.

Voltmeter/Ammeter Help Displays

1

2

3

4

5

6

V A

HE.L

P–0

V A

HE.L

P–1

V A

HE.L

P–2

V A

HE.L

P–3

V A

HE.L

P–4

V A

HE.L

P–5

7

8

9

11

10

12

V A

HE.L

P–6

V A

HE.L

P–7

V A

HE.L

P–8

V A

HE.L

P–9

V A

HE.L P–10

V A

HE.L P–12

.

All directions are in reference to the front of the unit. All circuitry referred to is located inside the unit.

1 Help 0 Display

Indicates a short in the thermal protection circuitry located on the left side of the unit.

Contact a Factory Authorized Service

Agent if this display is shown.

2 Help 1 Display

Indicates a malfunction in the primary power circuit. Contact a Factory Authorized

Service Agent if this display is shown.

3 Help 2 Display

Indicates an open in the thermal protection circuitry located on the left side of the unit.

Contact a Factory Authorized Service

Agent if this display is shown.

4 Help 3 Display

Indicates the left side of the unit has overheated. The unit has shut down to allow the fan to cool it (see Section 2-2). Operation will continue when the unit has cooled.

5 Help 4 Display

Indicates an open in the thermal protection circuitry located on the right side of the unit.

Contact a Factory Authorized Service

Agent if this display is shown.

6 Help 5 Display

Indicates the right side of the unit has overheated. The unit has shut down to allow the fan to cool it (see Section 2-2). Operation will continue when the unit has cooled.

7 Help 6 Display

Indicates that the input voltage is too low and the unit has automatically shut down.

Operation will continue when the voltage is within the operating range (

±

15%). Have an electrician check the input voltage if this display is shown.

8 Help 7 Display

Indicates that the input voltage is too high and the unit has automatically shut down.

Operation will continue when the voltage is within the operating range (

±

15%). Have an electrician check the input voltage if this display is shown.

9 Help 8 Display

Indicates a malfunction in the secondary power circuit of the unit. Contact a Factory

Authorized Service Agent if this display is shown.

10 Help 9 Display

Indicates a short in the thermal protection circuitry located on the right side of the unit.

Contact a Factory Authorized Service

Agent if this display is shown.

11 Help 10 Display

Indicates gun trigger is depressed. Release trigger to continue.

12 Help 12 Display

Indicates an improper set-up. Check front panel.

Dynasty DX TM-357 Page 39

7-5.

Measuring Input Capacitor Voltage

Y

Significant DC voltage can remain on capacitors after unit is Off. Always check capacitors as shown to be sure they have discharged before working on unit.

Turn Off welding power source and disconnect input power.

Remove case.

1 Input Capacitor C3

2 Input Capacitor C4

3 Voltmeter

Check input capacitors as shown.

Measure the dc voltage across the positive (+) and negative (–) terminals until voltage drops to near

0 (zero) volts.

Proceed with job inside unit.

Reinstall case when finished.

1

3

Tools Needed:

5/16 in

TM-357 Page 40

2

3

ST-802 035

Dynasty DX

SECTION 8 – HIGH FREQUENCY

8-1.

Welding Processes Requiring High Frequency

1 High-Frequency Voltage

TIG – helps arc jump air gap between torch and workpiece and/ or stabilize the arc.

1

Work

TIG high_freq 12/96 – S-0693

8-2.

Incorrect Installation

13

50 ft

(15 m)

9

8

7

10

Weld Zone

11, 12

3

2

1

4 5 6

14

Sources of Direct High-Frequency

Radiation

1 High-Frequency Source (welding power source with built-in HF or separate HF unit)

2 Weld Cables

3 Torch

4 Work Clamp

5 Workpiece

6 Work Table

Dynasty DX

Sources of Conduction of High

Frequency

7 Input Power Cable

8 Line Disconnect Device

9 Input Supply Wiring

Sources of Reradiation of High

Frequency

10 Ungrounded Metal Objects

11 Lighting

12 Wiring

13 Water Pipes and Fixtures

14 External Phone and Power Lines

S-0694

TM-357 Page 41

8-3.

Correct Installation

3

50 ft

(15 m)

Weld Zone

7

50 ft

(15 m)

5

1

6

4

2

8

8

Ground all metal objects and all wiring in welding zone using

#12 AWG wire.

Nonmetal

Building

Ground workpiece if required by codes.

9

Metal Building

8

8

11

10

Ref. S-0695 / Ref. S-0695

1 High-Frequency Source (welding power source with built-in HF or separate HF unit)

Ground metal machine case, work output terminal, line disconnect device, input supply, and worktable.

2 Center Point of Welding Zone

Midpoint between high-frequency source and welding torch.

3 Welding Zone

A circle 50 ft (15 m) from center point in all directions.

4 Weld Output Cables

Keep cables short and close together.

5 Conduit Joint Bonding and Grounding

Electrically join (bond) all conduit sections using copper straps or braided wire. Ground conduit every 50 ft (15 m).

6 Water Pipes and Fixtures

Ground water pipes every 50 ft (15 m).

7 External Power or Telephone Lines

Locate high-frequency source at least 50 ft

(15 m) away from power and phone lines.

8 Grounding Rod

Consult the National Electrical Code for specifications.

Metal Building Requirements

9 Metal Building Panel Bonding Methods

Bolt or weld building panels together, install copper straps or braided wire across seams, and ground frame.

10 Windows and Doorways

Cover all windows and doorways with grounded copper screen of not more than

1/4 in (6.4 mm) mesh.

11 Overhead Door Track

Ground the track.

TM-357 Page 42 Dynasty DX

SECTION 9 – ELECTRICAL DIAGRAMS

.

The circuits in this manual can be used for troubleshooting, but there might be minor circuit differences from your machine. Use circuit inside machine case or contact distributor for more information.

The following is a list of all diagrams for models covered by this manual.

Model

Dynasty DX (With Auto-Link)

Serial Or Style Number

KH384382 thru KJ037292

KJ037293 and following

Circuit Diagram

SD-183 036-C

SD-189 922

Circuit Board PC1 (Control

Board)

KH384382 thru KH518627

Circuit Board PC2 (Interconnecting Board)

KH518628 thru KJ037292

KJ037293 and following

KH384382 and following

SD-182 179

♦♦

SD-186 803

♦♦

SD-188 732-A

SD-183 623

Wiring Diagram

SD-183 037-A

♦♦

SD-183 037-B

Circuit Board PC3 (Front Board) KH384382 and following

Circuit Board PC4,5 (IGBT Single

Board)

KH384382 thru KH518629

KH518630 and following

Circuit Board PC6 (IGBT Double

Board)

KH384382 and following

SD-189 540

SD-173 599

♦♦

SD-188 015

SD-182 195

Circuit Board PC7 (HF Board) KH384382 thru KH517736

KH517737 and following

Circuit Board PC8 (Clamp Board) KH384382 and following

Optional

♦♦

Not included in this manual

SD-182 187

♦♦

SD-186 810

SD-182 191-A

Dynasty DX TM-357 Page 43

Figure 9-1. Circuit Diagram For Dynasty DX Effective With Serial No. KH384382 Thru KJ037292

TM-357 Page 44 Dynasty DX

Dynasty DX

SD-183 036-C

TM-357 Page 45

Figure 9-2. Circuit Diagram For Dynasty DX Effective With Serial No. KJ037293 And Following

TM-357 Page 46 Dynasty DX

Dynasty DX

SD-189 922

TM-357 Page 47

Figure 9-3. Wiring Diagram For Dynasty DX Effective With Serial No. KJ037293 And Following

TM-357 Page 48 Dynasty DX

Dynasty DX

SD-183 037-B

TM-357 Page 49

TM-357 Page 50

Figure 9-4. Circuit Diagram For Main Control Board PC1

Effective With Serial No. KJ037293 And Following (Part 1 Of 3)

Dynasty DX

Dynasty DX

SD-183 732-A

TM-357 Page 51

TM-357 Page 52

Figure 9-5. Circuit Diagram For Main Control Board PC1

Effective With Serial No. KJ037293 And Following (Part 2 Of 3)

Dynasty DX

Dynasty DX

SD-183 732-A

TM-357 Page 53

TM-357 Page 54

Figure 9-6. Circuit Diagram For Main Control Board PC1

Effective With Serial No. KJ037293 And Following (Part 3 Of 3)

Dynasty DX

Dynasty DX

SD-183 732-A

TM-357 Page 55

TM-357 Page 56

Figure 9-7. Circuit Diagram For Interconnecting Board PC2

Effective With Serial No. KH384382 And Following

SD-183 623

Dynasty DX

Notes

Dynasty DX TM-357 Page 57

TM-357 Page 58

Figure 9-8. Circuit Diagram For Front Board PC3

Effective With Serial No. KH384382 And Following (Part 1 Of 2)

Dynasty DX

Dynasty DX

SD-189 540

TM-357 Page 59

TM-357 Page 60

Figure 9-9. Circuit Diagram For Front Board PC3

Effective With Serial No. KH384382 And Following (Part 2 Of 2)

Dynasty DX

Dynasty DX

SD-189 540

TM-357 Page 61

TM-357 Page 62

Figure 9-10. Circuit Diagram For IGBT Single Board PC4, PC5

Effective With Serial No. KH518630 And Following

SD-188 015

Dynasty DX

Dynasty DX

Figure 9-11. Circuit Diagram For IGBT Double Board PC6

Effective With Serial No. KH384382 And Following

SD-182 195

TM-357 Page 63

SD-186 810

Figure 9-12. Circuit Diagram For HF Board PC7 Effective With Serial No. KH517737 And Following

TM-357 Page 64 Dynasty DX

SD-182 191-A

Figure 9-13. Circuit Diagram For Clamp Board PC8 Effective With Serial No. KH384382 And Following

Dynasty DX TM-357 Page 65

Notes

TM-357 Page 66 Dynasty DX

Visit our website at

www.MillerWelds.com

TM-357A

June 1999

Processes

TIG (GTAW) Welding

Stick (SMAW) Welding

Description

Arc Welding Power Source

Dynasty DX

Eff w/ KH384382 Thru KJ150395

For OM-357 (188 291) Revisions A thru D

With Auto-Link

SECTION 10 – PARTS LIST For KH384382 Thru KJ150395

.

Hardware is common and not available unless listed.

TM-357 Page 68

Figure 10-1. Main Assembly

ST-801 870-A

Dynasty DX

Item

No.

Dia.

Mkgs.

Eff w/ KH384382 Thru KJ150395

Part

No.

Description

Figure 10-1. Main Assembly

Quantity

. . .

. . .

1

2

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

126 416

126 415

. .

. .

HANDLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CLAMP, saddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

3

4

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . .

138 442

+175 148

. .

. .

LABEL, caution falling

WRAPPER

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 5 . . . . . . . . . . . . . . .

175 256

134 327

. .

. .

INSULATOR, side RH & LH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LABEL, warning general precautionary . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6 . . . . .

. . . . . . . . .

PC8

PLG21

. . . . .

. . . .

182 188

115 094

. .

. .

CIRCUIT CARD ASSEMBLY, clamp (Eff w/KH384382 and on)

CONNECTOR & SOCKETS

. . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . .

. . . 7

PLG22 . . . .

. . . . . . . . . . . . . . .

115 093 . . CONNECTOR & SOCKETS

183 613 . . INSULATOR, PC card clamp

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 8 . . . . . . . . . . . . . . .

. . . 9 . . . . . PC1 . . . . .

182 498

186 800

. .

. .

BRACKET, mtg PC card clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIRCUIT CARD ASSEMBLY, control

. . .

. . .

9

9

. . . . .

. . . . .

PC1

PC1

. . . . .

(Eff w/KH384382 thru KJ003564) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

188 730 . . CIRCUIT CARD ASSEMBLY, control

. . . . .

(Eff w/KJ003565 thru KJ150395) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

191 395 . . CIRCUIT CARD ASSEMBLY, control

1

1

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

PLG2

PLG3

PLG4

PLG5

. . . .

. . . .

. . . .

. . . .

115 091

115 092 . . CONNECTOR & SOCKETS

131 054 . . CONNECTOR & SOCKETS

115 091

. .

. .

(Eff w/KJ150396 and on) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CONNECTOR & SOCKETS

CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

PLG7

PLG8

PLG9

. . . .

. . . .

130 203

115 092

. .

. .

CONNECTOR & SOCKETS

CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 204 . . CONNECTOR & SOCKETS

. . . . . . . . .

. . . 10

PLG10 . . . .

. . . . . . . . . . . . .

115 094

187 461

. .

. .

CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BRACKET, mtg aux transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 11 . . . . . T2 . . . . . . 182 846 . . TRANSFORMER, control (Prior to KJ003565) . . . . . . . . . . . . . . . . . . . . .

. . . 11 . . . . .

. . . 11 . . . . .

. . . 11 . . . . .

. . . . . . . . . .

. . . . . . . .

T2

T2

T2

RC10

. . . . . .

. . . .

. . . .

187 574

174 981

187 757

. .

. .

. .

TRANSFORMER, control (Eff w/KJ003565 and on)

TRANSFORMER, control (Prior to KJ003565)

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

TRANSFORMER, control (Eff w/KJ003565 and on) . . . . . . . . . . . . . . . .

. . . . 166 679 . . CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG1010 . . . 166 680 . . CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

. . .

12

13

14

. . . . .

. . . . .

GS1

. . . . . . . . . . . . .

CB1

. . . . .

. . .

189 033 RECEPTACLE, str dx grd 2P 3W 15A

133 873

083 432

. .

. .

. .

VALVE, 24VDC 2way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIRCUIT BREAKER, 1P 10A 250VAC

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 15 . . . . . CB2 . . . . . 083 432 . . CIRCUIT BREAKER, 1P 10A 250VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 16 . . . . . . . . . . . . . . . 605 227 . . NUT, .750-14 knurled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 17 . . . . . . . . . . . . . . . 182 205 . . PANEL, rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

18

19

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . .

175 282 . .

PLATE, identification rear (order by model & serial number)

COVER, receptacle

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 20 . . . . . . . . . . . . . . . 175 138 . . BOX, louver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

21

22

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

182 561

175 213

. .

. .

CABLE, pwr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BUSHING, strain relief .472/.787 ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 23 . . . . . . . . . . . . . . .

. . .

. . .

24

25

. . . . . . . . . . . . . . .

. . . . . S1 . . . . . .

182 445 . . NUT, stl locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

176 226

128 756

. .

. .

INSULATOR, switch power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCH, tgl 3PST 40A 600VAC (Power Switch) . . . . . . . . . . . . . . . . . . .

. . . 26 . . . . . PC2 . . . . .

. . . . . . . . . . . . . . . . . . . . .

185 090

176 879

. .

. .

CIRCUIT CARD, replacement kit (Eff w/KH384382 and on)

SCREW, M5–.8–2

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

18

. . . . . . . . .

. . . . . . . . .

PLG13

PLG14

. . . .

. . . .

131 204 . . CONNECTOR & SOCKETS

115 094 . . CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

. . . . . . . . . . . . . . . . . . . . .

. . .

. . .

. . .

. . . 30 . . . . . PC3

. . .

27

28

29

30

. . . . . . . . . . . . . .

. . . . . PC3

179 626

+175 132

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

126 026

. .

. .

. .

BUS BAR, interconnecting

BASE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LABEL, warning electric shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

173 693

176 736

. .

. .

FOOT, mtg unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCREW, mtg foot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . 189 900 . . CIRCUIT CARD, front panel (Eff w/KH384382 thru KJ037292)

(consisting of) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . 189 537 . . CIRCUIT CARD, front panel (Eff w/KJ037293 thru KJ150395)

(consisting of) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

4

4

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

1

1

2

2

2

1

1

1

1

Dynasty DX TM-357 Page 69

Item

No.

Dia.

Mkgs.

Eff w/ KH384382 Thru KJ150395

Part

No.

Description

Figure 10-1. Main Assembly (Continued)

Quantity

. . . 30 . . . . . PC3

. . . . . . . . . . DD1-6

. . . . . 191 396 . . CIRCUIT CARD, front panel (Eff w/KJ150396 and on)

. . . .

. . . . .

186 914

. . . . . . . . . . .

. . . . . . . . .

R5 . . . . . .

R81-86 . . . .

176 537

182 771

. . . . . . . . . . . R84

. . . . . . . . . . SW1 . . . . .

183 316

173 551

(consisting of)

. . . . LED

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . POTENTIOMETER, CP 1/T 2W 10K

. . . . POTENTIOMETER, CP 1/T .5W 10K

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

. . . .

POTENTIOMETER, CP 1/T .5W 2.5meg

SWITCH, rotary 2posn 1P 6A

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

SW2

SW3

SW4

SW5

. . . . .

. . . . .

175 954

182 772

. . . . .

. . . . .

183 482

125 939

. . . . . . . . . . PLG11

. . . . . . . . . PLG17

. . . . 115 092

. . . . 131 054

. . . . . . . . .

. . . 31

PLG18

. . . . . FM

. . . .

. . . . .

131 054

175 084

. . . . . . . . . . . . . . . . . . . . . 135 635

. . . .

. . . .

SWITCH, rotary 5posn 1P 6A

SWITCH, rotary 6posn 1P 6A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

. . . .

SWITCH, rotary 4posn 1P 6A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCH, tgl DPDT .5VA 28VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . CONNECTOR & SOCKETS

. . . . CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

. . . .

CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MOTOR, fan 24VDC 3000RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . CONNECTOR & SOCKETS, fan motor . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 32 . . . . . . . . . . . . . . .

. . . 33 . . . . . . . . . . . . . . .

191 571

187 198

. .

. .

PANEL, front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NAMEPLATE, (order by model and serial number) . . . . . . . . . . . . . . . . .

. . . 34 . . . . . RC1 . . . . .

. . . 35 . . . . . . . . . . . . . . .

181 186

174 992

. .

. .

CONNECTOR & SOCKETS

KNOB, pointer .840dia

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

36

37

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

. . . 38 . . . . . . . . . . . . . . .

185 703

175 855

. .

. .

RECEPTACLE, twist lock assembly

DOOR

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

187 235 . . RECEPTACLE, female . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 39 . . . . C7,8 . . . . .

. . . 40 . . . . . . . . . . . . . . .

138 115

183 332

. .

. .

CAPACITOR, cer disc .1uf 500VDC

KNOB, pointer .570

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 41 . . . . . . . . . . . . . . .

. . . 42 . . . . . . . . . . . . . . .

174 991

Fig 10-2

. .

. .

KNOB, pointer 1.250

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WINDTUNNELS w/COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

4

1

1

2

1

1

1

1

2

6

1

1

1

1

1

5

1

6

1

1

1

1

1

1

1

+When ordering a component originally displaying a precautionary label, the label should also be ordered.

Optional

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested

Replacement Parts. Model and serial number required when ordering parts from your local distributor.

TM-357 Page 70 Dynasty DX

Eff w/ KH384382 Thru KJ150395

.

Hardware is common and not available unless listed.

3

2

1

4

9

8

5

6

7

10

11

12

13

33

32

31

PC6

30

29

28

27-PC7

26

25

24

23

22

Figure 10-2. Windtunnels w/Components

14

17

20

18

19

21

ST-801 871-A

15

16

Dynasty DX TM-357 Page 71

Item

No.

Dia.

Mkgs.

Eff w/ KH384382 Thru KJ150395

Part

No.

Description

Figure 10-2. Windtunnels w/Components (Fig 10-1 Item 42)

Quantity

. . . 1 . . . C11,12 . . . . 185 424 . . CAPACITOR, filter assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 2 . . . .

. . . 3 . . . . .

C9,10

HD1

. . . .

. . . . .

164 812

182 918

. .

. .

CAPACITOR, polyp met film 1MF 600

TRANSDUCER, current 400A

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 4 . . . . . . . . . . . . . . +182 206

. . . . . . . . . . . . . . . . . . . . . 153 718

. .

. .

WINDTUNNEL, LH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LABEL, warning exploding parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 5 . . . R1,C5,6 . . .

126 026

175 194

. .

. .

LABEL, warning electric shock

RESISTOR/CAPACITOR

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6 . . . . D1,2 . . . . .

. . . 7 . . . . . . . . . . . . . . .

185 775

182 208

. .

. .

KIT, diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HEAT SINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 8 . . . . . T3 . . . . . .

. . . 9 . . . . . . . . . . . . . . .

182 667 . . TRANSFORMER, coupling

183 073 . . INSULATOR, PC card HF

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 10 . . . . . . . . . . . . . . .

. . . 11 . . . . . . . . . . . . . . .

182 499

182 806

. .

. .

ENCLOSURE, HF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BRACKET, mtg contactor/capacitor/PC board . . . . . . . . . . . . . . . . . . . . . .

. . . 12 . . . .

. . . 13 . . .

C3,4 . . . . .

W1,2,2A . . .

174 980

175 082

. .

. .

CAPACITOR, elctlt 2700uf 420VDC

CONTACTOR, def prp 40A 7P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 14 . . . . . T1 . . . . . .

173 763

183 014

. .

. .

STAND-OFF, No. 10-32 x 1.418 lg

TRANSFORMER, HF

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 15 . . . . .

. . . 16 . . . . .

L2

L1

. . . . . .

. . . . . .

183 009

187 522

. .

. .

STABILIZER, output

INDUCTOR, input

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 17 . . . . . C1 . . . . . .

. . . 18 . . . . . . . . . . . . . . .

186 549 . . CAPACITOR, polyp .27uf 1000VDC

025 248 . . STAND-OFF, insul .250-20 x 1.250 lg

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 19 . . . . . CT1 . . . . .

. . . 20 . . . . . . . . . . . . . . .

. . . 21 . . . . . . . . . . . . . . .

175 199

177 547

. .

. .

TRANSFORMER, current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BUSHING, snap-in CT-mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

175 140 . . BRACKET, DI-DT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 22 . . . . . . . . . . . . . . .

. . . 23 . . . . . L3,4 . . . . .

181 197

175 482

. .

. .

GASKET, DI-DT rubber

COIL, DI-DT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 24 . . . . . . . . . . . . . . .

. . . 25 . . . . . . . . . . . . . .

109 056

+187 460

. .

. .

CORE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WINDTUNNEL, RH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 26 . . . . . . . . . . . . . . .

. . . 27 . . . . . PC7 . . . . .

141 690

186 807

. .

. .

GROMMET, scr No. 8/10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIRCUIT CARD, HF (Eff w/KH384382 thru KJ150395) . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 27 . . . . . PC7 . . . . .

188 109

191 397

. . . .

. .

POINT, spark gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIRCUIT CARD, HF (Eff w/KJ150396 and on) . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . F1 . . . . . .

. . . . . . . . . . . . . . . . . . . . .

012 633

188 109

. . . .

. . . .

FUSE, mintr 1A 250V

POINT, spark gap

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . .

. . . . . . . . .

PLG19

PLG20

. . . .

. . . .

115 092

131 054

. .

. .

CONNECTOR & SOCKETS

CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

28

29

. . . . .

.

SR1 . . . . .

PM1,2/PC4,5 .

179 629

179 628

. .

. .

KIT, diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KIT, transistor IGBT module (Eff w/KH384382 and on) . . . . . . . . . . . . . .

. . . . . . . . . . RT1,2 . . . . 173 632 . . THERMISTOR, NTC 30K ohm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

30

31

. . . . . . . . . . . . . . .

. PM3,4/PC6 . .

173 631

185 776

. .

. .

HEAT SINK, power module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KIT, IGBT (Eff w/KH384382 and on) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . .

. . . 32

PLG23 . . . .

. . . . . . . . . . . . . . .

115 091

182 641

. .

. .

CONNECTOR & SOCKETS

BUS BAR, diode IGBT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 33 . . . . . . . . . . . . . . . 182 642 . . BUS BAR, IGBT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

1

1

2

1

1

1

1

2

1

1

2

2

1

1

2

4

1

1

1

2

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

2

2

1

1

2

1

+When ordering a component originally displaying a precautionary label, the label should also be ordered.

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested

Replacement Parts. Model and serial number required when ordering parts from your local distributor.

TM-357 Page 72 Dynasty DX

Visit our website at

www.MillerWelds.com

TM-357A

June 1999

Processes

TIG (GTAW) Welding

Stick (SMAW) Welding

Description

Arc Welding Power Source

Dynasty DX

Eff w/ KJ150396 And Following

For OM-357 (188 291) Revision E

With Auto-Link

SECTION 11 – PARTS LIST For KJ150396 And Following

.

Hardware is common and not available unless listed.

TM-357 Page 74

Figure 11-1.Main Assembly

ST-801 870-B

Dynasty DX

Item

No.

Dia.

Mkgs.

Eff w/ KJ150396 And Following

Part

No.

Description

Figure 11-1. Main Assembly

Quantity

. . .

. . .

1

2

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

126 416

126 415

. .

. .

HANDLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CLAMP, saddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

3

4

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . .

138 442

+175 148

. .

. .

LABEL, caution falling

WRAPPER

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 5 . . . . . . . . . . . . . . .

175 256

134 327

. .

. .

INSULATOR, side RH & LH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LABEL, warning general precautionary . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6 . . . . .

. . . . . . . . .

PC8

PLG21

. . . . .

. . . .

182 188

115 094

. .

. .

CIRCUIT CARD ASSEMBLY, clamp

CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . .

. . .

. . .

7

8

PLG22 . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

115 093 . . CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

183 613 . . INSULATOR, PC card clamp

182 498 . . BRACKET, mtg PC card clamp

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 9 . . . . . PC1

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

PLG2

PLG3

PLG4

PLG5

. . . . .

. . . .

191 395 . . CIRCUIT CARD ASSEMBLY, control

115 091 . . CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

. . . .

115 092 . . CONNECTOR & SOCKETS

131 054 . . CONNECTOR & SOCKETS

. . . . 115 091 . . CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

. . . . . . . . .

. . . 10

PLG10 . . . .

. . . . . . . . . . . . .

115 094

187 461

. .

. .

CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BRACKET, mtg aux transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 11 . . . . .

. . . 11 . . . . .

. . . . . . . . . .

T2

T2

RC10

. . . . . .

. . . .

187 574

187 757

. .

. .

TRANSFORMER, control

TRANSFORMER, control

. . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

166 679 . . CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . PLG10 . . . . 166 680 . . CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

. . .

12

13

14

. . . . .

. . . . .

GS1

. . . . . . . . . . . . .

CB1

. . . . .

. . .

189 033 RECEPTACLE, str dx grd 2P 3W 15A

133 873

083 432

. .

. .

. .

VALVE, 24VDC 2way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIRCUIT BREAKER, 1P 10A 250VAC

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 16 . . . . . . . . . . . . . . . 605 227 . . NUT, .750-14 knurled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 17

PLG7

PLG8

PLG9

. . . .

. . . .

. . . . 131 204 . . CONNECTOR & SOCKETS

. . . . . . . . . . . . . . .

130 203

115 092

182 205

. .

. .

. .

CONNECTOR & SOCKETS

CONNECTOR & SOCKETS

PANEL, rear

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

18

19

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . .

175 282 . .

PLATE, identification rear (order by model & serial number)

COVER, receptacle

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 20 . . . . . . . . . . . . . . . 175 138 . . BOX, louver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

21

22

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

182 561

175 213

. .

. .

CABLE, pwr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BUSHING, strain relief .472/.787 ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 23 . . . . . . . . . . . . . . .

. . . 24 . . . . . . . . . . . . . . .

182 445

176 226

. .

. .

NUT, stl locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSULATOR, switch power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 25 . . . . . S1

. . . 26 . . . . . PC2

. . . . . .

. . . . .

128 756

185 090

. .

. .

SWITCH, tgl 3PST 40A 600VAC (Power Switch)

CIRCUIT CARD, assembly

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . PLG13 . . . .

176 879

131 204

. .

. .

SCREW, M5–.8–2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

2

2

2

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

. . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . .

. . . . . . . . . . . . . . . . . . . . .

. . .

. . .

27

28

29

PLG14 . . . .

. . . . . . . . . . . . . . +175 132

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

SW2

SW3

. . . . .

. . . . .

115 094 . . CONNECTOR & SOCKETS

179 626

126 026

. .

. .

. .

BUS BAR, interconnecting

BASE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LABEL, warning electric shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

173 693

176 736

. .

. .

FOOT, mtg unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCREW, mtg foot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 30 . . . . .

. . . . . . . . . .

PC3

DD1-6

. . . . .

. . . .

191 396

186 914

. . CIRCUIT CARD, front panel (consisting of)

. . . . LED

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . .

R5 . . . . . .

R81-86 . . . .

176 537

182 771

. . . . . . . . . . . R84

. . . . . . . . . . SW1

. . . . .

. . . . .

183 316

173 551

175 954

182 772

. . . . POTENTIOMETER, CP 1/T 2W 10K

. . . . POTENTIOMETER, CP 1/T .5W 10K

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

. . . .

POTENTIOMETER, CP 1/T .5W 2.5meg

SWITCH, rotary 2posn 1P 6A

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . SWITCH, rotary 5posn 1P 6A

. . . . SWITCH, rotary 6posn 1P 6A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . .

. . . . . . . . . .

SW4

SW5

. . . . . . . . . . PLG11

. . . . . . . .

. . . . .

. . . . .

. . . .

PLG17, 18 . .

183 482

125 939

115 092 . . CONNECTOR & SOCKETS

131 054

. . . .

. . . .

. .

SWITCH, rotary 4posn 1P 6A

SWITCH, tgl DPDT .5VA 28VDC

CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

1

1

1

2

1

5

1

1

4

4

1

6

1

1

1

1

Dynasty DX

TM-357 Page 75

Item

No.

Dia.

Mkgs.

Eff w/ KJ150396 And Following

Part

No.

Description

Figure 11-1. Main Assembly

Quantity

. . . 31 . . . . . FM . . . . . 175 084 . . MOTOR, fan 24VDC 3000RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 32 . . . . . . . . . . . . . . .

135 635

191 571

. .

. .

CONNECTOR & SOCKETS

PANEL, front

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 33 . . . . . . . . . . . . . . . . . . . . . . . . . . NAMEPLATE, (order by model and serial number) . . . . . . . . . . . . . . . . .

. . . 34 . . . . . RC1 . . . . .

. . . . . . . . . . . . . . . . . . .

188 186

191 302

. .

. .

CONNECTOR & SOCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CONNECTOR & SOCKETS, 10-pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 35 . . . . . . . . . . . . . . . 174 992 . . KNOB, pointer .840dia

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 36 . . . . . . . . . . . . . . .

. . . 37 . . . . . . . . . . . . . . .

185 703

175 855

. .

. .

RECEPTACLE, twist lock assembly

DOOR

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

38

39

. . . . . . . . . . . . . . .

. . . . C7,8 . . . . .

. . . 40 . . . . . . . . . . . . . . .

187 235

186 543

. .

. .

RECEPTACLE, female . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CAPACITOR, cer disc .1uf 500VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

183 332 . . KNOB, pointer .570

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 41 . . . . . . . . . . . . . . .

. . . 42 . . . . . . . . . . . . . . .

174 991

Fig 11-2

. .

. .

KNOB, pointer 1.250

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WINDTUNNELS w/COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

1

4

1

1

1

1

2

6

1

1

2

1

+When ordering a component originally displaying a precautionary label, the label should also be ordered.

Optional

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested

Replacement Parts. Model and serial number required when ordering parts from your local distributor.

.

Hardware is common and not available unless listed.

3

4

9

2

1

8

5

6

10

7

14

11

12

13

33

32

31

30

15

16

29

28

27

26

25

24

23

22

17

20

18

19

21

ST-801 871-A

Figure 11-2.Windtunnels w/Components

TM-357 Page 76

Dynasty DX

Item

No.

Dia.

Mkgs.

Eff w/ KJ150396 And Following

Part

No.

Description

Figure 11-2. Windtunnels w/Components (Fig 11-1 Item 42)

Quantity

. . . 1 . . . C11,12 . . . . 185 424 . . CAPACITOR, filter assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 2 . . . .

. . . 3 . . . . .

C9,10

HD1

. . . .

. . . . .

164 812

182 918

. .

. .

CAPACITOR, polyp met film 1MF 600

TRANSDUCER, current 400A

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 4 . . . . . . . . . . . . . . +182 206

. . . . . . . . . . . . . . . . . . . . . 153 718

. .

. .

WINDTUNNEL, LH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LABEL, warning exploding parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 5 . . . R1,C5,6 . . .

126 026

175 194

. .

. .

LABEL, warning electric shock

RESISTOR/CAPACITOR

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 6 . . . . D1,2 . . . . .

. . . 7 . . . . . . . . . . . . . . .

185 775

182 208

. .

. .

KIT, diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HEAT SINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 8 . . . . . T3 . . . . . .

. . . 9 . . . . . . . . . . . . . . .

182 667 . . TRANSFORMER, coupling

183 073 . . INSULATOR, PC card HF

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 10 . . . . . . . . . . . . . . .

. . . 11 . . . . . . . . . . . . . . .

182 499

182 806

. .

. .

ENCLOSURE, HF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BRACKET, mtg contactor/capacitor/PC board . . . . . . . . . . . . . . . . . . . . . .

. . . 12 . . . .

. . . 13 . . .

C3,4 . . . . .

W1,2,2A . . .

174 980

175 082

. .

. .

CAPACITOR, elctlt 2700uf 420VDC

CONTACTOR, def prp 40A 7P

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . 14 . . . . . T1 . . . . . .

173 763

183 014

. .

. .

STAND-OFF, No. 10-32 x 1.418 lg

TRANSFORMER, HF

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 15 . . . . .

. . . 16 . . . . .

L2

L1

. . . . . .

. . . . . .

183 009

187 522

. .

. .

STABILIZER, output

INDUCTOR, input

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 17 . . . . . C1 . . . . . .

. . . 18 . . . . . . . . . . . . . . .

186 549 . . CAPACITOR, polyp .27uf 1000VDC

025 248 . . STAND-OFF, insul .250-20 x 1.250 lg

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 19 . . . . . CT1 . . . . .

. . . 20 . . . . . . . . . . . . . . .

. . . 21 . . . . . . . . . . . . . . .

175 199

177 547

. .

. .

TRANSFORMER, current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BUSHING, snap-in CT-mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

175 140 . . BRACKET, DI-DT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 22 . . . . . . . . . . . . . . .

. . . 23 . . . . . L3,4 . . . . .

181 197

175 482

. .

. .

GASKET, DI-DT rubber

COIL, DI-DT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 24 . . . . . . . . . . . . . . .

. . . 25 . . . . . . . . . . . . . .

109 056

+187 460

. .

. .

CORE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WINDTUNNEL, RH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

26

27

. . . . . . . . . . . . . . .

. . . . .

. . . . . . . . . . .

PC7

F1

. . . . .

. . . . . . 012 633

. . . . . . . . . . . . . . . . . . . . .

141 690

191 397

. .

. .

GROMMET, scr No. 8/10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIRCUIT CARD, HF (consisting of) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

188 109

. . . .

. . . .

FUSE, mintr gl 1A 250V

POINT, spark gap

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . .

. . . . . . . . .

PLG19

PLG20

. . . .

. . . .

115 092 . . CONNECTOR & SOCKETS

131 054 . . CONNECTOR & SOCKETS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . .

. . .

28

29

. . . . .

.

SR1 . . . . .

PM1,2/PC4,5 .

179 629

179 628

. .

. .

KIT, diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KIT, transistor IGBT module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . RT1,2 . . . .

. . . 30 . . . . . . . . . . . . . . .

173 632

173 631

. .

. .

THERMISTOR, NTC 30K ohm

HEAT SINK, power module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 31 . PM3,4/PC6 . . 185 776 . . KIT, IGBT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . PLG23 . . . .

. . . 32 . . . . . . . . . . . . . . .

115 091

182 641

. .

. .

CONNECTOR & SOCKETS

BUS BAR, diode IGBT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . 33 . . . . . . . . . . . . . . . 182 642 . . BUS BAR, IGBT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

1

1

2

1

1

1

1

1

2

1

1

2

1

1

2

4

1

2

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

2

2

1

1

2

1

+When ordering a component originally displaying a precautionary label, the label should also be ordered.

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested

Replacement Parts. Model and serial number required when ordering parts from your local distributor.

TM-357 Page 77

Dynasty DX

PRINTED IN USA

1998 Miller Electric Mfg. Co.

Call

1-800-4-A-

MILLER for your local

Miller distributor.

Miller Electric Mfg. Co.

An Illinois Tool Works Company

1635 West Spencer Street

Appleton, WI 54914 USA

International Headquarters–USA

Phone: 920-735-4505

USA & Canada FAX: 920-735-4134

International FAX: 920-735-4125

European Headquarters –

United Kingdom

Phone: 44 (0) 1625-525556

FAX: 44 (0) 1625-537553

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
