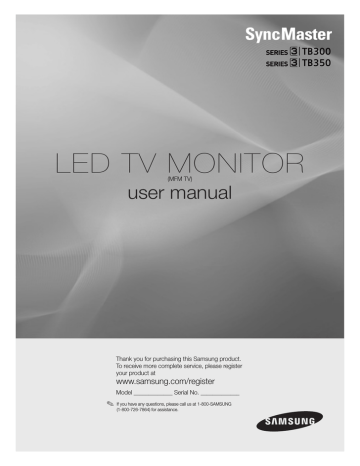

TB300
TB350
LED TV MONITOR
(MFM TV)
user manual
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model _____________ Serial No. _____________
✎✎ If you have any questions, please call us at 1-800-SAMSUNG
(1-800-726-7864) for assistance.
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Important Warranty Information Regarding Television Format Viewing
✎✎ See the warranty card for more information on warranty terms.
Wide screen format TVs (with 16:9 aspect ratios, the ratio of the screen width to height) are primarily designed to view wide screen format full-motion
video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this
feature, with the images constantly in motion. Displaying stationary graphics and images on the screen, such as the dark sidebars on non-expanded
standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market crawls, video game displays, station logos, web sites or computer graphics
and patterns, should be limited as described above for all televisions. Displaying stationary images for more than 5% of total viewing time can cause
uneven aging of your TV and leave subtle, but permanent burned-in ghost images in the LED picture. To avoid this, vary the programming and images,
and primarily display full screen moving images, not stationary patterns or dark bars. On LED models that offer picture sizing features, use these controls
to view different formats as a full screen picture. Be careful in the selection of television formats you use for viewing and the amount of time you view them.
Uneven LED aging as a result of format selection and use, as well as burned in images, are not covered by your Samsung limited warranty.
Still image warning
Avoid displaying still images (such as jpeg picture files), still image elements (such as TV channel logos, stock or news bars at the screen bottom etc.),
or programs in panorama or 4:3 image format on the screen. Constantly displaying still pictures can cause image burn-in on the screen, which will affect
image quality. To reduce risk of this effect, please follow the recommendations below:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reduce brightness and contrast to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn. Refer to proper user manual section for details.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
Installation with a stand.
Installation with a wall-mount.
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
Other Warnings
The actual appearance of the TV may differ from the images in this manual, depending on the model.
Be careful when you touch the TV. Some parts can be somewhat hot.
English
2
Contents
Getting Started
Advanced Features
yy
yy
yy
yy
yy
yy
yy
yy
yy Media Play (USB)..................................................... 31
Safety Precautions..................................................... 4
List of Features........................................................ 11
Accessories............................................................. 11
Viewing the Control Panel........................................ 12
Viewing the Remote Control..................................... 13
How to Navigate Menus........................................... 14
Connecting to an Antenna....................................... 14
Plug & Play (Initial Setup).......................................... 15
Connections
yy
yy
yy
yy
Connecting a USB Device
31
Other Information
yy
yy
yy
yy
yy
yy
Attaching a Wall Mount/Desktop Stand.................... 37
Anti-theft Kensington Lock....................................... 38
Troubleshooting....................................................... 39
Storage and Maintenance........................................ 41
License.................................................................... 41
Specifications.......................................................... 42
Connecting to an AV Device..................................... 16
Connecting to an Audio Device................................ 17
Connecting to a PC................................................. 17
Changing the Input Source...................................... 19
Basic Features
yy Channel Menu......................................................... 20
Seeing Channels
Using Favorite Channels
Memorizing Channels
Editing Channels
Other Features
20
20
20
21
21
yy Picture Menu........................................................... 22
Changing the Preset Picture Mode
Adjusting Picture Settings
Changing the Picture Options
22
22
23
yy Sound Menu............................................................ 25
Changing the Preset Sound Mode
Adjusting sound settings
Sound Settings
25
25
25
yy Setup Menu............................................................. 26
Setting the Time
Using the Sleep Timer
Setting the On/Off Timer
Locking Programs
Other Features
26
26
26
27
28
yy Support Menu.......................................................... 30
Check the Symbol!
t
TOOLS
Note
This function can be used by pressing the TOOLS
button on the remote control.
Indicates additional information.
English
3
Getting Started
Safety Precautions
Icons used for safety precautions
Warning
Failing to follow the precautions marked with this sign may result in a serious injury or
even a fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or
property damage.
Do not perform.
Must be followed.
This symbol indicates that high voltage is
present inside. It is dangerous to make any kind
of contact with any internal part of this product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
This symbol alerts you that important literature
concerning operation and maintenance has
been included with this product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
¦¦ Power Related
✎✎ The following images are for your reference and may differ depending on models and countries.
Warning
Avoid using a damaged power
cord or plug or a loose power
outlet.
yy Otherwise, it may result in
electric shock or fire.
Avoid connecting multiple electric
appliances to a single wall outlet.
yy Otherwise, it may result in fire
due to overheating of the wall
outlet.
Avoid plugging in or unplugging
the power supply with wet hands.
yy Otherwise, it may result in
electric shock.
Plug the power plug in firmly.
yy Otherwise, it may result in fire.
!
!
Make sure to connect the power
cord to a grounded wall outlet (for
insulation class 1 equipment only).
yy Otherwise, it may result in
electric shock or injury.
Avoid bending or twisting the power
cord excessively and avoid placing
heavy objects on the cord.
yy Otherwise, it may result in
electric shock or fire due to a
damaged power cord.
English
4
Getting Started
Keep the power cord and the
product away from a heater.
y Otherwise, it may result in
electric shock or fire.
If the pins of the power plug or the
wall outlet are covered in dust, clean
it using a dry cloth.
y Otherwise, it may result in fire.
!
Caution
Avoid unplugging the power plug
while the product is operating.
y Otherwise, it may damage the
product due to electric shock.
!
When unplugging the power plug
from the wall outlet, make sure to
hold it by the plug and not by the
cord.
y Otherwise, it may result in
electric shock or fire.
!
!
Make sure to use only the power
cord supplied by our company. In
addition, do not use the power cord
of another electric appliance.
y Otherwise, it may result in
electric shock or fire.
Connect the power plug to a wall
outlet that can be easily reached.
y When a problem occurs
with the product, you must
unplug the power plug to cut
the power off completely.
You cannot cut the power
off completely using only the
power button on the product.
¦ Installation Related
Warning
Avoid placing burning candles,
mosquitorepellentor cigarettes on
the product.
y Otherwise, it may result in fire.
!
Avoid installing the product in a
badly-ventilated location such as
inside a bookshelf or closet.
y Otherwise, it may result in fire
due to internal over-heating.
Avoid installing the product in
a location that is unstable or
exposed to excessive vibration
such as on an unstable or slanted
shelf.
y The product may fall and this
may result in damage to the
product or injury.
y If you use the product in a
location exposed to excessive
vibrations, it may result in a
problem with the product or
fire.
!
!
Ask an installation engineer or
relevant company to install the
product onto the wall.
y Otherwise, it may result in
injury.
y Make sure to use the specified
wall mount.
Keep the plastic bags used to pack
the product away from children.
y If children place the plastic
bags over their heads, they may
suffocate.
Avoid installing the product in a
location exposed to dust, moisture
(sauna), oil, smoke or water (rain
drops) and installing it within a
vehicle.
y This may result in electric shock
or fire.
English
5
Getting Started
Avoid installing the product in a
location exposed to direct sunlight
and installing the product near a
heat source such as a fireplace or
heater.
y This may shorten the product
life cycle or cause fire.
Bend the outdoor antenna cable
downwards at the location where
it comes in the house so that
rainwater does not flow in.
y If rainwater enters the product,
it may result in electric shock
or fire.
!
!
!
Avoid installing the product where
children may reach it.
y If a child touches the product,
the product may fall and this
may result in injury.
y Since the front part is heavier,
install the product on a flat and
stable surface.
Install the antenna far away from
any high voltage cables.
y If the antenna touches or falls
onto a high voltage cable, it
may result in electric shock or
fire.
Caution
Do not let the product drop while
moving it.
y This may result in a problem
with the product or injury.
Do not place the product face down
on the floor.
y This may damage the panel of
the product.
When installing the product on a
console or shelf, make sure that
the front of the product does not
protrude out of the console or
shelf.
y Otherwise, this may cause the
product to fall off and result in
a malfunction or injury.
y Make sure to use a cabinet or
shelf suitable to the size of the
product.
When putting the product down,
handle it gently.
y Otherwise, it may result in a
problem with the product or
injury.
!
SAMSUNG
!
!
If the product is installed in a
location where the operating
conditions vary considerably,
a serious quality problem may
occur due to the surrounding
environment. In this case, install
the product only after consulting
one of our service engineers about
the matter.
y Places exposed to
microscopic dust, chemicals,
too high or low temperature,
high humidity, airports or
stations where the product is
continuously used.
English
6
Getting Started
¦ Cleaning Related
Warning
Before cleaning the product,
unplug the power cord.
y Otherwise, it may result in
electric shock or fire.
When cleaning the product, do
not spray water directly over the
product parts.
y Make sure that water does not
enter the product.
y Otherwise, it may result in fire,
electric shock or a problem with
the product.
Avoid spraying cleansing agent
directly onto the product.
y This may result in discoloration
or cracking of the exterior
of the product or the panel
coming off.
When cleaning the product,
disconnect the power cord and
clean the product with the supplied
cleaning cloth.
y Avoid using chemicals such as
wax, benzene, alcohol, thinner,
mosquitorepellent, fragrance,
lubrication or cleansing agent
when cleaning the product.
This may result in the exterior
being deformed or the print
being removed.
!
Caution
If you can't get the product clean
with just the supplied cloth, use a
soft, damp cloth with a "monitorexclusive cleansing agent" and
wipe the product with it.
y If no monitor-exclusive
cleansing agent is available,
dilute a cleansing agent with
water at a ratio of 1:10 before
cleaning the product.
!
!
Since the exterior of the product is
easily scratched, be sure to use the
supplied cleansing cloth.
!
¦ Usage Related
Warning
Since a high voltage runs through
the product, never disassemble,
repair or modify the product
yourself.
y Otherwise, it may result in fire
or electric shock.
y If the product needs to be
fixed, contact a service center.
!
To move the product, turn the
power off and unplug the power
cord, the antenna cable and any
other wires connected to the
product.
y Otherwise, it may result in
electric shock or fire due to the
damaged power cord.
English
7
Getting Started
!
!
If the product generates a strange
noise, a burning smell, or smoke,
unplug the power plug immediately
and contact a service center.
yy Otherwise, it may result in
electric shock or fire.
Avoid letting children hang or climb
onto the product.
yy Otherwise, it may result in the
product falling and this may
result in injury or death.
If you drop the product or the
case is damaged, turn the power
off and unplug the power cord.
Contact a service center.
yy Otherwise, it may result in fire
or electric shock.
Avoid placing objects such as toys
and cookies on top of the product.
yy If a child hangs over the
product to grab an object, the
object or the product may fall
and this may result in injury or
even death.
When thunder or lighting occurs,
unplug the power cord and
under no circumstance touch
the antenna cable as this is
dangerous.
yy Otherwise, it may result in
electric shock or fire.
Avoid dropping an object over the
product or cause impact to the
product.
yy Otherwise, it may result in
electric shock or fire.
Avoid moving the product by
pulling the power cord or antenna
cable.
yy Otherwise, it may result
in electric shock, fire or a
problem with the product due
to damage to the cable.
Avoid lifting up or moving the
product by holding only the power
cord or signal cable.
yy Otherwise, it may result
in electric shock, fire or a
problem with the product due
to damage to the cable.
Take care not to block the vent by
a table cloth or curtain.
yy Otherwise, it may result in fire
due to internal overheating.
!
GAS
!
When a gas leak occurs, do not
touch the product or the power plug
and ventilate immediately.
yy A spark may result in an
explosion or fire.
yy During a thunder or lighting
storm, do not touch the power
cord or antenna cable.
Avoid using or placing inflammable
spray or objects near the product.
yy This may result in an explosion
or fire.
!
100
Avoid inserting metal objects such
as a chopsticks, coins or hairpins,
or inflammable objects into the
product (the vents, ports, etc).
yy If water or substances enters
the product, turn the power
off, unplug the power cord and
contact a service center.
yy Otherwise, it may result in a
problem with the product,
electric shock or fire.
English
8
Getting Started
Avoid placing a liquid container
such as a vase, flowerpot,
beverage, cosmetics or drugs, or a
metal object over the product.
y If water or substances enter
the product, turn the power
off, unplug the power cord
and contact a service center.
y Otherwise, it may result in a
problem with the product,
electric shock or fire.
Do not press down hard on the
product. The product may become
deformed or damaged.
Displaying a still image for a long
time may create a persistent image
or stain on the screen.
y If you do not use the product
for a long time, use the
power-saving mode or set the
screensaver to the moving
picture mode.
When not using the product for
a long time such as leaving your
home, unplug the power cord from
the wall outlet.
y Otherwise, it may cause dust
accumulation and result in fire
caused by overheating or short
circuit or result in an electric
shock.
Caution
!
-_!
Set the appropriate resolution and
frequency for the product.
y Otherwise, it may result in eye
strain.
Avoid turning the product upside
down or move the product holding
only the stand.
y This may cause the product to
fall, resulting in damage to the
product or injury.
Watching the product from too
close a distance continuously may
damage your eyesight.
Avoid using a humidifier or cooker
near the product.
y Otherwise, it may result in
electric shock or fire.
It is important to give your eyes
some rest (5 minutes every hour)
when viewing the product screen
for long periods of time.
y This will alleviate any eye
strain.
Since the display panel is hot after
using it for a long time, do not touch
the product.
!
!
!
English
9
Getting Started
Keep the small accessories in
a location out of the reach of
children.
!
!
Take care when adjusting the angle
of the product or the height of the
stand.
yy If your hand or finger is caught,
you may be injured.
yy If the product is tilted
excessively, the product may
fall and this may result in injury.
Avoid placing a heavy object over
the product.
yy Otherwise, it may result in a
problem with the product or
injury.
When using headphones or
earphones, do not turn the volume
too high.
yy Having the sound too loud may
damage your hearing.
Be careful that children do not
place the batteries in their mouths
when removed from the remote
control. Place the battery in a
location that children or infants
cannot reach.
yy If children have had the battery
in their mouths, consult your
doctor immediately.
When replacing the batteries, insert
them with right polarity (+, -).
yy Otherwise, the battery may
become damaged or it may
cause fire, personal injury or
damage due to leakage of the
internal liquid.
Use only specified standard
batteries. Do not use new and
used batteries together.
yy This may cause a battery to
break or leak and may cause
fire, injury, or contamination
(damage).
!
!
The batteries (and rechargeable
batteries) are not ordinary refuse
and must be returned for recycling
purposes. The customer is
responsible for returning the used or
rechargeable batteries for recycling.
yy The customer can return used
or rechargeable batteries
to a nearby public recycling
center or to a store selling the
same type of the battery or
rechargeable battery.
English
10
Getting Started
List of Features
yy Media Play (USB)
Allows you to play video files, music files and pictures saved on a USB device.
Accessories
✎✎Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
✎✎The items’ colors and shapes may vary depending on the model.
✎✎Check that there is no accessory hidden behind packing materials when you open the box.
yy Remote Control (AA59-00600A) & Batteries (AAA x 2)
yy Warranty Card / Safety Guide / Quick Setup Guide
yy Cleaning Cloth
D-Sub Cable
(BN39-00244H)
Stereo Cable
(BN39-01286A)
yy Power Cord
yy User Manual (CD)
Stand Base
Stand Connector
Input Cables (Sold Separately)
HDMI
Component
Composite (AV)
Coaxial (RF)
HDMI-DVI
✎✎Check the cable before plug-in
Cable
Ports
HDMI
USB
Do not plug cable upside down.
Be sure to check before plug-in.
English
11
Getting Started
Viewing the Control Panel
✎✎The product color and shape may vary depending on the model.
Control Panel
SOURCE
E
Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTERE button on the remote control.
MENU
Displays an on-screen menu, the OSD (on screen display) of your TV’s features.
y
Adjusts the volume. In the OSD, use the y buttons as you would use the
l and r buttons on the remote control.
z
Changes the channels. In the OSD, use the z buttons as you would use the
d and u buttons on the remote control.
P (Power)
Turns the TV on or off.
Remote control sensor
Aim the remote control towards this spot on the TV.
Power Indicator
Blinks and turns off when the power is on and lights up in standby mode.
Standby mode
Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe
and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on a
holiday, for example). It is best to unplug the power cord.
Useful Information
] Caution
Do not press down hard on the product.
yy The product may become deformed and damaged.
English
12
Getting Started
Viewing the Remote Control
✎✎This is a special remote control for the visually impaired and has Braille points on the Channel and Number "5" button.
SOURCE
Turns the TV on and off.
Press to directly access to channels.
1
2
4
5
7
8
0
Press to select additional channels
(digital) being broadcast by the same
station. For example, to select channel
‘54-3’, press ‘54’, then press ‘-’ and ‘3’.
Displays and selects the available video
sources.
Turns the remote control light on or
off. When on, the buttons become
illuminated for a moment when pressed.
(Using the remote control with this button
set to on will reduce the battery usage
time.)
Returns to the previous channel.
Cuts off the sound temporarily.
MUTE
Change channels.
Adjusts the volume.
Displays the channel list on the screen.
Displays the main on-screen menu
Automatically shuts off the TV at a preset
time.
View the Media Play.
Quickly select frequently used functions.
Displays information on the TV screen.
Selects the on-screen menu items and
changes the values seen on the menu.
Returns to the previous menu.
Exits the menu.
Use these buttons according to the
direction on screen.
P.SIZE: Choose the picture size.
MTS: Press to choose stereo, mono or
Separate Audio Program
(SAP broadcast).
CC: Controls the caption decoder.
Using these buttons in Media Play mode.
AA59-00600A
Installing batteries (Battery size: AAA)
✎✎NOTE
xx Use the remote control within
23 feet from the TV.
xx Bright light may affect the
performance of the remote
control. Avoid use when nearby
fluorescent lights or neon signs.
xx The color and shape may vary
depending on the model.
English
13
Getting Started
How to Navigate Menus
Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.
1
MEDIA.P
MENU
TOOLS
SLEEP
1 MENU button: Displays the main on-screen menu.
INFO
`
2 ENTERE / Direction button: Move the cursor and
select an item. Confirm the setting.
3 RETURN button: Returns to the previous menu.
E
2
4 EXIT button: Exits the on-screen menu.
RETURN
3
EXIT
e
4
How to Operate the OSD (On Screen Display)
The access steps may differ depending on the selected menu.
1
2
3
4
5
6
7
u/d
The main menu options appear on the screen:
Picture, Sound, Channel, Setup, Input, Application, Support.
Select an icon or option with the u or d button.
ENTERE
Press ENTERE to access the sub-menu.
u/d
Select the desired submenu with the u or d button.
l/r
ENTERE
Adjust the value of an item with the l or r button. The adjustment in the OSD may differ depending
on the selected menu.
Press ENTERE to confirm the selection.
EXITe
Press EXIT.
MENU
Connecting to an Antenna
Connecting the power cord and an antenna or cable connection
✎✎When you move or swivel the TV with Antenna cable tightly connected, there is high risk antenna jack on TV will be
broken off.
VHF/UHF Antenna
Antenna Cable (Not Supplied)
or
Cable
ANT OUT
Power Input
English
14
Getting Started
Plug & Play (Initial Setup)
When you turn the TV on for the first time, a sequence of on-screen prompts will assist in configuring basic settings. To turn on
the TV, press the POWERP button.
✎✎Plug & Play is available only when the Source List is set to TV.
✎✎Before turning on the TV, make sure you have connected the TV to an antenna or cable connection (p. 14).
P
1
2
Selecting a language
Press the u or d button, then press the ENTERE button. Select
the desired OSD (On Screen Display) language.
Selecting Store Demo
or Home Use
3
Selecting search
options for auto tuning
Press the l or r button, then press the ENTERE button.
yy Select the Home Use mode. Store Demo Mode is for retail
environments.
yy To return the unit’s settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume OSD, press and hold MENU for 5 sec.
Press the u or d button, then press the ENTERE button. Select Air, Cable or Auto.
✎✎If you selected Cable, you’ll go to the cable system screen. Use the u or d button
to select the correct cable signal format - STD, HRC, or IRC - and then press
ENTERE. Most cable systems use STD. Select the correct cable signal format for
both the Digital and Analog systems.
✎✎
4
Setting the Clock
Mode
5
6
View the HDTV
Connection Guide
Enjoy your TV.
When done, select Start, and the press ENTERE.
Set the Clock Mode automatically or manually.
yy Auto: Allows you to select DST (Daylight Saving Time) mode and time zone.
yy Manual: Allows you to manually set the current date and time (p.26).
The connection method for the best HD screen quality is displayed.
Press the ENTERE button.
If You Want to Rerun Plug & Play...
MENUm → Setup → Plug & Play → ENTERE
✎✎NOTE
To change the TV’s setting from Store Demo to Home Use when not in Plug & Play, press the volume button on the TV.
When you see the volume in the OSD, press and hold MENU for 5 sec.
English
15
Connections
Connecting to an AV Device
Using an HDMI or HDMI/DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
Device
HDMI Cable (Not Supplied)
HDMI OUT
Device
HDMI to DVI Cable
(Not Supplied)
DVI OUT
AUDIO OUT
Audio Cable
(Not Supplied)
✎✎HDMI IN 1 (DVI), HDMI IN 2, PC/DVI AUDIO IN
xx TB300 series have only HDMI IN 1 (DVI).
xx When using an HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack for video. A DVD, Blu-ray
player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI
(DVI to HDMI) adapter.
xx The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
xx Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.
xx For better picture and audio quality, connect to a digital device using an HDMI cable.
xx An HDMI cable supports digital video and audio signals, and does not require an audio cable.
–– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
VIDEO OUT
AUDIO OUT
R-AUDIO-L
Device
R
W
R
B
G
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
R
R
W
Red White
R
Red
B
G
Blue Green
W
AUDIO OUT
R-AUDIO-L
R
B
G
COMPONENT OUT
PR
PB
Y
Device
R
Red
W
White Yellow
✎✎When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).
✎✎For better picture quality, the Component connection is recommended over the A/V connection.
English
16
Connections
Connecting to an Audio Device
Using an Optical (Digital) or a Headphone Connection
Only TB350 series have Headphone and Optical interface.
Available devices: Digital Audio System, Amplifier, DVD home theater
OPTICAL
✎✎DIGITAL AUDIO OUT (OPTICAL)
xx When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
xx 5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.
xx When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver
and you connected it to the TV via HDMI, you will only hear 2 CH audio from the home theater receiver. If you
want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB
satellite receiver directly to an amplifier or home theater.
✎✎HeadphonesH : You can connect your headphones to the headphones output on your set. While the
headphones are connected, the sound from the built-in speakers will be disabled.
xx Sound function may be restricted when connecting headphones to the TV.
xx Headphone volume and TV volume are adjusted at the same time.
Connecting to a PC
Using an HDMI cable or an HDMI to DVI cable or a D-sub cable
✎✎Your PC may not support an HDMI connection.
HDMI Cable (Not Supplied)
HDMI OUT
HDMI to DVI Cable (Not Supplied)
DVI OUT
AUDIO OUT
D-Sub Cable
PC OUT
AUDIO OUT
Stereo Cable
Display Modes (D-Sub and HDMI/DVI Input)
If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal
from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned
on. Therefore, configure it as follows referring to the User Manual of the graphics card.
English
17
Connections
1366 X 768 (T19B300 model only)
Mode
IBM
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
Display Mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
720 x 400
70Hz
31.469
70.087
28.322
-/+
640 x 480
60Hz
31.469
59.940
25.175
-/-
640 x 480
67Hz
35.000
66.667
30.240
-/-
640 x 480
72Hz
37.861
72.809
31.500
-/-
640 x 480
75Hz
37.500
75.000
31.500
-/-
800 x 600
60Hz
37.879
60.317
40.000
+/+
800 x 600
72Hz
48.077
72.188
50.000
+/+
800 x 600
75Hz
46.875
75.000
49.500
+/+
832 x 624
75Hz
49.726
74.551
57.284
-/-
1024 x 768
60Hz
48.363
60.004
65.000
-/-
1024 x 768
70Hz
56.476
70.069
75.000
-/-
1024 x 768
75Hz
60.023
75.029
78.750
+/+
1280 x 720
60Hz
45.000
60.000
74.250
+/+
1366 x 768
60Hz
47.712
59.790
85.500
+/+
Horizontal
Frequency (kHz)
Vertical
Frequency(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
1920 X 1080
Mode
IBM
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
Display Mode
Resolution
720 x 400
70Hz
31.469
70.087
28.322
-/+
640 x 480
60Hz
31.469
59.940
25.175
-/-
640 x 480
67Hz
35.000
66.667
30.240
-/-
640 x 480
72Hz
37.861
72.809
31.500
-/-
640 x 480
75Hz
37.500
75.000
31.500
-/-
800 x 600
60Hz
37.879
60.317
40.000
+/+
800 x 600
72Hz
48.077
72.188
50.000
+/+
800 x 600
75Hz
46.875
75.000
49.500
+/+
832 x 624
75Hz
49.726
74.551
57.284
-/-
1024 x 768
60Hz
48.363
60.004
65.000
-/-
1024 x 768
70Hz
56.476
70.069
75.000
-/-
1024 x 768
75Hz
60.023
75.029
78.750
+/+
1152 x 864
75Hz
67.500
75.000
108.000
+/+
1152 x 870
75Hz
68.681
75.062
100.000
-/-
1280 x 720
60Hz
45.000
60.000
74.250
+/+
1280 x 800
60Hz
49.702
59.810
83.500
-/+
1280 x 1024
60Hz
63.981
60.020
108.000
+/+
1280 x 1024
75Hz
79.976
75.025
135.000
+/+
1366 x 768
60Hz
47.712
59.790
85.500
+/+
1440 x 900
60Hz
55.935
59.887
106.500
-/+
1600 x 900RB
60Hz
60.000
60.000
108.000
+/+
1680 x 1050
60Hz
65.290
59.954
146.250
-/+
1920 x 1080
60Hz
67.500
60.000
148.500
+/+
✎✎NOTE
xx The interlace mode is not supported.
xx The set may operate abnormally if you select a non-standard video format.
xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
✎✎If there is no power cut-off switch, the power consumption is “0” only when the power cord is disconnected.
✎✎DPM(Display Power Management) Function does not work if you used in connection with the HDMI port of this product.
English
18
Connections
Changing the Input Source
Edit Name
MENUm → Input → Edit Name → ENTERE
In the Source List, press the TOOLST button, and then
you can set an external input sources name you want.
Source List
Use to select TV or an external input sources
such as a DVD / Blu-ray player / cable box /
STB satellite receiver.
SOURCE
MENUm → Input → Source List →
ENTERE
■■ VCR / DVD / Cable STB / Satellite STB / PVR STB
/ AV Receiver / Game / Camcorder / PC / DVI PC /
DVI / TV / IPTV / Blu-ray / HD DVD / DMA: Name the
device connected to the input jacks to make your input
source selection easier.
✎✎If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI cable, select PC under Edit Name
to enter a device name.
■■ TV / PC / AV / Component / HDMI1/DVI / HDMI2
✎✎TB300 series have only HDMI IN 1 (DVI).
1. Press the SOURCE button on your remote.
2. Select a desired external input source.
✎✎ You can only choose external devices that
are connected to the set. In the Source List,
connected inputs will be highlighted.
✎✎If you have connected a PC to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI PC under
Edit Name to enter a device name.
✎✎If you connected an AV device to the HDMI IN 1 (DVI)
port with an HDMI to DVI cable, select DVI under Edit
Name to enter a device name.
Information
You can see detailed information about the selected external
device.
English
19
Basic Features
Channel Menu
¦¦ Using Favorite Channels
MENUm → Channel → Channel List → ENTERE
¦¦ Seeing Channels
* Add to Favorite / Delete from Favorite
t
Channel List
MENUm → Channel → Channel List → ENTERE
Set channels you watch frequently as Favorites.
1. Select a channel and press the TOOLS button.
Select a channel in the All Channels,
Added Channels, Favorite or Programmed screen by
pressing the ▲ / ▼ and ENTERE buttons. Then you can
watch the selected channel.
2. Add or delete a the channel using the Add to Favorite
or Delete from Favorite menu respectively.
7
8
9
9-1
10
10-1
11-1
Air
■■
B
Zoom
Air
* TV #6
Air
Air
Air
* TV #9
Air
* TV #10
* TV #11
Select T Tools
Added Channels
Added Channels
6
6-1
6
6-1
Air
* TV #6
7
Air
8
9
9-1
10
10-1
11-1
Air
B
Zoom
Air
Air
* TV #9
Air
* TV #10
* TV #11
Delete
Add to Favorite
Timer Viewing
Channel Name Edit
Select All
Auto Program
Select T Tools
To show all Favorite channels, click on the button shown
on the right.
All Channels: Shows all currently available
channels.
Added Channels: Shows all added channels.
■■
■■
*
■■
Programmed: Shows all currently reserved
programs.
Favorite: Shows all favorite channels.
✎✎Using the color buttons with the Channel List
xx B Green (Zoom): Enlarges or shrinks a channel
number.
xx
Yellow (Select): Selects multiple channel lists.
Select desired channels and press the Yellow button
to set all the selected channels at the same time. The
c mark appears to the left of the selected channels.
xx T (Tools): Displays the Channel List option menu.
(The options menus may differ depending on the
situation.)
Channel Status Display Icons
Icons
c
*
Operations
A channel selected.
A channel set as a Favorite.
A reserved Program.
¦¦ Memorizing Channels
MENUm → Channel → ENTERE
Antenna (Air / Cable) t
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Auto Program
Automatically registers available Air / Cable channels to the
TV.
■■ Air: Air antenna signal.
■■ Cable: Cable antenna signal.
■■ Auto: Air and Cable antenna.
English
20
Basic Features
✎✎NOTE
xx When selecting the Cable TV system: STD, HRC
and IRC identify various types of cable TV systems.
Contact your local cable company to identify the
type of cable system that exists in your particular
area. At this point, the signal source has been
selected.
xx After all the available channels are stored, it starts
to remove scrambled channels. The Auto program
menu then reappears.
How to Stop Auto Programming
1. Press the ENTERE button.
2. A message will ask Stop Auto Program?. Select Yes by
pressing the ◄ or ► button.
Channel List
MENUm → Channel → Channel List → ENTERE
Channel List Option Menu
Set each channel using the Channel List menu options (Add
/ Delete, Timer Viewing, Select All / Deselect All). Option
menu items may differ depending on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
■■ Add / Delete: Delete or add a channel to display the
channels you want.
✎✎ NOTE
xx All deleted channels will be shown on the
All Channels menu.
3. Press the ENTERE button.
xx A gray-colored channel indicates the channel
¦¦ Editing Channels
xx The Add menu only appears for deleted
MENUm → Channel → Channel List → ENTERE
has been deleted.
channels.
xx Delete a channel from the Added Channels or
Favorite menu in the same manner.
Channel Name Edit
1. Select a channel and press the TOOLS button.
2. Edit the channel name using the Channel Name Edit
menu.
■■ Channel Name Edit (analog channels only): Assign your
own channel name.
¦¦ Other Features
MENUm → Channel → ENTERE
Clear Scrambled Channel
This function is used to filter out scrambled channels after
Auto Program is completed. This process may take up to
20~30 minutes.
How to Stop Searching Scrambled Channels
1. Press the ENTERE button to select Stop.
2. Press the ◄ button to select Yes.
3. Press the ENTERE button.
✎✎This function is only available in Cable mode.
■■ Timer Viewing: You can set a desired channel to be
displayed automatically at the reserved time. Set the
current time first to use this function.
1. Press the ◄ / ► / ▲ / ▼ buttons to select the
desired channel in Channel List.
2. Press the TOOLS button, then select Timer
Viewing.
3. Scroll up or down to adjust the settings in the box,
or use the numeric buttons on your remote to enter
the date and time.
✎✎ If you selected Once, Every Week or Everyday
in Repeat, you can enter the date you want.
4. Press the ENTERE button.
✎✎ NOTE
xx Only memorized channels can be reserved.
xx Reserved programs will be displayed in the
Programmed menu.
xx When a digital channel is selected, press the ►
button to view the digital program.
■■ Select All: Select all the channels in the channel list.
■■ Deselect All: Deselect all the selected channels.
✎✎ You can only select Deselect All when one or
more channels are selected.
English
21
Basic Features
Picture Menu
Programmed
(in Channel List)
You can view, modify or delete a show you have reserved
to watch. Programmed timer viewing is displayed here.
Highlight a program and press the TOOLS button to display
Options.
■■ Change Info: Change a show you have reserved to
watch. Begin with step 3 of “Timer Viewing” above.
■■ Cancel Schedules: Cancel a show you have reserved
to watch.
✎✎ This deletes the highlighted or selected
program(s).
■■ Information: Display a show you have reserved
to watch. (You can also change the reservation
Information.)
✎✎ Alternatively, you can view Information by
highlighting a program and pressing the
ENTERE button.
■■ Select All / Deselect All: Select or deselect all reserved
programs.
¦¦ Changing the Preset Picture Mode
MENUm → Picture → Mode → ENTERE
Mode t
Picture modes apply preset adjustments to the picture.
Select a mode using the up and down arrow keys, and then
press the ENTERE button.
✎✎When connecting a PC, you can only make changes to
the Entertain or Standard.
■■ Dynamic: Suitable for a bright room.
■■ Standard: Suitable for a normal environment.
■■ Movie: Suitable for watching movies in a dark room.
■■ Entertain: Suitable for watching movies and games.
✎✎ It is only available in PC mode.
¦¦ Adjusting Picture Settings
Channel Mode
MENUm → Picture → ENTERE
Change the channel mode directly between Added Channels
and Favorite Channels.
Samsung MagicAngle
✎✎The Favorite Channels is enabled only when you set
Add to Favorite.
Fine Tune
(analog channels only)
If the reception is clear, you do not have to fine tune the
channel, as this is done automatically during the search and
store operation. If the signal is weak or distorted, fine tune
the channel manually. Scroll to the left or right until the image
is clear.
✎✎Settings are applied to the channel you're currently
watching.
✎✎Fine tuned channels that have been saved are marked
with an asterisk “*” on the right-hand side of the
channel number in the channel banner.
✎✎To reset the fine-tuning, select Reset.
This feature allows you to see optimal screen quality
according to your viewing position. When viewing the screen
at an angle from below, above or the side of the product,
by setting the appropriate mode for each position you can
obtain a similar picture quality as viewing the screen directly
from the front.
yy Off: Select when viewing from the front position.
yy Lean back mode: Select when viewing from a slightly
lower position.
yy Standing Mode: Select when viewing from the upper
position.
yy Mode (1-10): Determines the amount of adjustment.
Numbers closer to 10 are best for lower viewing
positions.
✎✎When Samsung MagicAngle is set to Lean back
mode or Standing Mode, Gamma is not available.
Backlight / Contrast / Brightness /
Sharpness / Color / Tint (G/R)
Your television has several setting options for picture quality
control.
✎✎NOTE
xx When you make changes to Backlight, Contrast,
Brightness, Sharpness, Color or Tint (G/R), the
OSD will be adjusted accordingly.
xx When connecting a PC, you can only make
changes to Backlight, Contrast, Brightness and
Sharpness.
English
22
Basic Features
xx Settings can be adjusted and stored for each
external device connected to the set.
xx Lowering picture brightness reduces power
consumption.
Auto Adjustmentt
Frequency values/ position and fine tune are adjusted
automatically.
✎✎It's only available in PC mode.
R-Offset / G-Offset / B-Offset: Adjust each color's
(red, green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjust each color's (red,
green, blue) brightness.
Reset: Resets the White Balance to it's default
settings.
■■ Gamma: Adjust the primary color intensity.
■■ Dynamic Contrast (Off / Low / Medium / High): Adjust
the screen contrast.
■■ Black Tone (Off / Dark / Darker / Darkest): Select the
black level to adjust the screen depth.
Screen
You can increase the picture quality by adjusting the
frequency and performing fine-tuning
✎✎It's only available in PC mode.
yy Coarse: Adjusts the frequency when vertical noise
appears on the screen(0-100).
yy Fine: Adjusts the screen to be clearer(0-100).
yy PC Position: Optimizes the horizontal and vertical
picture position of the TV.
yy Image Reset: Resets the PC settings to the default
values.
¦¦ Changing the Picture Options
■■ Flesh Tone: Emphasize pink “Flesh Tone.”
■■ Motion Lighting (Off / On): Reduces power
consumption by reducing screen brightness when the
picture on the screen is in motion.
Picture Options
MENUm → Picture → Picture Options → ENTERE
Select an option using the up and down arrow keys, and
then press ENTERE. Use the arrow keys to change the
setting, and then press ENTERE.
✎✎When connecting a PC, you can only make changes to
the Color Tone, Size.
Advanced Settings
Picture Options
MENUm → Picture → Advanced Settings → ENTERE
Advance Settings are available in the Standard and Movie
modes. When connecting a PC, you can only make changes
to Gamma and White Balance. They are not available when
you are watching a digital channel.
To use, select an option using the up and down arrow keys,
and then press ENTERE. Use the arrow keys to change a
value or setting, and then press ENTERE.
Advanced Settings
Color Space
: Native
►
White Balance
Gamma
:0
Dynamic Contrast
: High
Black Tone
: Off
Flesh Tone
:0
Motion Lighting
: On
U Move E Enter R Return
■■ Color Space (Auto / Native): Adjusts the range of
colors (the color gamut) available to create images.
■■ White Balance: Adjusts the red, green, and blue
brightness so that the brightest point of a picture
becomes white.
Color Tone
: Standard
Size
: 16:9
Digital Noise Filter
: Auto
HDMI Black Level
: Normal
Film Mode
: Off
►
U Move E Enter R Return
■■ Color Tone (Cool / Standard / Warm1 / Warm2)
✎✎ Warm1 or Warm2 will be deactivated when the
picture mode is Dynamic.
✎✎ You can adjust and store settings for each external
device you have connected to an input on the TV.
■■ Size: If you have a cable box or satellite
receiver, it may have its own set of
screen sizes as well. However, we highly
recommend you use your set's 16:9 mode
most of the time.
P.SIZE
16:9 : Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Cuts off the top and sides.
Zoom2: Use for a stronger magnification.
English
23
Basic Features
Wide Fit: Enlarges the aspect ratio of the picture to fit
the entire screen.
Available with HD 1080i / 720p signals in 16:9
mode.
Maintaining the Correct Posture when Using this Product
✎✎
4:3 : Sets the picture to basic (4:3) mode.
Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and center
of the screen may cause image retention(screen
burn) which are not covered by the warranty.
✎✎
Screen Fit: Displays the full image without any cut-off
when HDMI (720p / 1080i / 1080p) or Component
(1080i / 1080p) signals are inputted.
✎✎NOTE
xx After selecting Zoom1, Zoom2 or Wide Fit:
1. Press the ► button to select Position.
2. Press the ENTERE button.
3. Press the ▲ or ▼ button to move the picture up
or down.
4. Press the ENTERE button.
✎✎ If you want to reset the pictures to its original
position, select Reset, and then press
ENTERE. The picture will be reset to its
default position.
xx After selecting Screen Fit in HDMI (1080i/1080p) or
Component (1080i/1080p) mode, you may need to
center the picture:
1. Press the ◄ or ► button to select Position.
2. Press the ENTERE button.
Maintain the correct posture when using this product.
yy Straighten your back.
yy Keep a distance of 45~50 cm (15~19 inches) from your
eyes to the screen. Look down at the screen and face
the screen forwards.
yy Adjust the angle of the product so that light is not
reflected onto the screen.
yy Keep your elbow at a right angle and keep your arm
level with the back of your hand.
yy Keep your elbow at a right angle.
yy Place your heels flat on the ground while keeping your
knees at an angle of 90 degrees or higher and maintain
the position of your arm so that your arm is below your
heart.
✎✎ If you want to reset the pictures to its original
■■ Digital Noise Filter (Off / Low / Medium / High /
Auto): If the broadcast signal received by your set is
weak, you can activate the Digital Noise Filter feature
to reduce any static and ghosting that may appear on
the screen.
xx HD (High Definition): 16:9 - 1080i/1080p (1920x1080),
■■ HDMI Black Level (Low / Normal): Lets you select the
black level on the screen to adjust the screen depth.
3. Press the ▲, ▼, ◄ or ► button to move the
picture.
4. Press the ENTERE button.
position, select Reset, and then press
ENTERE. The picture will be reset to its
default position.
720p (1280x720)
xx Settings can be adjusted and stored for each
external device you have connected to an input on
the TV.
Input Source
ATV, AV,
Component (480i, 480p)
DTV(1080i),
Component (1080i, 1080p),
HDMI (720p, 1080i, 1080p)
Picture Size
16:9, Zoom1,
Zoom2, 4:3
16:9, 4:3, Wide Fit,
Screen Fit
✎✎ When the signal is weak, try other options until the
best picture is displayed.
✎✎ Available only in HDMI mode (RGB signal).
■■ Film Mode (Off / Auto): Sets the TV to automatically
sense and process film signals from all sources and
adjusts the picture for optimum quality.
✎✎ Available in TV, AV, COMPONENT (480i / 1080i)
and HDMI (1080i).
Picture Reset (Reset Picture Mode /
Cancel)
Resets your current picture mode to its default settings.
English
24
Basic Features
Sound Menu
¦¦ Changing the Preset Sound Mode
Multi-Track Sound (MTS)
(analog channels only)
MENUm → Sound → Mode → ENTERE
■■ Mono: Choose for channels that are
broadcasting in mono or if you are having
difficulty receiving a stereo signal.
Mode t
■■ Stereo: Choose for channels that are
broadcasting in stereo.
■■ Standard: Selects the normal sound mode.
■■ SAP: Choose to listen to the Separate
Audio Program, which is usually a
foreign-language translation.
■■ Music: Emphasizes music over voices.
■■ Movie: Provides the best sound for movies.
■■ Clear Voice: Emphasizes voices over other sounds.
■■ Amplify: Increase the intensity of high-frequency sound
to allow a better listening experience for the hearing
impaired.
MTS
✎✎Depending on the particular program being broadcast,
you can listen to Mono, Stereo or SAP.
Auto Volume (Off / On)
To equalize the volume level on each channel, set to On.
¦¦ Adjusting sound settings
MENUm → Sound → Equalizer → ENTERE
SPDIF Output
✎✎
Adjusts the sound mode.
Only for TB350 series.
SPDIF (Sony Philips Digital InterFace) is used to provide
digital sound, reducing interference going to speakers and
various digital devices such as a DVD player.
■■ Balance L/R: Adjusts the balance between the right and
left speaker.
Speaker Select
Equalizer
■■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
■■ Reset: Resets the equalizer to its default settings.
¦¦ Sound Settings
MENUm → Sound → ENTERE
SRS TruSurround HD (Off / On) t
(standard sound mode only)
This function provides a virtual 5.1 channel surround sound
experience through a pair of speakers using HRTF (Head
Related Transfer Function) technology.
Preferred Language
(digital channels only)
Digital-TV broadcasts are capable of simultaneous
transmission of many audio tracks (for example,
simultaneous translations of the program into foreign
languages).
✎✎Only for TB350 series.
yy Speaker Select (External Speaker / TV Speaker): A
sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver.
In this case, set the TV to External Speaker.
When Speaker Select is set to External
Speaker, the volume and MUTE buttons will not
operate and the sound settings will be limited.
✎✎
✎✎ When Speaker Select is set to External
Speaker.
xx TV Speaker: Off, External Speaker: On
✎✎ When Speaker Select is set to TV Speaker.
xx TV Speaker: On, External Speaker: On
✎✎ If there is no video signal, both speakers will be
mute.
Sound Reset (Reset All / Cancel)
Reset all sound settings to the factory defaults.
✎✎You can only select a language among the ones being
broadcasted.
English
25
Basic Features
Setup Menu
¦¦ Setting the Time
MENUm → Setup → Time → ENTERE
Time
■■ Clock: Setting the clock is for using various timer
features of the TV.
✎✎ The current time will appear every time you press
MENUm → Setup → Time → Sleep Timer → ENTERE
■■ Sleep Timer t: Automatically shuts off the TV
after a preset period of time. (30, 60, 90, 120, 150 and
180 minutes).
✎✎ To cancel the Sleep Timer, select Off.
¦¦ Setting the On/Off Timer
the INFO button.
MENUm → Setup → Time → Timer 1 → ENTERE
the clock again.
You can set the TV to turn on automatically at a preset time.
✎✎ If you disconnect the power cord, you have to set
Clock Mode (Auto / Manual)
–– Auto: Set the current time automatically using the
time from a digital channel.
The antenna must be connected in order to set
the time automatically.
✎✎
–– Manual: Set the current time manually.
Depending on the broadcast station and signal,
the auto time set up may not be correct. In this
case, set the time manually.
✎✎
Clock Set: Set the Month, Day, Year, Hour, Minute and
am/pm manually.
Available only when Clock Mode is set to
Manual.
✎✎
✎✎ You can set the Month, Day, Year, Hour and
Minute directly by pressing the number buttons
on the remote control.
Time Zone: Select your time zone.
This function is only available when the
Clock Mode is set to Auto.
✎✎
DST (Off / On / Auto): Switches the Daylight Saving
Time function on or off.
This function is only available when the
Clock Mode is set to Auto.
✎✎
¦¦ Using the Sleep Timer
■■ Timer 1 / Timer 2 / Timer 3: Three different on / off
timer settings can be made. You must set the clock first.
Timer 1
On Time
▲
12
▼
00
am
Inactivate
00
am
Inactivate
Off Time
12
Volume
Contents
10
Repeat
Once
TV Air 3
Sun
Mon
Tue
Wed
Thu
Fri
Sat
L Move U Adjust E Enter R Return
On Time / Off Time: Set the hour, minute, and activate
/ inactivate. (To activate the timer with the setting you’ve
chosen, set to Activate.)
Volume: Set the desired volume level.
Contents: Select a content to be played when the TV
is turned on automatically. (USB can be selected only
when a USB device is connected to the TV.)
–– TV/USB: Select TV or USB. (Make sure that an USB
device is connected to your TV.)
–– Antenna: You can view an antenna source.
–– Channel: Select the desired channel.
–– Music: Select the folder containing MP3 files on the
USB device.
–– Photo: Select the folder containing JPEG files on the
USB device.
English
26
Basic Features
✎✎ NOTE
xx If there is no music file on the USB device or the
folder containing a music file is not selected, the
Timer function does not operate correctly.
xx When there is only one photo file in the USB,
the Slide Show will not play.
xx If a folder name is too long, the folder cannot be
selected.
xx Each USB you use is assigned its own folder.
When using more than one of the same type of
USB, make sure the folders assigned to each
USB have different names.
Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at you convenience. If you
select Manual, you can set up the day you want to
activate the timer.
The c mark indicates the day is selected.
✎✎
✎✎Auto Power Off (available only when the TV is turned
on by the Timer): The TV will be automatically turned off
after 3 hours of being left idle to prevent overheating.
¦¦ Locking Programs
MENUm → Setup → Program Rating Lock → ENTERE
Program Rating Lock
The PIN input screen appears, Enter your 4 digit PIN number.
The Program Rating Lock feature automatically locks out
programs that are deemed inappropriate for children. The
user must enter a PIN (personal identification number) before
any of the Program Rating Lock restrictions are set up or
changed.
✎✎NOTE
xx Program Rating Lock is not available in HDMI,
Component, PC.
xx The default PIN number of a new TV set is “0-0-0-0”.
xx Allow All: Press to unlock all TV ratings.
xx Block All: Press to lock all TV ratings.
■■ Program Rating Lock (Off / On): You can block rated
TV Programs.
TV Parental Guidelines: You can block TV programs
depending on their rating. This function allows you to
control what your children are watching.
–– TV-Y: Young children / TV-Y7: Children 7 and over /
TV-G: General audience / TV-PG: Parental guidance
/ TV-14: Viewers 14 and over / TV-MA: Mature
audience
–– ALL: Lock all TV ratings. / FV: Fantasy violence /
V: Violence / S: Sexual situation / L: Adult Language /
D: Sexually Suggestive Dialog
The Program Rating Lock will automatically
block certain categories dealing with more
sensitive material. For example, if you block the
TV-Y category, then TV-Y7 will automatically
be blocked. Similarly, if you block the TV-G
category, then all the categories in the young
adult group will be blocked (TV-G, TV-PG,
TV-14 and TV-MA). The sub-ratings (D, L, S, V)
work similarly. So, if you block the L sub-rating
in TV-PG, then the L sub-ratings in TV-14 and
TV-MA will automatically be blocked.
✎✎
MPAA Rating: You can block movies depending on
their MPAA rating. The Motion Picture Association of
America(MPAA) has implemented a rating system that
provides parents or guardians with advanced information
on which films are appropriate for children.
–– G: General audience (no restrictions). / PG: Parental
guidance suggested. / PG-13: Parents strongly
cautioned. / R: Restricted. Children under 17 should
be accompanied by an adult. / NC-17: No children
under age 17. / X: Adults only. / NR: Not rated.
The Program Rating Lock will automatically
block any category that deals with more
sensitive material. For example, if you block
the PG-13 category, then R, NC-17 and X will
automatically be blocked.
✎✎
Canadian English: You can block TV programs
depending on their Anglophone Canadian ratings.
–– C: Programming intended for children under age 8. /
C8+: Programming generally considered acceptable
for children 8 years and over to watch on their own.
/ G: General programming, suitable for all audiences.
/ PG: Parental Guidance. / 14+: Programming
contains themes or content which may not be
suitable for viewers under the age of 14. / 18+: Adult
programming.
The Program Rating Lock will automatically
block any category that deals with more
sensitive material. For example, if you block
the G category, then PG, 14+ and 18+ will
automatically be blocked.
✎✎
English
27
Basic Features
Canadian French: You can block TV programs
depending on their French Canadian rating.
–– G: General / 8 ans+: Programming generally
considered acceptable for children 8 years and over
to watch on their own. / 13 ans+: Programming may
not be suitable for children under the age of 13. /
16 ans+: Programming is not suitable for children
under the age of 16. / 18 ans+: Programming
restricted to adults.
The Program Rating Lock will automatically
block any category that deals with more
sensitive material. For example, if you block the
8 ans+ category, then 13 ans+, 16 ans+ and 18
ans+ will automatically be blocked also.
✎✎
Downloadable U.S. Rating: Parental restriction
information can be used while watching DTV channels.
NOTE
✎✎
xx If information is not downloaded from the
broadcasting station, the Downloadable U.S.
Rating menu is deactivated.
xx Parental restriction information is automatically
downloaded while watching DTV channels. It
may take several seconds.
xx The Downloadable U.S. Rating menu
is available for use after information is
downloaded from the broadcasting station.
However, depending on the information from
the broadcasting station, it may not be available
for use.
xx Parental restriction levels differ depending on
the broadcasting station. The default menu
name and Downloadable US Rating change
depending on the downloaded information.
xx Even if you set the on-screen display to another
language, the Downloadable U.S. Rating
menu will appear in English only.
xx The rating will automatically block certain
categories that deal with more sensitive
material.
xx The rating titles (For example: Humor Level..etc)
and TV ratings (For example: DH, MH, H..etc)
may differ depending on the broadcasting
station.
■■ Change PIN: The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter it in Enter
New PIN. Re-enter the same 4 digits in Confirm New
PIN. When the Confirm screen disappears, select the
OK. The TV has memorized your new PIN.
How to watch a restricted channel
If the TV is tuned to a restricted channel, the Program
Rating Lock will block it. The screen will go blank and the
following message will appear:
"This channel is blocked by a Parental Lock. Please enter the
PIN to unblock."
✎✎If you forget the PIN code, press the remote control
buttons in the following sequence in Standby mode,
which resets the PIN to “0-0-0-0”: POWER (off) →
MUTE → 8 → 2 → 4 → POWER(on).
¦¦ Other Features
MENUm → Setup → ENTERE
Language
Set the menu language.
1. Select Language and press the ENTERE button.
2. Choose desired language and press the ENTERE
button.
✎✎Choose between English, Español and Français.
Caption
(On-Screen Text Messages)
■■ Caption (Off / On): You can switch the
caption function on or off. If captions are
not available, they will not be displayed
on the screen.
CC
✎✎ The Caption feature doesn’t work in
Component, HDMI and PC modes.
■■ Caption Mode: You can select the
desired caption mode.
✎✎ The availability of captions depends on the
program being broadcast.
Default / CC1~CC4 / Text1~Text4: (analog channels
only) The Analog Caption function operates in either
analog TV channel mode or when a signal is supplied
from an external device to the TV. (Depending on the
broadcasting signal, the Analog Caption function may or
may not work with digital channels.)
Default / Service1~Service6 / CC1~CC4 /
Text1~Text4: (digital channels only) The Digital Captions
function works with digital channels.
Service1~6 may not be available in digital caption
mode depending on the broadcast.
✎✎
English
28
Basic Features
■■ Digital Caption Options: (digital channels only)
Size: Options include Default, Small, Standard and
Large. The default is Standard.
Font Style: Options include Default and Styles 0 to 7.
The default is Style 0.
Foreground Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan. You
can change the color of the letter. The default is White.
Background Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan.
You can change the background color of the caption.
The default is Black.
Foreground Opacity: This adjusts the opacity of text.
Options include Default, Transparent, Translucent, Solid
and Flashing.
Background Opacity: This adjusts the opacity of
the caption background. Options include Default,
Transparent, Translucent, Solid and Flashing.
Return to Default: This option sets each Size, Font
Style, Foreground Color, Background Color, Foreground
Opacity and Background Opacity to its default.
NOTE
✎✎
xx Digital Caption Options are available only
when Default and Service1 ~ Service6 can be
selected in Caption Mode.
xx The availability of captions depends on the
program being broadcasted.
xx The Default setting follows the standards set by
the broadcaster.
xx The Foreground and Background cannot be set
to have the same color.
xx You cannot set both the Foreground Opacity
and the Background Opacity to Transparent.
Game Mode (Off / On)
When connecting to a game console such as PlayStation™
or Xbox™, you can enjoy a more realistic gaming experience
by selecting the game mode.
✎✎NOTE
xx Precautions and limitations for game mode.
–– To disconnect the game console and connect
another external device, set Game Mode to Off in
the setup menu.
–– If you display the TV menu in Game Mode, the
screen shakes slightly.
xx Game Mode is not available when the input source
is set to TV or PC.
xx After connecting the game console, set Game Mode
to On. Unfortunately, you may notice reduced picture
quality.
xx If Game Mode is On:
–– Picture Mode is set to Standard and Sound
Mode is set to Movie.
–– Equalizer is not available.
Melody (Off / Low / Medium / High)
Set so that a melody plays when the TV is turned on or off.
Auto Protection Time
yy Off / 2 hours / 4 hours / 8 hours / 10 hours: If the
screen remains idle with a still image for a certain period
of time defined by the user, the screen saver is activated
to prevent the formation of ghost images on
Eco Solution
yy Energy Saving (Off / Low / Medium / High / Picture
Off) : This adjusts the brightness of the TV in order to
reduce power consumption. If you select Picture Off,
the screen is turned off, but the sound remains on.Press
any button except volume button to turn on the screen.
yy No-Signal Power Off (Off / 15 min / 30 min / 60 min):
To avoid unnecessary energy consumption, set how long
you want the TV to remain on if it’s not receiving a signal.
Disabled when a PC connected to the HDMI1/
DVI port is in power-saving mode.
✎✎
yy Auto Power Off (Off / On): Saves power by turning TV
off automatically when no user operation is received for
4 hours.
English
29
Basic Features
Support Menu
MENUm → Support → ENTERE
Self Diagnosis
✎✎Self Diagnostic might take few seconds, this is part of
the normal operation of the TV.
■■ Picture Test: Use to check for picture problems.
Yes: If the test pattern does not appear or there is
noise in the test pattern, select Yes. There may be a
problem with the set. Contact Samsung’s Call Center for
assistance (1-800-SAMSUNG).
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
■■ Sound Test: Use the built-in melody sound to check for
sound problems.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes. There may be a
problem with the set. Contact Samsung’s Call Center for
assistance (1-800-SAMSUNG).
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
■■ Signal Strength: (Digital channels only) An HD channel’s
reception quality is either perfect or the channels are
unavailable. Adjust your antenna to increase signal
strength.
Software Upgrade
Samsung may offer upgrades
for your TV’s firmware in
the future. Please visit
Samsung.com or contact
the Samsung call center at
1-800-SAMSUNG (726-7864)
to receive information about
downloading upgrades and
using a USB drive. Upgrades
will be possible by connecting
a USB drive to the USB port.
Side Panel
USB Drive
✎✎When software is upgraded, video and audio settings
you have made will return to their default (factory)
settings.
✎✎We recommend you write down your settings so that
you can easily reset them after the upgrade.
HD Connection Guide
Refer to this information when connecting external devices
to the TV.
Contact Samsung
View this information when your TV does not work properly
or when you want to upgrade the software. You can find
information regarding our call centers and how to download
products and software.
■■ Reset: All the settings will return to factory defaults.
English
30
Advanced Features
Media Play (USB)
Enjoy video, music and/or photos files saved on a USB Mass
Storage Class (MSC) device.
Media Play
Videos
MENUm → Application → Media Play (USB) → ENTERE
SUM
a Change Device
E Enter R Return
• The displayed image may differ depending on the
model.
¦ Connecting a USB Device
Side Panel
1. Turn on your TV.
2. Connect a USB device containing video, music and/or photos files to the USB jack on the
rear of the TV.
3. When the Application selection screen is displayed, press the ► button to select Media
Play (USB), then press the ENTERE button.
USB Drive
Using the Media Play Menu
1. Press the MENU button. Press the ▲ or ▼ button to select
Application, and then press the ENTERE button.
Media Play
2. Select Media Play (USB), then press the ENTERE button.
Videos
3. The USB Memory Device name is displayed in the left corner.
✎
The Media Play menu differs depending on the USB Memory
Device connected to TV.
✎
Some devices may not be supported due to compatibility
problems.
4. Press the ◄ or ► button to select an icon (Videos , Music, Photos,
Settings), then press the ENTERE button.
SUM
a Change Device
E Enter R Return
• The displayed image may differ depending on the
model.
✎ The USB function might not work properly with unlicensed multimedia files.
✎ Read this information before using Media Play (USB) with a USB device:
x
x
x
x
Only alphanumeric characters must be used as a folder name or file name (photo, music).
x
USB HDD is not supported. A USB device that requires high power(more than 0.5A) may not be supported.
The file system supports FAT16, FAT32 and NTFS.
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Media Play (USB) only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class BulkOnly Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB and HUB are not
supported.)
English
31
Advanced Features
x
Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.
SAMSUNG is not responsible for any data file damage or data loss.
x
Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB
Compatibility problem.
x
The Media Play (USB) mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48
kHz).
x
x
x
x
x
Photos only supports sequential jpeg format.
x
x
x
x
x
The higher the resolution of the image, the longer it takes to display on the screen.
x
x
x
The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.
Do not disconnect the USB device while it is loading.
MSC supports MP3 and JPEG files, and the PTP device supports JPEG files only.
MTP (Media Transfer Protocol) is not supported.
The playing duration of an mp3 file may be displayed as “00:00:00” if its playing time information is not found at the
start of the file.
The Photo or Music List displays up to 300 folders or files.
Loading may take some time depending on the size of the file.
MP3 files with DRM that have been downloaded from a non-free site cannot be played.
Digital Rights Management (DRM) is a technology that supports the creation, distribution and management of the
content in an integrated and comprehensive way, including the protection of the rights and interests of the content
providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.
If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is
not played, connect the USB device to a PC, format the device and check the connection.
Videos
Playing Video
1. Press the ◄ or ► button to select Videos, then press the
ENTERE button in the Media Play menu.
2. Press the ◄/►/▲/▼ button to select the desired file in the file
list.
3. Press the ENTERE button.
– The selected file is displayed on the top with its playing time.
– If video time information is unknown, play time and progress
bar are not displayed.
E Pause L Jump T Tools R Returm
• The displayed image may differ depending on the model.
English
32
Advanced Features
Supported Subtitle Formats
–– External
Name
Extension
MPEG-4 Timed text
.ttxt
SAMI
.smi
SubRip
.srt
SubViewer
.sub
Micro DVD
.sub or .txt
SubStation Alpha
.ssa
Advanced SubStation Alpha
.ass
–– Internal
Name
File extension
Format
Xsub
AVI
Picture format
SubStation Alpha
MKV
Text Format
Advanced SubStation Alpha
MKV
Text Format
SubRip
MKV
Text Format
MPEG-4 Timed text
MP4
Text Format
English
33
Advanced Features
Supported Video Formats
File
Extension
Container
*.mp4
MP4
*.avi
*.mkv
AVI
MKV
*.asf
*.wmv
ASF
*.ts
*.trp
*.tp
*.m2ts
TS
Video Codec
Resolution
Frame
rate(fps)
Bit
rate(Mbps)
Divx3.11/4.x/5.1/6.0
1920x1080
6~30
30Mbps
H264
1920x1080
6~30
30Mbps
AVC
1920x1080
6~30
30Mbps
MJPEG
640x480
6~30
10Mbps
Divx3.11/4.x/5.1/6.0
1920x1080
6~30
30Mbps
MPEG4 SP / ASP
1920x1080
6~30
30Mbps
H264
1920x1080
6~30
30Mbps
MJPEG
640x480
6~30
10Mbps
Divx 3.11/4.x/5.1/6.0
1920x1080
6~30
30Mbps
MPEG4 SP / ASP
1920x1080
6~30
30Mbps
H.264
1920x1080
6~30
30Mbps
MPEG2
1920x1080
6~30
30Mbps
H. 264 BP/MP/HP
1920x1080
6~30
30Mbps
MPEG1
1920x1080
24/25/30
30Mbps
MPEG2
1920x1080
24/25/30
30Mbps
H. 264 BP/MP/HP
1920x1080
6~30
30Mbps
MPEG4 SP / ASP
1920x1080
6~30
30Mbps
H.264
1920x1080
6~30
30Mbps
H.264
1920x1080
6~30
30Mbps
Sorenson H.263
1920x1080
6~30
30Mbps
Audio Codec
MP3 / ADPCM / AAC
MP3 / AC3 / LPCM /
ADPCM / DTS Core
MP3 / AC3 / LPCM /
ADPCM / WMA / WMA Pro
AC3 / AAC / MP3 / DD+ / HE-AAC
*.dat
*.mpg
*.mpeg
*.vob
PS
*.3gp
3GPP
*.flv
*.swf
flash formats
AC3 / MPEG / LPCM / AAC
MP3
MP3
Other Restrictions
✎✎NOTE
xx Video content will not play, or not play correctly, if there is an error in the content or the container.
xx Sound or video may not work if the contents have a standard bit rate/ frame rate above the compatible Frame/sec
listed in the table above.
xx If the Index Table is in error, the Seek (Jump) function is not supported.
xx The menu may take longer to appear if the video’s bit rate exceeds 10Mbps.
xx Video content can not be played, if there are many contents in one file.
Video Decoder
• Supports up to H.264, Level 4.1
• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not
supported.
• MPEG4 SP, ASP :
–– Below 1280 x 720: 60 frame max
–– Above 1280 x 720: 30 frame max
• H.263 is not supported.
• GMC is not support.
Audio Decoder
• Supports up to WMA7, 8, 9 STD, 9 PRO, 10 PRO
• WMA 9 PRO and WMA 10 PRO support 5.1 channel .
• WMA Lossless is not supported.
English
34
Advanced Features
Music
Playing Music
1. Press the ◄ or ► button to select Music, then press the
ENTERE button in the Media Play menu.
Playlist
2. Press the ◄/►/▲/▼ button to select the desired file in the file list.
I Love You
Jhon
3. Press the ENTERE button or � (Play) button.
1st Album
Pop
2010
4.2MB
–– During playing the music, you can search using the ◄ and ►
button.
–– �(REW) and μ (FF) buttons do not function during play.
3/15
I Love you
Jhon
Music 1
No Singer
Music 2
No Singer
Music 3
No Singer
Music 4
No Singer
Music 5
No Singer
01:10 / 04:02
E Pause L Jump T Tools R Returm
Device Name
• The displayed image may differ depending on the
model.
Photos
Viewing a Photo (or Slide Show)
1. Press the Tools button to display the option Slide Show, Detailed
Information, Device Information.
Normal
1024x768
11/14/2011
3/15
2. Press the ▲ or ▼ button to select Start Slide Show then press
the ENTERE button.
✎✎ During the slide show, files are displayed in order from the
currently shown file.
✎✎ MP3 files can be automatically played during the slide show
if the Default Background Music is set to On.
✎✎Press the Tools button during the photo view to set the following
E Pause L Previous/Next T Tools R Return
• The displayed image may differ depending on the
options Stop Slide Show, Slide Show Speed, Background
model.
Music, Zoom, Rotate, Picture Mode, Sound Mode,
Information. Press the ▲ or ▼ button to select the option, then
press the ENTERE button.
–– After setting the option press the ENTERE button to make a change.
Supported Photo Formats
JPEG
Resolution
Base-line
15360x8704
Progressive
1024x768
Other Restrictions
CMYK, YCCK Color space JPEG are not supported.
English
35
Advanced Features
Videos/Music/Photos Play Option menu
During playing a file, press the TOOLS button.
Category
Operations
Videos
Music
Photos
Title
You can move the other file directly.
c
Repeat Mode
You can play movie and music files repeatedly.
c
Picture Size
You can adjust the picture size for preference.
c
Picture Mode
You can adjust the picture setting. (p.22)
c
Sound Mode
You can adjust the sound setting. (p.25)
c
Stop Slide Show /
Start Slide Show
You can start or stop a slide show.
Slide Show Speed
You can select the slide show speed during the slide show.
c
Background Music
You can set and select background music when watching a
slide show.
c
Zoom
You can zoom into images in full screen mode.
c
Rotate
You can rotate images in full screen mode.
Information
You can see detailed information about the played file.
c
c
c
c
c
c
c
c
c
Settings
Using the Setting Menu
■■ DivX® Video On Demand: DivX® Video On Demand Shows the registration code authorized for the set. If you connect
to the DivX web site and register, you can download the VOD registration file. If you play the VOD registration using Media
contents, the registration is completed.
✎✎ For more information on DivX® VOD, visit “http://vod.divx.com”.
■■ Information: Select to view information about the connected device.
English
36
Other Information
Attaching a Wall Mount/Desktop Stand
Preparing before installing Wall-Mount/Desktop Stand
1. Turn the product off and unplug the power cord from the wall outlet.
2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product face down.
3. Hold the main body of the product with your hand. Pull the stand in the direction of the arrow as shown in the figure to
separate it.
Attaching a Wall Mount/Desktop Stand
B
A
A
A
Wall/Desktop
Stand Mount
B
B
Wall mount kit/desktop stand (not supplied)
Caution
B
Important
For the installation of Wall-mount, please don't use screws longer than 14mm(L14) of longitude.
4. Align wall mount/desktop stand to the Monitor/TV and firmly fix the wall mount/desktop stand by fastening the screw.
5. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top
stand, wall mount stand or another stand) and firmly fix the stand by fastening the screw.
Do not install your Wall Mount Kit
while your TV is turned on. It may
result in personal injury due to
electric shock.
English
37
Other Information
✎✎NOTE
xx If you use screws that are longer than the standard specifications, the inside of the product may be damaged.
xx For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ
depending on the corresponding specifications.
xx Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them using
excessive force. This may result in damage to the product or injury due to the product falling. Samsung shall not be
held liable for any damage or injury.
xx Samsung shall not be held liable for any damage to the product or injury caused by using a wall mount/desktop stand
that is not compatible with the specifications or due to an installation not performed by an authorized installation
engineer.
xx When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm (3.93 inches) of
space from the wall.
xx Use the wall mount according to the international specifications.
Anti-theft Kensington Lock
A Kensington Lock is a device you can use to physically fix your set in place when
using it in a public place. You wrap the Kensington Lock’s cable around a large,
immobile object and then attach the lock to the Kensington slot on the back of the
set.
The appearance and locking method may differ from the illustration below
depending on the manufacturer. Refer to the manual provided with the Kensington
Lock for additional information on proper use. The Kensington Lock is not supplied
by Samsung.
<TV Rear>
✎✎Please find a “K” icon on the rear of the set. A kensington slot is beside the
1
<Optional>
“K” icon.
To lock the product, follow these steps:
1. Wrap the Kensington lock cable around a large, stationary object such as desk or chair.
2. Slide the end of the cable with the lock attached through the looped end of the Kensington Lock cable.
3. Insert the locking device into the Kensington slot on the product 1.
4. Lock the lock.
✎✎These are general instructions. For exact instructions, see the User manual supplied with the locking device.
✎✎The locking device has to be purchased separately.
✎✎The location of the Kensington slot may be different depending on the TV model.
English
38
Other Information
Troubleshooting
If the TV seems to have a problem, first review this list of possible problems and solution. If none of the troubleshooting tips
apply, visit www.samsung.com/support or call Samsung customer Service at 1-800-SAMSUNG(1-800-726-7864).
Issues
Solutions and Explanations
PC Connection
A Mode Not Supported message
appears.
The video is OK but there is no audio.
Poor picture
• Set your PC’s output resolution so it matches the resolutions supported by the TV (p. 18).
• If you are using an HDMI connection, check the audio output setting on your PC.
First of all, please perform the Picture Test and confirm that your TV is properly displaying the test image.
(go to MENU - Support - Self Diagnosis - Picture Test) (p. 30)
If the test image is properly displayed, the poor picture may be caused by the source or signal.
The TV image does not look as good as it
did in the store.
• If you have an analog cable/satellite box, upgrade to an HD digital set top box. Use HDMI or
Component cables to deliver HD (high definition) picture quality.
• Cable/Satellite subscribers: Try HD stations from the channel line up.
• Antenna connection: Try HD stations after performing Auto program.
✎✎ Many HD channels are up scaled from SD(Standard Definition) contents.
• Adjust the Cable/Sat box video output resolution to 1080i or 720p.
• Make sure you are watching the TV at the minimum recommended distance based on the size and
definition of the signal.
The picture is distorted: macro block error,
small block, dots, pixelization.
• Compression of video contents may cause picture distortion, especially in fast moving pictures such
as sports and action movies.
• Low signal level can cause picture distortion. This is not a TV problem.
• Mobile phones used close to the TV (within 3.3ft) may cause noise in picture on analog and digital
channels.
Color is wrong or missing.
• If you’re using Component connection, make sure the component cables are connected to the
correct jacks. Incorrect or loose connections may cause color problems or a blank screen.
There is poor color or brightness.
• Adjust the Picture options in the TV menu. (go to Picture mode / Color / Brightness / Sharpness)
(p. 22)
• Adjust Energy Saving option in the TV menu. (go to MENU – Setup) (p. 29)
• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset)
(p. 24)
There is a dotted line on the edge of the
screen.
• If the picture size is set to Screen Fit, change it to 16:9 (p. 23).
• Change cable/satellite box resolution.
The picture is black and white.
• If you are using an AV composite input, connect the video cable (yellow) to the Green jack of
component input 1 on the TV.
When changing channels, the picture
freezes or is distorted or delayed.
• If connected to a cable box, please try to reset it. (reconnect the AC cord and wait until the cable box
reboots. It may take up to 20 minutes)
• Set the output resolution of the cable box to 1080i or 720p.
Sound Problem
First of all, please perform the Sound Test to confirm that your TV audio is properly operating.
(go to MENU - Support - Self Diagnosis - Sound Test) (p. 30)
If the audio is OK, the sound problem may caused by the source or signal.
There is no sound or the sound is too low
at maximum volume.
• Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV.
The speakers are making an inappropriate
noise.
• Check cable connections. Make sure a video cable is not connected to an audio input.
• For antenna or Cable connections, check the signal strength. Low signal level may cause sound
distortion.
• Perform the Sound Test as explained above.
No Picture, No Video
The TV won’t turn on.
• Make sure the AC power cord is securely plugged in to the wall outlet and the TV.
• Make sure the wall outlet is working.
• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns
on, refer to “The remote control does not work” below.
English
39
Other Information
Issues
Solutions and Explanations
The TV turns off automatically.
•
•
•
•
Ensure the Sleep Timer is set to Off in the Setup menu (p. 26).
If your PC is connected to the TV, check your PC power settings.
Make sure the AC power cord is plugged in securely to the wall outlet and the TV.
When watching TV from an antenna or cable connection, the TV will turn off after 10 - 15 minutes if
there is no signal.
There is no picture/video.
• Check cable connections (remove and reconnect all cables connected to the TV and external
devices).
• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections
to the TV input. For example, if an external device’s output is HDMI, it should be connected to an
HDMI input on the TV.
• Make sure your connected devices are powered on.
• Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control.
• Reboot the connected device by reconnecting the device’s power cable.
RF(Cable/Antenna) Connection
The TV is not receiving all channels.
• Make sure the coaxial cable is connected securely.
• Please try Auto Program to add available channels to the channel list. Go to MENU - Channel Auto Program then select Auto and make sure the correct Cable TV signal type is set in the menu.
There are 3 options (STD, HRC and IRC) (p. 20).
• Verify the Antenna is positioned correctly.
The picture is distorted: macro block error,
small block, dots, pixelization.
• Compression of video contents may cause picture distortion, especially with fast moving pictures
such as sports and action movies.
• A low signal can cause picture distortion. This is not a TV problem.
Others
Purple/green rolling horizontal bars and
buzzing noise from the TV speakers with
Component cable connection.
• Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates
that the set-top-box has a grounding issue. Replace the Component video cables with an HDMI
connection.
A “Mode Not Supported” message
appears.
• Check the supported resolution of the TV, and adjust the external device’s output resolution
accordingly. Refer to the resolution settings on page 18 of this manual.
Caption on TV menu is greyed out.
• Caption can not be selected in the TV menu when connected via HDMI or Component or PC (p. 28).
• Caption must be activated on the external device (p. 28).
There is a plastic smell from the TV.
• This smell is normal and will dissipate over time.
The TV Signal Strength is unavailable in
the Self Diagnostic Test menu.
• This function is only available with digital channels from an Antenna / RF/Coax connection (p. 30).
The TV is tilted to the side.
• Remove the base stand from the TV and reassemble it.
The channel menu is greyed out
(unavailable).
• The Channel menu is only available when the TV source is selected.
Your settings are lost after 30 minutes or
every time the TV is turned off.
• If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change
the settings from Store Demo mode to Home Use mode in the Plug & Play procedure. Press the
SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play → ENTERE (p. 15).
You have intermittent loss of audio or
video.
• Check the cable connections and reconnect them.
• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are
flexible enough for long term use. If mounting the TV to a wall, we recommend using cables with 90
degree connectors.
You see small particles when you look
closely at the edge of the frame of the TV.
• This is part of the product’s design and is not a defect.
POP (TV’s internal banner ad) appears on
the screen.
• Select Home Use under Plug & Play mode. For details, refer to Plug & Play Feature (p. 15).
The remote control does not work.
• Replace the remote control batteries with correct polarity (+/-).
• Clean the transmission window located on the top of the remote control.
• Try pointing the remote directly at the TV from 5~6 feet away.
✎✎This panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may
be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
English
40
Other Information
Storage and Maintenance
✎✎If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to
watch TV.
✎✎The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen
carefully using the cloth provided or a soft cloth to prevent scratches.
Do not spray water or a cleaning agent directly onto the
product. Any liquid that goes into the product may cause a
failure, fire, or electric shock.
Clean the product with a soft cloth dampened with amount
of water.
License
TheaterSound HD, SRS and the
symbol are trademarks of SRS Labs, Inc.
TheaterSound HD technology is incorporated under license form SRS Lab, Inc.
Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks & DTS 2.0 Channel is a trademarks of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are
registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc.
Product Includes software. © DTS, Inc. All Rights Reserved.
TB300 series support dts 2.0 Channel,TB350 series support dts 2.0+Digital Out.
Open Source License Notice
In the case of using open source software, Open Source Licenses are available on the product menu.
Open source used in this product can be found on the following webpage. ( http://opensource.samsung.com )
Open source License Notice is written only English.
English
41
Other Information
Specifications
Environmental
considerations
Operating
Temperature : 32°F ~ 122°F (0°C ~ 50°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Tilt
-1° (±2°) ~ 20°(±2°)
Model Name
T19B300
T22B350
T24B350
T27B350
Screen Size (Diagonal)
18.5 inches (47 cm)
21.5 inches (54 cm)
23.5 inches (59 cm)
27 inches (68 cm)
VESA Mounting Interface
Display Resolution
75 mm x 75 mm
[email protected]
Sound (Output)
Dimensions
(W x H x D)
Weight
100 mm x 100 mm
1366 x [email protected]
5W × 2
(Without Stand)
444.7 x 278.2 x 52.9 mm
(17.5 x 10.9 x 2.0 inches)
509.7 x 318.2 x 51.5 mm
(20.1 x 12.5 x 2.0 inches)
569.2 x 349.4 x 53.4 mm
(22.4 x 13.8 x 2.1 inches)
643.3 x 397.9 x 53.4 mm
(25.3 x 15.7 x 2.1 inches)
(With Stand)
444.7 x 356.4 x 187 mm
(17.5 x 14.0 x 7.4 inches)
509.7 x 396.6 x 195 mm
(20.1 x 15.6 x 7.7 inches)
569.2 x 428 x 195 mm
(22.4 x 16.9 x 7.7 inches)
643.3 x 476.5 x 252 mm
(25.3 x 18.8 x 9.9 inches)
(Without Stand)
2.95 kg (6.5 lbs)
3.7 kg (8.2 lbs)
4.25 kg (9.4 lbs)
5.1 kg (11.2 lbs)
(With Stand)
3.2 kg (7.1 lbs)
3.95 kg (8.7 lbs)
4.5 kg (9.9 lbs)
5.6 kg (12.3 lbs)
✎✎Design and specifications are subject to change without prior notice.
✎✎This device is a Class B digital apparatus.
✎✎For information about power supply, and more about power consumption, refer to the label attached to the product.
✎✎Some models may not be available for purchase depending on the region.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website,
www.samsung.com/recyclingdirect, or call (877) 278 - 0799
English
42
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Country
Customer Care Center
Web Site
Address
CANADA
1-800-SAMSUNG (726-7864)
www.samsung.com
U.S.A
1-800-SAMSUNG (726-7864)
www.samsung.com
MEXICO
01-800-SAMSUNG (726-7864)
www.samsung.com
Samsung Electronics Canada Inc., Customer Service 55
Standish Court Mississauga, Ontario L5R 4B2 Canada
Samsung Electronics America, Inc. 85 Challenger Road
Ridgefield Park, NJ 07660-2112
C.P 11570 AV. Presidente Masaryk No.111, Int. 701
Col. Chapultepec Morales, Delegacion Miguel Hidalgo
Mexico D.F
© 2012 Samsung Electronics Co., Ltd. All rights reserved.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
