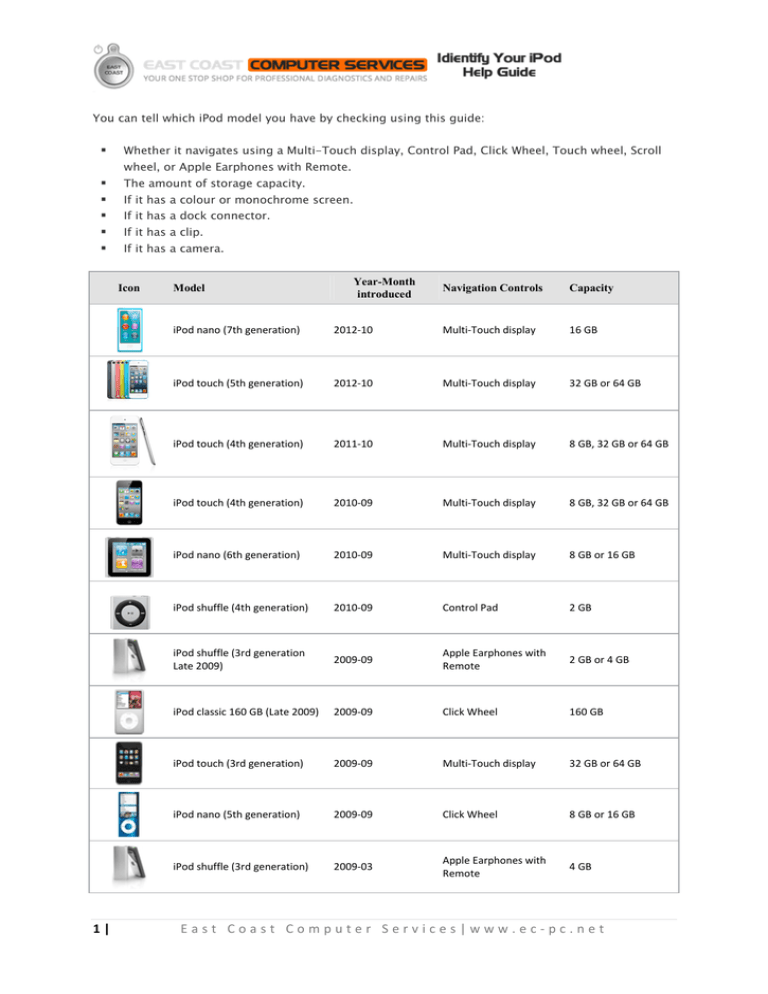

You can tell which iPod model you have by checking using this guide:
Whether it navigates using a Multi-Touch display, Control Pad, Click Wheel, Touch wheel, Scroll
wheel, or Apple Earphones with Remote.
The amount of storage capacity.
If it has a colour or monochrome screen.
If it has a dock connector.
If it has a clip.
If it has a camera.
Icon
1|
Model
Year-Month
introduced
Navigation Controls
Capacity
iPod nano (7th generation)
2012-10
Multi-Touch display
16 GB
iPod touch (5th generation)
2012-10
Multi-Touch display
32 GB or 64 GB
iPod touch (4th generation)
2011-10
Multi-Touch display
8 GB, 32 GB or 64 GB
iPod touch (4th generation)
2010-09
Multi-Touch display
8 GB, 32 GB or 64 GB
iPod nano (6th generation)
2010-09
Multi-Touch display
8 GB or 16 GB
iPod shuffle (4th generation)
2010-09
Control Pad
2 GB
iPod shuffle (3rd generation
Late 2009)
2009-09
Apple Earphones with
Remote
2 GB or 4 GB
iPod classic 160 GB (Late 2009)
2009-09
Click Wheel
160 GB
iPod touch (3rd generation)
2009-09
Multi-Touch display
32 GB or 64 GB
iPod nano (5th generation)
2009-09
Click Wheel
8 GB or 16 GB
iPod shuffle (3rd generation)
2009-03
Apple Earphones with
Remote
4 GB
East Coast Computer Services|www.ec-pc.net
2|
iPod classic
2008-09
Click Wheel
120 GB
iPod touch (2nd generation)
2008-09
Multi-Touch display
8 GB, 16 GB, or 32 GB
iPod nano (4th generation)
2008-09
Click Wheel
8 GB or 16 GB
iPod shuffle (2nd generation
Early 2008)
2008-02
Control Pad
2 GB
iPod touch
2008-02
Multi-Touch display
32 GB
iPod touch
2007-09
Multi-Touch display
8 GB or 16 GB
iPod classic
2007-09
Click Wheel
80 GB or 160 GB
iPod nano (3rd generation)
2007-09
Click Wheel
4 GB or 8 GB
iPod shuffle (2nd generation)
2006-09
Control Pad
1 GB
iPod (5th generation Late 2006) 2006-09
Click Wheel
30 GB or 80 GB
iPod nano (2nd generation)
2006-09
Click Wheel
2 GB, 4 GB, or 8 GB
iPod nano
2006-02
Click Wheel
1 GB
iPod (5th generation)
2005-10
Click Wheel
30 GB or 60 GB
iPod nano
2005-09
Click Wheel
2 GB or 4 GB
iPod with colour display
2005-06
Click Wheel
20 GB or 60 GB
iPod photo
(also known as iPod with colour 2005-02
display)
Click Wheel
30 GB
East Coast Computer Services|www.ec-pc.net
iPod mini (2nd generation)
2005-02
Click Wheel
4 GB or 6 GB
iPod shuffle
2005-01
Control Pad
512 MB or 1 GB
iPod photo
(also known as iPod with colour 2004-10
display)
Click Wheel
40 GB or 60 GB
iPod (Click Wheel)
2004-07
Click Wheel
20 GB or 40 GB
iPod mini
2004-01
Click Wheel
4 GB
iPod (dock connector)
2003-09
Touch wheel
20 GB or 40 GB
iPod (dock connector)
2003-04
Touch wheel
10 GB,15 GB, or 30 GB
iPod (Touch wheel)
2002-07
Touch wheel
10 GB or 20 GB
iPod (Scroll wheel)
2002-03
Scroll wheel
10 GB
iPod (Scroll wheel)
2001-10
Scroll wheel
5 GB
How to tell iPod's hard drive size
To determine your iPod's hard drive size:
3|
Select Main Menu > Settings > About (iPod touch tap Settings > General > About).
On some models, the drive size is engraved on the metal case near the bottom.
East Coast Computer Services|www.ec-pc.net
How to tell which model you have
Several external features can help you identify your iPod.
iPod
iPod nano (7th generation)
iPod nano (7th generation) is available in eight colours in a 16 GB configuration.
iPod touch (5th generation)
iPod touch (5th generation) is available in a 32 GB or 64 GB configuration.
4|
East Coast Computer Services|www.ec-pc.net
iPod touch (4th generation)
iPod touch (4th generation) is available in an 8 GB, 32 GB, or 64 GB configuration. It has two built-in
cameras and is available in white and black.
iPod nano (6th generation)
iPod nano (6th generation) is available in six colours in an 8 GB or 16 GB configuration.
iPod nano (PRODUCT) RED Special Edition is available only from the Apple Store, in 8 GB or 16 GB
configuration. Apple contributes a portion of each iPod nano (PRODUCT) RED Special Edition purchase
to the Global Fund to fight HIV/AIDS in Africa.
iPod shuffle (4th
(4th generation)
iPod shuffle (4th generation) is available in five colours in a 2 GB configuration.
iPod shuffle (3rd generation Late 2009)
iPod shuffle (3rd generation Late 2009) is available in 5 colours in a 2 GB or 4 GB configuration.
5|
East Coast Computer Services|www.ec-pc.net
The iPod shuffle (3rd generation Late 2009) also comes in a Special Limited Edition 4 GB model only
available from the Apple Store. It comes in polished stainless steel.
iPod classic 160 GB (Late 2009)
The iPod classic 160 GB (Late 2009) is a hard drive-based iPod featuring a large, widescreen colour
display, a Click Wheel, and the capability of displaying photos and videos. Like other models, it uses
USB for syncing. The iPod classic is available in silver and black, and has an anodized aluminium and
polished stainless steel enclosure.
6|
East Coast Computer Services|www.ec-pc.net
iPod touch (3rd generation)
iPod touch (3rd generation) features a 3.5-inch (diagonal) widescreen multi-touch display and 32 GB
or 64 GB flash drive. You can browse the web with Safari and watch YouTube videos with Wi-Fi. You
can also search, preview, and buy songs from the iTunes Wi-Fi Music Store on iPod touch.
The iPod touch (3rd generation) can be distinguished from iPod touch (2nd generation) by looking at
the back of the device. In the text below the engraving, look for the model number. iPod touch (2nd
generation) is model A1288, and iPod touch (3rd generation) is model A1318.
iPod nano (5th generation)
The iPod nano (5th generation) is available in 8 GB or 16 GB capacity and comes in 9 colours.
The iPod nano (5th generation) is distinguished from previous iPod nano models by:
7|
Its taller screen when compared to iPod nano (4th generation)
Its polished anodized aluminium finish
The inclusion of a camera and microphone on the back of the device
East Coast Computer Services|www.ec-pc.net
iPod shuffle (3rd generation)
iPod shuffle (3rd generation) includes a single 3-position switch that toggles between off, play in
order, and shuffle similar to the original iPod shuffle. It also includes a headphone port that also is
used to for connecting to a computer's USB port as well as a clip similar to the iPod shuffle (2nd
generation). iPod shuffle (3rd generation) is smaller than either of the previous two models and has
one status light compared with two on previous generations of iPod shuffle.
iPod classic (120 GB)
The iPod classic (120 GB) is a hard drive-based iPod featuring a large, widescreen colour display, a
Click Wheel, and the capability of displaying photos and videos. Like other models, it uses USB for
syncing. The iPod classic is available in silver and black, and has an anodized aluminium and polished
stainless steel enclosure.
iPod touch (2nd generation)
iPod touch (2nd generation) features a 3.5-inch (diagonal) widescreen multi-touch display and 8 GB,
16 GB, or 32 GB flash drive. You can browse the web with Safari and watch YouTube videos with Wi-Fi.
You can also search, preview, and buy songs from the iTunes Wi-Fi Music Store on iPod touch.
The iPod touch (2nd generation) can be distinguished from previous iPod touch models by its
contoured design and oval shaped antennae cover in the back upper left corner.
8|
East Coast Computer Services|www.ec-pc.net
iPod touch
iPod touch features a 3.5-inch (diagonal) widescreen multi-touch display and 8 GB, 16 GB, or 32 GB
flash drive. You can browse the web with Safari and watch YouTube videos on the first-ever Wi-Fi iPod.
You can also search, preview, and buy songs from the iTunes Wi-Fi Music Store on iPod touch.
iPod classic
The iPod classic is a hard drive-based iPod (80 GB or 160 GB) featuring a large, widescreen colour
display, a Click Wheel, and the capability of displaying photos and videos. Like other models, it uses
USB for syncing. The iPod classic is available in silver and black, and has an anodized aluminium and
polished stainless steel enclosure.
9|
East Coast Computer Services|www.ec-pc.net
You can distinguish the iPod classic from the iPod (5th generation) by the last three digits of the serial
number. The iPod classic serial number's last three digits will be one of the following: Y5N, YMU, YMV,
and YMX.
iPod nano (4th generation)
The iPod nano (4th generation) is available in 8 GB or 16 GB capacity and comes in 9 colors.
The iPod nano (4th generation) is distinguished from previous iPod nano models by:
Its taller screen
Its curved surface
Its oval shape when seen from the top or bottom
The inclusion of an accelerometer that is used by the Shake feature.
iPod nano (3rd generation)
The iPod nano (3rd generation) is available in 4 GB or 8 GB capacity, and comes in 5 colors.
iPod nano (3rd generation) is distinguished from previous iPod nano models by:
10 |
Its wider screen
Hold switch location on the bottom
East Coast Computer Services|www.ec-pc.net
Its ability to play video
You can also distinguish the iPod nano (3rd generation) by the last three digits of the serial number.
The iPod nano (3rd generation) serial number's last three digits will be one of the following: YOP, YOR,
YXR, YXT, YXV, YXX.
iPod (5th generation Late 2006)—
2006)—also known as iPod with video or Fifth Generation iPod
You can distinguish the iPod (5th generation Late 2006) from the original iPod (5th generation) by the
last three digits of the serial number. The iPod (5th generation Late 2006) serial number's last three
digits will be one of the following: V9K, V9P, V9M, V9R, V9L, V9N, V9Q, V9S, WU9, WUA, WUB, WUC,
and X3N. The Fifth Generation U2 Special Edition iPod (30 GB Late 2006) serial number's last three
digits are W9G.
iPod (5th generation)—
generation)—also known as iPod with video or Fifth Generation iPod
The iPod (5th generation) is a a hard drive-based iPod featuring a large, widescreen colour display, a
Click Wheel, and the capability of displaying photos and videos. Like iPod nano, it uses USB for syncing
and comes in white and black.
11 |
East Coast Computer Services|www.ec-pc.net
iPod nano (2nd generation)
iPod nano (2nd generation) is distinguished from other models by:
Its smaller size.
Its colours.
The dock connector and headphones port are both located on the bottom of the unit.
The iPod nano (PRODUCT) RED Special Edition is an iPod nano (2nd generation) available in red and
with a 4 GB or 8 GB drive capacity. With each iPod nano (PRODUCT) RED purchased, $10 from the sale
goes directly to the Global Fund to fight AIDS in Africa.
12 |
East Coast Computer Services|www.ec-pc.net
iPod nano
iPod nano is smaller than iPod mini and has a colour screen and a Click Wheel but has flash memory
instead of a hard drive. Song and photo syncing only occurs over USB 2 (not FireWire). iPod nano
comes in white and black. The capacity of the iPod nano is engraved on the back of the case (1 GB, 2
GB, or 4 GB).
The dock connector (1) and headphone jack (2) are both on the bottom of the iPod nano.
iPod shuffle (2nd generation)
iPod shuffle (2nd generation) is smaller than the original iPod shuffle and has no USB connector.
You can distinguish the iPod shuffle (2nd generation Early 2008) 2 GB from previous models by the
last three characters of the serial number. The iPod shuffle (2nd generation Early 2008) 2 GB serial
number’s last three characters will be one of the following: 1ZH, 1ZK, 1ZM, 1ZP, 1ZR.
13 |
East Coast Computer Services|www.ec-pc.net
iPod shuffle
iPod shuffle is smaller than iPod mini and has no display. There are LED lights on the front and back.
The capacity of the drive is engraved on the front USB connector.
iPod mini
iPod mini is distinguished from other models by:
14 |
Its smaller size.
The Click Wheel's button labels, which are on the wheel itself.
Its colours.
The Hold switch, which is on the top-left side.
East Coast Computer Services|www.ec-pc.net
iPod mini (2nd generation)
The iPod mini (2nd generation) models are distinguished from the original iPod mini models by:
15 |
Hard drive size engraved on back of unit.
East Coast Computer Services|www.ec-pc.net
iPod with colou
colour display
iPod and iPod photo are now one and the same, with every white iPod boasting a full-colour display.
They continue to have the same controls as iPod (Click Wheel) but now all models have a colour display
like iPod photo - ideal for viewing album artwork and playing slideshows. These are considered fourth
generation models along with iPod (Click Wheel).
iPod (Click Wheel)
iPod (Click Wheel) models have a Click Wheel like the iPod mini, but are larger and the hold switch is
on the top-right side. iPod (Click Wheel) models have a monochrome display. iPod (Click Wheel) is
referred to as the fourth generation iPod.
iPod Special Edition U2
16 |
East Coast Computer Services|www.ec-pc.net
The iPod Special Edition U2 is a standard iPod model with certain external differences including: Black
plastic exterior, red Click Wheel, signatures of the U2 band members engraved on the back, and "iPod
Special Edition U2" engraved on the back. The first model was based on iPod (Click Wheel) with a 20
GB hard drive. In June 2005 a new version of the iPod Special Edition U2 was introduced that was
based on an iPod with colour display Generation iPod. These are both also considered fourth
generation iPod models. In June 2006, a new version of the iPod Special Edition U2 was introduced that
is based on a Fifth Generation iPod (also known as iPod with video) with a 30 GB hard drive. In Sept
2006 a model based on the Fifth Generation iPod (30 GB Late 2006) was introduced. You can
distinguish Fifth Generation U2 Special Edition iPod (Late 2006) from the Fifth Generation U2 Special
Edition iPod by the last three digits of the serial number. The Fifth Generation U2 Special Edition iPod
(30 GB Late 2006) serial number's last three digits are W9G.
iPod Special Edition Harry Potter
The iPod Special Edition Harry Potter is a standard iPod model with the Hogwarts Crest engraved on
the back:
The first model was based on iPod with colour display with a 20 GB hard drive. In October 2005 a new
version of the iPod Special Edition Harry Potter was introduced that was based on a Fifth Generation
iPod with a 30 GB hard drive.
iPod photo (also known as iPod with colou
colour display)
iPod photo models are functionally and visually identical to the iPod with colour display (see above
photo).
17 |
East Coast Computer Services|www.ec-pc.net
iPod (dock connector)
iPod (dock connector) models have a dock connector as illustrated here.
Newer iPod models like iPod (Click Wheel) and iPod mini also have a dock connector, but the iPod
(dock connector) has a touch wheel instead of a Click Wheel and the four control buttons are above the
touch wheel. iPod (dock connector) models are referred to as third generation iPod models.
iPod (touch wheel)
All iPod (touch wheel) models have a FireWire port cover. Scroll wheel models don't, and dock
connector models don't have a FireWire port. The iPod (touch wheel) model controls look similar to the
iPod (scroll wheel) but the touch wheel itself does not turn. iPod (touch wheel) models are considered
second generation iPod models. The top of an iPod (touch wheel) model is shown here:
18 |
East Coast Computer Services|www.ec-pc.net
1.
FireWire port cover
2.
FireWire port
3.
Headphones port
4.
Hold switch
iPod (Scroll wheel)
iPod (scroll wheel) models have a scroll wheel that physically turns. The controls (Play, Menu, Next,
Previous) appear in a circle around the wheel. iPod (scroll wheel) models are referred to as first
generation iPod models.
19 |
East Coast Computer Services|www.ec-pc.net
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
