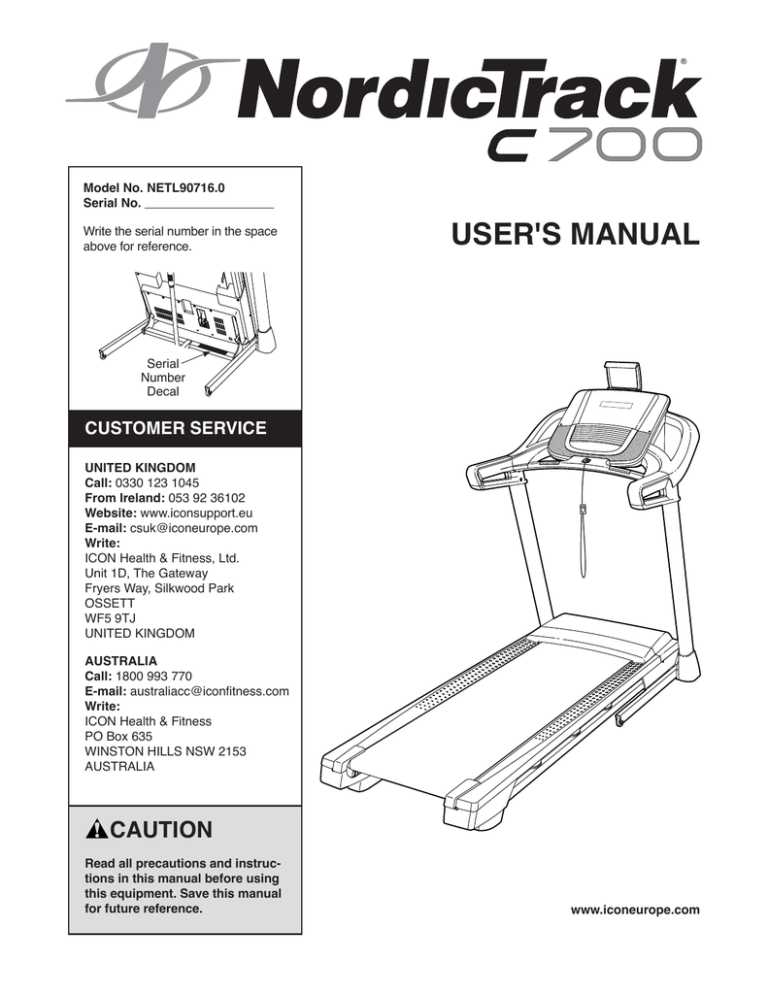

Model No. NETL90716.0

Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

CUSTOMER SERVICE

UNITED KINGDOM

Call: 0330 123 1045

From Ireland: 053 92 36102

Website: www.iconsupport.eu

E-mail: [email protected]

Write:

ICON Health & Fitness, Ltd.

Unit 1D, The Gateway

Fryers Way, Silkwood Park

OSSETT

WF5 9TJ

UNITED KINGDOM

AUSTRALIA

Call: 1800 993 770

E-mail: [email protected]

Write:

ICON Health & Fitness

PO Box 635

WINSTON HILLS NSW 2153

AUSTRALIA

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

USER'S MANUAL

www.iconeurope.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing or illegible, call

the telephone number on the front cover of this manual and request a free replacement

decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual size.

305284

IFIT is a registered trademark of ICON Health & Fitness, Inc. App store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH

®

word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc.

2

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

12. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always

wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

3. The treadmill is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the treadmill by someone responsible for their safety.

4. Use the treadmill only as described in this manual.

5. The treadmill is intended for home use only.

Do not use the treadmill in any commercial, rental, or institutional setting.

6. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

7. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

8. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

9. Keep children under age 13 and pets away from the treadmill at all times.

10. The treadmill should be used only by persons weighing 330 lbs. (150 kg) or less.

11. Never allow more than one person on the treadmill at a time.

13. When connecting the power cord (see page

17), plug the power cord into an earthed circuit. No other appliance should be on the same circuit. When replacing the fuse in the power cord adapter, insert an ASTA-approved

BS1362, 13-amp fuse into the fuse carrier.

14. If an extension cord is needed, use only a

3-conductor, 14-gauge (1 mm

2

) cord that is no longer than 5 ft. (1.5 m).

15. Keep the power cord away from heated surfaces.

16. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See

MAINTENANCE AND TROUBLESHOOTING on page 26 if the treadmill is not working properly.)

17. Read, understand, and test the emergency stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on page 19). Always wear the clip while using the treadmill.

18. Always stand on the foot rails when starting or stopping the walking belt. Always hold the handrails while using the treadmill.

19. When a person is walking on the treadmill, the noise level of the treadmill will increase.

20. Keep fingers, hair, and clothing away from the moving walking belt.

3

21. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

22. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

23. Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 5 for the location of the power switch), and unplug the power cord when the treadmill is not in use.

24. Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 7 and HOW TO FOLD AND MOVE

THE TREADMILL on page 25.) You must be able to safely lift 45 lbs. (20 kg) to move the treadmill.

26. Do not change the incline of the treadmill by placing objects under the treadmill.

27. Never insert any object into any opening on the treadmill.

28. Inspect and properly tighten all parts each time the treadmill is used.

29.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

30. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

25. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

SAVE THESE INSTRUCTIONS

4

BEFORE YOU BEGIN

Thank you for selecting the new NORDICTRACK

®

C 700 treadmill. The C 700 treadmill provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Length: 6 ft. 1 in. (185 cm)

Width: 3 ft. (91 cm)

Heart Rate Monitor

Handrail

Tablet Holder

Console

Accessory Tray

Key/Clip

Walking Belt

Foot Rail

Motor Hood

Power Switch

Wheel

Platform Cushions

Idler Roller

Adjustment Screws

5

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra parts may be included.

#10 Star

Washer (5)–2

5/16" Star

Washer (11)–10

3/8" Star

Washer (13)–8

#8 x 1/2"

Ground Screw

(10)–1

#8 x 1/2"

Screw

(1)–12

#8 x 5/8"

Machine Screw

(38)–4

#8 x 3/4"

Screw

(2)–4

#10 x 3/4"

Screw

(9)–2

3/8" x 1 1/4" Screw (63)–2

3/8" x 1 3/4" Screw (62)–2

3/8" x 2 1/4" Screw (7)–4 5/16" x 2 1/2" Screw (28)–4

6

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you finish all assembly steps.

• After shipping, there may be an oily substance on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

• To identify small parts, see page 6.

• Assembly requires the following tools: the included hex keys one Phillips screwdriver

To avoid damaging parts, do not use power tools.

Go to www.iconsupport.eu on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Service

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

Customer Service (see the front cover of this manual) and register your product.

1

7

2. Make sure that the power cord is unplugged.

Remove the tie securing the Upright Wire (81) to the front of the Base (94).

Next, identify the Right Upright (90). Have a second person hold the Right Upright near the Base

(94).

See the inset drawing. Tie the wire tie (A) in the Right Upright (90) securely around the end of the Upright Wire (81). Then, insert the Upright

Wire into the lower end of the Right Upright as you pull the other end of the wire tie through the

Right Upright.

2

A

81

90

A

81

90

94

3. Lay the Right Upright (90) near the Base (94).

Press the Grommet (77) into the square hole

(B) in the Right Upright (90). Make sure not to

pinch the ground wire.

If there is a screw (C) preattached to the Right

Upright (90), remove and discard it.

Then, attach the ground wire (D) to the Right

Upright (90) with a #8 x 1/2" Ground Screw (10).

3

94

10

90

C

D B

77

8

4. Hold the Right Upright (90) against the Base

(94). Make sure not to pinch the Upright Wire

(81).

Attach the Right Upright (90) with two 3/8" x

2 1/4" Screws (7), a 3/8" x 1 1/4" Screw (63), a 3/8" x 1 3/4" Screw (62), and four 3/8" Star

Washers (13) as shown; do not fully tighten

the Screws yet.

Attach the Left Upright (not shown) in the

same way. Note: There are no wires on the left side.

4

5. Identify the Left and Right Base Covers (82, 83).

Slide the Left Base Cover onto the Left Upright

(89), and slide the Right Base Cover onto the

Right Upright (90). Do not press the Base

Covers into place yet.

5

94

63

13

89

82

90

7

13

81

13

62

90

83

9

6. Identify the left handrail assembly (E). Attach the left handrail assembly to the Left Upright

(89) with two 5/16" x 2 1/2" Screws (28) and two

5/16" Star Washers (11); do not fully tighten

the Screws yet.

Then, remove and discard the indicated screw (F).

6

E

11

F

28

7. Insert the Upright Wire (81) into the bottom of the right handrail assembly (G) and out of the front as shown.

Attach the right handrail assembly (G) to the

Right Upright (90) with two 5/16" x 2 1/2" Screws

(28) and two 5/16" Star Washers (11). Make

sure not to pinch the Upright Wire (81); do not fully tighten the Screws yet.

Then, remove and discard the indicated screw (F).

7

89

G

11

F

28

81

90

10

8. Tighten four #8 x 3/4" Screws (2) into the left and right handrail assemblies (E, G) and into the Left and Right Uprights (89, 90).

8

E

2

89

2

G

90

9. Set the Console Base (64) face down on a soft surface to avoid scratching the Console Base.

If there are ties (H) securing the Pulse Crossbar

(93) to the Console Base, remove the ties.

Remove and discard the four indicated screws

(I). Then, remove the Pulse Crossbar (93).

Remove and save the four 5/16" x 3/4"

Screws (4), the four #8 x 3/4" Screws (2),

and the two #8 x 1" Screws (31). Then, lift out the two Console Clamps (92) and the Console

Frame (18).

9

4

31

18

64

H

I

93

H

2

92

4

2

31

11

10. Identify the Right and Left Trays (27, 36).

Attach the Trays (27, 36) to the Console Base

(64) with eight #8 x 1/2" Screws (1); do not

overtighten the Screws.

Reattach the Console Frame (18) with the two

#8 x 1" Screws (31), the four #8 x 3/4" Screws

(2), and the two Console Clamps (92) that you removed in step 9; do not overtighten the

Screws.

10

31

18

1

27

1

1

64

2

92

2

92

31

1

36

11. IMPORTANT: To avoid damaging the Pulse

Crossbar (93), do not use power tools and do not overtighten the #10 x 3/4" Screws (9).

Orient the Pulse Crossbar (93) as shown. Attach the Pulse Crossbar to the Handrails (86) with two

#10 x 3/4" Screws (9) and two #10 Star Washers

(5); start both Screws, and then tighten them.

Make sure not to pinch the Upright Wire (81).

Firmly tighten the four 5/16" x 2 1/2" Screws

(28).

11

28

9

5

86

93

28

9

5

86

81

12

12. With the help of a second person, hold the console assembly (J) near the Handrails (86) (only one side is shown).

Connect the ground wire (K) from the console assembly (J) to the Console Ground Wire (58) on the Pulse Crossbar (93).

See the inset drawing. Connect the Upright

Wire (81) to the console wire (L). The connec-

tors should slide together easily and snap

into place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE

CONNECTORS PROPERLY, THE CONSOLE

MAY BECOME DAMAGED WHEN YOU TURN

ON THE POWER. Then, remove the wire tie (A) from the Upright Wire.

12

J

13. Set the console assembly (J) on the brackets on the Handrails (86). Make sure not to pinch any

wires.

Attach the console assembly (J) to the brackets on the Handrails (86) with the four 5/16" x 3/4"

Screws (4) that you removed in step 9 and four

5/16" Star Washers (11); do not fully tighten

the Screws yet.

Insert the excess Upright Wire (81) into the Right

Upright (90).

13

86

81

11

4

90

L

81

86

A

93

L

81

K

58

J

11

4

86

13

14. Attach the Pulse Crossbar (93) to the console assembly (J) with four #8 x 1/2" Screws (1); start

all four Screws, and then tighten them.

Then, firmly tighten the four 5/16" x 3/4"

Screws (4).

14

J

4

1

93

1

4

15. Raise the Frame (56) to the upright position.

Have a second person hold the Frame until step 17 is completed.

Remove the two 5/16" x 3/4" Screws (4) from the

Latch Crossbar (41).

Orient the Latch Crossbar (41) as shown. Make

sure that the “This side toward belt” sticker

(M) is facing the treadmill. Attach the Latch

Crossbar to the brackets (N) on the Frame (56) with two 5/16" x 3/4" Screws (4) that you just removed and two 5/16" Star Washers (11).

15

4

11

56

N

41 M

11

4

N

14

16. Remove the 5/16" Nut (34) and the 5/16" x 1 3/4"

Bolt (6) from the bracket on the Base (94).

Next, orient the Storage Latch (53) as shown.

Attach the lower end of the Storage Latch (53) to the bracket on the Base (94) with the 5/16" x

1 3/4" Bolt (6) and the 5/16" Nut (34) as shown.

Then, raise the Storage Latch (53) to a vertical position, and remove the tie (O).

16

O

53

34

94

6

17. Remove the 5/16" Nut (34) and the 5/16" x 2 1/4"

Bolt (3) from the bracket on the Latch Crossbar

(41).

Align the upper end of the Storage Latch (53) with the bracket on the Latch Crossbar (41), and insert the 5/16" x 2 1/4" Bolt (3) through the bracket and the Storage Latch. This will push a

spacer (P) out of the Storage Latch; discard the spacer.

Next, tighten the 5/16" Nut (34) onto the 5/16" x

2 1/4" Bolt (3). Do not overtighten the Nut; the

Storage Latch (53) must be able to pivot.

Then, lower the Frame (56) (see HOW TO

LOWER THE TREADMILL FOR USE on page

25).

17

56

34

P

41

3

53

15

18. Firmly tighten the four 3/8" x 2 1/4" Screws

(7), the two 3/8" x 1 3/4" Screws (62), and the two 3/8" x 1 1/4" Screws (63).

Next, set the Left Inner Base Cover (99) onto the lower end of the Left Upright (89). Slide the Left

Base Cover (82) downward and press it onto the

Left Inner Base Cover.

Then, set the Right Inner Base Cover (100) onto the lower end of the Right Upright (90). Slide the

Right Base Cover (83) downward and press it onto the Right Inner Base Cover.

18

83

63

19. Press the two tabs on the Tablet Holder (98) into the slots (Q) in the console assembly (J).

Attach the Tablet Holder (98) to the console assembly (J) with four #8 x 5/8" Machine Screws

(38). Note: Start the two top Machine Screws

first, and then start the two bottom Machine

Screws. Be careful not to overtighten the

Machine Screws.

IMPORTANT: The Tablet Holder (98) is

designed for use with most full-size tablets.

Do not place any other electronic device or object in the Tablet Holder.

19

63

90

7

62

Q

100

7

62

98

Start First

38

J

89

82

99

20. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure place; the hex key is used to adjust the walking belt (see pages 27 and 28). Note: Extra hardware may be included.

16

UK

FR/SP

IT

HOW TO USE THE TREADMILL

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunction or break down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product’s power cord has an equipment-earthing conductor and an earthing plug.

IMPORTANT: If the power cord is damaged, it must be replaced with a manufacturer-recommended power cord.

Follow the steps below to plug in the power cord.

1. Plug the indicated end of the power cord into the socket on the treadmill.

Socket on Treadmill

AUS

Power Cord

DANGER:

Improper connection of the equipment-earthing conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances.

UK

Australia

Outlet

GR

Outlet

UK

AUS

FR/SP

17

GR

HU

IT

IT

UK

FR/SP

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The treadmill console offers a selection of features designed to make your workouts more effective and enjoyable. When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or a compatible heart rate monitor. See page 23 for in-

formation about purchasing an optional chest heart rate monitor.

In addition, the console features a selection of onboard workouts. Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.

You can also connect your smart device to the console and use an iFit information.

® app to record and track your workout

You can even listen to your favorite workout music or audio books with the console’s sound system while you exercise.

To turn on the power, see page 19. To use the man-

ual mode, see page 19. To use an onboard workout, see page 21. To use a custom-focus weight loss

workout, see page 22. To connect your smart de-

vice to the console, see page 22. To connect your

heart rate monitor to the console, see page 23. To

use the sound system, see page 23. To use the set-

tings mode, see page 24.

Note: The console can display speed and distance in either miles or kilometers. To find which unit of measurement is selected, see THE SETTINGS MODE on page 24. For simplicity, all instructions in this section refer to kilometers.

IMPORTANT: If there are sheets of plastic on the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes while using the treadmill. The first time you use the treadmill, observe the alignment of the walking belt, and center the walking belt if necessary (see page 28).

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before you turn on the power. If you do not do this, you may damage the console displays or other electrical components.

Plug in the power cord (see page 17). Next, locate the power switch on the treadmill frame near the power cord. Press the power switch into the reset position.

Reset

Next, stand on the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Then, insert the key into the con-

Key

ETNE90716

Clip sole. After a moment, the display will light.

IMPORTANT: In an emergency, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

IMPORTANT: Before you use the treadmill, take the following steps to ensure that the console shows the correct incline level of the treadmill:

First, press the Incline increase button once. Next, press either the Incline decrease button or the lowest Quick Incline button to set the treadmill to its lowest setting. When the frame stops moving, the treadmill is ready for use.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Press the Manual button to select the manual mode.

3. Enter your weight.

Press the Enter Wt increase or decrease buttons to enter your weight. This information will improve the accuracy of the Calorie Burn Rate bar.

4. Start the walking belt.

To start the walking belt, press the Start button or one of the Quick Speed buttons.

If you press the Start button, the walking belt will begin to move at 2 Km/H. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons.

Each time you press one of the buttons, the speed setting will change by 0.1 Km/H; if you hold down the button, the speed setting will change in increments of 0.5 Km/H. Note: After you press the button, it may take a moment for the walking belt to reach the selected speed setting.

If you press one of the Quick Speed buttons, the walking belt will gradually change speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to flash in the display. To restart the walking belt, press the Start button.

19

ETS899215

5. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase and decrease buttons or one of the Quick Incline buttons. Each time you press one of the buttons, the treadmill will gradually adjust to the selected incline setting.

6. Follow your progress with the display.

As you walk or run on the treadmill, the display can show the following workout information:

• The approximate number of calories you have burned

• The incline level of the treadmill

• The distance that you have walked or run

• The elapsed time

• Your heart rate (see step 7)

The approximate number of calories you are burning per hour

• The speed of the walking belt

Press the Display button until the desired information is shown in the display.

To reset the display, press the Stop button repeatedly, or remove the key and then reinsert the key.

7. Measure your heart rate if desired.

You can measure your heart rate using either the handgrip heart rate monitor or a compatible heart rate monitor. For information about purchasing

an optional chest heart rate monitor, see page

23.

The console is compatible with all BLUETOOTH rate monitor to the console, see page 23.

®

Smart heart rate monitors. To connect your heart

Note: If you use both heart rate monitors at the same time, the BLUETOOTH Smart heart rate monitor will have priority.

Before using the handgrip heart rate monitor, remove the sheets of plastic from the metal contacts on the pulse bar. In addition, make sure that your hands are clean.

Contacts

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the metal contacts; avoid moving your hands.

When your pulse is detected, your heart rate will be shown. For the most accurate heart rate read-

ing, continue to hold the contacts for about 15 seconds.

As you exercise, the Calorie Burn Rate bar will indicate the approximate intensity level of your exercise. To adjust your calorie burn rate, press the

Burn Rate increase or decrease button. The speed and/or incline settings of the treadmill will automatically increase or decrease to reach the desired calorie burn rate.

20

8. Turn on the fan if desired.

The fan features multiple speed settings and an auto mode. When the auto mode is selected, the speed of the fan will automatically increase and decrease as the speed of the walking belt increases and decreases.

Press the fan buttons repeatedly to select a fan speed or the auto mode, or to turn off the fan.

3. Select an onboard workout.

To select an onboard workout, press the Incline button, the Intensity button, or the Speed button repeatedly until the desired workout appears in the display.

When you select an onboard workout, the display will show the duration of the workout.

4. Start the workout.

Press the Start button. A moment after you press the button, the treadmill will automatically adjust to the first speed and incline settings of the workout.

Hold the handrails and begin walking.

9. When you are finished exercising, remove the key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to zero. The

incline must be at zero or you may damage the treadmill when you fold it to the storage posi-

tion. Next, remove the key from the console and put it in a secure place.

Each workout is divided into segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed setting and/ or incline setting may be programmed for consecutive segments.

ETNE90716 the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may wear prematurely.

If the speed or incline setting is too high or too low at any time during the workout, you can manually override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Enter your weight.

See step 3 on page 19.

To stop the workout at any time, press the Stop button. To resume the workout, press the Start button. The walking belt will begin to move at 2 Km/H.

When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

5. Follow your progress with the display.

See step 6 on page 20. If you select an onboard workout, the display will show the time remaining instead of the elapsed time.

21

6. Measure your heart rate if desired.

See step 7 on page 20.

7. Turn on the fan if desired.

See step 8 on page 21.

8. When you are finished exercising, remove the key from the console.

See step 9 on page 21.

HOW TO USE A CUSTOM-FOCUS WEIGHT LOSS

WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Enter your weight.

See step 3 on page 19.

3. Set a calories or time goal.

Press the desired Workout Time or Calorie Goal button.

4. Start the workout.

Press the Start button to start the workout. A moment after you press the button, the walking belt will begin to move. Hold the handrails and begin walking.

The workout will function in the same way as the manual mode (see pages 19 to 21).

The workout will continue until you reach the goal that you set. The walking belt will then slow to a stop.

Note: The calorie goal is an estimate of the number of calories that you will burn during the workout. The actual number of calories that you burn will depend on various factors such as your weight.

5. Follow your progress with the display.

See step 6 on page 20. The display will show the time remaining instad of the elapsed time.

6. Measure your heart rate if desired.

See step 7 on page 20.

7. Turn on the fan if desired.

See step 8 on page 21.

8. When you are finished exercising, remove the key from the console.

See step 9 on page 21.

HOW TO CONNECT YOUR SMART DEVICE TO THE

CONSOLE

The console supports BLUETOOTH connections to smart devices via the iFit app and to compatible heart rate monitors. Note: Other BLUETOOTH connections are not supported.

1. Download and install the iFit app on your smart device.

On your IOS

App Store

®

or Android

TM

smart device, open the

SM

or the Google Play

TM the free iFit app, and then install the app on your smart device. Make sure that the BLE option is

enabled on your smart device.

store, search for

Then, open the iFit app and follow the instructions to set up an iFit account and customize settings.

2. Connect your smart device to the console.

Follow the instructions in the iFit app to connect your smart device to the console.

When a connection is established, the LED on the console will flash blue. Press the Bluetooth button on the console to confirm the connection; the LED on the console will then turn solid blue.

22

3. Record and track your workout information.

Follow the instructions in the iFit app to record and track your workout information.

4. Diconnect your smart device from the console if desired.

To disconnect your smart device from the console, press and hold the Bluetooth button on the console for 5 seconds.

Note: All BLUETOOTH connections between the console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

HOW TO CONNECT YOUR HEART RATE MONITOR

TO THE CONSOLE

The console is compatible with all BLUETOOTH Smart heart rate monitors.

To connect your BLUETOOTH Smart heart rate monitor to the console, press the Bluetooth button on the console. When a connection is established, the LED on the console will flash twice. Note: This may take up to

15 seconds.

Note: If there is more than one compatible heart rate monitor near the console, the console will connect to the heart rate monitor with the strongest signal.

To disconnect your heart rate monitor from the console, press and hold the Bluetooth button on the console for

5 seconds; after the LED lights, release the button.

Note: All BLUETOOTH connections between the console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

THE OPTIONAL CHEST HEART RATE MONITOR

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your workouts. The optional chest heart rate monitor will enable you to continuously monitor your heart rate while you exercise, helping you to reach your personal fitness goals. To purchase a chest heart rate moni-

tor, please see the front cover of this manual.

Note: The console is compatible with all BLUETOOTH

Smart heart rate monitors.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your MP3 player,

CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To purchase an audio cable, see your local electronics

store.

Next, press the play button on your personal audio player. Adjust the volume level using the volume increase and decrease buttons on the console or the volume control on your personal audio player.

If you are using a personal CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.

ETNE90716

23

THE SETTINGS MODE

The console features a settings mode that keeps track of treadmill usage information and allows you to select a unit of measurement for the console.

To select the settings mode, insert the key into the console while holding down the Stop button. Then, release the Stop button. Note: If a workout has been selected, you may have to press the Stop button twice to exit the workout before you can access the settings mode. When the settings mode is selected, the following information will be shown:

An “E” for English miles or an “M” for metric kilometers will appear in the display. Press the Speed increase or decrease button to change the unit of measurement, if desired.

To exit the settings mode, remove the key from the console, or press stop repeatedly.

HOW TO USE THE TABLET HOLDER

IMPORTANT: The tablet holder is designed for use with most full-size tablets. Do not place any other electronic device or object in the tablet holder.

To insert a tablet into the tablet holder, set the bottom edge of the tablet in the tray. Then, pull the clip over the top edge of the tablet. Make sure that the tablet

is firmly secured in the tablet holder. Reverse these actions to remove the tablet from the tablet holder.

Tablet

Holder

HOW TO ADJUST THE CUSHIONING SYSTEM

The treadmill features a cushioning system that reduces the impact as you walk or run on the treadmill.

Remove the key from the console and unplug the

power cord. In order to adjust the cushions, you may need to place the treadmill in the storage position (see

HOW TO FOLD THE TREADMILL on page 25).

For a firmer walking platform, turn a cushion to the position shown in drawing 1; for a less firm walking platform, turn the cushion to the position shown in drawing 2. Adjust the other cushions in the same way.

Note: Make sure that the cushions on the left and right sides of the treadmill are set to the same firmness level. The faster you run on the treadmill, or the more you weigh, the firmer the walking platform should be.

1 2

More firm Less firm

24

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL

To avoid damaging the treadmill, adjust the incline to zero before you fold the treadmill. Then, remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs and keep your back straight.

Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill may require two people.

1. Hold the frame and one of the handrails, and place one foot against a wheel.

1

Frame

1

Frame

Handrail

Wheel

2. Raise the frame until the storage latch locks in the storage position. CAUTION: Make sure that the

storage latch locks.

2

Frame

Latch

To protect the floor or carpet, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

2. Pull back on the handrail until the treadmill will roll on the wheels, and carefully move it to the desired location. CAUTION: Do not move the tread-

mill without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

HOW TO LOWER THE TREADMILL FOR USE

1. Push the upper end of the frame forward, and gently press the upper part of the storage latch with your foot at the same time.

1

2. While pressing the storage latch with your foot, pull the upper end of the frame toward yourself.

3. Step back and let the frame lower to the floor.

2

25

MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE

Regular maintenance is important for optimal performance and to reduce wear. Inspect and properly tighten all parts each time the treadmill is used.

Regularly clean the treadmill and keep the walking belt clean and dry. First, press the power switch into

the off position and unplug the power cord. Wipe exterior parts of the treadmill with a damp cloth and a small amount of mild soap. IMPORTANT: Do not

spray liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the

console. Thoroughly dry the treadmill with a soft towel.

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a properly earthed outlet (see page 17). If an extension cord is needed, use only a 3-conductor,

14-gauge (1 mm

2

) cord that is no longer than 5 ft.

(1.5 m).

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the power switch, wait for five minutes and then press the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see drawing c at the left).

If the switch has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console, and then reinsert it.

d. If the treadmill still will not run, please see the front cover of this manual.

SYMPTOM: The displays of the console do not function properly

Remove the key from the console and UNPLUG

THE POWER CORD. Next, remove the five #8 x

3/4" Screws (2), and carefully pivot off the Motor

Hood (65).

a

2

65

2

2

2 c

Tripped Reset

26

Next, locate the Reed Switch (104) and the Magnet

(102) on the left side of the Pulley (49). Turn the

Pulley until the Magnet is aligned with the Reed

Switch. Make sure that the gap between the

Magnet and the Reed Switch is about 1/8 in.

(3 mm). If necessary, loosen the #8 x 3/4" Truss

Head Screw (14), move the Reed Switch slightly, and then retighten the Truss Head Screw. Reattach the Motor Hood (see drawing a), and run the treadmill for a few minutes to check for a correct speed reading. b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

Top

View

1/8 in.

104

14

102 b

2–3 in.

49

SYMPTOM: The incline of the treadmill does not change correctly

Hold down the Stop button and the Speed increase button, insert the key into the console, and then release the Stop button and the Speed increase button. Next, press the Stop button and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level.

This will recalibrate the incline system. If the incline system does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline system is calibrated, remove the key from the console.

SYMPTOM: The walking belt slows when walked on

a. If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm ft. (1.5 m).

2

) cord that is no longer than 5

Idler Roller Screws c. Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deterio-

rate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see the front cover of this manual.

27

SYMPTOM: The walking belt is not centered between the foot rails. IMPORTANT: If the walking belt rubs against the foot rails, the walking belt may become damaged.

a. First, remove the key and UNPLUG THE POWER

CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller screw clockwise 1/2 of a turn; if the walking belt has

shifted to the right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.

SYMPTOM: The tablet holder does not stay in place

Rotate the tablet holder backwards. Then, tighten the indicated screw slightly until the tablet holder stays in place when it is rotated to the desired position.

a

Screw

Tablet

Holder a

Foot

Rails

SYMPTOM: The walking belt slips when walked on

a. First, remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to

7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a

28

EXERCISE GUIDELINES

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretching and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

29

PART LIST

Key No. Qty. Description

9

10

11

12

13

14

15

16

1

2

3

4

18

37

1

6

#8 x 1/2" Screw

#8 x 3/4" Screw

5/16" x 2 1/4" Bolt

5/16" x 3/4" Screw

5

6

2

1

#10 Star Washer

5/16" x 1 3/4" Bolt

7 4 3/8" x 2 1/4" Screw

8 1 Key/Clip

8

19

3

1

2

8

10

1

#10 x 3/4" Screw

#8 x 1/2" Ground Screw

5/16" Star Washer

Motor Isolator

3/8" Star Washer

#8 x 3/4" Truss Head Screw

1/4" x 2 1/2" Screw

3/8" x 1 1/2" Bolt

17

18

19

20

2

1

4

2

3/8" x 1 1/2" Wheel Bolt

Console Frame

#8 x 7/16" Screw

5/16" Motor Screw

21 2 3/8" Pin

22 2 3/8" x 1 1/8" Bolt

23

24

25 2 Wheel

26

27

28

29

30

31

32

33

34

35

36

37

38 4 #8 x 5/8" Machine Screw

39 6 Isolator

40 2

41 1

42

43

44

45

46

47

4

2

2

1

4

1

6

13

1

6

1

1

1

1

2

1

4

2

2

6

5/16" x 1 3/4" Shoulder Bolt

#8 Star Washer

Cable Tie

Right Tray

5/16" x 2 1/2" Screw

3/8" x 1 3/4" Hex Head Bolt

5/16" Flat Washer

#8 x 1" Screw

Incline Motor Spacer

3/8" Jam Nut

5/16" Nut

1/4" Nut

Left Tray

#8 x 5/8" Screw

Rear Foot

Latch Crossbar

Left Foot Rail

Caution Decal

Walking Platform

Walking Belt

Belt Guide

Right Rear Foot

Model No. NETL90716.0 R0216A

Key No. Qty. Description

48

49

50

51

52 4

53 1

54

55

56 1 Frame

57

58

59

60

61

62

63

64

65

4

1

2

2

1

1

1

1

4

1

Cable Tie

Drive Roller/Pulley

1/4" x 1 1/4" Screw

9/32" Plastic Bushing

3/8" Plastic Bushing

Storage Latch

Drive Motor

Motor Belt

1

2

2

1

Left Rear Foot

Console Ground Wire

Rubber Cushion

Right Foot Rail

Idler Roller

3/8" x 1 3/4" Screw

3/8" x 1 1/4" Screw

Console Base

66

67

1

1

Motor Hood

Hood Accent

2 Incline Frame Spacer

68 9 Clip

69

70

1

1

Incline Motor

Incline Frame

71 2 Frame Spacer

72 1 Controller

73 1 Controller Plate

74 1 Receptacle

75

76

78

1

1

Power Switch

Power Cord

77 1 Grommet

Belly Pan

Left Handrail Cover 79

1

1

80 1 Console

81

82

83

84

1

1

1

1

Upright Wire

Left Base Cover

Right Base Cover

Controller Clamp

85 1 Right Handrail Cover

86 2 Handrail

87

88

89

90

91

92

1

1

1

1

Left Outside Handrail Cover

Left Inside Handrail Cover

Left Upright

Right Upright

2

2

Warning Decal

Console Clamp

93 1 Pulse Crossbar

94 1 Base

30

Key No. Qty. Description Key No. Qty. Description

95

96

97

98

99

100

101

1

1

2

1

1

1

2

102 1

Right Inside Handrail Cover

Right Outside Handrail Cover

Base Pad

Tablet Holder

Left Inner Base Cover

Right Inner Base Cover

3/8" Washer

Magnet

103

104

106

108

109

*

1

1

105 3

3

Reed Switch Clip

Reed Switch

#8 Nut

#8 x 1/2" Machine Screw

107 1 Filter

2

Motor Bushing

User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

31

EXPLODED DRAWING A

Model No. NETL90716.0 R0216A

32

30 34

EXPLODED DRAWING B

2

Model No. NETL90716.0 R0216A

2

65

2

2

2

68

71

2

66

67

52

101

33

68

2

70

16

32

29

69

33

72

68

74

75

68

33

33

101

52

67

71

76

68

2

78

2

2

33

EXPLODED DRAWING C

86

11

28

11

14

87

79

4

68

9

5

93

10

14

14

89

1

1

Model No. NETL90716.0 R0216A

88

2

14

2

95

14

96

58

1

86

1

85

11

5

68

9

28

11

81

4

14

82

17

99

63

13

22

91

52

7

13

97

2

13

62

81

52

22

62

13

77

90

7

13

25

33

94

91

97

2

10

13

7

63

13

33

25 17

100

83

34

EXPLODED DRAWING D

1

36

64

2

26

1

80

2

2

2

Model No. NETL90716.0 R0216A

98

38

2

1

2

27

1

1

8

18

31

92

2

92

2

31

35

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)

RECYCLING INFORMATION

This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law.

Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve

European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.

Part No. 380129 R0216A Printed in China © 2016 ICON Health & Fitness, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
