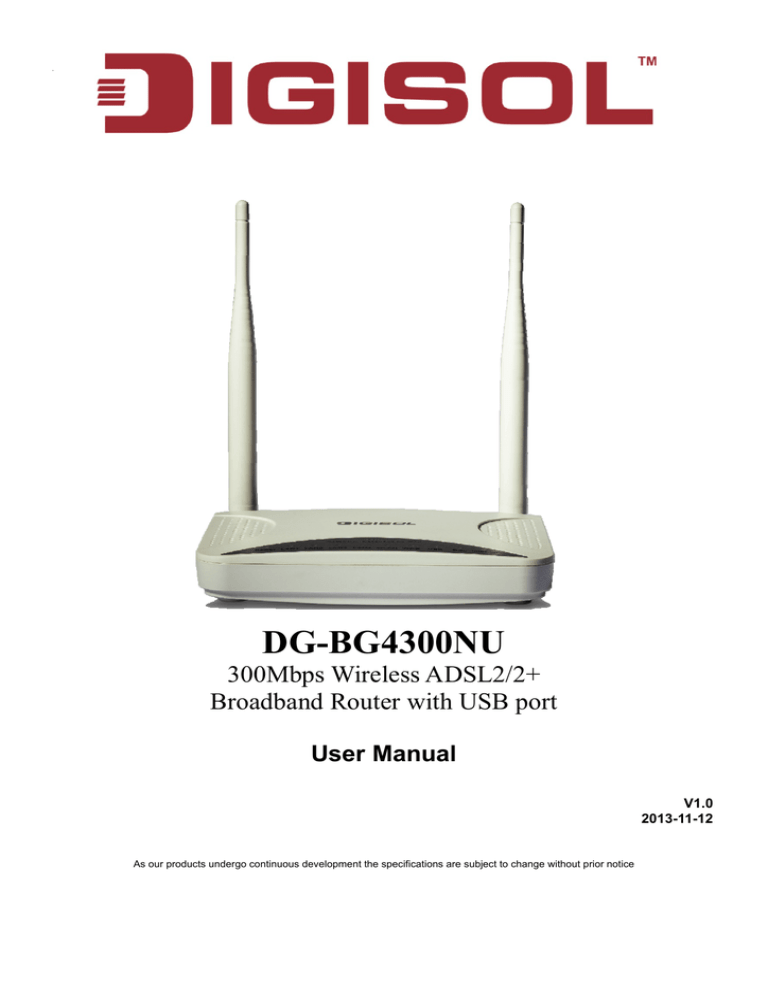

DG-BG4300NU User Manual

DG-BG4300NU

300Mbps Wireless ADSL2/2+

Broadband Router with USB port

User Manual

As our products undergo continuous development the specifications are subject to change without prior notice

V1.0

2013-11-12

1

DG-BG4300NU User Manual

COPYRIGHT

Copyright 2013 by Smartlink Network Systems Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes.

Trademarks:

DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacturer must therefore be allowed at all times to ensure the safe use of the equipment.

2

DG-BG4300NU User Manual

INDEX

1. Product Information.........................................................................................................5

1-1 Introduction and Safety Information............................................................................5

1-2 Safety Information.....................................................................................................6

1-3 System Requirements ................................................................................................7

1-4 Package Contents ......................................................................................................7

1-5 Get Familiar with your new ADSL2+ Wireless broadband router.....................................8

2. System and Network Setup............................................................................................ 10

2-1 Hardware Installation...............................................................................................10

3. Web Browser Configuration ........................................................................................... 12

4. Setup........................................................................................................................... 27

4-1 WAN Configuration ..................................................................................................27

4-2 Statistics .................................................................................................................27

4-2-1 LAN..................................................................................................................28

4-2-2 WAN Service .....................................................................................................28

4-3 Route .....................................................................................................................29

4-3-1 Device Info Route..............................................................................................29

4-3-2 Device Info ARP ................................................................................................29

4-3-3 Device Info DHCP..............................................................................................29

4-4 Advanced Setup.......................................................................................................30

4-4-1 WAN Service .....................................................................................................31

4-4-2 LAN..................................................................................................................33

4-4-2-1 IPv6 Auto Config.........................................................................................35

4-4-3 NAT..................................................................................................................36

4-4-3-1 Virtual Servers ............................................................................................37

4-4-3-2 Port Triggering ............................................................................................38

4-4-3-3 DMZ Host ...................................................................................................39

4-4-3-4 IP Address Map...........................................................................................39

4-4-3-5 ALG............................................................................................................40

4-4-4 Security ............................................................................................................40

4-4-4-1 IP Filtering..................................................................................................41

4-4-4-2 MAC Filtering ..............................................................................................43

4-4-4-3 DoS ...........................................................................................................43

4-4-5 Parental Control ................................................................................................44

4-4-5-1 Time Restriction ..........................................................................................44

4-4-5-2 URL Filter ...................................................................................................45

4-4-6 3G....................................................................................................................46

4-4-6-1 3G Failover .................................................................................................48

4-4-7 Quality Of Service..............................................................................................49

4-4-7-1 QOS Queue ................................................................................................50

4-4-7-2 QOS Classification .......................................................................................51

4-4-8 Routing ............................................................................................................53

4-4-8-1 Default Gateway .........................................................................................53

4-4-8-2 Static route.................................................................................................54

4-4-8-3 Policy Routing .............................................................................................55

3

DG-BG4300NU User Manual

4-4-8-4 RIP ............................................................................................................56

4-4-9 DNS .................................................................................................................56

4-4-9-1 DNS Server.................................................................................................56

4-4-9-2 Dynamic DNS..............................................................................................57

4-4-10 DSL ................................................................................................................58

4-4-11 UPnP ..............................................................................................................59

4-4-12 DNS Proxy.......................................................................................................60

4-4-13 Storage Service ...............................................................................................60

4-4-14 Interface Grouping...........................................................................................61

4-4-15 IP Tunnel ........................................................................................................62

4-4-15-1 IPv6inIPv4 ................................................................................................62

4-4-15-2 IPv4inIPv6 ................................................................................................63

4-4-16 IPSec..............................................................................................................63

4-4-17 Certificate .......................................................................................................66

4-4-17-1 Local ........................................................................................................66

4-4-17-2 Trusted CA................................................................................................68

4-4-18 Power Management .........................................................................................69

4-4-19 Multicast .........................................................................................................69

4-5 Wireless..................................................................................................................71

4-5-1 Basic ................................................................................................................71

4-5-2 Security ............................................................................................................72

4-5-3 MAC Filter.........................................................................................................73

4-5-4 Wireless Bridge .................................................................................................74

4-5-5 Advanced..........................................................................................................74

4-5-6 Station Info.......................................................................................................75

4-6 Diagnostics .............................................................................................................75

5 Management ................................................................................................................. 76

5-1 Settings ..................................................................................................................76

5-1-1 Backup .............................................................................................................76

5-1-2 Update .............................................................................................................77

5-1-3 Restore Default .................................................................................................77

5-2 System Log .............................................................................................................77

5-3 Security Log ............................................................................................................79

5-4 TR-069 Client ..........................................................................................................80

5-5 Internet time...........................................................................................................81

5-6 Access Control.........................................................................................................82

5-6-1 Passwords.........................................................................................................82

5-6-2 Services............................................................................................................82

5-6-3 IP Addresses .....................................................................................................83

5-7 Update Software......................................................................................................83

5-8 Reboot....................................................................................................................84

6. Appendix...................................................................................................................... 85

6-1 Hardware Specifications ...........................................................................................85

7. Troubleshooting ............................................................................................................86

8. Glossary .......................................................................................................................88

4

DG-BG4300NU User Manual

1. Product Information

1-1 Introduction and Safety Information

Thank you for purchasing DG-BG4300NU 300Mbps Wireless ADSL2/2+ Broadband Router with USB port! This router is the best choice for Small office / Home office users, all computers and network devices can share a single Internet connection at high speed. Easy Installation wizard provided with this router is designed to setup an Internet connection in a very short time by accessing the web configuration of the router. With its wireless speed up to 300Mbps users can experience uninterrupted Internet and multimedia access.

Other features of this Router include:

 High Internet Access throughput. Downstream up to 24 Mbps and Upstream up to 1 Mbps.

 Wireless speed up to 300Mbps.

 Robust WLAN Security.

 Supports URL blocking & Firewall.

 Dedicated WPS and WLAN push button.

 Dynamic DNS and VPN Pass through support.

 USB2.0 Port for 3G Dongle & Mass Storage.

 Allows multiple users to share a single ADSL internet connection.

 Access private LAN servers from the Internet.

 Four wired LAN ports (10/100M) and one WAN port (RJ-11).

 Works with IEEE 802.11b/g/n wireless LAN devices.

 Supports IPv6.

 Supports DHCP (Server/Client) for easy IP-address setup.

5

DG-BG4300NU User Manual

1-2 Safety Information

In order to keep the safety of users and your properties, please follow the safety instructions as mentioned below:

1. This router is designed for indoor use only; DO NOT place this router outdoor.

2. DO NOT place this router close to a hot or humid area, like kitchen or bathroom. Also, DO NOT

leave this router in the car during summer.

3. DO NOT pull any connected cable with force; disconnect it from the router first.

4. If you want to place this Router at a height or mount on the wall, please make sure it is firmly secured.

Falling from a height would damage the router and its accessories and warranty will be void.

5. Accessories of this router, like antenna and power supply, are dangerous to small children. KEEP

THIS ROUTER OUT OF REACH OF CHILDREN.

6. The Router will get heated up when used for a long time (This is normal and is not a malfunction). DO

NOT put this Router on paper, cloth, or other flammable materials.

7. There’s no user-serviceable part inside the router. If you find that the router is not working properly,

please contact your dealer of purchase and ask for help. DO NOT disassemble the router, warranty will

be void.

8. If the router falls into water when it’s powered, DO NOT use your hands to pick it up. Switch the

electrical power off before you do anything, or contact an experienced electrical technician for help.

9. If you smell something strange, or even see some smoke coming out from the router or power supply,

remove the power supply or switch the electrical power off immediately, and call the dealer of purchase

for help.

6

DG-BG4300NU User Manual

1-3 System Requirements

 Notebook or desktop PC with network adapter (wired/WLAN)

 Windows 98/Me/2000/XP/Vista

 Web browser

 AC power socket (100 – 240V, 50/60Hz)

1-4 Package Contents

Before you start using this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items:

 DG-BG4300NU ADSL 2/2+ Broadband Router With 3G

 POTS splitter

 AC power adapter

 Quick Installation Guide

 Installation Guide CD (includes user manual & QIG)

 Patch cord (1 No.)

 RJ-11 cables (2 Nos.)

7

DG-BG4300NU User Manual

1-5 Get Familiar with your new ADSL2+ Wireless broadband router

Top Panel

LED Name

LED

Color

Red

Light

Status

ON

Description

Power

LAN (1~4)

Green

Green

OFF

ON

ON

OFF

Device is initializing or initialization has failed.

Power is OFF.

Power is ON.

PC is connected on LAN Port.

PC is Unplugged / Not Connected.

Blinking WPS negotiation is enabled, waiting for the clients.

WPS Green

OFF WPS negotiation is not enabled on the device.

ON Wireless is enabled.

Blinking Data is being transmitted or received.

OFF

USB Green

ON

OFF

Wireless is not enabled.

USB device is plugged.

USB device is not plugged.

DSL Green

ON

Blinking

Physical link is UP.

ADSL handshaking process is ON or ADSL Line is unplugged.

Internet connection is established. ON

Blinking Data is being transmitted or received.

OFF Device is not connected to Internet.

8

Rear Panel

DG-BG4300NU User Manual

Interfaces

Antennas

Power

Switch

WPS

WLAN

USB

LAN (1~4)

DSL

Description

They are 5dBi fixed antennas.

Power connector, connects to A/C power adapter.

Press this button to power on/off the router.

Press this button for less than 3 seconds to start WPS function.

Press this button up to 3 seconds to ON/OFF WLAN.

USB port is provided for 3G dongle connection or USB disk mass storage.

Local Area Network (LAN) ports 1 to 4.

Connect ISP line to the Line port.

Note: Kindly note that the Reset button for resetting the device to factory default settings is provided on the back panel/bottom side of the device.

9

DG-BG4300NU User Manual

2. System and Network Setup

2-1 Hardware Installation

Step 1 Connect the Line interface of the device and the Modem interface of the splitter with a

telephone cable. Connect the phone set to the Phone interface of the splitter through a

telephone cable. Connect the input cable to the Line interface of the splitter.

Step 2 Connect all your computers, network devices (switch / hub) to the LAN port of the

router.

10

DG-BG4300NU User Manual

Step 3 Connect the power adapter (12V DC / 1A) to the wall socket, and then connect it to the

Power’ socket of the router.

Step 4 Please check all LEDs on the front panel. ‘Power LED’ should be steadily ON, ADSL and

LAN should be ON. Check if the computer / network device connected to the respective

port of the router is powered ON and correctly connected. If power LED is not ON, or any

LED you expected is not ON, please recheck the cabling.

11

DG-BG4300NU User Manual

3. Web Browser Configuration

The DSL device is an ADSL2+ wireless router.

 LAN IP address: 192.168.1.1, Netmask: 255.255.255.0

 Default VPI/VCI for ATM (maximum 8 sets): 0/32, 1/32, 0/35

 ADSL Line mode: Auto-detect.

User can change settings via WEB browser. The following sections describe the set up procedures.

Please set your PC’s Ethernet port as follows:

 IP address: 192.168.1.XXX (e.g. 192.168.1.10)

 Netmask: 255.255.255.0

 Default Gateway: 192.168.1.1

Access the Web Console:

 Start your web browser.

 Type the Ethernet IP address of the modem/router on the address bar of the browser. Default IP address is 192.168.1.1.

 Enter Password in the dialog box when it appears. Default Username: admin Password: admin

Please note that the below welcome screen will appear when the router configuration is factory defaults.

Click “Start” to use the Quick setup wizard for basic settings or click “Advanced” to setup advanced features and skip the Wizard.

12

DG-BG4300NU User Manual

 Once you login the following screen will appear.

 Click on “Start”, the following screen will appear. Connect one end of the RJ-11 telephone cable into the ADSL port provided on the splitter from the service provider and connect the other telephone cable from the splitter to the LINE port on the router. Click ‘Next’ to continue.

13

DG-BG4300NU User Manual

 Power ON the router. Ensure that all the LED’s on the router are ON. If not, try the above steps again else click ‘Next’ to continue.

 Connect one end of the network cable to one of the LAN ports (1~4) of the router and

the other end to your computer. Click ‘Next’ to continue with the installation.

14

DG-BG4300NU User Manual

 Click on “Next”. The LED description table will appear.

 Click on “Next”. The screen shown below will appear.

Note: The steps mentioned till here are common for all the modes.

15

DG-BG4300NU User Manual

The Options/Modes configurations have been explained below.

I) Select the operation mode “3G wireless Router Mode”. Click on “Next”. The screen shown below will appear. Enter the “APN code” and “Dialup Number” as shown below.

 Click on “Next”. The screen shown below will appear.

16

DG-BG4300NU User Manual

 Click on “Next”. The WAN connection summary will appear. Click on “Finish” or “Next” to configure wireless settings.

Note: The Wireless configuration steps mentioned below are common for all the modes.

 Click “Next” to configure the wireless settings. In this page, you can set the SSID for wireless network.

17

DG-BG4300NU User Manual

 Click ‘Next’ and the following page appears. In this page, you can select WPA2-PSK as the security mode.

 Click ‘Next’ and the following page appears. In this page, you can view the configuration summary.

18

DG-BG4300NU User Manual

 Click ‘Finish’ to save your settings and reboot the router. Once the settings are applied the following screen will appear.

II) Select the operation mode “ADSL with 3G Backup Mode”. Click on “Next”. The screen shown below will appear.

19

DG-BG4300NU User Manual

 Enter the “APN code” and “Dialup Number” as shown below. Click on “Next”.

 Select the type of network protocol and click ‘Next’ to continue with the installation.

20

DG-BG4300NU User Manual

 Select the Country: India and then select the service provider from the drop-down list. You can change the VPI/VCI values as instructed by your ISP.

 Click on “Next” and enter the correct user ID and password for PPPoE mode that is provided by your ISP. After the settings are done, click ‘Next’ to continue with the installation.

21

DG-BG4300NU User Manual

 Following page appears showing the WAN status.

Once the settings are applied the following screen will appear.

For wireless configuration settings refer to steps mentioned on

page 17

.

22

DG-BG4300NU User Manual

III) Select the operation mode “ADSL Wireless Router Mode”. Click on “Next”. The screen shown below will appear.

 Select the type of network protocol and click ‘Next’ to continue with the installation.

23

DG-BG4300NU User Manual

You can select LLC or VC-Mux as the encapsulation mode according to the uplink equipment or use the default setting.

1483 Bridged: If you select 1483 Bridged as the WAN protocol, you must use the third party

Dial-up software or Windows New Connection Wizard to configure the Internet dial-up access.

1483 MER: If you select 1483 MER as the WAN protocol, the router obtains an IP address automatically.

PPPoE /PPPoA: If you select PPPoE or PPPoA as the WAN protocol, click Next, and the following page appears.

1483 Routed: If you select 1483 Routed as the WAN protocol, you cannot use the DHCP service. You need to enter the IP address, subnet mask, default gateway and DNS that is provided by your ISP.

 Select the Country: India and then select the service provider from the drop-down list. You can change the VPI/VCI values as instructed by your ISP.

24

DG-BG4300NU User Manual

PPPoE Mode: In this page, enter the correct user ID and password that is provided by your ISP.

After the settings are done, click ‘Next’ to continue with the installation.

 Following page appears showing the WAN status.

25

DG-BG4300NU User Manual

For wireless configuration settings refer to steps mentioned on

page 17

.

 Click ‘Finish’ to save your settings and reboot the router. Once the settings are applied the following screen will appear.

26

DG-BG4300NU User Manual

4. Setup

4-1 WAN Configuration

4-2 Statistics

Click on statistics the following options will appear.

27

DG-BG4300NU User Manual

4-2-1 LAN

The table below displays the statistics of ports through which the data is transferred and received.

4-2-2 WAN Service

Parameter

Interface

Description

Received

Transmitted

Description

Lists the WAN interfaces.

Displays WAN type info.

Displays the counters for received pkts /bytes.

Displays the counters for transmitted pkts /bytes.

28

4-3 Route

DG-BG4300NU User Manual

4-3-1 Device Info Route

The below table shows the dynamic route entry/entries.

4-3-2 Device Info ARP

The below table displays the ARP entries of devices connected to the router.

4-3-3 Device Info DHCP

29

DG-BG4300NU User Manual

Parameter

Hostname

MAC Address

IP Address

Expires In

Description

Displays PC / client name.

Displays MAC address of Host / PC.

Displays IP address of Host /PC.

Displays the DHCP Lease time remaining.

4-4 Advanced Setup

Click on the link and the following options will appear under “Advanced Settings”.

30

DG-BG4300NU User Manual

4-4-1 WAN Service

I) 1483 Bridged Mode

If you select 1483 Bridged as the WAN protocol, you can use the third party Dial-up software or

Windows New Connection Wizard to configure the Internet dial-up access.

II) PPPoE Mode

The PPPoE mode will require the PPPoE Username and Password which is provided from the ISP.

31

DG-BG4300NU User Manual

III) 1483 Routed Mode

If you select 1483 Routed as the WAN protocol, you cannot use the DHCP service. You need to enter the

IP address, subnet mask, default gateway and DNS that is provided by your ISP.

IV) 1483 MER

If you select 1483 MER as the WAN protocol, the router obtains an IP address automatically.

32

DG-BG4300NU User Manual

4-4-2 LAN

Configure the broadband router IP address and subnet mask for LAN interface.

33

DG-BG4300NU User Manual

Parameter

Leased Time (hour)

Static IP lease list

Description

Set the DHCP lease time.

Will list the Reserved IP for specified MAC

Option 6 DNS address

Option 42 NTP server address.

DNS IP provided by DHCP server.

Network TIME server address.

Option 43 Vendor Specific Provided by the vendor.

Option 60 Vendor ID Provided by the vendor.

Click on MAC address “Add Entries” button. The screen shown below will appear. Enter the MAC address and static IP address and click on “Apply/Save” button.

34

DG-BG4300NU User Manual

4-4-2-1 IPv6 Auto Config

This page allows the user to configure the IPv6 LAN parameters of the router such as DHCPv6 server,

IPv6 LAN IP, Router Advertisement daemon (RADVD), IPv6 Multicast snooping (MLD).

35

DG-BG4300NU User Manual

4-4-3 NAT

Below screenshot shows the options available under NAT.

36

DG-BG4300NU User Manual

4-4-3-1 Virtual Servers

Virtual server allows you to direct incoming traffic from the WAN side to the internal server with private

IP address on the LAN side. The internal port is required if the external port needs to be converted to a different port number used by the server on the LAN side. A maximum 32 entries can be configured.

When you click on “Add” the following screen will appear.

Parameter

User Interface

Service Name

External Port Start &

External Port End

Protocol

Internal Port Start &

Internal Port End

Description

Select the WAN interface on which the Port forwarding is required.

Name of Port forwarding service.

Port number accessible on public.

Select TCP or UDP or both.

Type the port number of the server for port forwarding.

37

DG-BG4300NU User Manual

4-4-3-2 Port Triggering

Port triggering is a way to automate port forwarding in which outbound traffic on predetermined ports

(‘triggering ports’) causes inbound traffic to specific incoming ports to be dynamically forwarded to the initiating host, while the outbound ports are in use. This allows computers behind a NAT-enabled router on a local network to provide services that would normally require the computer to have a fixed address on the local network. Port triggering triggers can open an incoming port when a client on the local network makes an outgoing connection on a predetermined port or range of ports.

When you click on “Add” the following screen will appear.

38

DG-BG4300NU User Manual

4-4-3-3 DMZ Host

A DMZ (Demilitarized Zone) allows a single computer on your LAN to expose ALL of its ports to the

Internet. Enter the IP address of computer as a DMZ (Demilitarized Zone) host with unrestricted Internet access. When doing this, the DMZ host is no longer behind the firewall.

Enter the DMZ Host IP address which is the IP address of the local host. This feature sets a local host to be exposed to the Internet.

4-4-3-4 IP Address Map

Advanced users can use this feature for outgoing traffic, creating “NAT IP MAPPING” rules that divert all traffic that is destined for a certain IP address to a different IP address. Entries in this table allow you to configure one Global IP Pool for specified Local IP address from LAN.

When you click on “Add” the following screen will appear.

39

DG-BG4300NU User Manual

4-4-3-5 ALG

An application-level gateway (also known as ALG or application layer gateway) consists of a security component that augments a firewall or NAT employed in a computer network.

4-4-4 Security

40

DG-BG4300NU User Manual

4-4-4-1 IP Filtering

I) Outgoing IP filtering

By default all outgoing IP traffic from LAN is allowed, but some IP traffic can be blocked by setting up filters.

Click on “Add”. The following screen will appear.

Parameter

Filter Name

IP version

Any name for rule.

Select the IPV4 /IPV6.

Description

Source IP address/prefix length

Source Port

Destination IP address/prefix length

Destination Port

Enter the source IP address.

Enter the source port.

Enter the Destination IP address.

Enter the Destination port.

41

DG-BG4300NU User Manual

II) Incoming IP filtering

When the firewall is enabled on a WAN or LAN interface, all incoming traffic is blocked. However, some

IP traffic can be accepted by setting up filters.

Click on “Add”. The following screen will appear.

42

DG-BG4300NU User Manual

4-4-4-2 MAC Filtering

4-4-4-3 DoS

A denial-of-service attack (DoS attack) is an attempt to make a computer resource unavailable to its intended users.

Enable DoS Prevention to detect and prevent denial of service attacks through automatic rate filtering or rules to protect legitimate users during the DoS attacks.

Parameter

TCP SYNcookies

SYN Flood

Description

Will block the TCP Sync cookies when enabled.

Will block the SYN flood when enabled.

Ping of Death/Ping Flood Will block ping from source IP when enabled.

Port Scanning Will block Port scanning from source when enabled.

43

DG-BG4300NU User Manual

4-4-5 Parental Control

If you want to allow access to Internet in the specific time, click on Parental Control and the following page appears. It is used to configure the filtered URL and domain. You can also add/delete the excluded

IP, from which packets free from these URL filtering rules.

4-4-5-1 Time Restriction

This feature adds time of restriction to a special LAN device to the router. The browser’s MAC address automatically displays the MAC address of the LAN device when the browser is running.

To restrict other LAN devices, click “other MAC Address” button and enter the MAC address of the other LAN device. To find out the MAC address of a Windows based PC, go to command window and type “ipconfig/all”.

44

DG-BG4300NU User Manual

Click on “Add”. The below given screen will appear.

Parameter Description

Browser’s MAC address Enter the MAC address of PC to be restricted.

Other MAC address Enter the MAC address of PC to be restricted.

Days of the week

Start Blocking time

End Blocking time

Select the days for restricted access.

Select the time for restriction.

Select the time for restriction.

4-4-5-2 URL Filter

The URL Blocking is the web filtering solution. The firewall has the ability to block access to specific web URLs based on string matches. This can allow large number of URLs to be blocked by specifying only a FQDN (such as tw.yahoo.com). The URL Blocking enforces a Web usage policy to control content downloaded from, and uploaded to the Web.

Please select the list type first then configure the list entries. Maximum 100 entries can be configured.

Click on “Add”. The below given screen will appear. Enter the URL address and port number to add the entry to the URL filter.

45

DG-BG4300NU User Manual

4-4-6 3G

This page allows the user to set the 2G and 3G parameters of the USB Datacard with an active SIM plugged to the USB port of the router. These Parameters are provided by the 2G/3G internet service provider. Also check the 3G dongle compatibility list on the website or call Digisol technical support.

Basically username, password, dial Number and APN code is required. Some ISP’s do not require username and password. The below parameters may need to be confirmed with ISP.

NOTE: Switch off the router to plug/unplug USB 2G/3G Dongle.

46

DG-BG4300NU User Manual

Parameter

Username

Password

APN Code

Pin Code

Dialup Number

Baud Rate

MTU

MRU

Description

Type Username, provided by 3G ISP.

Type Password, provided by 3G ISP.

Type APN code, provided by 3G ISP.

Pin code is provided by ISP.

Type Dialup number provided by ISP (e.g.: *99# or #777 etc.)

Baud rate do not change.

Maximum Transfer unit – Set by ISP.

MRU. Do not change the default.

LCP Echo Interval

LCP Echo failure

LCP Interval – Do not change the default.

LCP Failure – Do not change the default.

Network Preference Can Set 3G / 2G / Automatic mode.

Click on “driver add”. Below given screen will appear to add a new 3G dongle drive.

Parameter

Driver List

Device Name

Default Vendor

Default Product

Target Vendor

Target Product

Message Endpoint

Dev Name

Huawei Mode

Message Content0

Message Content1

Description

Lists the Driver added manually by user.

Enter the name of Driver to be added.

Here type the Vendor ID of the USB Dongle for Mass Storage.

Here type the Product ID of the USB Dongle for Mass Storage.

Here type the Vendor ID of the USB Dongle for USB Modem.

Here type the Product ID of the USB Dongle for USB Modem.

Endpoint of Mass Storage device.

Type the Device name (E.g./dev/ttyUSB2), use USB sniffer tool.

Select only if card is Huawei make.

Type 62bit Hexadecimal No. (Use Bushound tool)

Type 62bit Hexadecimal No. (Use Bushound tool)

47

DG-BG4300NU User Manual

4-4-6-1 3G Failover

On this page, the user or administrator can set WAN type as Primary or Backup Uplink.

Parameter

Primary Uplink

Backup Uplink

Description

Set the preferred WAN type

Set the backup/secondary WAN type

Backup mechanism The failover settings can be edited.



Note: It is not recommended to change the Backup mechanism settings

48

DG-BG4300NU User Manual

4-4-7 Quality Of Service

The QoS is enforced by the QoS rules in the QoS table. A QoS rule contains two configuration blocks:

Traffic Classification and Action. The Traffic Classification enables you to classify packets on the basis of various fields in the packet and perhaps the physical ingress port. The Action enables you to assign the strict priority level and mark some fields in the packet that matches the Traffic Classification rule. You can configure any or all fields as needed in these two QoS blocks for a QoS rule.

Check the “Enable QoS” checkbox as shown below. Then choose a default DSCP mark to automatically mark incoming traffic without reference to a particular classifier. Click on “Apply/Save” button to save it.

49

DG-BG4300NU User Manual

4-4-7-1 QOS Queue

For each Ethernet interface, maximum 4 queues can be configured. For each Ethernet WAN interface maximum 4 queues can be configured.

The “Enable” button will scan through every queue in the table.

Name

Key

Parameter

Name of the QoS Rule.

Enter the key.

Description

Qid

Prec/Alg/Wght

DSL Latency

PTM priority

Shaping Rate (bps)

Burst Size (bytes)

Enable

Enter the QID.

Mention the prec/alg/wght.

Display the WAN Path.

Define the PTM priority.

Type the shaping rate.

Type the Burst size

Displays the Enabled Status if enabled.

Note: If the WMM function is disabled in the wireless page, queues related to wireless will not take effect.

50

DG-BG4300NU User Manual

Click on “Add”. The below given screen will appear. This screen allows you to create a QOS queue and add it to a selected layer2 interface. Enter the name and interface of the QoS queue as shown below.

4-4-7-2 QOS Classification

Note: If the QOS function has been disabled, then the classification rules would not take effect.

51

DG-BG4300NU User Manual

Click on “Add” button to add a rule. The below given screen will appear. By entering the settings in this page, you can create traffic class rule to classify the ingress traffic into the priority queue and optionally mark the DSCP or Ethernet priority of the packet. Click “Apply/Save” button to save and activate the rule.

Parameter

Traffic Class Name

Rule Order

Rule Status

Class Interface

Ether Type

Source MAC Address

Description

Name of the Traffic Class.

Select the Rule Order.

Enable or Disable the Rule Status.

Select the Traffic Class Interface on which rule is to be applied.

Select the Ether Type as required.

Enter the Source MAC Address.

Destination MAC address Enter the Destination MAC address.

Destination MAC Mask Enter the Destination MAC Mask.

Specify Class Queue

Mark DSCP

Enter the Class Queue.

Select the DSCP from the List.

Mark 802.1p priority

Set Rate Limit

Select the Priority from 0-7.

Set the Rate limit here.

52

4-4-8 Routing

DG-BG4300NU User Manual

4-4-8-1 Default Gateway

Default gateway interface can have WAN interfaces served as system default gateways but only one will be used according to the priority with the first being the highest and the last one of the lowest priority if the WAN interface is connected. Priority order can be changed by removing all and adding them back again.

53

DG-BG4300NU User Manual

4-4-8-2 Static route

Click on “Add”. The below given screen will appear. Here enter the destination network address, subnet mask, gateway AND/OR available WAN interface then click on “Apply/Save” to add the entry to the routing table.

Parameter

IP Version

Destination IP address/prefix length

Gateway IP address

Metric

Description

Select the Internet Protocol version IPV4/IPV6.

Enter Destination IP or/and Prefix length. (IPV6)

Enter the IP address.

Enter the numerical value (= or > 0).

54

DG-BG4300NU User Manual

4-4-8-3 Policy Routing

Click on “Add”. The below given screen will appear.

Here enter the policy name, policies and WAN interface. Then click “Apply/Save” button to add the entry to the policy routing table.

Parameter

Policy Name

Physical LAN port

Source IP

Use Interface

Default Gateway IP

Description

Enter the name of Policy.

Select the LAN port.

Enter the Source IP address.

Select the Interface.

Type the IP of the default gateway.

55

DG-BG4300NU User Manual

4-4-8-4 RIP

To activate RIP for the WAN interface, select the desired RIP version and operation and check the

Enabled” checkbox. To stop RIP on the WAN interface, uncheck the “Enabled” checkbox. Click the

Apply/Save” button to start/stop RIP and save the configuration.

Note: RIP cannot be configured on the WAN interface which has NAT enabled (such as PPPoE).

4-4-9 DNS

4-4-9-1 DNS Server

56

DG-BG4300NU User Manual

4-4-9-2 Dynamic DNS

The Dynamic DNS feature allows you to register your device with a DNS server and access your device each time using the same host name. The Dynamic DNS page allows you to add/remove the Dynamic

DNS feature.

Click on “Add”. The below given screen will appear.

Parameter

D-DNS provider

Hostname

Interface

User Name

Password

Description

Select your DDNS Service Provider.

Enter the hostname configured in your DDNS Service Provider

Account.

Select the WAN Interface Type.

Enter the User Name of your DDNS account.

Enter the Password of your DDNS account.

57

DG-BG4300NU User Manual

4-4-10 DSL

This page allows you to set the ADSL modulation. It is recommended, not to change anything unless required/suggested by the ADSL service provider. CAUTION: Wrong selection of modulation may

make the router ADSL link unstable.

Click on “Advanced Settings”. The below given screen will appear.

58

DG-BG4300NU User Manual

Click on “Tone Selection”. The screen shown below will appear.

Note: If you do not have much knowledge of ADSL tone settings, it is advised not to change these settings.

4-4-11 UPnP

Check mark “Enable UPnP” to enable UPnP service.

59

DG-BG4300NU User Manual

4-4-12 DNS Proxy

Check mark “Enable DNS Proxy” to enable DNS Proxy. Enter the Host name of the Router and the domain name of the LAN network.

4-4-13 Storage Service

This page will list the USB Mass storage when connected (tested up to 16 GB).

The storage service allows you to use storage devices with the modem to be more easily accessed.

60

DG-BG4300NU User Manual

4-4-14 Interface Grouping

Interface grouping supports multiple ports and bridging groups. Each group will perform as an independent network. To support this feature, you must create mapping groups with appropriate LAN and

WAN interfaces using the Add button. The remove button will remove the grouping and add the ungrouped interfaces to the default group. Only the default group has IP interface.

Click on “Add”. The following screen will appear.

61

DG-BG4300NU User Manual

4-4-15 IP Tunnel

4-4-15-1 IPv6inIPv4

Click on “Add”. The following screen will appear.

Parameter

Tunnel Name

Mechanism

Associated WAN interface

Associated LAN interface

IPv4 Mask Length

6rd Prefix with prefix length

Border Relay IPv4 address

Description

Enter a name for the tunnel.

The default mechanism is 6RD.

Select the WAN Interface for tunneling.

Default LAN interface is selected.

Enter the IPv4 Mask Length.

Enter the prefix length.

Enter the border relay IPv4 address.

62

4-4-16 IPSec

DG-BG4300NU User Manual

4-4-15-2 IPv4inIPv6

Click on “Add”. The following screen will appear.

63

DG-BG4300NU User Manual

Click on “AddNewConnection”. The screen shown below will appear.

64

DG-BG4300NU User Manual

Parameter Description

IPSec Connection Name Enter a name for IPSec Tunnel.

IP version Select the IP Version.

Tunnel Mode Select the IPSec Tunnel mode.

Local Gateway Interface Select the local gateway interface.

Enter the remote IPSec Gateway IP Address. Remote IPSec Gateway

Address

Tunnel Access from local

IP address

Select Subnet or Single IP Address.

IP address for VPN

Mask or prefix length

Tunnel access form remote IP address

Enter the IP Address.

Enter the Subnet Mask.

Select Subnet or Single IP Address for the remote network.

Key exchange method Select the key exchange mode.

Authentication Method Select the authentication mode.

Pre-Shared key Enter a new VPN Key for the IPSec tunnel.

Perfect forward secrecy Select Enable or Disable.

Advanced IKE settings Click to show advanced setting.

Click on “Show Advanced Settings”. The screen shown below will appear.

65

Mode

DG-BG4300NU User Manual

Parameter

Encryption Algorithm

Integrity Algorithm

Select Diffie-Hellman

Group for key exchange

Key life time

Description

Select the mode, either Main or Aggressive.

Select the encryption algorithm.

Select the Integrity Algorithm.

Select the bit option.

Enter the time in seconds.

4-4-17 Certificate

4-4-17-1 Local

Local certificates are used by peers to verify your identity. Maximum 4 certificates can be stored.

Click on “Create Certificate request”. The screen shown below will appear.

66

DG-BG4300NU User Manual

Click on “Import Certificate”, the following screen will appear.

67

DG-BG4300NU User Manual

4-4-17-2 Trusted CA

CA certificates are used by you to verify peers certificates. Maximum 4 certificates can be stored.

Click on “Import Certificate”. The following screen will appear.

68

DG-BG4300NU User Manual

4-4-18 Power Management

This module allows control of hardware modules to evaluate power consumption. Use the control buttons to select the desired option. Click “Apply” and check the status response.

4-4-19 Multicast

69

DG-BG4300NU User Manual

Parameter

Default Version

Query Interval

Description

Enter the Default Version Value.

This parameter indicates the query interval. It is the interval in seconds (s) between general queries sent by the querier. Default is 60 sec.

Query Response Interval This parameter indicates the query response interval. It is the maximum response time in seconds for an IGMP host in reply to general queries. By default, the value is set to 100.

Enter the last member query interval. Last Member query interval

Robustness value The IGMP robustness variable provides fine-tuning to allows for expected packet loss on a subnet.

Define the Maximum multicast group/groups. Maximum multicast groups

Maximum multicast data sources

Define the Maximum multicast data sources.

When you enable IGMP fast-leave processing, the router immediately removes a port when it detects an IGMP version 2 leave message on that port.

Enable or disable as required. LAN to LAN multicast enable

Membership join

Immediate

Enable or Disable membership join immediate.

70

4-5 Wireless

DG-BG4300NU User Manual

4-5-1 Basic

This page allows you to configure basic features of the wireless LAN interface. You can enable or disable the wireless LAN interface, hide the network from active scans, set the wireless network name and restrict the channel set based on country requirements.

71

DG-BG4300NU User Manual

Parameter

Enable wireless

Hide access point

Clients Isolation

Description

Use this option to turn ON/OFF Wi-Fi of the router.

Disable SSID Broadcast.

Select this option to Enable Wireless client isolation.

Disable WMM Advertise Enable/Disable WMM Advance feature.

Enable wireless multicast Enable/Disable WMF feature. forwarding (WMF)

SSID Enter a name to your Wi-Fi network.

BSSID Displays the MAC ID.

Max Clients Enter the Max Wi-Fi clients.

4-5-2 Security

This page allows you to configure the security features of the wireless LAN interface.

72

DG-BG4300NU User Manual

Parameter

Enable WPS

Add Client

Set Authorized station

MAC

Set WPS AP mode

Device PIN

Select SSID

Select to enable WPS.

Input Station Pin from Client.

Input Authorized Station MAC: xx:xx:xx:xx:xx:xx

Set the AP Mode.

Description

Device Pin is generated by AP.

Select the wireless network.

Network Authentication Select authentication method.

WEP Encryption Enter the WEP Key if WEP Encryption is selected.

4-5-3 MAC Filter

The MAC filtering feature allows you to define rules to allow or deny frames through the device based on source MAC address, destination MAC address and traffic direction.

Click on “Add”. Enter the MAC address below that you wish to add to the wireless MAC address filters.

73

DG-BG4300NU User Manual

4-5-4 Wireless Bridge

This page allows you to configure wireless bridge features of the wireless LAN interface. You can select wireless bridge to disable access point functionality.

4-5-5 Advanced

This page allows you to configure advanced features of the wireless LAN interface. You can select a particular channel on which to operate, force the transmission rate to a particular speed, set the fragmentation threshold, set the RTS threshold, set the wakeup interval for clients in power-save mode, set the beacon interval for the access point.

74

DG-BG4300NU User Manual

4-5-6 Station Info

This page shows authenticated wireless stations and their status.

Parameter

MAC

Associated

Authorized

SSID

Interface

Description

List the MAC address of wireless device associated.

This will appear Yes, if associated or otherwise it will be blank.

Will show if authorized or not.

Wireless network name.

Wireless interface number.

4-6 Diagnostics

The router is capable of testing the DSL connection. The individual tests are listed below.

75

DG-BG4300NU User Manual

5 Management

5-1 Settings

5-1-1 Backup

Click on “Backup settings” button and the following screen will appear. Click on the save button to save the config file on your PC.

76

DG-BG4300NU User Manual

5-1-2 Update

Click on “Browse” to upload a new config file on the router. Then click on “Update Settings”.

5-1-3 Restore Default

Click on the “Restore Default Settings” button to restore the unit to its default settings.

5-2 System Log

The system log dialog allows you to view the system log and configure the system log options.

Click on “View system log”. The screen shown below will appear.

77

DG-BG4300NU User Manual

Click on “Configure System Log”. The screen shown below will appear.

Parameter

Log level

Display level

Mode

Select the Log Level.

Select the Display Level.

Description

Select mode as Local or Remote.

78

DG-BG4300NU User Manual

5-3 Security Log

The security log dialog allows you to view the security log and configure the security log options.

Click on “View”. The screen shown below will appear.

79

DG-BG4300NU User Manual

5-4 TR-069 Client

TR-069 is a protocol for communication between a CPE and Auto-Configuration Server (ACS). The CPE

TR-069 configuration should be well defined to be able to communicate with the remote ACS.

Parameter

Inform interval

ACS URL

ACS user name

ACS password

Description

Enter the “Inform Interval”, default value is 300.

Enter ACS server IP.

Enter the username.

Enter the password.

Select the WAN Interface. WAN interface used by

TR-069 client

Display SOAP messages on serial console

Enable or disable as required (check with ISP).

Connection Request

Authentication

Connection Request User name

Select or deselect as required.

Type the username.

Connection Request

Password

Type the password.

Connection request URL Type the URL of server.

80

DG-BG4300NU User Manual

5-5 Internet time

This page allows you to synchronize the internet time with the router.

The below parameters will help you to configure the NTP server details on the router which will enable the router time to sync with the global internet time. This will help to enable the time stamp in system logs.

81

DG-BG4300NU User Manual

5-6 Access Control

5-6-1 Passwords

Access to your broadband router is controlled through three user accounts: admin, support and user.

The user name “admin” has unrestricted access to change and view configuration of your broadband router.

The user name “support” is used to allow an ISP technician to access you broadband router for maintenance and run diagnostics.

The user name “user” can access the broadband router, view configuration settings and statistics, as well as update the router’s software.

Below you can enter up to 16 characters and click “Apply/Save” button to change or create passwords.

5-6-2 Services

You can enable or disable the following list of services available in the access control list as shown below.

82

DG-BG4300NU User Manual

5-6-3 IP Addresses

The IP address Access control mode, if enabled, permits access to local management from IP addresses contained in the access control list. If the access control mode is disabled, the system will not validate IP addresses for incoming packets.

Click on “Add”. The following screen will appear. Enter the IP address.

5-7 Update Software

Click on the “Update Software” button to upgrade the firmware.

83

DG-BG4300NU User Manual

5-8 Reboot

Click on “Reboot” button to restart the device.

84

DG-BG4300NU User Manual

6. Appendix

6-1 Hardware Specifications

Antennas: 5 dBi fixed antennas

Power Supply: AC power adaptor: 100VAC-240VAC

DC voltage: 12V DC, 1A

Hardware Interfaces: One RJ-11 port (for ADSL Line), Four 10/100Mbps RJ-45 Ports, One Power switch, One Reset button, Two Wireless antenna, WLAN button, WPS button and One USB 2.0(Host)

Port

ADSL Standards: ANSI T1.413 issue2, ITU-T G992.1 with Annex A (G.dmt)

ITU-T G.992.2 Annex A (G.lite), ITU-T G.992.3 Annex A, L, M (ADSL2)

ITU-T G.992.5 Annex A, M (ADSL2+), ITU-T G 994.1

ITU-T G.997.1, ETSI ETR-328

Protocol & Features Supported: RFC 2684 IP Bridging, RFC 2684 IP Routing, RFC 2516, PPPoE,

RFC 2364 PPPoA, NAT & PAT (RFC 1631), DMZ support

Software features: IP filtering, Stateful packet inspection, (IPSec, L2TP, PPTP) pass through, Support

TR069

Quality of Service: Port based QoS

Wireless Standard and feature: IEEE 802.11b/g/n, 64/128 bit WEP, Multiple SSIDs Support, Support for WPA, WPA2-PSK, WPA-PSK, TKIP, AES.

Dimensions:

Net Dimensions: 149 x 130.08 x 28.8 mm

Gross Dimensions: 213 x 158 x 82 mm

Weight:

Net weight: 500 gms

Gross weight: 600 gms

Environmental Specifications:

Operating temperature: 0º C to 50º C

Non-operating temperature: -20º C to 70º C

85

DG-BG4300NU User Manual

7. Troubleshooting

If you find that the router is not working properly or stops responding don’t panic! Before you contact your dealer of purchase for help, please read this troubleshooting first.

Scenario Solution

Unable to access the a. Please check the power cord connection and network cable of this router through web page router. All cords and cables should be correctly and firmly inserted into the router. b. If all LED’s on the router are off, please check the status of A/C power adapter, and make sure it’s correctly powered. c. You must use the same IP address subnet as the router uses. d. Are you using MAC or IP address filter? Try to connect the router by another computer and see if it works; if not, please restore your router to factory default settings (pressing ‘reset’ button for over 10 seconds). e. Set your computer to obtain an IP address automatically (DHCP), and see if your computer can get an IP address. f. If you did a firmware upgrade and this happens, contact your dealer of purchase for help. g. If all above solutions don’t work, contact the dealer of purchase for help. h. Clear your Internet browser history and cache memory.

Can’t get connected to a. Please be patient, sometimes Internet is just that slow.

Internet b. Bypass the router and verify whether you can get connected to internet as before. c. Check PPPoE user ID and password again. d. Call your Internet service provider and check if there’s something wrong with their service. e. If you just can’t connect to one or more websites, but you can still use other internet services, please check URL/Keyword filter. f. Try to reset the router and try again.

86

DG-BG4300NU User Manual g. Verify the line with device provided by your Internet service provider too. h. Try to use IP address instead of hostname. If you can use IP address to communicate with a remote server, but can’t use hostname, please check DNS settings.

I can’t locate my router by a. ‘Broadcast ESSID’ set to off? my wireless client b. Both the antennas are secure. c. Are you too far from your router? Try to get closer. d. Please remember that you have to input ESSID on your wireless

client manually, if ESSID broadcast is disabled.

File download is very a. Are you using QoS function? Try to disable it and try again. Internet is slow or breaks frequently slow sometimes, be patient. b. Try to reset the router and see if the download speed improves. c. Try to know what other clients do on your local network. If some clients are transferring files of big size, other clients will get an impression that

Internet is slow. d. If this has never happened before, call your Internet service provider to know if there is something wrong with their network.

I can’t log onto web management interface: password is wrong

Router gets heated up a. Make sure you’re connecting to the correct IP address of the

router (Default IP: 192.168.1.1). b. Password is case-sensitive. Make sure ‘Caps lock’ is not on. c. If you have forgotten the password, do a hard reset. a. This is not a malfunction as long as you are able to touch the router’s case. b. If you smell something wrong or see smoke coming out from the router or A/C power adapter, please disconnect the router and A/C power adapter from the utility power (make sure it’s safe before you’re doing this), and call your dealer of purchase for help.

The date and time of all a. Adjust the time zone in ‘System > Time Zone’ settings of the router. event logs are wrong

87

DG-BG4300NU User Manual

8. Glossary

Default Gateway (Router): Every non-router IP device needs to configure a default gateway IP address.

When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it to the destination.

DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives every computer on your home network an IP address.

DNS Server IP Address: DNS stands for Domain Name System, which allows Internet servers to have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses (such as 192.34.45.8). A

DNS server keeps a database of Internet servers and their respective domain names and IP addresses, so that when a domain name is requested (as in typing "Broadbandrouter.com" into your Internet browser), the user is sent to the proper IP address. The DNS server IP address used by the computers on your home network is the location of the DNS server your ISP has assigned to you.

DSL Modem: DSL stands for Digital Subscriber Line. A DSL modem uses your existing phone lines to transmit data at high speeds.

DMZ: DMZ is a physical or logical subnetwork that contains and exposes an organization's external services to a larger untrusted network, usually the Internet. The purpose of a DMZ is to add an additional layer of security to an organization's local area network (LAN); an external attacker only has access to equipment in the DMZ, rather than any other part of the network.

Ethernet: A standard for computer networks. Ethernet networks are connected by special cables and hubs, and move data around at up to 10/100 million bits per second (Mbps).

Idle Timeout: Idle Timeout is designed so that after there is no traffic on the Internet for a pre-configured amount of time, the connection will automatically get disconnected.

IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP address consists of a series of four numbers separated by periods, which identifies a single, unique Internet computer host in an

IP network. Example: 192.168.2.1. It consists of 2 portions: the IP network address, and the host identifier.

The IP address is a 32-bit binary pattern, which can be represented as four cascaded decimal numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa” can be anything from 000 to 255, or as four cascaded binary numbers separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb, where each “b” can be either

0 or 1.

A network mask is also a 32-bit binary pattern, and consists of consecutive leading

1’s followed by consecutive trailing 0’s, such as 11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be described simply as “x” number of leading 1’s.

When both are represented side by side in their binary forms, all bits in the IP address that correspond to

1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID.

88

DG-BG4300NU User Manual

For example, if the IP address for a device is, in its binary form,

11011001.10110000.10010000.00000111, and if its network mask is,

11111111.11111111.11110000.00000000

It means the device’s network address is

11011001.10110000.10010000.00000000, and its host ID is,

00000000.00000000.00000000.00000111. This is a convenient and efficient method for routers to route

IP packets to their destination.

ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for the

Internet router located at the ISP's office.

ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations.

LAN: Local Area Network. A LAN is a group of computers and devices connected together in a relatively small area (such as home or office). Your home network is considered a LAN.

MAC Address: MAC stands for Media Access Control. A MAC address is the hardware address of a device connected to a network. MAC address is a unique identifier for a device with an Ethernet interface.

It is comprised of two parts: 3 bytes of data that correspond to the Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the product’s serial number.

NAT: Network Address Translation. This process allows all the computers on your home network to use one IP address. Using the broadband router’s NAT capability, you can access Internet from any computer on your home network without having to purchase more IP addresses from your ISP.

Port: Network Clients (LAN PC) uses port numbers to distinguish one network application/protocol over another. Below is a list of common applications and protocol/port numbers:

Application Protocol

Port

Number

SNMP Trap

PC Anywhere

UDP

TCP

162

5631

PC Anywhere UDP 5632

Port triggering: Port triggering is a configuration option on a NAT-enabled router that allows a host machine to dynamically and automatically forward a specific port back to itself. Port triggering opens an incoming port when your computer is using a specified outgoing port for specific traffic.

89

DG-BG4300NU User Manual

PPPoE: (Point-to-Point Protocol over Ethernet.) Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections. PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point Protocol. It is a communication protocol for transmitting information over Ethernet between different manufacturers.

Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that when they interface with each other based on such a protocol, the interpretation of their behavior is well defined and can be made objectively, without confusion or misunderstanding.

Router: A router is an intelligent network device that forwards packets between different networks based on network layer address information such as IP addresses.

Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to create IP address numbers used only within a particular network (as opposed to valid IP address numbers recognized by the

Internet, which must be assigned by InterNIC).

TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable Datagram

Protocol (UDP). TCP/IP is the standard protocol for data transmission over the Internet. Both TCP and

UDP are transport layer protocols. TCP performs proper error detection and error recovery, and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet Protocol), a network layer protocol.

WAN: Wide Area Network. A network that connects computers located in geographically separate areas

(e.g. different buildings, cities, countries). The Internet is a wide area network.

Web-based management Graphical User Interface (GUI): Many devices support a graphical user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft

Internet Explorer to Control/configure or monitor the device being managed.

3G telecommunication networks: Supports services that provide an information transfer rate of at least

200 kbit/s. However, many services advertised as 3G provide higher speed than the minimum technical requirements for a 3G service. Later 3G releases, often denoted 3.5G and 3.75G, also provide mobile broadband access of several Mbit/s to smartphones and mobile modems in laptop computers.

90

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
