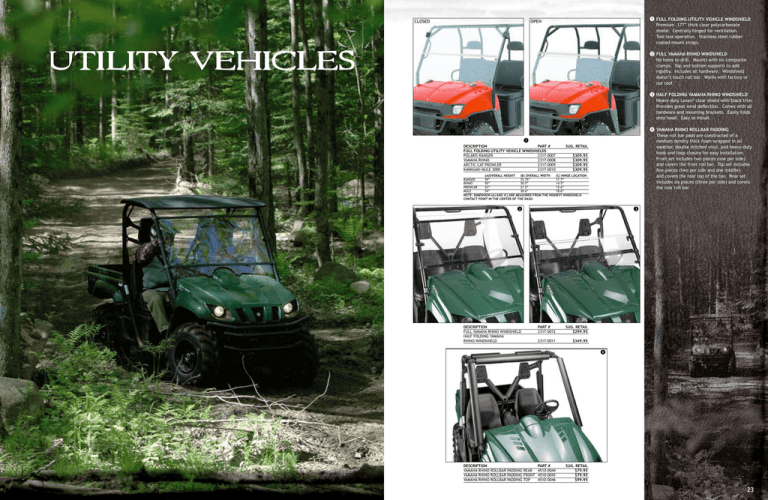

utility vehicles
CLOSED
bFULL FOLDING UTILITY VEHICLE WINDSHIELD
OPEN
Premium .177” thick clear polycarbonate
shield. Centrally hinged for ventilation.
Tool-less operation. Stainless steel rubber
coated mount straps.
UTILITY VEHICLES
cFULL YAMAHA RHINO WINDSHIELD
No holes to drill. Mounts with six composite
clamps. Top and bottom supports to add
rigidity. Includes all hardware. Windshield
doesn’t touch roll bar. Works with factory or
our roof.
dHALF FOLDING YAMAHA RHINO WINDSHIELD
Heavy-duty Lexan® clear shield with black trim.
Provides great wind deflection. Comes with all
hardware and mounting brackets. Easily folds
onto hood. Easy to install.
eYAMAHA RHINO ROLLBAR PADDING
These roll bar pads are constructed of a
medium density thick foam wrapped in all
weather, double stitched vinyl, and heavy-duty
hook-and-loop closure for easy installation.
Front set includes two pieces (one per side)
and covers the front roll bar. Top set includes
five pieces (two per side and one middle)
and covers the rear top of the bar. Rear set
includes six pieces (three per side) and covers
the rear roll bar.
b
DESCRIPTION
PART #
FULL FOLDING UTILITY VEHICLE WINDSHIELDS
Polaris Ranger
2317-0007
Yamaha Rhino 2317-0008
Arctic Cat Prowler
2317-0009
Kawasaki Mule 3000
2317-0010
SUG. RETAIL
$309.95
$309.95
$309.95
$309.95
(A)Overall Height (B) Overall Width (C) Hinge Location
Ranger 59” 35.75”
17.7”
Rhino 50” 30.5”
14.5”
Prowler 53” 31.5”
15.6”
Mule 54” 38.6”
18.6”
NOTE: Dimension (A) and (C) are measured from the highest windshield contact point in the center of the dash.
c
DESCRIPTION
Full Yamaha Rhino Windshield Half folding Yamaha
Rhino Windshield
d
PART #
2317-0012
SUG. RETAIL
$299.95
2317-0011
$349.95
e
DESCRIPTION
Yamaha Rhino Rollbar Padding Rear
Yamaha Rhino Rollbar Padding Front
Yamaha Rhino Rollbar Padding Top
PART #
4510-0044
4510-0045
4510-0046
SUG. RETAIL
$79.95
$79.95
$99.95
23
b
b
e
bYAMAHA RHINO BACK PANEL
Durable foam filled L.L.D.P.E. construction.
Easily mounts to roll cage with supplied
hardware. Designed to compliment your Slim
Line roof. Features sliding rear window,
snap-in, machine washable dust skirt, and
stainless steel components.
cYAMAHA RHINO HARD BED COVER
Unique design allows for water-resistant storage
with maximum accessibility. Easily assembles
to existing holes. Made from durable foam
filled plastic.
dYAMAHA RHINO HALF DOOR SET
Durable foam filled L.L.D.P.E. construction.
Easily mounts to roll cage with supplied
hardware. Designed to minimize flying debris
from entering the passenger compartment.
Adds to the rugged style of your Rhino.
Features easily removable slip hinge doors,
stainless steel hardware and high quality latch
mechanisms. Includes left and right doors.
REAR VIEW
DESCRIPTION
Yamaha Rhino Back Panel
PART #
0521-0293
SUG. RETAIL
$359.95
DESCRIPTION
Yamaha Rhino Sunshade Roof
PART # SUG. RETAIL
$239.95
4510-0032
eYAMAHA RHINO SUNSHADE ROOF
FRONT VIEW
c
c
f
Double wall roto-molded construction. Injected
with foam insulation to stiffen the roof up.
Foam acts as a insulator to cut down on heat
transference. Will not warp. Roof is contoured
toward the middle. Plastic has UV inhibitors to
resist fading. Includes brackets and hardware.
No holes to drill.
f YAMAHA RHINO SLIMLINE ROOF
Provides great protection from the elements.
Super durable, foam filled, double wall plastic
construction. Stainless mounting plates. Easily
mounts to existing roll cage fasteners. Requires
no drilling.
gYAMAHA RHINO LIGHT BAR
Add function and great looks to your Rhino with
this durable, foam filled light bar. Complete
with stainless steel mounting plates and cover.
Accommodates a wide range of lamps selected
by the user, mounts with or without the slim
line roof. Lights sold separately.
DESCRIPTION
PART #
Yamaha Rhino Hard Bed Cover 4510-0037
SUG. RETAIL
$295.95
DESCRIPTION
Yamaha Rhino Slim line Roof
PART # SUG. RETAIL
4510-0033
$279.95
SHOWN MOUNTED ON SLIMLINE ROOF
g
SHOWN WITH SLIM LINE ROOF, HARD BED COVER
FENDERFLARES, BACK PANEL, AND STAINLESS STEEL
FENDER GUARDS
d
DESCRIPTION
Yamaha Rhino Half Door Set
PART #
0521-0294
SUG. RETAIL
$599.95
DESCRIPTION
Yamaha Rhino Light Bar
24
PART # SUG. RETAIL
4510-0034
$269.95
25
b
c
g
bYAMAHA RHINO CENTER CONSOLE
Double wall polyethylene construction. Two
cup holders. Snap lid storage area. Stainless
steel screws included. Mounts to existing
floor holes.
cYAMAHA RHINO CENTER CONSOLE
W/ GPS POCKET
Double wall polyethylene construction. Two
cup holders. Snap lid storage area. Side
GPS pocket. Stainless steel screws included.
Mounts to existing floor holes
dYAMAHA RHINO CENTER CONSOLE
W/ MAP POCKET
Double wall polyethylene construction. Two
cup holders. Snap lid storage area. Map
pocket between cup holders and storage area.
Stainless steel screws included.
eYAMAHA RHINO UNDERSEAT STORAGE BOX
DESCRIPTION
Yamaha Rhino Overhead Stereo mount
DESCRIPTION
Yamaha Rhino Center Console
PART #
4510-0031
SUG. RETAIL
$149.95
DESCRIPTION
Yamaha Rhino Center Console w/GPS Pocket
Drops easily in place beneath the drivers seat.
Features a rugged utility tray with secure nylon
belt and buckle that allows the user to store
tools, manuals, etc. in a easily removable
water-resistant container. Rubber feet
minimize noise while riding.
PART #
SUG. RETAIL
4510-0042
$329.95
PART #
SUG. RETAIL
4510-0035
$159.95
f YAMAHA RHINO SADDLEBOX STORAGE
d
h
e
Durable polyethylene construction. Will not
crack or fade. Fits nicely inside Rhino bed. No
drilling required to the Rhino. Stainless steel
hardware. 1.375 cubic feet of storage each.
Lockable latches (locks sold separately).
Sold as each.
g YAMAHA RHINO OVERHEAD STEREO ASSEMBLY
Marine grade stereo highly recommended.
Durable as well as foam filled. Easily mounts
to existing roll cage fasteners. Comes with 60watt speakers pre-assembled, power antenna,
and stainless steel hardware. Accommodates
a wide range of waterproof stereos selected by
the user (not included).
h YAMAHA RHINO REAR SPEAKER BAR
DESCRIPTION
Yamaha Rhino Rear Speaker Bar
DESCRIPTION
Yamaha Rhino Center Console w/Map Pocket
PART #
SUG. RETAIL
4510-0036
$159.95
DESCRIPTION
PART #
4510-0041
Yamaha Rhino Underseat Storage
PART #
SUG. RETAIL
4510-0039
$319.95
Yamaha Rhino Saddlebox Storage
(sold as each)
26
PART #
4510-0043
SUG. RETAIL
$142.95
iYAMAHA RHINO UNDERDASH STEREO ASSEMBLY
SUG. RETAIL
$99.95
f
DESCRIPTION
Durable, foam filled with stainless steel
mounting plates and cover. Comes with 60-watt
speakers pre-wired. Features snap-on net
storage areas and easily mounts to roll cage
with no drilling.
i
DESCRIPTION
Yamaha Rhino Underdash Stereo mount
Durable, foam filled, easily dash mounted.
Comes with 60-watt speakers, power antenna,
and stainless steel hardware. Accommodates
a wide range of waterproof stereos selected by
the user (not included).
PART #
SUG. RETAIL
4510-0040
$339.95
27
b
DESCRIPTION
FRONT RACK RHINO/RANGER
Universal Front Rack
MOUNTING KITS
Rhino Ranger
PART #
SUG. RETAIL
1512-0037
$112.95
1512-0038
1512-0039
$85.95
$85.95
bFRONT RACK RHINO/RANGER
3/4”powder coated round tubing. Great for
hauling an extra load. The easy release
attachment allows the rack to pivot forward
without having to unbolt or remove the entire
rack system. This feature allows easy access to
the units hood as well as proper clearance to
open the hood of the unit.
cYAMAHA RHINO FRONT BUMPER
1 3/4” powder coated steel tubing. Great for
front protection.
dYAMAHA RHINO LIGHT BAR
Great for night time driving. 1 1/2” powder
coated round tubing. Holds 4 Moose halogen
lights (sold separately). (see pg.52)
eUTILITY VEHICLE REAR BUMPER
c
f
DESCRIPTION
Yamaha Rhino Fender Flares Front
DESCRIPTION
YAMAHA RHINO FRONT BUMPER
PART #
0530-0421
PART #
1420-0025
SUG.
RETAIL
$75.95
SUG. RETAIL
$98.95
2 1/2” powder coated round steel tube. Rhino
and Mule bumper 48 1/2” long, Ranger bumper
61 1/2” long. Great for rear protection. Allows
for opening of tailgate when installed.
fYAMAHA RHINO FENDER FLARES
FRONT & REAR
Durable double wall L.L.D.P.E. construction.
Easily mounts to fenders with supplied stainless
steel hardware. Designed to minimize
flying debris from entering the passenger
compartment while adding to the rugged style
of your Rhino. Front and rear sold seperately.
gYAMAHA RHINO FENDER GUARDS
STAINLESS STEEL
Protect the inner fender walls from being
punctured by logs or rocks. Designed to
improve integrity of the front floorboards for
safety while adding a distinctly tough style to
your vehicle.
d
DESCRIPTION
YAMAHA RHINO LIGHT BAR
PART #
2040-0162
SUG. RETAIL
$71.95
g
DESCRIPTION
Yamaha Rhino Fender Flares Rear
PART #
1420-0026
SUG.
RETAIL
$109.95
DESCRIPTION
PART #
Yamaha Rhino Stainless Fender Guards 4510-0038
SUG.
RETAIL
$199.95
e
DESCRIPTION
UTILITY VEHICLE REAR BUMPER
Ranger
Rhino
Mule 610
Mule 3010
28
PART #
0530-0417
0530-0418
0530-0419
0530-0420
SUG. RETAIL
$155.95
$143.95
$129.95
$119.95
h
29
b
e
bYAMAHA RHINO BED COVER
h
Made from 500-denier waterproof Cordura.
Includes adhesive backed hook-and-loop
closure for mounting to cargo box. Tailgate can
be raised and lowered without removing cover.
cPOLARIS RANGER BED COVER
Made from 500-denier waterproof Cordura.
Includes adhesive backed hook-and-loop closure
for mounting to bed rail.
dKAWASAKI MULE/SUZUKI BED COVER
Made from 500-denier waterproof Cordura.
Includes adhesive backed hook-and-loop closure
for mounting to bed rail.
eYAMAHA RHINO COWL COVER
DESCRIPTION
PART #
SUG. RETAIL
YAMAHA RHINO BED COVER
Black
4510-0003
$89.95
Mossy Oak® Break-Up™ 4510-0004
$89.95
DESCRIPTION
PART #
SUG. RETAIL
YAMAHA RHINO COWL COVER
Black
4510-0009
$163.95
Mossy Oak® Break-Up™ 4510-0010
$163.95
c
DESCRIPTION
PART #
SUG. RETAIL
YAMAHA RHINO BUCKET SEAT COVERS
Black
4510-0007
$104.95
Mossy Oak® Break-Up™
4510-0008
$104.95
Made from 500-denier waterproof Cordura.
Uses plastic clips and adhesive hook-and-loop
closure for a no-drill installation. Protects cowl
from nicks and scratches.
fPOLARIS RANGER COWL COVER
Made from 500-denier waterproof Cordura.
Protects the front of your Ranger from debris.
Uses plastic clips and adhesive hook-and-loop
closure for a no-drill installation.
i
f
gKAWASAKI MULE/SUZUKI COWL COVER
Made from 500-denier waterproof Cordura.
Protects the front of your Mule from debris.
Uses plastic clips and adhesive hook-and-loop
closure for a no-drill installation.
hYAMAHA RHINO BUCKET SEAT COVERS
Made from 500-denier waterproof Cordura.
Elastic outer edge attaches covers to seat
bottom and back.
iPOLARIS RANGER BENCH SEAT COVER
DESCRIPTION
PART #
SUG. RETAIL
POLARIS RANGER BED COVER (02-04)
BlackMUDPR-104
$89.95
Mossy Oak® Break-Up™MUDPR-106
$89.95
POLARIS RANGER BED COVER (05-06)
Black
1404-0089
$89.95
Mossy Oak® Break-Up™ 1404-0090
$89.95
DESCRIPTION
PART #
SUG. RETAIL
POLARIS RANGER BENCH SEAT COVER
BlackMUDPR-112
$104.95
Mossy Oak® Break-Up™MUDPR-114
$104.95
DESCRIPTION
PART #
SUG. RETAIL
POLARIS RANGER COWL COVER
BlackMUDPR-116
$163.95
Mossy Oak® Break-Up™MUDPR-118
$163.95
d
30
DESCRIPTION
PART #
SUG. RETAIL
KAWASAKI MULE COWL COVER
MULE 3000/3010/3020
BlackMUDKM-120
$163.95
Mossy Oak® Break-Up™MUDKM-122
$163.95
MULE TRANSPORT (4-SEATER)
BLACK
0521-0291
$149.95
Mossy Oak® Break-Up™ 0521-0292
$149.95
SUZUKI
QUV 620
BlackMUDKM-120
$163.95
Mossy Oak® Break-Up™MUDKM-122
$163.95
jKAWASAKI MULE/SUZUKI BENCH SEAT COVER
Made from 500-denier waterproof Cordura.
Protects the seat from punctures and
daily wear.
j
NOTE: Black versions of Bed Covers, Roof Caps,
and Cab Enclosures are made of 40 oz. heavyduty, waterproof acrylic vinyl with an elk grain
finish. The same material that is used on pickup truck tonneau covers.
g
DESCRIPTION
PART #
SUG. RETAIL
KAWASAKI MULE BED COVER
MULE 550
BlackMUDKM-132
$89.95
Mossy Oak® Break-Up™MUDKM-134
$89.95
MULE 610
BLACK
0521-0286
$89.95
Mossy Oak® Break-Up™ 0521-0287
$89.95
MULE 2500/3000
BlackMUDKM-108
$89.95
Mossy Oak® Break-Up™MUDKM-110
$89.95
MULE TRANSPORT (4-SEATER)
BLACK
0521-0289
$89.95
Mossy Oak® Break-Up™ 0521-0290
$89.95
SUZUKI
QUV 620
BlackMUDKM-108
$89.95
Mossy Oak® Break-Up™MUDKM-110
$89.95
Made from 500-denier waterproof Cordura.
Protects the seat from punctures and
daily wear.
DESCRIPTION
PART #
SUG. RETAIL
KAWASAKI MULE BENCH SEAT COVER
MULE 550
Mossy Oak® Break-Up™MUDKM-142 $104.95
MULE 610
BLACK
0821-0521
$104.95
Mossy Oak® Break-Up™
0821-0522
$104.95
MULE TRANSPORT (4-SEATER)
BLACK
0821-0523
$194.95
Mossy Oak® Break-Up™
0821-0524
$194.95
MULE 2500/3000
BlackMUDKM-124
$104.95
$104.95
Mossy Oak® Break-Up™MUDKM-126
SUZUKI
QUV 620
BlackMUDKM-124
$104.95
®
Mossy Oak Break-Up™MUDKM-126
$104.95
31
b
bYAMAHA RHINO CAB ENCLOSURE
e
Perfect for winter or rainy weather. Made from
500-denier waterproof Cordura with automotive
grade clear, flexible acrylic windshield, doors
and back window. Doors are completely
removable and have full-length double zippers.
Doors can also be rolled up and fastened.
cKAWASAKI MULE/SUZUKI CAB ENCLOSURE
Perfect for winter or rainy weather. Made from
500-denier waterproof Cordura. Zippered doors
for fast entry; straps keep doors rolled up and
open. Heavy acrylic windshield.
dPOLARIS RANGER CAB ENCLOSURE
DESCRIPTION
PART #
YAMAHA RHINO CAB ENCLOSURE
Black
4510-0001
Mossy Oak® Break-Up™
4510-0002
SUG. RETAIL
$469.95
$469.95
DESCRIPTION
YAMAHA RHINO ROOF CAP
Black
Mossy Oak® Break-Up™
PART #
4510-0005
4510-0006
Perfect for winter or rainy weather. Made from
500-denier waterproof Cordura. Zippered doors
for fast entry; straps keep doors rolled up and
open. Heavy acrylic windshield.
SUG. RETAIL
$83.95
$83.95
eYAMAHA RHINO ROOF CAP
h
Perfect for winter or rainy weather. Made from
500-denier waterproof Cordura. Fastens to cage
with adhesive backed hook-and-loop closures
and heavy web straps.
f
c
DESCRIPTION
Utility vehicle cover
PART #
SUG. RETAIL
4002-0008
$98.95
fKAWASAKI MULE/SUZUKI ROOF CAP
Perfect for winter or rainy weather. Made from
500-denier waterproof Cordura. Includes
adhesive backed hook-and-loop closure for
mounting to roll cage.
gPOLARIS RANGER ROOF CAP
Perfect for winter or rainy weather. Made from
500-denier waterproof Cordura. Fastens to cage
with buckled straps. Measures 120” L X 65” W
X 76” H.
hUTILITY VEHICLE COVER
DESCRIPTION
PART #
sug. retail
KAWASAKI MULE CAB ENCLOSURE
MULE 550 (DOORS NOT INCLUDED W/ 550 MODEL)
BlackMUDKM-128
$374.95
Mossy Oak® Break-Up™MUDKM-130
$374.95
MULE 610
$469.95
BLACK
0521-0282
Mossy Oak® Break-Up™
0521-0283
$469.95
MULE 2500
BlackMUDKM-100
$469.95
Mossy Oak® Break-Up™MUDKM-102
$469.95
MULE 3000
BlackMUDKM-104
$469.95
Mossy Oak® Break-Up™MUDKM-106
$469.95
SUZUKI
QUV 620
$469.95
BLACKMUDKM-104
Mossy Oak® Break-Up™MUDKM-106
$469.95
Made from urethane coated black nylon.
Super strong and water-resistant. Made to
fit all utility vehicles. Measures 120” L X
65” W X 76” H.
DESCRIPTION
PART #
SUG. RETAIL
KAWASAKI MULE ROOF CAP
MULE 550
BlackMUDKM-136
$83.95
Mossy Oak® Break-Up™MUDKM-138
$83.95
MULE 610
Black
0521-0284
$83.95
Mossy Oak® Break-Up™
0521-0285
$83.95
MULE 2500/3000
$83.95
BlackMUDKM-116
$83.95
Mossy Oak® Break-Up™MUDKM-118
MULE TRANSPORT (4-SEATER)
Black
0521-0288
$163.95
SUZUKI
QUV 620
BlackMUDKM-116
$83.95
Mossy Oak® Break-Up™MUDKM-118
$83.95
iUTILITY VEHICLE GUN SCABBARD
i
DESCRIPTION
PART #
SUG. RETAIL
UTILITY VEHICLE GUN SCABBARD
Mossy Oak® Break-Up™
4510-0017
$67.95
g
d
Attached quickly to the rear roll bar of any
utility vehicle. Constructed with weatherproof
heavy gauge tarpaulin and high-denier PVC
backed polyester. The case is lined with 1/2”
of protective closed cell foam and convenient
roll up openings, allows quick access to your
weapon from either side of the vehicle. Two
large exterior storage pockets and a center
pocket sized to fit all standard ammo boxes,
providing plenty of room for your
shooting accessories. Dimensions: Overall
54.5”Lx11.5”H 2-front pockets 17”Lx9.25”Hx2”
D 1-center pocket 6”Lx3.75”Hx1.5 D
jUTILITY VEHICLE CONSOLE BAG
Fully structured combing fabric, foam and
hard plastic panels. Insulated inside to protect
your gear and can double as a cooler. Two
insulated external drink holders. Fully
weatherproof, constructed of high-denier
PVC backed polyester fabric. Easily removed
with one strap using quick release buckles.
j
1)MULE LIFT KIT
Lift blocks accommodate to a 1 1/2” overall.
Kits fit only the rear of the 2000 series and only
the front of the 3000 series.
1)
DESCRIPTION
PART #
POLARIS RANGER CAB ENCLOSURE 02-05
BlackMUDPR-100
Mossy Oak® Break-Up™MUDPR-102
32
RETAIL
$469.95
$469.95
DESCRIPTION
PART #
POLARIS RANGER ROOF CAP
BlackMUDPR-108
Mossy Oak® Break-Up™MUDPR-110
RETAIL
$83.95
$83.95
DESCRIPTION
UTILITY VEHICLE CONSOLE
Black
Mossy Oak® Break-Up™
PART #
SUG. RETAIL
BAG
4510-0015
$53.95
4510-0016
$59.95
DESCRIPTION
PART #
MULE LIFT KIT
All 2000/3000 series MulesMUDKLK01
SUG.
RETAIL
NOTE: Black versions of Bed Covers, Roof
Caps, and Cab Enclosures are made of 40 oz.
heavy-duty, waterproof acrylic vinyl with an elk
grain finish. The same material that is used on
pick-up truck tonneau covers.
$64.95
33
b
RACKS/TRUNKS
FITS MODEL
PART #
DROP RACK
ARCTIC CAT
250 2X4/4X4 99-01
1512-0032
300 2X4/4X4 98-01,05
1512-0032
300 5-SPEED 02,04
1512-0032
300i 4X4 03
1512-0032
375 4X4 AUTOMATIC 02
1512-0032
400 2X4/4X4 98-01
1512-0032
400 4X4 (ACT) 5-SPEED / MRP 03-04,06
1512-0032
400 4X4 5-SPEED Value Package 06
1512-0032
400 4X4 AUTOMATIC (ACT) 03,05
1512-0032
400 4X4 AUTOMATIC 02
1512-0032
400i 4X4 5-SPEED 02
1512-0032
400i 4X4 AUTOMATIC 03-06
1512-0032
454 2X4/4X4 96-98
1512-0032
500 4X4 5-SPEED 02,04-06
1512-0032
500 4X4 98-01
1512-0032
500 4X4 AUTOMATIC 00-04
1512-0032
500i 4X4 02-03
1512-0032
500i AUTOMATIC 4X4 02,05-06
1512-0032
650 AUTOMATIC 4X4, V-2 & LE 04-06
1512-0032
650 H-1 4X4 05
1512-0032
bombardier
QUEST 500 4X4 03
1512-0032
TRAXTER 500 4X4 99-01,03
1512-0032
TRAXTER MAX 03-04
1512-0032
TRAXTER XT 500 03,05
1512-0032
QUEST 650 4X4 02
1512-0032
QUEST 650 4X4 03,05
1512-0032
QUEST XT 650 4X4 02
1512-0032
QUEST XT 650 4X4 03
1512-0032
HONDA
TRX 250 RECON 97-05
1512-0032
TRX 300 FOREMAN 2X4/4X4 93-00
1512-0032
TRX 350 RANCHER S/ES 2X4/4X4 00-06
1512-0032
TRX 400 FOREMAN 4X4 95-01
1512-0032
TRX 400 RANCHER AT 4X4 05-06
1512-0032
TRX 400 RANCHER ES 4X4 04
1512-0032
TRX 450 FOREMAN S/ES 4X4 98-04
1512-0032
TRX 500 FOREMAN RUBICON 06
1512-0036
TRX 500 FOREMAN ES, S 05-06
1512-0036
TRX 500 FOREMAN RUBICON GPScape 05
1512-0036
TRX 500 RUBICON 01-04
1512-0032
TRX 650 RINCON 03-06
1512-0036
JOHN DEERE
500 Trail Buck CVT 4x4 05-06
1512-0032
650 Trail Buck CVT 4x4 05-06
1512-0032
KAWASAKI
KLF 220 2X4 BAYOU 88-00
1512-0036
KLF 300 2X4/ 4X4 BAYOU 89-02
1512-0032
KVF 300 2X4 PRAIRIE 01
1512-0032
KVF 300 2X4 PRAIRIE 99-00,02
1512-0036
KVF 300 4X4 PRAIRIE 99-02
1512-0036
360 PRAIRIE 2X4, 4X4 02-03
1512-0032
360 PRAIRIE 4X4 04-06
1512-0036
KLF 400 BAYOU 4X4 93-99
1512-0032
KVF 400 2X4 PRAIRIE 97-00
1512-0036
KVF 400 4X4 PRAIRIE 97-02
1512-0036
650 Brute Force 05-06
1512-0036
KVF 650 PRAIRIE 4X4 02-03
1512-0036
750 BRUTE FORCE 4X4 05-06
1512-0036
KVF 700 PRAIRIE 4X4 04-06
1512-0036
POLARIS
200 Sawtooth 06
1512-0036
250 4X4 XPLORER 00-01
1512-0036
300 2X4 XPRESS 98-99
1512-0036
300 2X4/4X4 94-95
1512-0036
300 4X4 HAWKEYE 06
1512-0036
300 4X4 XPLORER 96-00
1512-0036
325 4X4 MAGNUM 00-01
1512-0036
330 MAGNUM 03-05
1512-0036
330 TRAIL BOSS 03-05
1512-0036
335 4X4 SPORTSMAN 99-00
1512-0036
350L 2X4/4X4 92-93
1512-0036
400 4X4 SPORTSMAN 01-04
1512-0036
400 4X4 XPLORER 95-02
1512-0036
400L 2X4/4X4 94-95
1512-0036
425 2X4/4X4 MAGNUM 95-98
1512-0036
500 4X4 MAGNUM 00
1512-0036
500 4X4 MAGNUM R.M.K. 01
1512-0036
500 4X4 SPORTSMAN 96-02
1512-0036
500 6X6 SPORTSMAN 00-01,03
1512-0036
500 SPORTSMAN H.O. R.S.E./D.U. 00-04
1512-0036
600 SPORTSMAN 03-04
1512-0036
700 4X4 SPORTSMAN 03-04
1512-0036
DIESEL 4X4 99-00
1512-0036
ALL PLASTIC RACK MODELS 03-05
1512-0036
SUZUKI
Ozark 250 2x4 04-06
1512-0032
LTF 250 QUADRUNNER 99-01
1512-0032
LTF 300 KING QUAD 99-02
1512-0032
LTF 300 QUADRUNNER 99-00
1512-0032
400 QUADRUNNER EIGER 5-SPEED & AUTO 02-06
1512-0032
500 QUADRUNNER VINSON 5-SPEED & AUTO 02-04
1512-0032
500 VINSON 5-SPEED & AUTO & LE 05-06
1512-0036
LT 500 QUADMASTER 4X4 00-01
1512-0032
700 King Quad 05-06
1512-0036
LTF 500 QUADRUNNER 4X4 98-02
1512-0032
700 TWIN PEAKS 04-05
1512-0036
FITS MODEL
DROP RACK (con’t)
suzuki (con’t)
yamaha
250 BRUIN 05
YFM 250 BEAR TRACKER 2X4 99-03
YFM 350 BIG BEAR 2X4/4X4 97-99
YFM 350 BRUIN AUTO 4X4 04-06
YFM 400 BIG BEAR 2X4/ 4X4 00-03
YFM 400 BIG BEAR 4X4 04-06
YFM 400 KODIAK 4X4 96-99,05
YFM 400 KODIAK ULTRAMATIC 4X4 00-04
YFM 450 KODIAK AUTO 4X4 04-06
YFM 600 GRIZZLY 4X4 98
YFM 600 GRIZZLY 4X4 99-01
660 GRIZZLY 02-04
660 GRIZZLY 05-06
$199.95
PART #
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
1512-0032
c
FITS MODEL
E-Z LOAD DROP RACK
ARCTIC CAT
250 2X4/4X4 99-01
300 2X4/4X4 98-01,05
300 5-SPEED 02,04
300i 4X4 03
375 4X4 AUTOMATIC 02
400 2X4/4X4 98-01
400 4X4 (ACT) 5-SPEED / MRP 03-04,06
400 4X4 5-SPEED Value Package 06
400 4X4 AUTOMATIC (ACT) 03,05
400 4X4 AUTOMATIC 02
400i 4X4 5-SPEED 02
400i 4X4 AUTOMATIC 03-06
454 2X4/4X4 96-98
500 4X4 5-SPEED 02,04-06
500 4X4 98-01
500 4X4 AUTOMATIC 00-04
500i 4X4 02-03
500i AUTOMATIC 4X4 02,05-06
650 AUTOMATIC 4X4, V-2 & LE 04-06
650 H-1 4X4 05
BOMBARDIER
QUEST 500 4X4 03
TRAXTER 500 4X4 99-01,03
TRAXTER MAX 03-04
TRAXTER XT 500 03,05
QUEST 650 4X4 02
QUEST 650 4X4 03,05
QUEST XT 650 4X4 02
QUEST XT 650 4X4 03
HONDA
TRX250 RECON 97-05
TRX300 FOREMAN 2X4/4X4 93-00
TRX350 RANCHER S/ES 2X4/4X4 00-06
TRX400 FOREMAN 4X4 95-01
TRX400 RANCHER AT 4X4 05-06
TRX400 RANCHER ES 4X4 04
TRX450 FOREMAN S/ES 4X4 98-04
TRX500 RUBICON 01-04
JOHN DEERE
500 Trail Buck CVT 4x4 05-06
650 Trail Buck CVT 4x4 05-06
KAWASAKI
KVF300 2X4 PRAIRIE 01
KLF300 2X4/ 4X4 BAYOU 89-02
360 PRAIRIE 2X4, 4X4 02-03
KLF 400 BAYOU 4X4 93-99
SUZUKI
500 QUADRUNNER VINSON 5-SPEED & AUTO 02-04
LTF 500 QUADRUNNER 4X4 98-02
LT 500 QUADMASTER 4X4 00-01
400 QUADRUNNER EIGER 5-SPEED & AUTO 02-06
LTF300 KING QUAD 99-02
LTF 300 QUADRUNNER 99-00
LTF 250 QUADRUNNER 99-01
YAMAHA
250 BRUIN 05
YFM250 BEAR TRACKER 2X4 99-03
YFM350 BIG BEAR 2X4/4X4 97-99
YFM350 BRUIN AUTO 4X4 04-06
YFM400 BIG BEAR 2X4/ 4X4 00-03
YFM400 BIG BEAR 4X4 04-06
YFM400 KODIAK 4X4 96-99,05
YFM400 KODIAK ULTRAMATIC 4X4 00-04
YFM450 KODIAK AUTO 4X4 04-06
YFM600 GRIZZLY 4X4 99-01
YFM 600 GRIZZLY 4X4 98
YFM660 GRIZZLY 05-06
YFM660 GRIZZLY 02-04
$249.95
bDROP RACK
Increase the hauling capacity of your ATV
by mounting our heavy-duty drop rack over the
existing OEM rack. Drop rack can hold up to
3 five gallon buckets. Constructed from 3/4”
square tubing and 14-gauge 1/2” metal mesh.
Drop rack measures 41” W x 14” L x 11 3/4” D.
cEZ-LOAD DROP RACK
Increase the hauling capacity of your ATV
by mounting our heavy-duty E-Z-load drop
rack over the existing OEM rack. Tailgatestyle back door drops down for easy loading
and unloading. Drop rack can hold up to 3
five gallon buckets. Constructed from 3/4”
square tubing and 14-gauge 1/2” metal mesh.
Drop rack measures 41” W x 14” L x 11 1/2” D.
Attaches in minutes. Mounting hardware
is included.
PART #
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
1512-0033
Note: Drop racks may limit access to some units storage compartments.
35
bQUICK RELEASE MOUNT
b
Mount uses a receiver-style system to attach
many accessories to your ATV. Utilizes more of
your ATV’s rack space. Constructed of 7-gauge
steel. 1” square tubing used for receiver plugs.
c
DESCRIPTION
Quick release mount
(Not for Polaris composite racks)
PART #
1512-0011
SUG. RETAIL
$34.95
DESCRIPTION
Quick release extension tube
PART #
1512-0012
1!
SUG. RETAIL
$15.95
cQUICK RELEASE EXTENSION TUBE
Mounts into the receiver and extends the
accessories away from your ATV.
dQUICK RELEASE 5-GALLON BUCKET HOLDER
d
DESCRIPTION
PART #
SUG. RETAIL
Quick release 5-gal. bucket holder1512-0015
$49.95
e
DESCRIPTION
Quick release chainsaw holder
g
DESCRIPTION
Quick release gun case holder
PART #
SUG. RETAIL
1512-0016
$81.95
PART # SUG. RETAIL
1512-0017
$76.95
DESCRIPTION
Quick release ice auger holder
PART #
SUG. RETAIL
1512-0018
$161.95
h
DESCRIPTION
Quick release universal gun rack
PART #
SUG. RETAIL
1512-0019
$59.95
i
DESCRIPTION
Quick release platform
PART #
SUG. RETAIL
1512-0040
$126.95
j
1)
Note: drop racks may limit access to some unit storage compartments.
DESCRIPTION
Quick release drop rack
not for composite racks
36
PART #
SUG. RETAIL
1512-0013
$268.95
Holds any 5-gallon bucket with a 12” diameter
top. Great for ice anglers. Bucket not included.
f
DESCRIPTION
Quick release EZ-load drop rack
not for composite racks
PART #
SUG. RETAIL
1512-0014
$298.95
FRONT
REAR
FITS MODEL
PART #
PART #
MESH RACKS
ARCTIC CAT
250 4X4 01-06MUD5036MUD5016
300 4X4 00-06MUD5036MUD5016
400 2X4/4X4 00-06MUD5036MUD5016
500 4X4 00-06MUD5036MUD5016
650 4X4 04-06MUD5036MUD5016
BOMBARDIER
TRAXTER XT 99-03
-MUD5016
OUTLANDER 04
1512-0005¹
1512-0006²
RALLY 05-06MUD5036MUD5016
HONDA
TRX250 RECON 97-06MUD5036MUD5016
TRX300 93-00
1512-0029MUD5000
TRX350 RANCHER 00-06
1512-0029MUD5016
TRX400 FOREMAN 95-04
1512-0029MUD5016
TRX400 RANCHER AT 04-06
1512-0029MUD5016
TRX450 FOREMAN 98-04
1512-0029MUD5016
TRX500 RUBICON 01-04
1512-0029MUD5016
TRX500 RUBICON 05-06
1512-0029
1512-0030
TRX500 FOREMAN 05-06
1512-0029
1512-0030
TRX650 RINCON 03-05MUD5036MUD5016
TRX680 RINCON 06MUD5036MUD5016
KAWASAKI
KLF250 BAYOU 03
1512-0029
1512-0030
KLF300 BAYOU 96-99
1512-0029MUD5016
KVF300 PRAIRIE 2X4/4X4 99-02
1512-0029
1512-0030
KVF360 PRAIRIE 03-06
1512-0029MUD5016
KLF400 BAYOU 96-99
1512-0029MUD5016
KVF400 PRAIRIE 97-02
1512-0029
1512-0030
KVF400 PRAIRIE 4X4 99-02
1512-0029
1512-0030
KVF650 PRAIRIE 03 MUD5036MUD5016
650 BRUTE FORCE 05-06
1512-0029MUD5016
KVF700 PRAIRIE 4X4 04-06
1512-0029MUD5016
750 BRUTE FORCE 05-06MUD5036MUD5016
POLARIS
MAGNUM 325 01-02MUD5036
1512-0030
XPEDITION 325 01-02MUD5036
1512-0030
MAGNUM 330 03MUD5036
1512-0030
MAGNUM 330 04-06
-
1512-0030
TRAIL BOSS 330 03-04MUD5036
1512-0030
XPLORER 400 01-02MUD5036
1512-0030
SPORTSMAN 400 01-03MUD5036
1512-0030
SPORTSMAN 400 04
1512-0009
XPEDITION 425 01-02MUD5036
1512-0030
MAGNUM 500 01-02MUD5036
1512-0030
SPORTSMAN 500 01-03MUD5036
1512-0030
SPORTSMAN 500 04
1512-0009
SPORTSMAN 600 03MUD5036
1512-0030
SPORTSMAN 600 04
1512-0009
SPORTSMAN 700 03MUD5036
1512-0030
SPORTSMAN 700 04
1512-0009
DIESEL 4X4 01-02MUD5036
1512-0030
SUZUKI
OZARK 250 99-06MUD5036MUD5016
LTF250F 90-98MUD5036
LT4WD 300 90-98MUD5036
LTF 300F KING QUAD 91-98MUD5036
LT400 EIGER 02-06MUD5036MUD5016
VINSON 500 02-06MUD5036MUD5016
LTF500 QUAD RUNNER 98-02MUD5036MUD5016
TWIN PEAKS 700 04-06
1512-0029MUD5016
KING QUAD 700 05-06MUD5036MUD5016
YAMAHA
YFM250 BRUIN 04-06MUD5036MUD5016
YFM250 BEAR TRACKER 98-04MUD5036MUD5016
YFB250 TIMBERWOLF 96-01MUD5036
YFM350 BRUIN 04-06MUD5036MUD5016
YFM350 BIG BEAR 96MUD5036
YFM350 BIG BEAR 97-99MUD5036MUD5016
YFM400 KODIAK 96-99MUD5036MUD5016
YFM400/450 KODIAK 00-06MUD5036MUD5016
YFM400 BIG BEAR 00-04MUD5036MUD5016
YFM600/660 GRIZZLY 98-06MUD5036MUD5016
$158.95 front, $171.95 rear, ¹RETAIL PRICE $161.95, ²RETAIL PRICE $174.95
eQUICK RELEASE CHAINSAW HOLDER
Designed to hold any type of chainsaw.
Chainsaw not included.
f QUICK RELEASE ICE AUGER HOLDER
Comes with a full-length ice auger boot that
completely encases the auger blade.
Protects your expensive gear from being
damaged by the sharp metal edge of the
blade, while protecting the blade itself.
Designed to fit standard-length augers.
Available in 10” diameter ice auger boot.
Ice auger not included.
g QUICK RELEASE GUN CASE HOLDER
Holds a soft or hard gun case. Adjustable to
fit any case.
h QUICK RELEASE UNIVERSAL GUN RACK
Designed to hold any type of gun. Heavy rubber
coating with a locking device on each clip.
i QUICK RELEASE PLATFORM
3/4” round powder coated square tubing.
Perforated steel. Requires the purchase of two
Quick release mounts.
j QUICK RELEASE DROP RACK
Increase the hauling capacity of your ATV
by mounting our heavy-duty drop rack over
the existing OEM rack. Drop rack can hold up
to 3 five gallon buckets. Constructed from 3/4”
square tubing and 14-gauge 1/2” metal mesh.
Drop rack measures 41” W x 14” L x 11 1/2” D.
Mount uses a receiver style system and comes
with two mount kits; no purchase of mount
is necessary.
1) QUICK RELEASE EZ-LOAD DROP RACK
Increase the hauling capacity of your ATV
by mounting our heavy-duty E-Z-load drop
rack over the existing OEM rack. Tailgate-style
back door drops down for easy loading and
unloading. Drop rack can hold up to 3 five
gallon buckets. Constructed from 3/4” square
tubing and 14-gauge 1/2” metal mesh. Drop
rack measures 41” W x 14” L x 11 1/2” D.
Mount uses a receiver-style system and comes
with two mount kits; no purchase of mount is
necessary. 2” metal mesh.
1! MESH FRONT & REAR RACKS
Increase your hauling capacity by mounting a
rugged, durable rack over your existing OEM
rack. Constructed of heavy-duty 3/4” square
steel tube frame, covered by 16-gauge 1/2”
metal meshing. Front and rear racks are powder
coated. Mounting hardware is included. Front
rack dimensions measure 36” Wide x 15 1/2”
front to rear x 5 1/2” Deep. Rear rack
dimensions measure 41” Wide x 28” front to
rear x 5 1/2” Deep.
37
b
b
e
f
bRACK EXTENSIONS
Powder coated finish for durability and
designed to fit OEM racks. Rear extensions
measure 8” in height; front extensions measure
5” in height. Constructed of 16-gauge tubular
steel, the racks clamp to your existing OEM
racks with supplied hardware. Front and
rear mesh kits are sold separately. Mounting
hardware is included. Rack extension mesh
kits sold separately. One size fits all front
or rear extensions.
cWING GRIP PRO
FRONT
REAR
FITS MODEL
PART #
PART #
RACK EXTENSIONS
ARCTIC CAT
250 2x4 & 4x4 01
-M92-34075
300 4x4 05
-M92-34075
300 2x4 & 4x4 98-99
-M92-34085
300 4x4 MRP 5-speed 04
-M92-34070
300i 4x4 5-speed 3 range 02-03M92-34000
375 4x4 Automatic 02M92-34000
400 4x4 ACT 5-speed 06M92-34040
400 4x4 ACT Automatic 05M92-34010M92-34075
400 4x4 ACT MRP 5-speed 06M92-34040
400 4x4 ACT MRP 5-speed 04
-M92-34070
400 4x4 Auto ACT & 5-speed ACT 03M92-34000
400 4x4 Automatic 02-04M92-34000
400i 4x4 5-speed 02-03M92-34000
400i 4x4 Automatic 05
-M92-34075
454 4x4 96-98
-M92-34070
500 4x4 5-speed 02,04M92-34000
500 4x4 5-speed 99-01
-M92-34070
500 4x4 Automatic 02-04M92-34000
500 4x4 Automatic 00-01
-M92-34070
500 4x4 Automatic TBX 02M92-34000
500i 4x4 5-speed 02M92-34000
500i 4x4 Automatic 02-03M92-34000
650 4X4 Automatic 04
-M92-34070
650 4X4 Automatic LE 04M92-34010
BOMBARDIER
330 Outlander 4x4 04-05
-M92-34083
400 Outlander 4x4 03-04
-M92-34083
400 Outlander Max 4x4 04-05
-M92-34083
400 Outlander Max XT 2x4 05
-M92-34083
400 Outlander XT 4x4 05
-M92-34083
HONDA
TRX 250 2x4 Recon 05
-M92-34075
TRX 250 2x4 Recon 97-04
-M92-34075
TRX 300 2x4 & 4x4 88-00M92-34000M92-34070
TRX 350 2x4 & 4x4 Rancher 00-06M92-34010M92-34070
TRX 400 4x4 95-01M92-34000M92-34070
TRX 400 Rancher AT 4x4 05-06M92-34010M92-34070
TRX 400 Rancher ES 4x4 04-06M92-34010M92-34070
TRX 450 4x4 S/ES 98-04M92-34000M92-34070
TRX 500 4x4 Foreman ES 05M92-34010
TRX 500 4x4 Rubicon 01-04M92-34010M92-34074
TRX 500 Foreman ES, S 06M92-34010
TRX 650 4x4 Rincon 03-05M92-34015M92-34070
TRX 680 4x4 Rincon 06M92-34015M92-34070
KAWASAKI
250 Bayou 2x4 05
-M92-34070
650 Brute Force 06
1512-0034
1512-0035
750 Brute Force 05-06
1512-0034
1512-0035
KLF300 Bayou 2x4 88-98
-M92-34070
KLF300 Bayou 4x4 89-02
-M92-34070
KVF300 Prairie 2x4 01M92-34000M92-34070
KVF360 Prairie 2x4, 4x4 02-06M92-34060M92-34074
KVF400 Prairie 4x4 97-98
-M92-34070
KVF650 Prairie 4x4 03
-M92-34074
FRONT
REAR
FITS MODEL
PART #
PART #
RACK EXTENSIONS (CON’T)
KAWASAKI (CON’T)
KVF700 Prairie 4x4 04-06M92-34040M92-34076
POLARIS
200 Sawtooth 2x4 91-99M92-34060
250 RES Trail Boss 88-90M92-34060
250 Trail Boss 2x4 91-93M92-34060
250 Trail Boss 4x4 89-92M92-34060
250 Trail Boss 4x4 06
1512-0002
1512-0004
300 4x4 00-01M92-34072
300 Magnum 4x4 94-95M92-34060
330 Magnum 2x4 03-05
-M92-34075
330 Trail Boss 04
-M92-34085
350L 2x4 & 4x4 05
-M92-34085
400 Sportsman 4x4 94-97M92-34060
400 Sportsman 4x4 94-95M92-34060
400L 2x4 & 4x4 90-93M92-34060
500 Sportsman 4x4 03
-M92-34085
600 Sportsman 03M92-34061M92-34085
700 Sportsman 04-06M92-34061M92-34085
Big Boss 6x6 04
-M92-34085
Plastic Rack Models 95-03
-M92-34085
SUZUKI
LTF250 Quadrunner 2x4 88-98
-M92-34074
LTF250 Quadrunner 2x4 99-01M92-34070
Ozark 250 2x4 99-01
-M92-34070
LT250 Quadrunner 4x4 87-98
-M92-34074
LT300 King Quad 4x4 91-98
-M92-34074
LT300 King Quad 4x4 02-06
-M92-34060
400 Quadrunner Eiger 4x4 99-02
-M92-34070
400 Quadrunner Eiger-A 4x4 02-06M92-34060M92-34070
500 Quadrunner Vinson 4x4 00-01M92-34000M92-34070
500 Vinson LE 4x4 02-06
-M92-34070
LT500 Quadmaster 4x4 98-01M92-34000M92-34070
LT500 Quadrunner 4x4 02-03M92-34060M92-34070
700 King Quad 05-06
1512-0002M92-34070
700 Twin Peaks 05
1512-0002M92-34070
YAMAHA
YFM125 Grizzly 2x4 05-06
-
YFM250 Bruin 05M92-34060
1512-0004
YFB250 Timberwolf 2x4 & 4x4 96-00
-M92-34070
YFM250 Bear Tracker 2x4 99-03M92-34010M92-34074
YFM350 Big Bear 4x4 87-99
-M92-34070
YFM350 Bruin 4x4 05-06M92-34060
1512-0004
YFM350 Bruin Auto 4x4 04M92-34010
1512-0004
YFM350 FX Wolverine 00-03
-M92-34070
YFM400 Big Bear 4x4 01-02, 04-06M92-34060M92-34074
YFM400 Big Bear 4x4 00
-M92-34074
YFM400 Kodiak 4x4 03-05M92-34010
1512-0004
YFM400 Kodiak 4x4 93-99
-M92-34070
YFM400 Kodiak Ultramatic 4x4 00-02M92-34000M92-34070
YFM450 Kodiak Auto 4x4 04-06M92-34060M92-34070
YFM600 Grizzly 4x4 99-01
-M92-34070
YFM600 Grizzly 4x4 98
-M92-34070
YFM660 Grizzly 4x4 02-06M92-34060M92-34070
front rack extension starting @ $61.95 rear rack extension starting @
$70.95 front mesh kit $14.95 rear mesh kit $14.95
c
DESCRIPTION
PART #
Wing grip proM92-21193
38
SUG. RETAIL
$22.95
DESCRIPTION
Rack maximizer
PART #
SUG. RETAIL
1512-0028
$99.95
DESCRIPTION
PART #
GAS CAN CARRIER
2 gal. holderMUD4713
SUG. RETAIL
$55.95
$44.95
Bracket for Polaris comp. racks (98-04)
inside dimensions 12 1/4” x 8” note: Not for Honda Rincon
g
MUD4674
$19.95
g
Adjustable straps securely cushion and hold
short and long handled tools on your ATV rack.
Holds tools vertically and horizontally. Mounts
to tubular and composite racks.
dICE AUGER CARRIER
Designed to safely and conveniently transport
gas powered ice augers with up to 10” diameter
blades. Mounts to all tubular and composite
racks. Three point rubberized mounting system
cushions and protects. Ice auger not included.
eRACK MAXIMIZER
Quick, easy and versatile. Adjustable to fit any
model ATV and rack. Features two buckets,
77/8” x 9” x 5” that can carry coolers, gas cans
or other cargo. Adjustable cross bar is perfect
to mount any of our gun rack systems to carry
guns, bows, shovels, etc.
f GAS CAN CARRIER
DESCRIPTION
PART # SUG. RETAIL
FRONT ALUMINUM ATV BOX 3505-0047
$179.95
Shown with center storage compartment removed
DESCRIPTION
REAR ALUMINUM ATV BOX
PART # SUG. RETAIL
3505-0048
$199.95
h
h
h
h
Fits on front or rear tubular metal ATV racks.
Holds Wedco gas cans; not included.
g FRONT AND REAR ALUMINUM ATV BOXES
Gas-mounted shock replaces former chain-hinge
for improved box access and noise reduction
while on the trail. Weather stripping added
to lid reduces noise and provides additional
protection from the elements. Rugged
diamond plate aluminum construction is rust
resistant and more durable then plastic or
cloth. Attractive black powder coated finish
resists cracking and fading while minimizing reflection from the sun. Black stainless
steel latches with double post hooks provide
extra security. Drain and ventilation holes
provide for air circulation and easy cleaning.
Mount kit included for easy, secure attachment. Some drilling required. Dimensions:
Front– 32”Lx12”Wx6”H Rear – 32”Lx14”Wx14”H.
Includes an anti-slip/protective mat. Lockable
latches with two keys.
h EXECUTIVE STORAGE TRUNK
Made from easy to clean, high impact resistant
polyethylene. Center storage compartment
removes and allows more space for relaxing
while stopped. Not for use as a seat while
riding. UV stabilized. Fits all ATV’s. Measures
35 1/2” L x 15 1/2” W x 15” H. Seat size 20
1/2”W x 15 1/2”L.
d
DESCRIPTION
PART #
Ice auger carrierM92-21194
SUG. RETAIL
DESCRIPTION
PART #
EXECUTIVE STORAGE TRUNK
BlackMUDT10
RedMUDT12
GreenMUDT14
REPLACEMENT PARTS
CENTER TRUNK BLACK
3550-0063
ARM LID LEFT W/PAD
3550-0064
ARM LID RIGHT W/PAD
3550-0065
ARM PAD LEFT W/PAD
3550-0066
ARM PAD RIGHT W/PAD
3550-0067
SUG. RETAIL
$298.95
$298.95
$298.95
$56.95
$56.95
$56.95
$16.95
$16.95
39
b
b
b
bBUCKET STORAGE TRUNK
Durable L.L.D.P.E. construction, easily mounts
to your ATV with supplied stainless steel u-bolts
and quick release knobs. Designed to accept
standard five gallon buckets. Sidesaddle
compartments provide spacious water resistant
storage. Cup holders allow for up to a 32 oz.
beverage. Soft foam back rest for maximum
comfort during break time while resting on
the trail. Features all stainless steel hardware
with pad-lock adjustable latches. Insert box
included in set, designed to nest in the bucket
storage area and may also be used as a front
storage box. Insert box features built in
handles for carrying.
cREAR LOUNGER TRUNK
Durable L.L.D.P.E. construction. Easily mounts
to your ATV with supplied stainless steel
u-bolts and quick release knobs. Designed for
maximum comfort during break time while
providing spacious water resistant storage.
Features all stainless steel hardware, pad-lock
adjustable latches, and secure rear access
storage trunk with drain plugs to allow for
storage of cold items with ice.
dFRONT STORAGE TRUNK
DESCRIPTION
BUCKET STORAGE TRUNK DELUXE
PART #
3505-0036
SUG. RETAIL
$369.95
c
Durable L.L.D.P.E. construction with double
wall lid. Easily mounts to your ATV with
supplied stainless steel u-bolts and quick
release knobs. Product may also be secured
with bungee straps. Designed to provide
maximum water resistant storage. Features
all stainless steel hardware and pad-lock
adjustable latches.
NOTE: L.L.D.P.E. refers to Linear Low
Density Polyethylene.
DESCRIPTION
rear lounger storage trunk
PART #
3505-0034
SUG. RETAIL
$329.95
PART #
3505-0035
SUG. RETAIL
$129.95
d
DESCRIPTION
FRONT STORAGE TRUNK 40
41
b
c
d
g
h
bDIPLOMAT TRUNK
Made from easy to clean, high impact-resistant
polyethylene. UV stabilized. Center area
allows more space for relaxing while stopped.
Not for use as a seat while riding. Fits all ATV’s.
Measures 42 1/4” L x 27” W x 18” H. Seat size
23 1/2”W x 15 1/4”L. cEXPLORER STORAGE TRUNK
Made from easy to clean, high impact-resistant
polyethylene. UV stabilized. Large 12”
opening will fit chain saw, helmets etc.
Urethane molded back pad. U-bolts for
permanent mounting and 6 quick release tie
down straps for temporary mounting.
Measures 35 1/2” L x 19 1/2” W x 16” H.
b
c
g
d
h
dSPORTSMAN STORAGE TRUNK
Made from easy to clean, high impact resistant
polyethylene. Large access door for storage. UV
stabilized. Fits all ATV’s. Measures 35 1/2” L x
15 1/2” W x 16” H.
eFRONT CARGO BOX
Durable polyethylene with UV stabilizers.
Rubber seal keeps water and dust out. Comes
with necessary hardware, lockable latches,
and durable molded-in hinges. Made in the USA
Dimensions: 34” x 18” x 8”, 2.26 cubic
feet capacity.
DESCRIPTION
Ultra archery cargo box
b
c
PART #
SUG. RETAIL
3505-0027
$279.95
d
DESCRIPTION
FRONT AND REAR BASKETS
Front
Rear
PART #
3505-0025
3505-0026
SUG. RETAIL
$71.95
$108.95
i
i
f REAR CARGO BOX
Durable polyethylene with UV stabilizers.
Rubber seal keeps water and dust out. Fits
bows and most guns, and allows seat access.
Comes with necessary hardware, lockable
latches, and durable molded-in hinges. Made in
the USA Dimensions: 46” x 23” x 12”, 4.2 cubic
feet capacity.
g ULTRA ARCHERY CARGO BOX
DESCRIPTION
PART #
SUG. RETAIL
DIPLOMAT STORAGE TRUNK
Black
3505-0031
$285.95
Red
3505-0032
$285.95
Green
3505-0033
$285.95
DESCRIPTION
PART #
EXPLORER STORAGE TRUNK
BlackMUDT30
RedMUDT32
Green
MUDT34
SUG. RETAIL
$218.95
$218.95
$218.95
DESCRIPTION
PART #
SUG. RETAIL
SPORTSMAN STORAGE TRUNK
Black
3505-0013
$213.95
Red
3505-0014
$213.95
Green
3505-0015
$213.95
Polaris models w/stock rack extension
(black only)
3505-0016
$213.95
DESCRIPTION
PART #
TRAPPER FRONT STORAGE TRUNK
With two, 1 gallon Wedco gas cans¹MUDT40
Without two, 1 gallon Wedco gas cans 3505-0005
¹Not legal for sale in CA, NY, PA, DE, MD per Code of
Regulations, sections 2467-2467.8.
Gas cans not AVAILABLE AS A SEPERATE ITEM.
No other product like it. Fits bow with quiver
installed. Fits bows up to 44” axle to axle
length. Protection foam keeps items safe.
Removable foam for year-round use. Custom
molded basket on the cover. Fits most racks
front or back. Durable polyethylene with UV
stabilizers. Rubber seal - keeps water and
dust out. Lockable latches. Durable molded
in hinges. Dimensions: 46” x 22” x 11”, 2.66
inside cubic feet, 1.15 top cubic feet. Made in
the USA .
SUG. RETAIL
$162.95
$142.95
h FRONT AND REAR BASKETS
j
e
f
Durable polyethylene with UV stabilizers,
double wall construction and molded-in drains.
Made in the USA. Dimensions: Front – 34” x 17”
x 5”, 1.3 cubic feet capacity; Rear – 45” x 22” x
11”, 4.9 cubic feet capacity.
i TRAPPER FRONT STORAGE TRUNK
Made from easy to clean, high impact-resistant
polyethylene. UV stabilized. Built-in enclosure
for 1.25 gallon gas cans, which are included.
U-bolts for permanent mounting and 6 quick
release tie down straps for temporary
mounting. Fits all ATV’s. Measures 32” L x 15”
W x 9 3/4” H.
j PROSPECTOR FRONT STORAGE TRUNK
Made from easy to clean, high impact-resistant
polyethylene. UV stabilized. Comes equipped
with locking latches and side reflectors.
Secured with either quick-release tie downs or
U-bolts for permanent mounting. Top versatile
storage area with foam hand grips.
Measures 33” L x 17” W x 8” H
DESCRIPTION
Front cargo box
42
PART #
3505-0023
SUG. RETAIL
$125.95
DESCRIPTION
Rear cargo box
PART #
3505-0024
SUG. RETAIL
$183.95
DESCRIPTION
PART # SUG. RETAIL
Prospector front storage trunk3505-0006
$162.95
43
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
