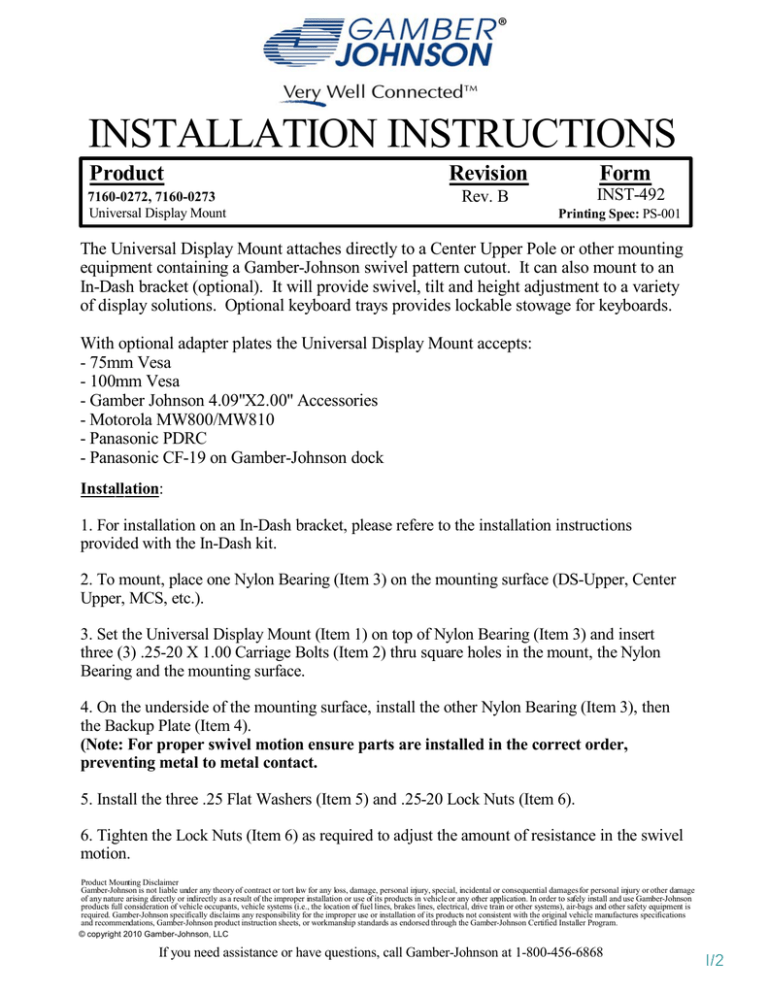

INSTALLATION INSTRUCTIONS
Product
7160-0272, 7160-0273
Universal Display Mount
Revision
Form
INST-492
Rev. B
Printing Spec: PS-001
The Universal Display Mount attaches directly to a Center Upper Pole or other mounting
equipment containing a Gamber-Johnson swivel pattern cutout. It can also mount to an
In-Dash bracket (optional). It will provide swivel, tilt and height adjustment to a variety
of display solutions. Optional keyboard trays provides lockable stowage for keyboards.
With optional adapter plates the Universal Display Mount accepts:
- 75mm Vesa
- 100mm Vesa
- Gamber Johnson 4.09"X2.00" Accessories
- Motorola MW800/MW810
- Panasonic PDRC
- Panasonic CF-19 on Gamber-Johnson dock
Installation:
1. For installation on an In-Dash bracket, please refere to the installation instructions
provided with the In-Dash kit.
2. To mount, place one Nylon Bearing (Item 3) on the mounting surface (DS-Upper, Center
Upper, MCS, etc.).
3. Set the Universal Display Mount (Item 1) on top of Nylon Bearing (Item 3) and insert
three (3) .25-20 X 1.00 Carriage Bolts (Item 2) thru square holes in the mount, the Nylon
Bearing and the mounting surface.
4. On the underside of the mounting surface, install the other Nylon Bearing (Item 3), then
the Backup Plate (Item 4).
(Note: For proper swivel motion ensure parts are installed in the correct order,
preventing metal to metal contact.
5. Install the three .25 Flat Washers (Item 5) and .25-20 Lock Nuts (Item 6).
6. Tighten the Lock Nuts (Item 6) as required to adjust the amount of resistance in the swivel
motion.
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2010 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
1/2
2
1
3
NYLON BEARINGS SEPERATE
ALL METAL SURFACES
DS-UPPER SHOWN FOR
REFERENCE ONLY
4
5
6
Use:
1. The Universal Display Mount is designed to work with a variety of displays. Mount the
display adapter according to the installation instructions povided with the display adapter kit.
2. The angle of the display can be adjusted by simply pulling or pushing on the display. To
adjust the amount of tension on the pivot, loosen or tighten the adjustment handle.
3. In severe environments, it may be necessary to lock the display angle. This can be done by
inserting a 1/4" bolt or pin into the provided holes. This will lock the display at 5 degrees.
4. Optional hardware bag 7120-0569 can be used to raise keyboard if desired.
Adjustement Handle
Display Angle
Lock Holes
Optional 7120-0569
Keyboard Riser Kit
2/2
