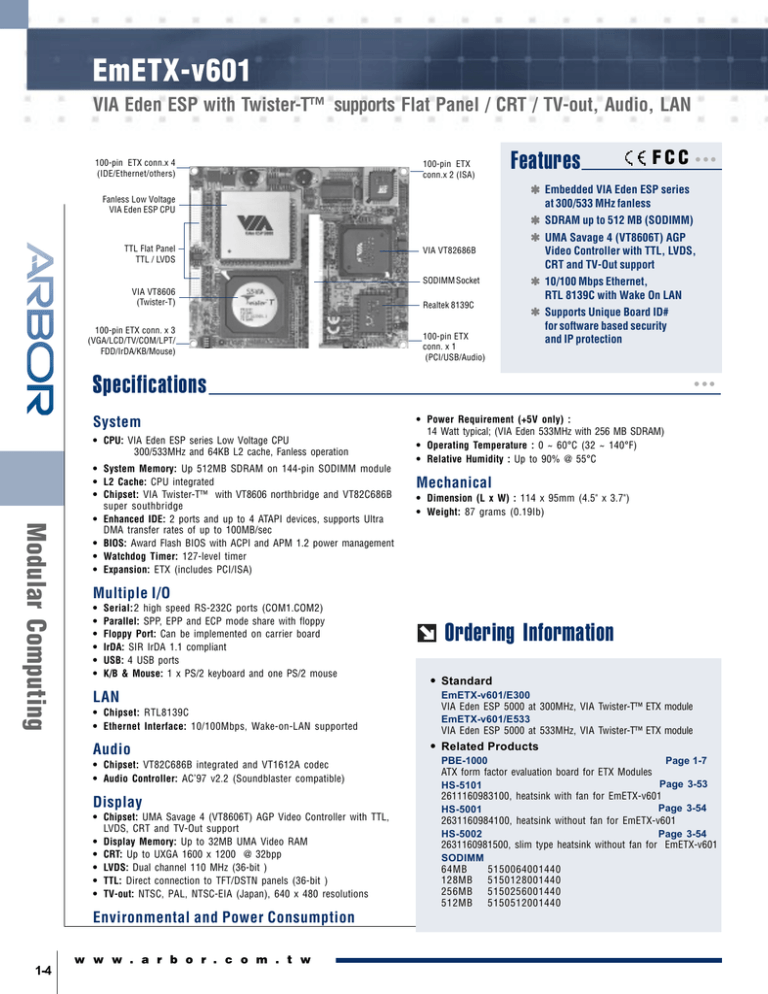

EmETX-v601
EmETX-v601
VIA Eden ESP with Twister-T™ supports Flat Panel / CRT / TV-out, Audio, LAN
100-pin ETX conn.x 4
(IDE/Ethernet/others)
100-pin ETX
conn.x 2 (ISA)
VIA VT82686B
SODIMM Socket
VIA VT8606
(Twister-T)
100-pin ETX conn. x 3
(VGA/LCD/TV/COM/LPT/
FDD/IrDA/KB/Mouse)
FCC
✱ Embedded VIA Eden ESP series
at 300/533 MHz fanless
Fanless Low Voltage
VIA Eden ESP CPU
TTL Flat Panel
TTL / LVDS
Features
Realtek 8139C
100-pin ETX
conn. x 1
(PCI/USB/Audio)
✱ SDRAM up to 512 MB (SODIMM)
✱ UMA Savage 4 (VT8606T) AGP
Video Controller with TTL, LVDS,
CRT and TV-Out support
✱ 10/100 Mbps Ethernet,
RTL 8139C with Wake On LAN
✱ Supports Unique Board ID#
for software based security
and IP protection
Specifications
System
• CPU: VIA Eden ESP series Low Voltage CPU
300/533MHz and 64KB L2 cache, Fanless operation
Modular Computing
• System Memory: Up 512MB SDRAM on 144-pin SODIMM module
• L2 Cache: CPU integrated
• Chipset: VIA Twister-T™ with VT8606 northbridge and VT82C686B
super southbridge
• Enhanced IDE: 2 ports and up to 4 ATAPI devices, supports Ultra
DMA transfer rates of up to 100MB/sec
• BIOS: Award Flash BIOS with ACPI and APM 1.2 power management
• Watchdog Timer: 127-level timer
• Expansion: ETX (includes PCI/ISA)
Mechanical
• Dimension (L x W) : 114 x 95mm (4.5" x 3.7")
• Weight: 87 grams (0.19Ib)
Multiple I/O
•
•
•
•
•
•
Serial: 2 high speed RS-232C ports (COM1.COM2)
Parallel: SPP, EPP and ECP mode share with floppy
Floppy Port: Can be implemented on carrier board
IrDA: SIR IrDA 1.1 compliant
USB: 4 USB ports
K/B & Mouse: 1 x PS/2 keyboard and one PS/2 mouse
LAN
• Chipset: RTL8139C
• Ethernet Interface: 10/100Mbps, Wake-on-LAN supported
Audio
• Chipset: VT82C686B integrated and VT1612A codec
• Audio Controller: AC’97 v2.2 (Soundblaster compatible)
Display
• Chipset: UMA Savage 4 (VT8606T) AGP Video Controller with TTL,
LVDS, CRT and TV-Out support
• Display Memory: Up to 32MB UMA Video RAM
• CRT: Up to UXGA 1600 x 1200 @ 32bpp
• LVDS: Dual channel 110 MHz (36-bit )
• TTL: Direct connection to TFT/DSTN panels (36-bit )
• TV-out: NTSC, PAL, NTSC-EIA (Japan), 640 x 480 resolutions
Environmental and Power Consumption
w w w . a r b o r . c o m . t w
1-4
• Power Requirement (+5V only) :
14 Watt typical; (VIA Eden 533MHz with 256 MB SDRAM)
• Operating Temperature : 0 ~ 60°C (32 ~ 140°F)
• Relative Humidity : Up to 90% @ 55°C
Ordering Information
• Standard
EmETX-v601/E300
VIA Eden ESP 5000 at 300MHz, VIA Twister-T™ ETX module
EmETX-v601/E533
VIA Eden ESP 5000 at 533MHz, VIA Twister-T™ ETX module
• Related Products
PBE-1000
Page 1-7
ATX form factor evaluation board for ETX Modules
Page 3-53
HS-5101
2611160983100, heatsink with fan for EmETX-v601
Page 3-54
HS-5001
2631160984100, heatsink without fan for EmETX-v601
HS-5002
Page 3-54
2631160981500, slim type heatsink without fan for EmETX-v601
SODIMM
64MB
5150064001440
128MB
5150128001440
256MB
5150256001440
512MB
5150512001440
