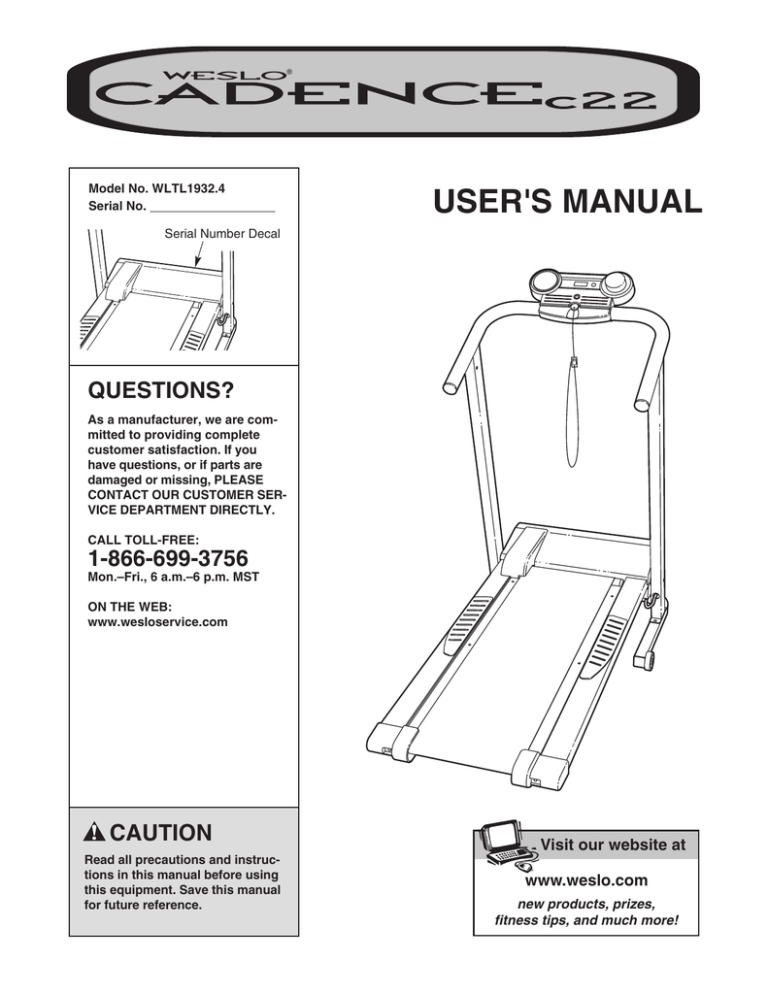

user`s manual - icon service

Model No. WLTL1932.4

Serial No.

Serial Number Decal

QUESTIONS?

As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE

CONTACT OUR CUSTOMER SER-

VICE DEPARTMENT DIRECTLY.

CALL TOLL-FREE:

1-866-699-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB: www.wesloservice.com

USER'S MANUAL

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

Visit our website at www.weslo.com

new products, prizes, fitness tips, and much more!

V

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING, a PART LIST, and a PART IDENTIFICATION CHART are attached in the center of this manual. Save them for future reference.

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should not be used by persons weighing more than 250 pounds.

8. Never allow more than one person on the treadmill at a time.

9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill.

Athletic support clothes are recommended for both men and women.

Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor

(not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local WESLO dealer or call the toll-free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store.

12. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

13. Keep the power cord and the surge suppressor away from heated surfaces.

14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAIN-

TENANCE AND TROUBLESHOOTING on page

12 if the treadmill is not working properly.)

15. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

2

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

17. Never leave the treadmill unattended while it is running. Always remove the key and unplug the power cord when the treadmill is not in use.

18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO MOVE

THE TREADMILL on page 11.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

21. Inspect and tighten all parts of the treadmill regularly.

22. Never drop or insert any object into any opening.

23.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

19. Do not change the incline of the treadmill by placing objects under the treadmill.

20. When folding or moving the treadmill, make sure that the storage latch is fully closed.

24. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown here have been placed on your treadmill. If a decal is missing, or if it is not legible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown. Note: The decals are not shown at actual size.

3

BEFORE YOU BEGIN

Thank you for selecting the WESLO ® CADENCE C22 treadmill. The CADENCE C22 treadmill combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home. And when you’re not exercising, the unique CADENCE C22 treadmill can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before calling. The model number of the treadmill is WLTL1932.4. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

To avoid a registration fee for any service needed under warranty, you must register the treadmill at www.wesloservice.com/registration.

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

Console

Water Bottle Holder

(Bottle not included)

Handrail

Key/Clip

LEFT SIDE

Grip Tape

Walking Belt

RIGHT SIDE

Hood

Power Cord

Circuit Breaker

Front Wheel

Incline Leg

Rear Roller

Adjustment Bolt

4

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires a phillips screwdriver and two adjustable wrenches .

Note: To identify small parts used during assembly, see the PART IDENTIFICATION CHART in the center of this manual.

1. With the help of a second person, carefully tip the treadmill onto its right side as shown.

Identify the Left Upright (17), which does not have a large round hole near the lower end. (Note: There may be identification decals on the Uprights.) Hold the Left Upright so the indicated small hole is in the position shown, and hold a Frame Spacer (13) between the Left Upright and the

Frame (55). Finger tighten a Frame Bolt (10) with a

Washer (11) and a Star Washer (69) through the Left

Upright and the Frame Spacer into the Frame as shown.

Note: Do not tighten the bolts used in steps 1, 2, and 4 until step 4 is completed.

See drawing 1b. With the help of a second person, tip the treadmill onto its left side.

Hold the Right Upright (6) so the indicated large hole is in the position shown. Insert the Wire Harness (22) into the large hole and out of the top of the Right Upright.

Hold a Frame Spacer (13) between the Right Upright (6) and the Frame (55). Finger tighten a Frame Bolt (10) with a Washer (11) and a Star Washer (69) through the Right

Upright and the Frame Spacer into the Frame.

1a

1b

13

11

69

69

11

10

55

10

17

6

Small

Hole

Large

Hole

13

55

2. With the help of a second person, attach the Base (28) to the Right Upright (6) with two Upright Bolts (30), two

Washers (11), and two Nuts (36).

Attach the Base (28) to the Left Upright (not shown) in the same way.

Attach four Base Pads (19) to the bottom of the Base (28) with four 3/4” Tek Screws (24) (only one Base Pad is shown).

2

36

6

5

11

30

19

24

28

3. Hold the Handrail (16) near the Right Upright (6) and the

Left Upright (17) as shown. If there are plastic ties in the three holes in the Handrail indicated by the short arrows, remove the plastic ties. Next, Insert the Wire Harness

(22) into the indicated bracket on the Handrail and out of the round hole in the center of the Handrail; if necessary, use needlenose pliers to pull the Wire Harness out of the hole.

Be careful not to damage the Wire Harness.

Then, insert the brackets on the Handrail into the

Uprights.

Remove the tape from the connectors on the end of the

Wire Harness (22).

With the help of a second person, raise the treadmill to the vertical position.

3

16

Bracket

22

6

22

Connectors

17

4. Loosely attach the Handrail (16) to the Uprights (6, 17) with two Handrail Bolts (12) and two Washers (11).

Loosely attach the Console Plate (4) to the Handrail (16) with two Console Bolts (79) and two Washers (11). Insert the Battery Cover (8) into the Console Plate, with the hinges in the position shown.

Have a second person raise the treadmill frame to the vertical position (see drawing 1 of HOW TO FOLD THE

TREADMILL FOR STORAGE on page 11).

While the frame is being held, tighten the bolts used in steps 1,

2, and 4. Make sure that no part of the treadmill rubs on the treadmill frame when it is lowered and raised.

4

5. Carefully raise the Frame (55) to the vertical position.

Attach the Storage Latch (77) to the Frame with three

3/4” Screws (65).

5

16

12

11

17

11

79

11

79

4

Hinges

8

12

11

6

55

77

65

6

6. Hold the Console (1) near the Console Plate (4).

Touch the Handrail (16) to discharge any static.

Locate the two wires in the Wire Harness (22) that have

L-shaped connectors on the ends. Press the connectors onto the two tabs on the switch shown in inset drawing

6a. Connect the other two wires in the Wire Harness to the back of the Console (1) in the locations shown by the arrows in drawing 6.

If the connectors do not fit to-

gether easily, rotate them and then connect them.

Set the Console (1) on the Console Plate (4).

IMPOR-

TANT: Keep the Wire Harness (22) away from the battery access opening and the indicated bosses. Make sure that no wires are pinched.

Finger tighten the five 3/4” Screws (65) into the Console

Plate (4) and the Console (1)

only in the locations shown and

not in the indicated hole. IMPORTANT: Make sure

that no wires are damaged by the Screws. After all five

Screws have been started, firmly tighten them.

6

Boss

Battery

Access

1

22

6a

16

Tabs

65

No

Screw

65

Boss

4

7. Note: The Console (1) requires two "AA" batteries (not included). Alkaline batteries are recommended.

Before inserting batteries into the Console (1), touch

the Handrail (16) to discharge any static. Next, open the Battery Cover (8). Press two batteries into the battery compartment, with the negative (–) ends of the batteries touching the springs. Then, close the battery cover, push up on the tab, and push the tab forward as shown in the inset drawing.

Make sure that the tab locks into place.

7

1

16

Batteries

8

8

Tab

8. Attach a Wheel (15) to each side of the Base (28) with a

Wheel Bolt (14) and a Nut (36).

8

28

36

15

14

9.

Make sure that all parts used in assembly are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet, place a mat under the treadmill.

7

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with highperformance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

DANGER:

Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock.

Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

an equipment-grounding conductor and a grounding plug.

Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

1

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off.

To decrease the possibility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call 1-866-699-

3756 and order part number 146148, or see your local electronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate or stop unexpectedly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having

2

Grounding Pin

Grounded Outlet

Grounding Plug

Grounded Outlet Box

Lug

Metal Screw

Adapter

Surge Suppressor

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place by a metal screw.

Some 2-pole receptacle outlet box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

8

DIAGRAM OF THE CONSOLE

Monitor Display

Water Bottle

Holder

(Bottle is not included)

Speed Control

Key

Clip

CAUTION:

Before operating the console, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing above) while operating the treadmill. When the key is removed from the console, the walking belt will stop.

• Adjust the speed in small increments.

• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and use only a sealable water bottle.

STEP-BY-STEP CONSOLE OPERATION

Step onto the foot pads on the treadmill. Find the clip attached to the key (see the drawing above), and slide the clip onto the waistband of your clothes. Next, insert the key into the console.

Test the clip by carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.

Then, remove the key from the console.

Follow the steps below and on page 10 to operate the console.

1

Insert the key fully into the console.

Inserting the key will not turn on the display. The display will turn on when the

ON/RESET button is pressed or when the walking belt starts.

Note: If you just installed batteries, the display will already be on.

9

2

Reset the console and start the walking belt.

Turn the speed control to the reset position.

Note: Each time the walking belt is stopped, the speed control must be turned to the reset position before the walking belt can be restarted.

Reset

Next, slowly turn the speed control until the walking belt begins to move at slow speed. Carefully step onto the walking belt and begin exercising.

Change the speed of the walking belt as desired by turning the speed control.

To stop the walking belt, step onto the foot rails and turn the speed control to the reset position.

Note: The first time the treadmill is used, inspect the alignment of the walking belt, and center the walking belt if necessary (see page 13).

3

Follow your progress with the monitor modes

When the power is turned on, the console will automatically scan through five modes. A flashing mode indicator will show which mode is currently displayed. The modes are described below.

• Speed—This mode shows your speed, in miles per hour.

• Time—This mode shows the elapsed time. Note: If you stop exercising for

Mode Indicator ten seconds or longer, the time mode will pause.

• Distance—This mode shows the total number of miles you have walked or run.

• Fat Calories (FAT CALS)—This mode shows the approximate number of fat calories you have burned. (See BURNING FAT on page 14.)

• Calories (CALS)—This mode shows the approximate number of calories you have burned.

If desired, reset the display by pressing the

ON/RESET button.

4

When you are finished exercising, stop the walking belt and remove the key.

Step onto the grip tape, stop the walking belt, and remove the key from the console. The display will turn off a few minutes after the key is removed.

Note: The display will automatically turn off to conserve the batteries any time that the walking belt is stopped and the ON/RESET button is not pressed for a few minutes.

HOW TO CHANGE THE INCLINE OF THE TREADMILL

To vary the intensity of your exercise, the incline of the treadmill can be changed. There are three incline levels.

Before changing the incline, remove the key

and unplug the power cord. Next, fold the treadmill to the storage position (see HOW TO FOLD THE

TREADMILL FOR STORAGE on page 11).

To change the incline, remove the incline pin from one of the incline legs as shown below. Adjust the incline leg to the desired height and fully reinsert the incline pin. Make sure that the incline pin is in the “locked” position shown in the inset drawing. Adjust the other incline leg in the same way.

Make sure that both incline pins are inserted from the direction shown.

Incline

Pin

Incline

Pin

Incline

Pin

CAUTION: Before using the treadmill, make sure that both incline pins are fully inserted at the same height. Do not use the treadmill with the incline

pins removed. After you have adjusted the incline legs, lower the treadmill (see HOW TO LOWER THE

TREADMILL FOR USE on page 11).

10

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown at the right.

CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs

rather than your back. Raise the treadmill about halfway to the vertical position.

1

2. Move your right hand to the position shown and hold the treadmill firmly. Raise the treadmill until the latch pin is aligned with the hole in the left upright. Slide the latch pin into the hole.

Make sure that the latch pin is inserted as

far as possible into the hole. Lock the pin by pressing the end of the pin into the slot in the storage latch as shown in the inset drawing.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above.

Make sure that the latch pin is fully inserted into the hole in the left upright and locked into place as described above.

1. Hold the handrails and place one foot on the base as shown.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location.

Never move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

2

Latch

Pin

Hole

Slot

Storage

Slot

Base

Front Wheels

1. See drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, slide the latch pin to the right. Lock the pin in place by pressing the end of the pin into the storage slot.

2. See drawing 1. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.

Do not drop the treadmill frame to the floor. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.

11

MAINTENANCE AND TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call the toll-free telephone number on the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the treadmill near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in. c

Tripped Reset

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console. d. If the treadmill still will not run, see the front cover of this manual.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Check the batteries in the console (see page 9). Most problems are the result of drained batteries.

b. Remove the key from the console and

UNPLUG THE

POWER CORD. Next, remove the screws from the hood, and carefully remove the hood. Locate the

Reed Switch (46) and the Magnet (49) on the left side of the Pulley (53). Turn the Pulley until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and the Reed Switch is

about 1/8”. If necessary, loosen the Screw (24), move the Reed Switch slightly, and then retighten the

Screw. Reattach the hood, and run the treadmill for a few minutes to check for a correct speed reading.

b

1/8”

24

Top View

46

49

53

12

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.

b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and

UNPLUG THE

POWER CORD. Using the allen wrench, turn both rear roller bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

b

Rear Roller

Adjustment Bolts c. If the walking belt still slows when walked on, see the front cover of this manual.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and

UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn;

if

the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered. b. If the walking belt slips when walked on, first remove the key and

UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise,

1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a b

2”–3”

13

CONDITIONING GUIDELINES

Aerobic Exercise

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems.

The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.

HOW TO MEASURE YOUR HEART RATE

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

To measure your heart rate, stop exercising and place two fingers on your wrist as shown. Take a sixsecond heartbeat count, and multiply the result by ten to find your heart rate. Note: A six-second count is used because your heart rate drops quickly when you stop exercising. If your heart rate is too high or too low, adjust the speed or incline of the treadmill accordingly.

To find the proper heart rate for you, first find your age at the top of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers below your age. The three numbers are your “training zone.”

The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near one of the lower two numbers in your training zone.

WORKOUT GUIDELINES

Each workout should include the following important parts:

A Warm-up

Warming up prepares the body for exercise by increasing circulation, delivering more oxygen to the muscles, and raising the body temperature. Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up (see SUGGESTED STRETCHES on page 15).

Training Zone Exercise

After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

A Cool-down

Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.

14

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right.

Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees, and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.

Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back, and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat

3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons, and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for both legs. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for

15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

3

5

1

2

4

15

PART LIST—Model No. WLTL1932.4

29

30

31

32

25

26

27

28

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

37

38

39

40

33

34

35

36

41

42

43*

44

Key No.

Qty.

4

1

6

1

1

1

1

1

1

2

10

1

1

1

2

1

1

2

1

1

7

2

1

1

1

1

4

2

1

1

4

1

1

1

11

4

2

1

1

2

1

2

2

Description

Console

Speed Control

Key/Clip

Console Plate

Screw

Right Upright

Handrail Cage Nut

Battery Cover

Motor Tension Bolt

Frame Bolt

Washer

Frame Spacer

Wheel Bolt

Wheel

Handrail

Left Upright

Upright Grommet

Base Pad

Handrail Endcap

Warning Decal

Wire Harness

Hood

3/4” Tek Screw

Belly Pan

Belt Guide Screw

Belt Guide

Base

Hole Plug

Upright Bolt

Large Warning Decal

Controller Bracket

Roller Spacer

Right Foot Pad

Controller

Motor Bolt

Incline Pin

Circuit Breaker

Motor Star Washer

Motor Tension Washer

Power Cord Grommet

Base Endcap

Motor Assembly

Pulley/Flywheel

R0705A

Key No.

Qty.

73

74

75

76

69

70

71

72

65

66

67

68

61

62

63

64

81

#

#

#

77

78

79

80

57

58

59

60

53

54

55

56

49

50

51

52

45

46

47

48

1

1

2

1

4

1

2

1

2

2

8

2

2

2

4

1

1

1

1

1

2

2

1

1

1

1

1

2

1

1

1

1

2

6

1

1

1

1

1

1

*Includes all parts shown in the box.

#These parts are not illustrated.

Specifications are subject to change without notice.

Description

Motor

Reed Switch

Motor Tension Nut

Reed Switch Clip

Magnet

Motor Belt

Roller Adj. Bolt

Platform Screw

Front Roller/Pulley

Left Foot Pad

Frame

Walking Belt

Walking Platform

Incline Leg

Ground Screw

Ground Wire

8” Cable Tie

Wire Tie Clamp

Incline Leg Washer

Incline Leg Endcap

3/4” Screw

Rear Roller Washer

Frame Endcap

Rear Endcap Spacer

Star Washer

Motor Pivot Nut

Belly Pan Screw

Rear Roller

Rear Roller Star Washer

Allen Wrench

Latch Warning Decal

Power Cord

Storage Latch

Latch Pin

Console Bolt

Nut Insert

Motor Bolt

8” White Wire, Male/Female

4” Black Wire, Male/Flag

User’s Manual

PART IDENTIFICATION CHART

Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference.

3/4” Screw (65)–8

3/4” Tek Screw

(24)–4

Handrail Bolt (12)–2

Console Bolt (79)–2

Star Washer (69)–2 Washer (11)–10

Upright Bolt (30)–4

Wheel Bolt (14)–2

Frame Bolt (10)–2

Nut (36)–6

1

T

ORDERING REPLACEMENT PARTS

To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give the following information:

• the MODEL NUMBER of the product (WLTL1932.4)

• the NAME of the product (WESLO CADENCE C22 treadmill)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAW-

ING in the center of this manual)

WESLO is a registered trademark of ICON IP, Inc.

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part No. 229046 R0705A Printed in Canada © 2005 ICON IP, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
