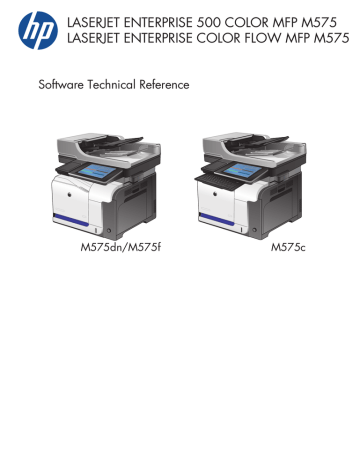

LASERJET ENTERPRISE 500 COLOR MFP M575
LASERJET ENTERPRISE COLOR FLOW MFP M575
Software Technical Reference
M575dn/M575f
M575c
HP LaserJet Enterprise 500 color MFP
M575 or HP LaserJet Enterprise color
flow MFP M575
Software technical reference
Copyright and License
Trademark Credits
© 2012 Copyright Hewlett-Packard
Development Company, L.P.
Adobe®, Adobe Photoshop®, Acrobat®, and
PostScript® are trademarks of Adobe
Systems Incorporated.
Reproduction, adaptation, or translation
without prior written permission is
prohibited, except as allowed under the
copyright laws.
The information contained herein is subject
to change without notice.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products and
services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
Edition 2, 7/2012
Apple and the Apple logo are trademarks of
Apple Computer, Inc., registered in the U.S.
and other countries. iPod is a trademark of
Apple Computer, Inc. iPod is for legal or
rightholder-authorized copying only. Don't
steal music.
Corel® is a trademark or registered
trademark of Corel Corporation or Corel
Corporation Limited.
Intel® Core™ is a trademark of Intel
Corporation in the U.S. and other countries.
Java™ is a US trademark of Sun
Microsystems, Inc.
Microsoft®, Windows®, Windows® XP,
and Windows Vista® are U.S. registered
trademarks of Microsoft Corporation.
UNIX® is a registered trademark of The
Open Group.
ENERGY STAR® and the ENERGY STAR®
mark are registered U.S. marks.
Table of contents
1 Product basics and Windows® software description ......................................................... 1
Purpose and scope ................................................................................................................... 2
Software Technical Reference overview ........................................................................ 2
Software availability and localization ......................................................................................... 3
Printing-system software on the Web ........................................................................... 3
In-box printing-system software CD ............................................................... 3
HP LaserJet software CD, Windows® partition ............................................... 3
CD versions and language support ............................................................... 4
Driver languages ......................................................................... 7
Installer languages ...................................................................... 8
Documentation languages ............................................................ 9
Windows® printing-system software ......................................................................................... 10
HP Color LaserJet print drivers .................................................................................. 10
HP PCL 6 Discrete Print Driver, PCL 6 Universal Print Driver, PCL 5 Universal
Print Driver, and PS Universal Print Driver .................................................... 11
Use the HP ePrint Software ........................................................................ 12
Print driver version numbers for Windows® operating systems ....................... 12
Available software solutions/components/utilities ...................................................................... 14
Driver configuration for Windows® .......................................................................................... 15
Driver autoconfiguration .......................................................................................... 15
Bidirectional communication ..................................................................................... 15
Enterprise AutoConfiguration .................................................................................... 15
Update Now .......................................................................................................... 16
HP Embedded Web Server ..................................................................................................... 17
Open the HP Embedded Web Server by using a network connection ............................ 17
Features ................................................................................................................. 19
Information tab ........................................................................................ 19
General tab ............................................................................................. 19
Copy/Print tab ......................................................................................... 20
Scan/Digital Send tab .............................................................................. 21
Fax tab ................................................................................................... 22
Troubleshooting tab .................................................................................. 22
ENWW
iii
Security tab ............................................................................................. 22
HP Web Services ..................................................................................... 23
Networking tab ........................................................................................ 23
Other Links list ......................................................................................... 24
HP Web Jetadmin .................................................................................................................. 25
HP ePrint ............................................................................................................................... 26
HP Print View Software ........................................................................................................... 27
HP MFP Send Fax Driver ......................................................................................................... 28
Advanced color use ............................................................................................................... 29
Restrict color printing ............................................................................................... 29
ICC/CMS .............................................................................................................. 30
PANTONE color matching ....................................................................................... 30
Printer Adminstrator Resource Kit (PARK) ................................................................................... 31
HP Driver Deployment Utility ..................................................................................... 31
HP Driver Configuration Utility .................................................................................. 31
Help & Learn Center ............................................................................................................... 32
2 Install Windows® software and utilities .......................................................................... 35
Introduction ........................................................................................................................... 35
Supported operating systems for Windows® ............................................................................. 36
System requirements ................................................................................................ 36
Install overview ...................................................................................................................... 37
Software Installer system check ................................................................................. 37
Microsoft Windows® Installer 3.1 .............................................................. 37
Software installation types for Windows® .................................................................. 38
Installation options .................................................................................................. 38
Detailed Microsoft Windows® installation instructions ................................................................ 38
Perform the recommended print driver installation using the Installation CD .................... 38
Use the Back, Next, Finish, and Cancel buttons .......................................................... 49
Set a default printer ................................................................................................. 50
HP Send Fax driver ................................................................................................................ 51
Print driver only installation instructions (Microsoft® Add Printer Wizard) ...................................... 52
Install optional software .......................................................................................................... 54
Uninstall software ................................................................................................................... 56
Use the HP Uninstall utility to remove the product software ........................................... 56
Use the software CD to remove the product software ................................................... 58
Remove the print driver by using the Windows® Add or Remove Programs feature ......... 61
Uninstall the print driver by using the Server Properties feature ...................................... 63
3 HP PCL 5, PCL 6, and PS emulation drivers for Windows® ............................................... 65
Introduction ........................................................................................................................... 65
iv
ENWW
Change the print driver settings for Windows® ......................................................................... 66
Properties tab set .................................................................................................... 67
Printing Preferences tab set ....................................................................................... 67
Document preview image .......................................................................... 68
Help system ........................................................................................................................... 69
“What's this?” Help ................................................................................................. 69
Incompatible Print Settings messages ......................................................................... 69
Advanced tab features ............................................................................................................ 70
Paper/Output ......................................................................................................... 70
Copy Count ............................................................................................. 71
Graphic ................................................................................................................. 71
Image Color Management ........................................................................ 71
ICM Intent ............................................................................................... 71
True Type Font ......................................................................................... 72
Document Options .................................................................................................. 72
Advanced Printing Features ....................................................................... 72
Print Optimizations ................................................................................... 72
Printer Features ........................................................................................ 73
Layout Options ........................................................................................ 73
Printing Shortcuts tab features .................................................................................................. 74
Use defined printing shortcuts ................................................................................... 75
Create a custom printing shortcut .............................................................................. 75
Paper/Quality tab features ...................................................................................................... 77
Paper Options ........................................................................................................ 78
Paper sizes .............................................................................................. 78
Custom Paper Size ................................................................................... 79
Name ...................................................................................... 79
Paper size ................................................................................ 80
Supported paper sizes ............................................................... 80
Paper source ........................................................................................... 80
Paper type .............................................................................................. 81
Special pages .......................................................................................... 82
Covers ..................................................................................... 83
Print pages on different paper ..................................................... 83
Insert blank or preprinted pages .................................................. 84
Chapter separator pages ........................................................... 85
Document preview image ......................................................................................... 86
Print Quality ........................................................................................................... 87
Print Quality drop-down menu ................................................................... 87
Effects tab features ................................................................................................................. 88
Resizing Options ..................................................................................................... 89
ENWW
v
Actual Size .............................................................................................. 89
Print Document On ................................................................................... 89
Scale to Fit .............................................................................................. 89
% of Actual Size ...................................................................................... 90
Document preview image ......................................................................................... 90
Watermarks ........................................................................................................... 91
Current watermarks .................................................................................. 92
Watermark Message ................................................................................ 93
Message Angle ........................................................................................ 93
Font Attributes .......................................................................................... 93
Default watermark settings ......................................................................... 94
Finishing tab features .............................................................................................................. 96
Document Options .................................................................................................. 96
Print on Both Sides ................................................................................... 97
Print on both sides automatically ................................................. 98
Flip Pages Up .......................................................................................... 98
Booklet Layout ......................................................................................... 99
Book and Booklet Printing .......................................................... 99
Pages per Sheet ....................................................................................... 99
Print Page Borders .................................................................................. 100
Page Order ........................................................................................... 100
Document preview image ....................................................................................... 100
Orientation ........................................................................................................... 101
Job Storage tab features ....................................................................................................... 102
Status group box ................................................................................................... 104
Job Storage Mode ................................................................................................. 104
Off ....................................................................................................... 104
Proof and Hold ...................................................................................... 104
Personal Job .......................................................................................... 105
Quick Copy ........................................................................................... 105
Stored Job ............................................................................................. 106
Make Job Private/Secure ....................................................................................... 106
PIN to print ............................................................................................ 107
Encrypt Job (with password) .................................................................... 107
User Name .......................................................................................................... 107
Job Name ............................................................................................................ 108
Job Notification Options ........................................................................................ 108
Use job-storage features when printing .................................................................... 109
Release a job-storage print job ................................................................. 109
Delete a job-storage print job .................................................................. 109
Color tab features ................................................................................................................ 110
vi
ENWW
Color Options ....................................................................................................... 111
Automatic .............................................................................................. 111
Manual ................................................................................................. 111
Settings ................................................................................................. 112
General ................................................................................. 112
Neutral Grays ......................................................................... 113
Halftone ................................................................................. 113
Print in Grayscale ................................................................................... 113
Color Themes ....................................................................................................... 113
Default (sRGB) ....................................................................................... 114
Photo (sRGB) ......................................................................................... 114
Photo (Adobe RGB 1998) ....................................................................... 114
Vivid (sRGB) .......................................................................................... 114
None .................................................................................................... 114
Custom Profile ........................................................................................ 114
Document preview image ....................................................................................... 115
HP EasyColor ....................................................................................................... 115
Services tab features ............................................................................................................. 117
Internet Services .................................................................................................... 118
Device services ..................................................................................................... 118
Device Settings tab features ................................................................................................... 119
Form to Tray Assignment ........................................................................................ 119
Font Substitution Table ........................................................................................... 120
External Fonts ........................................................................................ 121
Installing external fonts ............................................................. 121
Removing external fonts ........................................................... 122
Installable Options ................................................................................................ 122
Automatic Configuration ......................................................................... 123
Printer Status Notification ........................................................................ 123
Tray 3 ................................................................................................... 123
Duplex Unit (for 2-Sided Printing) ............................................................. 123
Allow Manual Duplexing ......................................................................... 123
Printer Hard Disk .................................................................................... 124
Job Storage ........................................................................................... 124
Secure Printing ....................................................................................... 124
Job Separator ........................................................................................ 124
Mopier Mode ........................................................................................ 126
Mopier mode and collation ...................................................... 127
About tab features ................................................................................................................ 128
ENWW
vii
4 Mac OS X software and utilities .................................................................................... 129
Introduction ......................................................................................................................... 129
Determine the Mac driver version ........................................................................................... 130
Supported operating systems for Mac OS X ............................................................................ 131
Mac system requirements ....................................................................................... 131
Hardware requirements .......................................................................... 131
Supported printer drivers for Mac ........................................................................... 131
Change printer-driver settings for Mac ..................................................................... 132
Printing-system software ........................................................................................................ 132
PDEs .................................................................................................................... 132
HP Embedded Web Server ..................................................................................... 132
Online help .......................................................................................................... 133
Screen fonts .......................................................................................................... 133
Mac OS X installation instructions .......................................................................................... 134
HP LaserJet software CD, Mac partition .................................................................... 134
Install the HP LaserJet printing-system software for the Mac OS ................................... 134
General installation instructions ................................................................ 134
Mac OS X installation ............................................................................. 135
Main Install dialog box sequence .............................................. 135
Setup instructions ................................................................................... 144
Setting up a printer with Mac OS X ........................................... 144
Troubleshooting the product setup ............................................. 147
Remove the print driver (Mac OS X) ....................................................................................... 147
AirPrint ............................................................................................................................... 148
How to print with AirPrint ....................................................................................... 148
Determine the product's AirPrint name ..................................................................... 149
How to change the AirPrint printer name that displays on the How To Connect screen
of the product control panel .................................................................................... 149
AirPrint troubleshooting .......................................................................................... 150
HP Utility for Mac ................................................................................................................. 152
Access to the HP Utility .......................................................................................... 152
Information and Support area ................................................................................. 153
Supplies Status ....................................................................................... 153
Device Information ................................................................................. 154
Color Usage .......................................................................................... 154
File Upload ........................................................................................... 155
HP ePrint Center ..................................................................................... 156
Upload Fonts ......................................................................................... 157
Printer Settings ...................................................................................................... 158
Duplex Mode ......................................................................................... 158
E-mail Alerts .......................................................................................... 158
viii
ENWW
Network Settings .................................................................................... 159
Protect Direct Ports .................................................................................. 161
Stored Jobs ............................................................................................ 161
Supplies Management ............................................................................ 162
Trays Configuration ................................................................................ 163
Additional Settings ................................................................................. 164
Scan Settings ........................................................................................................ 164
Scan to E-mail ........................................................................................ 164
Scan to Network Folder .......................................................................... 165
5 Engineering details ....................................................................................................... 167
Introduction ......................................................................................................................... 167
Media attributes and commands ............................................................................................ 168
Paper-source commands ........................................................................................ 168
Paper-type commands examples ............................................................................. 168
File to E-mail utility ............................................................................................................... 170
Index ............................................................................................................................... 171
ENWW
ix
x
ENWW
List of tables
Table 1-1 Installer CD languages ............................................................................................................ 5
Table 1-2 Supported print driver languages ............................................................................................. 7
Table 1-3 Installer component languages ................................................................................................. 8
Table 1-4 Documentation languages ....................................................................................................... 9
Table 1-5 Software components for Windows® ...................................................................................... 14
Table 1-6 Automatic discovery and driver configuration through bidirectional communication1 ..................... 15
Table 1-7 HP Embedded Web Server Information tab ......................................................................... 19
Table 1-8 HP Embedded Web Server General tab ................................................................................ 19
Table 1-9 HP Embedded Web Server Copy/Print tab ........................................................................... 20
Table 1-10 HP Embedded Web Server Scan/Digital Send tab ............................................................. 21
Table 1-11 HP Embedded Web Server Fax tab ..................................................................................... 22
Table 1-12 HP Embedded Web Server Troubleshooting tab ................................................................ 22
Table 1-13 HP Embedded Web Server Security tab .............................................................................. 22
Table 1-14 HP Embedded Web Server Other Links list ......................................................................... 24
Table 1-15 Color access control tools .................................................................................................... 29
Table 2-1 Windows® software component support ................................................................................. 36
Table 3-1 Font Attribute settings for new and preset watermarks ........................................................... 94
Table 3-2 Page orientation ................................................................................................................... 98
Table 3-3 Driver mopier mode and collation settings ............................................................................. 127
Table 4-1 HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
supported wireless accessories for AirPrint ............................................................................................. 150
Table 5-1 Paper-source commands ...................................................................................................... 168
Table 5-2 Paper-type commands ......................................................................................................... 168
ENWW
xi
xii
ENWW
List of figures
Figure 1-1 About tab ......................................................................................................................... 13
Figure 1-2 Installer CD documentation screen ......................................................................................... 32
Figure 1-3 HP Help & Learn Center ....................................................................................................... 33
Figure 2-1 Software installation — automatically check for updates ........................................................... 39
Figure 2-2 Software installation — Software Selection screen ................................................................... 40
Figure 2-3 Software installation — License agreement screen ................................................................... 41
Figure 2-4 Software installation — Preparing to Install screen ................................................................... 42
Figure 2-5 Software installation — Connection Type screen ................................................................. 43
Figure 2-6 Software installation — Connect your Product now screen ................................................ 44
Figure 2-7 Software installation — Connection Type screen for network connected installation ................. 45
Figure 2-8 Software installation — Network Product(s) Found screen ................................................. 46
Figure 2-9 Software installation — Product Configuration screen ........................................................ 47
Figure 2-10 Software installation — Enable HP Web Services screen .................................................. 48
Figure 2-11 Software installation — installation and configuration confirmation screen ................................ 49
Figure 2-12 Installation Cancelled dialog box .................................................................................. 50
Figure 2-13 More Options screen–Get Specialized Drivers ............................................................. 55
Figure 2-14 HP Uninstaller utility — Uninstall button ................................................................................ 56
Figure 2-15 HP Uninstaller utility — Reboot Now button .......................................................................... 57
Figure 2-16 HP Uninstaller utility — Reboot Later button ........................................................................... 57
Figure 2-17 Software installation — Welcome Back screen ...................................................................... 58
Figure 2-18 Software installation — Uninstall option selected ................................................................... 59
Figure 2-19 Software uninstall — Uninstall button ................................................................................... 59
Figure 2-20 Software uninstall — Reboot Now button ............................................................................. 60
Figure 2-21 Software uninstall — Reboot Later button .............................................................................. 60
Figure 2-22 Windows® Control Panel screen ......................................................................................... 61
Figure 2-23 HP Driver Uninstall Utility screen .......................................................................................... 62
Figure 2-24 HP Driver Uninstall Complete screen .................................................................................... 62
Figure 3-1 An Incompatible Print Settings message ......................................................................... 69
Figure 3-2 The default appearance of the Advanced tab ....................................................................... 70
Figure 3-3 Printing Shortcuts tab .................................................................................................... 74
Figure 3-4 Printing Shortcuts dialog box ........................................................................................... 75
Figure 3-5 Paper/Quality tab ........................................................................................................... 77
ENWW
xiii
Figure 3-6 Paper Options group box ................................................................................................. 78
Figure 3-7 Custom Paper Size dialog box ......................................................................................... 79
Figure 3-8 Special Pages dialog box ................................................................................................. 83
Figure 3-9 Print pages on different paper ..................................................................................... 84
Figure 3-10 Special Pages dialog–Insert blank or preprinted sheets ....................................................... 85
Figure 3-11 Special Pages dialog–Chapter separator pages ................................................................. 86
Figure 3-12 Effects tab ..................................................................................................................... 88
Figure 3-13 Preview images – Legal on Letter; Scale to Fit off (left) and on (right) ..................................... 90
Figure 3-14 Watermark Details dialog box ..................................................................................... 92
Figure 3-15 Finishing tab ................................................................................................................. 96
Figure 3-16 Pages per Sheet preview images ......................................................................................... 99
Figure 3-17 Job Storage tab .......................................................................................................... 103
Figure 3-18 Color tab ...................................................................................................................... 110
Figure 3-19 Color Settings dialog box ............................................................................................. 111
Figure 3-20 Services tab .................................................................................................................. 117
Figure 3-21 Device Settings tab ...................................................................................................... 119
Figure 3-22 Font Substitution Table .............................................................................................. 120
Figure 3-23 HP Font Installer dialog box ........................................................................................ 121
Figure 3-24 Manual Duplexing ..................................................................................................... 124
Figure 3-25 Finishing Tab .............................................................................................................. 125
Figure 3-26 Separator Page Details .............................................................................................. 126
Figure 3-27 About tab ..................................................................................................................... 128
Figure 4-1 Mac installer opening screen .............................................................................................. 135
Figure 4-2 Mac installer Introduction dialog ......................................................................................... 136
Figure 4-3 Mac installer Software License Agreement dialog .................................................................. 137
Figure 4-4 Mac installer license agreement dialog ................................................................................ 137
Figure 4-5 Mac installer Select a Destination dialog .............................................................................. 138
Figure 4-6 Mac installer Installation Type dialog ................................................................................... 139
Figure 4-7 Mac installer custom installation dialog ................................................................................ 140
Figure 4-8 Mac installer authentication dialog ..................................................................................... 141
Figure 4-9 Mac installer Installation dialog ........................................................................................... 141
Figure 4-10 Do your part for the environment ....................................................................................... 142
Figure 4-11 Mac installer Summary dialog ........................................................................................... 144
Figure 4-12 IP location on the Jetdirect page ........................................................................................ 146
Figure 4-13 Print with AirPrint, 1 of 3 .................................................................................................. 148
Figure 4-14 Print with AirPrint, 2 of 3 .................................................................................................. 148
Figure 4-15 Print with AirPrint, 3 of 3 .................................................................................................. 149
Figure 4-16 Change AirPrint printer name ........................................................................................... 150
Figure 4-17 Enabling Bonjour, AirPrint, and IPP Printing ........................................................................ 151
Figure 4-18 Energy settings for AirPrint ................................................................................................ 151
Figure 4-19 HP Utility main screen ................................................................................................... 152
xiv
ENWW
Figure 4-20 Supplies Status screen ................................................................................................. 153
Figure 4-21 Device Information screen ........................................................................................... 154
Figure 4-22 Color Usage screen ...................................................................................................... 154
Figure 4-23 File Upload screen ........................................................................................................ 155
Figure 4-24 HP ePrint Center screen ............................................................................................... 156
Figure 4-25 Upload Fonts screen .................................................................................................... 157
Figure 4-26 Duplex Mode screen .................................................................................................... 158
Figure 4-27 E-mail Alerts screen ..................................................................................................... 158
Figure 4-28 Network Settings screen–IPv4 Settings ...................................................................... 159
Figure 4-29 Network Settings screen–Bonjour Settings ................................................................ 160
Figure 4-30 Protect Direct Ports screen ........................................................................................... 161
Figure 4-31 Enable Job Storing screen ........................................................................................... 161
Figure 4-32 Replace Supplies screen .............................................................................................. 162
Figure 4-33 Trays Configuration screen ......................................................................................... 163
Figure 4-34 Additional Settings screen ........................................................................................... 164
Figure 4-35 Scan to E-mail screen ................................................................................................... 164
Figure 4-36 Scan to Network Folder screen ................................................................................... 165
ENWW
xv
xvi
ENWW
1
Product basics and Windows®
software description
The chapter provides information about these topics:
ENWW
●
Purpose and scope
●
Software availability and localization
●
Windows® printing-system software
●
Available software solutions/components/utilities
●
Driver configuration for Windows®
●
HP Embedded Web Server
●
HP Web Jetadmin
●
HP ePrint
●
HP Print View Software
●
HP MFP Send Fax Driver
●
Advanced color use
●
Printer Adminstrator Resource Kit (PARK)
●
Help & Learn Center
1
Purpose and scope
Software Technical Reference overview
This software technical reference (STR) provides information about, and troubleshooting tips for, the
printing-system software for the product.
This STR is prepared in an electronic format to serve as a quick-reference tool for Customer Care Center
(CCC) agents, support engineers, system administrators, management information systems (MIS)
personnel, and end users, as appropriate.
The following information is included in this STR:
●
Descriptions of drivers, operating systems, and system environments
●
Descriptions of installing and uninstalling the printing-system software components
For information about the location of information within chapters, see the table of contents. An index is
also provided in this STR.
NOTE: The product name, either HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet
Enterprise color flow MFP M575, will show in the title bar on all installer and printer properties
windows. The name in your installation may differ slightly from the name shown in the graphics.
2
Chapter 1 Product basics and Windows® software description
ENWW
Software availability and localization
This section provides information about the availability of the HP LaserJet Enterprise 500 color MFP
M575 and the HP LaserJet Enterprise color flow MFP M575 printing-system software and related
software and firmware.
Printing-system software on the Web
All software that is contained on the installation CD is also available on the Web.
Web deployment is the preferred method for obtaining the latest software. The Web site offers an
option for automatic e-mail notification about new software releases.
The HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
printing-system software are both available for download:
●
For HP LaserJet Enterprise 500 color MFP M575: www.hp.com/go/
lj500colorMFPM575_software
●
For HP LaserJet Enterprise color flow MFP M575: www.hp.com/go/
ljcolorflowMFPM575_software
In-box printing-system software CD
The software CD for the product contains a variety of files for installing the printing-system software on
the computer. This section describes the files that are available on the software CD and provides
additional information about support and availability.
The printing-system software CD is divided into two partitions, one for Windows® operating systems
and one for Mac operating systems.
The files in each partition include documentation files and files that are required in order to install and
uninstall the printing-system components.
The CD shipped with your product only contains the software specific to the product. The CD labeled
HP LaserJet Enterprise 500 color MFP M575 can only be used with the HP LaserJet Enterprise 500 color
MFP M575 product and cannot be used with the HP LaserJet Enterprise color flow MFP M575 product.
Similarly, the CD labeled HP LaserJet Enterprise color flow MFP M575 only has the software for the HP
LaserJet Enterprise color flow MFP M575 product.
HP LaserJet software CD, Windows® partition
The root directory in the Windows® partition of the software CD contains the AUTORUN.EXE file, the
SETUP.EXE file, the .inf files, driver files, and the following directories:
ENWW
Software availability and localization
3
NOTE: When installing with the Windows® Add Printer Wizard, use these files:
HP LaserJet Enterprise 500 color MFP M575: hpcm575c.inf for a 32-bit installation and hpcm575u.inf
for a 64-bit installation
HP LaserJet Enterprise color flow MFP M575: hpcm57Xc.inf for a 32-bit installation and hpcm57Xu.inf
for a 64-bit installation
●
Documents
●
Drivers
●
Installer
●
Installer Content
●
Languages
●
Prerequisites
●
Setup
●
Utilities
The Utilities folder contains the files to run the following stand-alone utilities:
●
FileToEmail
●
LogAnalyzer
●
Scrubber
CD versions and language support
The user guide is provided in two versions, the basic user guide and the full user guide.
The basic user guide is a reduced user guide and can be found on the in-box software CD. The full user
guide contains all the product use information and can be found at www.hp.com.
The basic user guide is included on the in-box software CD in .Chm format.
.Chm files are included in 31 languages for Windows® and 17 languages for Mac.
The user guide can be found in the Start menu by clicking:
4
●
HP LaserJet Enterprise 500 color MFP M575: Start\All Programs\HP\HP LaserJet
Enterprise 500 color MFP M575\Help & Learn Center
●
HP LaserJet Enterprise color flow MFP M575: Start\All Programs\HP\HP LaserJet
Enterprise color flow MFP M575\Help & Learn Center
Chapter 1 Product basics and Windows® software description
ENWW
The user guides can also be found on the CD here:
●
For HP LaserJet Enterprise 500 color MFP M575: \\CD ROOT\Documents\program files\HP\HP
LaserJet Enterprise 500 color MFP M575\Help_Learn
●
For HP LaserJet Enterprise color flow MFP M575: \\CD ROOT\Documents\program files\HP\HP
LaserJet Enterprise color flow MFP M575\Help_Learn
One of the following 30 languages will be installed automatically based on the language settings of the
PC.
Table 1-1 Installer CD languages
ENWW
Language
Language designator
English
emww
French (Francais)
frww
German (Deutsch)
deww
Italian (Italiano)
itww
Spanish (Espanol)
esww
Simplified Chinese
zhcn
Catalan (El catala)
caww
Croatian (Hrvatski)
hrww
Czech (Cestina)
csww
Danish (Dansk)
daww
Dutch (Nederlands)
nlww
Finnish (Suomi)
fiww
Greek
elww
Hungarian (Magyar)
huww
Bahasa Indonesian
idww
Japanese
jaww
Kazakh
kkww
1
Korean
koww
Norwegian (Norsk)
noww
Polish (Polski)
plww
Portuguese (Portugues)
ptww
Romanian (Romana)
roww
Russian
ruww
Slovak (Sloveneina)
skww
Slovenian (Slovenseina)
slww
Software availability and localization
5
Table 1-1 Installer CD languages (continued)
1
Language
Language designator
Swedish (Svenska)
svww
Thai
thww
Traditional Chinese
zhtw
Turkish (Turkce)
trww
Arabic
arww
Hebrew
heww
Not installed automatically but can be found on the CD at: \\CD ROOT\documents\program files\HP LaserJet Enterprise
500 color MFP M575\Help_Learn for HP LaserJet Enterprise 500 color MFP M575 and \\CD ROOT\documents\program
files\HP LaserJet Enterprise color flow MFP M575\Help_Learn for HP LaserJet Enterprise color flow MFP M575.
When the in-box software Installer CD is run, the user guide can be viewed by clicking More
Options, Documentation, then HP Help and Learn Center. The Installer CD screen is shown in
Figure 1-2 Installer CD documentation screen on page 32.
6
Chapter 1 Product basics and Windows® software description
ENWW
Driver languages
The HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
products both provide driver support in the following languages.
Table 1-2 Supported print driver languages
ENWW
Component
Language list
HP PCL 6 discrete print driver
●
Arabic
●
Japanese
HP PCL 5 Universal Print Driver
●
Bulgarian
●
Korean
HP PCL 6 Universal Print Driver
●
Catalan
●
Latvian
HP PS Universal Print Driver
●
Croatian
●
Lithuanian
●
Czech
●
Norwegian
●
Danish
●
Polish
●
Dutch
●
Portuguese
●
English
●
Romanian
●
Estonian
●
Russian
●
Finnish
●
Serbian
●
French
●
Slovak
●
German
●
Slovenian
●
Greek
●
Spanish
●
Hebrew
●
Swedish
●
Hungarian
●
Thai
●
Italian
●
Turkish
●
Ukrainian
●
Simplified Chinese
●
Traditional Chinese
Software availability and localization
7
Installer languages
The HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
products both provide installer component support in the following languages.
Table 1-3 Installer component languages
8
Component
Language list
Administrator install
●
Arabic
●
Korean
Common Windows® Installer
●
Bahasa Indonesian
●
Norwegian
Web Registration
●
Catalan
●
Polish
NOTE: Web Registration is run
when the install is complete, and is
not installed on the user's system.
●
Croatian
●
Portuguese
●
Czech
●
Romanian
●
Danish
●
Russian
●
Dutch
●
Slovak
●
English
●
Slovenian
●
Finnish
●
Spanish
●
French
●
Swedish
●
German
●
Thai
●
Greek
●
Turkish
●
Hebrew
●
Simplified Chinese
●
Hungarian
●
Traditional Chinese
●
Italian
●
Japanese
Chapter 1 Product basics and Windows® software description
ENWW
Documentation languages
The HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
products both provide documentation in the following languages.
Table 1-4 Documentation languages
Component
●
●
Driver Preconfiguration User
Guide (Available in English
only)
●
Arabic
●
Korean
●
Catalan
●
Norwegian
HP JetDirect Administrator's
Guide (.PDF file) (with the
following exceptions)
●
Croatian
●
Polish
●
Czech
●
Portuguese
●
Danish
●
Romanian
●
Dutch
●
Russian
●
English
●
Slovak
●
Finnish
●
Slovenian
●
French
●
Spanish
●
German
●
Swedish
●
Greek
●
Thai
●
Hebrew
●
Turkish
●
Hungarian
●
Simplified Chinese
●
Italian
●
Traditional Chinese
●
Japanese
◦
◦
●
ENWW
Language list
Catalan documentation in
Spanish only
No documentation in:
Arabic, Czech, Greek,
Hebrew, Croatian,
Romanian, Slovak,
Slovenian, Serbian,
Turkish
Install Notes (.HTML file)
Software availability and localization
9
Windows® printing-system software
HP Color LaserJet print drivers
Print drivers provide the printing features and communication between the computer and the product.
The software CD includes software for end users and network administrators who are working in the
following operating environments:
Operating systems supported for the print drivers for HP LaserJet Enterprise 500 color MFP
M575
HP PCL 6 discrete, HP UPD PCL 5, HP PD PCL 6, HP UPD PS, and Mac drivers
◦
Windows® XP SP 2 or greater (32-bit and 64-bit)
◦
Windows® Server 2003 SP 1 or greater (32 bit and 64 bit)
◦
Windows® Server 2008 (32-bit and 64-bit)
◦
Windows® Server 2008 R2 (64-bit)
◦
Windows Vista® (32-bit and 64-bit)
◦
Windows® 7 (32-bit and 64-bit)
◦
Mac OS X 10.5, OS X 10.6, OS X 10.7
Operating systems supported for the print drivers for HP LaserJet Enterprise color flow MFP
M575
HP PCL 6 discrete, HP UPD PCL 5, HP PD PCL 6, HP UPD PS, and Mac drivers
10
◦
Windows® XP SP 2 or greater (32-bit and 64-bit)
◦
Windows® Server 2003 SP 1 or greater (32 bit and 64 bit)
◦
Windows® Server 2008 (32-bit and 64-bit)
◦
Windows® Server 2008 R2 (64-bit)
◦
Windows Vista® (32-bit and 64-bit)
◦
Windows® 7 (32-bit and 64-bit)
◦
Mac OS X 10.6, OS X 10.7, OS X 10.8
Chapter 1 Product basics and Windows® software description
ENWW
Operating systems supported for the installer CD
The HP PCL 6 discrete driver and .NET 3.5 is installed for Windows® operating systems. The Mac
driver is installed for Mac operating systems. The following operating systems are supported for
the installer CD:
◦
Windows® XP SP 2 or greater (32-bit)
◦
Windows® Server 2003 SP 1 or greater (32 bit only)
NOTE: When installing with the Windows® Add Printer Wizard for XP or Server 2003,
select the following files from the root directory of the installer CD:
For HP LaserJet Enterprise 500 color MFP M575, use hpcm575c.inf for a 32- bit installation
and hpcm575u.inf for a 64-bit installation.
For HP LaserJet Enterprise color flow MFP M575, use hpcm57Xc.inf for a 32- bit installation
and hpcm57Xu.inf for a 64-bit installation.
Do not copy the driver files to a separate directory before installing. There may be hidden
files that are not correctly copied which may result in driver installation errors.
◦
Windows® Server 2008 (32-bit and 64-bit)
◦
Windows® Server 2008 R2 (64-bit)
◦
Windows Vista® (32-bit and 64-bit)
◦
Windows® 7, including starter edition (32-bit and 64-bit)
◦
HP LaserJet Enterprise 500 color MFP M575: Mac OS X 10.5, OS X 10.6, OS X 10.7
◦
HP LaserJet Enterprise color flow MFP M575: Mac OS X 10.6, OS X 10.7, OS X 10.8
In Windows® operating systems, both the HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet
Enterprise color flow MFP M575 print drivers support preconfiguration, automatic configuration, and
driver updates after installation.
NOTE: For additional information about installing the printing-system software, see the HP LaserJet
Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575 Install Notes on the
printing-system software CD.
All of the drivers provide access to the paper-handling and print quality configuration settings
supported by this printer.
HP PCL 6 Discrete Print Driver, PCL 6 Universal Print Driver, PCL 5 Universal
Print Driver, and PS Universal Print Driver
Most of the Windows® drivers are supported by Microsoft 32-bit and 64-bit operating systems. See the
list of supported operating systems for this product for a complete list. The HP PCL 6 discrete driver is
included on both the HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow
MFP M575 printing-system software CDs. The PCL 6 and PCL 5 Universal Print Drivers and the
PS Universal Print Driver are available for download at the following Web site:
www.hp.com/go/upd
ENWW
Windows® printing-system software
11
NOTE: The HP PCL 6 discrete print driver is installed by default.
Use the HP ePrint Software
The HP ePrint Software makes it easy to print from a desktop or laptop computer to any HP ePrintcapable product. After installing the driver, open the Print option from within your application, and
then select HP ePrint Software from the installed printers list. This single driver makes it easy to find
HP ePrint-enabled products that are registered to your ePrintCenter account. The target HP product can
be at your desk or in a remote location, such as a branch office or across the globe—you can do
remote printing by using the Internet. The target product can be anywhere in the world; if it is Webconnected and registered in ePrintCenter, you can send a print job to the product.
For Windows®, the HP ePrint Software supports traditional direct IP printing to local network printers
on the network (LAN or WAN) to supported postscript products.
Go to www.hp.com/go/eprintmobiledriver for drivers and information.
Supported operating systems
●
Windows® XP (32-bit, SP 2 or greater)
NOTE: Microsoft retired mainstream support for Windows® XP in April 2009. HP will continue
to provide best-effort support for the discontinued XP operating system.
●
Windows Vista® (32-bit and 64-bit)
●
Windows® 7 (32-bit and 64-bit)
●
Mac OS X version 10.6, 10.7, and 10.8
NOTE: The HP ePrint is a PDF workflow utility for Mac, and is not technically a print driver.
HP ePrint Mobile for Mac supports print paths only through ePrintcenter and does not support
direct IP printing to local network printers.
Print driver version numbers for Windows® operating systems
Access to print driver version numbers varies, depending on the operating system in which the product
is installed.
NOTE: For a list of HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow
MFP M575 print drivers, updated HP printing-system software, and product-support information:
For HP LaserJet Enterprise 500 color MFP M575: www.hp.com/go/lj500colorMFPM575_software
For HP LaserJet Enterprise color flow MFP M575: www.hp.com/go/ljcolorflowMFPM575_software
12
Chapter 1 Product basics and Windows® software description
ENWW
If you are using an HP print driver in a Windows® environment, follow these steps to find driver-version
information:
1.
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
2.
Right-click the product icon.
3.
Depending on your operating system, click Properties or Printer Properties.
4.
Click the About tab.
NOTE: The product name, either HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet
Enterprise color flow MFP M575, will show in the title bar on all windows. The name may differ slightly
from the name shown in the graphics.
Figure 1-1 About tab
NOTE: The HP PCL 6 discrete print driver is installed by default when using the installer CD. It can
also be downloaded from www.hp.com with an installer or just the driver.
You can also find information about driver versions by clicking the About button that appears on most
driver tabs.
ENWW
Windows® printing-system software
13
Available software solutions/components/utilities
Table 1-5 Software components for Windows®
Component
Description
HP installer
Installs the printing-system software based on the hardware it detects from the host computer.
Uninstaller
Removes files and folders that were installed when the printing-system software was originally
installed on the computer.
File-to-email utility
Collects crash logs and attaches the data files to an email to assist troubleshooting an installation
or operation failure.
Scrubber utility
A standalone utility used remove all the installation files and folders that were installed with the
printing system software was originally installed in the computer.
LogAnalyzer utility
A utility that lists and describes the files that were downloaded with the printer software.
Driver software
Use the driver software to print with the computer and the product.
This software includes the following drivers:
●
The HP PCL 6 discrete print driver. The HP PCL 6 discrete print driver is installed by default.
●
The HP PCL 5 Universal print driver (UPD). This print driver is not installed by default. To
install the HP PCL 5 UPD, download it from www.hp.com/go/upd, and then use the
Microsoft Add Printer Wizard.
●
The HP PCL 6 Universal print driver (UPD). This print driver is not installed by default. To
install the HP PCL 6 UPD, download it from www.hp.com/go/upd, and then use the
Microsoft Add Printer Wizard.
NOTE: The HP UPD is a single driver designed to work with a variety of HP products. The
HP PCL 6 discrete drivers are designed to work with specific products.
●
HP Help & Learn Center
14
The HP PS Universal Print Driver (UPD). This print driver is not installed by default. To install
the HP PS UPD, download it from www.hp.com/go/upd, and then use the Microsoft Add
Printer Wizard.
This program provides help for using the product, as well as links to Web sites for product support
and supplies ordering. The HP Help and Learn Center also provides links to the user guide on the
CD and at www.hp.com.
Chapter 1 Product basics and Windows® software description
ENWW
Driver configuration for Windows®
The HP print drivers feature bidirectional communication technology which, in supported environments,
provide automatic discovery and driver configuration for product accessories at the time of installation.
Some accessories that are automatically discovered and configured include the duplexing unit, optional
paper trays, printer hard disk, and dual inline memory modules (DIMMs).
Driver autoconfiguration
Automatic discovery and driver configuration through bidirectional communication occurs in the
following circumstances:
●
When a print driver is installed by using the installer
●
When using the Update Now feature for a driver that is already installed
However, as shown in the following table, driver autoconfiguration and Update Now are not available
in Windows® XP, Windows® Server 2003, Windows® Server 2008, Windows® Vista, or
Windows® 7 operating systems over a direct connection (USB) when the product is installed by using
the Add Printer Wizard.
Table 1-6 Automatic discovery and driver configuration through bidirectional communication1
1
Connection type
Add Printer Wizard install
Common installer
Network
Yes
Yes
Direct connection
No
Yes
The table applies to Windows® XP, Windows® Server 2003, Windows® Server 2008, Windows Vista®, and Windows®
7.
Bidirectional communication
In environments that support bidirectional communication, the computer communicates with the product
during installation, determines the physical configuration, and then configures the driver accordingly.
Bidirectional communication is the capability of the product to respond to data inquiries from the
computer and report information back, such as what type of print paper is available or what
accessories are connected to the product. Bidirectional communication depends on the network
operating system and on the type of connection that exists between the computer and the product. If the
connection does not have this capability (that is, if it has no bidirectional mode), it can only accept
commands from the host and cannot report information back to the host computer.
Enterprise AutoConfiguration
Enterprise AutoConfiguration (EAC) uses bidirectional communication to provide autoconfiguration
functionality for installation of the print driver over a network, whether you use the installer on the
printing-system software CD or the Add Printer Wizard to install the driver. Driver installation that
includes EAC is configured with the same settings as the physical configuration of the product.
Configuration occurs without user interaction.
ENWW
Driver configuration for Windows®
15
If bidirectional-communication software has been installed previously, EAC is not activated, and the
pre-existing bidirectional-communication software is used to configure the print driver.
If bidirectional communication software has not been installed, EAC installs bidirectionalcommunication software that allows it to communicate with the product and automatically match the
print driver with the actual product configuration. EAC is activated during installation of the driver or
whenever the Update Now feature is used.
If the product configuration changes after installation, the driver can be automatically updated with the
new configuration in environments that support bidirectional communication by using the Update Now
feature. For more information, see Update Now on page 16.
Update Now
If you have modified the configuration of the HP LaserJet Enterprise 500 color MFP M575 or HP
LaserJet Enterprise color flow MFP M575 product since installation, the driver can be automatically
updated with the new configuration in environments that support bidirectional communication. Use the
Update Now feature to automatically reflect the new configuration in the driver.
For example, if the product is installed and an optional paper-handling accessory is added later, use
the Update Now feature to query the product and update the settings to match the new product
configuration.
The feature automatically updates the registry and changes the configuration information that appears
on the Device Settings tab.
NOTE: Depending on which settings were updated, the Update Now feature might change the
configuration information that displays on the print-driver tabs, instead of (or in addition to) changing
the information on the Device Settings tab.
To activate the Update Now feature, follow these steps:
1.
16
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
2.
Right-click the product name.
3.
Depending on your operating system, click Properties or Printer Properties.
4.
Click the Device Settings tab.
5.
If necessary, click the Installable Options list to expand it and show the options.
6.
In the Automatic Configuration drop-down menu, select the Update Now item.
7.
Click the OK button to save the setting.
Chapter 1 Product basics and Windows® software description
ENWW
HP Embedded Web Server
Use the HP Embedded Web Server to view product status, configure product network settings, and to
manage printing functions from your computer instead of from the product control panel. The following
are examples of what you can do using the HP Embedded Web Server:
●
View product status information
●
Determine the remaining life for all supplies and order new ones
●
View and change tray configurations
●
View and change the product control-panel menu configuration
●
View and print internal pages
●
Receive notification of product and supplies events
●
View and change network configuration
To use the HP Embedded Web Server, your browser must meet the following requirements:
●
Windows®: Microsoft Internet Explorer 5.01 or later or Netscape 6.2 or later
●
Mac OS X: Safari or Firefox using Bonjour or an IP address
●
Linux: Netscape Navigator only
●
HP-UX 10 and HP-UX 11: Netscape Navigator 4.7
The HP Embedded Web Server works when the product is connected to an IP-based network.
The HP Embedded Web Server does not support IPX-based product connections.
You do not have to have Internet access to open and use the HP Embedded Web Server.
When the product is connected to the network, the HP Embedded Web Server is automatically
available.
Open the HP Embedded Web Server by using a network
connection
1.
Identify the product IP address or host name.
From the Home screen on the product control panel, touch the Network
product IP address or host name.
ENWW
button to identify the
HP Embedded Web Server
17
If the Network
button is not visible, you can find the IP address or host name by printing a
configuration page.
a.
From the Home screen on the product control panel, scroll to and touch the Administration
button.
b.
Open the following menus:
●
Reports
●
Configuration/Status Pages
c.
Touch Configuration Page
d.
Touch the View button to view the information on the control panel, or touch the Print button
to print the pages.
e.
Find the IP address on the Jetdirect page.
Jetdirect Page
HP Color LaserJet
Page 1
2.
IPv4: If the IP address is 0.0.0.0, or 192.0.0.192, or 169.254.x.x, verify the product is
connected to a network. If the product is connected to a network and displaying the previously
listed IP addresses, you may have to manually configure the IP address. Otherwise, the network
configuration was successful.
IPv6: If the IP address begins with "fe80:", verify the product is connected to a network. If the
product is connected to a network and displaying the previously listed IP addresses, the product
should be able to print. If not, you may have to manually configure the IP address.
3.
In a supported Web browser on a network-connected computer, type the product IP address or
host name in the address/URL field.
NOTE: On Windows® 7 with IE8, you may get an error "There is a problem with this website's
security certificate". To continue installation, click the Continue to this website button.
18
Chapter 1 Product basics and Windows® software description
ENWW
Features
Information tab
Table 1-7 HP Embedded Web Server Information tab
Menu
Description
Device Status
Shows the product status and shows the estimated life remaining of HP supplies. The
page also shows the type and size of paper set for each tray. To change the default
settings, click the Change Settings link.
Job Log
Shows the print jobs printed on the product and provides the capability to view and
export the details for the print jobs.
Configuration Page
Shows the information found on the configuration page.
Supplies Status Page
Shows a detailed status of the installed HP supplies.
Event Log Page
Shows a list of all product events and errors. Use the HP Instant Support link (in
the Other Links area on all HP Embedded Web Server pages) to connect to a set
of dynamic Web pages that help you solve problems. These pages also show
additional services available for the product.
Usage Page
Shows a summary of the number of pages the product has printed, grouped by
size, type, and paper print path.
Device Information
Shows the product network name, address, and model information. To customize
these entries, click the Device Information menu on the General tab.
Control Panel Snapshot
Provides an inactive view of the control panel of the product.
Print
Allows uploading a file from your hard disk or network file server to be printed. The
following file types are supported:
Printable Reports and Pages
●
.txt
●
.ps
●
.pdf
●
.pcl
●
.cht
●
.prn
Lists the internal reports and pages for the product. Select one or more items to print
or view.
General tab
Table 1-8 HP Embedded Web Server General tab
ENWW
Menu
Description
Control Panel Customization
Reorder and show or hide applications on the product control panel.
Quick Sets Setup
Manage Quick Sets displayed on the product control panel.
HP Embedded Web Server
19
Table 1-8 HP Embedded Web Server General tab (continued)
Menu
Description
Alerts
Set up email alerts for various product and supplies events.
Control Panel Administration
Menu
Provides a remote view of the Administration menu available at the control panel
of the product.
AutoSend
Configure the product to send automated emails regarding product configuration
and supplies to specific email addresses.
Edit Other Links
Add or customize a link to another Web site. This link appears in the Other Links
area on all HP Embedded Web Server pages.
Ordering Information
Add additional information to be used when ordering supplies. This information is
displayed on the Supplies Status Page.
Device Information
Name the product and assign an asset number to it. Enter the name of the primary
contact who will receive information about the product.
Language
Set the language in which to display the HP Embedded Web Server information.
Date and Time
Set the date and time or synchronize with a network time server.
Energy Settings
Set the sleep schedule and sleep timer settings for the product.
Backup and Restore
Create a backup file that contains product and user data. If necessary, you can use
this file to restore data to the product.
Restore Factory Settings
Restore the product settings to the factory default settings.
Solution Installer
Install third-party software programs that can enhance the product functionality.
Firmware upgrade
Download and install product firmware upgrade files.
Quota and Statistics Services
Displays the name of, or add/remove the connection to, a job statistics and quota
service used by the product.
Copy/Print tab
Use the Copy/Print tab to enable or disable walk-up USB printing, manage stored jobs, and
configure copy and print settings.
Table 1-9 HP Embedded Web Server Copy/Print tab
20
Menu
Description
Retrieve from USB
Setup
Use this item to enable or disable walk-up USB printing.
Jobs printed from USB will use the default print settings. the following file types are supported
for easy access USB printing:
●
.pdf
●
.prn
●
.pcl
●
.ps
●
.cht
Chapter 1 Product basics and Windows® software description
ENWW
Table 1-9 HP Embedded Web Server Copy/Print tab (continued)
Menu
Description
Manage Stored Jobs
Use this feature to manage jobs stored on the product memory.
Adjust Paper Types
Adjust the factory default setting for select paper types.
Restrict Color
Use this item to restrict the number of color pages that can be printed from this product.
General Print Settings
Use this item to manage the print settings for this product.
Copy Settings
Use this item to manage Quick Sets and configure default copy settings.
Manage Trays
Use this item to manage the tray settings for this product.
Scan/Digital Send tab
Table 1-10 HP Embedded Web Server Scan/Digital Send tab
Menu
Description
Address Book
Use this item to configure the product's address book contacts
and settings.
E-mail and Save to Network Folder Quick Setup
Wizards
Use this item to access wizards for setting up the product's
save to email and save to network folder features.
E-mail Setup
Use this item to enable and setup the product's send to email
feature.
Save to Network Folder Setup
Use this item to enable and setup the product's save to
network folder feature.
Save to Sharepoint
Use this item to save scanned documents to a Microsoft
SharePoint site.
NOTE: Available on HP LaserJet Enterprise color flow MFP
M575 only
ENWW
Save to USB Setup
Use this item to enable and setup the product's save to USB
feature.
OXPd: Workflow
Use third-party workflow tools.
Digital Sending Software Setup
Use this item to enable and setup the product's digital sending
capabilities.
HP Embedded Web Server
21
Fax tab
Table 1-11 HP Embedded Web Server Fax tab
Menu
Description
Fax Send Setup
Use this item to enable fax sending from the product and to
configure common and specific job settings for the following
fax send methods:
●
Internal Modem
●
LAN Fax Setup
●
Internet Fax Setup
Speed Dials
Us this item to manage speed dials stored on the product.
Fax Receive Setup
Use this item to configure the product's fax receive settings.
Fax Archive and Forwarding
Use this item to configure fax archival to email and fax
forwarding.
Fax Activity Log
Use this item view the fax activity log.
Troubleshooting tab
Table 1-12 HP Embedded Web Server Troubleshooting tab
Menu
Description
General Troubleshooting
Print or view product settings, information pages, and diagnostic test pages.
Calibration/Cleaning
Provides remote control of the cleaning and calibration operations of the product.
Firmware upgrade
Download and install product firmware upgrade files.
Restore Factory Settings
Restore the product settings to the factory default settings.
Security tab
Table 1-13 HP Embedded Web Server Security tab
Menu
Description
General Security
Configure an administrator password so you can restrict access to certain features
on the product.
Enable or disable the Host USB port on the control panel or the USB connectivity
port on the formatter for printing directly from a computer.
Access Control
Configure access to product functions for specific individuals or groups. Also select
the method by which individuals sign in to the product.
Protect Stored Data
Configure and manage the internal hard drive for the product. This product includes
an encrypted hard drive for maximum security.
Configure settings for jobs that are stored on the product hard drive.
22
Chapter 1 Product basics and Windows® software description
ENWW
Table 1-13 HP Embedded Web Server Security tab (continued)
Menu
Description
Certificate Management
Install and manage security certificates for access to the product and the network.
Self Test
Print a self test diagnostic page.
HP Web Services
Use the HP Web Services tab to enable or disable the HP Web Services feature.
Networking tab
Use the Networking tab to change network settings for the product when it is connected to an IPbased network. This tab does not appear if the product is connected to other types of networks.
Menu
Description
Configuration
TCP/IP Settings
The TCP/IP Settings item contains the following tabs:
●
Summary
●
Network Identification:
●
TCP/IP(v4)
●
TCP/IP(v6)
●
Config Precedence
●
Advanced
Network Settings
Use the Network Settings item to configure the product's SNMP settings.
Other Settings
The Other Settings item contains the following tabs:
Select Language
●
Misc. Settings
●
LPD Queues
●
Support Info
●
Refresh Rate
Use the Select Language item to set the language used on the product.
Security
Settings
ENWW
The Settings item contains the following tabs:
●
Status
●
Wizard (HP Jetdirect Security Configuration Wizard)
●
Restore Defaults
HP Embedded Web Server
23
Menu
Description
Authorization
The Authorization item contains the following tabs:
Mgmt. Protocols
●
Admin. Account
●
Certificates
●
Access Control
The Mgmt. Protocols item contains the following tabs:
●
Web Mgmt.
●
SNMP
●
Other
802.1X Authentication
Use the 802.1X Authentication item to configure the product's 802.1X
Authentication settings.
IPsec/Firewall Policy
Use the IPsec/Firewall Policy item to configure the product's IPsec and firewall
settings.
Announcement Agent
Use the Announcement Agent item to configure the Device Announcement
Agent settings on the product.
Diagnostics
Network Statistics
Use the Network Statistics item to view general and packet statistics for the
product.
Protocol Info
The Protocol Info item contains the following tabs:
Configuration Page
●
TCP/IP
●
SNMP
Use the Configuration Page item to view the Jetdirect configuration page for the
product.
Other Links list
NOTE: You can configure which items appear in the Other Links list by using the Edit Other
Links menu on the General tab. The following items are the default links.
Table 1-14 HP Embedded Web Server Other Links list
24
Menu
Description
HP Instant Support
Connects you to the HP Web site to help you find solutions to product problems.
Shop for Supplies
Connects you to the HP Web site for ordering supplies.
Product Support
Connects to the support site for the product, from which you can search for help
regarding various topics.
Chapter 1 Product basics and Windows® software description
ENWW
HP Web Jetadmin
HP Web Jetadmin is a Web-based software solution for remotely installing, monitoring, and
troubleshooting network-connected peripherals. Management is proactive, allowing network
administrators the ability to resolve issues before users are affected. Download this free, enhancedmanagement software at www.hp.com/go/webjetadmin.
NOTE: HP Web Jetadmin is not supported on Mac OS X.
ENWW
HP Web Jetadmin
25
HP ePrint
HP ePrint is a service that allows you to print directly to certain HP products by sending an email to the
product email address. HP ePrint lets you print from any smart phone or computer without installing any
special drivers or software.
In order to use HP ePrint, the product Web Services feature must be enabled. Complete the following
steps:
1.
Print a configuration page and locate the IP address.
2.
At the computer, open a Web browser, type the IP address in the address line, and then press the
Enter key. The HP Embedded Web Server (EWS) opens.
3.
Click the HP Web Services tab.
4.
Click the Enable HP Web Services button.
5.
When the HP Web Services feature is enabled, ePrint information appears in the HP EWS. An
email address is automatically assigned to the product. The product also prints an HP Web
Services page that contains this email address and instructions for using the service.
Configure HP ePrint
Web: For all supported HP products, use the HP ePrintCenter Web site to define security settings
and to configure default print settings for all HP ePrint jobs sent to this product.
a.
Go to www.hpeprintcenter.com.
b.
Click Sign In to enter your HP ePrintCenter credentials or to sign up for a new account.
c.
Select your product from the list, or click + Add printer to add it. To add the product, you
need the printer code, which is the segment of the product email address that is before the @
symbol.
NOTE: This code is valid for only 24 hours. If you do not log into the ePrintCenter within
24 hours of enabling HP Web Services, the code expires. If the code expires, follow the
instructions to enable HP Web Services again, and obtain a new code. Once you log into
the ePrintCenter (www.hpeprintcenter.com) within 24 hours, the ePrint email address of the
printer does not change.
26
d.
To prevent your product from printing unexpected documents, click ePrint Settings, and
then click the Allowed Senders tab. Click Allowed Senders Only, and add the email
addresses from which you want to allow ePrint jobs.
e.
To set up default settings for all ePrint jobs sent to this product, click ePrint Settings, click
Print Options, and select the settings that you want to use. The available settings are:
●
Color options
●
Paper size
Chapter 1 Product basics and Windows® software description
ENWW
HP Print View Software
Use HP Print View software to change various print settings and see immediately how those changes
affect your document. When you are satisfied with the print settings, print the job directly from HP Print
View to your supported printer.
Print View 2.0 supports both print and cost estimation.
Download HP Print View Software, and determine which products are supported, from the following
location:
www.hp.com/go/ihm
ENWW
HP Print View Software
27
HP MFP Send Fax Driver
Use the HP Send Fax Driver to send faxes from your computer via the product if the optional Analog
Fax Accessory 500 is installed. After the HP Send Fax Driver is installed, access and use it in the same
manner as a printer driver. The HP Send Fax Driver can only be used with network connected printers.
Download the HP MFP Send Fax Driver from the following location:
www.hp.com/go/pcsendfax
NOTE: For complete information about using the HP Send Fax Driver, see the HP LaserJet MFP
Analog Fax Accessory 500 Send Fax Driver Guide, which can be downloaded from www.hp.com/
go/mfpfaxaccessory500.
28
Chapter 1 Product basics and Windows® software description
ENWW
Advanced color use
Restrict color printing
Both the HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
products have the ability to monitor and control color print-job use. For more information about color
access control, go to the following Web site and look under Learn More:
www.hp.com/go/cac
The following table shows various tools that can be used to control color-printing access.
Table 1-15 Color access control tools
Tool
Description
HP Embedded Web Server
The HP Embedded Web Server (HP EWS) is a Web-browser-based utility that
provides an interface to the product that you can use to change product settings,
including color access control settings. No special software needs to be installed or
configured. It allows you to set color printing restrictions and view a log of color
printing use. The HP EWS is designed for one-to-one product configuration
monitoring and management.
HP Web Jetadmin
The HP Web Jetadmin provides an interface to the product through a Web browser
on single network-administration servers. Use HP Web Jetadmin to manage
HP Jetdirect-connected products within an intranet.
For more information, see the following Web site:
www.hp.com/go/webjetadmin
HP Managed Printing Administration
(HP MPA)
HP MPA provides a means for controlling color printing through Managed Print
Policies (MPPs) and Managed Printer Lists (MPLs).
For more information, see the following Web site:
www.hp.com/go/mpa
HP UPD Active Directory Group Policy
Color printing access can be controlled through Active Directory Group Policy and
the HP UPD Active Directory Administrative template within your Active Directory
infrastructure.
For more information, see the HP Universal Print Driver System Administrator Guide
Color usage job log
The color usage job log shows color and monochrome print job statistics for a
product.
Product control panel
Use the product control panel to restrict color use in network-connected products.
For more information, see the following procedure.
To restrict color-printing access to a network-connected HP LaserJet Enterprise 500 color MFP M575 or
HP LaserJet Enterprise color flow MFP M575, follow these steps:
ENWW
1.
Press the Home button
2.
Scroll to and select Administration.
to return to the main screen, if needed.
Advanced color use
29
3.
Scroll to and select Manage Supplies.
4.
Scroll to and select Supply Settings.
5.
Scroll to and select Restrict Color.
6.
Scroll to and select one of the following options, and then press the desired option:
●
Enable color. This is the default setting. Use of color-printing features is unrestricted.
●
Disable color. This setting denies the use of color-printing features to all users.
●
Color if allowed. Network administrators can use this setting to allow color-printing to
certain users and restrict it for other users. User privileges can be set using HP EWS. For
more information, see the EWS online help.
ICC/CMS
HP provides cyan-magenta-yellow-black (CMYK) and standard red-green-blue (sRGB) International
Color Consortium (ICC) profiles with the product. The CMYK profile can only be used with a postscript
print driver; the sRGB profile can be used with any of the product print drivers. The profiles are
available at the following HP Web site under software downloads:
●
For HP LaserJet Enterprise 500 color MFP M575: www.hp.com/support/lj500colorMFPM575
●
For HP LaserJet Enterprise color flow MFP M575: www.hp.com/support/ljcolorflowMFPM575
The ICC profiles describe the way that color will be interpreted in the default CMYK and RGB modes.
These profiles can be used for color conversions in a color-managed workflow. The sRGB profile
matches the default RGB mode (sRGB), which is enabled with the Default (sRGB) or Color setting in
either a PCL or postscript print driver. The product interprets CMYK data according to the Specifications
for Web Offset Publications (SWOP) simulation when Default CMYK+ is the selected CMYK Color
setting in the postscript print driver, and a more accurate SWOP rendering can be produced by
selecting the SWOP setting. This standard defines how a particular set of CMYK ink colors should
behave. Emulation for Dainippon Press (DIC) and Euro-standard CMYK inks used in Asia and Europe
are also available and can be selected from the print driver.
PANTONE color matching
PANTONE has multiple color matching systems. The PANTONE MATCHING SYSTEM® is very popular
and uses solid inks to generate a wide range of color hues and tints. For details on how to use
PANTONE Colors with this product, see:
●
For HP LaserJet Enterprise 500 color MFP M575: www.hp.com/go/
lj500colorMFPM575_software
●
For HP LaserJet Enterprise color flow MFP M575: www.hp.com/go/
ljcolorflowMFPM575_software
NOTE: PANTONE Colors generated might not match PANTONE-identified standards. Consult current
PANTONE Publications for accurate color.
30
Chapter 1 Product basics and Windows® software description
ENWW
Printer Adminstrator Resource Kit (PARK)
The HP Printer Administrator Resource Kit (PARK) is a collection of tools, scripts and documentation to
help print administrators install, deploy, configure and manage the HP Universal Print Driver.
The following PARK tools are described in this document:
●
HP Driver Deployment Utility
●
HP Driver Configuration Utility
For more information about the PARK, its components, and how to download, go to the following Web
site and click the Resource Kit tab:
www.hp.com/go/upd
HP Driver Deployment Utility
The HP Driver Deployment Utility (HP DDU) was created to simplify the deployment of print drivers onto
a client computer.
It is a simple utility that packages the printer-driver files, and the code needed to deploy them, into 2
files: an .EXE file and a .CAB file. These files are run on the client computer to copy the printer-driver
files to the Windows® driver store, and for network packages, to install the product.
HP Driver Configuration Utility
The HP Driver Configuration Utility (DCU) is a small Windows® application used to edit the
configuration file associated with a particular driver. The configuration file controls the print driver
settings and takes effect when the driver is installed.
The HP Driver Configuration Utility does not handle any part of the deployment or installation of the
driver. Instead, the default driver configuration file is modified and saved back to the same driver
directory in which it was opened (hpcpu*.cfm) or saved to the local host's directory [filename].cfm.
After modification of custom settings, the settings become the defaults used during driver installation.
Please reference the HP Universal Print Driver System Administrator's Guide and the HP Driver
Configuration Utility documentation for full details on installing and using the utility. These documents
are available at www.hp.com/go/upd.
ENWW
Printer Adminstrator Resource Kit (PARK)
31
Help & Learn Center
Click the Help and Learn Center button on the Documentation screen of the installer to open an
HTML help system that provides step-by-step instructions for performing specific tasks, including clearing
jams and loading trays.
NOTE: The figures are the same for both HP LaserJet Enterprise 500 color MFP M575 and HP
LaserJet Enterprise color flow MFP M575 products.
Figure 1-2 Installer CD documentation screen
32
Chapter 1 Product basics and Windows® software description
ENWW
Figure 1-3 HP Help & Learn Center
The Help & Learn Center can also be opened from the Windows® Start menu.
ENWW
1.
Click the Start button, select the Programs or All Programs item, and then click the HP item.
2.
Click the product name item, and then click the Help & Learn Center item.
Help & Learn Center
33
34
Chapter 1 Product basics and Windows® software description
ENWW
2
Install Windows® software and
utilities
Introduction
The HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise 500 color MFP M575
products both come with software and installers for Microsoft Windows® and Apple, Inc., Mac
systems. For information on support for Linux and UNIX, see www.hp.com.
This chapter provides procedures for installing and removing the HP LaserJet Enterprise 500 color MFP
M575 and HP LaserJet Enterprise 500 color MFP M575 printing-system software for Windows®
operating systems. The chapter provides information about these topics:
●
Supported operating systems for Windows®
●
Install overview
●
Detailed Microsoft Windows® installation instructions
●
HP Send Fax driver
●
Print driver only installation instructions (Microsoft® Add Printer Wizard)
●
Install optional software
●
Uninstall software
NOTE: If the computer is running a 64-bit Windows® operating system, you must install the
corresponding 64-bit print driver.
If you are installing through the Add Printer Wizard, the files are as follows:
HP LaserJet Enterprise 500 color MFP M575: hpcm575c.inf for 32 bit and hpcm575u.inf for 64 bit
HP LaserJet Enterprise color flow MFP M575: hpcm57Xc.inf for 32 bit and hpcm57Xu.inf for 64 bit
ENWW
Introduction
35
Supported operating systems for Windows®
Windows® operating systems provide full-featured support for both the HP LaserJet Enterprise 500
color MFP M575 and theHP LaserJet Enterprise color flow MFP M575 products. Operating systems that
are not described here provide varying levels of functionality.
Windows® XP is used to denote Windows® XP Home Edition, Windows® XP Professional, and
Windows® XP Media Edition unless noted otherwise. Windows Vista® is used to denote Windows
Vista® Home Basic, Windows Vista® Home Premium, Windows Vista® Business, Windows Vista®,
and Windows Vista® Ultimate unless noted otherwise. Windows® 7 is used to denote Windows® 7
Basic, Windows® 7 Home Premium, Windows® 7 Professional, Windows® 7 Enterprise, and
Windows® 7 Ultimate.
Table 2-1 Windows® software component support
Windows XP,
SP 2 and
greater (32-bit
and 64-bit)
Windows Server 2003
(32-bit and 64-bit)
Windows Server 2008
(32-bit, 64-bit, and R2
edition)
Windows Vista
(32-bit and
64-bit)
Windows 7
(32-bit and
64-bit)
HP UPD PCL5
driver
x
x
x
x
x
HP UPD PCL6
driver
x
x
x
x
x
HP UPD PS driver
x
x
x
x
x
Discrete PCL6
driver
x
x
x
x
x
Installer CD
(Windows/Mac)
x (32–bit only)
x (32–bit only)
x
x
x
HP MPA
x (32–bit only)
x (32–bit only)
x (32–bit only)
x (32–bit only)
x (32–bit only)
HP DDU
x
x
x
x
x
HP DCU
x
x
x
x
x
In any of the supported operating systems, you must have administrator privileges to install the product
printing-system software.
For more information about the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise
color flow MFP M575 product:
●
HP LaserJet Enterprise 500 color MFP M575: www.hp.com/support/lj500colorMFPM575
●
HP LaserJet Enterprise color flow MFP M575: www.hp.com/support/ljcolorflowMFPM575
System requirements
The system requirements for installing and using the HP LaserJet Enterprise 500 color MFP M575 or HP
LaserJet Enterprise color flow MFP M575 printing-system software for Windows® are as follows:
36
Chapter 2 Install Windows® software and utilities
ENWW
NOTE: The installer CD will run on both operating systems.
●
Same system requirements for running the supported Windows® operating system (OS)
●
Latest operating system updates installed through Windows® Update
●
220 MB of available hard-disk space
●
CD drive, DVD drive, or Internet connection
●
Dedicated universal serial bus (Hi-Speed USB) connectivity port or network connection
Install overview
The software for the product comes on a single CD. The software installer first checks the versions of
Windows® Installer and Microsoft® .NET installed on the system, and then installs the printing-system
software from the CD onto the hard disk and updates Windows® files.
NOTE: The full software install requires the Microsoft .NET Framework 3.51 to be installed on the
computer. If the correct .NET framework is not installed, the installer will provide an option to install the
required version.
Depending on the configuration of your computer as well as the installation method selected, the
following components might be installed during the printing-system software installation:
●
HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575 PCL 6
print driver
●
HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575 User
Guide
●
Uninstall utility
For all of the supported platforms, each install option presents a series of query dialog boxes that guide
you through the installation process.
Software Installer system check
The software installer checks the computer system to ensure that the following Windows® features are
the correct version to support the printing-system components.
Microsoft Windows® Installer 3.1
When the user starts the installation process, the product software installer checks the computer system
to determine the version number of the Windows® Installer currently on the system. If the product
software installer detects that the Windows® Installer version is prior to version 3.1, a dialog box
appears alerting the user that the Windows® Installer must be updated. The user must click the OK
button to continue. The product software installer then updates the Windows® Installer and continues
the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575
printing-system installation process.
ENWW
Install overview
37
To determine which version of Windows® Installer is currently running on the computer, follow these
instructions.
1.
For Windows® 7 and Windows Vista®, click the Start button, click the Control Panel option,
and then click the Programs option.
For Windows® XP and Windows® Server 2003, click the Start button, click the Control Panel
option, and then double-click the Add/Remove programs option.
2.
Scroll down until you find the entry for the Windows® Installer.
Software installation types for Windows®
The product printing-system software can be installed in the following ways:
●
HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575
printing-system installer (Recommended)
●
Microsoft Found New Hardware Wizard (Plug and Play installation)
Installation options
The printing-system software can be used with the product in the following configurations:
●
Install the printing-system software on a computer that is directly connected to the product through
a USB port.
●
Install the printing-system software on a computer that has access to a network, either wired or
wireless, to which the product is connected.
NOTE: A wireless option can be purchased separately.
Detailed Microsoft Windows® installation
instructions
Perform the recommended print driver installation using the
Installation CD
The recommended CD installation installs the PCL 6 discrete print driver.
●
For a USB installation, do not connect the USB cable between the product and the computer yet.
You will be instructed to connect the USB cable during the installation process.
●
For a wired network installation, connect the product to the network before starting the installation
process. The product will need a few minutes to receive a network address.
A series of dialog boxes appears during installation of the product printing-system software in
Windows® environments.
38
Chapter 2 Install Windows® software and utilities
ENWW
NOTE: You can return to the previous dialog box by clicking the Back button, or exit the printingsystem software installation by clicking the Cancel button.
1.
Close all programs.
2.
Insert the printing system software CD into the CD-ROM drive. The software installer detects the
language of the operating system, and then displays the main menu of the installation program in
the same language.
If the installer program has not started after 30 seconds, complete these steps:
a.
On the Start menu, click the Run option.
b.
Type the following: X:\SETUP.EXE (where X is the letter of the CD-ROM drive).
c.
Click the OK button. The installer program starts.
NOTE: The product name, either HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet
Enterprise color flow MFP M575, will show in the title bar on all installer windows. The name may
differ slightly from the name shown in the graphics.
3.
A screen appears that allows you to specify whether the product software automatically checks for
updates from the HP Web site. Click either the Yes button to check for updates or the No button
to continue without checking for updates.
Figure 2-1 Software installation — automatically check for updates
ENWW
Detailed Microsoft Windows® installation instructions
39
4.
The Software Selection screen details the software to be installed. To customize the software
installed, click the Customize software selections link. When finished, click the Next button.
Figure 2-2 Software installation — Software Selection screen
40
Chapter 2 Install Windows® software and utilities
ENWW
5.
Read the license agreement, click the I have reviewed and accept the installation
agreements check box, and then click the Next button to continue to the next screen.
Figure 2-3 Software installation — License agreement screen (1 of 2)
Figure 2-3 Software installation — License agreement screen (2 of 2)
ENWW
Detailed Microsoft Windows® installation instructions
41
6.
The Preparing to Install screen appears. When the installer is finished, the Next button will
display. Click the Next button to continue.
Figure 2-4 Software installation — Preparing to Install screen
42
Chapter 2 Install Windows® software and utilities
ENWW
7.
Select a connection type option on the Connection Type screen, based on how the product
connects to the computer.
●
For USB-connected products, follow these steps:
a.
Select Directly connect to this computer using a USB cable. and then click
Next.
Figure 2-5 Software installation — Connection Type screen
ENWW
Detailed Microsoft Windows® installation instructions
43
b.
Connect the product to the computer when prompted at the Connect your Product
now screen. The installer program opens a progress bar as it automatically starts the
software installation.
Figure 2-6 Software installation — Connect your Product now screen
44
Chapter 2 Install Windows® software and utilities
ENWW
●
For wired network connected products, follow these steps:
a.
Select the Connect through a wired network option.
Figure 2-7 Software installation — Connection Type screen for network connected
installation
b.
If the product's network settings are not known, select the Automatically find my
product on the network option.
c.
If the product's networking settings are known, enter either the product's host name, IP
address, or hardware address.
NOTE: The product's network IP address can be obtained at the product control
panel. From the product control panel's Main Menu, touch the Network
button to
open the How to Connect screen and display the IP address. Touch the Print button to
print the IP address. Touch the OK button to return to the main menu.
d.
ENWW
Click the Next button.
Detailed Microsoft Windows® installation instructions
45
e.
A list of products displays on the Network Product(s) Found screen. Select the
product to install and then click the Next button. The Installing Software screen
displays as the software is installing.
Figure 2-8 Software installation — Network Product(s) Found screen
NOTE: The product name, either HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet
Enterprise color flow MFP M575, will show in the Model Name. The name may differ slightly from
the name shown in the graphics.
46
Chapter 2 Install Windows® software and utilities
ENWW
8.
The Product Configuration screen appears.
Figure 2-9 Software installation — Product Configuration screen
ENWW
●
Make this product the default printer by selecting the Set as default printer check box.
●
Send a test page to the product by selecting the Print a test page check box.
Detailed Microsoft Windows® installation instructions
47
9.
Click the Next button to proceed to the Enable HP Web Services screen.
Figure 2-10 Software installation — Enable HP Web Services screen
▲
Click the Next button to open the product's Embedded Web server and set up the Web
services for your product.
When Web Services are enabled, by selecting the Enable HP Web Services button,
ePrint information appears in the HP Embedded Web Server. Look for the email address that
is automatically assigned to the product. The product also prints an HP Web Services page
that contains this email address and instructions for using the service.
-orClick the Cancel button if you do not want HP Web services enabled for your product.
NOTE: On Windows® 7 with IE8, you may get an error "There is a problem with this website's
security certificate". To continue installation, click the Continue to this website button.
Configure HP ePrint
a.
Go to www.hpeprintcenter.com.
b.
Click Sign In to enter your HP ePrintCenter credentials or to sign up for a new account.
c.
Select your product from the list, or click + Add printer to add it. To add the product, you
need the printer code, which is the segment of the product email address that is before the @
symbol.
NOTE: This code is valid for only 24 hours. If it expires, follow the instructions to enable
HP Web Services again, and obtain a new code.
NOTE: If another user has selected a password, you will need that password to make
changes to these settings.
48
Chapter 2 Install Windows® software and utilities
ENWW
d.
To prevent your product from printing unexpected documents, click ePrint Settings, and
then click the Allowed Senders tab. Click Allowed Senders Only, and add the email
addresses from which you want to allow ePrint jobs.
e.
To set up default settings for all ePrint jobs sent to this product, click ePrint Settings, click
Print Options, and select the settings that you want to use.
10. The installation and configuration confirmation screen appears.
Figure 2-11 Software installation — installation and configuration confirmation screen
Click the Setup Scan to Folder and Email button to open the product's embedded web server
and gain access to the E-mail and Save to Network Folder Quick Setup Wizards.
To go the HP ePrint Center after completing the installation, select the Open HP ePrint Center
web site check box.
Click the Finish button.
NOTE: For complete instructions on how to configure Scan to Folder and Email, please see the
User Guide.
Use the Back, Next, Finish, and Cancel buttons
The following buttons appear on various dialog boxes during the installation process.
ENWW
●
Back. Click this button to return to the previous dialog box.
●
Next. After you select any options on a given screen, click this button to proceed to the next step
in the installation sequence.
●
Finish. Click this button to complete the installation process.
Detailed Microsoft Windows® installation instructions
49
●
Cancel. Click this button to exit the installer without installing the product. When you click
Cancel, a dialog box opens, confirming that the installation will be cancelled. Click Yes to
cancel the installation and exit the installer or No to continue with the installation.
Figure 2-12 Installation Cancelled dialog box
Set a default printer
1.
50
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
2.
Right-click the product that you want to set as the default printer.
3.
Click Set As Default or Set as default printer, depending on your operating system. A
check mark appears next to the product set as the default.
Chapter 2 Install Windows® software and utilities
ENWW
HP Send Fax driver
Use the HP Send Fax Driver to send faxes from your computer via the product if the optional Analog
Fax Accessory 500 is installed. After the HP Send Fax Driver is installed, access and use it in the same
manner as a printer driver. The HP Send Fax Driver can only be used with network connected printers.
Download the HP MFP Send Fax Driver from the following location:
www.hp.com/go/pcsendfax
NOTE: For complete information about using the HP Send Fax Driver, see the HP LaserJet MFP
Analog Fax Accessory 500 Send Fax Driver Guide, which can be downloaded from www.hp.com/
go/mfpfaxaccessory500. Click Manuals from the left navigation bar. It is also available on the User
CD.
ENWW
HP Send Fax driver
51
Print driver only installation instructions (Microsoft®
Add Printer Wizard)
NOTE: This print driver only software solution provides print-only functionality through a
communications port that has already been created for this product (USB or network-connected). Scan
functionality is not included with this installation method.
Use the following instructions to install the printer driver only:
1.
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
2.
Click the Add a printer button, and then click Next.
3.
When asked if the product is a local or network product, select Add a local printer.
4.
To use an existing port, click Use an existing port, select the down arrow for Use an
existing port and then select the port.
-orTo connect to a new network port, select Create a new port and select Standard TCP/IP Port.
Click Next and unselect Query the printer .. . Type in the IP address or Hostname and click
Next.
5.
On the Install Printer Software screen, click Have Disk.... The Install from Disk dialog
box appears.
6.
Insert the printing-system software CD into the CD-ROM drive.
7.
Click Browse..., and then select the printer driver for the product.
To install the HP PCL 6 printer driver, navigate to the root folder of the CD and select the
hpcm575c.inf file for a 32 bit operating system, or the hpcm575u.inf file for a 64 bit operating
system.
To install either the HP PCL5 UPD, the HP PCL6 UPD, or the HP PS UPD, navigate to where you
downloaded the update file from www.hp.com/go/upd, and then select the PDL (PS, PCL5, or
PCL6), select the 32 bit or 64 bit directory, and then select the file.
8.
52
Click the Open button.
Chapter 2 Install Windows® software and utilities
ENWW
9.
On the Install from Disk dialog box, click the OK button.
NOTE: If you are installing the UPD, select the either driver showing the version number or the
generic driver. For more information, see the System Admininstrator's Guide, which can be
downloaded at www.hp.com/go/upd.
10. Click Next. Complete the installation. When prompted, print a test page to ensure that the printer
driver is installed correctly.
ENWW
Print driver only installation instructions (Microsoft® Add Printer Wizard)
53
Install optional software
Use the following steps to install optional software programs:
1.
Insert the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP
M575 software CD into the CD-ROM drive. The installer program should open.
If the installer program has not started after 30 seconds, complete these steps:
2.
a.
On the Start menu, click Run.
b.
Type the following: X:\SETUP.EXE (where X is the letter of the CD-ROM drive).
c.
Click the OK button.
Click the More Options menu.
NOTE: All of the software listed in the following steps is available via Web download only and
does not come on the product software CD.
3.
Click the Admin Software button to gain access to the following software:
●
4.
HP Web Jetadmin (Online)
Click the Get Specialized Drivers button to gain access to the following software:
●
HP Driver Configuration Utility (Online)
●
HP Driver Deployment Utility (Online)
NOTE: HP Driver Deployment Utility and HP Driver Configuration Utility are components of
the HP Printer Administrator's Resource Kit (PARK). To access the DCU and DDU, download
PARK at www.hp.com/go/upd.
54
Chapter 2 Install Windows® software and utilities
ENWW
●
HP Print View Software (Online)
●
HP Universal Print Driver Portal (Online)
Figure 2-13 More Options screen–Get Specialized Drivers
ENWW
Install optional software
55
Uninstall software
NOTE: If the print driver was installed by using the HP Driver Installation Utility, follow the instructions
in the Remove the print driver by using the Windows® Add or Remove Programs feature
on page 61. If the driver was installed using the Add Printer Wizard, follow the instructions in the
Uninstall the print driver by using the Server Properties feature on page 63.
Use the HP Uninstall utility to remove the product software
The installed software includes a utility to remove the product software.
1.
Click the Windows® Start button, click the Programs or All Programs item, and then click
the HP item.
2.
Click the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP
M575 item, and then click the Uninstall Product Software item. The HP Uninstaller utility
opens.
Figure 2-14 HP Uninstaller utility — Uninstall button
56
Chapter 2 Install Windows® software and utilities
ENWW
3.
When the process is complete, either click the Reboot Now button, or clear the check box and
click the Reboot Later button.
Figure 2-15 HP Uninstaller utility — Reboot Now button
Figure 2-16 HP Uninstaller utility — Reboot Later button
ENWW
Uninstall software
57
Use the software CD to remove the product software
The installer program on the software CD includes a utility to remove the product software
1.
Insert the printing system software CD into the CD-ROM drive. The software installer detects the
language of the operating system, and then displays the main menu of the installation program in
the same language.
If the installer program has not started after 30 seconds, complete these steps:
a.
On the Start menu, click the Run option.
b.
Type the following: X:\SETUP.EXE (where X is the letter of the CD-ROM drive).
c.
Click the OK button. The installer program starts and opens the Welcome Back screen.
Figure 2-17 Software installation — Welcome Back screen
58
Chapter 2 Install Windows® software and utilities
ENWW
2.
Click the Uninstall option, and then click the Next button.
Figure 2-18 Software installation — Uninstall option selected
3.
Click the Uninstall button, and then follow the onscreen instructions to complete the process.
Figure 2-19 Software uninstall — Uninstall button
ENWW
Uninstall software
59
4.
Click the Uninstall button to begin the removal process. When the process is complete, either
click the Reboot Now button, or clear the check box and click the Reboot Later button.
Figure 2-20 Software uninstall — Reboot Now button
Figure 2-21 Software uninstall — Reboot Later button
60
Chapter 2 Install Windows® software and utilities
ENWW
Remove the print driver by using the Windows® Add or Remove
Programs feature
If the print driver was installed by the HP Driver Installation Utility (HP DIU), perform the following to
uninstall the driver:
NOTE: You do not need the printing-system software CD to use this uninstall method.
NOTE: To uninstall the software, you must log on with administrator privileges.
1.
Close all programs.
2.
Depending on your operating system, click the Start button, then Control Panel and then do
one of the following:
●
Double-click the Add/Remove programs item
●
Under the Programs menu click the Uninstall a program item
●
Under the All Programs menu click the Uninstall a program item
Figure 2-22 Windows® Control Panel screen
3.
ENWW
Select the component you want to remove, click Change/Remove Programs or Uninstall/
Change, depending on your operating system. The following components might appear in the list
of programs:
●
HP LaserJet Enterprise 500 color MFP M575 PCL 6 driver
●
HP LaserJet Enterprise color flow MFP M575 PCL 6 driver
Uninstall software
61
4.
The HP Driver Uninstall Utility launches. Click the Uninstall button to start the uninstall process.
Click Cancel to exit the HP Uninstall Utility.
Figure 2-23 HP Driver Uninstall Utility screen
5.
When the removal is complete, you will be prompted to reboot the computer. Clear the check box
to reboot at a later time.
Figure 2-24 HP Driver Uninstall Complete screen
62
Chapter 2 Install Windows® software and utilities
ENWW
Uninstall the print driver by using the Server Properties feature
If the print driver was installed by the Add Printer Wizard, perform the following to uninstall the driver:
NOTE: To uninstall the software, you must log on with administrator privileges.
1.
Close all programs.
2.
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
3.
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
Right-click the icon for your product and then click the Delete button. This removes the icon for the
product only, but it does not remove the associated files.
NOTE: You cannot have any print jobs in the print queue for the print driver being deleted.
Double-click the print queue icon to verify the there are no jobs in the print queue.
4.
5.
To remove the associated files, do one of the following steps, depending on your operating
system:
●
Click the File menu from inside the Printers or Printers and Faxes dialog, and then click
the Server Properties menu item
●
Right-click the list pane, and then click the Server Properties menu item
●
Click another item in the Printers and Faxes group, and then at the top of the list click the
Printer server properties button
Click the Drivers tab, click the name of the product, and then click the Remove button. When
you are prompted to confirm the deletion, click the Yes button.
NOTE: This will fail if there are any queues on the product using this driver.
6.
Click the OK button to close the Print Server Properties dialog, and then close the Printers
or Printers and Faxes dialog .
NOTE: Note: Any modifications to any HP UPD driver files (INF, MSI , etc.), making registry edits
after installation, or manually copying or deleting files, except when explicitly instructed to do so by HP
in writing, will result in an unsupported configuration.
ENWW
Uninstall software
63
64
Chapter 2 Install Windows® software and utilities
ENWW
3
HP PCL 5, PCL 6, and PS emulation
drivers for Windows®
Introduction
This chapter describes the driver printing preferences and printer property settings for the HP LaserJet
Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575 PCL6 discrete driver
and the HP Universal Printing PCL 6, PCL 5 and PS Drivers.
You can control print jobs from several places:
●
the product control panel
●
the software program print dialog box
●
the driver user interface
Generally, for features that are duplicated in more than one location (for instance, you can select the
paper input tray from any of them), settings that are established in the software program take
precedence over print-driver settings. Print-driver settings, in turn, override product control-panel
settings.
When you install the printing-system software in Windows®, the HP PCL 6 Discrete Print Driver is
installed by default through the installer. The HP PS Universal Print Driver and the HP PCL 5 Universal
Print Driver and the HP PCL 6 Universal Print Driver can be installed by downloading the software from
the Web.
Topics:
ENWW
●
Change the print driver settings for Windows®
●
Help system
●
Advanced tab features
●
Printing Shortcuts tab features
●
Paper/Quality tab features
●
Effects tab features
●
Finishing tab features
Introduction
65
●
Job Storage tab features
●
Color tab features
●
Services tab features
●
Device Settings tab features
●
About tab features
Change the print driver settings for Windows®
Operating
System
To change the settings for
all print jobs until the
software program is
closed
To change the default
settings for all print jobs
To change the device
configuration settings
Windows® 7, XP,
Server 2003, Server
2008, and Vista
1.
On the File menu in the
software program, click
Print.
1.
1.
2.
Select the driver, and then
click Properties or
Preferences.
The steps can vary; this
procedure is most common.
Click Start, click
Settings, and then click
Devices and Printers
(Windows® 7) or Printers
and Faxes (Windows®
XP Professional and Server
2003) or Printers and
Other Hardware
Devices (Windows® XP
Home).
For Windows Vista®, click
Start, click Control
Panel, and then click
Printer.
2.
Right-click the driver icon,
and then select Printing
Preferences.
Click Start, click
Settings, and then click
Devices and Printers
(Windows® 7) or Printers
and Faxes (Windows®
XP Professional and Server
2003) or Printers and
Other Hardware
Devices (Windows® XP
Home).
For Windows Vista®, click
Start, click Control
Panel, and then click
Printer.
2.
Right-click the driver icon,
and then select
Properties or Printer
Properties.
3.
Click the Configure tab or
the Device Settings tab.
To gain access to driver settings from within most software programs, click File, click Print, and then
click Properties or Preferences. The appearance and names of the driver tabs that appear can
vary, depending on the operating system. These settings apply only while the software program is
open.
66
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
You can also control the driver directly from the Printers folder. These settings change the default
settings for all software programs.
1.
2.
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
Right-click the device name, and then click Printing Preferences to gain access to the same set
of driver tabs that the software program controls.
-orRight-click the device name, and then click Printing Properties to gain access to the
Properties tab set, which controls the driver behavior and driver connections.
NOTE: Generally, for features that are duplicated in more than one location, settings that are
established in the software program take precedence over print-driver settings. Print-driver settings, in
turn, override product control-panel settings.
Properties tab set
The Properties tab set contains information about and options for configuring the product.
NOTE: Windows® also has tabs in the Properties tab set. For information about those tabs, see the
documentation that came with the computer.
Printing Preferences tab set
The HP LaserJet Enterprise 500 color MFP M575 and the HP LaserJet Enterprise color flow MFP M575
product's Printing Preferences tabs contain options for formatting documents for the product. Gain
access to the Printing Preferences tabs either through the software program or through the
Windows® Printers and Faxes folder.
The following tabs are included in Printing Preferences tab set:
ENWW
●
Advanced
●
Printing Shortcuts
●
Paper/Quality
●
Effects
●
Finishing
●
Job Storage
Change the print driver settings for Windows®
67
●
Color
●
Services
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of all Printing Preferences tabs except
the Services, Advanced, and Job Storage tabs.
Switching between tabs does not change the location or appearance of the document preview image.
Move the mouse over the document preview image, and the mouse cursor changes from an arrow to a
gloved hand. Toggle between portrait and landscape page orientation by clicking on the image.
68
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Help system
The HP PCL 6 Print Driver includes a full-featured Help system to provide assistance with printing and
configuration options.
“What's this?” Help
Windows® XP, Windows® Server 2003, Windows® Server 2008, Windows Vista®, and Windows®
7 support What's this? Help. You can gain access to “What's this?” Help messages in any of the
following ways:
●
Right-click a feature or control. A pop-up Help window appears.
●
Click a feature or control, and then press the F1 key. The Help window for the currently selected
control appears.
Incompatible Print Settings messages
Incompatible Print Settings (constraint) messages are unsolicited messages that appear in
response to specific print-driver selections. These messages alert you to selections that are illogical or
impossible given the product capabilities or the current settings of other controls.
NOTE: Constraint messages are limited, and the underlying software architecture might accept some
settings that are illogical or impossible for the product to perform. Sending a job with incompatible
settings can lead to unexpected results. If print jobs do not print as expected, check the product
documentation for the product capabilities.
In supported Windows® operating environments, some technically invalid print-driver configurations
result in warning messages. Duplexing, for example, is not possible when the Transparency paper type
is selected. The following figure shows an Incompatible Print Settings message.
Figure 3-1 An Incompatible Print Settings message
To resolve the conflicting settings, click Restore my previous settings., and then click OK. The
driver resets the conflicting control back to its previous state.
If you want to keep the conflicting setting, click Keep this setting, and I will change it later.,
and then click OK.
NOTE: In this example, the conflict can be resolved manually. If the conflict is not resolved when the
driver is closed, then the same dialog appears again when a print job is sent to the product.
ENWW
Help system
69
Advanced tab features
NOTE: The Advanced tab is located on the Printing Preferences tab set.
Use the Advanced tab to change the layout of printed pages. Use this tab to configure special
controls that are not commonly used, as well as to control features such as collating and copies in the
driver (although most current software programs support these features in the print dialog box or
through the page settings in the software program). The following figure shows the Advanced tab.
Figure 3-2 The default appearance of the Advanced tab
The Advanced tab contains the following controls:
●
Paper/Output
●
Graphic
●
Document Options
Paper/Output
The Paper/Output setting contains the Copy Count setting.
70
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Copy Count
Copy Count specifies the number of copies to print. This driver setting is useful for software programs
that do not provide a copy count. If a copy count is available in the software program, set the copy
count in the software program.
The number of copies that you request appears in the Copy Count option. You can select the number
by typing in the text box or by using the up and down arrows to the right of the text box. Valid entries
are numbers from 1 to 9999. The copies value will not advance from the maximum number (9999) to 1
when the up arrow is used, or change from 1 to the maximum number (9999) when the down arrow is
used. When you click another group box or leave the Advanced tab, invalid entries into the text box
(such as non-numerical input, numbers less than 1, or numbers greater than the maximum allowed) are
changed to the last valid value that appeared in the text box. The default number of copies is 1.
Because you can set the number of copies that you want from some software programs, conflicts
between the software program you are using and the driver can arise. In most cases, the software
program and the driver communicate, so that the number of copies set in one location (such as the
program) will appear in the other (such as the driver). For some programs, this communication does not
take place, and the copies values are treated independently. For these programs, setting 10 copies in
the program and then setting 10 copies in the driver will result in 100 copies (10 x 10) being printed.
It is recommended that you set the number of copies in the program, whenever possible.
When the Copy Count option is set to more than 1, the Collated check box becomes available.
Select this check box when you want the product to collate (collect and combine in proper order) the
printed copies. Most current software programs support the collating feature in the print dialog box or
through the page settings in the software program.
Graphic
The Graphic setting contains the following controls:
●
Image Color Management settings
●
ICM Intent
●
True Type Font settings
Image Color Management
This control lists the available Image Color Management (ICM) options used for printing color graphics.
ICM, a set of calculations for color matching, makes it possible for programs to adjust colors before
printing so that the color of images on the screen more closely match the color of those images when
they are printed.
NOTE: The ICM control is typically set to ICM Disabled.
ICM Intent
This control specifies how color images are created to produce the best looking image on the printed
page.
ENWW
Advanced tab features
71
The following options are available:
●
Graphics: The best setting to use if you are printing a chart or using fully saturated, bright colors.
●
Pictures: The default setting. Use this setting to maximize the contrast for photographs or pictures
where the colors blend together.
●
Proof: The setting to use if your document uses a color that you need to match exactly, and you
are sending the document to a printer that has that specific color of ink.
●
Match: Allows you to preview the color settings from another printer.
True Type Font
Use Substitute with Device Font (the default setting) to print documents that contain TrueType fonts
by using equivalent printer fonts. This permits faster printing; however, you might lose special
characters that the equivalent printer font does not support. Select Download as Softfont to
download TrueType fonts for printing instead of using printer fonts.
Document Options
The Document Options setting contains the following controls:
●
Advanced Printing Features
●
Print Optimizations
●
Printer Features
●
Layout Options
Advanced Printing Features
When the Advanced Printing Features setting is Enabled, metafile spooling is turned on and
Finishing tab options such as Page Order, Booklet Layout, and Pages per Sheet are
available, depending on your product.
Enhanced metafile spooling is used to greatly reduce the amount of time that elapses between a request
to print (initiated by an application) and the return of control to the application by the operating system.
For normal printing, leave the Advanced Printing Features setting at the default (Enabled). If
compatibility problems occur, you can disable the feature. However, some advanced printing features
might still appear in the print driver, even though they have been disabled. If you select an advanced
printing feature in the print driver that has been disabled on the Advanced tab, the feature is
automatically re-enabled.
Print Optimizations
The default setting for Print Optimizations is Enabled. When this feature is enabled and your
document contains overlapping text and graphics, the text that is placed on top of a graphic might not
print correctly. If the printed output is not correct, you can disable this feature. When this feature is
disabled, print optimization-features, such as substituting device fonts for TrueType fonts and scanning
for horizontal and vertical rules, are turned off.
72
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Printer Features
The Printer Features setting contains the following controls:
●
Print All Text as Black
Print All Text as Black is Disabled by default. When Enabled is selected, the driver prints
all text as black regardless of the original document text color. Color text is printed as black,
except for white text, which remains white. (White text is a reliable method of printing reverse
typeface against a dark background.) This setting does not affect graphic images on the page, nor
does it affect any text that is part of a graphic.
●
Send True Type as Bitmap
Send True Type as Bitmap provides an alternative for software programs that have trouble
using TrueType fonts for special graphic aspects such as shading, rotation, or slanting. The setting
is Disabled (off) by default. The TrueType fonts are converted to bitmap soft fonts before
downloading. The Enabled setting causes the driver to send TrueType fonts to the product as
outlines, which retains the standard format (outline) of the fonts.
●
Alternative Letterhead Mode
When selected, Alternative Letterhead Mode eliminates the need to flip or reload letterhead
or preprinted paper in a tray, whether you are printing on one or both sides of the sheet. Load the
paper as you would for printing on both sides. If the product tray has an icon that indicates
whether to load paper either face-up or face-down, load the paper in opposite orientation of that
shown.
When this option is selected, you must use one of the following options in the Paper type
setting:
◦
Letterhead
◦
Preprinted
Layout Options
The Layout Options setting contains the Page Order setting.
Page Order specifies the order in which the pages of your document are printed. Front to Back
(default setting) prints the document so that page 1 prints first. Back to Front prints the document so
that page 1 prints last.
NOTE: The page-ordering operation works on whole sheets of paper rather than on individual logical
pages. Accordingly, if you set Pages per Sheet (on the Finishing tab) to be greater than one, the
ordering of logical pages on a physical sheet of paper does not change.
ENWW
Advanced tab features
73
Printing Shortcuts tab features
●
Use defined printing shortcuts
●
Create a custom printing shortcut
NOTE: The Printing Shortcuts tab is located on the Printing Preferences tab set.
Use the Printing Shortcuts tab to select and store specific combinations of driver settings for easy
use.
The following figure shows the Printing Shortcuts tab.
NOTE: The number of options shown (Paper sizes, Paper source, etc) changes depending on the
selected shortcut.
Figure 3-3 Printing Shortcuts tab
The Printing Shortcuts tab saves commonly used driver settings under a shortcut name.
74
●
Use defined printing shortcuts
●
Create a custom printing shortcut
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Use defined printing shortcuts
The following defined printing shortcuts are available:
●
Factory Defaults.Select this option to print with the default print driver settings.
●
General Everyday Printing. Select this option to print using typical settings.
●
Envelopes. Select this option to print using typical settings for booklet printing.
●
Cardstock/Heavy
●
Labels
●
EcoSMART Settings. Select this option to print using typical settings for duplex printing.
●
Booklet Printing
●
Snapshot Photos
●
Glossy/Presentation
●
Transparencies
NOTE: If you change any of the settings for a defined printing shortcut, the Save As... and Reset
buttons become active. Click Save As... to save the new settings as a custom printing shortcut. Click
Reset to set the default options for all features of the selected shortcut.
Create a custom printing shortcut
1.
Select General Everyday Printing as a base.
2.
Select the appropriate print settings on the Printing Shortcuts tab.
NOTE: Setting Color options to Black & White automatically selects the Print in
Grayscale option on the Color tab.
3.
On the Printing Shortcuts tab, click Save As.... The Printing Shortcuts dialog box
appears.
Figure 3-4 Printing Shortcuts dialog box
ENWW
Printing Shortcuts tab features
75
4.
Type a name for the custom printing shortcut, and then click OK. The custom printing shortcut
appears in the Printing Shortcuts list.
5.
To delete a custom printing shortcut, click the custom shortcut, then click the Delete button.
NOTE: Predefined shortcuts are designed for using as-is, or as bases for custom printing
shortcuts, and cannot be deleted.
76
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Paper/Quality tab features
NOTE: The Paper/Quality tab is located on the Printing Preferences tab set.
Use the Paper/Quality tab to specify paper size, type, and source. You can also use this tab to
specify different paper selections for the front cover, first page, other pages, last page, and back cover
of the document. The following figure shows the Paper/Quality tab.
Figure 3-5 Paper/Quality tab
The Paper/Quality tab contains the following control sets:
ENWW
●
Paper Options
●
Document preview image
●
Print Quality
Paper/Quality tab features
77
Paper Options
The settings specified in the Paper Options group box on the Paper/Quality tab apply to all of the
pages of the document. The following figure shows the Paper Options group box and the selections
that are available by default.
Figure 3-6 Paper Options group box
The settings in the Paper Options group box are described in the following order:
●
Paper sizes
●
Custom Paper Size
●
Paper source
●
Paper type
●
Special pages
Paper sizes
The Paper sizes setting is a drop-down menu that lists all of the supported paper sizes.
When you move the mouse over the dimensions label, the mouse cursor changes from an arrow to a
gloved hand. Click the dimensions label to toggle between English and metric units.
Because paper-size settings in most software programs override driver settings, it is generally best to
use the driver to set paper size only when you are printing from software programs that do not include
a paper-size setting, such as NotePad, or when you are producing a book or a booklet that does not
require different paper sizes.
78
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
NOTE: Certain software programs can override the size command and specify different paper sizes
within a single document.
When you change the print-driver setting to a paper size that is not currently loaded in the product, a
control-panel message appears that prompts you to load the paper size or select another tray.
For information about paper sizes, see Media attributes and commands on page 168 .
When the Settings under the Special pages section have been changed, the Paper sizes, Paper
source, and Paper type menus change also, offering a variety of options. For more information, see
Special pages on page 82.
Custom Paper Size
The Custom Paper Size dialog box appears when you click Custom… on the Paper/Quality
tab. The following figure shows the initial appearance of the Custom Paper Size dialog box.
Figure 3-7 Custom Paper Size dialog box
NOTE: Both the HP LaserJet Enterprise 500 color MFP M575 and the HP LaserJet Enterprise color
flow MFP M575 products support custom paper sizes up to 14 inches in length and 8.5 inches in
width.
Name
Use the Name text box to type a new name for a custom paper size. When you change the name to
something other than Custom, the Save and OK buttons become active.
The name that appears in the Name text box depends on the following conditions:
ENWW
●
If a saved custom paper size has been selected from the drop-down menu on the Paper/Quality
tab, then the Name text box shows the name of the selected custom paper size.
●
If a standard paper size has been selected on the Paper/Quality tab, then the Name text box
shows the default name of Custom .
●
If a new name has been typed into the Name text box for the purpose of saving a new size or
renaming an existing size, then that new name will remain in the text box until the new size is
saved or the dialog box is closed.
Paper/Quality tab features
79
If you type a new name into the Name text box, but then do not click Save, you can change the
width and height values without losing the name. However, if you close the dialog box without clicking
Save, any unsaved name or size values are lost without warning.
Paper size
The width and height values can be changed by typing numeric strings into the edit boxes in the
Paper Size group box.
Any entry that is greater than the maximum limits of the width and height control is rounded down to
the maximum valid entry, while any entry that is smaller than the minimum limits of the width and height
control is rounded up to the minimum valid entry.
If units are in millimeters, the custom paper-size range minimum is the limit rounded up to the nearest
whole millimeter. The custom paper-size range maximum is the limit rounded down to the nearest whole
millimeter. Any non-numerical entry reverts to the minimum value. Width and height entries are
validated when the focus has changed.
The resolution of each control is 1 millimeter or 1/10 of an inch, depending on the current
measurement units.
Supported paper sizes
This product supports a number of paper sizes, and it adapts to various media.
See the User Guide for a complete list of paper sizes.
NOTE: To obtain best results, select the correct paper size and type in the print driver before printing.
Paper source
The Paper source setting specifies the source tray to use for printing a document. The list of source
trays depends on the product accessories that are installed. Any optional source trays that are installed
through the Device Settings tab also appear here.
The Paper source drop-down menu can contain the following options, depending on what has been
installed on the product:
●
Automatically Select
●
Printer auto select
●
Manual Feed in Tray 1
●
Tray 1 (100-sheet multipurpose tray)
●
Tray 2 (250-sheet tray)
●
Tray 3 (500-sheet tray)
The default setting is Automatically Select. When this setting is selected, the HP LaserJet Enterprise
500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575 uses the source tray that supports
the paper size that you have selected. If you select a source tray other than Automatically Select,
make sure that the correct paper size is loaded in the source tray.
80
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Paper type
The Paper type drop-down menu shows the first few paper types that the HP LaserJet Enterprise 500
color MFP M575 or HP LaserJet Enterprise color flow MFP M575 supports and an entry for More.
Clicking More opens the Type is: dialog box. Click the + next to Type is: and its subcategories to
view all of the paper types that the product supports, listed in the following categories:
●
Unspecified
●
Everyday <96g
●
●
●
ENWW
◦
Plain
◦
HP EcoSMART Lite
◦
Light 60-74g
◦
Bond
◦
Recycled
Presentation 96-130g
◦
HP Color Laser Matte 105g
◦
HP Premium Choice Matte 120g
◦
HP Presentation Soft Gloss 120g
◦
HP Professional Soft Gloss 120g
◦
HP Premium Presentation Glossy 120g
◦
Mid-Weight 96–110g
◦
Heavy 111–130g
◦
Mid-Weight Glossy 96–110g
◦
Heavy Glossy 111–130g
Brochure 131–175g
◦
HP Brochure Matte 150g
◦
HP Brochure Glossy 150g
◦
Extra Heavy 131–175g
◦
Extra Heavy Glossy 131–175g
Photo/Cover 176–220g
◦
HP Cover Matte 200g
◦
HP Matte Photo 200g
◦
Cardstock 176–220g
Paper/Quality tab features
81
●
◦
Card Glossy 176–200g
◦
HP Brochure Glossy 200g
Other
◦
Color Label Transparency
◦
Labels
◦
Letterhead
◦
Envelope
◦
Preprinted
◦
Prepunched
◦
Colored
◦
Rough
◦
HP Tough Paper
◦
Opaque Film
The default setting is Unspecified.
No mechanism exists for manually adding custom paper types through the driver. Use HP Web
Jetadmin to add custom paper types. Custom types can be added only by using bidirectional
communication, so they must already exist in the product when the bidirectional query occurs. If
bidirectional communication is enabled, then an updated list of paper types is returned. If bidirectional
communication is not enabled, the driver looks for custom paper types that have been saved from a
previous bidirectional communication query, and uses those. Otherwise, no custom paper types are
available through the driver.
NOTE: To download a current version of HP Web Jetamin and for the latest list of supported host
systems, go to the following Web site:
www.hp.com/go/webjetadmin
If you select a setting other than the default, make sure that the correct paper type is loaded in the tray
that you selected in the Paper source setting..
When you change the print-driver setting to a paper type that is not currently loaded in the product, a
control-panel message appears that prompts you to load the paper type or select another tray.
NOTE: To only use a specific tray for special paper such as letterhead, set the tray up as letterhead
at the printer control panel. Select letterhead in the driver when you want to print to that tray.
To prevent accidently printing from a tray specified for special paper, specify plain paper at the printer
control panel and driver for other print jobs. Otherwise, paper may be pulled from the wrong tray.
Special pages
To specify special pages to be used, click the Settings button under Special pages.
82
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Covers
To use specific cover settings, click Covers in the Special pages group box.
Figure 3-8 Special Pages dialog box
Use the Covers options to include a blank or preprinted cover on a document, or to include a front/
back cover from a source tray that is different from the one used for the remainder of the document.
The following are the Covers options:
●
Add a blank or preprinted cover: Select which cover is customized: Front, Back, or Both.
●
Paper source: The Paper source setting specifies the source tray to use for adding a front
and/or back cover to the document. The list of source trays depends on the accessories that are
installed. Any optional trays that are installed through the Device Settings tab also appear here.
●
Paper type: The Paper type setting specifies the paper size to use for front and/or back
covers. Changes made to the Paper type setting here override any previous Paper type
settings using the same paper source.
NOTE: The same size of paper will be used for the entire print job.
When you change the type and source of the paper and covers from the print dialog box, the settings
remain configured until you close the software program.
Print pages on different paper
Use the Print pages on different paper options to select an alternative paper type or source for
the first, last, or other pages of a document.
ENWW
Paper/Quality tab features
83
The following figure shows the Print pages on different paper settings and options.
Figure 3-9 Print pages on different paper
The following are the Print pages on different paper options:
●
Pages in document. Select which pages are customized: the First page, the Last page, or
specify a page range with the Pages option.
●
Paper source The Paper source setting specifies the source tray to use for printing a
document. The list of source trays depends on the accessories that are installed. Any optional trays
that are installed through the Device Settings tab also appear here.
●
Paper type: The Paper type drop-down menu shows all of the paper types that the HP LaserJet
Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575 supports.
NOTE: The same type of paper is used for the entire print job.
When you change the type and source of the paper and covers from the print dialog box, the settings
remain configured until you close the software program.
Insert blank or preprinted pages
Use the Insert blank or preprinted sheets options to designate where to insert preprinted pages
or blank pages into a document.
84
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
The following figure shows the Print pages on different paper settings and options.
Figure 3-10 Special Pages dialog–Insert blank or preprinted sheets
The following are the Insert blank or preprinted sheets options:
●
Blank or preprinted sheet before page(s): Specify where in the document you want to
insert blank or preprinted pages by designating the page numbers or page ranges that the blank
or preprinted pages will precede. For example, to insert a blank or preprinted page before page
5, specify 5 in the Blank or preprinted sheet before page(s): option.
●
Paper source: The Paper source setting specifies the source tray to use for printing a
document. The list of source trays depends on the accessories that are installed. Any optional trays
that are installed through the Device Settings tab also appear here.
●
Paper type: The Paper type drop-down menu shows all of the paper types that both the HP
LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
product support.
Chapter separator pages
Use the Chapter separator pages options to designate where the first page of a chapter appears
in the document.
ENWW
Paper/Quality tab features
85
The following figure shows the Chapter separator pages settings and options.
Figure 3-11 Special Pages dialog–Chapter separator pages
The following are the Chapter separator pages options:
●
Chapters begin on pages: Specify where in the document the chapters begin by designating
a page number for each chapter.
●
Start each chapter: Select Facing next page to make each chapter begin on the left side of
the document. Select Facing previous page to make each chapter begin on the right side of
the document.
Click the Add button to add the special pages you create. These special pages will be listed and
available for use under Special pages defined for this print job.
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the following Printing Preferences
driver tabs:
86
●
Printing Shortcuts
●
Paper/Quality
●
Effects
●
Finishing
●
Color
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an
arrow to a gloved hand. You can toggle between portrait and landscape page orientation by clicking
the image.
Print Quality
The Print Quality group box contains the Print Quality drop-down menu.
Print Quality drop-down menu
Use this control to select print quality. ImageRet settings precisely control colors by combining up to 4
colors and varying the amount of toner in a given area to create many smooth colors, sharp images,
and crisp text.
The Print Quality drop-down menu contains the following resolution options.
ENWW
●
ImageRet 3600. This setting is selected by default. ImageRet 3600 produces a 600x600 dpi
print resolution that provides 3600-dpi laser-class quality with millions of smooth colors.
●
1200 x 1200. This setting may improve the rendering of fine lines and text.
Paper/Quality tab features
87
Effects tab features
NOTE: The Effects tab is located on the Printing Preferences tab set.
Use the Effects tab to create unique paper effects such as scaling and watermarks. The following
figure shows the Effects tab.
Figure 3-12 Effects tab
The Effects tab contains the following controls:
88
●
Resizing Options
●
Document preview image
●
Watermarks
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Resizing Options
The Resizing Options group box consists of the following controls:
●
Actual Size (default)
●
Print Document On
●
Scale to Fit
●
% of Actual Size
Actual Size
Actual Size is the default setting. It prints the document without changing the document size.
Print Document On
Click the Print Document On option to format the document for one paper size and then print the
document on a different paper size, with or without scaling the image to fit the new paper size.
The Print Document On control is disabled by either of the following conditions:
●
The % of Actual Size value is not 100.
●
The Pages per Sheet value (on the Finishing tab) is not 1.
When Print Document On is selected, the drop-down menu shows the paper sizes on which you
can print. The list contains all of the standard paper sizes that the selected paper source supports and
any custom sizes that you have created. When Print Document On is selected, Scale to Fit is
automatically selected. Clear this check box if you do not want your document reduced or enlarged to
fit on the selected paper.
Scale to Fit
The Scale to Fit option box specifies whether each formatted document page image is scaled to fit the
target paper size. By default, Scale to Fit is selected when Print Document On is selected. If the
setting is turned off, then the document page images will not be scaled, and are instead centered at full
size on the target paper. If the document size is larger than the target paper size, then the document
image is clipped. If it is smaller, then it is centered within the target paper. The following figure shows
ENWW
Effects tab features
89
preview images for a document formatted for Legal-size paper with the Print Document On check
box selected, and the target size specified as Letter.
Figure 3-13 Preview images – Legal on Letter; Scale to Fit off (left) and on (right)
When the size for which the document is formatted (that is, the logical size) differs from the target size,
the preview image uses a dashed gray line to show the boundaries of the logical page in relation to
the target paper size.
% of Actual Size
The % of Actual Size option provides a slider bar and input box to use for scaling the percentage
setting. The default setting in the entry box is 100% of actual size. Actual size is defined as the paper
size that is selected within the driver or what the driver receives from the software program (if the
software program does not negotiate the paper size with the driver). The driver scales the page by the
appropriate factor and sends it to the product.
The limits of the range are from 25% to 400%, and any values outside the range are adjusted to those
limits as soon as the focus is removed from the control (that is, when the Tab key is pressed or another
control is selected).
Any change to the scale also changes the page preview, which increases or decreases from the upperleft corner of the preview.
The slider bar controls the scale directly. The value in the edit box changes as the slider-bar indicator is
dragged, and the document preview image is updated to the new image scale. Each click on the
arrows increases or decreases the scale by 1%. Each click on the slider bar affects the scale by 10%.
You cannot achieve an exact value by dragging the slider-bar indicator. Instead, either use the sliderbar indicator to approximate the value that you want and then use the arrows to refine the value, or
type the value into the entry box.
The following settings disable % of Actual Size:
●
Print Document On (on the Effects tab) is selected
●
Pages per Sheet (on the Finishing tab) is not 1
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
90
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
document preview image appears in the upper-right corner of the following Printing Preferences driver
tabs:
●
Printing Shortcuts
●
Paper/Quality
●
Effects
●
Finishing
●
Color
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an
arrow to a gloved hand. You can toggle between portrait and landscape page orientation by clicking
the image.
Watermarks
Use the Watermarks feature to select a watermark, create a new watermark (text only), or edit an
existing watermark. The following watermarks are preset in the driver:
●
(none)
●
[Username]
●
Confidential
●
Draft
●
SAMPLE
If the [Username] watermark is selected, the driver will use the network username of the logged in
user for the watermark.
The drop-down menu shows alphabetically sorted watermarks that are currently available on the
system, plus the string "(none)," which indicates that no watermark is selected. This is the default
setting. Any watermark that is selected from this list appears in the preview image.
When the First Page Only check box is selected, the watermark is printed only on the first page of
the document. The First Page Only check box is disabled when the current watermark selection is
"(none).”
Watermarks are applied to logical pages. For example, when Pages per Sheet is set to "4" and
First Page Only is unchecked, four watermarks appear on the physical page (one on each logical
page).
ENWW
Effects tab features
91
Click Edit, and the Watermark Details dialog box appears.
Figure 3-14 Watermark Details dialog box
The dialog box shows a preview image and provides options for creating a new watermark and
controlling the message angle and font attributes.
Click OK to accept all of the changes that are made in the Watermark Details dialog box.
However, clicking Cancel does not cancel all of the changes. If you make changes to a watermark
and then select a different watermark or click New, all of the changes are saved, and only the current,
unsaved changes can be canceled.
Current watermarks
The Current Watermarks group box contains a list of available watermarks, both predefined
watermarks that are available in the driver and any new watermarks that you have created.
To create a new watermark, click New. The new watermark appears in the Current Watermarks
list and in the Watermark Message edit box as "Untitled" until you name it. The name that you
type in the Watermark Message field appears in the Current Watermarks group box in the
Watermark Details dialog box and in the Watermarks group box on the Effects tab.
To name the new watermark, type the selected watermark text in the Watermark Message edit
box.
To delete a watermark, select the watermark in the Current Watermarks list, and then click Delete.
A warning appears asking whether you are sure you want to delete the selected item. Click Cancel if
you want to keep the watermark. Click OK to delete the selected watermark.
NOTE: You can have no more that 30 watermarks in the Current Watermarks list at one time.
When you reach the limit of 30 watermarks, the New button is disabled.
To edit an existing watermark, select the watermark in the Current Watermarks list. If you change
the Watermark Message for that watermark, you are, in effect, creating a new watermark.
92
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Watermark Message
The Watermark Message is also the name that identifies the watermark in the Current
Watermarks list, except when more than one watermark has the same message. For example, you
might want several different watermarks with the message DRAFT, each with a different typeface or font
size. When this occurs, the string is appended with a space, a pound sign, and a number (for
example, Draft #2). When a number is added, the number two is used first, but if the resulting name
is also in the list, then the number increases until the name is unique (Draft #3, Draft #4, and so on).
Message Angle
Use the controls in the Message Angle group box to print the watermark in different orientations on
the page. All settings center the watermark string within the page; the selection of a particular setting
affects only the angle of the string placement. The following settings are available:
●
Diagonal. This is the default setting. Select this setting to place the text along a line that spans
the lower-left to upper-right corners of the page.
●
Horizontal. Select this setting to place the text along a line that spans from the mid-left to the
mid-right edge of the page.
●
Custom. Select this setting to place the text at the specified angle across the page. Use the
numeric spin box to select the angle.
Font Attributes
Use the controls in the Font Attributes group box to change the font and the color, shading, size,
and style of the font.
The Font Attributes group box contains the following controls:
●
Name
The Name drop-down menu lists fonts that are currently installed on the system. The default is
language-dependent.
●
Color
The Color drop-down menu contains the following selections:
●
ENWW
◦
Gray
◦
Red
◦
Yellow
◦
Green
◦
Cyan
◦
Blue
◦
Magenta
Shading
Effects tab features
93
The default Shading setting for new and preset watermarks is Very Light. The following range
of shades is available from the Shading drop-down menu:
◦
Lightest
◦
Very Light (default)
◦
Light
◦
Medium Light
◦
Medium
◦
Medium Dark
◦
Dark
◦
Very Dark
◦
Darkest
These values represent the intensity of the gray or color that is used. Select Light to produce a
lightly saturated watermark. Select Lightest to produce the lightest shade of watermark. Select
Darkest to produce a black or solid color watermark.
●
Size
Font sizes from 1 to 999 points are available from the Size menu. The default point size is
language-dependent.
●
Style
The following settings are available:
◦
Regular
◦
Bold
◦
Italic
◦
Bold Italic
The default Style setting for new and preset watermarks is Regular.
Default watermark settings
The following table shows Font Attribute settings for new and preset watermarks.
Table 3-1 Font Attribute settings for new and preset watermarks
94
Setting
New watermark
Preset watermark
Name
Arial
Varies by language
Color
Gray
Gray
Shading
Very Light
Very Light
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Table 3-1 Font Attribute settings for new and preset watermarks (continued)
Setting
New watermark
Preset watermark
Size
80
Varies by language
Style
Regular
Regular
Click OK to accept all of the changes that have been made in the Watermark Details dialog box.
Clicking Cancel does not cancel all of the changes. If you make changes to a watermark and then
select a different watermark or click New, all of the changes are saved, and only the current, unsaved
changes can be canceled.
ENWW
Effects tab features
95
Finishing tab features
NOTE: The Finishing tab is located on the Printing Preferences tab set.
Use the Finishing tab to print booklets and control the paper output. The following figure shows the
Finishing tab.
Figure 3-15 Finishing tab
The Finishing tab contains the following controls:
●
Document Options
●
Document preview image
●
Orientation
Document Options
The Document Options group box contains the following controls:
●
96
Print on Both Sides
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
●
Flip Pages Up
●
Booklet Layout
●
Pages per Sheet
●
Print Page Borders
●
Page Order
Print on Both Sides
The default setting for the Print on Both Sides option, or Print on Both Sides (manually) for
non-duplexing models, is off (not selected). Print on Both Sides is available when the following
conditions exist:
●
●
ENWW
Paper type on the Paper tab is set to any paper type except for the following types:
◦
Labels
◦
Color Laser Transparency
◦
Envelope
Paper sizes is set to any paper size except for the following sizes:
◦
Statement
◦
3x5
◦
4x6
◦
5x7
◦
5x8
◦
A6
◦
B6
◦
10x15cm
◦
Envelope #10
◦
Japanese Postcard
◦
Envelope #9
◦
Envelope Monarch
◦
Envelope B5
◦
Envelope C5
◦
Envelope C6
◦
Envelope DL
Finishing tab features
97
Print on both sides automatically
The duplexing unit in the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color
flow MFP M575 product prints on two sides of a sheet of paper when the Print on Both Sides
option is specified in the print job.
This product supports smart duplexing. The smart duplexing feature increases printing performance by
preventing one-page print jobs or single-sided pages of a duplexed print job from going through the
duplexing unit even when the duplexing feature has been selected in the driver.
All paper types support the smart duplexing feature, except for paper types that cannot be printed on
both sides (such as labels, transparencies, and envelopes) and the following paper types:
●
Prepunched
●
Preprinted
●
Letterhead
●
Cardstock
When the paper type is set to Unspecified, the smart duplexing feature is disabled.
To achieve the best print quality when printing on the second side of the page, the product needs to
make adjustments to its print modes. When you select a paper type, you are, in effect, instructing the
product to use a group of settings (such as fuser temperature and print speed) to print the paper with
the best possible quality. This group of settings is known as print mode. A different print mode is used
with each paper type. Print-mode adjustments for the second side of a duplexed page are automatic.
Flip Pages Up
Use the Flip Pages Up check box to specify the duplex-binding option. By default, the Flip Pages
Up check box is not available. It is available only when Print on Both Sides is selected. The
following table demonstrates the results of selecting this check box, depending on the paper orientation
selected on the Finishing tab.
Table 3-2 Page orientation
Orientation (Finishing tab)
Flip Pages Up selected
Flip Pages Up not selected
Portrait
Short-edge binding
Long-edge binding
Landscape
Long-edge binding
Short-edge binding
When Print on Both Sides is selected, the document preview image changes to show a spiral
binding along either the left edge or the top edge of the page. In addition, a folded-over corner
appears in the lower-right portion of the preview image, indicating that printing occurs on the back
side. An arrow on the folded-over corner points in the direction that the pages would be flipped if they
were bound together.
Short-side binding is for print jobs with pages that read by flipping over like the pages of a calendar.
Long-side binding is for print jobs with pages that read by turning like the pages of a book.
98
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Booklet Layout
The Booklet Layout drop-down menu, visible when Print on Both Sides is selected, offers choices
that are based on the current paper size. The default setting for the Booklet Printing drop-down
menu is Off. The other settings have the following format, where [paper size] depends on the paper
size that is set on the Paper/Quality tab:
●
Left Binding
●
Right Binding
When you select Left Binding or Right Binding, the document preview image changes to show the
location of the binding. If the Pages per Sheet setting is on the default setting of 1, it automatically
changes to 2 pages per sheet. If you change the Pages per Sheet setting manually to 4, 6, 9, or
16 pages per sheet, the booklet setting is disabled.
Book and Booklet Printing
The HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575
supports book and booklet printing.
A book is a print job consisting of at least two pages. It can have a different paper type for the front
cover, first page, other pages, last page, or back cover. Use the Covers and Print pages on
different paper settings on the Paper/Quality tab to select different paper for the front cover, first
page, other pages, and back cover.
A booklet is a print job that places two pages on each side of a sheet that can then be folded into a
booklet that is half the size of the paper. Use the Booklet Layout drop-down menu on the Finishing
tab to control booklet settings.
Pages per Sheet
Use the Pages per Sheet option to select the number of pages that you want to print on a single
sheet of paper. If you choose to print more than one page per sheet, the pages appear smaller and are
arranged on the sheet in the order that they would otherwise be printed. The Pages per Sheet dropdown menu provides six settings:
Figure 3-16 Pages per Sheet preview images
NOTE: This graphic is based on the setting Right, then Down for Page order. The ordering will
changed based on the current setting for Page order.
ENWW
●
1 page per sheet (this is the default)
●
2 pages per sheet
●
4 pages per sheet
Finishing tab features
99
●
6 pages per sheet
●
9 pages per sheet
●
16 pages per sheet
NOTE: When you select an option other than 2 pages per sheet or Print on both sides,
booklet printing is unavailable.
Related controls indented beneath Pages per Sheet are Print Page Borders and Page Order,
which become active when Pages per Sheet is greater than 1.
Print Page Borders
Print Page Borders sets a line around each page image on a printed sheet to help visually define
the borders of each logical page.
Page Order
The Page Order drop-down menu contains four selections:
●
Right, then Down
●
Down, then Right
●
Left, then Down
●
Down, then Left
The preview document image changes to reflect alterations in these settings.
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the following Printing Preferences
driver tabs:
●
Printing Shortcuts
●
Paper/Quality
●
Effects
●
Finishing
●
Color
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an
arrow to a gloved hand. You can toggle between portrait and landscape page orientation by clicking
the image.
100
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Orientation
Orientation refers to the layout of the image on the page, and does not affect the way that paper feeds
into the product. You can specify the orientation of the print job. The three available orientations are
portrait, landscape, and rotated. The default orientation is Portrait.
NOTE: Nearly all software programs establish the orientation for the printed page, so the page
orientation in the driver is useful only for the few software programs that do not set an orientation.
The Orientation group box contains the following options:
●
Portrait. The top edge of the document is the shorter edge of the paper.
●
Landscape. The top edge of the document is the longer edge of the paper.
●
Rotate by 180 degrees. This creates a landscape or portrait orientation in which the image is
rotated 180°. This setting is useful for printing prepunched paper.
You can toggle orientation between portrait and landscape by clicking the document preview image. If
you select the Rotate by 180 degrees check box, the document preview image icon does not
visually change on the driver screen to reflect this setting.
ENWW
Finishing tab features
101
Job Storage tab features
NOTE: The Job Storage tab is located on the Printing Preferences tab set.
Use the job-storage feature to store print jobs in the HP LaserJet Enterprise 500 color MFP M575 or HP
LaserJet Enterprise color flow MFP M575 product memory or hard disk for printing at a later time.
The Job Storage tab appears among the driver tabs only if the job-storage feature is enabled on the
Device Settings tab. To support job-storage features for complex jobs, or if you often print complex
graphics, print postscript (.PS) documents, or use many downloaded fonts, HP recommends that you
install additional memory, install a hard disk, or both. Added memory also gives you more flexibility in
supporting job-storage features. A minimum total memory of 288 MB is required to use the Proof and
Hold and Personal Job job-storage features. A hard disk is required to use the Quick Copy and
Stored Job job-storage features.
To configure the drivers manually after installing a hard disk, follow these steps:
1.
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
2.
Right-click the product name.
3.
Depending on your operating system, click Properties or Printer Properties.
4.
Click the Device Settings tab.
5.
Select Installed for the Printer Hard Disk under Installable Options, and then select
Installed in the drop-down menu.
6.
Click OK to make the printer hard disk and job-storage features available.
You can disable the job-storage feature while leaving the printer hard disk enabled. To disable the jobstorage feature, follow these steps:
NOTE: The Job Storage tab is not displayed in Printer Preferences when Job storage is disabled.
1.
2.
102
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
Right-click the product name.
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
3.
Click Properties or Printer properties (Windows® 7).
4.
Click the Device Settings tab.
5.
Select Job Storage.
6.
Select the Disabled option.
The following figure shows the Job Storage tab.
Figure 3-17 Job Storage tab
The Job Storage tab contains the following controls:
NOTE: Information about using the job-storage feature when printing is also provided here.
ENWW
●
Status group box
●
Job Storage Mode
●
Make Job Private/Secure
●
User Name
●
Job Name
Job Storage tab features
103
●
Job Notification Options
●
Use job-storage features when printing
Status group box
The unlabeled group box on the Job Storage tab contains a status message about the destination of
a print job. The status information changes depending on the selections that are made on the Job
Storage tab.
Job Storage Mode
Use the Job Storage Mode options on the HP LaserJet Enterprise 500 color MFP M575 and HP
LaserJet Enterprise color flow MFP M575 product to store documents at the product and then control
their printing at the product control panel.
Both the HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
products offer the following Job Storage Mode options:
●
Off
●
Proof and Hold
●
Personal Job
●
Quick Copy
●
Stored Job
These options and the settings that control them are described below.
Off
When selected, this option turns the job-storage feature off (it is disabled), which means that the print
job will not be stored in the product.
Proof and Hold
To use the Proof and Hold option, the job-storage feature must be enabled.
When selected, this option stores the print job in memory and prints only the first copy of the job,
allowing you to check the first copy. If the document prints correctly, set the number of copies to print at
the control panel and then print the remaining copies of the print job. You can set the number of proofand-hold print jobs that can be stored in the product at the control panel.
NOTE: When using the Proof and Hold option, only one copy of the print job is sent to the printer
even if multiple copies are specified in the software application you print from. If multiple copies are
needed while using the Proof and Hold option, they must be specified at the control panel.
After it is released for printing, the proof-and-hold job is immediately deleted from the product. If more
copies are needed, you must reprint the job from the software program. If you send a second proofand-hold job to the product with the same user name and job name as an existing proof-and-hold job
104
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
(and you have not released the original job for printing), the job overwrites the existing job. Proof-andhold jobs are deleted if you turn off the product.
NOTE: The product configuration can be set to hold a maximum of 50 quick-copy or proof-and-hold
jobs. The number is set at the product control panel in the CONFIGURATION menu, and the default is
32. When this preset limit is reached, the new document overwrites the oldest held document. Also, a
document that has the same user name and job name as one that is already stored on the printer hard
disk will overwrite the existing document.
Personal Job
To use the Personal Job option, the job-storage feature must be enabled.
When you select Personal Job, the print job is sent to the product, but is not printed until you request
the job at the product control panel. Selecting Personal Job activates the Make Job Private/
Secure group box.
If PIN to print is selected in the Make Job Private/Secure dropdown box, the print job can be
printed only after you type the correct PIN at the control panel. After the job is printed, it is immediately
deleted from the product. This feature is useful when you are printing sensitive or confidential
documents that you do not want to leave in an output bin after printing.
The PIN number for Personal Jobs must be exactly four digits (0 though 9). If non-numeric characters
are entered for the PIN number, they disappear from the input field. If more than four characters are
entered for the PIN number, the characters past the fourth are truncated. The default value for the PIN is
0000 for Personal Job.
If Encrypt Job (with password) is selected in the Make Job Private/Secure dropdown box,
the print job is sent and stored on the product encrypted. The password must be four to 32 digits (0
though 9). If non-numeric characters are entered for the password, the Confirm field will remain
grayed out. If more than 32 characters are entered for the password, the Confirm field is grayed out.
After the personal job is released for printing, it is immediately deleted from the product. If more copies
are needed, you must reprint the job from the software program. If you send a second personal job that
has the same user name and job name as an existing personal job (and you have not released the
original job for printing), the job overwrites the existing job, regardless of the PIN. Personal jobs are
deleted if you turn off the product.
Quick Copy
To use the Quick Copy option, a printer hard disk must be installed, and the job-storage feature must
be enabled.
When you select Quick Copy, the entire print job prints and a copy of the print job is stored on the
product, after which you can print additional copies of the print job at the product control panel. The
number of quick-copy print jobs that can be stored in the product is set by using the product control
panel.
NOTE: The product configuration can be set to hold a maximum of 50 quick-copy or proof-and-hold
jobs. The number is set at the product control panel in the CONFIGURATION menu, and the default is
32. When this preset limit is reached, the new document overwrites the oldest held document. Also, a
document that has the same user name and job name as one that is already stored on the printer hard
disk will overwrite the existing document. Quick Copy jobs are deleted if you turn off the product.
ENWW
Job Storage tab features
105
Stored Job
To use the Stored Job option, a hard disk must be installed on the product and the job-storage feature
must be enabled.
Use the Stored Job option to send a print job directly to the printer hard disk without printing it. The
print job is stored in the product as if it is an electronic file cabinet. After the print job is stored on the
printer hard disk, you can print the job at the product control panel.
The job remains stored in the product until it is deleted or overwritten by a document that has the same
user name and job name. Stored jobs remain on the printer hard disk when the product is turned off.
Use this feature for forms and other common or shared documents.
A stored job can be managed in two ways: as either a public or a private job .
To make a stored job public, set the Make Job Private/Secure dropdown box to None.
To make a stored job private, set the Make Job Private/Secure dropdown box to either PIN to
print or Encrypt Job (with password).
If PIN to print is selected in the Make Job Private/Secure dropdown box, the print job can be
printed only after you type the correct PIN at the control panel. After the job is printed, the job is
immediately deleted from the product. This feature is useful when you are printing sensitive or
confidential documents that you do not want to leave in an output bin after printing.
The PIN number must be exactly four digits (0 though 9). If non-numeric characters are entered for the
PIN number, they disappear from the input field. If more than four characters are entered for the PIN
number, the characters past the fourth are truncated.
Select Encrypt Job (with password) to set the private mode with encryption. In this mode, the print
job is sent and stored on the product encrypted.
The password must be four to 32 digits (0 though 9). If non-numeric characters are entered for the
password, the Confirm field will remain grayed out. If more than 32 characters are entered for the
password, the Confirm field is grayed out.
After the job is printed, the job remains in the product and can be printed again at the product control
panel.
The group box labeled Make Job Private/Secure is usually inactive. The PIN to print and
Encrypt Job (with password) options only become available when you select Stored Job or
Personal Job. If you select PIN to print or Encrypt Job (with password), you must type a PIN
or password to make the stored job private or else select None.
NOTE: A private stored job is not the same as a personal job. Personal jobs are deleted from the
product after they are printed. Private stored jobs are retained in the product after printing, but require
that a PIN be typed each time they are printed. A printer hard disk is required for Private stored jobs.
Make Job Private/Secure
The Make Job Private/Secure drop-down menu is available when Personal Job or Stored Job
is selected.
106
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
PIN to print
Select PIN to print from the drop-down menu, and then type a 4-digit PIN number in the box
provided. The personal or stored job is sent to the product, where you must enter the 4-digit PIN on the
control panel to retrieve the job. For more information on the PIN to print option, see Personal Job
on page 105
Encrypt Job (with password)
The option Encrypt Job with password provides end-to-end secure print job transmission with mutual
authentication on the supported devices. The print job is sent and stored encrypted, and can only be
printed after entering the password on the device.
Set a password for encrypting a job
1.
Enter a sequence of numeric characters, from 4 to 32 characters in length, in the Password
field. Each numeric character will accept numbers from 0 to 9.
2.
Confirm the password you entered by retyping it in the Confirm field.
NOTE: The key icon next to the Confirm field will change to green when you correctly retype
your password in the Confirm field.
NOTE: The Confirm field will be grayed out if you enter an invalid password (less than 4 or
greater than 32 characters, or characters other than 0 through 9) in the Password field.
3.
Select Save as default password to save your password and then click the Apply button.
NOTE: If Save as default password is not selected, the password is not saved even if you
print twice from the same application while the application is still open.
If Save as default password is selected with a password and used to print a job, and then
Save as default password is deselected at a later time, the password will still be used as the
default password.
User Name
Use the User Name settings to help identify the job at the product control panel. The following are the
User Name settings:
ENWW
●
User Name. This option associates your Windows® user name with the stored print job. The
Windows® user name automatically appears in the text field below the User Name options.
●
Custom. Use this option to type a custom name for the stored print job. When you click
Custom, the text field below the option becomes available. The User Name field can contain
no more than 16 characters, and is limited to A through Z and 0 through 9 because the name
appears on the product control-panel display. If you try to type a lowercase character, it
automatically shifts to uppercase. If you try to type a character in an ASCII code of fewer than 32
or more than 126 characters, the character is removed from the edit field, along with all of the
characters that follow it. If you try to type more than 16 characters, any character beyond 16 is
truncated.
Job Storage tab features
107
Job Name
Use the Job Name options to specify a name to identify the job at the product control panel. The
following are the Job Name settings:
●
<Automatic>. This option, which is the default selection, automatically generates the job name
that is associated with the stored print job. The file name of the print job is used if it is available to
the print driver. Otherwise, the software program name or a time stamp is used for the job name.
●
Custom. Use this to type a custom job name for the stored print job. When you click Custom,
the text field below the option becomes available. In those languages for which <Automatic>
cannot be translated without the use of invalid characters, the driver uses a string of three dashes.
The acceptable characters for job name and user name vary for each operating system. The string
must be of a length and type that can appear on the product control-panel display.
The Job Name field can contain no more than 16 characters, and is limited to A through Z
(uppercase or lowercase) and 0 through 9 so that the name can appear on the product control-panel
display. If you try to type a character in an ASCII code of fewer than 32 or more than 126 characters,
the character is removed from the edit field, along with all of the characters that follow it. If you try to
type more than 16 characters, any character beyond 16 is truncated.
When the dialog box is closed, or as soon as the focus is removed from the control (that is, when the
Tab key is pressed or another control is selected), an empty string is replaced with <Automatic>. The
acceptable characters for job name and user name vary for each operating system. The string must be
of a length and type that can appear on the product control-panel display.
If Job Name Exists. When you store a print job, you can create a print-job name or the product
software can assign one automatically. If a print job with the same name already exists, the new print
job will overwrite the existing print job. To eliminate the chances of a new print job overwriting an old
print job because both have the same name, select Use Job Name + (1-99). After you create the
print job name, or when one is created automatically, the product software assigns a number between
1 and 99 to the end of the print job name to make the name unique. Select Replace Existing File if
you always want the product software to overwrite an existing print job with the same print job name.
Job Notification Options
Clicking a Job Storage Mode selection causes the User Name and Job Name options to
become available. The Display Job ID when printing check box is selected by default. The
Display Job ID when printing option causes a pop-up dialog box to appear when the job-storage
print job is printed. The dialog box shows the user name and job name that are associated with the
stored print job, as well as the printer name, port, and location.
108
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Use job-storage features when printing
To use job-storage features when printing, follow these steps:
1.
Click File, and then click Print from the software program. The Print dialog box appears.
NOTE: Clicking the print icon in the software program toolbar prints the job without using jobstorage features.
2.
Click Properties or Preferences. The Properties or Preferences dialog box appears.
NOTE: The label for the button that opens the Printer Preferences dialog box varies between
software programs.
For example, in Adobe Acrobat on Windows® 7 the button is labeled Properties. In Internet
Explorer 8 the button is labeled Preferences.
3.
Click the Job Storage tab.
4.
Select the job-storage options by clicking the appropriate option button, and then complete any
required fields.
5.
Click OK.
Release a job-storage print job
After you send a print job that uses the job-storage feature, you can release the job to print from the
product control panel.
1.
From the Home screen on the product control panel, scroll to and touch the Retrieve from
Device Memory button.
2.
Select the name of the folder where the job is stored, and then touch the + button to display the list
of jobs.
3.
Select the name of the job. If the job is private or encrypted, enter the PIN or password. Touch the
field for the PIN or password and a keyboard display. Enter the PIN or password and click OK.
Once the correct password is entered, the job description is listed.
4.
Adjust the number of copies using the keyboard, and then touch the Start button to print the job.
Delete a job-storage print job
Sometimes it is necessary to delete a print job from the printer hard disk. You can do this from the
product control panel.
ENWW
1.
From the Home screen on the product control panel, scroll to and touch the Retrieve from
Device Memory button.
2.
Select the name of the folder where the job is stored, and then touch the + sign.
3.
Select the name of the job to delete. If the job is private or encrypted, enter the PIN or the
password. Once the correct password is entered, the job description is listed.
4.
Touch the Delete button on the lower right to delete the job.
Job Storage tab features
109
Color tab features
NOTE: The Color tab is located on the Printing Preferences tab set.
Use the Color tab to specify predefined color-option settings or to fine-tune the color treatments and
halftoning. Color output can also be converted to grayscale. The Color tab is shown in the following
figure.
Figure 3-18 Color tab
The Color tab contains the following sets of controls:
110
●
Color Options
●
Color Themes
●
Document preview image
●
HP EasyColor
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Color Options
Use the Color Options group box to adjust the independent color controls. The settings affect the print
job color rendering and print quality. The Color Options group box contains the following controls:
●
Automatic option (default)
●
Manual option
●
Settings button (Click this button to open the Color Settings dialog box.)
●
Print in Grayscale check box
Automatic
Use the Automatic option for color settings that automatically fine-tune the printed output. The
Automatic color settings provide high-quality output while maintaining product performance for most
color printing needs.
Manual
NOTE: To change color settings, first de-select the HP EasyColor option.
To change the color settings, select the Manual option, and then click Settings. The Color Settings
dialog box appears.
To change the settings, make your selections by using the drop-down menus in the Color Settings
dialog box, and then click OK. The following figure shows the Color Settings dialog box.
Figure 3-19 Color Settings dialog box
ENWW
Color tab features
111
The Color Settings dialog box contains the following controls:
●
General
◦
●
●
●
Edge Control
Text
◦
Neutral Grays
◦
Halftone
Graphics
◦
Neutral Grays
◦
Halftone
Photographs
◦
Neutral Grays
◦
Halftone
Settings
General
Use the General setting group to control Edge Control settings for all color printing.
Edge Control determines how edges are rendered. Edge Control consists of three components:
●
Adaptive Halftoning, which increases edge sharpness
●
Trapping, which reduces the effect of color plane misregistration by slightly overlapping the edges
of adjacent objects
●
Color Resolution Enhancement Technology (C-REt), which increases the apparent resolution by
placing each dot for the smoothest edges
The Edge Control option offers four settings:
112
●
Off. The Off setting turns Trapping, Adaptive Halftoning, and C-REt to Off.
●
Light. The Light setting provides minimal trapping. Adaptive Halftoning is set to On and C-REt is
set to On.
●
Normal. The Normal setting provides the default trapping settings. Adaptive Halftoning is set to
On, and C-REt is set to On.
●
Maximum. The Maximum setting provides the most trapping. Adaptive Halftoning is set to
On, and C-REt is set to On.
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Neutral Grays
The Neutral Grays drop-down menu controls the selection of a device-dependent color table that is
embedded in the product firmware. You can adjust the Neutral Grays setting independently for text,
graphics, or photographs. The following options are available:
●
Black Only. This option generates neutral colors (grays and black) by using only black toner.
This option guarantees that neutral colors do not have a color cast. Black Only is the default
setting for the Text and Graphics components.
●
4-Color. This option generates neutral colors by combining all four colors of toner, which
produces smoother gradients and transitions to non-neutral colors. It also produces the darkest
possible black. 4-Color is the default setting for Photographs.
Halftone
The Halftone setting controls the selection of a product-dependent halftone algorithm that is
embedded in the product firmware. Halftoning is a method by which the product mixes the four primary
colors (cyan, magenta, yellow, and black) in varying proportions to create the appearance of many
colors. The Halftone options affect the resolution and clarity of the color on the printed page. You can
select Halftone settings for text, graphics, and photographs independently.
The following Halftone options are available:
●
Detail. This is the default option; it is useful for text and graphics that require sharp distinctions
among lines or colors, or for images that contain a pattern or a high level of detail. Select this
option for sharp edges and detail.
●
Smooth. This option provides better results for large, solid-filled print areas. It also enhances
photographs by smoothing out fine color gradations. Select this option for uniform and smooth
area fills.
Print in Grayscale
Click the Print in Grayscale option to print a color document in black and white. Use this option to
print color documents for photocopying or faxing. The Print in Grayscale option does not control how
data is sent to the printer, only how the image is printed.
Color Themes
NOTE: To change Color Themes, first de-select the HP EasyColor option.
The Color Themes group box contains the following RGB color options, which determines how
colors are rendered:
ENWW
●
Default (sRGB)
●
Photo (sRGB)
●
Photo (Adobe RGB 1998)
●
Vivid (sRGB)
Color tab features
113
●
None
●
Custom Profile
Default (sRGB)
Select Default (sRGB) for most printing needs. This setting instructs the product to interpret RGB color
as sRGB, which is the accepted standard of Microsoft and the World Wide Web Consortium (W3C).
Colors are matched to optimize the RGB colors on the screen and to provide vivid images and
graphics.
Photo (sRGB)
Select Photo (sRGB) to enhance documents in which the content is mainly bitmap images, such
as .GIF or .eps files. This setting instructs the product to use the best color matching for rendering sRGB
bitmap images. This setting affects only raster data; it has no effect on text or vector-based graphics.
Using glossy paper in combination with this setting provides the maximum enhancement.
Photo (Adobe RGB 1998)
Select Photo (AdobeRGB 1998) for documents that use the AdobeRGB color space rather than
sRGB. For example, some digital cameras capture images in Adobe RBG, and documents that are
produced with Adobe PhotoShop use the Adobe RGB color space. When printing from a professional
software program that uses Adobe RGB, it is important that you turn off the color management in that
software program and allow the print driver to manage the color space.
Vivid (sRGB)
The Vivid (sRGB) feature instructs the printer to increase the color saturation in the midtones. Less
colorful objects are rendered more colorfully. This value is recommended for printing business graphics.
None
Select None to instruct the printer to print RGB data in raw device mode. To render documents
properly when this option is selected, you must manage color in the program in which you are working
or in the operating system.
CAUTION: Use this option only if you are familiar with the procedures for managing color in the
software program or in the operating system.
Custom Profile
Select Custom Profile when you want to duplicate the printed output from other products or for using
special effects. This setting instructs the product to use a custom profile to emulate color output from
another product by modifying how color is rendered.
The default custom profile is an emulation of the color table used on the HP Color LaserJet 4650
product. The product holds only one custom profile at a time, so when you download and install
another color table, it erases the default color table and installs the new one.
You can download custom profiles from the following Web site:
114
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
www.hp.com
www.hp.com/go/lj500colorMFPM575_firmware
www.hp.com/go/ljcolorflowMFPM575_firmware
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the following Printing Preferences
driver tabs:
●
Printing Shortcuts
●
Paper/Quality
●
Effects
●
Finishing
●
Color
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an
arrow to a gloved hand. You can toggle between portrait and landscape page orientation by clicking
the image.
HP EasyColor
If you are using the HP PCL 6 print driver for Windows®, the HP EasyColor technology automatically
improves mixed-content documents that are printed from Microsoft Office programs. This technology
scans documents and automatically adjusts photographic images in .JPEG or .PNG format.
HP EasyColor technology enhances the entire image at one time, rather than dividing it into several
pieces, which results in improved color consistency, sharper details, and faster printing.
In the following example, the images on the left were created without using the HP EasyColor option.
The images on the right show the enhancements that result from using the HP EasyColor option.
ENWW
Color tab features
115
The HP EasyColor option is enabled by default in the HP PCL 6 print driver, so you do not need to
make manual color adjustments. To disable the option so you can manually adjust the color settings,
open the Color tab, and click the HP EasyColor check box to clear it.
116
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Services tab features
NOTE: The Services tab is located on the Printing Preferences tab set.
The Services tab is shown in the following figure.
Figure 3-20 Services tab
The Services tab contains the following group boxes:
ENWW
●
Internet Services
●
Device services
Services tab features
117
Internet Services
The Internet Services group box contains the Select a destination drop-down menu with the
following selections:
●
Online diagnostic tools. This is the HP Instant Support Web site, where you can find
interactive tools and contacts for troubleshooting.
●
Support and troubleshooting. This is the main Web site for HP LaserJet Enterprise 500 color
MFP M575 and HP LaserJet Enterprise color flow MFP M575 product support.
●
Product manuals. View or download HP LaserJet Enterprise 500 color MFP M575 and HP
LaserJet Enterprise color flow MFP M575 product manuals.
●
Check for driver updates. Automatically check your print drivers to see whether the correct
and most up-to-date print drivers are installed.
●
Color printing access/usage. Find information about enabling and disabling color printing
and tracking color print-job usage.
If you have Internet access, select any of these items and click Go! to open the corresponding HP Web
page.
Device services
Click the Device and Supplies Status icon to open the Device Status screen of the HP EWS,
which shows supply levels and control panel status.
Click the Print Color Usage Job Log icon to print a color usage job report.
118
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Device Settings tab features
NOTE: The Device Settings tab is located on the Properties tab set.
Available options depend on the feature. The following figure shows the Device Settings tab.
Figure 3-21 Device Settings tab
The Device Settings tab contains controls for paper-handling devices and controls for managing the
product.
The Device Settings tab contains the following controls:
●
Form to Tray Assignment
●
Font Substitution Table
●
Installable Options
Form to Tray Assignment
A network administrator can use Form to Tray Assignment to specify the paper size in each input
tray.
Both the HP LaserJet Enterprise 500 color MFP M575 and the HP LaserJet Enterprise color flow MFP
M575 products support more than one source of paper. You can assign a form (which defines the
paper size and margins) to each paper source. When a form is matched to a source, you can select
the form when you print. The product prints from the tray to which that form is assigned.
Network administrators can use the Form to Tray Assignment setting to specify, in the driver, the
paper size that is loaded into each available input tray. The use of forms constrains the choices that are
available in the paper-size list on the Paper/Quality tab in the Printing Preferences driver tabs.
ENWW
Device Settings tab features
119
This constraint prevents (or reduces the likelihood of) tying up the product with paper-mount messages
that occur when users request sizes or types that are not available.
The trays listed in the Form to Tray Assignment setting include standard trays and optional
accessory trays. Generally, items that are installed separately have a separate Installable Options
setting.
The input trays listed here are also listed as paper sources on the Paper/Quality tab.
Configuring the trays
1.
Select the appropriate tray in the Form to Tray Assignment list.
2.
Use the drop-down menu to select the paper size (or form) that is loaded in that tray.
3.
Repeat steps 1 and 2 for the remaining trays.
4.
Click OK to enable your settings, or, if necessary, click Cancel to reconfigure all the trays, and
remove the size and type constraints that have been imposed on the Paper/Quality tab.
Font Substitution Table
Use the plus (+) symbol next to theFont Substitution Table settings to change the TrueType to printer
font mapping and to install and remove external fonts for the product through the External Fonts
option. External fonts can be soft fonts or DIMM fonts.
Click the plus (+) symbol next to the Font Substitution Table option to open a list of fonts, as shown
in the following figure.
Figure 3-22 Font Substitution Table
120
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
External Fonts
Use the External Fonts option to install and remove external fonts for the product. External fonts can
be soft fonts or DIMM fonts.
Click the External Fonts option to make the Properties button available. Click Properties to open
the HP Font Installer dialog box, which is shown in the following figure.
Figure 3-23 HP Font Installer dialog box
Installing external fonts
Follow these steps to install external fonts.
1.
ENWW
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
2.
Right-click the name of the product.
3.
In Windows® Vista®, Server 2003 and XP click Properties, in Windows® 7 and Server 2008
click Printer Properties.
4.
Click the Device Settings tab.
5.
Click the External Fonts option. The Properties button appears.
6.
Click Properties. The HP Font Installer dialog box appears.
7.
Type the name and path of the font metric file in the Printer Font File Location text box, or
click Browse to locate the file on the computer. The font file names appear in the Font(s) to be
Added window.
8.
Select the fonts in the right column that you want to add, and then click Add. The fonts are
installed and the file names appear in the Installed Font(s) window.
9.
Click OK to close the HP Font Installer dialog box.
Device Settings tab features
121
Removing external fonts
1.
Depending on your operating system, click the Start button and then do one of the following to
find the list of installed printers:
●
Click Devices and Printers or Printers and Faxes
●
Click Control Panel and then click Printers, or first click Hardware and Sound, and
then click Printers
●
Click Settings, and then click Printers or Printers and Faxes
2.
Right-click the name of the product.
3.
Depending on your operating system, click Properties or Printer Properties.
4.
Click the Device Settings tab.
5.
Click the External Fonts option. The Properties button appears.
6.
Click Properties. The HP Font Installer dialog box appears. The external fonts that are
installed appear in the Installed Fonts window.
7.
Select the fonts that you want to remove in the left column, and then click Remove. The fonts are
removed.
8.
Click OK to close the HP Font Installer dialog box.
Installable Options
Items under Installable Options are set based on the current printer configuration when the driver is
installed.
The HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
products have printing options that you can install and configure. The following controls are available:
122
●
Automatic Configuration
●
Printer Status Notification
●
Tray 3
●
Duplex Unit (for 2-Sided Printing)
●
Allow Manual Duplexing
●
Printer Hard Disk
●
Job Storage
●
Secure Printing
●
Job Separator
●
Mopier Mode
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Automatic Configuration
Use the Device Settings tab to tell the driver about the hardware configuration of the product. If
bidirectional communication is enabled in a supported environment, update this tab by selecting the
Update Now setting in the Automatic Configuration setting. The default setting is Off. After an
automatic configuration, the setting returns to Off after the changes are made.
If your environment does not support bidirectional communication, the Update Now setting is
unavailable, so you must manually configure the options on this tab.
If you have more than one driver installed for the product (for example, the default HP PCL 6 Print
Driver and the HP PCL 5 Universal Print Driver), the Update Now feature works automatically only on
the driver on which it is activated. The other driver will not be updated, and might show the default
setting for the specific product model.
Printer Status Notification
When enabled, this option displays a small status-notification window in the lower-right corner of the
screen. This window is visible while printing a document or while viewing the print driver settings. It
provides information about the status of the document being printed as well as information about the
printer, including the current status of the printer supplies.
NOTE: Printer Status Notification is automatically disabled in enterprise networks with more than 100
users.
Tray 3
This control specifies whether you have Tray 3, an additional 500-sheet tray, installed on the product.
Duplex Unit (for 2-Sided Printing)
Set the Duplex Unit (for 2-Sided Printing) to Installed if your product has a duplexer installed.
Duplexing allows printing on both sides of any supported size and most types of paper (except
transparencies, envelopes, and labels).
NOTE: Both the HP LaserJet Enterprise 500 color MFP M575 and the HP LaserJet Enterprise color
flow MFP M575 products support smart duplexing. The product uses the smart duplexing feature to
detect information on both sides of the print job pages and only runs the pages through the duplexing
unit if printable information appears on the second side of the page.
Allow Manual Duplexing
Select Allow Manual Duplexing to print on both sides of any supported size and most types of
paper (except transparencies, envelopes, and labels). To use this feature, you must reinsert the paper
stack into the input tray to print the second side. The product pauses while you make this adjustment.
ENWW
Device Settings tab features
123
This setting is enabled by default.
Figure 3-24 Manual Duplexing
Printer Hard Disk
When this option is installed, the Job Storage option and the Mopier Mode are enabled in the
print driver. Use the Job Storage option to store print jobs and then print them later from the control
panel. The multiple-original print (mopy) function is an HP-designed feature that produces multiple,
collated copies from a single print job.
Job Storage
When Job Storage is enabled, the product can store print jobs so that you can gain access to those
print jobs later at the control panel.
Secure Printing
The new HP UPD option Encrypt Job (with password) is available for use with this printer and
provides end-to-end secure print job transmission with mutual authentication on the supported devices.
The print job is sent and stored encrypted, and can only be printed after entering the password on the
device.
Setting this to disabled results in the setting Encrypt Job not to be listed under Make Job Private/
Secure on the Job Storage tab.
The default is Automatic, enabling the setting to be selected from the Job Storage tab.
Job Separator
Use this control to specify whether a print job identifier page should be printed between print jobs. The
Job Separator feature is disabled by default.
Once the job separator page feature is enabled, follow these steps to select it:
1.
124
Open the Printers folder, right-click the printer, and select Printing Preferences.
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
2.
Select the Finishing tab.
Figure 3-25 Finishing Tab
ENWW
Device Settings tab features
125
3.
Click the Job Separator button.
Figure 3-26 Separator Page Details
4.
Configure the separator page and select OK.
Mopier Mode
The multiple-original print (mopy) function is an HP-designed feature that produces multiple, collated
copies from a single print job. Multiple-original printing (mopying) increases performance and reduces
network traffic by transmitting the job to the product once, and then storing it in memory or on the hard
disk. The remainder of the copies are printed at the fastest speed. All documents that are printed in
mopier mode can be created, controlled, managed, and finished from the computer, which eliminates
the extra step of using a photocopier.
Both the HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
support the transmit-once mopying feature when the Mopier Mode: setting on the Device Settings
tab is Enabled.
When you use the HP PCL 6 Print Driver, mopying is performed in one of two ways: either through the
software or through the product hardware. When mopier mode is enabled, mopying takes place
through the product hardware. One copy of a multiple-page print job is transmitted once through the
network to the product, together with a printer job language (PJL) command directing the product to
make the specified number of copies.
When you disable mopier mode, you are not necessarily disabling multiple collated copies, which the
driver can still perform through the software rather than the product hardware (the mopying path that is
disabled when you change the Mopier Mode setting to Disabled). However, a multiple-copy print
job that is sent when the mopier is disabled loses the advantage of transmitting the print job once,
because the job is sent through the network for each collated copy.
126
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
Mopier mode and collation
Mopying and collating print jobs are independent but closely related functions. Mopying, the ability to
send original print jobs to the product, is performed by the print driver. Collating can be controlled by
either the print driver or the document software program. The mopying mode is selected by default in
the driver, and can be disabled by changing the Mopier Mode setting on the Device Settings tab
to Disabled.
Control collation through the print driver by selecting or clearing the Collated check box on the
Advanced tab. Click Copy Count under the Paper Output setting. You can clear the check box,
which is available only when the Copy Count option is set to more than 1 copy, to allow the software
program to control collation.
To receive uncollated multiple copies of a print job, you must clear the Collated check box on the print
dialog screen and make sure that the software program collation feature is not selected.
The following table shows the relation between mopier mode settings and collation settings in the
software program and the driver. The first three columns show the settings; the last column, "Expected
result", shows how a 3-page print job would appear.
Table 3-3 Driver mopier mode and collation settings
ENWW
Mopier mode
Application collation
Driver collation
Expected result
Disabled
Not selected
Not selected
3 copies uncollated
Disabled
Not selected
Selected
3 copies uncollated
Disabled
Selected
Not selected
3 copies collated
Disabled
Selected
Selected
3 copies collated
Enabled
Not selected
Not selected
3 copies uncollated
Enabled
Not selected
Selected
3 copies uncollated
Enabled
Selected
Not selected
3 copies collated
Enabled
Selected
Selected
3 copies collated
Device Settings tab features
127
About tab features
NOTE: The About tab is located on the Properties tab set.
The About tab provides detailed information about driver component versions. It contains an overall
build version number (in parentheses after the model name) together with specific information about
each of the components. The information varies according to the HP LaserJet Enterprise 500 color MFP
M575 or HP LaserJet Enterprise color flow MFP M575 model number, driver, date, and versions. The
About tab is shown in the following figure.
Figure 3-27 About tab
The About tab lists driver installation file names and their version numbers. The About tab also
indicates whether the driver was autoconfigured, whether administrator preferences were set, the date
the driver was last configured, and whether the configuration is autoconfigured or user-configured.
The About button is also available on most driver screens. The About button provides a PCL and UPD
driver version numbers.
NOTE: The HP PCL 6 print driver is installed by default when using the installer CD. It can also be
downloaded from www.hp.com with an installer or just the driver.
128
Chapter 3 HP PCL 5, PCL 6, and PS emulation drivers for Windows®
ENWW
4
Mac OS X software and utilities
Introduction
Both the HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color flow MFP M575
products come with software and installers for Apple, Inc. Mac systems.
This chapter provides procedures for installing and removing the HP LaserJet Enterprise 500 color MFP
M575 or HP LaserJet Enterprise color flow MFP M575 printing-system software for Mac operating
systems, as well as descriptions about the software and utilities. The chapter provides information about
these topics:
NOTE: Detailed installation steps can be found in Mac OS X installation on page 135.
ENWW
●
Determine the Mac driver version
●
Supported operating systems for Mac OS X
●
Printing-system software
●
Mac OS X installation instructions
●
Remove the print driver (Mac OS X)
●
AirPrint
●
HP Utility for Mac
Introduction
129
Determine the Mac driver version
Mac OS X
130
1.
From the Apple menu , click the System Preferences menu and then click the Print & Fax
icon (Mac OS X v10.5 and 10.6) or Print and Scan icon (Mac OS X v10.7 and v10.8).
2.
Select the product in the left side of the window.
3.
Click the Options & Supplies button.
4.
Click the General tab to view the driver version number.
Chapter 4 Mac OS X software and utilities
ENWW
Supported operating systems for Mac OS X
The product supports the following Mac operating systems:
●
HP LaserJet Enterprise 500 color MFP M575: Mac OS X v10.5, v10.6, and v10.7.
●
HP LaserJet Enterprise color flow MFP M575: Mac OS X v10.6, v10.7, and v10.8.
NOTE: For Mac OS X 10.5 and later, PPC and Intel® Core™ Processor Macs are supported.
Mac system requirements
Hardware requirements
●
PowerPC G4, G5 or Intel Core processor
●
256 MB RAM
●
200 MB of available hard-disk space
●
CD-ROM or DVD drive or Internet connection
Supported printer drivers for Mac
The HP LaserJet software installer provides PostScript® Printer Description (PPD) files, Printer Dialog
Extensions (PDEs), and the HP Utility for use with Mac OS X computers. The HP printer PPD and PDE
files, in combination with the built-in Apple PostScript printer drivers, provide full printing functionality
and access to specific HP printer features.
●
ENWW
Supported Mac drivers for OS X are included on the in-box CD and available for download:
◦
HP LaserJet Enterprise 500 color MFP M575: www.hp.com/go/
lj500colorMFPM575_software
◦
HP LaserJet Enterprise color flow MFP M575: www.hp.com/go/
ljcolorflowMFPM575_software
●
HP ePrint
●
HP ePrint Software
●
HP Airprint driver
Supported operating systems for Mac OS X
131
Change printer-driver settings for Mac
Change the settings for all print
jobs until the software program
is closed
Change the default settings for
all print jobs
Change the product configuration
settings
1.
With an application open, click
File menu, and then click the Print
button.
1.
With an application open, click
File menu, and then click the Print
button.
Mac OS X 10.5, 10.6, 10.7, and
10.8
2.
Change the settings that you want
on the various menus.
2.
Change the settings that you want
on the various menus.
3.
On the Presets menu, click the
Save As... option and type a
name for the preset.
These settings are saved in the Presets
menu. To use the new settings, you must
select the saved preset option every time
you open a program and print.
1.
From the Apple menu
, click the
System Preferences menu and
then click the Print & Fax icon or
the Print & Scan icon for OS X
10.7.
2.
Select the product in the left side of
the window.
3.
Click the Options & Supplies
button.
4.
Click the Driver tab.
5.
Configure the installed options.
Printing-system software
The product includes the following software for Mac computers:
●
HP LaserJet Enterprise 500 color MFP M575 for PDEs for Mac OS X v10.5, v10.6 and v10.7.
●
HP LaserJet Enterprise color flow MFP M575 for PDEs for Mac OS X v10.6, v10.7, and v10.8.
PDEs
Printer Dialog Extensions (PDEs) are code plug-ins that provide access to product features, such as
number of copies, duplexing, and quality settings. The PDEs are HP additions to Apple's print driver.
HP Embedded Web Server
Mac OS X v10.5 and later support the HP Embedded Web Server (HP EWS). Use the HP LaserJet
Utility to control features that are not available in the driver. Use the HP EWS to perform the following
tasks:
132
●
Name the product and assign it to a zone on the AppleTalk network.
●
Change product settings.
●
Set a password for the product.
●
From the computer, lock out functions on the control panel to prevent unauthorized access (see the
printing-software help).
Chapter 4 Mac OS X software and utilities
ENWW
Online help
This HTML-based help system replaces the Apple Guide help system that was provided with
Mac OS 9.x HP products. The help system is in English only, and can be viewed through a browser or
in the Mac OS Help Center.
Screen fonts
The printing-system software for Mac operating systems no longer includes a font installer. Both the HP
LaserJet Enterprise 500 color MFP M575 and the HP LaserJet Enterprise color flow MFP M575 products
use previously installed system fonts when installed on a Mac computer.
ENWW
Printing-system software
133
Mac OS X installation instructions
On a Mac computer, the installation procedures are basically the same for a network administrator, a
network client, and a single user. Install the software on any computer that has save rights to the
product. Users must have Administrator rights to install the software.
NOTE: If the computer is connected to the product by a LocalTalk (printer port) connection, you must
configure the AppleTalk (or network) control panel for the correct connection to communicate with the
product. You must set up the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise
color flow MFP M575 product, connect it to the computer or network, and turn it on before the software
is installed. Mac operating systems do not support parallel connections.
The Mac partition contains an installer program for each language. Find the appropriate language for
the operating system that is being used, and then use the installer program for that language.
NOTE: Detailed installation steps can be found in Mac OS X installation on page 135.
HP LaserJet software CD, Mac partition
The files contained in the Mac partition of the HP LaserJet software CD are grouped by language and
reside in the following directory:
●
HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP M575
●
Documents
Install the HP LaserJet printing-system software for the Mac OS
Topics:
●
General installation instructions
●
Mac OS X installation
●
Setup instructions
General installation instructions
1.
Insert the product printing-system software CD into the CD-ROM drive.
NOTE: If the CD screen does not open automatically, double-click the CD-ROM icon on the
desktop to open the CD-ROM window.
2.
134
Double-click the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow
MFP M575 icon.
Chapter 4 Mac OS X software and utilities
ENWW
3.
Follow the onscreen instructions to complete the software installation.
NOTE: If you are installing the printing-system software on a Mac OS X system, be patient. The
installer must perform an initial search of the computer for up to 1 minute. During this time the
installer might appear to be stalled.
4.
When software installation is complete, click Close.
Mac OS X installation
This section provides information about the various installation dialog-box sequences for the Mac OS X
operating system.
Main Install dialog box sequence
NOTE: If you are connecting the product to a network, connect the network cable to the network port.
If you are connecting the product with a USB cable, connect the USB cable.
1.
Insert the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP
M575 printing-system software CD in the CD-ROM drive.
NOTE: If the CD screen does not open automatically when the CD is put into the CD-ROM drive,
double-click the CD-ROM icon on the desktop to open the installer folder.
NOTE: The CD shipped with your product only contains the software specific to the product. The
CD labeled HP LaserJet Enterprise 500 color MFP M575 can only be used with the HP LaserJet
Enterprise 500 color MFP M575 product and cannot be used with the HP LaserJet Enterprise color
flow MFP M575 product. Similarly, the CD labeled HP LaserJet Enterprise color flow MFP M575
only has the software for the HP LaserJet Enterprise color flow MFP M575 product.
2.
The installer program opens.
Figure 4-1 Mac installer opening screen
NOTE: The product name displayed on your HP LaserJet installer browser screen may be
different than the file name displayed in the above figure.
NOTE: In the HP LaserJet installer browser screen, double-click the Documents icon to gain
access to the product user guide. You can also select a language folder and locate the available
ReadMe file which is in .htm format.
ENWW
Mac OS X installation instructions
135
3.
In the HP LaserJet installer browser screen, double-click the product icon to open the installer
program Introduction dialog.
Figure 4-2 Mac installer Introduction dialog
136
Chapter 4 Mac OS X software and utilities
ENWW
4.
Click the Continue button. The Software License Agreement dialog appears.
Figure 4-3 Mac installer Software License Agreement dialog
5.
You can save or print the license file by clicking the Save button or the Print button.
Read the software license agreement, and then click the Continue button. The license agreement
dialog appears.
Figure 4-4 Mac installer license agreement dialog
ENWW
Mac OS X installation instructions
137
6.
Click the Disagree button to end the installation and close the installer, or click the Agree button
to continue the installation.
Figure 4-5 Mac installer Select a Destination dialog
138
Chapter 4 Mac OS X software and utilities
ENWW
7.
Select the destination for the software installation and click Continue. The Installation Type
dialog appears.
Figure 4-6 Mac installer Installation Type dialog
ENWW
Mac OS X installation instructions
139
8.
Click the Go Back button to go back to the previous screen.
To change the installation location, click the Change Install Location... button, navigate to the
desired location, click the Continue button, and then click the Install button. Go to step 10.
Click the Install button to continue the standard installation. Go to step 10.
Click the Customize button to open a dialog that lists separate software programs that you can
choose to install.
Figure 4-7 Mac installer custom installation dialog
Click the Standard Install button to revert to the standard installation process.
Click the Go Back button to go back to the previous dialog box.
Use the check boxes in the Package Name list to select the printing-system components to
install, and then click the Install button or the Install Software (Mac OS X 10.7) button.
140
Chapter 4 Mac OS X software and utilities
ENWW
9.
An authentication dialog appears. Type the required user name and password, and then click the
OK button or .
Figure 4-8 Mac installer authentication dialog
10. The Installation dialog appears. A progress bar shows the percentage of the installation
progress that has been completed. Allow the program to install the software.
Figure 4-9 Mac installer Installation dialog
ENWW
Mac OS X installation instructions
141
11. Read the tips for reducing environmental impact and click Continue when finished.
Figure 4-10 Do your part for the environment
142
Chapter 4 Mac OS X software and utilities
ENWW
12. The Add Printer dialog appears. Click the Add Printer... button to add your product to the list
of available printers.
NOTE: To select the printer by its IP address, click the IP icon in the upper right corner of the
Add Printer dialog.
13. Click the Add button to add the printer and then click the Continue button.
ENWW
Mac OS X installation instructions
143
14. When the installation is complete, the Summary dialog appears, stating that the installation was
successful.
Figure 4-11 Mac installer Summary dialog
15. Click the Close button to exit the installer.
Setup instructions
This section contains information about the following topics:
●
Setting up a printer with Mac OS X
●
Troubleshooting the product setup
Setting up a printer with Mac OS X
Complete these steps after completing the printing-system software installation if you did not add a
printer when running the installer.
1.
If you are installing the product using a USB connection, connect the USB cable between the
product and the computer if you have not already done so. Turn on the product. If you are
installing using a network connection, verify that the network cable is connected to the product
and that the product is on.
2.
Max OS X 10.5 and 10.6: From the Apple menu
click the Print & Fax icon.
Mac OS X 10.7 and 10.8: From the Apple menu
click the Print & Scan icon.
144
Chapter 4 Mac OS X software and utilities
, click the System Preferences menu, then
, click the System Preferences menu, then
ENWW
3.
If you are installing the product using a USB connection, verify that the product appears in the
printer list. The Name column in the printer list should display the product name. If this is the
case, the USB setup is complete.
If the product does not appear, or if the correct information does not appear in the field, see
Troubleshooting the product setup on page 147.
If you are installing the product using a network connection, continue with the following steps.
4.
Click the plus symbol in the Printer List to open the Printer Browser screen.
5.
You can use either Bonjour (default browser) or IP Printing for the network connection.
NOTE: Bonjour is the easiest method and is the best method to use if the product is installed on
your local network.
IP Printing must be used if you are installing the product on a different network.
If you are using Bonjour, carry out the following steps:
a.
Click the Default Browser tab.
b.
Select the product from the list. The software verifies that the product is connected to the
network and the Print Using field is automatically populated with the correct PPD for the
product.
NOTE: If you are on a network that has more than one product, print a configuration page
and match the Bonjour Printer Name to the name on the list to identify the product that you
are installing.
NOTE: If the product does not appear in the list, verify that the product is on and
connected to the network, then try turning the product off and then on again. If the product
PPD does not appear in the Print Using pull-down list, turn the computer off and then on
again, then restart the setup process. For more troubleshooting information, see
Troubleshooting the product setup on page 147.
c.
Click the Add button.
d.
You are finished with the setup process.
If you are using the IP Printing method, carry out the following steps:
ENWW
a.
Click the IP Printer tab (OS X 10.5 and 10.6) or the IP tab (OS X 10.7 and 10.8).
b.
Choose HP Jet Direct – Socket from the Protocol pull-down menu. This is the
recommended setting for HP products.
Mac OS X installation instructions
145
c.
At the product control panel, touch the Network Address button to identify the product IP
address or host name.
If the Network Address button is not visible, you can find the IP address or host name by
printing a configuration page.
i.
At the product control panel, scroll to and touch the Administration button.
ii.
Open the following menus:
●
Reports
●
Configuration/Status Pages
iii. Touch Configuration Page.
iv. Touch the View button to view the information on the control panel, or touch the Print
button to print the pages.
v.
Find the IP address on the Jetdirect page.
Figure 4-12 IP location on the Jetdirect page
Jetdirect Page
HP Color LaserJet
Page 1
vi. IPv4: If the IP address is 0.0.0.0, or 192.0.0.192, or 169.254.x.x, verify the product is
connected to a network. If the product is connected to a network and displaying the
previously listed IP addresses, you may have to manually configure the IP address.
Otherwise, the network configuration was successful.
IPv6: If the IP address begins with "fe80:", verify the product is connected to a network.
If the product is connected to a network and displaying the previously listed IP
addresses, the product should be able to print. If not, you may have to manually
configure the IP address.
6.
146
d.
Type the IP address into the Address field on the Add Printer screen.
e.
The Name, Location, and Print Using information will automatically be filled in. If the
product PPD does not appear in the Print Using field, turn the computer off and then on
again and restart the setup process.
Select the product , click the Options and Supplies button, then click the Driver button.
Chapter 4 Mac OS X software and utilities
ENWW
7.
Each optional tray is listed with a check box.
8.
If the product has a hard disk, select the Printer Disk check box.
9.
If the product has a duplex unit, select the Duplex Unit check box.
10. After you have selected the settings in the driver screen, click Continue. The product name
appears in the Printer List and the setup is complete.
Troubleshooting the product setup
If the product does not appear in the printer list after an installation:
Complete each one of these solutions in the order given, and restart the setup process after each one to
see if the issue has been resolved.
●
Verify that the USB or network cable is connected between the product and the computer and that
the product is powered on.
●
Try disconnecting and reconnecting the cable. If the computer has more than one USB port, try a
different USB port.
●
Turn the product off and then back on.
●
Turn the computer off and then back on.
●
If you are using a USB hub on the computer, disconnect any other USB devices from the hub.
If the wrong PPD appears in the Kind column in the printer list after installation:
1.
Unplug the USB cable.
2.
Delete the print queue with the incorrect type (for example, Generic PostScript Printer).
3.
Reinstall the printing-system software.
4.
Turn the computer off and then on.
5.
Reconnect the USB cable from the computer to the product.
If these steps do not resolve the problem, delete the incorrect print queue, click Add, choose the
product from the list, and then browse manually for the product PPD.
Remove the print driver (Mac OS X)
You must have administrator rights to remove the software.
ENWW
1.
Open System Preferences.
2.
Select Print & Fax (OS X 10.5 and 10.6) or Print & Scan (OS X 10.7 and 10.8).
3.
Highlight the product.
4.
Click the minus (-) symbol.
5.
Delete the print queue, if necessary.
Remove the print driver (Mac OS X)
147
AirPrint
Direct printing using Apple’s AirPrint™ is supported for iOS 4.2 or later. Use AirPrint to print wirelessly
to the product from an iPad, iPhone (3GS or later), or iPod touch (third generation or later) in the
following applications:
●
Mail
●
Photos
●
Safari
●
Select third-party applications
How to print with AirPrint
1.
Open a document to print and touch the action icon.
Figure 4-13 Print with AirPrint, 1 of 3
2.
Touch the Print button and configure your printer settings.
Figure 4-14 Print with AirPrint, 2 of 3
148
Chapter 4 Mac OS X software and utilities
ENWW
3.
Touch the Printer button (callout 1) and select a printer, and then touch the Print button (callout
2) to print the document.
NOTE: If there are multiple printers in the list with the same model name, see Determine the
product's AirPrint name on page 149.
Figure 4-15 Print with AirPrint, 3 of 3
Determine the product's AirPrint name
Wireless products that support AirPrint have an AirPrint printer name. Once the product is on the
network, you can find the AirPrint name by completing the following procedure:
1.
From the Home screen on the product control panel, touch the Network
to Connect screen.
2.
The AirPrint name displays on the control panel screen. Use this name to print to the product from
an iOS device.
button to open the How
How to change the AirPrint printer name that displays on the How
To Connect screen of the product control panel
ENWW
1.
At the computer, open a Web browser, type the IP address in the address line, and then press the
Enter key. The HP Embedded Web Server (EWS) opens.
2.
Select the Networking tab,
3.
Click the TCP/IP Settings item.
4.
Select the Network Identification tab.
AirPrint
149
5.
Type the new name in the Bonjour Service Name: field.
6.
Click the Apply button.
Figure 4-16 Change AirPrint printer name
AirPrint troubleshooting
●
Ensure the product supports AirPrint. To see the list of AirPrint supported products, see
www.hp.com/go/AirPrint.
●
Ensure the product latest firmware installed. If a firmware update is necessary, download the
firmware from:
●
◦
HP LaserJet Enterprise 500 color MFP M575: www.hp.com/go/
lj500colorMFPM575_firmware
◦
HP LaserJet Enterprise color flow MFP M575: www.hp.com/go/
ljcolorflowMFPM575_firmware
Ensure the printer is connected to the network through a wireless access point through a wireless
router or wireless accessory installed on the printer. Both the HP LaserJet Enterprise 500 color MFP
M575 and HP LaserJet Enterprise color flow MFP M575 products support the following wireless
accessories:
Table 4-1 HP LaserJet Enterprise 500 color MFP M575 and HP LaserJet Enterprise color
flow MFP M575 supported wireless accessories for AirPrint
Wireless accessory
Part number
HP Jetdirect 2700w USB 802.11 b/g/n Wireless Print
Server
J8026A
NOTE:
150
Available 2012
Chapter 4 Mac OS X software and utilities
ENWW
●
Ensure Bonjour, AirPrint, and IPP Printing is turned on. This can be done through the
product’s EWS on the Networking tab / Other Settings. See Figure 4-17 Enabling Bonjour,
AirPrint, and IPP Printing on page 151.
●
Ensure the Apple products meet these specifications:
◦
Apple iOS 4.2 or greater
◦
iPhone 3GS or later
◦
iPad
◦
iPod Touch 3rd generation or later
Figure 4-17 Enabling Bonjour, AirPrint, and IPP Printing
On the General / Energy Settings tab, ensure All events or Network port is selected if
Enable Sleep/Auto Off Timer is selected. If Power button only is selected and the printer is in
an Auto off energy saving mode, the printer will not wake up and print an AirPrint job unless the power
button is pressed on the printer. See Figure 4-18 Energy settings for AirPrint on page 151.
NOTE: If a product is waking up, it may take several seconds to be able to print with AirPrint.
Figure 4-18 Energy settings for AirPrint
ENWW
AirPrint
151
HP Utility for Mac
The HP Printer Utility is a software program that gives you access to the product in Mac OS X.
The HP Printer Utility does not work when it is installed by using the AppleTalk protocol. Use IP, Bonjour
or Rendezvous to enable the HP Printer Utility.
The following topics are discussed:
●
Access to the HP Utility
●
Information and Support area
●
Printer Settings
●
Scan Settings
Click the HP Support button to go to the HP Online Support Web site for more help on any of
these topics.
Access to the HP Utility
Follow these steps to gain access to the HP Utility:
1.
Mac OS X 10.5 and 10.6: Open the Finder, click Applications, click Utilities, and then
double-click HP Utility.
Mac OS X 10.7 and 10.8: Click Go, click Utilities, and then double-click HP Utility.
2.
The main HP Utility screen appears. Click the product in the Devices list.
Figure 4-19 HP Utility main screen
The following sections describe the screens and features that are available in the HP Utility.
152
Chapter 4 Mac OS X software and utilities
ENWW
Information and Support area
Supplies Status
In the Information And Support section of the HP Utility, click Supplies Status to open the
Supplies Status screen.
Figure 4-20 Supplies Status screen
Click Detailed Supplies Information… to open the Supplies Status details screen.
Use the scroll button to see information about the color toner cartridges.
On the Supplies Status screen, click Media to see the status of the trays.
You can also order supplies at anytime by clicking Supplies in the toolbar on the HP Print Utilities
main screen.
Click All Settings to return to the Information And Support section of the HP Utility.
ENWW
HP Utility for Mac
153
Device Information
In the Information And Support section of the HP Utility, click Device Information to find the
product Service ID (if assigned), the firmware version (FW Version), and the Serial Number.
Figure 4-21 Device Information screen
The product configuration page shows other settings; to view these setting View Configuration
Page.
NOTE: If your web browser displays a message stating that it cannot verify the identity of the Web
site, disregard the message and continue on to the Web site.
For more information, see the HP EWS online help.
Color Usage
In the Information And Support section of the HP Utility, click the Color Usage icon to open a
screen and print a color-usage log.
Figure 4-22 Color Usage screen
154
Chapter 4 Mac OS X software and utilities
ENWW
The color usage log provides the following information:
●
Date and time
●
Total number of jobs
●
Mono (monochrome, or black-and-white) sides
●
Color sides
●
Paper sheets
File Upload
In the Information And Support section of the HP Utility, click File Upload to open the File
Upload screen.
Figure 4-23 File Upload screen
The File Upload command is supported for file types that can be sent directly to the product without
first being opened through a software program. Some files can be uploaded to the product, but some
cannot.
Documents in the following file formats can be printed by using a command line. That is, they do not
need to be opened in a software program that supports the file format (such as the Adobe Acrobat or
Acrobat Reader programs for .PDF files), but can be sent directly to the product by using the File
Upload command.
●
HP LaserJet printer command language (.PRN)
●
Portable document format (.PDF)
●
Postscript (.PS)
●
Text (.TXT)
On the File Upload screen, click Display response from the device to see whether the upload
was successful. If the file loads successfully, no message appears.
ENWW
HP Utility for Mac
155
On the File Upload screen, click Choose… to open a navigation screen. Locate the file you want to
upload and click Open. The selected file name appears in the File Upload screen of the HP Printer
Utility.
Click Upload.
HP ePrint Center
Simplified printing for internet connected products from anywhere.
For instructions on how to enable HP Web Servies and configure HP ePrint, go to:
www.eprintcenter.com
Figure 4-24 HP ePrint Center screen
156
Chapter 4 Mac OS X software and utilities
ENWW
Upload Fonts
In the Information And Support section of the HP Utility, click Upload Fonts to gain access to
fonts that you can upload to the HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise
color flow MFP M575 product.
Figure 4-25 Upload Fonts screen
The drop-down menu in the Upload Fonts pane has the following options:
ENWW
●
Memory. Fonts that are available in the printer memory are listed.
●
Disk. Select this option to show any fonts that are installed on the printer hard disk or flash disk.
By default, no fonts are stored on either of these disks.
●
To upload fonts, select the font name, and then click Add.
HP Utility for Mac
157
Printer Settings
Duplex Mode
Click this setting to open the Duplex Mode screen.
Figure 4-26 Duplex Mode screen
Use the Enable Duplex Mode command to print internal diagnostic and test pages on both sides of
the page.
To enable this feature, select the Enable Duplex Mode check box. This box is clear by default.
E-mail Alerts
In the Printer Settings section, click the E-mail Alerts icon to configure the product to send e-mail
notifications to users.
If a user name and password have been set, you might need to obtain them from the IT administrator.
For more information, see the HP EWS online help.
Figure 4-27 E-mail Alerts screen
Click the Open E-mail Alerts Settings button to open the HP EWS. The HP EWS opens to the
Setup screen on the Alerts tab, where you can set notifications.
NOTE: If your web browser displays a message stating that it cannot verify the identity of the Web
site, disregard the message and continue on to the Web site.
For more information, see the HP EWS online help.
158
Chapter 4 Mac OS X software and utilities
ENWW
Network Settings
In the Printer Settings section of the HP Utility, select Network Settings to open the IP Settings
screen.
Figure 4-28 Network Settings screen–IPv4 Settings
The Network Settings screen provides access to IPv4, IPv6, Bonjour Settings, and Other
Settings.
Select Configuration, to modify the following settings:
●
DHCP
●
BootP
●
Manual
You can also use this screen to modify the following settings:
●
Host Name
●
IP Address
●
Subnet Mask
●
Default Gateway
To save new settings, click Apply Now.
To view and change the Bonjour network settings, click Bonjour Settings. Bonjour is enabled by
default.
ENWW
HP Utility for Mac
159
Figure 4-29 Network Settings screen–Bonjour Settings
To disable Bonjour, click to clear the Enable Bonjour check box and then click Apply Now.
The following options are available in the The highest priority service drop-down menu:
●
LPD-TEXT
●
Port 9100
●
LPD-AUTO
●
IPP (default in OS X 10.7)
●
LPD-BINPS (default in OS X 10.5 and 10.6)
●
LPD-RAW
After you select a new setting, click Apply Now to save it.
To view and change other network settings, click Other Settings, then click Additional Network
Settings.
NOTE: If your web browser displays a message stating that it cannot verify the identity of the Web
site, disregard the message and continue on to the Web site.
For more information, see the HP EWS online help.
If a user name and password have been set, you might need to obtain them from your IT administrator.
For more information, see the HP EWS online help.
The HP EWS opens to the Networking screen.
160
Chapter 4 Mac OS X software and utilities
ENWW
Protect Direct Ports
In the Printer Settings section of the HP Utility, select Protect Direct Ports to disable printing over
USB and parallel ports. JetDirect, embedded network connectivity, and third-party add-on cards, such
as FireWire, will not be affected by this setting.
Figure 4-30 Protect Direct Ports screen
Click Disable Direct Ports.
Stored Jobs
In the Printer Settings section of the HP Utility, select Stored Job to change the Enable Job
Storing setting. This setting is selected by default. Click to clear the check box to disable the jobstoring feature.
Figure 4-31 Enable Job Storing screen
You can type a PIN for your job in the Enter Secure Job PIN field.
ENWW
HP Utility for Mac
161
Select the number of copies in the Copies to Print field.
Select a stored job and click Print to print the job.
Select a stored job and click Delete to delete the job.
Supplies Management
In the Printer Settings section of the HP Utility, click Supplies Management to open the
Supplies Management screen.
Figure 4-32 Replace Supplies screen
The Supplies Management screen allows you to define how the product responds when the supply
states are At Very Low for cartridges and supplies. The Supplies Management screen also
allows you to define when that very low message state or alert is given by setting the User Defined
Low Threshold (the percentage of estimated supply life left, at which you want the product to alert
you that the supply is low).
In the Cartridge Behavior at Very Low area, select one of the following actions for the product to
take when the black cartridge, color cartridges, or other parts or kits, are At Very Low.
●
Stop
●
Prompt to Continue
●
Continue
In the User Defined Low Threshold area, select a percentage life remaining next to the cartridge
or document feeder kit to define the low threshold alert level for that cartridge or supply.
Click Apply Now to save the new settings.
162
Chapter 4 Mac OS X software and utilities
ENWW
Trays Configuration
The Trays Configuration screen is shown in the following figure.
Figure 4-33 Trays Configuration screen
1.
In the Printer Settings section of the HP Utility, select Trays Configuration to change paper
size and type for each of the trays installed on your product.
2.
To change the paper type, select a tray and then select a different paper type in the Default
Media Type drop-down menu.
NOTE: Some trays can detect the media size and might be grayed out.
3.
ENWW
To change the paper size, select a tray and then select a different paper size in the Default
Media Size drop-down menu.
HP Utility for Mac
163
Additional Settings
In the Printer Settings section of the HP Utility, select Additional Settings to gain access to the
HP EWS.
Figure 4-34 Additional Settings screen
To open the HP EWS, click Open Embedded Web Server.
NOTE: If your web browser displays a message stating that it cannot verify the identity of the Web
site, disregard the message and continue on to the Web site.
For information about HP EWS settings, consult the HP EWS online help.
Scan Settings
Scan to E-mail
In the Scan to E-mail section of the HP Utility, click the Begin Scan to E-mail setup... button to
open the HP EWS and configure the scan to email settings.
Figure 4-35 Scan to E-mail screen
164
Chapter 4 Mac OS X software and utilities
ENWW
Scan to Network Folder
Use the Scan to Network Folder section of the HP Utility to configure the scan to network folder
settings.
Figure 4-36 Scan to Network Folder screen
ENWW
HP Utility for Mac
165
166
Chapter 4 Mac OS X software and utilities
ENWW
5
Engineering details
Introduction
This chapter presents engineering detail for the following topics:
ENWW
●
Media attributes and commands
●
File to E-mail utility
Introduction
167
Media attributes and commands
This section includes the following information about paper attributes:
●
Paper-source commands
●
Paper-type commands examples
Paper-source commands
The PCL 6 print driver attribute for paper source is ubyte # MediaSource or ubyte_array
"string" MediaSource. See the following table for values of #. For example, "ubyte 4
MediaSource" is the command for Tray 2.
The PCL 5 print driver escape sequence for paper source is Esc&l#H (the "l" is a lowercase "L" rather
than the numeral "1"). See the following table for values of #. For example, Esc&l1H is the command
for Tray 2.
NOTE: The HP LaserJet Enterprise 500 color MFP M575 or HP LaserJet Enterprise color flow MFP
M575 products support Tray 1, Tray 2, and Tray 3.
Table 5-1 Paper-source commands
Input source
PCL 5
PCL 6
PCL 6
PostScript
Esc&l#H
ubyte #
MediaSource
ubyte_array
"string"
MediaSource
/MediaPosition
# or null/
ManualFeed true
or false
Automatically select
NA
NA
NA
NA
Printer auto select
7
1
AUTOSELECT
null false
Manual feed in tray 1
2
2
MANUALFEED
3 true
Tray 1 (100-sheet)
4
3
TRAY1
3 false
Tray 2 (250-sheet)
1
4
TRAY2
0 false
Tray 3 (500-sheet)
5
5
TRAY3
1 false
Paper-type commands examples
The PCL 5 print driver escape sequence for paper type is "Esc&n#Wdpapertype", where "n#" is the
number of characters in the paper type plus 1. For example, in the sequence "Esc&n6WdPlain",
"Plain" has 5 letters plus 1, for a total of 6.
Table 5-2 Paper-type commands
168
Esc&
n#
Wd
Paper type
Esc&
6
Wd
Plain
Esc&
11
Wd
Preprinted
Chapter 5 Engineering details
ENWW
Table 5-2 Paper-type commands (continued)
1
2
ENWW
Esc&
n#
Wd
Paper type
Esc&
11
Wd
Letterhead
Esc&
13
Wd
Transparency1
Esc&
11
Wd
Prepunched
Esc&
7
Wd
Labels
Esc&
5
Wd
Bond
Esc&
9
Wd
Recycled
Esc&
6
Wd
Color
Esc&
6
Wd
Light
Esc&
13
Wd
Interpaperte
Esc&
6
Wd
Heavy
Esc&
12
Wd
Extra Heavy
Esc&
11
Wd
Cardstock2
Esc&
6
Wd
Rough
Esc&
7
Wd
Glossy
Esc&
12
Wd
Tough Paper
Esc&
9
Wd
Envelope
You must spell out the word "Transparency" in the string, although it is abbreviated as TRNSPRNCY on the control panel.
The correct command for cardstock is "Esc&n11WdCard Stock", with a space between the "d" and the "S", and with an
uppercase "S".
Media attributes and commands
169
File to E-mail utility
The File to E-mail utility collects the data specified in an .INI file and then attaches the data files to an
email that can be sent to HP Customer Support to assist troubleshooting. The utility runs on the
computer, but does not interact with the product.
The tool is included on the installer CD, but is not copied to the computer during the software
installation. HP Customer Support can also send the utility by email or by posting it to an HP Web site.
The tool is compatible with Windows® XP, Windows Vista®, and Windows® 7.
The File to E-mail utility runs with any MAPI-compliant email applications. It does not run with Webbased email services such as Yahoo, Hotmail, or AOL.
Depending on the speed of the computer, it might take a few minutes for the utility to gather the log
files and attach them to an email message.
The File to E-mail utility consists of two files that are located in the util folder on the product printingsystem software CD:
●
<CD-ROM drive>Utilities\FileToEmail.exe
●
<CD-ROM drive>Utilities\FileToEmail.ini
To use the File to E-mail utility, copy these files to the desktop, navigate to them in Explorer, and doubleclick FileToEmail.exe to open the utility. The utility generates files, opens an email message, and
attaches the files so that you can send them to the system administrator.
If the File to E-mail utility is not successful for any reason (for instance, if you cancel the new message or
you are using Web-based email software), all the files are copied to a folder on the desktop that is
named HpCCC, possibly with strings of zeros attached to the end. You can zip these files and email
them separately.
170
Chapter 5 Engineering details
ENWW
Index
A
accessories, automatic
configuration 15
alerts, email
Mac 158
Apple Mac OS
see Mac OS 10
autoconfiguration, driver
support for 15
autoconfiguration, Enterprise
about 15
B
Back button, Windows installation
dialog boxes 49
bidirectional communication
about 15
Enterprise AutoConfiguration
15
blank or preprinted pages 84
options 85
Bonjour
identifying 17
booklet printing
Booklet Layout settings 99
browser requirements
HP embedded Web Server 17
C
Cancel button, Windows
installation dialog boxes 49
cardstock, paper type commands
169
CD
directory structure, Mac 134
directory structure, Windows 3
languages 4
Mac printing-system software
installation 134
ENWW
chapter separator pages 85
Color
Color Options settings 111
Color Themes settings 113
Custom Profile setting 114
Default (sRGB) setting 114
features, print drivers 110
Neutral Gray settings 113
None 114
Photo (Adobe RGB 1998)
setting 114
Photo (sRGB) setting 114
Vivid setting 114
color
change default settings,
manually 111
Edge Control settings 112
fine-tune default settings 111
Halftone setting 113
PANTONE color profiles 30
printing settings, controlling 29
restricting printing 29
color printing
Pantone color profiles 30
Color Usage, Mac 154
components, software
Mac 132
Windows 14
connection type
installation 43, 45
connectivity
bidirectional communication
support 15
constraint messages
print drivers 69
copies
Quick Copy setting 105
covers
settings 83
custom paper types
adding 82
D
DCU
see HP Driver Configuration
Utility 31
DDU
see HP Driver Deployment
Utility 31
default printer, setting 50
Device Status screen
EWS 118
diagnostics
troubleshoot 117
dialog boxes, printing-system
software installation
Mac OS X 135
directory structure, software CD
Mac 134
Windows 3
disk space requirements
Mac 131
document preview image 68
documentation
installing (Windows) 54
languages 9
drivers
accessory configuration 15
Automatic Configuration
setting 123
changing settings (Mac) 132
document preview image 68
Enterprise AutoConfiguration
15
included 10
languages 7
Printing Preferences tab 67
Index
171
scan 14
Update Now, bidirectional
communication 123
drivers, install
license agreement 41
drivers, Windows
change settings 66
duplexing 97
Tray 3 123
E
email
troubleshooting File to E-mail
utility 170
email alerts
Mac 158
Embedded Web Server (EWS)
features 17
network connection 17
Enterprise AutoConfiguration
about 15
envelopes, paper type
commands 169
escape sequences
paper source 168
paper type 168
Explorer, versions supported
HP Embedded Web Server 17
F
fax driver. See HP Send Fax Driver
File to E-mail utility 170
File Upload, Mac 155
fonts
install/remove external fonts
120
Mac 133
Send True Type as Bitmap, print
drivers 73
True Type, print drivers 72
Upload Fonts, HP Printer
Utility 157
upload, Configuration Settings
menu 157
G
general configuration
HP Embedded Web Server 19
172
Index
H
heavy paper, paper type
commands 169
help
Mac 133
print drivers 69
Help button, Windows installation
dialog boxes 49
host-based driver
document preview image 68
Printing Preferences tab 67
HP (Printer) Utility, Mac
access 152
HP Driver Configuration Utility
(DCU) 31
HP Driver Deployment Utility
(DDU) 31
HP Embedded Web Server
general configuration 19
HP Printer Utility, accessing
from 164
information pages 19
Mac support 132
network settings 23
other links list 24
print tab 20
security settings 22
troubleshooting tools 22
HP Embedded Web Server (EWS)
features 17
network connection 17
HP ePrint Software 12
HP PCL 5 Universal Print Driver
included 11
HP PCL 6 discrete print driver
supported operating systems
11
HP PCL 6 Print Driver
features 65
included 11
settings 65
HP Printer Utility, Mac
about 152
Device Information 154
Embedded Web Server
access 164
File Upload 155
Network Settings 159
Supplies Management 162
trays configuration 163
Upload Fonts 157
HP PS Universal Print Driver
included 11
HP PS Universal Print Driver and
PCL Universal Print Driver
supported operating systems
11
HP Send Fax Driver
installation 28
HP Utility, Mac
Color Usage 154
E-mail Alerts 158
Supplies Status 153
HP Web Jetadmin 25
I
ICM. See Image Color
Management
Image Color Management
color graphics printing 71
enabling 71
Incompatible Print Settings
messages. See constraint
messages
information pages
HP Embedded Web Server 19
installation
component languages 8
connection type, network 45
connection type, USB 43
dialog boxes, Mac OS X 135
fax driver 28
File to E-mail utility 170
Mac printing-system software
134
options 37
system requirements for Mac
131
troubleshooting Mac 147
Internet Explorer, versions
supported
HP Embedded Web Server 17
J
Jetadmin, HP Web 25
Job storage
Mac 161
ENWW
Microsoft Windows
installation options 37
mopy 126
multiple-original print. See mopy
job storage mode
personal job 105
proof and hold 104
L
languages
CD 4
driver 7
installer component
localized CD 4
8
M
Mac
driver settings 132
hardware requirements 131
removing software 147
software components 132
supported operating systems
131
Mac OS
Color Usage 154
Device Information 154
dialog boxes, Mac OS X
printing-system software
installation 135
directory structure, software
CD 134
email alerts 158
File Upload command 155
fonts supported 133
HP EWS 132
HP Printer Utility 152
network settings 159
network setup 134
online help 133
PDEs 132
printing-system software
installation 134
stored jobs 161
Supplies Management 162
supplies status 153
trays configuration 163
troubleshooting setup 147
Upload Fonts 157
media
supported sizes 80
memory
Mac requirements 131
messages, constraint
print drivers 69
ENWW
N
Netscape Navigator, versions
supported
HP embedded Web Server 17
network settings
HP Embedded Web Server 23
networks
color printing, restricting 29
HP Web Jetadmin 25
Mac settings 159
Mac setup 134
O
operating systems
supported 36
OS. See operating systems
other links list
HP Embedded Web Server 24
P
pages
blank or preprinted 84
Pantone
color profile 30
paper
adding custom types 82
Alternative Letterhead Mode
73
duplex binding settings, print
drivers 98
orientation 101
settings, print drivers 78
source commands 168
source setting 80
supported sizes 80
type commands 168
type setting 81
types and sizes supported 168
PDEs (Printer Dialog Extensions)
132
PDF files
Mac, File Upload command
155
personal job option
job storage 105
PIN
Make Job Private/Secure
setting 106
Personal Job setting 105
PPDs, Mac
troubleshooting 147
preview image 68
print driver
supported operating systems
11
print drivers
About tab contents 128
Advanced Printing Features
settings, print drivers 72
Advanced tab content 70
Allow Manual Duplexing
setting, Device Settings tab
123
Alternative Letterhead Mode,
Advanced tab 73
Automatic Configuration setting,
Device Settings tab 123
Automatic settings, Color tab
111
Booklet Layout settings, Finishing
tab 99
collation settings 127
Color Options settings, Color
tab 111
Color tab contents 110
Color Themes settings, Color
tab 113
Copy Count settings, Advanced
tab 71
device services, Services tab
118
Device Settings tab content
119
Document Options setting,
Advanced tab 72
Document Options settings,
Finishing tab 96
document preview image 86,
90, 100, 115
duplex unit, Device Settings
tab 123
Effects tab content 88
Finishing tab contents 96
Flip Pages Up setting, Finishing
tab 98
Index
173
Font Substitution Table settings,
Device Settings tab 120
Form to Tray Assignment setting,
Device Settings tab 119
General settings, Color tab
112
Graphic setting, Advanced
tab 71
Halftone setting, Color tab
113
Help system 69
ICM options, Advanced tab
71
incompatible print settings
messages 69
installable options, Device
Settings tab 122
Internet Services options,
Services tab 118
job name settings, Job Storage
tab 108
job notification options, Job
Storage tab 108
Job Separator setting, Device
Settings tab 124
Job Storage Mode settings, Job
Storage tab 104
job storage settings, Job Storage
tab 109
Job Storage tab contents 102
Layout Options setting,
Advanced tab 73
Mac 132
Make Job Private/Secure
setting, Job Storage tab 106
Manual settings, Color tab
111
mopier mode, Device Settings
tab 126
Neutral Grays settings, Color
tab 113
Orientation settings, Finishing
tab 101
Page Order settings, Finishing
tab 100
Pages per Sheet setting,
Finishing tab 99, 100
Paper Options settings, Paper/
Quality tab 78
paper source commands 168
174
Index
Paper source setting, Paper/
Quality tab 80
paper supported 168
paper type commands 168
Paper type setting, Paper/
Quality tab 81
Paper/Output settings,
Advanced tab 70
Paper/Quality tab contents 77
Personal Job setting, Job
Storage tab 105
Print All Text as Black setting,
Advanced tab 73
Print on Both Sides settings,
Finishing tab 97
Print Optimizations setting,
Advanced tab 72
Print Quality settings, Paper/
Quality tab 87
Printer Features setting,
Advanced tab 73
printer hard disk, Device
Settings tab 124
Printer Status Notification,
Device Settings Tab 123
Printing Shortcuts tab contents
74
Proof and Hold setting, Job
Storage tab 104
Quick Copy setting, Job Storage
tab 105
Resizing Options settings, Effects
tab 89
Send True Type as Bitmap
setting, Advanced tab 73
Services tab content 117
status message, Job Storage
tab 104
Stored Job setting, Job Storage
tab 106
tray 3, Device Settings tab
123
True Type font settings,
Advanced tab 72
uninstall, Add/Remove
Programs 61
uninstall, Server Properties 63
user name settings, Job Storage
tab 107
version numbers 12
Watermarks settings, Effects
tab 91
What's this? Help 69
print job
delete stored job 109
hard disk, job storage 124
job name settings 108
job separator 124
job storage 124
Personal Job setting 105
Proof and Hold setting 104
Quick Copy setting 105
release stored job 109
Secure Printing 124
Stored Job setting 106
user name 107
print on both sides 97
automatically 98
Tray 3 123
print pages on different paper
settings 85
print tab
HP Embedded Web Server 20
Printer Dialog Extensions (PDEs)
132
printer drivers (Mac)
changing settings 132
Printer Status Notification 123
printer, setting default 50
Printing Preferences tab set 67
printing-system software
availability 3
installation, Mac 134
requirements 36
printing-system software, install
license agreement 41
printing-system software, uninstall
Add/Remove Programs 61
Server Properties 63
proof and hold 104
Properties tab
67
R
regional versions, CD 4
removing Mac software 147
S
Scan Driver
Windows 14
ENWW
secuity settings
HP Embedded Web Server 22
settings
drivers (Mac) 132
software
option install (Windows) 54
uninstalling 56
uninstalling Mac 147
software license agreement 41
Special Pages
covers 83
status
Mac supplies 153, 162
storage, job
Mac 161
supplies
Mac status 153, 162
supported media 80
system requirements
HP Embedded Web Server 17
printing-system software 36
T
transparencies, paper type
commands 169
trays
Alternative Letterhead Mode
73
duplex unit 123
Mac configuration 163
paper source commands 168
paper type commands 168
specify paper size 119
tray 3 123
troubleshoot
diagnostics 117
troubleshooting
File to E-mail utility 170
Mac setup 147
troubleshooting tools
HP Embedded Web Server 22
TWAIN
driver 14
Upload fonts
Configuration Settings menu
157
V
version numbers
print drivers 12
W
Web browser requirements
HP Embedded Web Server 17
Web sites
download software 3
HP Web Jetadmin,
downloading 25
Internet Services options,
Services tab 118
WIA driver 14
Windows
components, software 14
drivers supported 14
installation options 37
Windows operating systems
change driver settings 66
default printer, setting 50
Windows OS
directory structure, software
CD 3
driver versions 12
HP PCL 6 Print Driver features
65
supported 36
U
uninstall
Windows software 56
uninstalling Mac software 147
Update Now feature 16
steps to activate 16
ENWW
Index
175
176
Index
ENWW
