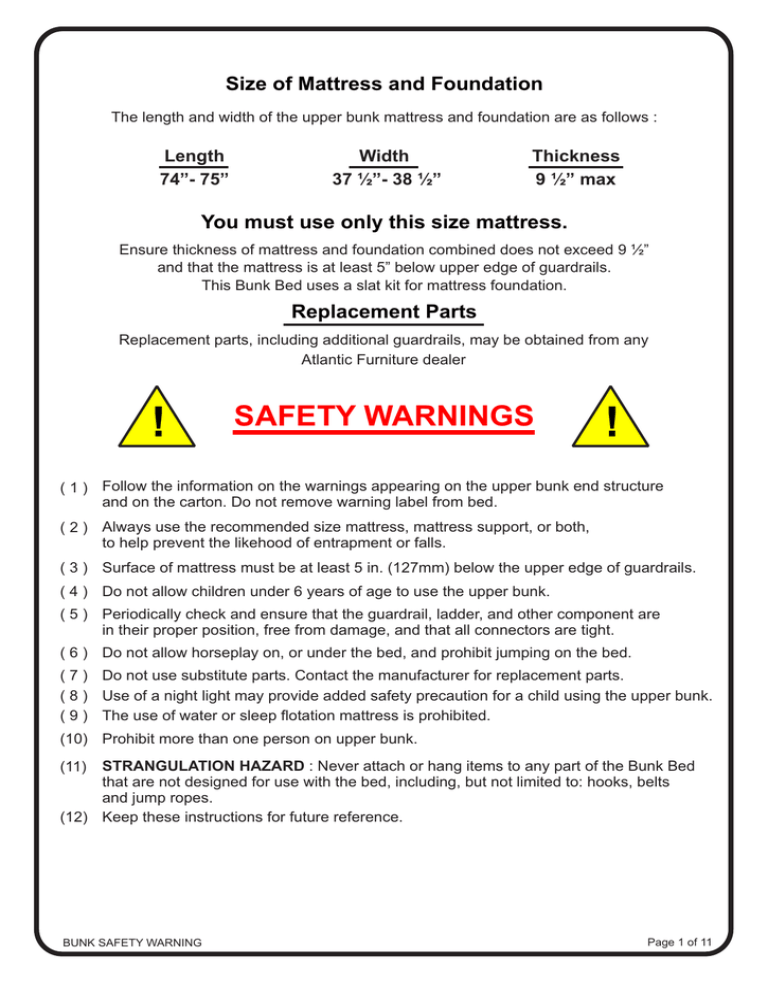

Size of Mattress and Foundation

The length and width of the upper bunk mattress and foundation are as follows :

Length

74”- 75”

Width

37 ½”- 38 ½”

Thickness

9 ½” max

You must use only this size mattress.

Ensure thickness of mattress and foundation combined does not exceed 9 ½” and that the mattress is at least 5” below upper edge of guardrails.

This Bunk Bed uses a slat kit for mattress foundation.

Replacement Parts

Replacement parts, including additional guardrails, may be obtained from any

Atlantic Furniture dealer

!

SAFETY WARNINGS

!

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed.

Always use the recommended size mattress, mattress support, or both, to help prevent the likehood of entrapment or falls.

Surface of mattress must be at least 5 in. (127mm) below the upper edge of guardrails.

Do not allow children under 6 years of age to use the upper bunk.

Periodically check and ensure that the guardrail, ladder, and other component are in their proper position, free from damage, and that all connectors are tight.

Do not allow horseplay on, or under the bed, and prohibit jumping on the bed.

Do not use substitute parts. Contact the manufacturer for replacement parts.

Use of a night light may provide added safety precaution for a child using the upper bunk.

The use of water or sleep flotation mattress is prohibited.

Prohibit more than one person on upper bunk.

(11)

(12)

STRANGULATION HAZARD : Never attach or hang items to any part of the Bunk Bed that are not designed for use with the bed, including, but not limited to: hooks, belts and jump ropes.

Keep these instructions for future reference.

Page 1 of 11

BUNK SAFETY WARNING

READY

COLUMBIA STAIRCASE BUNK

ASSEMBLY INSTRUCTIONS

(TWIN - TWIN) (TWIN - FULL)

Thank you for choosing Atlantic’s Staircase Bunk Bed.

This practical design offers the utmost in versatility.

Before assembling your Columbia staircase bunk bed, please read through these instructions carefully, familiarizing yourself with the different parts.

Please note that you will require a Phillips head screwdriver and an Allen wrench.

Adult Assembly

Allen wrench

Customer Supplied

Phillips head screwdriver

TWIN OVER FULL SHOWN

STAIRCASE CAN BE SET UP AT EITHER

END OF THE BUNK BED

TWIN / TWIN

HARDWARE

NOTE : WE INCLUDE SPARE HARDWARE IN CASE THE ALLEN WRENCH, JCB, BARREL NUT, WOODEN DOWEL,

WOOD BUTTON OR WOOD SCREW ARE DAMAGED DURING ASSEMBLY.

A JCB M6 X 3 ½”(90mm) - 24 pcs

Spare - 2 pcs

F Barrel Nuts - 26 pcs

Spare - 4 pcs

B

JCB M6 X 2 1/4”(60mm) - 4 pcs

Spare - 1 pc

C

D

E

Metal Pins - 4 pcs

JCB M6 X 1 1/2”(35mm) - 5 pcs

Spare - 1 pc

JCB M6 X 1 1/4”(30mm) - 3 pcs

Spare - 1 pc

E

Cap Nut - 3 pcs

JCB M6 X 3/4”(20mm) - 1 pc

Spare - 1 pc

Flat Washer - 1 pc

Spare - 1 pc

COLUMBIA STAIRCASE BUNK

8 X 30mm

I Wooden Dowel - 6 pcs

Spare - 1 pc

J

Wood Screw 1” - 2 pcs

Spare - 1 pc

M L Bracket - 1 pc

E Wood Screw 1 ½” - 6 pcs

Spare - 2 pcs

N

In Full lower panel carton

Wood Button - 4 pcs

Spare - 1 pc

Wood screw 3/4” - 1 pc

Spare - 1 pc

O Allen Wrench - 1 pc

Spare - 1 pc

Page 2 of 11

PARTS LIST

02

10

01

12

12

16

11

12

11

15

04

05

04

12

09

03

06

08

07

16

14

01

HARDWARE

02

03

A UPPER PANEL

B UPPER PANEL

04

05

06

07

LEFT, RIGHT END CAP

SHORT GUARD RAIL

WOOD BRACKET

SMALL BACK GUARD RAIL

08

09

10

11

SMALL SIDE GUARD RAIL

STAIRCASE GUARD RAIL

LOWER PANEL

FRONT, BACK GUARDRAIL

12

13

14

LONG RAILS

LOWER STAIRCASE DRAWER STEP

UPPER STAIRCASE DRAWER STEP

15

16

17

TWIN SLAT KIT

FULL LOWER BUNK SLAT KIT

OR

TWIN LOWER BUNK SLAT KIT

10

1 BOX

1 BOX

1 BOX

1 BOX

1 BOX

1 BOX

1 BOX

1 BOX

1 BOX

COLUMBIA STAIRCASE BUNK

13

Page 3 of 11

A

STEP 1

Attach the long rails (12) to the A upper panel (02) and B upper panel (03), using JCB M6 X 3 ½” (A), and barrel nut (F). Tighten with the Allen wrench (O).

02

F

F

12

12

F

03

F

A

A

JCB M6 X 3 ½”

F

Barrel Nut

O

Allen wrench

A

Adult Assembly

STEP 2

Lay the twin slat kit (15) onto the bed. Fix in place using wood screws provided in the slat kit box.

FOR SLAT KIT ASSEMBLY follow assembly instructions included with slat kit.

15

COLUMBIA STAIRCASE BUNK

Adult Assembly

Customer Supplied

Phillips head screwdriver

Page 4 of 11

A

A

STEP 3

F

Attach the guard rails (11) to the upper panel assemblies using JCB M6 X 3 ½” (A), and barrel nut (F). Tighten with the Allen wrench (O).

A

F

F

11

A

JCB M6 X 3 ½”

F

11

F

F

Barrel Nut

F

F

A

A

A

A

O

Allen wrench

Adult Assembly

STEP 4

Attach the short guard rail (05) to the end caps (04), using JCB M6 X 2 1/4”(B), and barrel nut (F). Tighten with the Allen wrench (O).

05

F

B

04

B

JCB M6 X 2 1/4”

F

F

04

Barrel Nut

O

Allen wrench

B

Note : Screw holes on end caps

go on inside of guard rails.

Adult Assembly

COLUMBIA STAIRCASE BUNK

Page 5 of 11

STEP 5

Attach the short guard rail assemblies to the upper panel assemblies as shown below, using wood screw (J), tighten with the Phillips head screwdriver. ( Customer supplied )

INSIDE VIEW

J

ZOOM IN

J

Adult Assembly

J

J

Note : Screw holes on end caps

go on inside of guard rails.

WOOD SCREW

D6 X 1”

Customer Supplied

Phillips head screwdriver

SHORT GUARD RAIL ASSEMBLIES

A

STEP 6

Attach the long rails (12) to the lower panel (10) using JCB M6 X 3 ½” (A), and barrel nut (F).

Tighten with the Allen wrench (O).

Full lower panel shown. Twin over Twin bunk use Twin lower panel.

10

A

F

12

JCB M6 X 3 ½”

F

F

12

F

10

A

Barrel Nut

O

Allen wrench

A

Adult Assembly

COLUMBIA STAIRCASE BUNK

Page 6 of 11

STEP 7

Lay the full slat kit (16) onto the bed. Fix in place using wood screws provided in the slat kit box.

FOR SLAT KIT ASSEMBLY follow assembly instructions included with slat kit.

16

16

Adult Assembly

Customer Supplied

Phillips head screwdriver

Full size shown

Twin lower panel uses Twin slat kit

STEP 8

Insert metal pins (G) into the holes on top of the lower panels. Lift the upper panels onto the lower panels as shown, and fit the metal pins into the holes in the bottom of the upper panel legs.

!

CAUTION

This step requires

two strong people.

Adult Assembly

G

G

Metal Pins

G

G

G

G

TWIN / TWIN

COLUMBIA STAIRCASE BUNK

G

TWIN / FULL

Page 7 of 11

STEP 9 Insert wooden dowel (I) into the lower staircase drawer step (13) as shown below.

I

I

I

I

I

WOODEN DOWEL

Adult Assembly

13

STEP 10

Lift the upper staircase drawer step (14) onto the lower staircase drawer step (13) as shown below and fit the wooden dowel into the holes in the bottom of the upper staircase drawer step (14).

14

13

Adult Assembly

Page 8 of 11

COLUMBIA STAIRCASE BUNK

STEP 11 cap nut (H).Tighten with the Allen wrench (O).

H

C

C

06

H

07

STEP 12

Attach the small guard rail assemblies to the staircase assemblies as shown below . Using wooden dowel (I) and wood screw (K) tighten with the Phillips head screwdriver. ( Customer Supplied )

I

K

I

K

K

Adult Assembly

I

WOODEN DOWEL

K

WOOD SCREW

6 X 1 ½”

Customer Supplied

K

Phillips head screwdriver

Page 9 of 11

COLUMBIA STAIRCASE BUNK

Adult Assembly

C

JCB M6 X 1 ½”

H

Cap Nut

O

Allen wrench

STEP 13 Attach the small side guard rail (08) to the staircase assemblies as shown below .

08

C

C

C

Adult Assembly

C

JCB M6 X 1 ½”

O

Allen wrench

STEP 14

Attach the staircase guard rail (09) to the staircase assemblies as shown below .

Using JCB M6 X 1 1/4” (D) and JCB M6 X 2 1/4”(B), tighten with the Allen wrench (O).

09

B

B

D

D

D

COLUMBIA STAIRCASE BUNK

Adult Assembly

B

JCB M6 X 2 1/4”

D

JCB M6 X 1 1/4”

O

Allen wrench

Page 10 of 11

STEP 15 Move the bunk bed and staircase assemblies where you want to place them in the room.

Attach staircase assembly to the bunk bed assembly as shown below. Fix wood bracket to upper bunk panel using wood screws as shown.

E

JCB M6 X 3/4”

Flat Washer

L

Wood Screw

D6 X 3/4”

K

Wood Screw

D6 X 1 ½”

N

M

L Bracket

H

Cap Nut

K

K

K

H

E

M

L

N

Adult Assembly

N

Wood Button

In Full lower panel carton

Customer Supplied

Phillips head screwdriver

O

Using L bracket (M), JCB (E) and cap nut (H). Tighten with Allen wrench (O). Insert wood screw (K)(L) tighten with Phillips head screwdriver. Lastly, cover holes with wood buttons (N)(Twin Full only).

Allen wrench

Congratulations !

Your Columbia staircase bunk bed is now ready for use.

We recommend that you double check that all screws are tight, and that all parts are secure before use. Periodically check that all screws are tight to ensure lasting safety.

COLUMBIA STAIRCASE BUNK

Page 11 of 11
