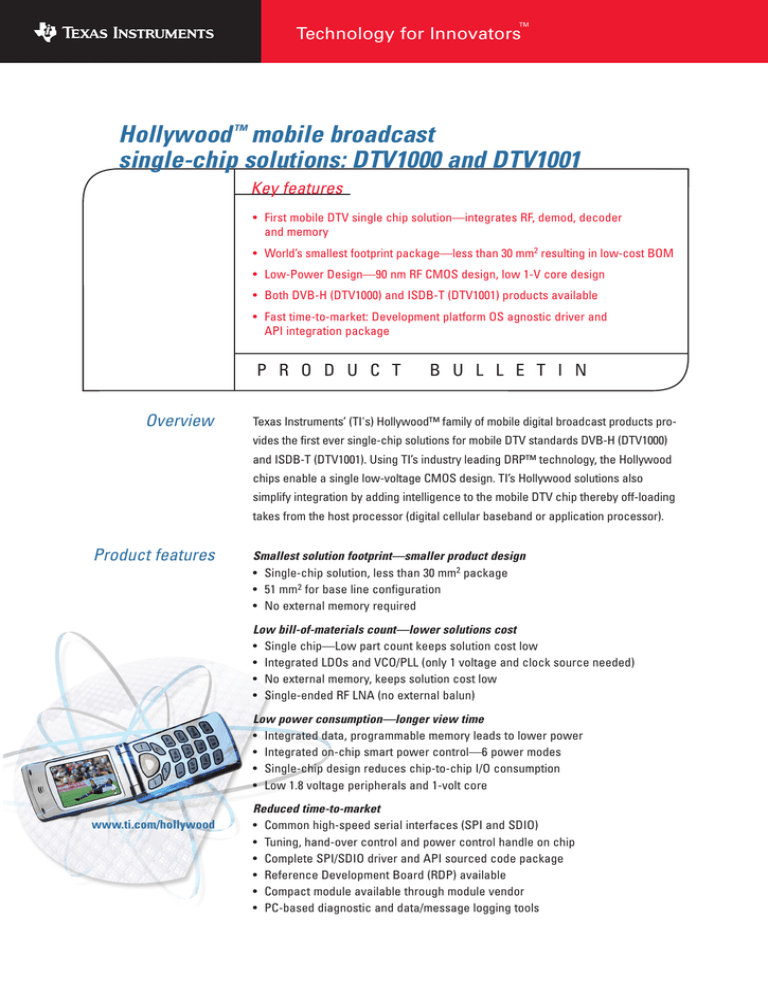

Hollywood ™ mobile broadcast
single-chip solutions: DTV1000 and DTV1001
Key features
Facts
• First mobile DTV single chip solution—integrates RF, demod, decoder
and memory
• World’s smallest footprint package—less than 30 mm2 resulting in low-cost BOM
• Low-Power Design—90 nm RF CMOS design, low 1-V core design
• Both DVB-H (DTV1000) and ISDB-T (DTV1001) products available
• Fast time-to-market: Development platform OS agnostic driver and
API integration package
P R O D U C T
Overview
B U L L E T I N
Texas Instruments’ (TI's) Hollywood™ family of mobile digital broadcast products provides the first ever single-chip solutions for mobile DTV standards DVB-H (DTV1000)
and ISDB-T (DTV1001). Using TI’s industry leading DRP™ technology, the Hollywood
chips enable a single low-voltage CMOS design. TI’s Hollywood solutions also
simplify integration by adding intelligence to the mobile DTV chip thereby off-loading
takes from the host processor (digital cellular baseband or application processor).
Product features
Smallest solution footprint—smaller product design
• Single-chip solution, less than 30 mm2 package
• 51 mm2 for base line configuration
• No external memory required
Low bill-of-materials count—lower solutions cost
• Single chip—Low part count keeps solution cost low
• Integrated LDOs and VCO/PLL (only 1 voltage and clock source needed)
• No external memory, keeps solution cost low
• Single-ended RF LNA (no external balun)
Low power consumption—longer view time
• Integrated data, programmable memory leads to lower power
• Integrated on-chip smart power control—6 power modes
• Single-chip design reduces chip-to-chip I/O consumption
• Low 1.8 voltage peripherals and 1-volt core
www.ti.com/hollywood
Reduced time-to-market
• Common high-speed serial interfaces (SPI and SDIO)
• Tuning, hand-over control and power control handle on chip
• Complete SPI/SDIO driver and API sourced code package
• Reference Development Board (RDP) available
• Compact module available through module vendor
• PC-based diagnostic and data/message logging tools
High performance—ready for broadcaster service rollout
• Support for 2 concurrent Elementary Streams and 8 IP filters
• 20 to 30 Mbps data processing throughput
• High sensitivity RF and low-noise figure
• Harmonic rejection filters for improved interference rejection
DTV100x
specifications
Standards and bands
supported
Diagnostic and
debug interfaces
•
•
•
•
• PC direct connect to UART
• Also via host
DVB-H: 470-750 MHz and 1.67 GHz
ISDB-T 1-seg: 470-770 MHz
Tunable 0.5 MHz (ISDB-T) bandwidth modes
Tunable 5, 6, 7, 8 MHz (DVB-H)
bandwidth modes
Reference input clock
• 13, 15.36, 16.8, 19.2, 26, 38.4 MHz
• Other clocks internal
Embedded system memory
Boot options
• MPE-FEC and Link-Layer Buffering on chip
• Built-in program and data RAM for ARM
• Downloaded via SPI/SDIO
• Boot loader provided
Host data and control
interfacing
Package and
power management
• 48-MHz SPI
• 4-bit 25 MHz SDIO
• Driver, API source code
•
•
•
•
Antenna control
• 10 programmable GPIOs
• 1.8-V PWM
Wafer Scale Package
88 balls, 0.5 mm ball pitch
1.8-V source (1-V core, 1.8 I/O)
Green and lead-free compliant
Operating temperature
• -30°C to +85°C
DTV100x block diagram
Analog
BB or
Switcher
TPS62300
1.8 V
VCore
Clock
Manager
ClockREF
RTCCLK
TS
DEMUX
DTV100x
OFDM
Demod
UHF-FE
ADC
1.6G-FE
DTV_CLK_REQ
OMAP2420
OMAP2430
OMAP-DM275
OMAP-Vox™
DTVNSHUTDOWN
WSPI/SDIO
WSPI/SDIO
IRQ
UART
Antenna
Selection
MPE-FEC
Or Link
Layer Buffer
ARM966E
128 I-RAM
128 D-RAM
Antenna
Module
PreSelect
Filter
GPIO0-2
Power, Reset
Clock
Management
Optional
Debug to PC
GPIO3
GPIO9
PWM
Low Pass
Filter
VANT
Antenna
Tuning
5 or 3.3 V
TI’s Hollywood and an OMAP™ processor provide a complete mobile TV solution for handsets. The OMAP processor manages
the client software, A/V processing, IP/UDP processing stack, DRM, display control, DTV service manager and ESG.
