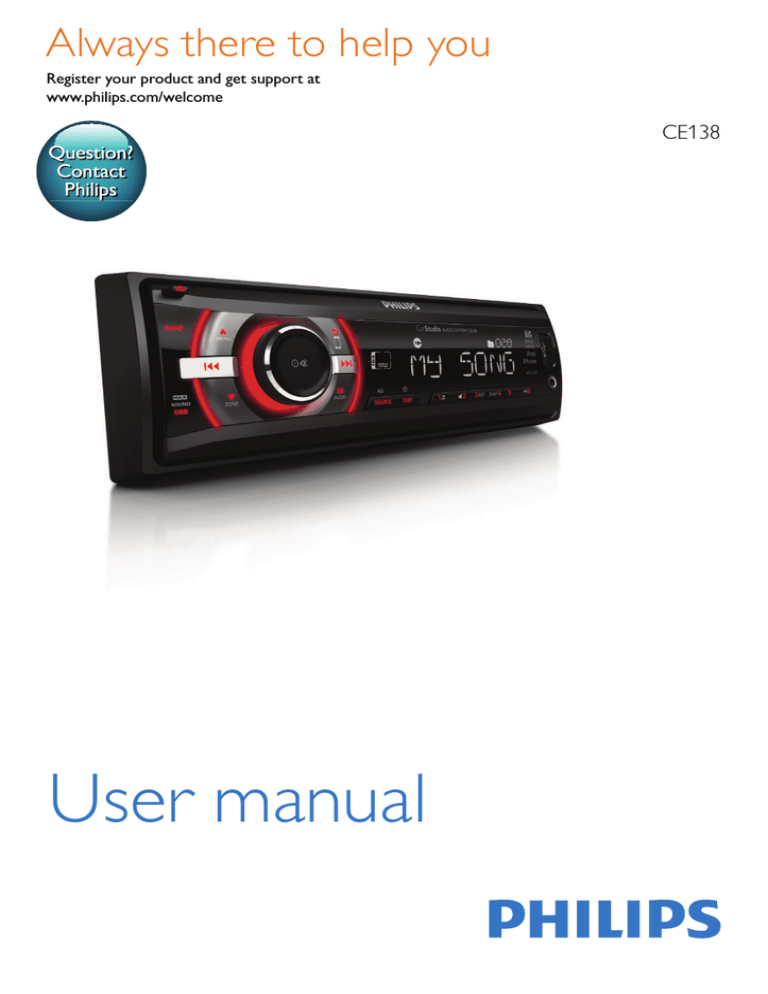

Philips CE138 User manual

Philips CE138 User manual
Always there to help you
Register your product and get support at
www.philips.com/welcome
CE138
Question?
Contact
Philips
User manual
Contents
1 Safety
2
9 Adjust sound
21
2 Your car audio system
3
3
3
4
10 Additional information
22
22
22
Introduction
What's in the box
Overview of the system
3 Install the car audio system
Connect wires
Mount into the dashboard
Attach the front panel
4 Get started
!"#$%&'$(#)%$%*+'$,)'$
Set the time format
Set the clock
Select a source
Select a listening zone
Mute the button beep
5 Listen to radio
Select a tuner region
Select a tuner sensitivity
Search for a radio station
Store radio stations in memory
Play with RDS
6 Play from a storage device
Control play
Switch tracks
7 Play from an iPod/iPhone
Compatible iPod/iPhone models
Connect your iPod/iPhone
Control play
Charge your iPod/iPhone
8 Listen to an external player
7
7
8
9
11
-11
11
11
11
12
Reset the system
Replace the fuse
11 Product Information
23
12 Troubleshooting
24
13 Notice
25
25
25
25
Care of the environment
Trademark notice
Copyright
14 Glossary
26
13
13
13
13
13
14
16
16
17
18
18
18
18
19
20
EN
1
1 Safety
Read and understand all instructions before you
use this device. If damage is caused by failure to
follow instructions, the warranty does not apply.
.$ /"0*(12%*"3$"4$%&'$5#"0,1%$1",60$#'),6%$
in hazardous radiation of EMC or other
unsafe operation.
.$ The device is designed for negative ground
(earth) 12 V DC operation only.
.$ To ensure safe driving, adjust the volume to
a safe and comfortable level.
.$ Improper fuses can cause damage or
(#'7$8&'3$9",$3''0$%"$1&23:'$%&'$4,)';$
consult a professional.
.$ Use only the supplied mounting hardware
for a safe and secure installation.
.$ To avoid short circuits, do not expose the
device to rain or water.
.$ The device shall not be exposed to
dripping or splashing.
.$ Do not place any sources of danger on
%&'$0'<*1'$='7:7$6*>,*0$(66'0$"[email protected]'1%);$6*:&%'0$
candles).
.$ Never insert objects into the ventilation
slots or other openings on the device.
.$ Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
2
EN
2 Your car audio
system
Bitrates: 64-192 kbps and variable
bitrates
.$ ID3 tag V2.0 or later
.$ !"#$%%&'()*+,-)#.
KKL;$8KM;$230$BL/$(6')
NO/$5#"%'1%'0$8/K$(6')$=7A2<;$7+P2;$
.m4p, .mp4, and .aac)
8/K$(6')$*3$6"))6'))$4"#+2%
Congratulations on your purchase, and
A'61"+'$%"$B&*6*5)C$D"$4,669$?'3'(%$4#"+$%&'$
support that Philips offers, register your product
at www.philips.com/welcome.
What's in the box
Introduction
With this system, you can:
.$ enjoy audio from a USB storage device,
SD/SDHC card, iPod/iPhone, and external
player,
.$ charge your iPod/iPhone, and
.$ listen to radio stations.
You can enrich sound output with these sound
effects:
.$ Dynamic bass boost (DBB)
.$ Digital sound control (DSC)
Playable media:
.$ USB storage device
.$ Compatibility: USB 2.0, USB 1.1
.$ Class support: MSC (Mass Storage
Class)
.$ Maximum capacity: 32 GB
.$ SD/SDHC card
.$ Maximum capacity: 32 GB
.$ Files
.$ File system: FAT16, FAT32
.$ Maximum number of folders: 99
.$ /2E*+,+$3,+?'#$"4$%#21F)G(6')H$III
.$ Maximum level of directory: 8
.$ 7+5J$(6')
Sampling frequencies: 32 kHz, 44.1 kHz,
48 kHz
Bitrates: 8-320 kbps and variable
bitrates
.$ 7A+2$(6')
Versions: V4, V7, V8, V9 (L1 and L2)
Sampling frequencies: 44.1 kHz, 48 kHz
Check and identify the contents of the package:
a
d
b
e
c
f
a Main unit (with a sleeve)
b Carrying case (with front panel included)
c Trim plate
d Disassembly tool X 2
e User manual
f CD-ROM for user manual
EN
3
Overview of the system
a
b
t srq
c
p
o
d
n m
e
l k j ih g
u
v
d LCD screen
a
.$ Unlock the front panel.
e
b
.$ For .wma and .mp3 tracks, press to
select the previous folder.
.$ Press and hold to access the system
menu.
.$ Press to select a tuner band.
c
.$ Return to the previous menu.
.$ For iPod/iPhone, press repeatedly to
select a control mode: control play on
the iPod/iPhone or on this system.
4
f
EN
.$ Connect to a USB storage device.
.$ Connect to a compatible iPod/iPhone.
f MP3-LINK
.$ Connect to the audio output socket
(usually the headphone socket) of an
external device.
g
.$ Start, pause, or resume the play of
tracks.
.$ In radio mode, press to select the
preset radio station of No. 6.
.$ For .wma and .mp3 tracks on a storage
device, press to access the track list.
.$ Press to access the music menu of an
iPod/iPhone.
.$ In radio mode, press and hold to store
the current radio station at channel
No. 6.
h
.$ In radio mode, press to select the
preset radio station of No. 5.
.$ In radio mode, press and hold to store
the current radio station at channel
No. 5.
m
.$ In radio mode, press to select the
preset radio station of No. 4.
.$ In radio mode, press and hold to store
the current radio station at channel
No. 4.
.$ For .wma and .mp3 tracks, press
repeatedly to select a play mode: play
all tracks randomly ([SHU ALL]), play
tracks in the current folder or album
randomly ([SHU FLD]/[SHU ALBM]),
or play all tracks in the storage device
in sequence ([SHU OFF]).
n AS/SOURCE
.$ Press repeatedly to select a source.
.$ In radio mode, press and hold to
activate the automatic search of radio
stations.
i
/DSP
.$ Press repeatedly to display available
information about the current track.
.$ Press repeatedly to display available
RDS information.
.$ Press and hold to display the set clock.
o
.$ Press repeatedly to select a preset
sound equalizer.
.$ Press and hold to activate the setup of
bass, treble, balance, and fader.
p
.$ Press to turn on the system.
.$ Press and hold to turn off the system.
.$ Press to mute the speakers or release
them from mute status.
.$ B#'))$%"$1"3(#+$23$"5%*"37
.$ Rotate to switch between menu
options.
.$ Rotate to adjust the volume level.
j
.$ In radio mode, press to select the
preset radio station of No. 3.
.$ In radio mode, press and hold to store
the current radio station at channel
No. 3.
.$ For .wma and .mp3 tracks, press
repeatedly to select a repeat mode.
q
k
.$ In radio mode, press to select the
preset radio station of No. 2.
.$ In radio mode, press and hold to store
the current radio station at channel
No. 2.
.$ For .wma and .mp3 tracks on a storage
device, press to access the folder list.
l
.$ In radio mode, press to select the
preset radio station of No. 1.
.$ In radio mode, press and hold to store
the current radio station at channel
No. 1.
.$ For .wma and .mp3 tracks on a storage
device, press to select the next folder.
.$ Press and hold to activate the selection
of listening zones.
.$ Press to select a tuner band.
r
/
.$ Tune to a radio station.
.$ Press to skip to the previous/next
track.
.$ Press and hold to rewind a track or
search fast forward.
EN
5
s
.$ Press to enable or disable the
maximum volume.
.$ Press and hold to enable or disable
the DBB (dynamic bass boost) sound
effect.
t BAND
.$ Press repeatedly to select a tuner band.
u Slot for SD/SDHC card
.$ Insert an SD/SDHC card.
v RESET
.$ Press to reboot the system.
6
EN
3 Install the car
audio system
Connect wires
Note
. The ISO male connectors are not supplied.
. Make sure that all loose leads are insulated with
Caution
electrical tape.
. Consult a professional to connect wires as instructed
. Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
below.
1
Check the car’s wiring carefully and
connect them to the ISO male connectors.
Note
. This system is designed for negative ground (earth) 12V
DC operation only.
. Always install this system in the car dashboard. Other
.
.
.
.
.
.
.
.
.
.
locations can be dangerous as the rear of the system
heats up during use.
To avoid short-circuit: before you connect, make sure
that the ignition is off.
Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
Make sure that all loose leads are insulated with
electrical tape.
Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
Make sure that all ground (earth) leads are run to a
common ground (earth) point.
Use only the supplied mounting hardware for a safe
and secure installation.
Q+5#"5'#$4,)')$123$12,)'$02+2:'$"#$(#'7$8&'3$9",$
need to change the fuse, consult a professional.
When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
Never connect speaker wires to the metal body or
chassis of the car.
Never connect speaker wires with stripes to one
another.
ISO male
connectors
Connect to
Rear left speaker
e
Green strip, blackedged green strip
White strip, blackedged white strip
Gray strip, blackedged gray strip
Purple strip, blackedged purple strip
Red strip
f
Blue strip
g
White-edged blue
strip
Black strip
a
b
c
d
h
Front left speaker
Front right speaker
Rear right speaker
Ignition key +12V
DC when ON/ACC
Motor/electric
antenna relay
control lead
K+56*('#$#'629$
control lead
Ground
EN
7
i
2
ISO male
connectors
Connect to
Yellow strip
To the +12V car
battery which is
energized at all
times
Mount into the dashboard
L"33'1%$%&'$23%'332$230$2+56*('#$2)$
illustrated, if applicable.
.$
.$
1
If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
If the car battery is not disconnected, to
avoid short-circuit, make sure that the bare
wires do not touch each other.
Make sure that the car dashboard opening
is within these measurements:
L
REAR
m
5m
R
mm
53mm
183
d
1
2
3
4
c b
a
Sockets on rear
panel
External sockets or
connectors
For ISO male
connectors
REAR L
REAR R
ANTENNA
As indicated above
Rear left speaker
Rear right speaker
Antenna
Tip
. The pin arrangement for the ISO connectors depends
on the type of your vehicle. To avoid damage to the
unit, connect properly.
8
EN
2
Remove the mounting sleeve with the
supplied disassembly tools.
3
Install the sleeve into the dashboard and
?'30$%&'$%2?)$",%A2#0$%"$(E$%&'$)6''<'7
Attach the trim plate.
6
Reconnect the negative terminal of the car
battery.
53.5 mm
5
18
3m
m
4
Slide the unit into the sleeve until you hear
a "click".
Attach the front panel
1
Insert the notch on the front panel to the
chassis on the main unit.
2
Press the left end of the front panel
inwards until it is securely locked with a
"click".
EN
9
Detach the front panel
Note
. Before you insert an SD/SDHC card or reset the
system, detach the front panel.
. Before you detach the front panel, make sure that the
system is turned off.
1
2
Press
10
EN
to release the front panel.
Pull the front panel outwards to remove it.
4 Get started
Set the clock
1 Press and hold
to access the system
menu.
/&'+(0)+,'#(+(12)+$#)
1
2
3
Press
to turn on the system.
» [PHILIPS] is displayed and then
[SELECT OPERATING REGION]
(select a radio region) scrolls.
When one of the following options is
displayed, rotate
to select a radio
region that matches your location.
.$ [AREA EUROPE] (Western Europe)
.$ [AREA ASIA]$=K)*2$B21*(1R
.$ [AREA MID--EAST] (Middle East)
.$ [AREA AUST] (Australia)
.$ [AREA RUSSIA] (Russia)
.$ [AREA USA] (United States)
.$ [AREA LATIN] (Latin America)
.$ [AREA JAPAN] (Japan)
$%"$1"3(#+7
Press
» The system switches to radio mode
automatically.
.$ To turn off the system, press and hold
until the screen backlight is off.
Set the time format
1
Press and hold
menu.
2
Press
/
repeatedly until [CLK 24H]
or [CLK 12H] is displayed.
3
to select [CLK 24H] or
Rotate
[CLK 12H].
.$ [CLK 24H]: 24-hour time format
.$ [CLK 12H]: 12-hour time format
to access the system
2
Press
/
repeatedly until [CLK] is
displayed with time digits blinking.
3
4
Rotate
anti-clockwise to set the hour.
Rotate
clockwise to set the minute.
Display the clock
Press and hold /DISP until [CLK] and the set
clock are displayed.
.$ To exit the clock display, press any button
or rotate
.
Select a source
Press AS/SOURCE repeatedly to select a
source.
.$ [RADIO]: Listen to FM/AM radio.
.$ [MP3--LINK]: Listen to the audio input
through the MP3-LINK socket.
.$ [iPod/USB]: When a USB storage device or
compatible iPod/iPhone is connected and
recognized, you can select this source to
5629$2,0*"$(6')$%&2%$2#'$)%"#'0$"3$*%7
.$ [SD/SDHC]: When an SD/SDHC card is
inserted and recognized, you can select this
)",#1'$%"$5629$2,0*"$(6')$%&2%$2#'$)%"#'0$
on it.
Select a listening zone
1 Press and hold until one of the
following options is displayed.
.$ [ALL]: For all passengers
.$ [FRONT-L]: For the front-left seat only
.$ [FRONT-R]: For the front-right seat
only
.$ [FRONT]: For front passengers only
2
/
repeatedly to select a
Press
listening zone.
EN
11
Mute the button beep
The beep sound of buttons is enabled by
default.
1
Press and hold
menu.
2
Press
/
repeatedly until [BEEP ON]
or [BEEP OFF] is displayed.
.$ [BEEP ON]: Enable the beep sound of
buttons.
.$ [BEEP OFF]: Mute the beep sound of
buttons.
3
Rotate
12
EN
to access the system
to change the setting.
5 Listen to radio
Search for a radio station
automatically
Select a tuner region
You can select a radio region that matches your
location.
1
In radio mode, press and hold
the system menu.
2
/
repeatedly until one of the
Press
following options is displayed.
.$ [AREA EUROPE] (Western Europe)
.$ [AREA ASIA]$=K)*2$B21*(1R
.$ [AREA MID--EAST] (Middle East)
.$ [AREA AUST] (Australia)
.$ [AREA RUSSIA] (Russia)
.$ [AREA USA] (United States)
.$ [AREA LATIN] (Latin America)
.$ [AREA JAPAN] (Japan)
3
Rotate
Search for a radio station
to access
Press
or
to search for the previous or
next radio station with strong signals.
Search for a radio station manually
1
2
Press and hold
or
until [M] blinks.
or
repeatedly until the
Press
target frequency is displayed.
Store radio stations in
memory
Note
to select a region.
. You can store a maximum of six stations in each band.
Select a tuner sensitivity
To search for radio stations with strong signals
only or more radio stations, you can change the
tuner sensitivity.
1
Press and hold
menu.
2
/
repeatedly until [LOC ON]
Press
or [LOC OFF] is displayed.
3
to select a setting.
Rotate
.$ [LOC ON]: Search for radio stations
with strong signals only.
.$ [LOC OFF]: Search for radio stations
with strong and weak signals.
to access the system
Store radio stations automatically
1
2
3
Switch the source to [RADIO].
, or
Press BAND,
select a band.
repeatedly to
Press and hold AS/SOURCE until
[STORE---] is displayed.
» After the search is complete, the
(#)%$)%"#'0$#20*"$)%2%*"3$*)$?#"2012)%$
automatically.
.$ To select a stored radio station, press
,
,
,
, , or
EN
.
13
Store radio stations manually
2
Press
/
displayed.
1
Press BAND, , or
select a tuner band.
3
Press
types.
2
Tune to the radio station that you want to
store.
4
Rotate
to select a program type, and
then press
$%"$1"3(#+7
3
,
,
,
,
Press and hold
, or
to store the radio station at the
selected channel.
.$ To select a stored radio station, press
,
,
,
, , or
.
Item
Program
type
1
2
NEWS
AFFAIRS
repeatedly to
3
Play with RDS
4
5
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name is displayed.
Enable the RDS function
Note
. The RDS function is enabled by default.
. Only when the RDS function is enabled, RDS related
settings can be accessed.
1
Press and hold
menu.
2
Press
/
repeatedly until [RDS ON]
or [RDS OFF] is displayed.
3
to select [RDS ON].
Rotate
» The RDS function is enabled.
to access the system
.$ To disable the RDS function, rotate
to select [RDS OFF].
Select a program type
Before tuning to RDS stations, you can select
a program type to search for programs of the
selected category only.
1
Press and hold
menu.
14
EN
to access the system
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
repeatedly until [PTY] is
to access the list of program
Description
News services
Politics and current
affairs
INFO
Special information
programs
SPORT
Sports
EDUCATE
Education and advanced
training
DRAMA
Radio plays and
literature
CULTURE
Culture, religion and
society
SCIENCE
Science
VARIED
Entertainment programs
POP M
Pop music
ROCK M
Rock music
EASY M
Light music
LIGHT M
Light classical music
CLASSICS
Classical music
OTHER M
Special music programs
WEATHER
Weather
FINANCE
Finance
CHILDREN Children’s programs
SOCIAL
Social Affairs
RELIGION
Religion
PHONE IN
Phone In
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES
Oldies Music
FOLK M
Folk Music
DOCUMENT Documentary
Item
Program
type
Description
30
31
TEST
ALARM
Alarm Test
Alarm
mode and begins to broadcast the
%#24(1$233",31'+'3%7$8&'3$%&'$%#24(1$
announcement is over, the system
returns to the previous mode.
.$ [TA OFF]H$D#24(1$233",31'+'3%$0"')$
not cut in.
Use alternate frequencies
If the signal of an RDS station is poor, enable
the AF (Alternate Frequency) function to search
for another station that broadcasts the same
program.
Tip
. 8&'3$2$%#24(1$233",31'+'3%$1,%)$*3;$9",$123$5#'))$
to switch the system to the previous mode.
1
Press and hold
menu.
2
/
repeatedly until [AF ON] or
Press
[AF OFF] is displayed.
3
You can synchronize the system clock with an
RDS station that transmits time signals.
Rotate
to select a setting.
.$ [AF ON]: Enable the AF function.
.$ [AF OFF]: Disable the AF function.
1
Press and hold
menu.
2
Press
/
repeatedly until [CT ON]
or [CT OFF] is displayed.
3
to select a setting.
Rotate
.$ [CT ON]: Synchronize the
system clock with the RDS station
automatically.
.$ [CT OFF]: The automatic clock
synchronization with RDS station is
disabled.
to access the system
Synchronize the system clock
Set the region for AF tuning
You can set the region for AF tuning.
1
Press and hold
menu.
2
Press
/
repeatedly until [REG ON]
or [REG OFF] is displayed.
3
to select a setting.
Rotate
.$ [REG ON]: Only RDS stations in
current region can be tuned to
automatically.
.$ [REG OFF]: All RDS stations can be
tuned to automatically.
to access the system
to access the system
Tip
. The accuracy of time depends on the RDS station that
transmits time signals.
3)4)15)+('67,4+6""&$"4)2)"(
Q4$9",$A23%$%"$#'1'*<'$%#24(1$233",31'+'3%;$
'32?6'$%&'$DK$=D#24(1$K33",31'+'3%R$4,31%*"37
1
Press and hold
menu.
2
/
repeatedly until [TA ON] or
Press
[TA OFF] is displayed.
3
Rotate
to select a setting.
.$ [TA ON]H$8&'3$2$%#24(1$
announcement is on air, the system
automatically switches to the tuner
to access the system
EN
15
6 Play from a
storage device
Control play
Button
Function
Press repeatedly to select a
folder.
Pause or resume play.
/
/
/
/DISP
1
Connect a compatible USB storage device
or SD/SDHC card.
.$ For an SD/SDHC card, detach the
4#"3%$523'6$(#)%;$*3)'#%$%&'$12#0$*3%"$
the card slot, and then attach the front
panel.
2
Switch the source to [iPod/USB] or
[SD/SDHC].
.$ When a USB storage device is
connected and recognized, the system
switches the source to [iPod/USB]
automatically.
3
If the play does not start, press
16
EN
.
Press to play the previous or
next track.
Press and hold to rewind a
track or search forward fast.
Press repeatedly to display
available information about the
current track.
Press repeatedly to select a
repeat mode:
.$ [REP ONE]: repeat the current track,
.$ [RPT FLD]: repeat all tracks
in the current folder, or
.$ [RPT ALL]: repeat all tracks
in the storage device.
Press repeatedly to select a
play mode:
.$ [SHU ALL]: play all tracks
randomly,
.$ [SHU FLD]: play tracks in
the current folder randomly,
or
.$ [SHU OFF]: play all tracks
in the storage device in
sequence.
Switch tracks
During play, you can switch tracks or folders
quickly.
Switch tracks directly
1
2
3
Press
to access the track list.
» D&'$(6'$32+'$"4$1,##'3%$%#21F$)1#"66)7
Rotate
Press
to toggle through tracks.
to play the selected track.
Switch folders for a track
1
Press
to access the folder list.
» The name of current folder scrolls.
2
3
Rotate
to toggle through folders.
Press
to select the folder.
» D&'$)9)%'+$)%2#%)$5629*3:$%&'$(#)%$%#21F$
under the folder.
EN
17
7 Play from an
iPod/iPhone
Note
Note
. Before you disconnect the iPod/iPhone, switch the
system to another source.
Control play
. During play, no audio signals are transferred through
the headphone socket of your iPod/iPhone.
Button
Function
Press repeatedly to select a control
mode: control play on your iPod/
iPhone, or on the system.
Press to pause or resume play.
Compatible iPod/iPhone
models
This car audio system supports the following
iPod and iPhone models.
.$ iPhone 4S, iPhone 4, iPhone 3GS, and
iPhone 3G
.$ iPod touch (2nd, 3rd, and 4th generations)
.$ iPod classic
.$ iPod nano (3rd, 4th, 5th, and 6th generations)
/
Press to play the previous or next
track.
/
Press and hold to rewind a track or
search forward fast.
/DISP
Connect your iPod/iPhone
Press repeatedly to display available
information about the current
track.
Press repeatedly to select a repeat
mode:
.$ [REP ONE]: repeat the current
track, or
.$ [REP ALL]: repeat all tracks.
Press repeatedly to select a play
mode:
.$ [SHU ALL]: play all tracks
randomly,
.$ [SHU ALBM]: play tracks in the
current album randomly, or
.$ [SHU OFF]: play all tracks in the
iPod/iPhone library in sequence.
Search for a track
Connect an Apple 30-pin USB cable to:
.$ the USB socket on the front panel of this
system, and
.$ your iPod/iPhone.
» [iPod/USB] scrolls.
» The system starts playing tracks that
are stored on your iPod/iPhone.
18
EN
After accessing the iPod/iPhone menu, you can
)'6'1%$2$)5'1*(1$%#21F$>,*1F697
1
Press
to access the iPod/iPhone menu.
» [PLAYLIST] scrolls.
2
Rotate
to select a category.
3
Press
to access the list of tracks
under the category.
» D&'$(6'$32+'$"4$%&'$(#)%$%#21F$)1#"66)7
4
to select a track.
Rotate
» D&'$(6'$32+'$"4$1,##'3%$%#21F$)1#"66)7
5
Press
to start play.
Charge your iPod/iPhone
Once the iPod/iPhone is connected and
recognized, the charging starts.
EN
19
8 Listen to an
external player
You can use the system to amplify the audio
input from an external player, for example, MP3
player.
MP3-LINK
1
2
Switch the source to [MP3--LINK].
3
Play the external player.
20
EN
Connect an MP3 link cable to
.$ the MP3-LINK socket on the system,
and
.$ the audio output socket (usually the
headphone socket) on the external
player.
9 Adjust sound
The following operations are applicable to all
supported media.
Button
Function
Rotate to increase or decrease the
volume level.
Press to mute the speakers or release
them from mute status.
Press to enable or disable the
maximum volume.
Press and hold to enable or disable
the Dynamic Bass Boost (DBB) effect.
Press repeatedly to select a sound
equalizer.
1 Press and hold to activate the setup
of customized sound equalizer.
2 Press repeatedly to select an option:
[BAS] (bass), [TRE] (treble), [BAL]
(balance), or [FAD] (fader).
3 Rotate
to adjust the setting.
EN
21
10 Additional
information
Reset the system
If the system works abnormally, reset the
system to factory default settings.
Replace the fuse
If there is no power, check the fuse and replace
it if it is damaged.
1
2
Check the electric connection.
3
Insert a new fuse with the same
)5'1*(12%*"3)$=-S$KR7
Remove the damaged fuse from the rear
panel.
L
REAR
R
Note
1
2
22
Detach the front panel.
Press the RESET button with the tip of a
ball-point pen or toothpick.
» All settings are reset to factory default.
EN
. If the fuse gets damaged immediately after it is
replaced, an internal malfunction may occur. In such
case, consult your retailer.
11 Product
Information
Note
. 8%)41,46(1&"#+6')+#$9:)4(+(&+406";)+<1(0&$(+%'1&'+
notice.
General
Power supply
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimensions - Main
unit (W x H x D)
Weight - Main unit
12 V DC (11 V - 16 V),
negative ground
15 A
4-8
50 W x 4 channels
22 W x 4 RMS (4
10% T.H.D.)
2.5 V
500 mV
188 X 58 X 110 mm
0.63 kg
Radio
Frequency range
- FM
Usable sensitivity FM (S/N = 20 dB)
Frequency range AM(MW)
Usable sensitivity AM(MW) (S/N =
20 dB)
87.5 - 108.0 MHz
(100kHz per step in
auto search and 50kHz
per step in manual
search)
8 µV
522 - 1620 KHz (9 kHz)
530 - 1710 kHz (10
kHz)
30 µV
EN
23
12 Troubleshooting
Warning
. Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact the
Consumer Care, make sure that the product
is nearby and the model number and serial
number are available.
No power or no sound
=
The power supply from car battery is cut
off, or the car battery runs out of energy.
Power the system with car battery.
=
Car engine is not on. Turn the car engine
on.
=
Cable is not correctly connected. Check
connections.
=
The fuse is burnt. Replace the fuse.
=
Volume is too low. Adjust volume.
=
If the above solutions cannot help, press
the RESET button.
=
Make sure that the current track is in a
compatible format.
Noise in broadcasts
=
Signals are too weak. Select other stations
with stronger signals.
=
Check the connection of the car antenna.
=
Change the broadcast setting from stereo
to mono.
Preset stations are erased.
=
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
24
EN
Cannot switch the source to iPod/iPhone
.$ Check whether the iPod/iPhone is securely
connected.
.$ Check whether the iPod/iPhone is
compatible with this system.
.$ Check whether the iPod/iPhone battery is
nearly empty. Connect it to this system for
1&2#:*3:$(#)%7$
Display shows ERR-12.
=
Data error. Check the USB storage device
or SD/SDHC card.
13 Notice
K39$1&23:')$"#$+"0*(12%*"3)$+20'$%"$%&*)$
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Trademark notice
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
0')*:3'0$%"$1"33'1%$)5'1*(12669$%"$*B"0$"#$
*B&"3'$#')5'1%*<'69;$230$&2)$?''3$1'#%*('0$?9$
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Other trademarks and trade names are those
of their respective owners.
Copyright
2013 © WOOX Innovations Limited. All rights
reserved.
Philips and the Philips’ Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.
T5'1*(12%*"3)$2#'$),[email protected]'1%$%"$1&23:'$A*%&",%$
notice. WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.
EN
25
14 Glossary
M
MP3
K$(6'$4"#+2%$A*%&$2$)",30$02%2$1"+5#'))*"3$
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3.
S
SD
Secure Digital. A type of memory card with a
U2)&$+'+"#97
SDHC
Secure Digital High Capacity (SDHC) is a type
"4$U2)&$+'+"#9$12#0$?2)'0$"3$%&'$TNK$V7WW$
)5'1*(12%*"37$D&'$TNK$V7WW$)5'1*(12%*"3$'32?6')$
SD cards to reach higher capacities from 4GB
to 32GB, and growing.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
26
EN
2013 © WOOX Innovations Limited. All rights reserved.
Philips and the Philips’ Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used by WOOX
Innovations Limited under license from Koninklijke Philips N.V.
CE138_12_UM_V4.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
