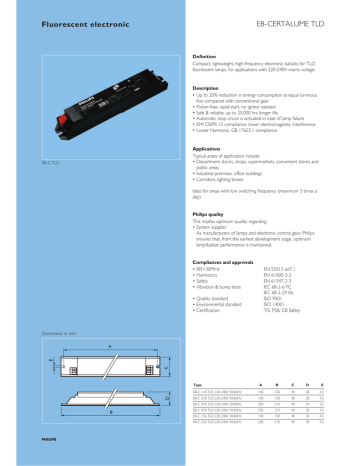

Fluorescent electronic EB-CERTALUME TLD

Fluorescent electronic EB-CERTALUME TLD
EB-CERTALUME TLD
Fluorescent electronic
Definition
Compact, lightweight, high-frequency electronic ballasts for TLD
fluorescent lamps, for applications with 220-240V mains voltage.
Description
• Up to 20% reduction in energy consumption at equal luminous
flux compared with conventional gear
• Flicker-free, rapid start, no ignitor needed
• Safe & reliable, up to 25,000 hrs longer life
• Automatic stop circuit is activated in case of lamp failure
• EMI CISPR 15 compliance, lower electromagnetic interference
• Lower Harmonic, GB 17625.1 compliance
Applications
Typical areas of application include:
• Department stores, shops, supermarkets, convenient stores and
public areas
• Industrial premises, office buildings
• Corridors, lighting boxes
EB-C TLD
Ideal for areas with low switching frequency (maximum 3 times a
day)
Philips quality
This implies optimum quality regarding
• System supplier
As manufacturers of lamps and electronic control gear, Philips
ensures that, from the earliest development stage, optimum
lamp/ballast performance is maintained.
Compliances and approvals
• RFI<30MHz
• Harmonics
• Safety
• Vibration & bump tests
EN 55015 ed7.1
EN 61000-3-2
EN 61347-2-3
IEC 68-2-6 FC
IEC 68-2-29 Eb
ISO 9001
ISO 14001
TIS, PSB, CB Safety
• Quality standard
• Environmental standard
• Certification
E
Dimensions in mm
D
Type
B
A
B
C
D
E
EB-C 118 TLD 220-240V 50/60Hz
140
150
40
28
4.2
EB-C 218 TLD 220-240V 50/60Hz
140
150
40
28
4.2
EB-C 318 TLD 220-240V 50/60Hz
200
210
40
30
4.2
EB-C 418 TLD 220-240V 50/60Hz
200
210
40
30
4.2
EB-C 136 TLD 220-240V 50/60Hz
140
150
40
28
4.2
EB-C 236 TLD 220-240V 50/60Hz
200
210
40
30
4.2
EB-CERTALUME TLD
Fluorescent electronic
Technical data in relation to energy saving
Lamp
Qty. of
Ballast
Lamps
System
Lamp
Ballast
Wiring
Power
Power
Losses
Diagram
W
W
W
TLD 18W
I
EB-C 118 TLD 220-240V 50/60Hz
18
16
2
1
TLD 18W
2
EB-C 218 TLD 220-240V 50/60Hz
36
16
4
2
TLD 18W
3
EB-C 318 TLD 220-240V 50/60Hz
54
16
6
3
TLD 18W
4
EB-C 418 TLD 220-240V 50/60Hz
72
16
8
4
TLD 36W
I
EB-C 136 TLD 220-240V 50/60Hz
36
32
4
1
TLD 36W
2
EB-C 236 TLD 220-240V 50/60Hz
72
32
8
2
Lamp!
Qty. of !
Ballast!
Power !
Ballast!
!THD!
EEI
factor
Lumen
Lamps
fig.
Factor
TL-D 18W
1
EB-C 118 TLD 220-240V 50/60Hz
> 0.95
0.95
< 25%
A3
TL-D 18W
2
EB-C 218 TLD 220-240V 50/60Hz
> 0.95
0.92
< 25%
A3
TL-D 18W
3
EB-C 318 TLD 220-240V 50/60Hz
> 0.95
0.95
< 25%
A3
TL-D 18W
4
EB-C 418 TLD 220-240V 50/60Hz
> 0.95
0.95
< 25%
A3
TL-D 36W
1
EB-C 136 TLD 220-240V 50/60Hz
> 0.95
0.95
< 25%
A3
TL-D 36W
2
EB-C 236 TLD 220-240V 50/60Hz
> 0.95
0.95
< 25%
A3
Technical data for installation
Mains operation
Rated mains voltage
With tolerance for safety: +10%, -10%
With tolerance for ignition &
burning: +5%, -25%
Mains frequency
Max tcase
220 - 240 V
198 - 264 V
165 - 253 V
50/60 Hz
65°C
Lifetime of a ballast depends on the temperature of the ballast. This
means there is a relation between the Tc point on the ballast and
its lifetime.
The EB-Certalume ballast for TLD applications has a specified
lifetime of 25,000 hrs, with a maximum of 10% failures guaranteed,
at a measured Tcase of 60°C.
Earth leakage currcent
< 0.7 mA per ballast
Ignition time
< 1.6 s
Independent lamp operation
function 236, 318, 418
Yes
Over voltage protection
48 hrs at 276 V AC
Hum and noise level
< 30dB at 1m distance
Cable capacity
max,120 pF between
lamp wires and earth
Permitted humidity is tested according to IEC 61347-2-3.
Note: that no moisture or condensation may enter the ballast.
Dual fixture: master-slave operation
possible, in general max
2m length of lamp wires
between ballast and lamp
Mains current at 220-240V
Ballast !
Input current
A
Automatic restart after lamp
replacement
Insulation resistance test
no, manual restart
required
500V DC from
Line/Neutral to Earth (not
between line and Neutral)
Note: Ensure that the
Neutral is reconnected
again after above
mentioned test is carried
out and before the
installation is put into
operation.
Technical data for design and mounting EB-C ballasts in
fixtures
Temperatures
Temperatures range to
-10°C to 50°C
ignite lamp with ignition aid
2
EB-C 118 TLD 220-240V 50/60Hz
0.09
EB-C 218 TLD 220-240V 50/60Hz
0.17
EB-C 318 TLD 220-240V 50/60Hz
0.24
EB-C 418 TLD 220-240V 50/60Hz
0.33
EB-C 136 TLD 220-240V 50/60Hz
0.17
EB-C 236 TLD 220-240V 50/60Hz
0.34
Inrush current
Ballast!
Max. quantity of ballast
per Miniature Circuit
Breaker Type B16A
EB-C 118 TLD 220-240V 50/60Hz
18
EB-C 218 TLD 220-240V 50/60Hz
18
EB-C 318 TLD 220-240V 50/60Hz
18
EB-C 418 TLD 220-240V 50/60Hz
18
EB-C 136 TLD 220-240V 50/60Hz
18
EB-C 236 TLD 220-240V 50/60Hz
18
EB-CERTALUME TLD
Fluorescent electronic
Notes:
1. Data is based on a mains supply with an impedance of 400mΩ, under
worst case conditions. With an impedance of 800mΩ the number of
ballasts can be increased by 10%.
2. Measurements will be verified in real installations; therefore data is
subject to change.
3. In some cases the maximum number of ballasts is not determined by
the MCB but by the maximum electrical load of the lighting
installation.
4. Note that the maximum number of ballasts is given when these are
all switched on at the same moment, i.e. by a wall switch.
5. Measurements were carried out on single-pole MCB's. For
multi-pole MCB's, it is advised to reduce the number of ballasts by
20%.
6. The maximum number of ballasts which can be connected to one
Residual Current Detector of 30mA is 30.
Wiring diagrams
1 Lamp
2 Lamps
Lamp 1
Lamp
N
L
1
2
3
4
EB-C
Ballast
EB-C
Ballast
N
L
1
2
3
4
5
6
Lamp 2
Fig. 1
Fig. 2
Lamp 1
4 Lamps
Lamp 1
3 Lamps
Lamp 2
EB-C
Ballast
N
L
1
2
3
4
5
6
7
8
N
L
Lamp 2
1
2
3
4
5
6
7
8
9
10
EB-C
Ballast
Lamp 3
Lamp 3
Lamp 4
Fig. 3
Fig. 4
Connection wiring is greatly simplified by the use of insert contacts with
push buttons.
Caution:
After finishing system installation, please check carefully before you turn
the power on.
1. Check whether lamp, ballast model and wiring are compatible
according to Philips EB-Certalume datasheet.
2. Be sure the ground terminal of ballast are connected with metal
luminaries or batten and earthed.
3. Keep wires to terminals 1,2 short ( Fig.1).
4. Keep wires to terminals 1,2 & 3,4 short ( Fig.2).
5. Keep wires to terminals 1,2 & 7,8 short ( Fig.3).
6. Keep wires to terminals 1,2 & 9,10 short ( Fig.4).
Wire cross-section:
On the mains side:
On the lamp side:
0.5 - 1.5mm2
0.5 - 1.5mm2
Strip length:
9 - 10mm
Ordering and packing data
Ballast!
Ordering Number!
Weight!
Bulk packing!
!
!
!
!
!
Qty.!
Dimensions!
Weight
!
!
!
!
LxWxH
Gross
!
!
kg!
pcs!
cm!
kg!
EB-C 118 TLD 220-240V 50/60Hz
9137 131 990
0.08
20
30 x 20 x 7
2.0
120/2400
EB-C 136 TLD 220-240V 50/60Hz
9137 131 992
0.09
20
30 x 20 x 7
2.2
120/2400
EB-C 318 TLD 220-240V 50/60Hz
9137 131 975
0.14
20
42 x 21 x 7
3.3
80/1600
EB-C 418 TLD 220-240V 50/60Hz
9137 131 973
0.15
20
42 x 21 x 7
3.4
80/1600
EB-C 218 TLD 220-240V 50/60Hz
9137 131 991
0.09
20
30 x 20 x 7
2.1
120/2400
EB-C 236 TLD 220-240V 50/60Hz
9137 131 993
0.13
20
42 x 21 x 7
3.1
80/1600
Pallet
packing
carton / ballast
pcs
3
