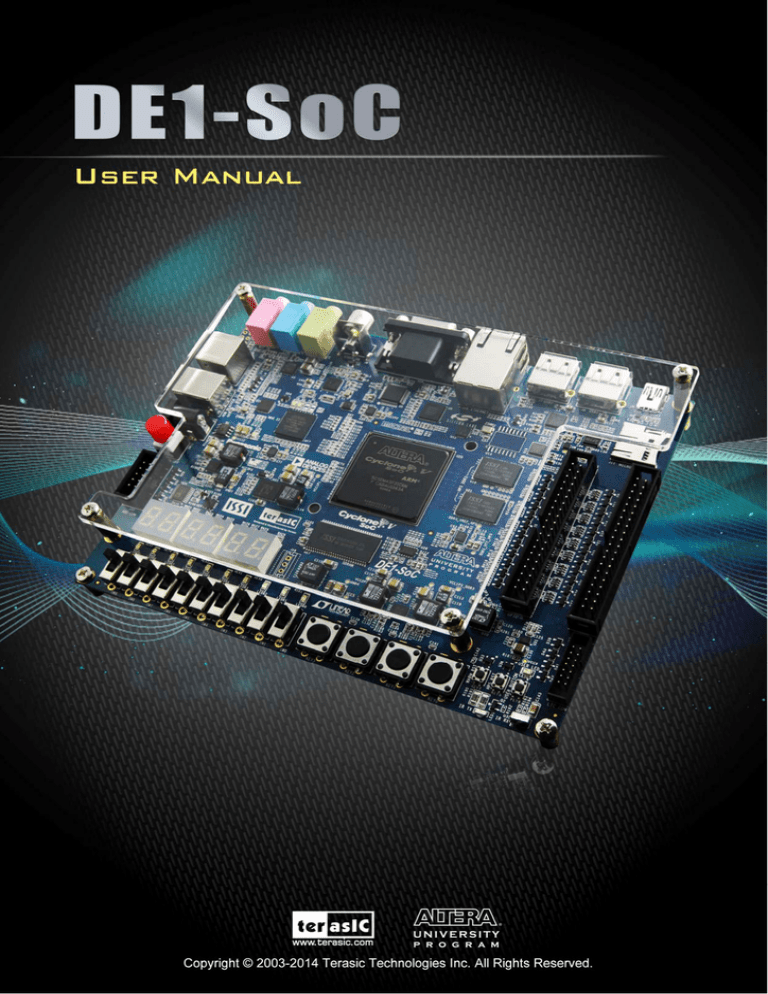

DE1-SoC User Manual

March 31, 2015

CONTENTS

CHAPTER 1

DE1-SOC DEVELOPMENT KIT .......................................................................... 4

1.1 Package Contents ....................................................................................................................... 4



1.2 DE1-SoC System CD ................................................................................................................. 5



1.3 Getting Help ............................................................................................................................... 5



CHAPTER 2

INTRODUCTION OF THE DE1-SOC BOARD ..................................................... 6

2.1 Layout and Components ............................................................................................................. 6



2.2 Block Diagram of the DE1-SoC Board ...................................................................................... 9



CHAPTER 3

USING THE DE1-SOC BOARD ......................................................................... 12

3.1 Settings of FPGA Configuration Mode .................................................................................... 12



3.2 Configuration of Cyclone V SoC FPGA on DE1-SoC ............................................................. 13



3.3 Board Status Elements ............................................................................................................. 19



3.4 Board Reset Elements .............................................................................................................. 20



3.5 Clock Circuitry ......................................................................................................................... 21



3.6 Peripherals Connected to the FPGA ......................................................................................... 23



3.6.1



User Push-buttons, Switches and LEDs ................................................................................ 23



3.6.2



7-segment Displays ............................................................................................................... 26



3.6.3



2x20 GPIO Expansion Headers ............................................................................................. 28



3.6.4



24-bit Audio CODEC ............................................................................................................ 30



3.6.5



I2C Multiplexer ..................................................................................................................... 31



3.6.6



VGA ...................................................................................................................................... 32



3.6.7



TV Decoder ........................................................................................................................... 35



3.6.8



IR Receiver ............................................................................................................................ 37



3.6.9



IR Emitter LED ..................................................................................................................... 37



DE1-SoC User Manual

March 31, 2015

3.6.10



SDRAM Memory ................................................................................................................ 38



3.6.11



PS/2 Serial Port ................................................................................................................... 40



3.6.12



A/D Converter and 2x5 Header ........................................................................................... 42



3.7 Peripherals Connected to Hard Processor System (HPS) ......................................................... 43



3.7.1



User Push-buttons and LEDs ................................................................................................ 43



3.7.2



Gigabit Ethernet .................................................................................................................... 44



3.7.3



UART .................................................................................................................................... 45



3.7.4



DDR3 Memory ...................................................................................................................... 46



3.7.5



Micro SD Card Socket .......................................................................................................... 48



3.7.6



2-port USB Host .................................................................................................................... 49



3.7.7



G-sensor ................................................................................................................................ 50



3.7.8



LTC Connector ...................................................................................................................... 51



CHAPTER 4 DE1-SOC SYSTEM BUILDER........................................................................... 53

4.1 Introduction .............................................................................................................................. 53



4.2 Design Flow ............................................................................................................................. 53



4.3 Using DE1-SoC System Builder .............................................................................................. 54



CHAPTER 5 EXAMPLES FOR FPGA .................................................................................... 60

5.1 DE1-SoC Factory Configuration .............................................................................................. 60



5.2 Audio Recording and Playing .................................................................................................. 61



5.3 Karaoke Machine ..................................................................................................................... 64



5.4 SDRAM Test in Nios II ............................................................................................................ 66



5.5 SDRAM Test in Verilog ........................................................................................................... 69



5.6 TV Box Demonstration ............................................................................................................ 71



5.7 PS/2 Mouse Demonstration ...................................................................................................... 73



5.8 IR Emitter LED and Receiver Demonstration ......................................................................... 76



5.9 ADC Reading ........................................................................................................................... 82



CHAPTER 6

EXAMPLES FOR HPS SOC ............................................................................... 85

DE1-SoC User Manual

March 31, 2015

6.1 Hello Program .......................................................................................................................... 85



6.2 Users LED and KEY ................................................................................................................ 87



6.3 I2C Interfaced G-sensor ........................................................................................................... 93



6.4 I2C MUX Test .......................................................................................................................... 96



CHAPTER 7

EXAMPLES FOR USING BOTH HPS SOC AND FGPA ..................................... 99

7.1 HPS Control LED and HEX ..................................................................................................... 99



7.2 DE1-SoC Control Panel ......................................................................................................... 103



7.3 DE1-SoC Linux Frame Buffer Project ................................................................................... 103



CHAPTER 8

PROGRAMMING THE EPCS DEVICE ............................................................. 105

8.1 Before Programming Begins .................................................................................................. 105



8.2 Convert .SOF File to .JIC File ................................................................................................ 105



8.3 Write JIC File into the EPCS Device ..................................................................................... 110



8.4 Erase the EPCS Device .......................................................................................................... 112



8.5 Nios II Boot from EPCQ Device in Quartus II v13.1 ............................................................ 113



CHAPTER 9

APPENDIX ........................................................................................................ 114

9.1 Revision History ..................................................................................................................... 114



9.2 Copyright Statement ............................................................................................................... 114



DE1-SoC User Manual

March 31, 2015

Chapter 1

DE1-SoC

Development Kit

The DE1-SoC Development Kit presents a robust hardware design platform built around the Altera

System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE1-SoC development board is equipped with high-speed DDR3 memory, video and audio capabilities, Ethernet networking, and much more that promise many exciting applications.

The DE1-SoC Development Kit contains all the tools needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.

1 .

.

1 P a c k a g e C o n t t e n t t s

Figure 1-1

shows a photograph of the DE1-SoC package.

Figure 1-1 The DE1-SoC package contents

DE1-SoC User Manual

March 31, 2015

The DE1-SoC package includes:

 The DE1-SoC development board

 DE1-SoC Quick Start Guide

 USB cable (Type A to B) for FPGA programming and control

 USB cable (Type A to Mini-B) for UART control

 12V DC power adapter

1 .

.

2 D E 1 -

-

S o C S y s t t e m

C

D

The DE1-SoC System CD contains all the documents and supporting materials associated with

DE1-SoC, including the user manual, system builder, reference designs, and device datasheets.

Users can download this system CD from the link: http://cd-de1-soc.terasic.com

.

1 .

.

3 G e t t t t i i n g

H e l l p

Here are the addresses where you can get help if you encounter any problems:

 Altera Corporation

 101 Innovation Drive San Jose, California, 95134 USA

Email: [email protected]

 Terasic Technologies

 9F., No.176, Sec.2, Gongdao 5th Rd, East Dist, Hsinchu City, 30070. Taiwan

Email: [email protected]

Tel.: +886-3-575-0880

Website: de1-soc.terasic.com

DE1-SoC User Manual

March 31, 2015

Chapter 2

Introduction of the

DE1-SoC Board

This chapter provides an introduction to the features and design characteristics of the board.

2 .

.

1 L a y o u t t a n d C o m p o n e n t t s

Figure 2-1

shows a photograph of the board. It depicts the layout of the board and indicates the location of the connectors and key components.

DE1-SoC User Manual

March 31, 2015

Figure 2-1 DE1-SoC development board (top view)

Figure 2-2 De1-SoC development board (bottom view)

DE1-SoC User Manual

March 31, 2015

The DE1-SoC board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA

 Altera Cyclone® V SE 5CSEMA5F31C6N device

 Altera serial configuration device – EPCS128

 USB-Blaster II onboard for programming; JTAG Mode

 64MB SDRAM (16-bit data bus)

 4 push-buttons

 10 slide switches

 10 red user LEDs

 Six 7-segment displays

 Four 50MHz clock sources from the clock generator

 24-bit CD-quality audio CODEC with line-in, line-out, and microphone-in jacks

 VGA DAC (8-bit high-speed triple DACs) with VGA-out connector

 TV decoder (NTSC/PAL/SECAM) and TV-in connector

 PS/2 mouse/keyboard connector

 IR receiver and IR emitter

 Two 40-pin expansion header with diode protection

 A/D converter, 4-pin SPI interface with FPGA

HPS (Hard Processor System)

 800MHz Dual-core ARM Cortex-A9 MPCore processor

 1GB DDR3 SDRAM (32-bit data bus)

 1 Gigabit Ethernet PHY with RJ45 connector

 2-port USB Host, normal Type-A USB connector

 Micro SD card socket

 Accelerometer (I2C interface + interrupt)

 UART to USB, USB Mini-B connector

 Warm reset button and cold reset button

 One user button and one user LED

 LTC 2x7 expansion header

DE1-SoC User Manual

March 31, 2015

2 .

.

2 B l l o c k D i i a g r r a m o f f t t h e D E

1

-

-

S o C

B o a r r d

Figure 2-3

is the block diagram of the board. All the connections are established through the

Cyclone V SoC FPGA device to provide maximum flexibility for users. Users can configure the

FPGA to implement any system design.

Figure 2-3 Block diagram of DE1-SoC

Detailed information about

Figure 2-3

are listed below.

DE1-SoC User Manual

March 31, 2015

F P G A D e v i i c e

 Cyclone V SoC 5CSEMA5F31 Device

 Dual-core ARM Cortex-A9 (HPS)

 85K programmable logic elements

 4,450 Kbits embedded memory

 6 fractional PLLs

 2 hard memory controllers

C o n f f i i g u r a t t i i o n a n d D e b u g

 Quad serial configuration device – EPCS128 on FPGA

 Onboard USB-Blaster II (normal type B USB connector)

M e m o r y D e v i i c e

 64MB (32Mx16) SDRAM on FPGA

 1GB (2x256Mx16) DDR3 SDRAM on HPS

 Micro SD card socket on HPS

C o m m u n i i c a t t i i o n

 Two port USB 2.0 Host (ULPI interface with USB type A connector)

 UART to USB (USB Mini-B connector)

 10/100/1000 Ethernet

 PS/2 mouse/keyboard

 IR emitter/receiver

 I2C multiplexer

C o n n e c t t o r s s

 Two 40-pin expansion headers

 One 10-pin ADC input header

 One LTC connector (one Serial Peripheral Interface (SPI) Master ,one I2C and one GPIO interface )

DE1-SoC User Manual

March 31, 2015

D i i s s p l l a y

 24-bit VGA DAC

A u d i i o

 24-bit CODEC, Line-in, Line-out, and microphone-in jacks

V i i d e o

I

I n p u t t

 TV decoder (NTSC/PAL/SECAM) and TV-in connector

A D C

 Fast throughput rate: 1 MSPS

 Channel number: 8

 Resolution: 12-bit

 Analog input range : 0 ~ 2.5 V or 0 ~ 5V as selected via the RANGE bit in the control register

S w i i t t c h e s s ,

,

B u t t t t o n s s ,

, a n d

I

I n d i i c a t t o r s s

 5 user Keys (FPGA x4, HPS x1)

 10 user switches (FPGA x10)

 11 user LEDs (FPGA x10, HPS x 1)

 2 HPS reset buttons (HPS_RESET_n and HPS_WARM_RST_n)

 Six 7-segment displays

S e n s s o r s s

 G-Sensor on HPS

P o w e r

 12V DC input

DE1-SoC User Manual

March 31, 2015

Chapter 3

Using the DE1-SoC

Board

This chapter provides an instruction to use the board and describes the peripherals.

3 .

.

1 S e t t t t i i n g s o f f F P G A C o n f f i i g u r r a t t i i o n M o d e

When the DE1-SoC board is powered on, the FPGA can be configured from EPCS or HPS. The

MSEL[4:0] pins are used to select the configuration scheme. It is implemented as a 6-pin DIP switch SW10 on the DE1-SoC board, as shown in

Figure 3-1

.

Figure 3-1 DIP switch (SW10) setting of Active Serial (AS) mode at the back of DE1-SoC board

Table 3-1

shows the relation between MSEL[4:0] and DIP switch (SW10).

DE1-SoC User Manual

March 31, 2015

Table 3-1 FPGA Configuration Mode Switch (SW10)

Board Reference Signal Name Description

SW10.1

SW10.2

SW10.3

SW10.4

SW10.5

SW10.6

MSEL0

MSEL1

MSEL2

MSEL3

MSEL4

N/A

Use these pins to set the FPGA

Configuration scheme

N/A

Default

ON (“0”)

OFF (“1”)

ON (“0”)

ON (“0”)

OFF (“1”)

N/A

Figure 3-1

shows MSEL[4:0] setting of AS mode, which is also the default setting on DE1-SoC.

When the board is powered on, the FPGA is configured from EPCS, which is pre-programmed with the default code. If developers wish to reconfigure FPGA from an application software running on

Linux, the MSEL[4:0] needs to be set to “01010” before the programming process begins. If developers using the "Linux Console with frame buffer" or "Linux LXDE Desktop" SD Card image, the MSEL[4:0] needs to be set to “00000” before the board is powered on.

Table 3-2 MSEL Pin Settings for FPGA Configure of DE1-SoC

MSEL[4:0] Configure Scheme Description

10010 AS FPGA configured from EPCS (default)

01010

00000

FPPx32

FPPx16

FPGA configured from HPS software: Linux

FPGA configured from HPS software: U-Boot, with image stored on the SD card, like LXDE Desktop or console Linux with frame buffer edition.

3 .

.

2 C o n f f i i g u r r a t t i i o n o f f C y c l l o n e V S o C F P G A o n

D

E 1 -

-

S o

C

There are two types of programming method supported by DE1-SoC:

1. JTAG programming: It is named after the IEEE standards Joint Test Action Group.

The configuration bit stream is downloaded directly into the Cyclone V SoC FPGA. The FPGA will retain its current status as long as the power keeps applying to the board; the configuration information will be lost when the power is off.

2. AS programming: The other programming method is Active Serial configuration.

The configuration bit stream is downloaded into the quad serial configuration device (EPCS128), which provides non-volatile storage for the bit stream. The information is retained within EPCS128

DE1-SoC User Manual

March 31, 2015

even if the DE1-SoC board is turned off. When the board is powered on, the configuration data in the EPCS128 device is automatically loaded into the Cyclone V SoC FPGA.

JTAG Chain on DE1-SoC Board

The FPGA device can be configured through JTAG interface on DE1-SoC board, but the JTAG chain must form a closed loop, which allows Quartus II programmer to the detect FPGA device.

Figure 3-2

illustrates the JTAG chain on DE1-SoC board.

Figure 3-2 Path of the JTAG chain

Configure the FPGA in JTAG Mode

There are two devices (FPGA and HPS) on the JTAG chain. The following shows how the FPGA is programmed in JTAG mode step by step.

1. Open the Quartus II programmer and click “Auto Detect”, as circled in

Figure 3-3

DE1-SoC User Manual

March 31, 2015

Figure 3-3 Detect FPGA device in JTAG mode

2. Select detected device associated with the board, as circled in

Figure 3-4

.

Figure 3-4 Select 5CSEMA5 device

3. Both FPGA and HPS are detected, as shown in

Figure 3-5

.

DE1-SoC User Manual

March 31, 2015

Figure 3-5 FPGA and HPS detected in Quartus programmer

4. Right click on the FPGA device and open the .sof file to be programmed, as highlighted in

Figure 3-6

.

DE1-SoC User Manual

March 31, 2015

Figure 3-6 Open the .sof file to be programmed into the FPGA device

5. Select the .sof file to be programmed, as shown in

Figure 3-7

.

Figure 3-7 Select the .sof file to be programmed into the FPGA device

DE1-SoC User Manual

March 31, 2015

6. Click “Program/Configure” check box and then click “Start” button to download the .sof file into the FPGA device, as shown in

Figure 3-8

.

Figure 3-8 Program .sof file into the FPGA device

Configure the FPGA in AS Mode

 The DE1-SoC board uses a quad serial configuration device (EPCS128) to store configuration data for the Cyclone V SoC FPGA. This configuration data is automatically loaded from the quad serial configuration device chip into the FPGA when the board is powered up.

 Users need to use Serial Flash Loader (SFL) to program the quad serial configuration device via JTAG interface. The FPGA-based SFL is a soft intellectual property (IP) core within the

FPGA that bridge the JTAG and Flash interfaces. The SFL Megafunction is available in

Quartus II.

Figure 3-9

shows the programming method when adopting SFL solution.

 Please refer to Chapter 9: Steps of Programming the Quad Serial Configuration Device for the basic programming instruction on the serial configuration device.

DE1-SoC User Manual

March 31, 2015

Figure 3-9 Programming a quad serial configuration device with SFL solution

3 .

.

3 B o a r r d

S t t a t t u s E l l e m e n t t s

In addition to the 10 LEDs that FPGA device can control, there are 5 indicators which can indicate the board status (See

Figure 3-10

)

, please refer the details in

Table 3-3

Figure 3-10 LED Indicators on DE1-SoC

DE1-SoC User Manual

March 31, 2015

Board Reference LED Name

D14 12-V Power

TXD UART TXD

RXD UART RXD

Table 3-3 LED Indicators

Description

Illuminate when 12V power is active.

Illuminate when data is transferred from FT232R to USB Host.

Illuminate when data is transferred from USB Host to FT232R.

D5 JTAG_RX

Reserved

D4 JTAG_TX

3 .

.

4 B o a r r d R e s e t t E l l e m e n t t s

There are two HPS reset buttons on DE1-SoC, HPS (cold) reset and HPS warm reset, as shown in

Figure 3-11

.

Table 3-4

describes the purpose of these two HPS reset buttons.

Figure 3-12

is the reset tree for DE1-SoC.

Figure 3-11 HPS cold reset and warm reset buttons on DE1-SoC

DE1-SoC User Manual

March 31, 2015

Table 3-4 Description of Two HPS Reset Buttons on DE1-SoC

Board Reference Signal Name

KEY5

KEY7

Description

HPS_RESET_N

Cold reset to the HPS, Ethernet PHY and USB host device.

Active low input which resets all HPS logics that can be reset.

HPS_WARM_RST_N

Warm reset to the HPS block. Active low input affects the system reset domain for debug purpose.

Figure 3-12 HPS reset tree on DE1-SoC board

3 .

.

5 C l l o c k C i i r r c u i i t t r r y

Figure 3-13

shows the default frequency of all external clocks to the Cyclone V SoC FPGA. A clock generator is used to distribute clock signals with low jitter. The four 50MHz clock signals connected to the FPGA are used as clock sources for user logic. One 25MHz clock signal is connected to two HPS clock inputs, and the other one is connected to the clock input of Gigabit

DE1-SoC User Manual

March 31, 2015

Ethernet Transceiver. Two 24MHz clock signals are connected to the clock inputs of USB

Host/OTG PHY and USB hub controller. The associated pin assignment for clock inputs to FPGA

I/O pins is listed in

Table 3-5.

Figure 3-13 Block diagram of the clock distribution on DE1-SoC

Signal Name

Table 3-5 Pin Assignment of Clock Inputs

FPGA Pin No. Description

CLOCK2_50 PIN_AA16 50

CLOCK3_50 PIN_Y26

CLOCK4_50 PIN_K14 50

HPS_CLOCK1_25 PIN_D25

HPS_CLOCK2_25 PIN_F25

25 MHz clock input

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

DE1-SoC User Manual

March 31, 2015

3 .

.

6 P e r r i i p h e r r a l l s C o n n e c t t e d t t o t t h e F P

G

A

This section describes the interfaces connected to the FPGA. Users can control or monitor different interfaces with user logic from the FPGA.

3.6.1

User Push-buttons, Switches and LEDs

The board has four push-buttons connected to the FPGA, as shown in

Figure 3-14

Connections between the push-buttons and the Cyclone V SoC FPGA

. Schmitt trigger circuit is implemented and act as switch debounce in

Figure 3-15

for the push-buttons connected. The four push-buttons named

KEY0, KEY1, KEY2, and KEY3 coming out of the Schmitt trigger device are connected directly to the Cyclone V SoC FPGA. The push-button generates a low logic level or high logic level when it is pressed or not, respectively. Since the push-buttons are debounced, they can be used as clock or reset inputs in a circuit.

Figure 3-14 Connections between the push-buttons and the Cyclone V SoC FPGA

DE1-SoC User Manual

March 31, 2015

Pushbutton depressed Pushbutton released

Before

Debouncing

Schmitt Trigger

Debounced

Figure 3-15 Switch debouncing

There are ten slide switches connected to the FPGA, as shown in

Figure 3-16

. These switches are not debounced and to be used as level-sensitive data inputs to a circuit. Each switch is connected directly and individually to the FPGA. When the switch is set to the DOWN position (towards the edge of the board), it generates a low logic level to the FPGA. When the switch is set to the UP position, a high logic level is generated to the FPGA.

Figure 3-16 Connections between the slide switches and the Cyclone V SoC FPGA

There are also ten user-controllable LEDs connected to the FPGA. Each LED is driven directly and individually by the Cyclone V SoC FPGA; driving its associated pin to a high logic level or low

DE1-SoC User Manual

March 31, 2015

level to turn the LED on or off, respectively.

Figure 3-17

shows the connections between LEDs and

Cyclone V SoC FPGA.

Table 3-6

,

Table 3-7

and

Table 3-8

list the pin assignment of user push-buttons, switches, and LEDs.

Signal Name

Figure 3-17 Connections between the LEDs and the Cyclone V SoC FPGA

Table 3-6 Pin Assignment of Slide Switches

FPGA Pin No. Description I/O Standard

Signal Name

Table 3-7 Pin Assignment of Push-buttons

FPGA Pin No. Description I/O Standard

KEY[3] PIN_Y16 Push-button[3] 3.3V

DE1-SoC User Manual

March 31, 2015

Table 3-8 Pin Assignment of LEDs

Signal Name FPGA Pin No.

LEDR[0] PIN_V16

LEDR[1] PIN_W16

LEDR[2] PIN_V17

LEDR[3] PIN_V18

LEDR[4] PIN_W17

LEDR[5] PIN_W19

LEDR[6] PIN_Y19

LEDR[7] PIN_W20

LEDR[8] PIN_W21

LEDR[9] PIN_Y21

Description I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.6.2

7-segment Displays

The DE1-SoC board has six 7-segment displays. These displays are paired to display numbers in various sizes.

Figure 3-18

shows the connection of seven segments (common anode) to pins on

Cyclone V SoC FPGA. The segment can be turned on or off by applying a low logic level or high logic level from the FPGA, respectively.

Each segment in a display is indexed from 0 to 6, with corresponding positions given in

Figure

3-18

.

Table 3-9

shows the pin assignment of FPGA to the 7-segment displays.

Figure 3-18 Connections between the 7-segment display HEX0 and the Cyclone V SoC FPGA

DE1-SoC User Manual

March 31, 2015

Signal Name

HEX0[0]

HEX0[1]

HEX0[2]

HEX2[1]

HEX4[1]

HEX4[2]

HEX4[3]

HEX4[4]

HEX4[5]

HEX4[6]

HEX5[0]

HEX5[2]

Table 3-9 Pin Assignment of 7-segment Displays

FPGA Pin No.

PIN_AE26

PIN_AE27

PIN_AE28

PIN_AE29

PIN_Y23

PIN_Y24

PIN_W22

PIN_W24

PIN_V23

PIN_W25

PIN_V25

PIN_Y27

Description

Seven Segment Digit 0[0]

Seven Segment Digit 0[1]

Seven Segment Digit 0[2]

Seven Segment Digit 2[1]

Seven Segment Digit 4[1]

Seven Segment Digit 4[2]

Seven Segment Digit 4[3]

Seven Segment Digit 4[4]

Seven Segment Digit 4[5]

Seven Segment Digit 4[6]

Seven Segment Digit 5[0]

Seven Segment Digit 5[2]

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

DE1-SoC User Manual

March 31, 2015

3.6.3

2x20 GPIO Expansion Headers

The board has two 40-pin expansion headers. Each header has 36 user pins connected directly to the

Cyclone V SoC FPGA. It also comes with DC +5V (VCC5), DC +3.3V (VCC3P3), and two GND pins. The maximum power consumption allowed for a daughter card connected to one or two GPIO ports is shown in

Table 3-10

.

Table 3-10 Voltage and Max. Current Limit of Expansion Header(s)

Supplied Voltage Max. Current Limit

5V 1A

3.3V 1.5A

Each pin on the expansion headers is connected to two diodes and a resistor for protection against high or low voltage level.

Figure 3-19

shows the protection circuitry applied to all 2x36 data pins.

Table 3-11

shows the pin assignment of two GPIO headers.

Figure 3-19 Connections between the GPIO header and Cyclone V SoC FPGA

Signal Name

GPIO_0 [1]

GPIO_0 [2]

GPIO_0 [3]

Table 3-11 Pin Assignment of Expansion Headers

FPGA Pin No. Description

PIN_Y17

PIN_AD17

PIN_Y18

DE1-SoC User Manual

GPIO Connection 0[1]

GPIO Connection 0[2]

GPIO Connection 0[3]

I/O Standard

3.3V

3.3V

3.3V

3.3V

March 31, 2015

GPIO_0 [19]

GPIO_0 [20]

GPIO_0 [21]

GPIO_0 [22]

GPIO_0 [23]

GPIO_0 [24]

GPIO_0 [25]

GPIO_0 [26]

GPIO_0 [27]

GPIO_0 [28]

GPIO_0 [29]

GPIO_0 [30]

GPIO_0 [31]

GPIO_0 [32]

GPIO_0 [33]

GPIO_0 [34]

GPIO_0 [35]

GPIO_0 [4]

GPIO_0 [5]

GPIO_0 [6]

GPIO_0 [7]

GPIO_0 [8]

GPIO_0 [9]

GPIO_0 [10]

GPIO_0 [11]

GPIO_0 [12]

GPIO_0 [13]

GPIO_0 [14]

GPIO_0 [15]

GPIO_0 [16]

GPIO_0 [17]

GPIO_0 [18]

PIN_AC20

PIN_AH19

PIN_AJ20

PIN_AH20

PIN_AK21

PIN_AD19

PIN_AD20

PIN_AE18

PIN_AE19

PIN_AF20

PIN_AF21

PIN_AF19

PIN_AG21

PIN_AF18

PIN_AG20

PIN_AG18

PIN_AJ21

PIN_AK16

PIN_AK18

PIN_AK19

PIN_AJ19

PIN_AJ17

PIN_AJ16

PIN_AH18

PIN_AH17

PIN_AG16

PIN_AE16

PIN_AF16

PIN_AG17

PIN_AA18

PIN_AA19

PIN_AE17

GPIO_1 [2]

GPIO_1 [3]

GPIO_1 [4]

GPIO_1 [5]

GPIO_1 [6]

GPIO_1 [7]

GPIO_1 [8]

GPIO_1 [9]

GPIO_1[10]

GPIO_1 [11]

PIN_AB21

PIN_AC23

PIN_AD24

PIN_AE23

PIN_AE24

PIN_AF25

PIN_AF26

PIN_AG25

PIN_AG26

PIN_AH24

DE1-SoC User Manual

GPIO Connection 0[4]

GPIO Connection 0[5]

GPIO Connection 0[6]

GPIO Connection 0[7]

GPIO Connection 0[8]

GPIO Connection 0[9]

GPIO Connection 0[10]

GPIO Connection 0[11]

GPIO Connection 0[12]

GPIO Connection 0[13]

GPIO Connection 0[14]

GPIO Connection 0[15]

GPIO Connection 0[16]

GPIO Connection 0[17]

GPIO Connection 0[18]

GPIO Connection 0[19]

GPIO Connection 0[20]

GPIO Connection 0[21]

GPIO Connection 0[22]

GPIO Connection 0[23]

GPIO Connection 0[24]

GPIO Connection 0[25]

GPIO Connection 0[26]

GPIO Connection 0[27]

GPIO Connection 0[28]

GPIO Connection 0[29]

GPIO Connection 0[30]

GPIO Connection 0[31]

GPIO Connection 0[32]

GPIO Connection 0[33]

GPIO Connection 0[34]

GPIO Connection 0[35]

GPIO Connection 1[2]

GPIO Connection 1[3]

GPIO Connection 1[4]

GPIO Connection 1[5]

GPIO Connection 1[6]

GPIO Connection 1[7]

GPIO Connection 1[8]

GPIO Connection 1[9]

GPIO Connection 1[10]

GPIO Connection 1[11]

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

March 31, 2015

GPIO_1 [12]

GPIO_1 [13]

GPIO_1 [14]

GPIO_1 [15]

GPIO_1 [16]

GPIO_1 [17]

GPIO_1 [18]

GPIO_1 [19]

GPIO_1 [20]

GPIO_1 [21]

GPIO_1 [22]

GPIO_1 [23]

GPIO_1 [24]

GPIO_1 [25]

GPIO_1 [26]

GPIO_1 [27]

GPIO_1 [28]

GPIO_1 [29]

GPIO_1 [30]

GPIO_1 [31]

GPIO_1 [32]

GPIO_1 [33]

GPIO_1 [34]

GPIO_1 [35]

PIN_AH27

PIN_AJ27

PIN_AK29

PIN_AK28

PIN_AK27

PIN_AJ26

PIN_AK26

PIN_AH25

PIN_AJ25

PIN_AJ24

PIN_AK24

PIN_AG23

PIN_AK23

PIN_AH23

PIN_AK22

PIN_AJ22

PIN_AH22

PIN_AG22

PIN_AF24

PIN_AF23

PIN_AE22

PIN_AD21

PIN_AA20

PIN_AC22

3.6.4

24-bit Audio CODEC

GPIO Connection 1[12]

GPIO Connection 1[13]

GPIO Connection 1[14]

GPIO Connection 1[15]

GPIO Connection 1[16]

GPIO Connection 1[17]

GPIO Connection 1[18]

GPIO Connection 1[19]

GPIO Connection 1[20]

GPIO Connection 1[21]

GPIO Connection 1[22]

GPIO Connection 1[23]

GPIO Connection 1[24]

GPIO Connection 1[25]

GPIO Connection 1[26]

GPIO Connection 1[27]

GPIO Connection 1[28]

GPIO Connection 1[29]

GPIO Connection 1[30]

GPIO Connection 1[31]

GPIO Connection 1[32]

GPIO Connection 1[33]

GPIO Connection 1[34]

GPIO Connection 1[35]

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

The DE1-SoC board offers high-quality 24-bit audio via the Wolfson WM8731 audio CODEC

(Encoder/Decoder). This chip supports microphone-in, line-in, and line-out ports, with adjustable sample rate from 8 kHz to 96 kHz. The WM8731 is controlled via serial I2C bus, which is connected to HPS or Cyclone V SoC FPGA through an I2C multiplexer. The connection of the audio circuitry to the FPGA is shown in

Figure 3-20

, and the associated pin assignment to the

FPGA is listed in

Table 3-12

. More information about the WM8731 codec is available in its datasheet, which can be found on the manufacturer’s website, or in the directory

\DE1_SOC_datasheets\Audio CODEC of DE1-SoC System CD.

DE1-SoC User Manual

March 31, 2015

Figure 3-20 Connections between the FPGA and audio CODEC

Table 3-12 Pin Assignment of Audio CODEC

Signal Name

AUD_ADCLRCK

FPGA Pin No.

PIN_K8

AUD_ADCDAT PIN_K7

AUD_DACLRCK

AUD_DACDAT

AUD_XCK

PIN_H8

PIN_J7

PIN_G7

AUD_BCLK

I2C_SCLK

I2C_SDAT

PIN_H7

PIN_J12 or PIN_E23

PIN_K12 or PIN_C24

Description

Audio CODEC ADC LR Clock

Audio CODEC DAC LR Clock

Audio CODEC DAC Data

Audio CODEC Chip Clock

Audio CODEC Bit-stream Clock

I2C Clock

I2C Data

3.6.5

I2C Multiplexer

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

The DE1-SoC board implements an I2C multiplexer for HPS to access the I2C bus originally owned by FPGA.

Figure 3-21

shows the connection of I2C multiplexer to the FPGA and HPS. HPS can access Audio CODEC and TV Decoder if and only if the HPS_I2C_CONTROL signal is set to high. The pin assignment of I2C bus is listed in

Table 3-13

.

DE1-SoC User Manual

March 31, 2015

Figure 3-21 Control mechanism for the I2C multiplexer

Table 3-13 Pin Assignment of I2C Bus

Signal Name FPGA Pin No. Description

FPGA_I2C_SCLK PIN_J12 FPGA I2C Clock

FPGA_I2C_SDAT PIN_K12

HPS_I2C1_SCLK PIN_E23

HPS_I2C1_SDAT PIN_C24

HPS_I2C2_SCLK PIN_H23

HPS_I2C2_SDAT PIN_A25

FPGA I2C Data

I2C Clock of the first HPS I2C concontroller

I2C Data of the first HPS I2C concontroller

I2C Clock of the second HPS I2C concontroller

I2C Data of the second HPS I2C concontroller

3.6.6

VGA

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

The DE1-SoC board has a 15-pin D-SUB connector populated for VGA output. The VGA synchronization signals are generated directly from the Cyclone V SoC FPGA, and the Analog

Devices ADV7123 triple 10-bit high-speed video DAC (only the higher 8-bits are used) transforms signals from digital to analog to represent three fundamental colors (red, green, and blue). It can support up to SXGA standard (1280*1024) with signals transmitted at 100MHz.

Figure 3-22

shows the signals connected between the FPGA and VGA.

DE1-SoC User Manual

March 31, 2015

Figure 3-22 Connections between the FPGA and VGA

The timing specification for VGA synchronization and RGB (red, green, blue) data can be easily found on website nowadays.

Figure 3-22

illustrates the basic timing requirements for each row

(horizontal) displayed on a VGA monitor. An active-low pulse of specific duration is applied to the horizontal synchronization (hsync) input of the monitor, which signifies the end of one row of data and the start of the next. The data (RGB) output to the monitor must be off (driven to 0 V) for a time period called the back porch (b) after the hsync pulse occurs, which is followed by the display interval (c). During the data display interval the RGB data drives each pixel in turn across the row being displayed. Finally, there is a time period called the front porch (d) where the RGB signals must again be off before the next hsync pulse can occur. The timing of vertical synchronization

(vsync) is similar to the one shown in

Figure 3-23

, except that a vsync pulse signifies the end of one frame and the start of the next, and the data refers to the set of rows in the frame (horizontal timing).

Table 3-14

and

Table 3-15

show different resolutions and durations of time period a, b, c, and d for both horizontal and vertical timing.

More information about the ADV7123 video DAC is available in its datasheet, which can be found on the manufacturer’s website, or in the directory \Datasheets\VIDEO DAC of DE1-SoC System

CD. The pin assignment between the Cyclone V SoC FPGA and the ADV7123 is listed in

Table

3-16.

DE1-SoC User Manual

March 31, 2015

Figure 3-23 VGA horizontal timing specification

Table 3-14 VGA Horizontal Timing Specification

Horizontal Timing Spec

Resolution(HxV) a(us) b(us) c(us) d(us) Pixel clock(MHz)

VGA mode

Configuration

SVGA(60Hz) 800x600 3.2

SVGA(75Hz) 800x600 1.6

SVGA(85Hz) 800x600 1.1

1280x1024(60Hz) 1280x1024

VGA mode

Configuration

Table 3-15 VGA Vertical Timing Specification

Vertical Timing Spec

Resolution(HxV) a(lines) b(lines) c(lines) d(lines) Pixel clock(MHz)

SVGA(60Hz) 800x600 4

SVGA(75Hz) 800x600 3

SVGA(85Hz) 800x600 3

1280x1024(60Hz) 1280x1024

DE1-SoC User Manual

3 38 1024 108

March 31, 2015

Signal Name

Table 3-16 Pin Assignment of VGA

FPGA Pin No. Description I/O Standard

VGA_BLANK_N PIN_F10 VGA 3.3V

VGA_HS PIN_B11 3.3V

VGA_VS PIN_D11 3.3V

3.3V

3.6.7

TV Decoder

The DE1-SoC board is equipped with an Analog Device ADV7180 TV decoder chip. The

ADV7180 is an integrated video decoder which automatically detects and converts a standard analog baseband television signals (NTSC, PAL, and SECAM) into 4:2:2 component video data, which is compatible with the 8-bit ITU-R BT.656 interface standard. The ADV7180 is compatible with wide range of video devices, including DVD players, tape-based sources, broadcast sources, and security/surveillance cameras.

DE1-SoC User Manual

March 31, 2015

The registers in the TV decoder can be accessed and set through serial I2C bus by the Cyclone V

SoC FPGA or HPS. Note that the I2C address W/R of the TV decoder (U4) is 0x40/0x41. The pin assignment of TV decoder is listed in

Table 3-17

. More information about the ADV7180 is available on the manufacturer’s website, or in the directory \DE1_SOC_datasheets\Video Decoder of DE1-SoC System CD.

Figure 3-24 Connections between the FPGA and TV Decoder

Table 3-17 Pin Assignment of TV Decoder

Signal Name

TD_DATA [0]

TD_DATA [1]

TD_DATA [2]

TD_DATA [3]

TD_DATA [4]

TD_DATA [5]

FPGA Pin No.

PIN_D2

PIN_B1

PIN_E2

PIN_B2

PIN_D1

PIN_E1

TD_DATA [6]

TD_DATA [7]

TD_HS

TD_VS

PIN_C2

PIN_B3

PIN_A5

PIN_A3

TD_CLK27 PIN_H15

TD_RESET_N PIN_F6

I2C_SCLK

I2C_SDAT

PIN_J12 or PIN_E23

PIN_K12 or PIN_C24

Description

TV Decoder Data[0]

TV Decoder Data[1]

TV Decoder Data[2]

TV Decoder Data[3]

TV Decoder Data[4]

TV Decoder Data[5]

TV Decoder Data[6]

TV Decoder Data[7]

TV Decoder H_SYNC

TV Decoder V_SYNC

TV Decoder Clock Input.

TV Decoder Reset

I2C Clock

I2C Data

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

DE1-SoC User Manual

March 31, 2015

3.6.8

IR Receiver

The board comes with an infrared remote-control receiver module (model: IRM-V538/TR1), whose datasheet is provided in the directory \Datasheets\ IR Receiver and Emitter of DE1-SoC system CD.

The remote controller included in the kit has an encoding chip (uPD6121G) built-in for generating infrared signals.

Figure 3-25

shows the connection of IR receiver to the FPGA.

Table 3-18

shows the pin assignment of IR receiver to the FPGA.

Signal Name

Figure 3-25 Connection between the FPGA and IR Receiver

Table 3-18 Pin Assignment of IR Receiver

FPGA Pin No. Description I/O Standard

3.3V

3.6.9

IR Emitter LED

The board has an IR emitter LED for IR communication, which is widely used for operating television device wirelessly from a short line-of-sight distance. It can also be used to communicate with other systems by matching this IR emitter LED with another IR receiver on the other side.

Figure 3-26

shows the connection of IR emitter LED to the FPGA.

Table 3-19

shows the pin assignment of IR emitter LED to the FPGA.

DE1-SoC User Manual

March 31, 2015

Signal Name

Figure 3-26 Connection between the FPGA and IR emitter LED

Table 3-19 Pin Assignment of IR Emitter LED

FPGA Pin No. Description I/O Standard

3.3V

3.6.10

SDRAM Memory

The board features 64MB of SDRAM with a single 64MB (32Mx16) SDRAM chip. The chip consists of 16-bit data line, control line, and address line connected to the FPGA. This chip uses the

3.3V LVCMOS signaling standard. Connections between the FPGA and SDRAM are shown in

Figure 3-27

, and the pin assignment is listed in

Table 3-20

.

DE1-SoC User Manual

March 31, 2015

Signal Name

Figure 3-27 Connections between the FPGA and SDRAM

Table 3-20 Pin Assignment of SDRAM

FPGA Pin No. Description

DRAM_ADDR[10] PIN_AG12 SDRAM

DRAM_ADDR[11] PIN_AH13 SDRAM

DRAM_ADDR[12] PIN_AJ14 SDRAM

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

DE1-SoC User Manual

March 31, 2015

DRAM_LDQM

DRAM_UDQM

DRAM_RAS_N

DRAM_CAS_N

DRAM_CKE

DRAM_WE_N

DRAM_CS_N

PIN_AB13

PIN_AK12

PIN_AE13

PIN_AF11

PIN_AK13

PIN_AA13

PIN_AG11

3.6.11

PS/2 Serial Port

SDRAM byte Data Mask[0]

SDRAM byte Data Mask[1]

SDRAM Row Address Strobe

SDRAM Column Address Strobe

SDRAM Clock Enable

SDRAM Write Enable

SDRAM Chip Select

The DE1-SoC board comes with a standard PS/2 interface and a connector for a PS/2 keyboard or mouse.

Figure 3-28

shows the connection of PS/2 circuit to the FPGA. Users can use the PS/2 keyboard and mouse on the DE1-SoC board simultaneously by a PS/2 Y-Cable, as shown in

Figure

3-29

. Instructions on how to use PS/2 mouse and/or keyboard can be found on various educational websites. The pin assignment associated to this interface is shown in

Table 3-21.

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

Note: If users connect only one PS/2 equipment, the PS/2 signals connected to the FPGA I/O should be “PS2_CLK” and “PS2_DAT”.

DE1-SoC User Manual

March 31, 2015

Figure 3-28 Connections between the FPGA and PS/2

Figure 3-29 Y-Cable for using keyboard and mouse simultaneously

Table 3-21 Pin Assignment of PS/2

Signal Name FPGA Pin No. Description

PS2_CLK2

PS2_DAT2

PIN_AD9

PIN_AE9

PS/2 Clock (reserved for second PS/2 device)

PS/2 Data (reserved for second PS/2 device)

I/O Standard

3.3V

3.3V

3.3V

3.3V

DE1-SoC User Manual

March 31, 2015

3.6.12

A/D Converter and 2x5 Header

The DE1-SoC has an analog-to-digital converter (AD7928), which features lower power, eight-channel CMOS 12-bit. This ADC offers conversion throughput rate up to 1MSPS. The analog input range for all input channels can be 0 V to 2.5 V or 0 V to 5V, depending on the RANGE bit in the control register. It can be configured to accept eight input signals at inputs ADC_IN0 through

ADC_IN7. These eight input signals are connected to a 2x5 header, as shown in

Figure 3-30

.

More information about the A/D converter chip is available in its datasheet. It can be found on manufacturer’s website or in the directory \datasheet of De1-SoC system CD.

Figure 3-30 Signals of the 2x5 Header

Figure 3-31

shows the connections between the FPGA, 2x5 header, and the A/D converter.

DE1-SoC User Manual

March 31, 2015

Figure 3-31 Connections between the FPGA, 2x5 header, and the A/D converter

Signal Name

ADC_DOUT PIN_AK3

Table 3-22 Pin Assignment of ADC

FPGA Pin No. Description I/O Standard

3.3V

Digital data input 3.3V

Digital 3.3V

3.3V

3 .

.

7 P e r r i i p h e r r a l l s C o n n e c t t e d t t o H a r r d P r r o c e s s o r r S y s t t e m

(

( H P S

)

)

This section introduces the interfaces connected to the HPS section of the Cyclone V SoC FPGA.

Users can access these interfaces via the HPS processor.

3 .

.

7 .

.

1 U s e r P u s h -

b u t t t t o n s a n d L E

D s

Similar to the FPGA, the HPS also has its set of switches, buttons, LEDs, and other interfaces connected exclusively. Users can control these interfaces to monitor the status of HPS.

Table 3-23

gives the pin assignment of all the LEDs, switches, and push-buttons.

DE1-SoC User Manual

March 31, 2015

Signal Name

Table 3-23 Pin Assignment of LEDs, Switches and Push-buttons

HPS GPIO Register/bit Function

I/O

I/O

3 .

.

7 .

.

2 G i i g a b i i t t E t t h e r r n e t t

The board supports Gigabit Ethernet transfer by an external Micrel KSZ9021RN PHY chip and

HPS Ethernet MAC function. The KSZ9021RN chip with integrated 10/100/1000 Mbps Gigabit

Ethernet transceiver also supports RGMII MAC interface.

Figure 3-32

shows the connections between the HPS, Gigabit Ethernet PHY, and RJ-45 connector.

The pin assignment associated to Gigabit Ethernet interface is listed in

Table 3-24

. More information about the KSZ9021RN PHY chip and its datasheet, as well as the application notes, which are available on the manufacturer’s website.

Figure 3-32 Connections between the HPS and Gigabit Ethernet

DE1-SoC User Manual

March 31, 2015

Table 3-24 Pin Assignment of Gigabit Ethernet PHY

Signal Name FPGA Pin No. Description

HPS_ENET_TX_EN PIN_A20 GMII and MII transmit enable

HPS_ENET_TX_DATA[0] PIN_F20 MII transmit data[0]

HPS_ENET_TX_DATA[1] PIN_J19 MII transmit data[1]

HPS_ENET_TX_DATA[2] PIN_F21 MII transmit data[2]

HPS_ENET_TX_DATA[3] PIN_F19 MII transmit data[3]

HPS_ENET_RX_DV PIN_K17 GMII and MII receive data valid

HPS_ENET_RX_DATA[0] PIN_A21 GMII

HPS_ENET_RX_DATA[1] PIN_B20 GMII

HPS_ENET_RX_DATA[2] PIN_B18 GMII

HPS_ENET_RX_DATA[3] PIN_D21 GMII

HPS_ENET_RX_CLK PIN_G20 GMII and MII receive clock

HPS_ENET_RESET_N PIN_E18 Hardware Reset Signal

HPS_ENET_MDC

HPS_ENET_INT_N

HPS_ENET_GTX_CLK

PIN_B21

PIN_C19

PIN_H19

Management Data Clock Reference

Interrupt Open Drain Output

GMII Transmit Clock

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

There are two LEDs, green LED (LEDG) and yellow LED (LEDY), which represent the status of

Ethernet PHY (KSZ9021RNI). The LED control signals are connected to the LEDs on the RJ45 connector. The state and definition of LEDG and LEDY are listed in

Table 3-25

. For instance, the connection from board to Gigabit Ethernet is established once the LEDG lights on.

LED (State)

LEDG LEDY

Table 3-25 State and Definition of LED Mode Pins

LED (Definition)

LEDG LEDY

Link /Activity

L

Toggle

H

H

L

Toggle

H

H

L

Toggle

L

Toggle

ON

Blinking

OFF

OFF

ON

Blinking

OFF

OFF

ON

Blinking

ON

Blinking

1000 Link / No Activity

1000 Link / Activity (RX, TX)

100 Link / No Activity

100 Link / Activity (RX, TX)

10 Link/ No Activity

10 Link / Activity (RX, TX)

3 .

.

7 .

3 U A R T

The board has one UART interface connected for communication with the HPS. This interface doesn’t support HW flow control signals. The physical interface is implemented by UART-USB onboard bridge from a FT232R chip to the host with an USB Mini-B connector. More information about the chip is available on the manufacturer’s website, or in the directory \Datasheets\UART TO

DE1-SoC User Manual

March 31, 2015

USB of DE1-SoC system CD.

Figure 3-33

shows the connections between the HPS, FT232R chip, and the USB Mini-B connector.

Table 3-26

lists the pin assignment of UART interface connected to the HPS.

Figure 3-33 Connections between the HPS and FT232R Chip

Table 3-26 Pin Assignment of UART Interface

Signal Name FPGA Pin No. Description

HPS_UART_RX PIN_B25 HPS UART Receiver

HPS_UART_TX PIN_C25 HPS UART Transmitter

HPS_CONV_USB_N PIN_B15 Reserve

3 .

.

7 .

.

4 D D R 3 M e m o r r y

I/O Standard

3.3V

3.3V

3.3V

The DDR3 devices connected to the HPS are the exact same model as the ones connected to the

FPGA. The capacity is 1GB and the data bandwidth is in 32-bit, comprised of two x16 devices with a single address/command bus. The signals are connected to the dedicated Hard Memory Controller for HPS I/O banks and the target speed is 400 MHz.

Table 3-27

lists the pin assignment of DDR3 and its description with I/O standard.

Signal Name

HPS_DDR3_A[0]

HPS_DDR3_A[1]

HPS_DDR3_A[2]

HPS_DDR3_A[3]

HPS_DDR3_A[4]

HPS_DDR3_A[5]

Table 3-27 Pin Assignment of DDR3 Memory

FPGA Pin No. Description

PIN_F26

PIN_G30

PIN_F28

PIN_F30

PIN_J25

PIN_J27

DE1-SoC User Manual

HPS DDR3 Address[0]

HPS DDR3 Address[1]

HPS DDR3 Address[2]

HPS DDR3 Address[3]

HPS DDR3 Address[4]

HPS DDR3 Address[5]

I/O Standard

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

March 31, 2015

HPS_DDR3_A[6]

HPS_DDR3_A[8]

HPS_DDR3_A[9]

HPS_DDR3_A[10]

HPS_DDR3_A[11]

HPS_DDR3_A[12]

HPS_DDR3_A[13]

HPS_DDR3_A[14]

PIN_F29

PIN_H27

PIN_G26

PIN_D29

PIN_C30

PIN_B30

PIN_C29

PIN_H25

HPS_DDR3_BA[1]

HPS_DDR3_BA[2]

PIN_J24

PIN_J23

HPS_DDR3_CAS_n PIN_E27

HPS_DDR3_CKE PIN_L29

HPS_DDR3_CS_n

HPS_DDR3_DM[0]

HPS_DDR3_DM[1]

HPS_DDR3_DM[2]

HPS_DDR3_DM[3]

HPS_DDR3_DQ[0]

HPS_DDR3_DQ[1]

HPS_DDR3_DQ[2]

HPS_DDR3_DQ[3]

HPS_DDR3_DQ[4]

HPS_DDR3_DQ[5]

PIN_H24

PIN_K28

PIN_M28

PIN_R28

PIN_W30

PIN_K23

PIN_K22

PIN_H30

PIN_G28

PIN_L25

PIN_L24

HPS_DDR3_DQ[8]

HPS_DDR3_DQ[9]

HPS_DDR3_DQ[10] PIN_K29

HPS_DDR3_DQ[11]

HPS_DDR3_DQ[12]

HPS_DDR3_DQ[13]

HPS_DDR3_DQ[14]

HPS_DDR3_DQ[15]

PIN_K26

PIN_L26

PIN_K27

PIN_M26

PIN_M27

PIN_L28

PIN_M30

HPS_DDR3_DQ[16] PIN_U26

HPS_DDR3_DQ[17] PIN_T26

HPS_DDR3_DQ[18] PIN_N29

HPS_DDR3_DQ[19] PIN_N28

HPS_DDR3_DQ[22] PIN_N27

DE1-SoC User Manual

HPS DDR3 Address[6]

HPS DDR3 Address[8]

HPS DDR3 Address[9]

HPS DDR3 Address[10]

HPS DDR3 Address[11]

HPS DDR3 Address[12]

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

HPS DDR3 Address[13]

HPS DDR3 Address[14]

SSTL-15 Class I

SSTL-15 Class I

DDR3 SSTL-15 Class I

HPS DDR3 Bank Address[1] SSTL-15 Class I

HPS DDR3 Bank Address[2] SSTL-15 Class I

DDR3 Column Address Strobe SSTL-15 Class I

HPS DDR3 Clock Enable SSTL-15 Class I

Differential 1.5-V SSTL Class I

HPS DDR3 Chip Select

HPS DDR3 Data Mask[0]

HPS DDR3 Data Mask[1]

HPS DDR3 Data Mask[2]

HPS DDR3 Data Mask[3]

HPS DDR3 Data[0]

HPS DDR3 Data[1]

HPS DDR3 Data[2]

HPS DDR3 Data[3]

HPS DDR3 Data[4]

HPS DDR3 Data[5]

HPS DDR3 Data[8]

HPS DDR3 Data[9]

HPS DDR3 Data[10]

HPS DDR3 Data[11]

HPS DDR3 Data[12]

HPS DDR3 Data[13]

HPS DDR3 Data[14]

HPS DDR3 Data[15]

HPS DDR3 Data[16]

HPS DDR3 Data[17]

HPS DDR3 Data[18]

HPS DDR3 Data[19]

HPS DDR3 Data[22]

Differential 1.5-V SSTL Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

March 31, 2015

HPS_DDR3_DQ[23] PIN_R29

HPS_DDR3_DQ[26]

HPS_DDR3_DQ[27]

PIN_T29

PIN_T28

HPS_DDR3_DQ[28] PIN_R27

HPS_DDR3_DQ[29] PIN_R26

HPS_DDR3_DQ[31] PIN_W29

HPS_DDR3_DQS_n[0] PIN_M19

HPS_DDR3_DQS_n[1] PIN_N24

HPS_DDR3_DQS_n[2] PIN_R18

HPS_DDR3_DQS_n[3] PIN_R21

HPS_DDR3_DQS_p[0] PIN_N18

HPS_DDR3_DQS_p[1] PIN_N25

HPS_DDR3_DQS_p[2] PIN_R19

HPS_DDR3_DQS_p[3] PIN_R22

HPS_DDR3_ODT PIN_H28

HPS_DDR3_RAS_n PIN_D30

HPS_DDR3_RESET_n PIN_P30

HPS_DDR3_RZQ PIN_D27

HPS DDR3 Data[23] SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

HPS DDR3 Data[26]

HPS DDR3 Data[27]

HPS DDR3 Data[28]

HPS DDR3 Data[29]

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

SSTL-15 Class I

HPS DDR3 Data[31]

SSTL-15 Class I

SSTL-15 Class I

HPS DDR3 Data Strobe n[0] Differential 1.5-V SSTL Class I

HPS DDR3 Data Strobe n[1] Differential 1.5-V SSTL Class I

HPS DDR3 Data Strobe n[2] Differential 1.5-V SSTL Class I

HPS DDR3 Data Strobe n[3] Differential 1.5-V SSTL Class I

HPS DDR3 Data Strobe p[0] Differential 1.5-V SSTL Class I

HPS DDR3 Data Strobe p[1] Differential 1.5-V SSTL Class I

HPS DDR3 Data Strobe p[2] Differential 1.5-V SSTL Class I

HPS DDR3 Data Strobe p[3] Differential 1.5-V SSTL Class I

HPS DDR3 On-die Termination SSTL-15 Class I

DDR3 Row Address Strobe SSTL-15 Class I

HPS DDR3 Reset SSTL-15 Class I

SSTL-15 Class I

External reference ball for output drive calibration

1.5 V

3 .

.

7 .

.

5 M i i c r r o S D C a r r d S o c k e t t

The board supports Micro SD card interface with x4 data lines. It serves not only an external storage for the HPS, but also an alternative boot option for DE1-SoC board.

Figure 3-34

shows signals connected between the HPS and Micro SD card socket.

Table 3-28

lists the pin assignment of Micro SD card socket to the HPS.

DE1-SoC User Manual

March 31, 2015

Figure 3-34 Connections between the FPGA and SD card socket

Table 3-28 Pin Assignment of Micro SD Card Socket

Signal Name FPGA Pin No. Description

HPS_SD_CLK PIN_A16 HPS SD Clock

HPS_SD_CMD PIN_F18 HPS SD Command Line

HPS_SD_DATA[1]

HPS_SD_DATA[2]

HPS_SD_DATA[3]

PIN_C17

PIN_D17

PIN_B16

HPS SD Data[1]

HPS SD Data[2]

HPS SD Data[3]

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3 .

.

7 .

.

6 2 -

p o r r t t U S B H o s t t

The board has two USB 2.0 type-A ports with a SMSC USB3300 controller and a 2-port hub controller. The SMSC USB3300 device in 32-pin QFN package interfaces with the SMSC

USB2512B hub controller. This device supports UTMI+ Low Pin Interface (ULPI), which communicates with the USB 2.0 controller in HPS. The PHY operates in Host mode by connecting the ID pin of USB3300 to ground. When operating in Host mode, the device is powered by the two

USB type-A ports.

Figure 3-35

shows the connections of USB PTG PHY to the HPS.

Table 3-29

lists the pin assignment of USBOTG PHY to the HPS.

DE1-SoC User Manual

March 31, 2015

Signal Name

HPS_USB_CLKOUT

Figure 3-35 Connections between the HPS and USB OTG PHY

Table 3-29 Pin Assignment of USB OTG PHY

FPGA Pin No. Description

PIN_N16 60MHz Reference Clock Output

Direction of the Data Bus

HPS USB PHY Reset

Stop Data Stream on the Bus

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

HPS_USB_DIR

HPS_USB_RESET

HPS_USB_STP

3 .

.

7 .

.

7 G -

s e n s o r r

PIN_E14

PIN_G17

PIN_C15

The board comes with a digital accelerometer sensor module (ADXL345), commonly known as

G-sensor. This G-sensor is a small, thin, ultralow power assumption 3-axis accelerometer with high-resolution measurement. Digitalized output is formatted as 16-bit in two’s complement and can be accessed through I2C interface. The I2C address of G-sensor is 0xA6/0xA7. More information about this chip can be found in its datasheet, which is available on manufacturer’s website or in the directory \Datasheet folder of DE1-SoC system CD.

Figure 3-36

shows the connections between the HPS and G-sensor.

Table 3-30

lists the pin assignment of G-senor to the

HPS.

DE1-SoC User Manual

March 31, 2015

Figure 3-36 Connections between Cyclone V SoC FPGA and G-Sensor

Table 3-30 Pin Assignment of G-senor

Signal Name FPGA Pin No. Description

HPS_GSENSOR_INT PIN_B22

HPS_I2C1_SCLK PIN_E23

HPS_I2C1_SDAT PIN_C24

HPS GSENSOR Interrupt Output

HPS I2C Clock (share bus with LTC)

HPS I2C Data (share bus)

I/O Standard

3.3V

3.3V

3.3V

3 .

.

7 .

.

8 L T C C o n n e c t t o r r

The board has a 14-pin header, which is originally used to communicate with various daughter cards from Linear Technology. It is connected to the SPI Master and I2C ports of HPS. The communication with these two protocols is bi-directional. The 14-pin header can also be used for

GPIO, SPI, or I2C based communication with the HPS. Connections between the HPS and LTC connector are shown in

Figure 3-37,

and the pin assignment of LTC connector is listed in

Table

3-31

.

DE1-SoC User Manual

March 31, 2015

Figure 3-37 Connections between the HPS and LTC connector

Table 3-31 Pin Assignment of LTC Connector

Signal Name FPGA Pin No. Description

HPS_LTC_GPIO

HPS_I2C2_SCLK

PIN_H17

PIN_H23

HPS LTC GPIO

HPS I2C2 Clock (share bus with

G-Sensor)

HPS_I2C2_SDAT PIN_A25 I2C2 Data (share bus with

G-Sensor)

HPS_SPIM_MISO

HPS_SPIM_MOSI

HPS_SPIM_SS

PIN_E24

PIN_D22

PIN_D24

SPI Master Input/Slave Output

SPI Master Output /Slave Input

SPI Slave Select

I/O Standard

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

DE1-SoC User Manual

March 31, 2015

Chapter 4

DE1-SoC System

Builder

This chapter describes how users can create a custom design project with the tool named DE1-SoC

System Builder.

4 .

.

1

I

I n t t r r o d u c t t i i o n

The DE1-SoC System Builder is a Windows-based utility. It is designed to help users create a

Quartus II project for DE1-SoC within minutes. The generated Quartus II project files include:

 Quartus II project file (.qpf)

 Quartus II setting file (.qsf)

 Top-level design file (.v)

 Synopsis design constraints file (.sdc)

 Pin assignment document (.htm)

The above files generated by the DE1-SoC System Builder can also prevent occurrence of situations that are prone to compilation error when users manually edit the top-level design file or place pin assignment. The common mistakes that users encounter are:

 Board is damaged due to incorrect bank voltage setting or pin assignment.

 Board is malfunctioned because of wrong device chosen, declaration of pin location or direction is incorrect or forgotten.

 Performance degradation due to improper pin assignment.

4 .

.

2 D e s i i g n

F l l o w

This section provides an introduction to the design flow of building a Quartus II project for

DE1-SoC under the DE1-SoC System Builder. The design flow is illustrated in

Figure 4-1

.

DE1-SoC User Manual

March 31, 2015

The DE1-SoC System Builder will generate two major files, a top-level design file (.v) and a

Quartus II setting file (.qsf) after users launch the DE1-SoC System Builder and create a new project according to their design requirements

The top-level design file contains a top-level Verilog HDL wrapper for users to add their own design/logic. The Quartus II setting file contains information such as FPGA device type, top-level pin assignment, and the I/O standard for each user-defined I/O pin.

Finally, the Quartus II programmer is used to download .sof file to the development board via JTAG interface.

Figure 4-1 Design flow of building a project from the beginning to the end

4 .

.

3 U s i i n g D E 1 -

-

S o C S y s t t e m B u i i l l d e r r

This section provides the procedures in details on how to use the DE1-SoC System Builder.

DE1-SoC User Manual

March 31, 2015

Install and Launch the DE1-SoC System Builder

The DE1-SoC System Builder is located in the directory: Tools\SystemBuilderof the DE1-SoC

System CD. Users can copy the entire folder to a host computer without installing the utility. A window will pop up, as shown in

Figure 4-2

, after executing the DE1-SoC SystemBuilder.exe on the host computer.

Figure 4-2 The GUI of DE1-SoC System Builder

Enter Project Name

Enter the project name in the circled area, as shown in

Figure 4-3

.

The project name typed in will be assigned automatically as the name of your top-level design entity.

DE1-SoC User Manual

March 31, 2015

System Configuration

Figure 4-3 Enter the project name

Users are given the flexibility in the System Configuration to include their choice of components in the project, as shown in

Figure 4-4

. Each component onboard is listed and users can enable or disable one or more components at will. If a component is enabled, the DE1-SoC System Builder will automatically generate its associated pin assignment, including the pin name, pin location, pin direction, and I/O standard.

DE1-SoC User Manual

March 31, 2015

Figure 4-4 System configuration group

GPIO Expansion

If users connect any Terasic GPIO-based daughter card to the GPIO connector(s) on DE1-SoC, the

DE1-SoC System Builder can generate a project that include the corresponding module, as shown in

Figure 4-5

. It will also generate the associated pin assignment automatically, including pin name, pin location, pin direction, and I/O standard.

DE1-SoC User Manual

March 31, 2015

Figure 4-5 GPIO expansion group

The “Prefix Name” is an optional feature that denote the pin name of the daughter card assigned in your design. Users may leave this field blank.

Project Setting Management

The DE1-SoC System Builder also provides the option to load a setting or save users’ current board configuration in .cfg file, as shown in

Figure 4-6

.

DE1-SoC User Manual

March 31, 2015

Figure 4-6 Project Settings

Project Generation

When users press the Generate button, the DE1-SoC System Builder will generate the corresponding Quartus II files and documents, as listed in

Table 4-1

:

Table 4-1 Files generated by the DE1-SoC System Builder

No. Filename

1 <Project name>.v

Description

Top level Verilog HDL file for Quartus II

2 <Project name>.qpf Quartus II Project File

3 <Project name>.qsf Quartus II Setting File

4 <Project name>.sdc Synopsis Design Constraints file for Quartus II

5 <Project name>.htm Pin Assignment Document

Users can add custom logic into the project in Quartus II and compile the project to generate the

SRAM Object File (.sof).

DE1-SoC User Manual

March 31, 2015

Chapter 5

Examples For FPGA

This chapter provides examples of advanced designs implemented by RTL or Qsys on the DE1-SoC board. These reference designs cover the features of peripherals connected to the FPGA, such as audio, SDRAM, and IR receiver. All the associated files can be found in the directory

\Demonstrations\FPGA of DE1-SoC System CD.

Installation of Demonstrations

To install the demonstrations on your computer:

Copy the folder Demonstrations to a local directory of your choice. It is important to make sure the path to your local directory contains NO space. Otherwise it will lead to error in Nios II. Note

Quartus II v13.0 or later is required for all DE1-SoC demonstrations to support Cyclone V SoC device.

5 .

.

1 D E 1 -

-

S o C F a c t t o r r y C o n f f i i g u r r a t t i i o n

The DE1-SoC board has a default configuration bit-stream pre-programmed, which demonstrates some of the basic features onboard. The setup required for this demonstration and the location of its files are shown below.

Demonstration Setup, File Locations, and Instructions

 Project directory: DE1_SoC_Default

 Bitstream used: DE1_SoC_Default.sof or DE1_SoC_Default.jic

 Power on the DE1-SoC board with the USB cable connected to the USB-Blaster II port. If necessary (that is, if the default factory configuration is not currently stored in the EPCQ device), download the bit stream to the board via JTAG interface.

 You should now be able to observe the 7-segment displays are showing a sequence of characters, and the red LEDs are blinking.

DE1-SoC User Manual

March 31, 2015

 If the VGA D-SUB connector is connected to a VGA display, it would show a color picture.

 If the stereo line-out jack is connected to a speaker and KEY[1] is pressed, a 1 kHz humming sound will come out of the line-out port .

 For the ease of execution, a demo_batch folder is provided in the project. It is able to not only load the bit stream into the FPGA in command line, but also program or erase .jic file to the

EPCQ by executing the test.bat file shown in

Figure 5-1.

If users want to program a new design into the EPCQ device, the easiest method is to copy the new .sof file into the demo_batch folder and execute the test.bat. Option “2” will convert the .sof to .jic and option”3” will program .jic file into the EPCQ device.

Figure 5-1 Command line of the batch file to program the FPGA and EPCQ device

5 .

.

2 A u d i i o R e c o r r d i i n g a n d P l l a y i i n g

This demonstration shows how to implement an audio recorder and player on DE1-SoC board with the built-in audio CODEC chip. It is developed based on Qsys and Eclipse.

Figure 5-2

shows the buttons and slide switches used to interact this demonstration onboard. Users can configure this audio system through two push-buttons and four slide switches:

 SW0 is used to specify the recording source to be Line-in or MIC-In.

 SW1, SW2, and SW3 are used to specify the recording sample rate such as 96K, 48K, 44.1K,

32K, or 8K.

Table 5-1

and

Table 5-2

summarize the usage of slide switches for configuring the audio recorder and player.

DE1-SoC User Manual

March 31, 2015

Figure 5-2 Buttons and switches for the audio recorder and player

Figure 5-3

shows the block diagram of audio recorder and player design. There are hardware and software parts in the block diagram. The software part stores the Nios II program in the on-chip memory. The software part is built under Eclipse in C programming language. The hardware part is built under Qsys in Quartus II. The hardware part includes all the other blocks such as the “AUDIO

Controller”, which is a user-defined Qsys component and it is designed to send audio data to the audio chip or receive audio data from the audio chip.

The audio chip is programmed through I2C protocol, which is implemented in C code. The I2C pins from the audio chip are connected to Qsys system interconnect fabric through PIO controllers. The audio chip is configured in master mode in this demonstration. The audio interface is configured as

16-bit I2S mode. 18.432MHz clock generated by the PLL is connected to the MCLK/XTI pin of the audio chip through the audio controller.

DE1-SoC User Manual

March 31, 2015

Figure 5-3 Block diagram of the audio recorder and player

Demonstration Setup, File Locations, and Instructions

 Hardware project directory: DE1_SoC _Audio

 Bitstream used: DE1_SoC_Audio.sof

 Software project directory: DE1_SoC _Audio\software

 Connect an audio source to the Line-in port

 Connect a Microphone to the MIC-in port

 Connect a speaker or headset to the Line-out port

 Load the bitstream into the FPGA. (note *1)

 Load the software execution file into the FPGA. (note *1)

 Configure the audio with SW0, as shown in

Table 5-1

.

 Press KEY3 to start/stop audio recording (note *2)

 Press KEY2 to start/stop audio playing (note *3)

Table 5-1 Slide switches usage for audio source

Slide Switches 0 – DOWN Position

SW0 Audio is from MIC-in

1 – UP Position

Audio is from Line-in

DE1-SoC User Manual

March 31, 2015

Table 5-2 Settings of switches for the sample rate of audio recorder and player

SW5

(0 – DOWN;

SW4

(0 – DOWN;

SW3

(0 – DOWN; Sample Rate

1- UP) 1-UP) 1-UP)

0 0 0 96K

0 0 1 48K

0 1 0 44.1K

0 1 1 32K

1 0 0 8K

Unlisted combination 96K

Note:

(1). Execute DE1_SoC _Audio \demo_batch\ DE1-SoC_Audio.bat to download .sof and .elf files.

(2). Recording process will stop if the audio buffer is full.

(3). Playing process will stop if the audio data is played completely.

5 .

.

3 K a r r a o k e M a c h i i n e

This demonstration uses the microphone-in, line-in, and line-out ports on DE1-SoC to create a

Karaoke machine. The WM8731 CODEC is configured in master mode. The audio CODEC generates AD/DA serial bit clock (BCK) and the left/right channel clock (LRCK) automatically. The

I2C interface is used to configure the audio CODEC, as shown in

Figure 5-4

. The sample rate and gain of the CODEC are set in a similar manner, and the data input from the line-in port is then mixed with the microphone-in port. The result is sent out to the line-out port.

The sample rate is set to 48 kHz in this demonstration. The gain of the audio CODEC is reconfigured via I2C bus by pressing the pushbutton KEY0, cycling within ten predefined gain values (volume levels) provided by the device.

DE1-SoC User Manual

March 31, 2015

Figure 5-4 Block diagram of the Karaoke machine demonstration

Demonstration Setup, File Locations, and Instructions

 Project directory: DE1_SOC_i2sound

 Bitstream used: DE1_SOC_i2sound.sof

 Connect a microphone to the microphone-in port (pink color)

 Connect the audio output of a music player, such as a MP3 player or computer, to the line-in port (blue color)

 Connect a headset/speaker to the line-out port (green color)

 Load the bitstream into the FPGA by executing the batch file ‘DE1_SOC_i2sound’ in the directory DE1_SOC_i2sound\demo_batch

 Users should be able to hear a mixture of microphone sound and the sound from the music player

 Press KEY0 to adjust the volume; it cycles between volume level 0 to 9

Figure 5-5

illustrates the setup for this demonstration.

DE1-SoC User Manual

March 31, 2015

Figure 5-5 Setup for the Karaoke machine

5 .

.

4 S D R A M

T e s t t i i n

N i i o s

I

I

I

I

There are many applications use SDRAM as a temporary storage. Both hardware and software designs are provided to illustrate how to perform memory access in Qsys in this demonstration. It also shows how Altera’s SDRAM controller IP accesses SDRAM and how the Nios II processor reads and writes the SDRAM for hardware verification. The SDRAM controller handles complex aspects of accessing SDRAM such as initializing the memory device, managing SDRAM banks, and keeping the devices refreshed at certain interval.

System Block Diagram

Figure 5-6

shows the system block diagram of this demonstration. The system requires a 50 MHz clock input from the board. The SDRAM controller is configured as a 64MB controller. The working frequency of the SDRAM controller is 100MHz, and the Nios II program is running on the on-chip memory.

DE1-SoC User Manual

March 31, 2015

Figure 5-6 Block diagram of the SDRAM test in Nios II

The system flow is controlled by a program running in Nios II. The Nios II program writes test patterns into the entire 64MB of SDRAM first before calling the Nios II system function, alt_dcache_flush_all, to make sure all the data are written to the SDRAM. It then reads data from the SDRAM for data verification. The program will show the progress in nios-terminal when writing/reading data to/from the SDRAM. When the verification process reaches 100%, the result will be displayed in nios-terminal.

Design Tools

 Quartus II v13.1

 Nios II Eclipse v13.1

Demonstration Source Code

 Quartus project directory: DE1_SoC_SDRAM_Nios_Test

 Nios II Eclipse directory: DE1_SoC_SDRAM_Nios_Test \Software

DE1-SoC User Manual

March 31, 2015

Nios II Project Compilation

 Click “Clean” from the “Project” menu of Nios II Eclipse before compiling the reference design in Nios II Eclipse.

Demonstration Batch File

The files are located in the directory \DE1_SoC_SDRAM_Nios_Test \demo_batch.

The folder includes the following files:

 Batch file for USB-Blaster II : DE1_SoC_SDRAM_Nios_Test.bat and

DE1_SoC_SDRAM_Nios_Test_bashrc

 FPGA configuration file : DE1_SoC_SDRAM_Nios_Test.sof

 Nios II program: DE1_SoC_SDRAM_Nios_Test.elf

Demonstration Setup

 Quartus II v13.1 and Nios II v13.1 must be pre-installed on the host PC.

 Power on the DE1-SoC board.

 Connect the DE1-SoC board (J13) to the host PC with a USB cable and install the USB-Blaster driver if necessary.

 Execute the demo batch file “DE1_SoC_SDRAM_Nios_Test.bat” from the directory

DE1_SoC_SDRAM_Nios_Test\demo_batch

 After the program is downloaded and executed successfully, a prompt message will be displayed in nios2-terminal.

 Press any button (KEY3~KEY0) to start the SDRAM verification process. Press KEY0 to run the test continuously.

 The program will display the test progress and result, as shown in

Figure 5-7

.

DE1-SoC User Manual

March 31, 2015

Figure 5-7 Display of progress and result for the SDRAM test in Nios II

5 .

.

5 S D R A M T e s t t i i n V e r r i i l l o g

DE1-SoC system CD offers another SDRAM test with its test code written in Verilog HDL. The memory size of the SDRAM bank tested is still 64MB.

Function Block Diagram

Figure 5-8

shows the function block diagram of this demonstration. The SDRAM controller uses 50

MHz as a reference clock and generates 100 MHz as the memory clock.

Figure 5-8 Block diagram of the SDRAM test in Verilog

DE1-SoC User Manual

March 31, 2015

RW_test module writes the entire memory with a test sequence first before comparing the data read back with the regenerated test sequence, which is same as the data written to the memory. KEY0 triggers test control signals for the SDRAM, and the LEDs will indicate the test result according to

Table 5-3.

Design Tools

 Quartus II v13.1

Demonstration Source Code

 Project directory: DE1_SoC_SDRAM_RTL_Test

 Bitstream used: DE1_SoC_SDRAM_RTL_Test.sof

Demonstration Batch File

Demo batch file folder: \DE1_SoC_SDRAM_RTL_Test\demo_batch

The directory includes the following files:

 Batch file: DE1_SoC_SDRAM_RTL_Test.bat

 FPGA configuration file: DE1_SoC_SDRAM_RTL_Test.sof

Demonstration Setup

 Quartus II v13.1 must be pre-installed to the host PC.

 Connect the DE1-SoC board (J13) to the host PC with a USB cable and install the USB-Blaster

II driver if necessary

 Power on the DE1_SoC board.

 Execute the demo batch file “ DE1_SoC_SDRAM_RTL_Test.bat” from the directoy

\DE1_SoC_SDRAM_RTL_Test \demo_batch.

 Press KEY0 on the DE1_SoC board to start the verification process. When KEY0 is pressed, the LEDR [2:0] should turn on. When KEY0 is then released, LEDR1 and LEDR2 should start blinking.

 After approximately 8 seconds, LEDR1 should stop blinking and stay ON to indicate the test is

PASS.

Table 5-3

lists the status of LED indicators.

 If LEDR2 is not blinking, it means 50MHz clock source is not working.

 If LEDR1 failed to remain ON after approximately 8 seconds, the SDRAM test is NG.

 Press KEY0 again to repeat the SDRAM test.

DE1-SoC User Manual

March 31, 2015

Table 5-3 Status of LED Indicators

Name Description

LEDR0 Reset

LEDR1 ON if the test is PASS after releasing KEY0

LEDR2 Blinks

5 .

.

6 T V B o x D e m o n s t t r r a t t i i o n

This demonstration turns DE1-SoC board into a TV box by playing video and audio from a DVD player using the VGA output, audio CODEC and the TV decoder on the DE1-SoC board.

Figure

5-9

shows the block diagram of the design. There are two major blocks in the system called

I2C_AV_Config and TV_to_VGA. The TV_to_VGA block consists of the ITU-R 656 Decoder,

SDRAM Frame Buffer, YUV422 to YUV444, YCbCr to RGB, and VGA Controller. The figure also shows the TV decoder (ADV7180) and the VGA DAC (ADV7123) chip used.

The register values of the TV decoder are used to configure the TV decoder via the I2C_AV_Config block, which uses the I2C protocol to communicate with the TV decoder. The TV decoder will be unstable for a time period upon power up, and the Lock Detector block is responsible for detecting this instability.

The ITU-R 656 Decoder block extracts YcrCb 4:2:2 (YUV 4:2:2) video signals from the ITU-R 656 data stream sent from the TV decoder. It also generates a data valid control signal, which indicates the valid period of data output. De-interlacing needs to be performed on the data source because the video signal for the TV decoder is interlaced. The SDRAM Frame Buffer and a field selection multiplexer (MUX), which is controlled by the VGA Controller, are used to perform the de-interlacing operation. The VGA Controller also generates data request and odd/even selection signals to the SDRAM Frame Buffer and filed selection multiplexer (MUX). The YUV422 to

YUV444 block converts the selected YcrCb 4:2:2 (YUV 4:2:2) video data to the YcrCb 4:4:4 (YUV

4:4:4) video data format.

Finally, the YcrCb_to_RGB block converts the YcrCb data into RGB data output. The VGA

Controller block generates standard VGA synchronous signals VGA_HS and VGA_VS to enable the display on a VGA monitor.

DE1-SoC User Manual

March 31, 2015

Figure 5-9 Block diagram of the TV box demonstration

D e m o n s s t t r a t t i i o n S o u r c e C o d e

 Project directory: DE1_SoC_TV

 Bitstream used: DE1_SoC_TV.sof

D e m o n s s t t r a t t i i o n B a t t c h F i i l l e

Demo batch directory: \DE1_SoC_TV \demo_batch

The folder includes the following files:

 Batch file: DE1_SoC_TV.bat

 FPGA configuration file : DE1_SoC_TV.sof

D e m o n s s t t r a t t i i o n S e t t u p ,

,

F i i l l e L o c a t t i i o n s s ,

, a n d

I

I n s s t t r u c t t i i o n s s

 Connect a DVD player’s composite video output (yellow plug) to the Video-in RCA jack (J6) on the DE1-SoC board, as shown in

Figure 5-10

. The DVD player has to be configured to provide:

 NTSC output

 60Hz refresh rate

 4:3 aspect ratio

 Non-progressive video

DE1-SoC User Manual

March 31, 2015

 Connect the VGA output of the DE1-SoC board to a VGA monitor.

 Connect the audio output of the DVD player to the line-in port of the DE1-SoC board and connect a speaker to the line-out port. If the audio output jacks from the DVD player are RCA type, an adaptor is needed to convert to the mini-stereo plug supported on the DE1-SoC board.

 Load the bitstream into the FPGA by executing the batch file ‘DE1_SoC_TV.bat’ from the directory \DE1_SoC_TV \demo_batch\. Press KEY0 on the DE1-SoC board to reset the demonstration.

Figure 5-10 Setup for the TV box demonstration

5 .

.

7 P S /

/

2 M o u s e D e m o n s t r a t i i o n

A simply PS/2 controller coded in Verilog HDL is provided to demonstrate bi-directional communication with a PS/2 mouse. A comprehensive PS/2 controller can be developed based on it and more sophisticated functions can be implemented such as setting the sampling rate or resolution, which needs to transfer two data bytes at once.

More information about the PS/2 protocol can be found on various websites.

DE1-SoC User Manual

March 31, 2015

Introduction

PS/2 protocol uses two wires for bi-directional communication. One is the clock line and the other one is the data line. The PS/2 controller always has total control over the transmission line, but it is the PS/2 device which generates the clock signal during data transmission.

Data Transmission from Device to the Controller

After the PS/2 mouse receives an enabling signal at stream mode, it will start sending out displacement data, which consists of 33 bits. The frame data is cut into three sections and each of them contains a start bit (always zero), eight data bits (with LSB first), one parity check bit (odd check), and one stop bit (always one).

The PS/2 controller samples the data line at the falling edge of the PS/2 clock signal. This is implemented by a shift register, which consists of 33 bits. easily be implemented using a shift register of 33 bits, but be cautious with the clock domain crossing problem.

Data Transmission from the Controller to Device

When the PS/2 controller wants to transmit data to device, it first pulls the clock line low for more than one clock cycle to inhibit the current transmission process or to indicate the start of a new transmission process, which is usually called as inhibit state. It then pulls low the data line before releasing the clock line. This is called the request state. The rising edge on the clock line formed by the release action can also be used to indicate the sample time point as for a 'start bit. The device will detect this succession and generates a clock sequence in less than 10ms time. The transmit data consists of 12bits, one start bit (as explained before), eight data bits, one parity check bit (odd check), one stop bit (always one), and one acknowledge bit (always zero). After sending out the parity check bit, the controller should release the data line, and the device will detect any state change on the data line in the next clock cycle. If there’s no change on the data line for one clock cycle, the device will pull low the data line again as an acknowledgement which means that the data is correctly received.

After the power on cycle of the PS/2 mouse, it enters into stream mode automatically and disable data transmit unless an enabling instruction is received.

Figure 5-11

shows the waveform while communication happening on two lines.

DE1-SoC User Manual

March 31, 2015

Figure 5-11 Waveform of clock and data signals during data transmission

D e m o n s s t t r a t t i i o n S o u r c e C o d e

 Project directory: DE1_SoC_PS2_DEMO

 Bitstream used: DE1_SoC_PS2_DEMO.sof

D e m o n s s t t r a t t i i o n B a t t c h F i i l l e

Demo batch file directoy: \DE1_SoC_PS2_DEMO \demo_batch

The folder includes the following files:

 Batch file: DE1_SoC_PS2_DEMO.bat

 FPGA configuration file : DE1_SoC_PS2_DEMO.sof

DE1-SoC User Manual

March 31, 2015

D e m o n s s t t r a t t i i o n S e t t u p ,

,

F i i l l e L o c a t t i i o n s s ,

, a n d

I

I n s s t t r u c t t i i o n s s

 Load the bitstream into the FPGA by executing \DE1_SoC_PS2_DEMO \demo_batch\

DE1_SoC_PS2_DEMO.bat

 Plug in the PS/2 mouse

 Press KEY[0] to enable data transfer

 Press KEY[1] to clear the display data cache

 The 7-segment display should change when the PS/2 mouse moves. The LEDR[2:0] will blink according to

Table 5-4

when the left-button, right-button, and/or middle-button is pressed.

Table 5-4 Description of 7-segment Display and LED Indicators

Indicator Name

LEDR[0]

LEDR[1]

LEDR[2]

HEX0

HEX1

HEX2

HEX3

Description

Left button press indicator

Right button press indicator

Middle button press indicator

Low byte of X displacement

High byte of X displacement

Low byte of Y displacement

High byte of Y displacement

5 .

.

8

I

I R E m i i t t t t e r r L E D a n d

R e c e i i v e r r

D e m o n s t t r r a t t i i o n

DE1-SoC system CD has an example of using the IR Emitter LED and IR receiver. This demonstration is coded in Verilog HDL.

DE1-SoC User Manual

March 31, 2015

Figure 5-12 Block diagram of the IR emitter LED and receiver demonstration

Figure 5-12

shows the block diagram of the design. It implements a IR TX Controller and a IR RX

Controller. When KEY0 is pressed, data test pattern generator will generate data to the IR TX

Controller continuously. When IR TX Controller is active, it will format the data to be compatible with NEC IR transmission protocol and send it out through the IR emitter LED. The IR receiver will decode the received data and display it on the six HEXs. Users can also use a remote to send data to the IR Receiver. The main function of IR TX /RX controller and IR remote in this demonstration is described in the following sections.

IR TX Controller

Users can input 8-bit address and 8-bit command into the IR TX Controller. The IR TX Controller will encode the address and command first before sending it out according to NEC IR transmission protocol through the IR emitter LED. The input clock of IR TX Controller should be 50MHz.

The NEC IR transmission protocol uses pulse distance to encode the message bits. Each pulse burst is

562.5µs in length with a carrier frequency of 38kHz (26.3µs).

Figure 5-13

shows the duration of logical “1” and “0”. Logical bits are transmitted as follows:

• Logical '0' – a 562.5µs pulse burst followed by a 562.5µs space with a total transmit time of 1.125ms

DE1-SoC User Manual

March 31, 2015

• Logical '1' – a 562.5µs pulse burst followed by a 1.6875ms space with a total transmit time of 2.25ms

Figure 5-13 Duration of logical “1”and logical “0”

Figure 5-14

shows a frame of the protocol. Protocol sends a lead code first, which is a 9ms leading pulse burst, followed by a 4.5ms window. The second inversed data is sent to verify the accuracy of the information received. A final 562.5µs pulse burst is sent to signify the end of message transmission.

Because the data is sent in pair (original and inverted) according to the protocol, the overall transmission time is constant.

Figure 5-14 Typical frame of NEC protocol

Note: The signal received by IR Receiver is inverted. For instance, if IR TX Controller sends a lead code 9 ms high and then 4.5 ms low, IR Receiver will receive a 9 ms low and then 4.5 ms high lead code.

DE1-SoC User Manual

March 31, 2015

IR Remote

When a key on the remote controller show in

Figure 5-15

is pressed, the remote controller will emit a standard frame, as shown in

Table 5-5

.

The beginning of the frame is the lead code, which represents the start bit, followed by the key-related information. The last bit end code represents the end of the frame. The value of this frame is completely inverted at the receiving end.

Figure 5-15 The remote controller used in this demonstration

Table 5-5 Key Code Information for Each Key on the Remote

Key Key Code Key Key Code Key Key Code Key Key Code

0x10 0x12 0x0F

0x01

0x04

0x07

0x11

0x16

0x13

0x02

0x05

0x08

0x00

0x14

0x03

0x06

0x09

0x17

0x18

0x1A

0x1E

0x1B

0x1F

0x0C

DE1-SoC User Manual

March 31, 2015

Lead Code 1bit Custom Code 16bits Key Code 8bits

Inv Key Code

8bits

End

Code

1bit

Figure 5-16 The transmitting frame of the IR remote controller

IR RX Controller

The following demonstration shows how to implement the IP of IR receiver controller in the FPGA.

Figure 5-17

shows the modules used in this demo, including Code Detector, State Machine, and

Shift Register. At the beginning the IR receiver demodulates the signal inputs to the Code Detector .

The Code Detector will check the Lead Code and feedback the examination result to the State

Machine.

The State Machine block will change the state from IDLE to GUIDANCE once the Lead Code is detected. If the Code Detector detects the Custom Code status, the current state will change from

GUIDANCE to DATAREAD state. The Code Detector will also save the receiving data and output to the Shift Register and display on the 7-segment.

Figure 5-18

shows the state shift diagram of

State Machine block. The input clock should be 50MHz.

Figure 5-17 Modules in the IR Receiver controller

DE1-SoC User Manual

March 31, 2015

Figure 5-18 State shift diagram of State Machine block

D e m o n s s t t r a t t i i o n S o u r c e C o d e

 Project directory: DE1_SoC_IR

 Bitstream used: DE1_SOC_IR.sof

D e m o n s s t t r a t t i i o n B a t t c h F i i l l e

Demo batch file directory: DE1_SoC_IR \demo_batch

The folder includes the following files:

 Batch file: DE1_SoC_IR.bat

 FPGA configuration file : DE1_SOC_IR.sof

D e m o n s s t t r a t t i i o n S e t t u p ,

,

F i i l l e L o c a t t i i o n s s ,

, a n d

I

I n s s t t r u c t t i i o n s s

 Load the bitstream into the FPGA by executing DE1_SoC_IR \demo_batch\ DE1_SoC_IR.bat

 Keep pressing KEY[0] to enable the pattern to be sent out continuously by the IR TX

Controller.

 Observe the six HEXs according to

Table 5-6

 Release KEY[0] to stop the IR TX.

 Point the IR receiver with the remote and press any button

DE1-SoC User Manual

March 31, 2015

 Observe the six HEXs according to

Table 5-6

Table 5-6 Detailed Information of the Indicators

Indicator Name

HEX5

HEX4

HEX3

Description

Inversed high byte of DATA(Key Code)

Inversed low byte of DATA(Key Code)

High byte of ADDRESS(Custom Code)

High byte of DATA(Key Code)

Low byte of DATA (Key Code)

HEX1

HEX0

5 .

.

9 A D C R e a d i i n g

This demonstration illustrates steps to evaluate the performance of the 8-channel 12-bit A/D

Converter ADC7928. The DC 5.0V on the 2x5 header is used to drive the analog signals by a trimmer potentiometer. The voltage can be adjusted within the range between 0 and 5.0V. The 12-bit voltage measurement is displayed on the NIOS II console.

Figure 5-19

shows the block diagram of this demonstration.

If the input voltage is -2.5V ~ 2.5V, a pre-scale circuit can be used to adjust it to 0 ~ 5V.

DE1-SoC User Manual

March 31, 2015

Figure 5-19 Block diagram of ADC reading

Figure 5-20

depicts the pin arrangement of the 2x5 header. This header is the input source of ADC convertor in this demonstration. Users can connect a trimmer to the specified ADC channel

(ADC_IN0 ~ ADC_IN7) that provides voltage to the ADC convert. The FPGA will read the associated register in the convertor via serial interface and translates it to voltage value to be displayed on the Nios II console.

Figure 5-20 Pin distribution of the 2x5 Header for the ADC

System Requirements

The following items are required for this demonstration.

DE1-SoC User Manual

March 31, 2015

 DE1-SoC board x1

 Trimmer Potentiometer x1

 Wire Strip x3

Demonstration File Locations

 Hardware project directory: DE1_SoC_ADC

 Bitstream used: DE1_SoC_ADC.sof

 Software project directory: DE1_SoC_ADC software

 Demo batch file : DE1_SoC_ADC\demo_batch\ DE1_SoC_ADC.bat

Demonstration Setup and Instructions

 Connect the trimmer to corresponding ADC channel on the 2x5 header, as shown in

Figure

5-21

, as well as the +5V and GND signals. The setup shown above is connected to ADC channel 0.

 Execute the demo batch file DE1_SoC_ADC.bat to load the bitstream and software execution file to the FPGA.

 The Nios II console will display the voltage of the specified channel voltage result information

Figure 5-21 Hardware setup for the ADC reading demonstration

DE1-SoC User Manual

March 31, 2015

Chapter 6

Examples for HPS

SoC

This chapter provides several C-code examples based on the Altera SoC Linux built by Yocto project. These examples demonstrates major features connected to HPS interface on DE1-SoC board such as users LED/KEY, I2C interfaced G-sensor, and I2C MUX. All the associated files can be found in the directory Demonstrations/SOC of the DE1_SoC System CD. Please refer to Chapter

5 "Running Linux on the DE1-SoC board" from the DE1-SoC_Getting_Started_Guide.pdf to run

Linux on DE1-SoC board.

Installation of the Demonstrations

To install the demonstrations on the host computer:

Copy the directory Demonstrations into a local directory of your choice.

Altera SoC EDS v13.1 is

required for users to compile the c-code project.

6 .

.

1 H e l l l l o P r r o g r r a m

This demonstration shows how to develop first HPS program with Altera SoC EDS tool. Please refer to My_First_HPS.pdf from the system CD for more details.

The major procedures to develop and build HPS project are:

 Install Altera SoC EDS on the host PC.

 Create program .c/.h files with a generic text editor

 Create a "Makefile" with a generic text editor

 Build the project under Altera SoC EDS

DE1-SoC User Manual

March 31, 2015

Program File

The main program for the Hello World demonstration is:

Makefile

A Makefile is required to compile a project. The Makefile used for this demo is:

Compile

Please launch Altera SoC EDS Command Shell to compile a project by executing

C:\altera\13.1\embedded\Embedded_Command_Shell.bat

The "cd" command can change the current directory to where the Hello World project is located.

DE1-SoC User Manual

March 31, 2015

The "make" command will build the project. The executable file "my_first_hps" will be generated after the compiling process is successful. The "clean all" command removes all temporary files.

Demonstration Source Code

 Build tool: Altera SoC EDS v13.1

 Project directory: \Demonstration\SoC\my_first_hps

 Binary file: my_first_hps

 Build command: make ("make clean" to remove all temporary files)

 Execute command: ./my_first_hps

Demonstration Setup

 Connect a USB cable to the USB-to-UART connector (J4) on the DE1-SoC board and the host

PC.

 Copy the demo file "my_first_hps" into a microSD card under the "/home/root" folder in

Linux.

 Insert the booting microSD card into the DE1-SoC board.

 Power on the DE1-SoC board.

 Launch PuTTY and establish connection to the UART port of Putty. Type "root" to login Altera

Yocto Linux.

 Type "./my_first_hps" in the UART terminal of PuTTY to start the program, and the "Hello

World!" message will be displayed in the terminal.

6 .

.

2 U s e r r s L E D a n d

K

E

Y

This demonstration shows how to control the users LED and KEY by accessing the register of

GPIO controller through the memory-mapped device driver. The memory-mapped device driver allows developer to access the system physical memory.

Function Block Diagram

Figure 6-1

shows the function block diagram of this demonstration. The users LED and KEY are connected to the GPIO1 controller in HPS. The behavior of GPIO controller is controlled by the register in GPIO controller. The registers can be accessed by application software through the memory-mapped device driver, which is built into Altera SoC Linux.

DE1-SoC User Manual

March 31, 2015

Figure 6-1 Block diagram of GPIO demonstration

Block Diagram of GPIO Interface

The HPS provides three general-purpose I/O (GPIO) interface modules.

Figure 6-2

shows the block diagram of GPIO Interface. GPIO[28..0] is controlled by the GPIO0 controller and GPIO[57..29] is controlled by the GPIO1 controller. GPIO[70..58] and input-only GPI[13..0] are controlled by the

GPIO2 controller.

Figure 6-2 Block diagram of GPIO Interface

DE1-SoC User Manual

March 31, 2015

GPIO Register Block

The behavior of I/O pin is controlled by the registers in the register block. There are three 32-bit registers in the GPIO controller used in this demonstration. The registers are:

gpio_swporta_dr: write output data to output I/O pin

gpio_swporta_ddr: configure the direction of I/O pin

gpio_ext_porta: read input data of I/O input pin

The gpio_swporta_ddr configures the LED pin as output pin and drives it high or low by writing data to the gpio_swporta_dr register. The first bit (least significant bit) of gpio_swporta_dr controls the direction of first IO pin in the associated GPIO controller and the second bit controls the direction of second IO pin in the associated GPIO controller and so on. The value "1" in the register bit indicates the I/O direction is output, and the value "0" in the register bit indicates the I/O direction is input.

The first bit of gpio_swporta_dr register controls the output value of first I/O pin in the associated

GPIO controller, and the second bit controls the output value of second I/O pin in the associated

GPIO controller and so on. The value "1" in the register bit indicates the output value is high, and the value "0" indicates the output value is low.

The status of KEY can be queried by reading the value of gpio_ext_porta register. The first bit represents the input status of first IO pin in the associated GPIO controller, and the second bit represents the input status of second IO pin in the associated GPIO controller and so on. The value

"1" in the register bit indicates the input state is high, and the value "0" indicates the input state is low.

GPIO Register Address Mapping

The registers of HPS peripherals are mapped to HPS base address space 0xFC000000 with 64KB size. The registers of the GPIO1 controller are mapped to the base address 0xFF708000 with 4KB size, and the registers of the GPIO2 controller are mapped to the base address 0xFF70A000 with

4KB size, as shown in

Figure 6-3.

DE1-SoC User Manual

March 31, 2015

Figure 6-3 GPIO address map

Software API

Developers can use the following software API to access the register of GPIO controller.

 open: open memory mapped device driver

 mmap: map physical memory to user space

 alt_read_word: read a value from a specified register

 alt_write_word: write a value into a specified register

 munmap: clean up memory mapping

 close: close device driver.

Developers can also use the following MACRO to access the register

 alt_setbits_word: set specified bit value to one for a specified register

 alt_clrbits_word: set specified bit value to zero for a specified register

The program must include the following header files to use the above API to access the registers of

GPIO controller.

#include <stdio.h>

#include <unistd.h>

#include <fcntl.h>

DE1-SoC User Manual

March 31, 2015

#include <sys/mman.h>

#include "hwlib.h"

#include "socal/socal.h"

#include "socal/hps.h"

#include "socal/alt_gpio.h"

LED and KEY Control

Figure 6-4

shows the HPS users LED and KEY pin assignment for the DE1_SoC board. The LED is connected to HPS_GPIO53 and the KEY is connected to HPS_GPIO54. They are controlled by the GPIO1 controller, which also controls HPS_GPIO29 ~ HPS_GPIO57.

Figure 6-4 Pin assignment of LED and KEY

Figure 6-5

shows the gpio_swporta_ddr register of the GPIO1 controller. The bit-0 controls the pin direction of HPS_GPIO29. The bit-24 controls the pin direction of HPS_GPIO53, which connects to HPS_LED, the bit-25 controls the pin direction of HPS_GPIO54, which connects to

HPS_KEY and so on. The pin direction of HPS_LED and HPS_KEY are controlled by the bit-24 and bit-25 in the gpio_swporta_ddr register of the GPIO1 controller, respectively. Similarly, the output status of HPS_LED is controlled by the bit-24 in the gpio_swporta_dr register of the

GPIO1 controller. The status of KEY can be queried by reading the value of the bit-24 in the

gpio_ext_porta register of the GPIO1 controller.

DE1-SoC User Manual

March 31, 2015

Figure 6-5 gpio_swporta_ddr

register in the GPIO1 controller

The following mask is defined in the demo code to control LED and KEY direction and LED’s output value.

#define USER_IO_DIR (0x01000000)

#define BIT_LED (0x01000000)

#define BUTTON_MASK (0x02000000)

The following statement is used to configure the LED associated pins as output pins. alt_setbits_word( ( virtual_base +

( ( uint32_t )( ALT_GPIO1_SWPORTA_DDR_ADDR ) &

( uint32_t )( HW_REGS_MASK ) ) ), USER_IO_DIR );

The following statement is used to turn on the LED. alt_setbits_word( ( virtual_base +

( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) &

( uint32_t )( HW_REGS_MASK ) ) ), BIT_LED );

The following statement is used to read the content of gpio_ext_porta register. The bit mask is used to check the status of the key. alt_read_word( ( virtual_base +

( ( uint32_t )( ALT_GPIO1_EXT_PORTA_ADDR ) &

( uint32_t )( HW_REGS_MASK ) ) ) );

DE1-SoC User Manual

March 31, 2015

Demonstration Source Code

 Build tool: Altera SoC EDS V13.1

 Project directory: \Demonstration\SoC\hps_gpio

 Binary file: hps_gpio

 Build command: make ('make clean' to remove all temporal files)

 Execute command: ./hps_gpio

Demonstration Setup

 Connect a USB cable to the USB-to-UART connector (J4) on the DE1-SoC board and the host

PC.

 Copy the executable file "hps_gpio" into the microSD card under the "/home/root" folder in

Linux.

 Insert the booting micro SD card into the DE1-SoC board.

 Power on the DE1-SoC board.

 Launch PuTTY and establish connection to the UART port of Putty. Type "root" to login Altera

Yocto Linux.

 Type "./hps_gpio " in the UART terminal of PuTTY to start the program.

 HPS_LED will flash twice and users can control the user LED with push-button.

 Press HPS_KEY to light up HPS_LED.

 Press "CTRL + C" to terminate the application.

6 .

.

3

I

I 2 C

I

I n t t e r r f f a c e d

G

-

s e n s o r r

This demonstration shows how to control the G-sensor by accessing its registers through the built-in

I2C kernel driver in Altera Soc Yocto Powered Embedded Linux .

Function Block Diagram

Figure 6-6

shows the function block diagram of this demonstration. The G-sensor on the DE1_SoC board is connected to the I2C0 controller in HPS. The G-Sensor I2C 7-bit device address is 0x53.

The system I2C bus driver is used to access the register files in the G-sensor. The G-sensor interrupt

DE1-SoC User Manual

March 31, 2015

signal is connected to the PIO controller. This demonstration uses polling method to read the register data.

Figure 6-6 Block diagram of the G-sensor demonstration

I2C Driver

The procedures to read a register value from G-sensor register files by the existing I2C bus driver in the system are:

1. Open I2C bus driver "/dev/i2c-0": file = open("/dev/i2c-0", O_RDWR);

2. Specify G-sensor's I2C address 0x53: ioctl(file, I2C_SLAVE, 0x53);

3. Specify desired register index in g-sensor: write(file, &Addr8, sizeof(unsigned char));

4. Read one-byte register value: read(file, &Data8, sizeof(unsigned char));

The G-sensor I2C bus is connected to the I2C0 controller, as shown in the

Figure 6-7

. The driver name given is '/dev/i2c-0'.

Figure 6-7 Connection of HPS I2C signals

The step 4 above can be changed to the following to write a value into a register. write(file, &Data8, sizeof(unsigned char));

The step 4 above can also be changed to the following to read multiple byte values.

DE1-SoC User Manual

March 31, 2015

read(file, &szData8, sizeof(szData8)); // where szData is an array of bytes

The step 4 above can be changed to the following to write multiple byte values. write(file, &szData8, sizeof(szData8)); // where szData is an array of bytes

G-sensor Control

The ADI ADXL345 provides I2C and SPI interfaces. I2C interface is selected by setting the CS pin to high on the DE1_SoC board.

The ADI ADXL345 G-sensor provides user-selectable resolution up to 13-bit ± 16g. The resolution can be configured through the DATA_FORAMT(0x31) register. The data format in this demonstration is configured as:

 Full resolution mode

 ± 16g range mode

 Left-justified mode

The X/Y/Z data value can be derived from the DATAX0(0x32), DATAX1(0x33), DATAY0(0x34),

DATAY1(0x35), DATAZ0(0x36), and DATAX1(0x37) registers. The DATAX0 represents the least significant byte and the DATAX1 represents the most significant byte. It is recommended to perform multiple-byte read of all registers to prevent change in data between sequential registers read. The following statement reads 6 bytes of X, Y, or Z value. read(file, szData8, sizeof(szData8)); // where szData is an array of six-bytes

Demonstration Source Code

 Build tool: Altera SoC EDS v13.1

 Project directory: \Demonstration\SoC\hps_gsensor

 Binary file: gsensor

 Build command: make ('make clean' to remove all temporal files)

 Execute command: ./gsensor [loop count]

Demonstration Setup

 Connect a USB cable to the USB-to-UART connector (J4) on the DE1-SoC board and the host

PC.

DE1-SoC User Manual

March 31, 2015

 Copy the executable file "gsensor" into the microSD card under the "/home/root" folder in

Linux.

 Insert the booting microSD card into the DE1-SoC board.

 Power on the DE1-SoC board.

 Launch PuTTY to establish connection to the UART port of DE1-SoC board. Type "root" to login Yocto Linux.

 Execute "./gsensor" in the UART terminal of PuTTY to start the G-sensor polling.

 The demo program will show the X, Y, and Z values in the PuTTY, as shown in

Figure 6-8

.

Figure 6-8 Terminal output of the G-sensor demonstration

 Press "CTRL + C" to terminate the program.

6 .

.

4

I

I 2 C M U

X

T e s t t

The I2C bus on DE1-SoC is originally accessed by FPGA only. This demonstration shows how to switch the I2C multiplexer for HPS to access the I2C bus.

Function Block Diagram

Figure 6-9

shows the function block diagram of this demonstration. The I2C bus from both FPGA and HPS are connected to an I2C multiplexer. It is controlled by HPS_I2C_CONTROL, which is connected to the GPIO1 controller in HPS. The HPS I2C is connected to the I2C0 controller in

HPS, as well as the G-sensor.

DE1-SoC User Manual

March 31, 2015

Figure 6-9 Block diagram of the I2C MUX test demonstration

HPS_I2C_CONTROL Control

HPS_I2C_CONTROL is connected to HPS_GPIO48, which is bit-19 of the GPIO1 controller.

Once HPS gets access to the I2C bus, it can then access Audio CODEC and TV Decoder when the

HPS_I2C_CONTROL signal is set to high.

The following mask in the demo code is defined to control the direction and output value of

HPS_I2C_CONTROL.

#define HPS_I2C_CONTROL ( 0x00080000 )

The following statement is used to configure the HPS_I2C_CONTROL associated pins as output pin. alt_setbits_word( ( virtual_base +

( ( uint32_t )( ALT_GPIO1_SWPORTA_DDR_ADDR ) &

( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );

The following statement is used to set HPS_I2C_CONTROL high. alt_setbits_word( ( virtual_base +

( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) &

( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );

The following statement is used to set HPS_I2C_CONTROL low. alt_clrbits_word( ( virtual_base +

( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) &

( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );

DE1-SoC User Manual

March 31, 2015

I2C Driver

The procedures to read register value from TV Decoder by the existing I2C bus driver in the system are:

 Set HPS_I2C_CONTROL high for HPS to access I2C bus.

 Open the I2C bus driver "/dev/i2c-0": file = open("/dev/i2c-0", O_RDWR);

 Specify the I2C address 0x20 of ADV7180: ioctl(file, I2C_SLAVE, 0x20);

 Read or write registers;

 Set HPS_I2C_CONTROL low to release the I2C bus.

Demonstration Source Code

 Build tool: Altera SoC EDS v13.1

 Project directory: \Demonstration\SoC\ hps_i2c_switch

 Binary file: i2c_switch

 Build command: make ('make clean' to remove all temporal files)

 Execute command: ./ i2c_switch

Demonstration Setup

 Connect a USB cable to the USB-to-UART connector (J4) on the DE1-SoC board and host PC.

 Copy the executable file " i2c_switch " into the microSD card under the "/home/root" folder in

Linux.

 Insert the booting microSD card into the DE1-SoC board.

 Power on the DE1-SoC board.

 Launch PuTTY to establish connection to the UART port of DE1_SoC borad. Type "root" to login Yocto Linux.

 Execute "./ i2c_switch " in the UART terminal of PuTTY to start the I2C MUX test.

 The demo program will show the result in the Putty, as shown in

Figure 6-10

.

Figure 6-10 Terminal output of the I2C MUX Test Demonstration

 Press "CTRL + C" to terminate the program.

DE1-SoC User Manual

March 31, 2015

Chapter 7

Examples for using both HPS SoC and

FGPA

Although HPS and FPGA can operate independently, they are tightly coupled via a high-bandwidth system interconnect built from high-performance ARM AMBA® AXITM bus bridges. Both FPGA fabric and HPS can access to each other via these interconnect bridges. This chapter provides demonstrations on how to achieve superior performance and lower latency through these interconnect bridges when comparing to solutions containing a separate FPGA and discrete processor.

7 .

.

1 H P S C o n t t r r o l l L E D a n d H E X

This demonstration shows how HPS controls the FPGA LED and HEX through Lightweight

HPS-to-FPGA Bridge. The FPGA is configured by HPS through FPGA manager in HPS.

A brief view on FPGA manager

The FPGA manager in HPS configures the FPGA fabric from HPS. It also monitors the state of

FPGA and drives or samples signals to or from the FPGA fabric. The application software is provided to configure FPGA through the FPGA manager. The FPGA configuration data is stored in the file with .rbf extension. The MSEL[4:0] must be set to 01010 or 01110 before executing the application software on HPS.

Function Block Diagram

Figure 7-1

shows the block diagram of this demonstration. The HPS uses Lightweight

HPS-to-FPGA AXI Bridge to communicate with FPGA. The hardware in FPGA part is built into

DE1-SoC User Manual

March 31, 2015

Qsys. The data transferred through Lightweight HPS-to-FPGA Bridge is converted into Avalon-MM master interface. Both PIO Controller and HEX Controller work as Avalon-MM slave in the system.

They control the associated pins to change the state of LED and HEX. This is similar to a system using Nios II processor to control LED and HEX.

Figure 7-1 FPGA LED and HEX are controlled by HPS

LED and HEX control

The Lightweight HPS-to-FPGA Bridge is a peripheral of HPS. The software running on Linux cannot access the physical address of the HPS peripheral. The physical address must be mapped to the user space before the peripheral can be accessed. Alternatively, a customized device driver module can be added to the kernel. The entire CSR span of HPS is mapped to access various registers within that span. The mapping function and the macro defined below can be reused if any other peripherals whose physical address is also in this span.

The start address of Lightweight HPS-to-FPGA Bridge after mapping can be retrieved by

ALT_LWFPGASLVS_OFST, which is defined in altera_hps hardware library. The slave IP connected to the bridge can then be accessed through the base address and the register offset in these IPs. For instance, the base address of the PIO slave IP in this system is 0x0001_0040, the direction control register offset is 0x01, and the data register offset is 0x00. The following statement is used to retrieve the base address of PIO slave IP. h2p_lw_led_addr=virtual_base+( ( unsigned long )( ALT_LWFPGASLVS_OFST

+ LED_PIO_BASE ) & ( unsigned long)( HW_REGS_MASK ) );

DE1-SoC User Manual

March 31, 2015

Considering this demonstration only needs to set the direction of PIO as output, which is the default direction of the PIO IP, the step above can be skipped. The following statement is used to set the output state of the PIO. alt_write_word(h2p_lw_led_addr, Mask );

The Mask in the statement decides which bit in the data register of the PIO IP is high or low. The bits in data register decide the output state of the pins connected to the LEDs. The HEX controlling part is similar to the LED.

Since Linux supports multi-thread software, the software for this system creates two threads. One controls the LED and the other one controls the HEX. The system calls pthread_create, which is called in the main function to create a sub-thread, to complete the job. The program running in the sub-thread controls the LED flashing in a loop. The main-thread in the main function controls the digital shown on the HEX that keeps changing in a loop. The state of LED and HEX state change simultaneously when the FPGA is configured and the software is running on HPS.

Demonstration Source Code

 Build tool: Altera SoC EDS V13.1

 Project directory: \Demonstration\ SoC_FPGA\HPS_LED_HEX

 Quick file directory:\ Demonstration\ SoC_FPGA\HPS_LED_HEX\ quickfile

 FPGA configuration file : soc_system_dc.rbf

 Binary file: HPS_LED_HEX and hps_config_fpga

 Build app command: make ('make clean' to remove all temporal files)

 Execute app command:./hps_config_fpga soc_system_dc.rbf and./HPS_LED_HEX

D e m o n s s t t r a t t i i o n S e t t u p

 Quartus II and Nios II must be installed on the host PC.

 The MSEL[4:0] is set to 01010 or 01110.

 Connect a USB cable to the USB-Blaster II connector (J13) on the DE1-SoC board and the host

PC. Install the USB-Blaster II driver if necessary.

 Connect a USB cable to the USB-to-UART connector (J4) on the DE1-SoC board and the host

PC.

 Copy the executable files "hps_config_fpga" and "HPS_LED_HEX", and the FPGA configuration file "soc_system_dc.rbf" into the microSD card under the "/home/root" folder in Linux.

 Insert the booting microSD card into the DE1-SoC board. Please refer to the chapter 5

DE1-SoC User Manual

March 31, 2015

"Running Linux on the DE1-SoC board" on DE1-SoC_Getting_Started_Guide.pdf on how to build a booting microSD card image.

 Power on the DE1-SoC board.

 Launch PuTTY to establish connection to the UART port of the DE1-SoC board. Type "root" to login Altera Yocto Linux.

 Execute "./hps_config_fpga soc_system_dc.rbf " in the UART terminal of PuTTY to configure the FPGA through the FPGA manager. After the configuration is successful, the message shown in

Figure 7-2

Figure72 will be displayed in the terminal.

Figure 7-2 Running the application to configure the FPGA

 Execute "./HPS_LED_HEX " in the UART terminal of PuTTY to start the program.

 The message shown in

Figure 7-3

OLE_LINK4 , will be displayed in the terminal. The LED[9:0] will be flashing and the number on the HEX[5:0] will keep changing simultaneously.

Figure 7-3 Running result in the terminal of PuTTY

 Press "CTRL + C" to terminate the program.

DE1-SoC User Manual

March 31, 2015

7 .

.

2 D E 1 -

-

S o C C o n t t r r o l l

P a n e l l

The DE1-SoC Control Panel is a more comprehensive example. It demonstrates:

 Control HPS LED and FPGA LED/HEX

 Query the status of buttons connected to HPS and FPGA

 Configure and query G-sensor connected to HPS

 Control Video-in and VGA-out connected to FPGA

 Control IR receiver connected to FPGA

This example not only controls the peripherals of HPS and FPGA, but also shows how to implement a GUI program on Linux.

Figure 7-4

OLE_LINK4 is the screenshot of DE1-SOC

Control Panel.

Figure 7-4 Screenshot of DE1-SoC Control Panel

Please refer to DE1-SoC_Control_Panel.pdf, which is included in the DE1-SOC System CD for more information on how to build a GUI program step by step.

7 .

.

3 D E 1 -

-

S o C L i i n u x F r r a m e B u f f f f e r r P r r o j j e c t t

The DE1-SoC Linux Frame Buffer Project is a example that a VGA monitor is utilized as a standard output interface for the linux operate system. The Quartus II project is located at this path:

Demonstrations/SOC_FPGA/DE1_SOC_Linux_FB. The soc_system.rbf file in the project is used for configuring FPGA through HPS. The .rbf file is converted form DE1_SOC_Linux_FB.sof by clicking the sof_to_rbf.bat. The project is adopted for the following demonstrations.

DE1-SoC User Manual

March 31, 2015

 DE1_SoC Linux Console with framebuffer

 DE1_SoC LXDE with Desktop

 DE1_SoC Ubuntu Desktop

The SD image file for the demonstrations above can be downloaded in the design resources for

DE1-SoC at Terasic website.

These examples provide a GUI environment for further developing for the users. For example, a QT application can run on the system.

Figure 7-5 Screenshot of DE1-SoC Linux Console with framebuffer

Please refer to DE1-SoC_Getting_Started_Guide about how to get the SD images and create a boot

SD card.

DE1-SoC User Manual

March 31, 2015

Chapter 8

Programming the

EPCS Device

This chapter describes how to program the quad serial configuration (EPCS) device with Serial

Flash Loader (SFL) function via the JTAG interface. Users can program EPCS devices with a JTAG indirect configuration (.jic) file, which is converted from a user-specified SRAM object file (.sof) in

Quartus. The .sof file is generated after the project compilation is successful. The steps of converting .sof to .jic in Quartus II are listed below.

8 .

.

1 B e f f o r r e P r r o g r r a m m i i n g B e g i i n s

The FPGA should be set to AS x1 mode i.e. MSEL[4..0] = “10010” to use the quad Flash as a

FPGA configuration device.

8 .

.

2 C o n v e r r t t .

.

S O F F i i l l e t t o

.

.

J

I

I C

F i i l l e

1. Choose Convert Programming Files from the File menu of Quartus II, as shown in

Figure

8-1

.

DE1-SoC User Manual

March 31, 2015

Figure 8-1 File menu of Quartus II

2. Select JTAG Indirect Configuration File (.jic) from the Programming file type field in the dialog of Convert Programming Files.

3. Choose EPCS128 from the Configuration device field.

4. Choose Active Serial from the Mode filed.

5. Browse to the target directory from the File name field and specify the name of output file.

6. Click on the SOF data in the section of Input files to convert, as shown in

Figure 8-2

.

DE1-SoC User Manual

March 31, 2015

Figure 8-2 Dialog of “Convert Programming Files”

7. Click Add File.

8. Select the .sof to be converted to a .jic file from the Open File dialog.

9. Click Open.

10. Click on the Flash Loader and click Add Device, as shown in

Figure 8-3.

11. Click OK and the Select Devices page will appear.

DE1-SoC User Manual

March 31, 2015

Figure 8-3 Click on the “Flash Loader”

12. Select the targeted FPGA to be programed into the EPCS, as shown in

Figure 8-4

.

13. Click OK and the Convert Programming Files page will appear, as shown in

Figure 8-5

.

14. Click Generate.

DE1-SoC User Manual

March 31, 2015

Figure 8-4 “Select Devices” page

DE1-SoC User Manual

March 31, 2015

Figure 8-5 “Convert Programming Files” page after selecting the device

8 .

.

3 W r r i i t t e J

I

I C F i i l l e i i n t t o t t h e E P C S D e v i i c e

When the conversion of SOF-to-JIC file is complete, please follow the steps below to program the

EPCS device with the .jic file created in Quartus II Programmer.

1. Set MSEL[4..0] = “10010”

2. Choose Programmer from the Tools menu and the Chain.cdf window will appear.

3. Click Auto Detect and then select the correct device. Both FPGA device and HPS should be detected, as shown in

Figure 8-6 .

DE1-SoC User Manual

March 31, 2015

4. Double click the green rectangle region shown in

Figure 8-6

and the Select New

Programming File page will appear. Select the .jic file to be programmed.

5. Program the EPCS device by clicking the corresponding Program/Configure box. A factory default SFL image will be loaded, as shown in

Figure 8-7

.

6. Click Start to program the EPCS device.

Figure 8-6 Two devices are detected in the Quartus II Programmer

DE1-SoC User Manual

March 31, 2015

Figure 8-7 Quartus II programmer window with one .jic file

8 .

.

4 E r r a s e t t h e E P C S D e v i i c e

The steps to erase the existing file in the EPCS device are:

1. Set MSEL[4..0] = “10010”

2. Choose Programmer from the Tools menu and the Chain.cdf window will appear.

3. Click Auto Detect, and then select correct device, both FPGA device and HPS will detected.

(See

Figure 8-6 )

4. Double click the green rectangle region shown in

Figure 8-6

, and the Select New

Programming File page will appear. Select the correct .jic file.

5. Erase the EPCS device by clicking the corresponding Erase box. A factory default SFL image will be loaded, as shown in

Figure 8-8

.

DE1-SoC User Manual

March 31, 2015

Figure 8-8 Erase the EPCS device in Quartus II Programmer

6. Click Start to erase the EPCS device.

8 .

.

5 N i i o s

I

I

I

I B o o t t f f r r o m E P C Q D e v i i c e i i n Q u a r r t u s I

I

I

I v 1 3 .

.

1

There is a known problem in Quartus II software that the Quartus Programmer must be used to program the EPCQ device on DE1-SoC board.

Please refer to Altera’s website here with details step by step.

DE1-SoC User Manual

March 31, 2015

Chapter 9

Appendix

Version

V0.1

V0.2

V0.3

V0.4

V0.5

V1.0

V1.1

V1.2

V1.2.1

V1.2.2

9 .

.

1 R e v i i s i i o n H i i s t t o r y

Change Log

Initial Version (Preliminary)

Add Chapter 5 and Chapter 6

Modify Chapter 3

Add Chapter 3 HPS

Modify Chapter 3

Modify Chapter 8

Modify section 3.3

1. Add Sectiom 7.3

2. Modify Figure 3-2

Modify Figure 3-2

Modify Figure 5-5 descriptions of remote controller

Copyright © 2015 Terasic Technologies. All rights reserved.

DE1-SoC User Manual

March 31, 2015

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
