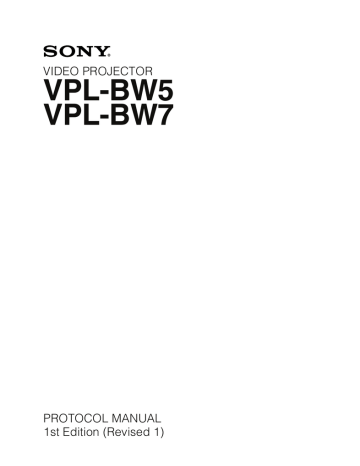

VPL-BW5 VPL-BW7

VIDEO PROJECTOR

VPL-BW5

VPL-BW7

PROTOCOL MANUAL

1st Edition (Revised 1)

! WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.

! WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung dazu besitzen.

! AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

VPL-BW5

Table of Contents

1.

Introduction

2.

RS-232C

2-1.

Communication Specifications .......................................... 1

2-2.

Command Block Format .................................................... 2

2-3.

Block Format ..................................................................... 3

2-4.

Connection ......................................................................... 4

2-5.

Communication Procedure ................................................ 4

2-5-1.

Outline of Communication ....................................... 4

2-6.

Communication Rules ....................................................... 5

2-7.

Approximate Return Waiting Times ................................. 5

Appendix

VPL-BW5

1

1. Introduction

This protocol manual describes the basic configuration and basic operations of various commands used for projector. Projector can be controlled using the commands provided in “Appendix”. Using an external

CONTROLLER , etc., inputs can be switched and the power can also be turned on and off. In the following paragraphs, “CONTROLLER” means an external device such as a PC which controls projector using these commands.

2. RS-232C

2-1. Communication Specifications

<RS-232C Communication Signal>

. Full duplex communication channels (Flow control not performed.)

. Start-stop synchronism system

. Baud rate: 38.4 kbps (bits per second)

. The bit configuration is defined as follows.

1 START Bit + 8 DATA Bits + 1 PARITY Bits + 1 STOP Bit

START

BIT

D0

(LSB)

D1 D2 D3 D4 D5 D6 D7

(MSB)

PARITY

(EVEN)

STOP

BIT

Even Parity

... The sum of ones in D0 to D7 and parity is even.

VPL-BW5

1

2-2. Command Block Format

The code from B0 to B7 as described below are transmitted.

Transmission from the Master side

B0

B1

B2

B3

B4

B5

B6

B7

ITEM NUMBER

SET / GET

DATA

B0 START CORD

Common in the all FORMAT

B6 CHECK SUM

B1 to B5 are calculated by OR;

<Example of Calculation>

0 x A9

0 x A9

Answer

1010 1001

1010

1010

1001

1001

0 x A9

B7 END CODE

Common in the all FORMAT

Reception in the Master side

START CODE : 0 x A9

ACK / NAK

ACK

DUMMY DATA

CHECK SUM

END CODE : 0 x 9A

0 x A9

0 x 9A

Answer

1010

1001

1011

Reception in the Master side

(With Data)

1001

1010

1011

0 x BB

ITEM NUMBER

REPLY

DATA

2

VPL-BW5

2-3. Block Format

B0

B1

B2

B3

B4

B5

B6

B7

B0

B1

B2

B3

B4

B5

B6

B7

Transmission from the Master side

START CODE

ITEM NUMBER

SET / GET

DATA

CHECK SUM

END CODE

Reception in the Master side

START CODE

ACK / NAK

ACK

DUMMY DATA

CHECK SUM

END CODE

Data transmission to the Projector

Start of Command

Set the Data Category Value desired.

Refer to the Appendix Table 1 for details.

SET: 0 x 00 (Set data)

GET: 0 x 01 (Get data)

SET: Data to be set (Refer to the Appendix Table 2)

GET: Unused. Set Dummy data [0 x 00, 0 x 00]

Check Sum

End of Command

Receive results of the data transmission from the Projector.

Start of Command

Results correspond with the data transmission

Refer to the Appendix Table 3 for the data in detail.

[0 x 03]

Express Reply data either of ACK, or NAK

This data does not mean any senses.

Dummy Data [0 x 00, 0 x 00] is stored.

Check Sum

End of Command

B0

B1

B2

B3

B4

B5

B6

B7

Reception in the Master side (With Data)

START CODE

ITEM NUMBER

REPLY

DATA

CHECK SUM

END CODE

Receive data from the Projector

Start of Command

Data to acquire

Refer to the Appendix Table 1 in detail.

[0 x 02]

Express data to be Reply data

Received data

Refer to the Appendix Table 2 in detail.

Check Sum

End of Command

VPL-BW5

3

2-4. Connection

<RS-232C Connection>

Communication is enabled by the use of a D-Sub 9 Pin cross (reverse) cable.

The pin assignment of D-Sub 9 Pin and D-Sub 25 Pin is as follows.

D-Sub 9 Pin

Shell = FG

3

2

6

5

7

8

1

4

9

D-Sub 25 Pin

1

2

3

6

7

4

5

8

20

22

FG

TxD

RxD

RTS

CTS

DSR

SG

DCD

DTR

RI

Name

Grounding for safety protection or cable shield

Transmission data

Reception data

Transmission request

Transmission permission

Data set ready

GND for signal

Data channel signal carrier detection

Data terminal ready

Calling display (Presence/absence of calling signal)

Pins indicated as D-Sub 25 Pin are not used.

Assured cable length: 15 m (However, assurance may not be applicable for some cables.)

The software for controlling the projector from a PC is intended for performing transmission and reception for only the TxD and RxD lines.

Therefore there is no handshake normally performed by RS-232C.

2-5. Communication Procedure

2-5-1. Outline of Communication

All communication between CONTROLLER (PC, etc.) and DEVICE (PROJECTOR) is performed by the command block format. Communication is started by the issue of a command at CONTROLLER and ended when the return Data is sent to CONTROLLER after DEVICE receives the command.

CONTROLLER is prohibited from sending several commands at one time. This means that after CON-

TROLLER sends one command, it cannot send other commands until DEVICE returns the return Data.

DEVICE sends the return Data after processing the command. The time from when CONTROLLER sends the command until the return Data is returned differs according to the contents of the command.

n

When Sircs Direct Command is sent, return Data may not be returned in some cases.

4

VPL-BW5

2-6. Communication Rules

. When sending a command from CONTROLLER, the return Data from PROJECTOR should be received first before sending the next command. Even if the next command is sent before receiving the return Data, since PROJECTOR will not be able to receive that command, it does not return a response to CONTROLLER. Consequently, no error code is also sent.

The following lists the approximate waiting times for PROJECTOR to return the return Data after

CONTROLLER sends the command.

. When a communication error occurs, PROJECTOR ignores the Data received until now, and set into the reception standby state.

. For undefined commands or commends determined as invalid by PROJECTOR, PROJECTOR will send the “NAK” return Data to CONTROLLER .

. Take note that when Data is written when the input signal of PROJECTOR is unstable, that Data

(value) will not be incorporated.

. When INDEX specified SIRCS direct command is transmitted, leave an interval of 45 msec until the next transmission. (Do not return the return Data (ACK, NAK) when the SIRCS direct command is received.)

2-7. Approximate Return Waiting Times

The await-return time is approx. 200 msec.

n

This is the case, unless the communications are interfered anyway.

VPL-BW5

5

Appendix

Item name

<Table 1>

Item Number

Upper byte Lower byte

Input 00h 01h

Picture Mode

Contrast

Brightness

Color

Hue

Sharpness

Volume

Color Temp

DDE

Wide Mode

PictureMuting

AudioMuting

Input-A Signal Sel

Lamp Mode

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

02h

10h

11h

12h

13h

14h

16h

17h

18h

20h

30h

31h

32h

40h

Middle

Low

Off

Progressive

Film

Normal

Zoom

Full1

Full2

Wide zoom

4 : 3

16 : 9

Off

On

Off

On

Auto

Computer

Component

Video GBR

High

Standard

Item name

Video

S-Video

Input-A

HDMI

User3

Standard

User1

User2

Cinema

Dynamic

Set Value

Set Value

Set Value

Set Value

Set Value

Set Value

High

<Table 2>

Data

Upper byte

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

Lower byte

00h

01h

02h

03h

00h

01h

03h

04h

05h

06h

00h - 64h (0 - 100)

00h - 64h (0 - 100)

00h - 64h (0 - 100)

00h - 64h (0 - 100)

00h - 64h (0 - 100)

00h - 64h (0 - 100)

00h

01h

02h

00h

01h

09h

0Ah

00h

01h

00h

01h

00h

01h

02h

03h

00h

01h

02h

01h

03h

07h

08h

02h

Remarks

Set/Get

6

VPL-BW5

<Table 1>

Item name

Item Number

Upper byte Lower byte

Status Error

Status Power

Lamp Timer

ROM Version

Status Security

*3

Sircs (15 Bit Category)

Sircs (20 Bit Category)

01h

01h

01h

01h

01h

17h

19h

01h

02h

13h

1Dh

1Fh

Refer to table 4

Refer to table 5

Item name

No Error

Lamp Error

Fan Error

Cover Error

Temp Error

Stanby

Start Up Lamp

Power On

Cooling1

Cooling2

Saving Cooling1

Saving Cooling2

Saving Stanby

Lamp Use Time

MAIN ROM Version

Disable

Enable

_

_

<Table 2>

Data

Upper byte

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

Lower byte

00h

01h

02h

04h

08h

00h

02h

03h

04h

05h

06h

07h

08h

0000h - FFFFh

*1

0000h - FFFFh

*2

00h

00h

00h

00h

00h

01h

00h

00h

Remarks

Get

Set only

*4

*1 Example) In case the lamp timer indicates 1000H, return values are [03h] upper byte and [E8h] lowerbyte.

*2 Example) In case the software version is 1.03, return values are [01h] upper byte and [03h] lowerbyte.

*3 With the unit in which the security lock is set, whether the password input screen is displayed can be checked after the power turns on. When the password input screen is being displayed, return values are [00h] upper byte and [01h] lower byte.

*4 It is corresponded to single command only.

IItem

ACK

NAK

Item Number

Data

_

<Table 3>

Select Error

Upper byte

00h

01h

Data

When sending a command, wait for at least 50 ms after the reception of response.

No response may be returned when turning on the power.

Lower byt

00h

05h

VPL-BW5

7

8

VPL-BW5

VPL-BW5

9

The material contained in this manual consists of information that is the property of Sony Corporation.

Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.

Le matériel contenu dans ce manuel consiste en informations qui sont la propriété de Sony Corporation.

Sony Corporation interdit formellement la copie de quelque partie que ce soit de ce manuel ou son emploi pour tout autre but que des opérations ou entretiens de l’équipement à moins d’une permission écrite de Sony

Corporation.

Das in dieser Anleitung enthaltene Material besteht aus

Informationen, die Eigentum der Sony Corporation sind.

Die Sony Corporation untersagt ausdrücklich die

Vervielfältigung jeglicher Teile dieser Anleitung oder den

Gebrauch derselben für irgendeinen anderen Zweck als die Bedienung oder Wartung der in dieser Anleitung beschriebenen Ausrüstung ohne ausdrückliche schriftliche Erlaubnis der Sony Corporation.

VPL-BW5

VPL-BW5 (UC)

VPL-BW7 (SY)

VPL-BW7 (UC)

VPL-BW7 (CN) E

9-883-664-02

Sony Corporation

Printed in Japan

2009. 7 16

©2008
