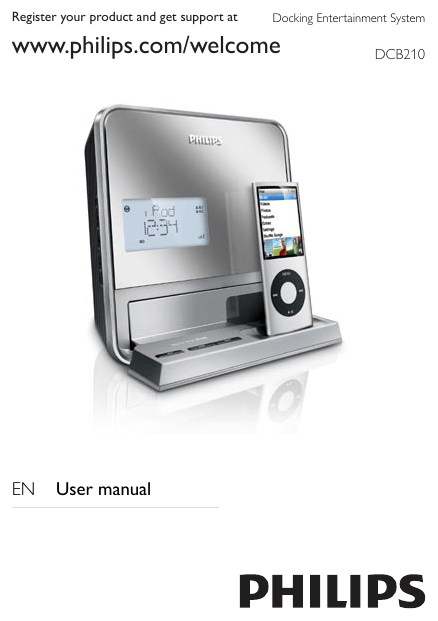

Register your product and get support at
Docking Entertainment System
www.philips.com/welcome
EN User manual
DCB210
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specified by the
manufacturer.
k Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
l Unplug this apparatus during lightning storms
or when unused for long periods of time.
m Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
n Apparatus shall not be exposed to dripping or splashing.
o Do not place any sources of danger on the apparatus (e.g.
liquid filled objects, lighted candles).
p This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information, please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
q Where the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
Warning
••
••
••
••
••
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical equipment.
Keep this apparatus away from direct sunlight, naked flames or heat.
Ensure that you always have easy access to the power cord, plug or
adaptor to disconnect the apparatus from the power.
Notice
This product complies with the radio interference
requirements of the European Community.
This product complies with the requirements of the following
directives and guidelines: 2004/108/EC + 2006/95/EC
Any changes or modifications made to this device that are not
expressly approved by Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Recycling
Your product is designed and manufactured with high
quality materials and components, which can be
recycled and reused.
When you see the crossed-out wheel bin symbol
attached to a product, it means the product is covered
by the European Directive 2002/96/EC:
Never dispose of your product with other household
waste. Please inform yourself about the local rules on the
separate collection of electrical and electronic products.
The correct disposal of your old product helps prevent
potentially negative consequences on the environment and
human health.
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed of with normal
household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
2 Your Docking Entertainment
System
Congratulations on your purchase, and welcome to Philips! To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
With this unit, you can enjoy audio from the iPod, other audio devices, or
the radio.
The radio, iPod, or buzzer can be set as the alarm timer. You can set two
alarm timers to go off at different times.
What’s in the box
Check and identify the contents of your package:
•
Main unit
•
1 x AC adaptor
•
1 x MP3 link cable
•
User manual
•
Quick start guide
Overview of the main unit
SOURCE
SELECT
r
SLEEP
p
TUNING –
INFO /
MENU
TIME SET /
AUTO SCAN
DAB FM
BUZZ
WAKE TO iPod
TUNING +
TUNING –
INFO /
MENU
TIME SET /
AUTO SCAN
TUNING +
DAB FM
BUZZ
WAKE TO iPod
MP3-Link
DC IN
6.5V1.3A
a ALARM 1/ALARM 2
•
Set the alarm timer.
•
View the alarm time.
•
Turn off the alarm tone.
b REPEAT ALARM/BRIGHTNESS CONTROL
•
Repeat the alarm.
•
Adjust the display brightness.
c SOURCE
•
Select a source: iPod, DAB, FM tuner, MP3 link or power
off (standby).
d SLEEP
•
Set the sleep timer.
e PRESET +/•
Select a preset radio station.
•
Adjust time.
f Display panel
•
Show current status.
g Dock compartment
h
i
•
•
•
Start or pause iPod play.
/
Skip to the previous/next audio file.
Search within an audio file.
j TUNING +/•
Tune to DAB/FM radio station.
•
Adjust time.
k INFO/MENU
•
Select DAB menu.
•
Display DAB and RDS information.
l WAKE TO iPod/DAB/FM/BUZZ
•
Select alarm mode.
m MP3-LINK
•
Jack for an external audio device.
n DC IN
•
Power supply socket.
o TIME SET/AUTO SCAN
•
Set the clock.
•
Scan DAB/FM radio stations.
p iPod dock
•
Load an iPod player.
q VOL +/•
Adjust volume.
•
Adjust time.
r SELECT
•
•
Program DAB/FM radio stations.
Confirm DAB menu selection.
3 Get started
Caution
•• Use of controls or adjustments or performance of procedures other
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number
of this apparatus. The model number and serial number are on the
bottom of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare DAB/FM antenna
1
Fully extend the antenna and fix it to the wall as shown below.
Connect power
Caution
•• Risk of product damage! Ensure that the power voltage corresponds
to the voltage printed on the back or underside of the apparatus.
•• Risk of electric shock! When you unplug the AC adaptor, always pull
the plug from the socket. Never pull the cord.
•• Before connecting the AC adaptor, ensure you have completed all
other connections.
Note
•• The type plate is located on the bottom of the main unit.
1
Connect one end of the AC adaptor to the DC IN socket on
the main unit.
TUNING –
INFO /
MENU
TIME SET /
AUTO SCAN
DAB FM
BUZZ
WAKE TO iPod
MP3-Link
DC IN
6.5V1.3A
TUNING +
2
Connect the other end of the AC adaptor to the wall outlet.
Set clock
1
2
3
4
5
6
7
8
9
In standby mode, press and hold TIME SET/AUTO SCAN for
2 seconds.
»» [SYNC ON] begins to blink.
Press TUNING +/- to select a sync mode and press
TIME SET/AUTO SCAN to confirm.
»» The 24H or 12H begins to blink
Press TUNING +/- to select the clock format.
»» The hour digits begin to blink.
Press TUNING +/- to set the hour.
Press TIME SET/AUTO SCAN.
»» The minute digits begin to blink.
Press TUNING +/- to set the minute.
Press TIME SET/AUTO SCAN to confirm.
Press TUNING +/- to set the year, month, and date.
Press TIME SET/AUTO SCAN to confirm.
Adjust volume
1
During play, press VOL +/- to increase/decrease the volume.
4 Play
Play from iPod
You can enjoy audio from iPod through this unit.
Compatible iPod
Apple iPod models with a 30-pin dock connector:
•
iPod classic, iPod touch, iPod nano, iPod 5th generation (video),
iPod with color display, iPod mini.
Load the iPod
1
Push to open the dock compartment.
2
Place the iPod in the dock.
Remove the iPod
1
Pull the iPod out of the dock.
Listen to the iPod
1
2
Ensure that the iPod is loaded correctly.
Press SOURCE repeatedly to select iPod source.
»» The connected iPod plays automatically.
•
To pause/resume play, press
.
•
To skip to a track, press
/
.
•
To search during play, press and hold
/
release to resume normal play.
, then
Charge the iPod
When the unit is connected to power, the docked iPod begins to
charge.
Play from an external device
You can also listen to an external audio device through this unit.
1 Press SOURCE repeatedly to select MP3 link source.
2 Connect the supplied MP3 link cable to:
•
the MP3-LINK jack (3.5mm) on the back of the unit.
•
the headphone jack on an external device.
3 Start to play the device (see the device user manual).
5 Listen to radio
Note
•• Only FM radio reception is available on this unit.
Listen to Digital Audio Broadcasts (DAB)
Digital Audio Broadcasting (DAB), is a way of broadcasting radio digitally
through a network of transmitters. It provides you with more choice,
better sound quality and more information.
1 Press SOURCE repeatedly to select [DAB].
»» When you enter the DAB mode for the first time, the unit
automatically scans DAB radio stations. The unit stores all
available DAB radio stations and then broadcasts the first
available station.
»» The last selected DAB radio station broadcasts automatically.
Tip
•• If no DAB service is available, [NO SERV] is displayed, and then
[Slect Manual] is displayed.
Tune to DAB radio station manually
1
2
3
Press SOURCE repeatedly to select [DAB].
Press TUNING +/- to navigate the service list.
Press SELECT to confirm the selected DAB radio station.
Scan DAB radio stations automatically
You can perform both full scan and local scan to search for DAB
radio stations.
•
Full scan: For users outside the UK. Wide range search.
•
Local scan: Only available in the UK. Small range search.
Full scan:
1 In DAB mode, press and hold TIME SET/AUTO SCAN for
more than two seconds.
»» The unit scans all available DAB radio stations and
broadcasts the first available station.
Local scan:
1 In DAB mode, press TIME SET/AUTO SCAN.
»» The unit scans all available local DAB radio stations and
broadcasts the first available station.
Program DAB radio stations manually
You can program a maximum of 20 preset DAB radio stations.
1 Tune to a DAB radio station.
2 Press PRESET +/- to select a preset number.
3
4
Press and hold SELECT for two seconds.
»» The preset number of the saved station appears.
Press PRESET +/- to select a preset number.
Show DAB information
1
2
Tune to a DAB radio station.
Press INFO/MENU repeatedly to scroll through the following
information (if available):
»» Dynamic label segment (DLS)
»» Program type (PTY)
»» Ensemble Name
»» Time
»» Channel and frequency
»» Bit rate and audio status
»» Signal error rate
Listen to FM radio
1
2
Press SOURCE repeatedly to select FM radio.
Press TUNING +/- to tune to a radio station.
To search for a radio station automatically:
1
2
Press TUNING +/-.
Press TIME SET/AUTO SCAN.
»» The FM tuner tunes to a station with strong reception
automatically.
Program radio stations automatically
You can program a maximum of 20 preset radio stations.
1 In the tuner mode, press and hold TIME SET/AUTO SCAN for
more than 2 seconds to activate automatic program mode.
»» [FM SCAN] is displayed.
»» All available stations are programmed in the order of
waveband reception strength.
»» The first programmed radio station is broadcast
automatically.
Program radio stations manually
You can program a maximum of 20 preset radio stations.
1 Tune to a radio station.
2 Press PRESET +/- to select a number.
3 Press and hold SELECT for more than 2 seconds.
»» [P XX saved] is displayed.
4
Repeat the above steps to program other stations.
Note
•• To overwrite a programmed station, store another station in its place.
Select a preset radio station
1
Press PRESET +/- to select a preset number.
Reset the preset radio stations
1
2
3
In FM/DAB mode, during broadcasting, press and hold
INFO/MENU.
»» [SELECT FACTORY] is displayed on the screen.
Press SELECT.
»» [CONFIRM Reset] is displayed on the screen.
Press SELECT to confirm.
»» All preset radio stations are cleared.
6 Other features
Set the alarm timer
You can set two alarms which go off at different time.
1 Ensure that you have set the clock correctly.
2 Press and hold ALARM 1 or ALARM 2 for 2 seconds.
»» The hour digits begin to blink.
3
4
5
6
7
8
Press TUNING +/- to set the hour.
Press ALARM 1 or ALARM 2 again.
»» The minute digits begin to blink.
Press TUNING +/- to set the minute.
Press ALARM 1 or ALARM 2 to confirm.
»» The weekdays begin to blink.
Press TUNING +/- to select whether to ring alarm on
weekdays or weekend.
Press ALARM 1 or ALARM 2 to confirm.
9
10
Press TUNING +/- to select alarm volume.
Press ALARM 1 or ALARM 2 to confirm.
Set alarm mode
1
Adjust the WAKE TO iPod/DAB/FM/BUZZ control to select
the source for the alarm.
»» When the alarm time comes, the selected iPod, radio or
buzzer turns on.
Tip
•• If iPod source is selected but no iPod is loaded, the buzzer is selected
automatically.
Activate and deactivate the alarm timer
1
Press ALARM 1 or ALARM 2 repeatedly to activate/deactivate
the timer.
Tip
•• If the alarm timer is turned on,
•• If the alarm timer is turned off,
AL1/ AL2 is displayed.
disappears.
Repeat alarm
1
When the alarm rings, press REPEAT ALARM/BRIGHTNESS
CONTROL.
»» The alarm repeats ringing minutes later.
Tip
•• You can press TUNING+/- to adjust interval (5-15minutes) to repeat
alarm.
Stop alarm ring
1
•
When the alarm rings, press the corresponding ALARM 1 or
ALARM 2.
»» The alarm stops but the alarm settings remain.
You also can press SLEEP/SOURCE.
»» If iPod is connected, the alarm stops and iPod plays
automatically.
View the alarm settings
1
Press ALARM 1 or ALARM 2.
Set the sleep timer
This unit can switch to standby automatically after a set period of time.
1 Press SLEEP repeatedly to select a set period of time (in minutes).
»» When the sleep timer is activated, the display shows .
To deactivate sleep timer
1 Press SLEEP repeatedly until [OFF] (off ) is displayed.
»» When the sleep timer is deactivated,
disappears on the
display.
Note
•• When the sleep timer is activated, the volume will gradually
decrease.
Adjust display brightness
1
Press BRIGHTNESS CONTROL repeatedly to select different
levels of display brightness.
7 Product information
Note
•• Product information is subject to change without prior notice.
Specifications
Amplifier
Rated Output Power
Signal to Noise Ratio
MP3 Link
2X1.5 W RMS
>55 dB
0.6 V RMS 10 kohm
Tuner
FM
Tuning Range
Tuning grid
Sensitivity
- Mono, 26dB S/N Ratio
- Stereo, 46dB S/N Ratio
Search Selectivity
Total Harmonic Distortion
Signal to Noise Ratio
87.5 - 108 MHz
50 KHz
<22 dBu
<45 dBu
<28 dBu
<3%
>45 dB
General information
AC power (power adaptor)
Input: 100-240V~, 50/60Hz, 0.4A;
Output: 6.5V
1.3A;
Brand name: Philips;
Model No.: AS090-065-AC130
<5W
Operation Power
Consumption
Standby Power Consumption <2W
Dimensions
-M
ain Unit (W x H x D)
144 x 144 x 62 mm
Weight
- Main Unit
0.45 kg
RDS program types
NO TYPE
NEWS
AFFAIRS
INFO
No RDS programme type
News services
Politics and current affairs
Special information programs
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
MOR M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATION M
OLDIES
FOLK M
DOCUMENT
TES
ALARM
Sports
Education and advanced training
Radio plays and literature
Culture, religion and society
Science
Entertainment programs
Pop music
Rock music
Light music
Light classical music
Classical music
Special music programs
Weather
Finance
Children’s programs
Social Affairs
Religion
Phone In
Travel
Leisure
Jazz Music
Country Music
National Music
Oldies Music
Folk Music
Documentary
Alarm Test
Alarm
About DAB
About Digital Audio Broadcasting (DAB)
DAB digital radio is a new way of broadcasting radio via a network
of terrestrial transmitters. It provides listeners with more choice and
information delivered in crystal clear, crackle-free sound quality.
– The technology allows the receiver to lock on to the strongest signal it
can find.
– With DAB digital stations there are no frequencies to remember, and
sets are tuned by station name, so there’s no returning on the move.
What is a multiplex?
Digital radio operation is made up of a single block of frequencies called
a multiplex. Each multiplex works within a frequency spectrum, such as
Band III for DAB broadcasts.
DAB BROADCASTERS AND DLS
Each DAB broadcaster (or multiplex operator) also provides text and
audio data services. Some programmes are supported by Dynamic
Label Segments (DLS).This is data which you can read as scrolling text
on your DAB radio display. Some stations transmit the latest news, travel,
and weather, what’s on now and next, website addresses and phone
numbers.
For more information on digital radio coverage and services, please visit:
www.drdb.org.
8 Troubleshooting
Warning
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome). When
you contact Philips, ensure that the apparatus is nearby and the model
number and serial number are available.
No power
••
Ensure that the AC power plug of the unit is connected
properly.
••
Ensure that there is power at the AC outlet.
No sound
••
Adjust the volume.
No response from the unit
••
Disconnect and reconnect the AC power plug, then turn on
the unit again.
Poor radio reception
••
Increase the distance between the unit and your TV or VCR.
••
Fully extend the FM antenna.
Timer does not work
••
Set the clock correctly.
••
Switch on the timer.
Clock/timer setting erased
••
Power has been interrupted or the power plug has been
disconnected.
••
Reset the clock/timer.
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
Printed in China
DCB210_05_UM_V2.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
