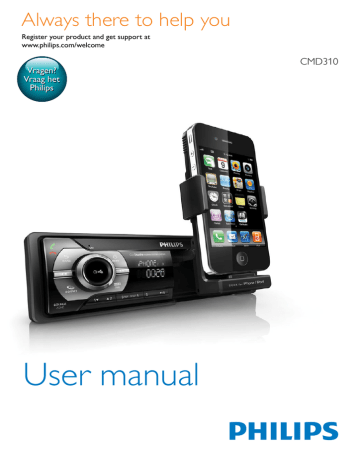

Always there to help you
Register your product and get support at
www.philips.com/welcome
Vragen?
Vraag het
Philips
User manual
CMD310
Contents
1 Important Safety Notice 3
3
3
9 Use the dock 19
19
19
20
20
21
21
21
22
22
22
10 Adjust sound 23
23
23
23
23
23
23
23
23
Compatible iPod/iPhone models Prepare for docking Load your iPhone or iPod touch Adjust the dock bracket Pair your iPhone via Bluetooth Enjoy audio through the dock Use the CarStudio application Charge your iPhone or iPod touch Undock your iPhone or iPod touch Store the dock bracket 2 Your car audio system 5
5
5
6
3 Before use 8
8
4 Get started 12
12
12
12
12
5 Listen to radio 13
13
13
13
13
14
14
11 Adjust system settings 24
12 Additional information 16
16
16
16
25
25
25
13 Product information 26
14 Troubleshooting 27
27
27
15 Glossary 28
Introduction What's in the box Overview of the system Install the car audio system Turn on Change system settings Set the clock Select a source Select a radio region Select a tuner sensitivity Tune to a radio station Store radio stations in memory Tune to a preset station Play with RDS 6 Use Bluetooth devices Pair a device Play audio from a Bluetooth device Make a call 7 Play from a USB storage device 17
17
8 Listen to an external device 18
Control play Adjust the volume level Mute sound Use the DBB sound effect Enable the max sound Select a listening zone Enable the full-range sound Select a preset sound equalizer Other sound settings Reset the system Replace the fuse General About Bluetooth device EN
2
1Important
•
•
Safety
Read and understand all instructions before you
use the device. If damage is caused by failure to
follow instructions, the warranty does not apply.
• Modification of the product could result
in hazardous radiation of EMC or other
unsafe operation.
• The device is designed for negative ground
(earth) 12 V DC operation only.
• To reduce the risk of traffic accidents, do
not pick up or make a phone call, nor
watch video when driving.
• To ensure safe driving, adjust the volume to
a safe and comfortable level.
• Improper fuses can cause damage or
fire. When you need to change the fuse,
consult a professional.
• Use only the supplied mounting hardware
for a safe and secure installation.
• To avoid short circuits, do not expose the
device, remote control or remote control
batteries to rain or water.
• The device shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on
the device (e.g. liquid filled objects, lighted
candles).
• Never insert objects into the ventilation
slots or other openings on the device.
• Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
• The dock is designed for iPhone and iPod
touch only. Do not connect any other
device to it.
• Risk of damage to the dock bracket: Do
not place or hang any object on it.
3
EN
Risk of firing or damage to the car audio
system: Do not place any other object into
the compartment for dock bracket.
Risk of damage to your iPhone or iPod
touch: Unload your iPhone or iPod touch
from the dock before you store the dock
bracket.
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Compliance
1177
This product complies with the radio
interference requirements of the European
Community.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Other trademarks and trade names are those
of their respective owners.
Copyright
2012 © Koninklijke Philips Electronics N.V.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Trademark notice
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
EN
4
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this system, you can:
• enjoy audio from USB storage devices,
iPhone, iPod touch, and other external
devices,
• listen to radio stations,
• charge your iPhone or iPod touch, and
• make phone calls.
You can enrich sound output with these sound
effects:
• Dynamic bass boost (DBB)
• Automatic loudness control
Playable media:
• USB storage device
• Compatibility: USB 2.0, USB 1.1
• Class support: MSC (Mass Storage
Class)
• File system: FAT16, FAT32
• Maximum capacity: 32 GB
• Files: .mp3, .wma V4, V7, V8, V9 (L1, L2)
• Sampling frequencies
MP3: 32 kHz, 44.1 kHz, 48 kHz
WMA: 44.1 kHz, 48 kHz
• Bitrates
MP3: 8-320 kbps and variable bitrates
WMA: 64-192 kbps and variable
bitrates
• ID3 tag
v2.0 or later
• Maximum number of albums/folders:
99
• Maximum number of tracks/files: 999
• Maximum level of directory: 8
5
EN
•
• Unsupported formats
AAC, WAV, PCM audio files
DRM protected WMA files (.wav, .m4a,
.m4p, .mp4, .aac)
WMA files in Lossless format
iPhone and iPod models
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPod touch (3rd and 4th generations)
What's in the box
Check and identify the contents of the package:
a
b
c
e
f
g
d
a Main unit and front panel (with a sleeve)
b Trim plate
c Rubber cushion
d 1 x Screw
e 2 x Disassembly tools
f User manual
g CD-ROM (for user manual)
Overview of the system
u t sr
q
p
on
a
b
c
d
ef
jk
ghi
a
b
c
d
e
• Press to answer or redial a call.
• Press to hang up a call.
l
f
• Tune to a radio station.
• Press to skip to the previous track.
• Press and hold to rewind a track.
• Press to enable or disable the full
sound.
• Press and hold to access the sound
setting menu.
• Press repeatedly to select a source.
• Press and hold to activate the selection
of listening zones.
• In radio mode, press to select the
preset radio station of No. 1.
• In radio mode, press and hold to store
the current radio station at channel No. 1.
• For .wma/.mp3 tracks, press to select
the next album/folder.
g
h
m
• In radio mode, press to select the
preset radio station of No. 2.
• In radio mode, press and hold to store
the current radio station at channel
No. 2.
• For .wma/.mp3 tracks, press to select
the previous album or folder.
• Press to enable or disable the
maximum volume.
• Press and hold to enable or disable
the DBB (dynamic bass boost) sound
effect.
• In radio mode, press to select the
preset radio station of No. 3.
• In radio mode, press and hold to store
the current radio station at channel
No. 3.
• For tracks, press to select a repeat
mode: repeat the current track, or
repeat all tracks in the current album
or folder.
EN
6
i
j
k
• In radio mode, press to select the
preset radio station of No. 4.
• In radio mode, press and hold to store
the current radio station at channel
No. 4.
• For tracks, press to start playing all
tracks in the current album or folder
randomly.
• In radio mode, press to select the
preset radio station of No. 5.
• In radio mode, press and hold to store
the current radio station at channel
No. 5.
• In radio mode, press to select the
preset radio station of No. 6.
• In radio mode, press and hold to store
the current radio station at channel
No. 6.
• Start, pause, or resume the play of
tracks.
l Dock for iPhone/iPod touch
m MP3-LINK
• Connect to the audio output socket
(usually the headphone socket) of an
external device.
n USB
• Connect to a USB storage device.
o RESET
• Press to reset the system to factory
default settings.
p
• Press to eject the dock bracket.
q LCD screen
7
EN
r
s
• Press once to display the system clock.
• Press and hold to access the system
menu.
• Press to turn on the system.
• Press and hold to turn off the system.
• Press to mute the system or release it
from mute status.
• Press to confirm an option.
• Rotate to switch between menu
options.
• Rotate to adjust the volume level.
t MIC
• Integrated microphone.
u
• Press to exit the current menu.
• Press repeatedly to select a tuner band.
• Press and hold to transfer a call.
3 Before use
Connect wires
The ISO male connectors are not supplied.
Caution
•• Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model number and serial number of your car
audio system. The model number and serial
number are on its bottom. Write the numbers
here:
Model No.: __________________________
Serial No.: ___________________________
Install the car audio system
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
Caution
•• This system is designed for negative ground (earth) 12V
DC operation only.
Caution
•• Make sure that all loose leads are insulated with
electrical tape.
1 Check the car’s wiring carefully and
connect them to the ISO male connectors.
h
a
b
c
g
d
f
e
Connector
1
2
•• Always install this system in the car dashboard. Other
locations can be dangerous as the rear of the system
heats up during use.
•• To avoid short-circuit: before you connect, make sure
that the ignition is off.
•• Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
•• Make sure that all loose leads are insulated with electrical tape.
•• Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
•• Make sure that all ground (earth) leads are run to a
common ground (earth) point.
•• Use only the supplied mounting hardware for a safe
and secure installation.
•• Improper fuses can cause damage or fire. When you
need to change the fuse, consult a professional.
•• When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
•• Never connect speaker wires to the metal body or chassis
of the car.
•• Never connect speaker wires with stripes to one another.
3
Connect to
Yellow wire
The +12V car battery
which is live at all times
Blue/White wire The electric antenna
control lead or power
supply lead of the
antenna booster. If there
is no electric antenna
or antenna booster, or
it is manually operated
telescopic antenna, it is
unnecessary to connect
this lead.
Black wire
A metal surface of the
car. Connect the black
ground (earth) lead
before connecting the
yellow and red power
supply leads.
EN
8
4
5
6
7
8
Connector
Connect to
Red wire
The +12V power
terminal which is live in
the accessory (ACC)
position of the ignition
switch. If there is no
accessory position,
connect to the +12V
car battery terminal that
is always live. Make sure
that the black ground
(earth) lead is connected
to a metal surface of the
car first.
Left speaker (rear)
Green and
green/black
wires
White and
white/black
wires
Gray and gray/
black wires
Purple and
purple/black
wires
2 Connect the other end of the standard
connector to the car audio system.
a
b
SUB-W
L
R
REAR LINE OUT
f
Left speaker (front)
Right speaker (front)
c
e
d
g
h
Right speaker (rear)
Connector
Connect to
1
2
ANTENNA
External Mic
3
SUBWOOFER
(Socket)
REAR LINE OUT L
(Socket)
REAR LINE OUT R
(Socket)
OE REMOTE
(Brown)
FRONT LINE OUT L
FRONT LINE OUT
R
Antenna for radio
An external
microphone for
phone call
Subwoofer
4
5
6
7
8
Rear left speaker
Rear right speaker
OE remote
Front left speaker
Front right speaker
Tip
•• The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the system.
9
EN
Mount into the dashboard
1 If the car does not have an on-board drive
18
53.5 mm
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected,
to avoid short-circuit, make sure that
the bare wires do not touch each
other.
3m
m
2 Make sure that the car dashboard opening
is within these measurements:
4 Place the supplied rubber cushion over the
end of the mounting bolt.
mm
5
mm
53mm
183
5 Slide the system into the sleeve until you
3 Install the sleeve into the dashboard and
hear a "click".
bend the tabs outward to fix the sleeve.
Note
•• If the system is not fixed by sleeve but by the supplied
screws, skip this step.
EN
10
6 Attach the trim plate.
7 Reconnect the negative terminal of the car
battery.
11
EN
4 Get started
»» If the clock is not set before, [00:00] is
displayed.
Turn on
3
4
5
6
Press
.
»» [WELCOME] scrolls.
Set the clock format
• To turn off the system, press and hold
until [GOODBYE] is displayed.
Rotate
Press
Rotate
Press
to set the hour.
to confirm.
to set the minute.
to confirm.
1 Press and hold
menu.
to access the system
2 Press
Change system settings
1 Press and hold
menu.
to access the system
2 Press
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
repeatedly to select an option.
[RDS]
[PTY >]
[RDS AF]
[RDS TA]
[RDS REG]
[RDS CT]
[STORE >]
[AREA]
[LOCAL]
[CLOCK]
[CLOCK 12H]
[BEEP]
[BKO]
[DIMMER]
[DEMO]
3 Rotate
to select a setting.
• To exit the setting, press .
Set the clock
1 Press and hold
menu.
2 Press
to access the system
repeatedly until [CLOCK] and
the current time are displayed.
repeatedly until [CLOCK 12H]or
[CLOCK 24H] is displayed.
3 Rotate
to select a setting.
• [CLOCK 12H]: 12-hour time format
• [CLOCK 24H]: 24-hour time format
Display the clock
Press
to display the clock.
• To exit, press any button.
Select a source
Note
•• When all other sources are unavailable, the system
switches the source to [RADIO] automatically.
Press
repeatedly to select a source.
• [RADIO]: FM/AM radio
• [MP3-LINK]: the audio input through the
MP3-LINK socket
• [BT AUDIO]: the audio transferred from a
Bluetooth device
• [USB]: When a USB storage device is
connected and recognized, you can select
this source to play audio files that are
stored on it.
• [iPHONE]: When an iPhone or iPod touch
is connected and recognized, you can
select this source to play the playlist of
iPhone or iPod touch.
EN
12
5 Listen to radio
Tune to a radio station
1 Press
repeatedly to switch the source
to [RADIO].
Select a radio region
You can select a radio region that matches your
location.
1 Press and hold
menu.
to access the system
2 Press
repeatedly until [AREA] is
displayed.
3 Rotate
•
•
•
•
•
•
•
•
to select an option.
[USA] (United States)
[EUR] (Western Europe)
[RUS] (Russia)
[AUS] (Australia)
[EAS] (Middle East)
[ASI] (Asia Pacific)
[JAP] (Japan)
[LAT] (Latin America)
Select a tuner sensitivity
To receive stations with strong signals only or
more radio stations, you can change the tuner
sensitivity.
1 Press and hold
menu.
to access the system
2 Press
repeatedly until [LOCAL] is
displayed.
3 Rotate
to select a setting.
• [LOCAL ON] (local on): Search
stations with strong signals only.
• [LOCAL OFF] (local off): Search
stations with strong and weak signals.
2 Press
repeatedly to select a band:
[FM1], [FM2], [FM3], [AM1], or [AM2].
3 Press and hold
or
frequency digits blink.
until the
4 Press
or
repeatedly to tune to a
radio station manually.
»» The radio station is broadcast.
• To search for a radio station
automatically, press
or
.
Store radio stations in
memory
Note
•• You can store a maximum of six stations in each band.
Store stations automatically
1 Press and hold
menu.
to access the system
2 Press
repeatedly until [STORE >] is
displayed.
3 Press
to confirm.
»» The strongest stations of the selected
band are saved in preset channels
automatically.
Store stations manually
1 Press repeatedly to select a band.
2 Tune to a radio station that you want to store.
3 Press and hold a numeric button for three
seconds.
»» The station is saved in the selected channel.
13
EN
4 Repeat steps 2 and 3 to store more radio
stations.
• To replace a radio station, store
another one in its channel.
Tune to a preset station
1 Press repeatedly to select a band.
2 Press a numeric key to select a preset
station.
Enable the RDS function
Note
•• The RDS function is enabled by default.
to access the system
2 Press
repeatedly until [RDS] is
displayed.
3 Rotate
to select [RDS ON].
»» The RDS function is enabled.
• To disable the RDS function, rotate
to select [RDS OFF].
Select a program type
Before tuning to RDS stations, you can select
a program type to search for programs of the
selected category only.
1 Press and hold
menu.
2 Press
Item
Program
type
1
2
NEWS
AFFAIRS
3
6
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name is displayed.
menu.
then press
4
5
Play with RDS
1 Press and hold
3 Press
4 Rotate
to access the system
repeatedly until [PTY >] is
displayed.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
to confirm.
to select a program type, and
to confirm.
Description
News services
Politics and current
affairs
INFO
Special information
programs
SPORT
Sports
EDUCATE
Education and advanced
training
DRAMA
Radio plays and
literature
CULTURE
Culture, religion and
society
SCIENCE
Science
VARIED
Entertainment programs
POP M
Pop music
ROCK M
Rock music
EASY M
Light music
LIGHT M
Light classical music
CLASSICS
Classical music
OTHER M
Special music programs
WEATHER
Weather
FINANCE
Finance
CHILDREN Children’s programs
SOCIAL
Social Affairs
RELIGION
Religion
PHONE IN
Phone In
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES
Oldies Music
FOLK M
Folk Music
DOCUMENT Documentary
TEST
Alarm Test
ALARM
Alarm
EN
14
Use alternate frequencies
If the signal of an RDS station is poor, enable
the AF (Alternate Frequency) function to search
for another station that transmits the same
program.
1 Press and hold
menu.
to access the system
2 Press
repeatedly until [RDS AF] is
displayed.
3 Rotate
to select a setting:
• [AF ON]: Enable the AF function.
• [AF OFF]: Disable the AF function.
Set the region for AF tuning
You can set the region for AF tuning:
[REG
ON]
[REG
OFF]
Only RDS stations in current
region can be tuned to
automatically.
All RDS stations can be tuned to
automatically.
1 Press and hold
menu.
to access the system
2 Press
repeatedly until [RDS REG] is
displayed.
3 Rotate
to select a setting.
Receive traffic announcement
If you do not want to miss traffic
announcement, enable the TA (Traffic
Announcement) function.
1 Press and hold
menu.
2 Press
to access the system
repeatedly until [RDS TA] is
displayed.
15
EN
3 Rotate
to select a setting:
• [TA ON]: When a traffic
announcement is on air, the system
automatically switches to the tuner
mode and begins to broadcast the
traffic announcement. When the traffic
announcement is over, the system
returns to the previous mode.
• [TA OFF]: Traffic announcement does
not cut in.
Tip
•• When a traffic announcement cuts in, you can press
to switch the system to the previous mode.
Synchronize the system clock
You can synchronize the system clock with an
RDS station that transmits time signals.
1 Press and hold
menu.
to access the system
2 Press
repeatedly until [RDS CT] is
displayed.
3 Rotate
to select a setting:
• [CT ON]: Synchronize the system
clock with the RDS station.
• [CT OFF]: Do not synchronize the
system clock.
Tip
•• The accuracy of time depends on the RDS station that
transmits the time signal.
6 Use Bluetooth
devices
With this car audio system, you can listen to
audio from a player or make a call through
Bluetooth.
Tip
•• You can also control the play on the Bluetooth device.
Make a call
Note
Pair a device
Note
•• Philips does not guarantee compatibility with all
Bluetooth devices.
•• Before pairing a device with this system, read its user
manual for compatibility.
On your device, follow the steps below.
•• Keep the Bluetooth connection active between the
system and your mobile.
Call a number
On your mobile, call a number.
»» [CALL---] is displayed.
Redial the last called number
1 Enable it to search for other Bluetooth
1 Press .
2 In the device list, select CMD310.
3 Enter the default password "0000".
2 Press
devices.
»» If the pairing is successful, [PAIRED] is
displayed.
• To disconnect the device, disable the
Bluetooth feature on it.
»» [REDIAL] is displayed.
to confirm.
»» [CALL---] is displayed.
Pick up an incoming call
When the system receives an incoming call, the
phone number or [PHONE IN] is displayed.
Press to answer the call.
Play audio from a Bluetooth
device
Reject an incoming call
1 Pair the Bluetooth device with this system.
2 Press
repeatedly to switch the source
End an call
to [BT AUDIO].
»» Play starts automatically.
• If play does not start, press
.
• To pause play, press
again.
• To skip to the previous or next track,
press
/
.
Press and hold
until [END] is displayed.
To end an on-going call, press .
Transfer voice to mobile
Press and hold
until [TRANSFER] is displayed.
»» The loudspeakers are muted, and the
voice comes from your mobile only.
EN
16
7 Play from a USB
storage device
This system can play .mp3 and .wma files that
are copied onto a compatible USB storage
device.
Control play
During play, follow the instructions below to
control play.
Buttons
/
Note
•• Philips does not guarantee compatibility with all USB
storage devices.
•• NTFS (New Technology File System) file system is not
supported.
RESET
1 Connect the USB storage device to the
socket.
2 Press
repeatedly until [USB] is
displayed.
»» Play starts automatically.
If play does not start automatically,
1 Press
2 Press
3 Press
17
EN
/
to select a folder.
/
to select a file.
to start play.
Functions
Pause or resume play.
/
Skip to the previous or next track.
Press and hold to rewind a track or
search forward fast within a track.
Skip to the previous or next
folder when one or more folders
exist.
Select a repeat mode.
• [REPEAT TRACK]: repeat the
current track
• [REPEAT ALL]: repeat all tracks
• [REPEAT FOLDER]: repeat all
tracks in the current folder
Enable or disable shuffle play.
• [SHUF FOLDER]: play all tracks
in the current folder randomly
• [SHUF ALL]: play all tracks
randomly
• [SHUF OFF]: play tracks in
sequence
8 Listen to an
external device
You can use the system to amplify the audio
input that is transferred from an external
device, for example, MP3 player.
1 Press
repeatedly to switch the source
to [MP3-LINK].
2 Connect the MP3 link cable to
• the MP3-LINK socket on the system,
and
• the audio output socket (usually the
headphone socket) on the external
device.
3 Play the external device.
EN
18
9 Use the dock
An application CarStudio is available in the
iTunes App Store for this car audio system. To
enjoy full features, download the application to
your iPhone or iPod touch.
Prepare for docking
1 Press
to eject the dock bracket.
Note
•• If the CarStudio application is not installed, a dialog box
prompts you to download it when your iPhone or iPod
touch is docked and recognized.
•• If the CarStudio application is installed, a dialog box
prompts you to launch it when your iPhone or iPod
touch is docked and recognized.
Compatible iPod/iPhone
models
This car audio system supports the following
iPod and iPhone models.
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPod touch (3rd and 4th generations)
2 Pull out the dock bracket until you hear a "click".
K
CLIC
3 Flip the dock bracket upwards.
4 Press and hold RELEASE to loosen the hooks.
19
EN
Load your iPhone or iPod
touch
Switch to landscape mode
Note
•• Before you turn the dock bracket anti-clockwise, make
Note
•• Before you load your iPhone or iPod touch, make sure
that the dock bracket is in portrait position.
1 Connect your iPhone or iPod touch to the
sure that you can see the indication line on its left side.
If not, pull the dock bracket outwards.
1 Turn the dock bracket anti-clockwise by 90
degrees.
dock with its screen facing you.
»» The system switches the source to
[iPHONE] automatically. If not, press
repeatedly to switch the source.
2 Adjust the viewing angle.
2 Pinch the hooks to secure your iPhone or
iPod touch.
Switch to portrait mode
1 Turn the dock bracket clockwise by 90
degrees.
Adjust the dock bracket
Caution
•• When the dock bracket is in portrait position, do not
turn it clockwise.
•• When the dock bracket is in landscape position, do not
turn it anti-clockwise.
EN
20
2 Adjust the viewing angle.
Use the CarStudio application
Note
•• To enjoy the latest features, update the application on
Pair your iPhone via
Bluetooth
Note
•• To use the hands-free function, pair your iPhone with
the car audio system via Bluetooth first.
•• Make sure that the Bluetooth feature is enabled on
your iPhone.
For an iPhone using iOS 4.X or under
• Manually complete the pairing. (Refer to
"Use Bluetooth devices" > "Pair a device")
For an iPhone using iOS 5.X
• For the first time, manually complete
the pairing. Afterwards, the pairing is
automatically complete after your iPhone is
docked and recognized.
Enjoy audio through the dock
If the CarStudio application is not installed on
your iPhone or iPod touch, follow the steps
below.
1 Turn on the car audio system.
2 Press
repeatedly to switch the source
to [iPHONE].
3 Play an audio file or radio station on your
iPhone or iPod touch.
21
EN
your iPhone or iPod touch when an update message
prompts.
•• After update, the interface and features may be
different from the description in this section. Follow the
actual operations.
•• To switch between portrait mode and landscape
mode smoothly, make sure that the auto-orientation
feature on your iPhone or iPod touch is set to
[Portrait Orientation Unlocked] (Portrait Orientation
Unlocked).
Portrait mode
In portrait mode, swipe the screen to use one
of the following features.
• Display available time and weather
information.
• Listen to the playlist on the iPhone or iPod
touch.
• Listen to radio.
• Change settings.
• Listen to audio that is transferred through
the MP3-LINK socket.
Landscape mode
In landscape mode, tap the icons to access the
following features.
• Listen to the playlist on the iPhone or iPod
touch.
• Listen to radio.
• Listen to audio that is transferred through
the MP3-LINK socket.
• Use the phone call.
• Change sound settings.
Charge your iPhone or iPod
touch
Once the iPhone or iPod touch is docked and
recognized, the charging starts.
Store the dock bracket
Note
•• Before storage, make sure that you have unloaded your
iPhone or iPod touch and pinched the hooks.
Undock your iPhone or iPod
touch
Note
1 Flip the dock bracket downwards until you
hear a "click".
»» You can see the indication line on top
of the dock panel. If not, pull the dock
panel outwards until you see it.
•• Before you undock your iPhone or iPod touch, make
sure that the dock bracket is in portrait position.
1 Press and hold RELEASE to loosen the
K
CLIC
hooks.
2 Push the dock panel inwards until you hear
a "click".
2 Pull out your iPhone or iPod touch.
CLICK
3 Flip up the cover.
Tip
•• For the safety of your property, undock your iPhone or
iPod touch before leaving your car.
EN
22
10Adjust sound
2 Rotate
The following operations are applicable to all
compatible media.
Enable the full-range sound
Adjust the volume level
Rotate
clockwise or anti-clockwise.
Mute sound
Press
.
• To restore sound, press
again.
Press and hold
until one of the following
settings is displayed.
• [DBB ON]: Dynamic bass boost (DBB) is
enabled.
• [DBB OFF]: DBB is disabled.
Enable the max sound
Press
repeatedly to select one of the
following settings.
• [MAX ON]: Use the maximum sound.
• [MAX OFF]: Return to the customized
sound.
Select a listening zone
until one of the
following settings is displayed.
• [ALL]: For all passengers
• [FRONT-L]: For the front-left seat only
• [FRONT-R]: For the front-right seat
only
23
EN
to select a setting.
Press
repeatedly to select one of the
following settings.
• [FULL ON]: Enable the full-range sound
• [FULL OFF]: Use the preset equalizer that
you select
Select a preset sound
equalizer
Use the DBB sound effect
1 Press and hold
• [FRONT]: For front passengers only
1 Press and hold
until [EQ] and the
name of current equalizer are displayed.
2 Rotate
to select one of the preset
sound equalizers.
• [FLAT] (flat)
• [POP] (pop)
• [ROCK] (rock)
• [JAZZ] (jazz)
• [CLASSIC] (classic)
• [TECHNO] (techno)
• [OPTIMAL] (optimal)
• [USER] (user settings)
Other sound settings
1 Press and hold
until [EQ] is displayed.
2 Press
repeatedly to select a setting.
• [BALANCE]: Balance of sound from
left and right speakers (12L to 12R)
• [FADER]: Fade of sound from front
and rear speakers (12R to 12F)
• [BASS]: Bass level (-7 to +7)
• [TREBLE]: Treble level (-7 to +7)
• [SUBW]: Enable or mute the
subwoofer
3 Rotate
clockwise or anti-clockwise
to change the setting.
11Adjust system
settings
1 Press and hold
menu.
to access the system
2 Press
repeatedly until one of the
following settings is displayed.
• [BEEP], [BKO], [DIMMER], or [DEMO]
3 Rotate
[BEEP]
[BKO]
[DIMMER]
[DEMO]
to change the setting.
[BEEP
ON]
[BEEP
OFF]
[BKO
10S]
Enable the beep
sound of buttons.
Disable the beep
sound of buttons.
Turn off the screen
automatically 10
seconds after the last
operation.
[BKO
Turn off the screen
20S]
automatically 20
seconds after the last
operation.
[BKO
Never turn off the
OFF]
screen automatically.
[DIMMER Increase the
HIGH]
brightness level of the
screen.
[DIMMER Decrease the
LOW]
brightness level of the
screen.
[DEMO Demonstrate all
ON]
features after the
system stays inactive
for 120 seconds.
[DEMO Disable the demo
OFF]
mode.
EN
24
12Additional
information
Reset the system
You can reset the system to factory default
settings.
Replace the fuse
If there is no power, check the fuse and replace
it if it is damaged.
1 Detach the system from dashboard.
2 Check the electric connection.
3 Remove the damaged fuse from the rear
panel.
4 Insert a new fuse with the same
specifications (15 A).
SUB-W
L
R
REAR LINE OUT
1 Open the protective cover for the USB
socket, MP3-LINK socket, and RESET
button.
2 Press RESET with the tip of a ball-point
pen or toothpick.
»» The system is reset.
Note
•• If the fuse gets damaged immediately after it is replaced,
an internal malfunction may occur. In this case, consult
your Philips retailer.
25
EN
13Product
information
Note
•• Product information is subject to change without prior
Bluetooth
Output
power
Frequency
band
Range
Standard
0 dBm (Class 2)
2.4000 GHz - 2.4835 GHz ISM
Band
3 meters(free space)
Bluetooth 2.0 specification
notice.
Power supply
12 V DC (11V - 16V),
negative ground
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous power
output
15 A
4-8
50 W x 4 channels
22 W x 4 RMS (4
10% T.H.D.)
Pre-Amp output
voltage
Aux-in level
Dimensions (W x H x D)
Weight
2.5 V
500 mV
188 x 58 x 199.5 mm
1.32 kg
Radio
Frequency range
- FM
Frequency range AM(MW)
Usable sensitivity
- FM
Usable sensitivity AM(MW) (S/N =
20 dB)
87.5-108.0 MHz (100
kHz per step in auto
search and 50 kHz per
step in manual search)
522-1620 kHz (9 kHz)
530-1710 kHz (10 kHz)
8 µV
30 µV
EN
26
14Troubleshooting
Warning
•• Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page
(www.philips.com/support). When you contact
Philips, make sure that the product is nearby
and the model number and serial number are
available.
General
No power or no sound.
•• The power supply from car battery is cut
off, or the car battery runs out of energy.
Power the system with car battery.
•• Car engine is not on. Turn the car engine on.
•• Cable is not correctly connected. Check
connections.
•• Fuse is burnt. Replace fuse.
•• Volume is too low. Adjust volume.
•• If the above solutions cannot help, press
the RESET button.
•• Make sure that the current track is in a
compatible format.
Noise in broadcasts.
•• Signals are too weak. Select other stations
with stronger signals.
•• Check the connection of the car antenna.
•• Change the broadcast setting from stereo
to mono.
Preset stations lost.
•• Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display show ERR-12
•• USB data error. Check the USB storage device.
27
EN
GPS signal reception of the iPhone or iPod
touch is poor.
• Remove the iPhone or iPod touch from
the dock, and place it in aother location for
better signal reception.
About Bluetooth device
Cannot pair the Bluetooth enabled device
with the car audio system.
•• The device does not support the profiles
required for the system.
•• The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
The audio quality is poor after connection
with a Bluetooth-enabled device.
•• The microphone is not correctly
positioned. Adjust the position of the
microphone. For example, stick the
microphone onto the dashboard where
close to the driver.
•• The Bluetooth reception is poor. Move the
device closer to the car audio system or
remove any obstacle between the device
and the system.
Music playback is unavailable on the system
even after successful Bluetooth connection.
• The device cannot be used with the
system to play music.
The paired mobile phone connects and
disconnects constantly.
•• The Bluetooth reception is poor. Move
the mobile phone closer to the car audio
system or remove any obstacle between
the mobile phone and the system.
•• Some mobile phones may connect and
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
•• For some mobile phones, the Bluetooth
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
15Glossary
M
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
EN
28
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
CMD310_12_UM_V2.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
