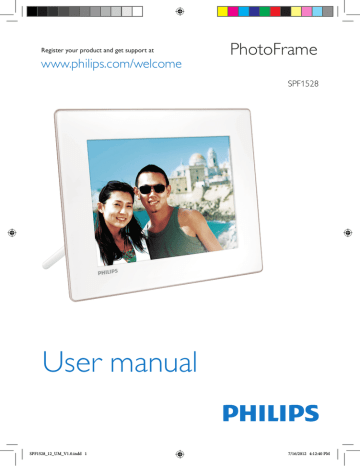

PhotoFrame
SPF1528
User manual
SPF1528_12_UM_V1.0.indd 1
7/16/2012 4:12:40 PM
Contents
1Important
2
Safety2
Notice2
Banned Substance Declaration
3
8 Upgrade the PhotoFrame
16
9 Product information
17
10 Frequently asked questions
18
11Glossary
19
2 Your PhotoFrame
4
Introduction4
Playable media
4
What's in the box
4
Overview of your PhotoFrame
5
3 Get started
Install the stand
Connect power
Turn on the PhotoFrame
Transfer photos
Quick menu
6
6
6
7
7
8
4 Display photos
9
9
10
5 Play videos
11
11
6 Clock and calendar
12
12
7Setup
13
13
13
13
14
14
15
15
15
Manage slideshow and photos
Manage albums and media
Manage video files
Clock menu
Select an on-screen language
Adjust display brightness
Set time and date
Set SmartPower timer
Hibernate the PhotoFrame
Slideshow setting
View the status of the PhotoFrame
Restore factory defaults
Need help?
Please visit www.philips.com/welcome where
you can access a full set of supporting materials
such as user manual, the latest software updates
and answers to frequently asked questions.
EN
SPF1528_12_UM_V1.0.indd 1
1
7/16/2012 4:12:40 PM
1Important
Safety
Safety precautions and maintenance
•
•
•
•
•
•
•
•
•
2
Never touch, push, rub or strike the screen
with hard objects as this may damage the
screen permanently.
When the product is not used for long
periods, unplug it.
Before you clean the screen, turn off
and unplug the power cord. Only clean
the screen with a soft, water-damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners to clean
the product.
Never place the product near naked
flames or other heat sources, including
direct sunlight.
Never expose the product to rain or
water. Never place liquid containers, such
as vases, near the product.
Never drop the product. When you drop
the product, it will be damaged.
Ensure that you install and use services or
software only from trustworthy sources
free of virus or harmful software.
This product is designed for indoor use
only.
Only use the supplied power adaptor for
the product.
Notice
This product is in compliance with the essential
requirements and other relevant provisions
of Directives 2006/95/EC (Low Voltage),
2004/108/EC (EMC).
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
End of life disposal
•
Your new product contains materials that
can be recycled and reused. Specialized
companies can recycle your product to
increase the amount of reusable materials
and to minimize the amount to be
disposed of.
• Please find out about the local regulations
on how to dispose your old monitor from
your local Philips dealer.
• (For customers in Canada and U.S.A.)
Dispose the old product in accordance to
local-state and federal regulations.
For additional information on recycling contact
www.eia.org (Consumer Education Initiative).
EN
SPF1528_12_UM_V1.0.indd 2
7/16/2012 4:12:41 PM
Recycling Information for Customers
Philips establishes technically and economically
viable objectives to optimize the environmental
performance of the organization's product,
service and activities.
From the planning, design and production
stages, Philips emphasizes the importance of
making products that can easily be recycled. At
Philips, end-of-life management primarily entails
participation in national take-back initiatives
and recycling programs whenever possible,
preferably in cooperation with competitors.
There is currently a system of recycling up and
running in the European countries, such as The
Netherlands, Belgium, Norway, Sweden and
Denmark.
In U.S.A., Philips Consumer Lifestyle North
America has contributed funds for the
Electronic Industries Alliance (EIA) Electronics
Recycling Project and state recycling initiatives
for end-of-life electronics products from
household sources. In addition, the Northeast
Recycling Council (NERC) - a multi-state
non-profit organization focused on promoting
recycling market development - plans to
implement a recycling program.
In Asia Pacific, Taiwan, the products can be taken
back by Environment Protection Administration
(EPA) to follow the IT product recycling
management process, detail can be found in
web site www.epa.gov.tw.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Banned Substance
Declaration
This product complies with RoHS.
EN
SPF1528_12_UM_V1.0.indd 3
3
7/16/2012 4:12:41 PM
2Your
PhotoFrame
•
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
•
MOV, MP4
• Video codec: MPEG-4, H.264
• Audio codec: PCM (128–536 kbps,
8–48 kHz), ADPCM (32–384 kbps,
8–48 kHz), AAC (8–256 kbps, 8–48
kHz)
DivX, Xvid, and VC1 are not supported.
What's in the box
Introduction
With this Philips Digital PhotoFrame, you can
display photos in high quality and play videos
directly from your memories card or USB flash
drive.
Playable media
• JPG, JPEG
• Baseline: < 8000 x 8000 pixels
• Progressive: < 800 x 600 pixels
• BMP
• > 64 x 64 pixels
Video
• Resolution: 1080p
• Bitrate: 20 Mbps
• Frame rate: 30 fps
• AVI
• Video codec: MPEG-4 (Part 2), H.264,
M-JPEG
• Audio codec: PCM (128–536 kbps,
8–48 kHz), ADPCM (32–384 kbps,
8–48 kHz), AAC (8–256 kbps, 8–48
kHz)
• TS, TMS
• Video codec: H.264
• Audio codec: LPCM (192–448 kbps,
48–96 kHz), AAC (8–256 kbps, 8–48
kHz)
4
•
Philips Digital PhotoFrame
•
Stand
•
AC-DC power adaptor
Register your product and get support at
www.philips.com/welcome
PhotoFrame
User Manual
•
User manual
EN
SPF1528_12_UM_V1.0.indd 4
7/16/2012 4:12:42 PM
Overview of your
PhotoFrame
a
b
c
j
d
i
e
06063UR
h
f
a
b
BACK|POWER
• Hold to turn on/off the PhotoFrame.
• Press to go to the home screen.
• Press to go back.
/
/ /
• Press to select the upper/lower/right/
left option.
g
g
h
SD/MMC/MS/MS Pro
• Slot for an SD/MMC/MS/MS Pro card
Kensington lock
i Stand hole
j Wall mounting hole
c OK
• Press to play/pause slideshow.
• Press to confirm a selection.
d MENU
• Press to enter/exit a menu.
e USB socket
f DC
• Socket for the AC-DC power adaptor.
EN
SPF1528_12_UM_V1.0.indd 5
5
7/16/2012 4:12:43 PM
3 Get started
3
Turn the stand anti-clockwise 45 degrees
to the position and lock it to the
PhotoFrame firmly.
Caution
•• Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
back of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install the stand
To place the PhotoFrame on a flat surface,
attach the supplied stand to the back of the
PhotoFrame.
1
2
Connect power
Note
•• When you position the PhotoFrame, make sure that
the power plug and outlet are easily accessible.
Insert the stand into the PhotoFrame.
Position the indication on the stand to the
position.
Connect the supplied power adaptor to:
• the DC socket of the PhotoFrame
• the AC outlet
»» A few seconds later, the PhotoFrame
turns on automatically.
6
EN
SPF1528_12_UM_V1.0.indd 6
7/16/2012 4:12:44 PM
Turn on the PhotoFrame
Turn off the PhotoFrame
Note
Note
•• When you connect the PhotoFrame to a power supply,
•• You can only turn off the PhotoFrame after all copy and
save actions are complete.
the PhotoFrame turns on automatically.
When the PhotoFrame is turned off and
connected to the power supply, you can press
BACK|POWER to turn on the PhotoFrame.
»» A few seconds later, the home screen
is displayed.
•
To turn off the PhotoFrame, press and hold
BACK|POWER for 2 seconds.
Transfer photos
Caution
•• Do not remove a storage device from the PhotoFrame
when you are transferring photos from the storage
device.
•• Philips does not guarantee the compatibility with all
types of storage device media.
For the first time you turn on the
PhotoFrame:
The screen prompts you to select a language.
You can play photos on one of the following
storage device that is connected to the
PhotoFrame:
• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• Multimedia Card (MMC)
• Memory Stick (MS)
• Memory Stick Pro (MS Pro, with adaptor)
• USB flash drive
1
Insert a storage device into the slot.
• Press / to select a language, and
then press OK to confirm.
EN
SPF1528_12_UM_V1.0.indd 7
7
7/16/2012 4:12:45 PM
Quick menu
1
In the home screen, press MENU.
»» The quick menu is displayed.
»» A confirmation message is displayed.
2
3
2
• [Play Photos]: Select it to play media
on the storage device.
• [Browse]: Select it to browse media
on the storage device.
• [Copy to PhotoFrame]: Select it to
start transfer operation.
•
Select an option, and then press OK.
Follow the on-screen instructions to adjust
the brightness or view the status of the
PhotoFrame.
To exit the quick menu, press MENU
repeatedly.
Select [Copy to PhotoFrame], and then
press OK.
»» A confirmation message is displayed.
To copy photos to the PhotoFrame:
Select [Yes], and then press OK to confirm.
To display photos directly:
1
2
Select [No], and then press OK to
confirm.
•
Select [Photo], and then press OK.
To remove a storage device, pull it out.
8
EN
SPF1528_12_UM_V1.0.indd 8
7/16/2012 4:12:45 PM
4 Display photos
Manage slideshow and photos
You can take the following steps to manage
the photo in slideshow mode or change the
slideshow settings:
1
1
In the home menu, press / to select
[Photo] and then press OK.
»» The [Browse] interface is displayed.
2
•
2
3
•
Press MENU.
»» An option menu is displayed.
Select a storage device and then select a
photo thumbnail.
Press OK.
»» Photos are displayed in slideshow
mode.
During slideshow, press
next/previous photo.
/
to display the
•
•
•
•
•
Select an option, and then press OK.
[Slideshow Settings]
• [Interval]: Set the interval in slideshow.
• [Shuffle]: Play media randomly or not.
• [Color Tone]: Select the color for the
photo.
• [Transition Effect]: Select the transition
effect.
• [Background Color]: Select the
background color.
[Zoom]: Zoom and crop a photo.
[Rotate]: Select an orientation to rotate
the photo.
[Copy]: Copy the photo to another album.
[Delete]: Delete the photo.
[Brightness]: Move the joystick up/down to
adjust the brightness of display.
EN
SPF1528_12_UM_V1.0.indd 9
9
7/16/2012 4:12:46 PM
Manage albums and media
3
Storage device
1
2
Select a storage device: [PhotoAlbum],
[SD/MMC Card], or [USB Drive].
Press MENU.
»» An option menu is displayed.
Select an option, and then press OK to
continue.
• [Copy]: Copy this photo to another
storage device
• [Delete]: Delete this photo
• [Color Tone]: Select a color for this
Copy media
1
2
Select [Copy], and then press OK.
Select a destination storage device, and
then press OK to start copy.
Delete media
1
2
3
Select an option, and then press OK to
continue.
• [Copy]: Copy media on the storage
device to another one
• [Delete]: Delete media on the storage
device
Select [Delete], and then press OK.
»» A confirmation message is displayed.
Select [Yes], and then press OK to start
deletion.
• To cancel the operation, press
BACK|POWER.
Thumbnail
1
2
10
Select a photo thumbnail.
Press MENU.
»» An option menu is displayed.
EN
SPF1528_12_UM_V1.0.indd 10
7/16/2012 4:12:47 PM
5 Play videos
Note
•• See "Your PhotoFrame" > "Playable media" for
supported video formats.
•• Some video files in the list cannot be played due to the
compatibility.
1
2
Manage video files
1
2
Select a video file, and then press MENU.
Select an option, and then press OK.
• [Copy]: Copy this file to another
storage device
• [Delete]: Delete this file
• [Repeat]: Select a play mode between
[Play Once] and [Play in Loop]
In the home menu, press / to select
[Video], and then press OK.
»» The following interface is displayed.
Select a video file and then press OK.
»» The video starts play.
• To pause/resume play, press OK.
• To adjust the volume, press / .
EN
SPF1528_12_UM_V1.0.indd 11
11
7/16/2012 4:12:47 PM
6 Clock and
calendar
Clock menu
1
With the clock displayed, press MENU.
»» An option menu is displayed.
You can display clock and calendar in slideshow
or display the clock separately.
1
2
Make sure that you have set the time and
date correctly.
In the home menu, press /
[Clock], and then press OK.
to select
2
3
12
Select an option and then press OK.
• [Select Clock]: Press / to preview
clock/calendar styles, and then press
OK to select the highlighted one.
• [Time and Date]: Set the time and
date.
Press / to select different clock/
calendar display mode.
EN
SPF1528_12_UM_V1.0.indd 12
7/16/2012 4:12:48 PM
7Setup
In the home menu, press / to select
[Settings], and then press OK.
Adjust display brightness
1
2
Select an on-screen language
1
Select [Language], and then press OK.
2
Select a language, and then press OK.
Select [Brightness], and then press OK.
Press / to select a brightness level,
and then press OK.
Set time and date
1
2
Select [Time and Date], and then press
OK.
Select [Set Time], [Set Date], [Select Time
Format], or [Select Date Format], and
then press OK.
EN
SPF1528_12_UM_V1.0.indd 13
13
7/16/2012 4:12:49 PM
3
Press / / /
then press OK.
to set the value, and
3
•
Note
•• If the PhotoFrame is disconnected from the power
supply for a long time, you need set time and date again
after you turn on the PhotoFrame.
Move the joystick up/down/right/left to set
time, and then press OK.
To switch off the SmartPower function,
select [Off] and then press OK.
Tip
•• When the PhotoFrame is in standby (sleep) mode, you
can press
Set SmartPower timer
With the SmartPower timer, you can configure
the time for the display of the PhotoFrame to
turn on or turn off automatically. When the
display automatically turns off, the PhotoFrame
goes to standby (sleep) mode.
to wake up the PhotoFrame.
Hibernate the PhotoFrame
1
Select [Hibernate], and then press OK.
Note
•• Make sure that the current time of the PhotoFrame is
set correctly.
1
Select [SmartPower], and then press OK.
2
Select an option, and then press OK.
»» After the selected period, the
PhotoFrame hibernates.
• To disable the hibernation function,
select [Never] and then press OK.
• To wake up the PhotoFrame, press .
2
14
Select [Set On-Time] / [Set Off-Time],
and then press OK.
EN
SPF1528_12_UM_V1.0.indd 14
7/16/2012 4:12:50 PM
Slideshow setting
1
2
3
Select [Slideshow], and then press OK.
Select an item and then press OK.
• [Interval]: Select a time interval for
two consecutive photos
• [Shuffle]: Display photos randomly
• [Transition Effect]: Select a transition
effect
• [Background Color]: Select a
background type for slideshow
Select an option, and then press OK.
View the status of the
PhotoFrame
Select [Info].
»» The information of the PhotoFrame is
displayed on the right of the screen.
Restore factory defaults
1
2
Select [Default Settings], and then press
OK.
»» A confirmation message is displayed.
Select [Yes], and then press OK.
EN
SPF1528_12_UM_V1.0.indd 15
15
7/16/2012 4:12:50 PM
8 Upgrade the
PhotoFrame
Caution
•• Do not power off the PhotoFrame during upgrade.
If there is a software update, you can download
the latest software from www.philips.com/
support to upgrade your PhotoFrame. The
earlier software is unavailable on line.
1
2
3
4
5
6
16
Visit www.philips.com/support.
Search for your PhotoFrame and go to the
software section.
Download the latest software onto the
root directory of an SD card.
Insert the SD card into the PhotoFrame.
Turn on the PhotoFrame
»» A confirmation message is displayed.
Select [Yes], and then press OK to
confirm.
»» When the upgrade is complete, the
PhotoFrame reboots.
EN
SPF1528_12_UM_V1.0.indd 16
7/16/2012 4:12:51 PM
9Product
information
Note
•• Product information is subject to change without prior
notice.
Picture/Display
• Viewing angle: @ C/R > 10, 120° (H)/100°
(V)
• Lifetime, to 50% brightness: 20000 hr
• Aspect ratio: 4:3
• Panel visible resolution: 800 x 600
• Best-fit photo resolution: 800 x 600
• Brightness (typical): 160 cd/m²
• Contrast ratio (typical): 300:1
• Photo format supported:
• Baseline JPEG photo (Up to 20 MB
JPEG files, Up to 64 Megapixels)
• Progressive JPEG photo (Up to 800 x
600 pixels)
• BMP photo (Higher than 64 x 64
pixels)
Storage media
• Memory card types:
• Secure Digital (SD)
• Secure Digital (SDHC)
• Multimedia Card (MMC)
• Memory Stick (MS)
• Memory Stick Pro (MS Pro)
• USB storage device:
• Compatibility: USB 2.0
• Class support: MSC (Mass Storage
Class)
• Maximum memory: 64 GB
• File system: FAT32
• Maximum number of files: 10,000
• Maximum level of directory: 5
• Built-in memory capacity: 2 GB
Dimensions & Weight
• Set dimensions without stand (W x H
x D): 205.5 x 138 x 25 mm
• Set dimensions with stand (W x H x D):
205.5 x 138 x 102.5 mm
• Weight without stand: 0.31 kg
Power
• Power mode supported: AC powered
• Efficiency level: V
• Average consumption (system on): 5 W
• Power adaptor:
• Model number: AY5808/12
• Input: AC 100-240 V~, 50/60 Hz, 0.45
A
• Output: DC 9 V
1000 mA
Temperature
• Operation: 0°C - 40°C/32°F - 104°F
• Storage: -10°C - 60°C/14°F - 140°F
EN
SPF1528_12_UM_V1.0.indd 17
17
7/16/2012 4:12:51 PM
10Frequently
asked questions
Is the LCD screen touch-enabled?
The LCD screen is not touch-enabled. Use the
buttons on the back to control the PhotoFrame.
Can I switch different slideshow photos by
using different memory cards?
Yes. When a memory card is connected to
the PhotoFrame, you can play photos on the
specific memory card in slideshow mode.
Will the LCD be damaged, if I keep showing
the same photo for a long time?
No. The PhotoFrame can display the same
photo continuously for 72 hours without any
damage to the LCD screen.
Why does my PhotoFrame not show some of
my photos?
The PhotoFrame supports only JPEG and BMP
photos. Make sure that these photos are not
damaged.
Why does my PhotoFrame not show some of
my video files?
• The PhotoFrame plays most video clips
of a digital still camera in M-JPEG (*.avi/*.
mov), MPEG-1 (*.mpg/*.dat/*.avi/*.mov),
and MPEG-4 (*.avi/*.mov/*.mp4) format.
Some video clips might have compatibility
issues when played on your PhotoFrame.
Before playing, make sure that these video
clips are compatible with your PhotoFrame.
(For details, see "Your PhotoFrame" >
"Playable media" in the User Manual)
• Make sure that the size of the video files
are applicable to your PhotoFrame.
• Make sure that the video files are not
damaged.
Can I use the PhotoFrame during its display
auto-off periods?
18
Yes. You can press and hold to wake up the
PhotoFrame.
Why does the PhotoFrame not go into autooff status after I set it?
Ensure that you set the current time, autooff time, and auto-on time correctly. The
PhotoFrame automatically turns off its display
exactly at the auto-off time. If the time has
already passed for the day, it starts to enter
auto-off status at the specified time from the
next day.
Can I increase the memory size to store more
pictures on the PhotoFrame?
No. The internal memory of the PhotoFrame is
fixed and cannot be expanded. However, you
could switch between different photos by using
different storage devices on the PhotoFrame.
After I insert a memory card and transfer all
content to the PhotoFrame, I find that the
folder structure saved on the PhotoFrame is
different from the original structure on the
memory card. Why?
The PhotoFrame can only read a folder
structure up to 3 levels and write on only
1-level folder structure. In that case, photos
on a memory card, which are in folders with
the same name but in different levels, will be
saved in the same folder on the PhotoFrame.
For example, photos in folders "\AA", "\01\
AA" and "\02\AA" on a memory card will all
be copied into the folder named "\AA" on the
PhotoFrame.
What is the best resolution of photos to be
displayed on the PhotoFrame?
The best resolution is 800 x 600 pixels, or a
similar aspect ratio.
Why does the PhotoFrame automatically turn
off?
If you enable the SmartPower function, the
PhotoFrame automatically turns off at the
preset time. For details, see section "Set display
auto on/off".
EN
SPF1528_12_UM_V1.0.indd 18
7/16/2012 4:12:51 PM
11Glossary
M
A
Memory Stick
Memory Stick. A flash memory card for digital
storage on cameras, camcorders and other
handheld devices.
Aspect ratio
Aspect ratio refers to the length to height ratio
of TV screens. The ratio of a standard TV is 4:3,
while the ratio of a high-definition or wide TV
is 16:9. The letter box allows you to enjoy a
picture with a wider perspective on a standard
4:3 screen.
J
JPEG
A very common digital still picture format. A
still-picture data compression system proposed
by the Joint Photographic Expert Group, which
features small decrease in image quality in
spite of its high compression ratio. Files are
recognized by their file extension ‘.jpg' or '.jpeg.’
K
Kbps
Kilobits per second. A digital-data-rate
measurement system which is often used with
highly compressed formats such as AAC, DAB,
MP3 etc. The higher the amount, the better the
quality generally is.
Kensington lock
A Kensington Security Slot (also called a K-Slot
or Kensington lock). Part of an anti-theft system.
It is a small, metal-reinforced hole found on
almost all small or portable computer and
electronics equipment, particularly on expensive
and/or relatively light ones, such as laptops,
computer monitors, desktop computers,
gaming consoles, and video projectors. It is
used for attaching a lock-and-cable apparatus, in
particular those from Kensington.
MMC Card
MultiMedia Card. A flash memory card that
provides storage for cellphones, PDAs and
other handheld devices. The card uses flash
memory for read/write applications or ROM
chips (ROM-MMC) for static information, the
latter widely used for adding applications to a
Palm PDA.
S
SD Card
Secure Digital Memory Card. A flash memory
card that provides storage for digital cameras,
cellphones and PDAs. SD Cards use the same
32 x 24mm form factor as the MultiMediaCard
(MMC), but are slightly thicker (2.1mm vs.
1.4mm), and SD Card readers accept both
formats. Cards up to 4GB are available.
T
Thumbnail
A thumbnail is reduced-size versions of a
picture that is used to make it easier to
recognize an them. Thumbnails serve the same
role for images as a normal text index does for
words.
EN
SPF1528_12_UM_V1.0.indd 19
19
7/16/2012 4:12:51 PM
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
UM_V1.0
SPF1528_12_UM_V1.0.indd 20
7/16/2012 4:12:51 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
