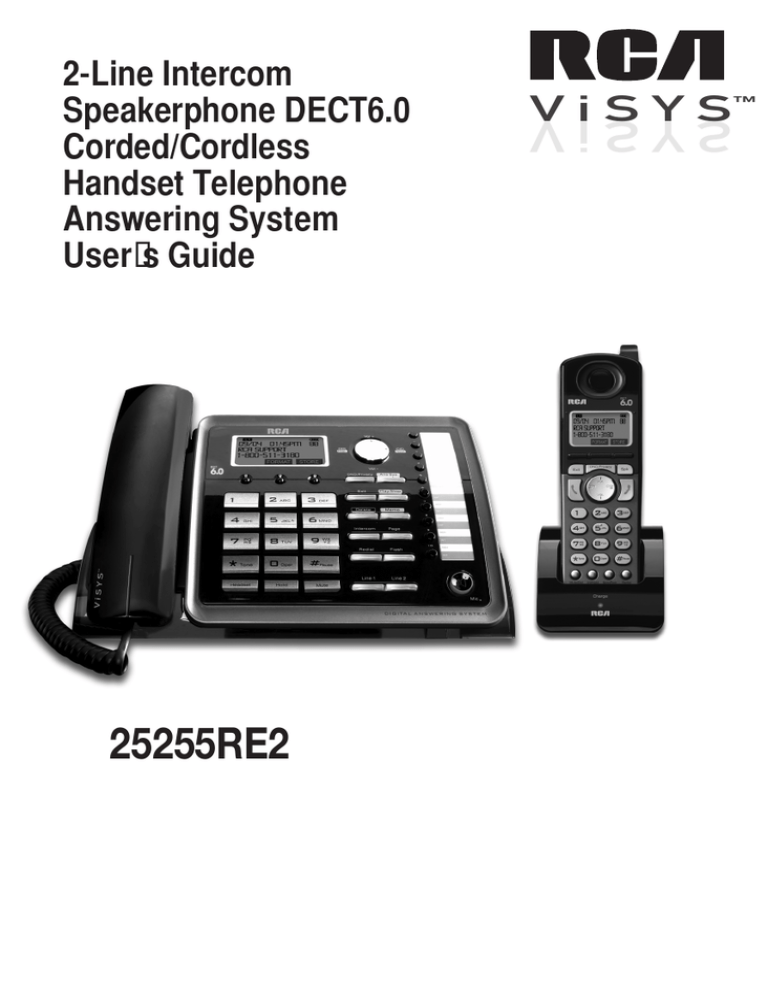

2-Line Intercom
Speakerphone DECT6.0
Corded/Cordless
Handset Telephone
Answering System
User’s Guide
25255RE2
ViSYS
™
Equipment Approval Information
Your telephone equipment is approved for connection to the Public Switched Telephone
Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the
Technical Requirements for Telephone Terminal Equipment published by ACTA.
1
Notification to the Local Telephone Company
On the bottom of this equipment is a label indicating, among other information, the
US number and Ringer Equivalence Number (REN) for the equipment. You must, upon
request, provide this information to your telephone company.
The REN is useful in determining the number of devices you may connect to your
telephone line and still have all of these devices ring when your telephone number is
called. In most (but not all) areas, the sum of the RENs of all devices connected to one
line should not exceed 5. To be certain of the number of devices you may connect to
your line as determined by the REN, you should contact your local telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular jack that is also
compliant. See installation instructions for details.
Notes
•
This equipment may not be used on coin service provided by the telephone company.
•
Party lines are subject to state tariffs, and therefore, you may not be able to use your
own telephone equipment if you are on a party line. Check with your local telephone
company.
•
Notice must be given to the telephone company upon permanent disconnection of
your telephone from your line.
•
If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this product does not disable your alarm equipment. If you
have questions about what will disable alarm equipment, consult your telephone
company or a qualified installer.
US Number is located on the cabinet bottom
2
Rights of the Telephone Company
REN number is located on the cabinet bottom
Should your equipment cause trouble on your line which may harm the telephone
network, the telephone company shall, where practicable, notify you that temporary
discontinuance of service may be required. Where prior notice is not practicable and
the circumstances warrant such action, the telephone company may temporarily
discontinue service immediately. In case of such temporary discontinuance, the
telephone company must: (1) promptly notify you of such temporary discontinuance;
(2) afford you the opportunity to correct the situation; and (3) inform you of your right to
bring a complaint to the Commission pursuant to procedures set forth in Subpart E of
Part 68, FCC Rules and Regulations.
2
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body. This transmitter
must not be co-located or operated in conjunction with any other antenna or transmitter.
For body worn operation, this phone has been tested and meets the FCC RF exposure
guidelines when used with the belt clip supplied with this product. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines.
Information for DECT Product
This telephone is compliant with the DECT 6.0 standard which operates in the
1.92GHz to 1.93GHz frequency range.
4
Table of Contents
Equipment Approval Information
Interference Information
Licensing
Hearing Aid Compatibility
FCC RF Radiation Exposure Statement
Information for DECT Product
Introduction
Parts Checklist
2
3
3
3
4
4
7
7
Installation
8
-Telephone Jack Requirements
-Digital Security System
Important Installation Guidelines
Handset Layout
Base Layout
Installing the Phone
Telephone Operation
-Making calls with the cordless handset
-Making calls with the corded handset (from the base)
-Making calls in the speakerphone mode (from the base)
-Making calls in the speakerphone mode (from the handset)
-Making calls with the optional headset
-Pre-dialing
-Answering a Call
-Switching between the speakerphone, handset & headset
mode
-Mute
-Do not disturb
-Flash
-Inserting a pause in the dialing sequence
-Redial
-Reviewing the Redial Numbers
-Storing a Redial Record in Directory
-Transferring a call to another extension
-Receiving a transferred call from another extension
-Ringer on/off and ringer volume
-Speakerphone, handset and headset volume
-Hold
-Conference calls
8
9
10
11
-Installing the handset battery
11
-Base Station
12-14
Programming the Phone
15
-Standby Screen
15
-Programming Functions
15
-Phone Setting
15
-Date/Time
16
-Auto Answer
16 Intercom Calls
-One-touch /memory log
-Auto Answer Intercom
16
-Answering an intercom call
-Dial Mode
17
-Page
-Area Code
17
-Auto Standby
-Registration
17
-Register
18 Caller ID (CID)
-Remove Handset
18
-Receiving and storing CID records
-De-Register
18
-Reviewing CID records
-2nd Call Alert
19
-Saving a CID record to the phone directory
-Handset Name
19
-Deleting a CID record
-Update Handset List
19
-Deleting all call records
-Display Setting
19
-Dialing back
-Contrast
20
-Call waiting caller ID
-Backlight
20
-Sound Setting
20 Directory & One-Touch Memory
-Answering System
21
-Adding directory entries
-On/Off Status
21
-Storing a record in the one-touch/memory buttons
-Outgoing Message (OGA) Playback 22
-Reviewing directory records
-Set Office Time
22
-Editing a name or number stored in the one-touch/
-Set Work Hours
23
memory log
-Set After Hours
23
-Reviewing record in the one-touch/memory
-Ring Delay
24
-Editing a directory record
-Message Length
24
-Copying a directory record
-Call Screening
24
-Deleting a directory record
-Message Alert
24
-Deleting all directory records
-Remote Password
25
-Deleting a one-touch/memory
-Restore Setting
25
-Dialing a directory record
-Dialing a one-touch memory/record
25
25
25
26
26
26
27
27
27
28
28
28
28
29
29
29
30
30
30
30
31
31
32
32
32
32
32
33
33
33
34
34
34
34
35
36
36
36
37
37
37
37
38
38
38
39
39
39
5
Table of Contents Cont.
Answering System Operation
-Answering system on/off
-Recording incoming messages
-Monitoring incoming calls
-Memo record
-Memo recording
-Message/memo playback
-Erasing messages
-Remote access from remote party
-Memory full
Changing the Battery
Battery Safety Precautions
Display Messages
Handset Sound Signals
-Backup battery operation
Troubleshooting Guide
-Telephone solutions
-Caller ID solutions
-Battery
General Product Care
Causes of Poor Reception
Warranty Assistance
Limited Warranty
Accessory Information
6
40
40
40
40
41
41
41
42
42
43
43
43
44
45
45
46
46
47
47
48
48
49
50-51
52
Introduction
CAUTION: When using telephone equipment, there are basic safety
instructions that should always be followed. Refer to the IMPORTANT
SAFETY INSTRUCTIONS provided with this product and save them for future
reference.
IMPORTANT: Because cordless phones operate on electricity, you should have
at least one phone in your home that isn’t cordless, in case the power in your
home goes out.
Parts Checklist
Make sure your package includes the following items:
Coiled Handset
Cord
Base & Desk Stand (assembled together)
Corded
Handset
Belt Clip
Telephone
2- Line cords
AC power
adaptor
(for base)
AC power
adaptor
(for charging
cradle)
Handset battery
pack
Telephone Jack Requirements
To use this phone, you will need a RJ11C (for a single line) or a
RJ14C (for two lines) type modular phone jack, which might look
like the one pictured here, installed in your home or office. If you
find out how to get one installed.
Charging
Cradle
Short Line Cord
Cordless
Handset
Wall plate
7
Modular
telephone line
jack
Installation
Digital Security System
Your cordless phone uses a digital security system to protect against false
ringing, unauthorized access, and charges to your phone line.
INSTALLATION NOTE: Some cordless telephones operate at frequencies that
may cause or receive interference with nearby TVs, microwave ovens, and
VCRs. To minimize or prevent such interference, the base of the cordless
telephone should not be placed near or on top of a TV, microwave ovens, or
VCR. If such interference continues, move the cordless telephone farther away
from these appliances.
Certain other communications devices may also use the 1.9 GHz frequency
for communication, and, if not properly set, these devices may interfere with
each other and/or your new telephone. If you are concerned with interference,
please refer to the owner’s manual for these devices on how to properly set
channels to avoid interference. Typical devices that may use the 1.9 GHz
frequency for communication include wireless audio/video senders, wireless
computer networks, multi-handset cordless telephone systems, and some longrange cordless telephone systems.
Important Installation Guidelines
•
Avoid sources of noise and heat, such as motors, fluorescent lighting, microwave
ovens, heating appliances and direct sunlight.
•
Avoid areas of excessive dust, moisture and low temperature.
•
Avoid other cordless telephones or personal computers.
•
Never install telephone wiring during a lightning storm.
•
Never install telephone jacks in wet locations unless the jack is specifically designed for
wet locations.
•
Never touch non-insulated telephone wires or terminals, unless the telephone line has
been disconnected at the network interface.
•
Use caution when installing or modifying telephone lines.
8
Handset Layout
Visual Indicator
3 Soft keys
Display
DND/ Privacy
(button)
Exit
(button)
Spk
(Speaker button)
Headset Jack
CID
(button)
VOL +/(buttons)
End
(button)
DIR
(button)
Talk
(button)
* Tone
(button)
# Pause
(button)
Redial
(button)
Mute/ Del
(button)
Int/ Hold
(button)
Menu/ Flash
(button)
9
Base Layout
Vol +/(buttons)
Display
DND/ Privacy
(button)
Ans Sys
(button)
CID / Next
(button)
DIR / Prev
(button)
One Touch/
Memory Log (1- 10)
buttons
3 Soft Keys
Exit
(button)
Play/ Stop
(button)
Memo
(button)
Delete
(button)
Headset
Jack
* Tone (button)
Headset
(button)
Speaker
(button)
Redial
(button)
# Pause
(button)
Hold
(button)
Mute
(button)
Flash
(button)
Page
(button)
Intercom
(button)
Line 1 & 2
(buttons)
10
Installing the Phone
Installing the Handset Battery
NOTE: You must connect the handset battery before use.
CAUTION: To reduce the risk of fire or personal injury, use only the Telefield NA Inc.
Inc. approved Nickel-metal Hydride (Ni-MH) battery Model T-2734, which is
compatible with this unit.
1. Locate battery which is packaged inside a plastic bag and is separate from the
handset.
2. Locate the battery compartment on the back of the handset.
3. Plug the battery pack cord into the jack inside the compartment.
NOTE: To ensure proper battery installation, the connector is keyed and can be
inserted only one way.
PRESS DOWN FIRMLY
BATTERY
BLACK WIRE
RED WIRE
4. Insert the battery pack.
5. Close the battery compartment by placing the handset back cover slightly higher than
the handset and then sliding the cover down into position.
6. Place cordless handset in remote charger. The charge indicator illuminates, verifying
the battery is charging.
7. Allow the phone to charge for 14 hours prior to first use. If you don’t properly charge
the phone, battery performance is compromised.
NOTE: If the model you bought is a RE2 version, there is one additional charger.
Plug the power supply cord into the power jack on the back of the charger and
the other end into an electrical outlet. Place handset in the charger, the charge
indicator illuminates, verifying the battery is charging.
CAUTION: To reduce risk of personal injury, fire, or damage use only the
T-8BXD (charger) power adaptor listed in the user’s guide. This power
adaptor is intended to be correctly orientated in a vertical or floor mount
position.
11
Base Station
The phone may be connected to two line (RJ14C) wall jacks to accommodate all two lines.
1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and place
your cordless telephone on a level surface, such as a desktop or tabletop, or you may
mount it on the wall.
2. Install 5 AAA-size alkaline batteries (not included) for back up power in the event of a
power failure.
•
Insert a flat-head screw driver or similar object into the battery door latch and gently
pry upward to release the battery door from the base.
•
Insert the batteries inside the battery compartment as shown on the diagram.
•
Snap the battery compartment door back into place.
NOTE: If the low battery icon appears in the display, you need to replace the
batteries. It is important that you replace them as soon as possible to maintain
unit operation when electrical power is off. As a precaution, you may want to
write down any stored information you do not want erased.
IMPORTANT: If you are not going to use the telephone for more than 30 days,
remove the batteries because they can leak and damage the unit.
3. Plug the power supply cord into the power jack on the back of the base and the other
end into an electrical outlet.
CAUTION: To reduce risk of personal injury, fire, or damage use only the
T-2757 (base) power adaptor listed in the user’s guide. This power adaptor
is intended to be correctly orientated in a vertical or floor mount position.
4. Connect the telephone line cords:
If you have 2 single-line wall jacks installed in your home or office, you can use
adaptors/couplers (not included) to combine the 2 single telephone lines into 1 dual
lines. The adaptor/coupler may look similar to the one pictured here and can be
purchased from your local telephone products retailer.
Line 2
12
Line 1
Or, you can use the 2 single telephone lines plug into the 2 jacks on the back of the
telephone.
Line 1
Line 2
If you have Line 1 and Line 2 wired into one wall jack in your home or office, you can
use one of the supplied telephone line cords to connect from the wall jack to the
Line 1 + 2 jack on the back of the phone as shown below.
Line 1 + 2
5. If you want to mount the telephone on the wall, you can plug the 2 lines such as the
below drawing;
Line 2
Line 1
-OR-
13
Line 2
Line 1
-OR-
Line 1 & 2
6. Connect the handset cord:
Connect one end of the coiled handset cord to the jack on the side of the base and the
other end into the jack in the handset, and place the handset in the cradle.
14
Programming the Phone
Standby Screen
The handset displays the handset name and number, date, time, and battery status and
the three Soft keys.
The base displays the current date, time and the Soft keys.
NOTE: The Soft keys will change according to the status of the unit.
NOTE: The base LCD has a dedicated “SET CLOCK” icon flashing when the clock
is not set. Please go to menu “Phone Setting- Date /Time” to set the clock.
Programming Functions
The system uses a menu structure to give you access to all of the built-in features. You
may program the following items in main menu: Phone Setting, Display Setting, Sound
Setting, Answering System and Restore Setting.
NOTE: During programming, you may press the BACK Soft key (left) at any time
to exit the sub-menu and return to the main menu, or press exit key to exit
programming and return to standby screen.
NOTE: If no key is pressed for 30 seconds, the handset or base will automatically
exit programming and return to standby screen.
Phone Setting
1. Make sure your phone is OFF (not in Talk mode).
2. Press the menu button on handset or the MENU Soft key (left) on base to go to the
main menu.
3. Press VOL (- or +) button to scroll to Phone Setting.
4. Press SELECT Soft key (right) to confirm and you may program the following items:
Date/Time (base only),
Auto Answer (handset only),
Auto Answer Intercom (both base and handset),
Dial Mode (base only),
Area Code (base only),
Registration (handset only),
De-Registration (base only),
2nd Call Alert (both base and handset),
Handset Name (handset only),
Update Handset List (base only).
15
Date/Time
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to Date/Time .
2. Press SELECT Soft key. The screen displays Year 2009 .
3. Use the touch-tone pad to enter the last two digits of the current year (range: 00 to 99).
4. Press SAVE Soft key to save the year setting and proceed to date setting.
5. The screen displays Date 01/01. Use the touch-tone pad to enter two digits for current
month and day respectively (format: mm / dd).
6. Press SAVE Soft key to save the month/date setting and proceed to time setting.
7. Time 12:00A shows in the display. Use the touch-tone pad to enter four digits for
current time and use Soft key AM/PM to toggle between “P” (pm) and “A” (am).
8. Press SAVE Soft key to save the setting. The screen displays Saved .
NOTE: If you subscribe to Caller ID service, the current Date/Time is set
automatically when you receive your first CID record and will override manually
set Date/Time. However the Year must still be set manually. The Year
information is not in the CID record.
NOTE: The Date/Time setting item only exists in base menu, handset Date/Time
should update automatically after it is set in the base.
Auto Answer (only applicable for cordless handset)
This option allows you to pick up the handset from the cradle to answer an incoming call
without pressing the Talk/Spk/L1/L2 button.
When it is set to off, this function is disabled in the cordless handset.
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to the Auto Answer.
2. Press SELECT Soft key. Use the VOL (- or +) button to scroll to your selection. The default
setting is Off .
3. Press SELECT Soft key to save your selection and the screen displays Saved .
Auto Answer Intercom
(applicable for base and cordless handset)
If it is set to On, this cordless handset or base will auto answer the intercom call when it
receives an intercom call.
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to Auto Answer Int.
2. Press SELECT Soft key. Use the VOL (- or +) button to scroll to your selection. The default
setting is Off.
3. Press SELECT Soft key to save your selection and the screen displays Saved.
16
Dial Mode (only applicable for base)
The Dial Mode of Line 1 and Line 2 can be set separately.
From the Phone Setting Menu:
1. Press the vol (- or +) button to scroll to the Dial Mode.
2. Press SELECT Soft key.
3. Use the vol (- or +) button to select Tone or Pulse and use the DIR or CID button to
select L1 or L2.
4. Press SELECT Soft key to save your selection and the screen displays Saved.
NOTE: The Dial mode only can be set in the base menu.
Area Code (only applicable for base)
The telephone uses the pre-programmed area code to determine the number format to
display when a valid Caller ID record is received. The pre-programmed area code is also
used for the Dialback feature.
From the Phone setting Menu:
1. Press the vol (- or +) button to scroll to the Area code .
2. Press SELECT Soft key.
3. Use the touch-tone pad to enter your 3-digit area code.
4. Press SAVE Soft key to save your selection and the screen displays Saved .
Registration (only applicable to handset)
A cordless handset will not operate until it is registered to the base. During the registration
process, keep the handset near the base. Up to 10 cordless handsets can be registered to
one base.
NOTE: If a handset has not been registered to the base, then the display
will show PRESS REG TO INITIATE REGISTRATION once the handset has been
activated. Press the REG Soft key to start the registration.
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to Registration.
2. Press SELECT Soft key and you may program the following items: Register and Remove
Handset.
17
Register
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to Register.
2. Press SELECT Soft key. The screen displays Press base unit page button until beep .
3. Press and hold the page button on base for 5 seconds.
4. Registration displays to indicate the base is now in registration mode.
5. If the registration is successful, the handset shows Registration complete for 2
seconds and emits a confirmation tone.
6. If the registration is failed (i.e. timeout), the handset shows REGISTRATION FAILED! for 2
seconds and emits an error tone.
Remove Handset
De-registration cancels registration. During the de-registration process, keep the handset
near the base.
WARNING: It is not recommended that a handset be deregistered unless
absolutely necessary because once a handset is deregistered, that
handset’s telephone features cannot be used until the handset is
re-registered.
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to the Remove handset .
2. Press SELECT Soft key. The screen displays Remove handset? .
3. Press the YES Soft key to confirm de-registration. The screen displays Saved and then
shows Press REG to initiate registration in the handset.
NOTE: You can press the REG Soft key to enter the registation mode again.
De-Register (only applicable for base)
From the Phone Setting Menu:
1. Press the vol (- or +) button to scroll to the Deregistration .
2. Press SELECT Soft key. The list of all registered handsets will be shown, and use the
vol (- or +) button to scroll to your selection.
3. Press the SELECT Soft key. The screen displays Remove handset?.
4. Press YES Soft key to confirm de-registration. The screen displays Saved and then
shows Press REG to initiate registration in the handset.
18
2nd Call Alert
If it is set to On, you will hear the alert tone when you are in conversation and there is an
incoming call from another line.
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to 2ND Call Alert .
2. Press SELECT Soft key. Use the VOL (- or +) button to scroll to your selection. The default
setting is On.
3. Press SELECT Soft key to save your selection and the screen displays Saved .
Handset Name (only applicable for handset)
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to the Handset name .
2. Press SELECT Soft key. The default name is Handset .
3. Use the touch-tone pad to enter a name (up to 11 characters). More than one letter
is stored in each of the number keys. For example, to enter Bill Smith, press the 2 key
twice for the letter B. Press the 4 key 3 times for the letter I. Press the 5 key 3 times for
the letter L. Press the 5 key 3 times for the second letter L, and press the 1 key to insert
a space between the first and last name. Press the 7 key 4 times for the letter S; press
the 6 key once for the letter M; press the 4 key 3 times for the letter I; press the 8 key
for the letter T; press the 4 key twice for the letter H.
NOTE: If you make a mistake, press DIR/CID button to move the cursor forward
or backward, and then use the mute/del button to backspace and delete one
character at a time.
4. Press the SAVE Soft key to save your name. You will hear a confirmation tone and the
display shows Saved.
Update Handset List (only applicable for base)
This function is used to update all registered handsets from the current handset name list.
From the Phone Setting Menu:
1. Press the vol (- or +) button to scroll to the Update Handset List.
2. Press SELECT Soft key.
3. The latest handset name list stored in the base will be sent to all registered handsets.
Display Setting
1. Make sure your phone is OFF (not in Talk mode).
2. Press the menu button on handset or the MENU Soft key on base to go to the main
menu.
3. Press VOL (- or +) button to scroll to Display Setting .
4. Press SELECT Soft key to confirm and you may program the following items: Language,
Contrast and Backlight (base only).
19
Language
From the Display Setting Menu:
1. Press the VOL (- or +) button to scroll to the Language.
2. Press SELECT Soft key.
3. Use the VOL (- or +) button to select English , Francais or Español . The default setting is
English .
4. Press SELECT Soft key to save your selection.
Contrast
From the Display Setting Menu:
1. Press the VOL (- or +) button to scroll to the Contrast .
2. Press SELECT Soft key. There are 1 to 5 squares that will light up showing the contrast
strength .
3. Use the VOL (- or +) button to adjust the contrast. The display instantly adjusts with
each press of the VOL (- or +) button.
4. Press SELECT Soft key to save the desired contrast level.
Backlight (only applicable for base)
From the Display Setting Menu:
1. Press the vol (- or +) button to scroll to the Backlight .
2. Press SELECT Soft key and use the vol (- or +) button to select Always On or Automatic.
3. Press SELECT Soft key to save your selection.
Sound Setting
1. Make sure your phone is OFF (not in Talk mode).
2. Press the menu button on handset or the MENU Soft key on base to go to the main
menu.
3. Press VOL (- or +) button to scroll to Sound Setting .
4. Press SELECT Soft key to confirm and you may program the following items in base
and handset: Ring Tone, Ring Volume and Key Tone.
Ring Tone
There are 5 tone levels for your selection. They are Melody 1 to 5 for Line 1 and Line 2
respectively.
From the Sound Setting Menu:
1. Press the VOL (- or +) button to scroll to the Ring Tone.
2. Press SELECT Soft key.
3. Use the VOL (- or +) button to scroll to your selection and use the DIR or CID button to
toggle between L 1 and L 2. The default setting is Melody 1 for Line 1 and Melody 2 for
Line 2.
4. Press SELECT Soft key to save your selection and the screen displays Saved.
20
Ring Volume
There are 5 Volume levels and OFF for your selection. The Ring Volume can be set
individually for each line.
From the Sound Settings Menu:
1. Press the VOL (- or +) button to scroll to the Ring Volume .
2. Press SELECT Soft key.
3. Use the VOL (- or +) button to scroll to your selection and use the DIR or CID button to
toggle between L 1 and L 2. The default setting is VOL 3.
4. Press SELECT Soft key to save your selection and the screen displays Saved.
Key Tone
From the Sound Settings Menu:
1. Press the VOL (- or +) button to scroll to the Key Tone .
2. Press SELECT Soft key. Use the VOL (- or +) button to select On or Off .
3. Press SELECT Soft key to save your selection and the screen displays Saved .
Answering System (only applicable for base)
1. Make sure your phone is OFF (not in Talk mode).
2. Press the MENU Soft key on base to go to the main menu.
3. Press VOL (- or +) button to scroll to Answering Sys.
4. Press SELECT Soft key to confirm. You may program the following items in base: On/Off
Status, OGA Playback, OGA Record, Set OGA, Set Office Time, Ring Delay, Message
Length, Call Screening, Message Alert, Remote Password.
On/Off Status
This is used to set the answering system On or Off for each telephone line individually.
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the On/Off Status
.
2. Press SELECT Soft key.
3. Use the VOL (- or +) button to select On or Off and use the DIR or CID button to toggle
between L1 and L2.
4. Press the SELECT Soft key to save your selection and the status shows in the display.
21
Outgoing Message (OGA) Playback
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the OGA Playback.
2. Press SELECT Soft key.
3. Use DIR and CID buttons to toggle between Line 1 and Line 2 and use VOL (- or +)
button to scroll to your selection.
4. Press SELECT Soft key to play the selected OGA, if the selected OGA is empty, the
screen displays EMPTY.
Outgoing Message (OGA) Record
From the Answering Sys Menu:
2. Press the VOL (- or +) button to scroll to the OGA Record .
3. Press SELECT Soft key.
4. Use DIR and CID button s to toggle between Line 1 and Line 2 and use VOL (- or +)
button to scroll to the selection you want to record. There are 4 kinds of OGA to select;
Personal OGA, Announce Only, Work Hours, After Hours.
5. Press the SELECT Soft key to record. After the beep, you can start to record.
6. Press the FINISH Soft key to end the recording.
7. After recorded, the unit will automatically play the OGA once.
Set Outgoing Message (OGA)
From the Answering Sys Menu:
2. Press the VOL (- or +) button to scroll to the Set OGA .
3. Press SELECT Soft key.
4. Use DIR and CID buttons to toggle between Line 1 and Line 2 and use the VOL (- or +)
button to scroll to your selection.
5. Press the SELECT Soft key to save your selection. If there is not a message recorded in
your selected greeting, the screen displays EMPTY and you should select another one.
Otherwise, the screen displays Saved .
NOTE: If you select the option “TIMED”, the “Work Hours” OGA and “After Hours” OGA MUST be
recorded first. When there is an incoming call, the “Work Hours” OGA or “After Hours” OGA
will be played to the caller according to the office time you set.
Set Office Time
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the Set Office Time .
2. Press SELECT Soft key. You can program the following items: Work Hours and After
Hours.
22
Set Work Hours
This will allow you to program the start time for the working hour.
From the Set Office Time Menu:
1. Press the VOL (- or +) button to scroll to the Set Work Hours .
2. Press SELECT Soft key.
3. Use the touch-tone pad to set the time, and use AM/PM Soft key to select AM or PM.
4. Press the SAVE Soft key to save the time.
5. Use the VOL (- or +) button to select Yes or No for Announce Only.
6. Press the SELECT Soft key to save your selection and the screen displays Saved .
NOTE: If you select Yes for Announce Only, the “Work Hours” OGA and “After Hours” OGA
MUST be recorded first. The unit will hang up the call after announcing the greeting when
answering the call is in the answering mode.
Set After Hours
This will allow you to program the start time for the after work hour.
From the Set Office Time Menu:
1. Press the VOL (- or +) button to scroll to the Set After Hours .
2. Press SELECT Soft key.
3. Use the touch-tone pad to set the time, and use AM/PM Soft key to select AM or PM.
4. Press the SAVE Soft key to save the time.
5. Use the VOL (- or +) button to select Yes or No for Announce Only.
6. Press the SELECT Soft key to save your selection and the screen displays Saved .
NOTE: If you select Yes for Announce Only, the “Work Hours” OGA and “After Hours” OGA
MUST be recorded first. The unit will hang up the call after announcing the greeting when
answering the call is in the answering mode.
Example:
When the call comes in within 9:00am to 5:00pm, the Work Hours OGA will be
announced to the caller.
When the call comes in after 5:00pm up to 9:00am, the After Hours OGA will be
announced to the caller.
On Saturdays and Sundays, the unit will announce After Hours OGA.
23
Ring Delay
This feature lets you select the number of times you want the phone to ring before the
answering system answers a call.
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the Ring Delay.
2. Press SELECT Soft key.
3. Use the VOL (- or +) button to scroll to your selection, from 2 rings to 6 rings or toll
saver, and use the DIR or CID button to toggle between L1 and L 2.
4. Press the SELECT Soft key to save your selection and the screen displays Saved .
NOTE: When the Toll saver is selected, the unit will answer the incoming call
after 3 rings if there is new message. Otherwise, the unit will answer the
incoming call after 5 rings.
Message Length
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the Message Length .
2. Press SELECT Soft key.
3. Use the VOL (- or +) button to scroll to your selection, from 1 to 3 minutes, and use the
DIR or CID button to toggle between L 1 and L 2.
4. Press the SELECT Soft key to save your selection and the screen displays Saved .
Call Screening
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the Call Screening .
2. Press SELECT Soft key. Use the VOL (- or +) button to select On or Off .
3. Press the SELECT Soft key to save your selection and the screen displays Saved .
Message Alert
This feature set your answering system to give an alert tone every 10 seconds when there
are new messages.
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the Message Alert .
2. Press SELECT Soft key. Use the VOL (- or +) button to select On or Off . Default is Off.
3. Press the SELECT Soft key to save your selection and the screen displays Saved .
24
Remote Password
You can access the answering system from a tone dialing telephone in another (remote)
location. The security code is required for remote access, and it prevents unauthorized
access to your answering system.
From the Answering Sys Menu:
1. Press the VOL (- or +) button to scroll to the Remote Password.
2. Press SELECT Soft key. The current Remote password shows in the display. Default is
000 .
3. Use the touch-tone pad to enter your 3-digit security code.
4. Press SAVE Soft key to save the setting.
Restore Setting
The feature allows you to reset some menu settings to the original default settings.
From the Standby or Idle Mode (not in Talk mode) :
1. Press menu button on handset or MENU Soft key on the base.
2. Press the VOL (- or +) button to scroll to Restore Setting.
3. Press SELECT Soft key. The screen displays LOAD TO DEFAULT? .
4. Press YES Soft key to let unit reset to default setting; once finished, the unit will emit a
short beep prompt, and the screen displays Saved .
5. If you do not want to reset, press the NO Soft key.
Telephone Operation
Making Calls with the Cordless Handset
1. Press the Talk button, the unit will pick the first available line for you.
-ORPress line 1 or line 2 Soft key to select a line you wanted.
2. Wait for a dial tone then dial the phone number.
3. Press the end button when finished.
Making Calls with the Corded Handset (from the base)
1. Pick up the handset and the unit will pick the available line. If both lines are available,
Line 1 will be used first.
-ORPick up the handset and press line 1 or line 2 button to select the line you want.
2. Wait for a dial tone, then dial a phone number.
3. Hang up the handset when finished.
25
Making Calls in the Speakerphone Mode (from the base)
1. Press the speaker button (in base), the unit will pick the available line for you. If both
lines are available, Line 1 will be used first.
-ORPress line 1 or line 2 button on the base to select the line, and the base’s speaker will
activate.
2. Wait for a dial tone then dial a phone number or press One-Touch/Memory Log button
(1- 10 ) to dial stored phone number.
3. Press the speaker button when finished.
NOTE: After pick the line, the call timer starts to run until all the calls are hung
up. The timer serves for both 2 lines.
Making Call in the Speakerphone Mode (from the handset)
1. Press the Spk button to activate the speakerphone on the first available line.
-ORPress the LINE 1 or LINE 2 Soft key to select a specific line. The handset will activate the
ear piece.
2. Press the Spk button to switch to speakerphone mode.
3. Wait for a dial tone then dial the phone number.
4. Press the end button when finished.
Making Calls with the Optional Headset
1. Plug the headset into the Headset jack on the side of the base or side of the cordless
handset.
2. Adjust the headset to rest comfortably on top of your head or over your ear.
3. Move the microphone to approximately 2 to 3 inches from your mouth.
4. For the base, press the headset button on base and the phone automatically selects
first available, if both lines are available, Line 1 will be used.
5. For the cordless handset, press the Talk button.
6. Wait for a dial tone, and then dial the phone number.
7. Press headset button (on base) or end button (on handset) when
finished.
CAUTION : Use Thomson Inc. 5-2425 or other compatible headset that is compatible
with this unit .
NOTE: If the headset is not connected (or if not completely inserted into headset
jack), an error tone is heard when the Headset button is pressed.
NOTE: Headset performance may vary depending on the quality of the headset.
26
.
Pre-Dialing
1. With the phone idle, manually enter the telephone number. The maximum pre-dialing
number length is 32 digits, if the number is over 32 digits, it will emit an error tone. The
telephone number shows in the display.
2. Press the DIAL Soft key (on base only), Spk button, Talk button (handset only), or line
1 or line 2 button to take a line, or pick up the corded handset (on the base only) and
then the telephone number will be dialed out.
Answering a Call
For cordless handset:
1. Press the Talk button to answer the call in receiver mode,
-OR2. Press the Spk button to answer the call in speakerphone mode,
-OR3. Press the corresponding LINE Soft key to answer the call in receiver mode.
4. When finished, press end button.
For the base:
1. Pick up the corded handset,
-OR2. Press the speaker button to answer the call in speakerphone mode,
-OR3. Press the corresponding line button to answer the call in speakerphone mode,
-OR4. Press the headset button to answer the call in headset mode.
5. When finished, hang up the corded handset or press Spk button (in speakerphone) or
headset button (in headset mode) to end the call.
NOTE: If you have set the Auto Answer as On in the cordless handset, you can
answer the call directly by picking up this handset from the charger, without
pressing any buttons.
NOTE: Adjust the volume by pressing the vol (- or +) button during a call.
Switching Between the Speakerphone, Handset, and
Headset Mode
Base
To switch to the speakerphone, press speaker button. The speakerphone indicator
illuminates. Place the handset back into the cradle.
To switch to the corded handset, pick up the handset. The speakerphone or headset
indicator will turn off .
27
To switch to the headset, press the headset button to enable the headset, and the
headset indicator illuminates.
Cordless Handset
To switch to the speakerphone, press Spk button.
If the headset is plug in, press Talk button to switch to headset.
If the headset is not plug in, press Talk button to switch to cordless handset’s receiver.
Mute
To have a private, off-line conversation, use the Mute feature. The party on the other end
of the line cannot hear you, but you can still hear them.
1. Press mute button to activate the mute feature.
NOTE: When using the mute feature on the base, the indicator will illuminate
when the mute is activated.
2. Press the mute button again to de-activate.
Do Not Disturb
This feature is set at individual telephones to disable (silence) an incoming ring signal,
intercom ring. When there is an incoming call or an intercom call, the status indicators
function as normal but the phone will not ring.
1. When the unit is idle, press the DND/privacy button. The last setting is displayed.
2. Use the VOL (- or +) button to select the duration. You may choose from 15 minutes, 30
minutes, 45 minutes, 1 hour, or 2 hours and increase the duration by 1-hour intervals
up to 24 hours.
3. Press the SELECT Soft key to confirm. The indicator (on the base) blinks and the display
shows how long the ringer will be disabled.
4. To cancel, press DND/privacy button again.
Flash
If you subscribe to Call Waiting Caller ID service from your local telephone company and
you receive an incoming call during a call, you will hear a beep to indicate another call is
waiting on the line and Caller ID information (if available) for the waiting call shows on the
display.
• To connect to the waiting call, press the menu/flash button on the handset or the
flash button on the base, and your original call is put on hold.
• To switch between the two calls, press the menu/flash (Handset) or flash (base)
button.
Inserting a Pause in the Dialing Sequence
Press the #pause button twice to insert a delay in dialing sequence when a pause is
needed to wait for a dial tone (for example, after you dial 9 for an outside line, or to wait for
a computer access tone.) Each pause counts as one digit in the dialing sequence, and is
shown as “P” in the display.
28
Redial
1. Press the Talk button on the cordless handset, or press the Spk button (speakerphone
mode), or press the headset button (headset mode), or pick up the corded handset
from the base and the first available line will go off hook. If both lines are available, Line
1 will be used.
-ORPress a line button to select a line.
2. Press the redial button. The redial number list (last 3 previously dialed numbers) is
shown.
3. Use the VOL (- or +) button to select the number. Press the DIAL Soft key to dial out the
number.
NOTE: If the number you dialed is longer than 32 digitals, It will not be saved in the redial
list and can't be redialed.
Reviewing the Redial Numbers
Your phone records up to three previously dialed phone numbers.
1. When the phone is idle, press the redial button.
2. Use the VOL (- or +) button to view the last three previously dialed numbers.
3. While the preferred number is displayed, press the Spk, Talk , a line button, or pick up
the corded handset to dial the phone number.
NOTE: If you do not select a line button, the line is automatically seized and the
number is dialed accordingly.
Storing a Redial Record in Directory
1. Make sure the phone is OFF (not in Talk mode).
2. Press the redial button, then use the VOL (- or +) button to scroll to the desired redial
number.
3. Press the SAVE Soft key.
4. The screen displays Enter Name . Input a name by pressing the keypad.
NOTE: More than one letter is stored in each of the number keys so it requires
more than one press for some letters. For example, for the letter “B” press the
number 2 key twice. To add a space press the 1 key.
NOTE: A name must be input otherwise the record cannot be stored.
5. Press the SAVE Soft key. The desired redial number shows in the display.
6. You can edit the telephone number by using the delete button and number keys .
7. Press SAVE Soft key to enter the VIP Tone Melody selection.
8. Use VOL (- or +) button to scroll to the desired ring tone melody and press SELECT Soft
key to complete.
NOTE: If an incoming call number matches this record the VIP Tone Melody will
ring.
29
Transferring a Call to Another Extension
1. Press XFER Soft key when the phone is in Talk mode. The current call is put on hold.
2. Use VOL (- or +) to select the desired handset or base you want to transfer to, and then
press the SELECT Soft key.
3. The unit will intercom or ring the selected handset or base. The initiating unit has two
options at this point.
a) Wait until the selected handset or base answers the intercom call and have a
conversation and then hang up to finish the transfer or press Conference to have a 3
way conference call.
-ORb) Simply hang up by pressing the end button, Speaker button or just return the handset
to cradle and the call is transferred.
4. If the selected unit rejects the intercom call, or the call is not answered within 30 seconds, the
call is transferred back to the original unit and the display will show as below a) or b)
a) The initiating unit did not hang up, it will show "Unavailable" for 3 seconds, and then automatically
picks up the call again.
b) The initiating unit hang up, it will show "TRANSFERRED BACK FROM XXXX" and ring, press Talk Button
or Speaker button can pick up the call again.
Receiving a Transferred Call from Another Extension
If the unit receives a transfer call paging, Transfer from base/Handset X shows in the
display. Press the Talk button (handset only) or speaker button (both base and handset) or
leave the corded handset on the base unit to answer the call.
If you press the REJECT Soft key or the call is not answered within 30 seconds , the
intercom paging will be stopped and the call is transferred back to the original unit.
NOTE: 1. If the call is not accepted, the caller will be able to leave a message on the
answering system if it is activated.
Ringer On/Off and Ringer Volume
1. Make sure the phone is in idle mode.
2. Press the VOL (- or +) button to activate the ringer volume setting. Use the VOL (- or +)
button to scroll to your selection and use the DIR or CID button to toggle between L 1
and L 2. The default setting is VOL 3
.
3. Press the SELECT Soft key to save your selection.
NOTE: If you choose the ringer OFF, the screen displays L1/L2 RINGER OFF.
Speakerphone, Handset, and Headset Volume
While the phone is in use, during the desired mode, press the VOL (+ or -) buttons until
you reach a comfortable listening level. The phone stores the setting after the last button
pressed.
30
Hold
In Talk mode, press the hold button to hold the line. Line X ON HOLD shows in the LCD
display, and the line icon will flash. On the base, the line button indicator will flash also.
When the line is on hold, the hold alert tone will be emitted to both the person on hold and
to the user that initiated the hold.
Press the corresponding LINE Soft key (on handset), or the line button (on base) to release
the hold and pick up the call again.
Conference Calls
This system can support 3-way and 4-way conference calls.
Join a call in progress:
1. While a call is in progress, another user can join that call by pressing the corresponding
line button on the base unit or Soft key in the handset. Both parties on the original call
will hear a tone to alert them someone else has joined the call.
NOTE: If the privacy feature is On for the original call, the call cannot be joined
by another user.
3-way conference call by an intercom call:
1. While on a call, press the intercom button, wait for timer to clear from the screen,
press the intercom button again and then select the desired handset or base to
intercom.
2. The selected handset or base will emit a page tone. The user can press the Talk button
on the handset or the speaker button on the base to answer the intercom call page.
3. The originating caller can then press the CONF Soft key shown on the display to
establish a 3-way conference between the external caller and the intercom call.
3-way conference call with two lines:
1. During a call on Line 1, press the hold button to put the call on hold.
2. Press the line 2 button or Soft key on the handset to get a dial tone. Dial the number,
and then talk to the other person.
3. The originating caller can then press the CONF Soft key shown on the display to
establish a 3-way conference between the two lines.
4-way conference call (Line 1 + Line 2 + 2 extension):
1. Once the base unit or handset has both Line 1 and 2 on hold, press the intercom
button and then select the desired handset or base to intercom.
2. The selected handset or base will emit a page tone. The user can press the Talk button
on the handset or the speaker button on the base to answer the intercom call page.
3. The originating caller can then press the CONF Soft key shown on the display to initiate
a conference. Since Line 1 and 2 are both on hold, the user will be prompted to select
Line 1, Line 2 or Both to conference with. The user can then use the Soft keys to select
the desired option. If the BOTH Soft key is selected a 4-way conference is established
between the originating caller, both lines and the intercom call.
31
Intercom Calls
One-Touch/Memory Log
1. On the base, in idle mode, press any One-Touch/Memory Log button (1- 10) for the
station you want to intercom with. One-Touch/Memory Log button #1 represents
handset 01, #2 represents handset 02, etc. The Intercom paging ring will be emitted.
-ORYou may press the intercom button, then press the One-Touch/Memory Log button
(1-10) for the stations you want to intercom with.
-ORPress the intercom button, and all the registered handsets and the base except itself
list in the log, use the VOL (- or +) key to scroll to the station you want to intercom with,
and then press SELECT Soft key to confirm.
NOTE: To abort intercom call, press the STOP Soft key.
NOTE: If the receiving station does not answer within 30 seconds, the
intercom call is cancelled. You will hear an error tone and the screen displays
Unavailable .
Answering an Intercom Call
If you do not want to answer this intercom call, press the REJECT Soft key.
Page
The page feature helps you locate a misplaced handset.
1. Press the page button on the base. The handset beeps and the Visual Indicator on the
handset flashes. The handset screen displays Paging from Base .
2. To cancel the page, press the page button on the base, or press STOP Soft key on the
base, or press exit key on the base, or press any key on the handset. Otherwise the
paging will last for 2 minutes.
Auto Standby
If you place the handset in the cradle while the handset is off the hook (during a call), the
call is automatically disconnected.
32
Caller ID (CID)
IMPORTANT: In order to use this unit’s Caller ID features, you must subscribe
to either the standard Name/Number Caller ID Service or Call Waiting Caller ID
Service. To know who is calling while you are on the phone, you must subscribe
to Call Waiting Caller ID Service.
When the unit receives an incoming call with CID information, the CID can be shown on
the base and handsets.
Base Display
L1
LINE1
LINE2
Handset Display
Receiving and Storing CID Records
This unit receives and displays information transmitted by your local phone company.
This information can include the phone number, date and time; or the name, phone
number, date and time. The unit can store up to 99 records for later review. When the
memory is full, a new call automatically replaces the oldest call in memory. NEW appears
in the display for calls received that have not been reviewed. The line number for the call
received is also displayed.
If two incoming calls come in at the same time, both L1 and L2 phone numbers shows on
the display while ringing.
By pressing the exit key on the base unit or handset during the incoming call ringing
mode, the base unit or handset will stop ringing and go back to idle mode. The base unit or
handset will not ring in the subsequent ring cycles, but the line icon and handset line Soft
key will keep flashing and the base Line LED and handset message LED will flash until the
call is answered or the answering system picks up.
Reviewing CID Records
•
Press CID button, and then use the VOL (- or +) button to scroll through the call records.
•
When you scroll to the start/end of the list, the screen displays --START/END-- .
•
When reviewing the CID records, the record number is also shown to the right of the
time along with the FORMAT and STORE Soft keys.
33
Saving a CID Record to the Phone Directory
NOTE: If you want to change the format of the CID number to 7, 10 or 11 digits
and save it in the directory, press the FORMAT Soft key to format the CID
number first before pressing the STORE Soft key. See the “Dialing Back” section
for more information on formatting a number.
1. While viewing a CID record, press the STORE Soft key.
2. The name shows in the display. You can edit it. After editing, press the SAVE Soft key.
NOTE: The name field cannot be left empty.
3. The number shows in the display. You can edit it. After editing, press the SAVE Soft key.
4. You can select the ring melody for this phone number. Use the VOL (- or +) button to
scroll to your selection, and then press the SELECT Soft key to save. The screen displays
Saved .
NOTE: If an incoming call number matches this record the VIP Tone Melody will
ring.
Deleting a CID Record
Press the delete button to delete the record shown in the display. The screen displays
DELETE?. Press the YES Soft key to confirm. Record Deleted! shows for 3 seconds.
Deleting All Call Records
This feature allows you to clear all CID records at once.
1. While viewing a CID record, press and hold the delete button.
The screen displays Delete All CID Records?.
2. Press YES Soft key to confirm. All CID Records Deleted shows for 3 seconds.
Dialing Back
When reviewing CID records, you can dial back the numbers showing on the display by
pressing the headset button, or the Talk button, or the Spk button or the line 1 or line 2
button.
If You Programmed Your Local Area Code
1. Use the CID button to display the number you want to dial.
2. If you see a number with 7 digits (i.e. 555-1234), then the call was received from within
your area code. However, this does not guarantee the call is a local call. If you see a
number with 11 digits (i.e.1-234-555-1234), then the call received was not from your
area code.
3. To adjust the phone number format, use the FORMAT Soft key. For instance, a 7-digit
local number sometimes cannot be dialed because it requires a 10-digit or 11-digit
format. Use the FORMAT Soft key to scroll through 7, 10 and 11-digit numbers.
34
Number of digits
Explanation
Example
7-digits:
7-digit telephone number
(i.e.555-5555)
10-digits:
3-digit area code
+7-digit telephone
number
(i.e.425-555-5555)
11-digits:
long distance code 1
+3-digit area code
+7-digit telephone number
(i.e. 1-425-555-5555)
4. To dial the displayed number, select a Line or press Talk , Spk, or headset button or pick
up the handset from the base.
If You Did Not Program Your Local Area Code
1. Use the CID button to display the number you want to dial. You will only see 10-digit
numbers (i.e. 234-555-1234).
2. Press Talk , Spk, headset button or select a Line to dial back or pick up the handset
from the base . You may adjust the number format by pressing the FORMAT Soft key
before dialing.
Call Waiting Caller ID
This feature allows you to see who is calling when you hear the call waiting beep. The
caller identification information appears in the display after you hear the tone.
•
Press the flash button to put the person to whom you’re talking on hold and answer
the incoming call.
IMPORTANT: To use all the features of this unit, you must subscribe to either the
standard Name/Number Caller ID Service or Caller ID with Call Waiting Service.
To know who is calling while you are on the phone, you must subscribe to Caller
ID with Call Waiting Service.
35
Directory and One-Touch Memory
You may store data in the Directory (up to 99 records) or an One-Touch /Memory Log
(10 buttons located to the right of the number pad on the base). The Directory and each
One-Touch /Memory Log stores up to 16 characters and 32 digits.
The records are stored by alphabetic ascending order.
Adding Directory Entries
1. Make sure the phone is OFF (not in Talk mode).
2. Press the DIR button.
3. Press the NEW Soft key. The screen displays Enter Name. Use the number pad to input
a name.
NOTE: More than one letter is stored in each of the number keys so it requires
more than one press for some letters. For example, for the letter “B” press the
number 2 key twice. To add a space press the 1 key.
NOTE: The name field cannot be left empty.
4. Press SAVE Soft key. The screen displays Enter Number.
5. Use the touch-tone pad to input a telephone number.
TIP: Press the #pause button twice to insert a pause in a number if necessary.
6. Press the SAVE Soft key to enter VIP tone melody selection.
NOTE: If an incoming call number matches this record the VIP Tone Melody will
ring.
7. Use VOL (- or +) button to scroll to the selection and press SELECT Soft key to complete.
NOTE: If Memory full shows in the display, you should delete one or more
unnecessary records and repeat above steps to continue the call record
storage.
Storing a Record in the One-Touch Memory Buttons
(Only applicable for base)
1. Make sure the phone is OFF (not in Talk mode).
2. Press STORE Soft key.
3. The screen displays Select Button Location . Press a One-Touch/Memory Log button
(1- 10) to save the record in that memory location.
NOTE: If there is a record stored in selected memory location. Press REPLACE
Soft key to confirm overwrite or press the BACK Soft key, then select a new
location.
4. The screen displays Enter Name.
5. Use the number pad to enter a name.
36
NOTE: More than one letter is stored in each of the number keys so it requires
more than one press for some letters. For example, for the letter “B” press the
number 2 key twice. To add a space press the 1 key.
NOTE: The name field cannot be left empty.
6. Press SAVE Soft key. The screen displays Enter Number.
7. Use the number pad to input a telephone number.
TIP: Press the #pause button twice to insert a pause in a number if necessary.
8. Press the SAVE Soft key to save.
Reviewing Directory Records
1. Make sure the phone is OFF (not in Talk mode).
2. Press the DIR button.
3. Press the VOL (- or +) button to scroll through the records,
-ORPress the number keys to go to the name of the records started with the corresponding
character.
Editing a Name or Number Stored in the
One-Touch /Memory Log
1. Press the DIR button.
2. Press the One-Touch/Memory Log button (1-10).
3. Press the EDIT Soft key and edit the content according to the steps in the “Storing
Record in One-Touch Dialing ” in Memory section.
NOTE: The left and right (DIR & CID) navigational buttons allow the cursor to be
moved. The delete button can be used to delete character or number to the left
of the cursor.
Reviewing Record in One-Touch Memory
1. Make sure the phone is OFF (not in Talk mode).
2. Press the DIR button.
3. Press One-Touch/Memory Log button (1-10).
Editing a Directory Record
1. When reviewing the directory records, use the VOL (- or +) button to scroll to the
desired record.
2. Press EDIT Soft key to enter edit mode. You may now change the name, if desired.
Please refer to section “Handset Name” for name editing method.
3. Press SAVE Soft key to proceed to number change. You may now change the number, if
desired.
4. Press SAVE Soft key to proceed to VIP Tone Melody selection. You may use VOL (- or +)
key to scroll to the selection you desired.
37
NOTE: If an incoming call number matches this record the VIP Tone Melody will
ring.
5. Press SELECT Soft key to complete.
NOTE: Press the BACK Soft key to keep the previous setting (making no
changes).
Copying a Directory Record
You can copy one directory record or the whole directory from the handset extension to
the base or from the base to desired handset extension.
In the extension handset:
1. While viewing the directory record, press the COPY Soft key.
2. The screen displays Copy Current Record or Entire Directory? . Press the CURR
Soft key to copy the current record or press the ENTIRE Soft key to copy the whole
directory.
3. After copying is finished, the screen displays Record Copied to Base Unit!.
In the Base Unit:
1. While viewing the directory record, press the COPY Soft key.
2. The screen displays Copy Current Record or Entire Directory?. Press the CURR
Soft key to copy the current record or press the ENTIRE Soft key to copy the whole
directory .
3. The extension list will be shown. Use the vol (- or +) button to select the desired
extension handset for the record to be copied to.
4. Press the SELECT Soft key. The number of directory records copied will be displayed in
the base display with total number of records to be copied.
5. After copying is finished, the base screen displays Record Copied!, and the handset
screen displays Saved.
Deleting a Directory Record
1. When reviewing the directory records list, use the VOL (- or +) button to scroll to the
desired record.
2. Press the delete button on the phone to delete the record.
3. The screen displays Delete? .
4. Press the YES Soft key to confirm the deletion.
5. Record Deleted shows in the display.
Deleting All Directory Records
1. Press the DIR button to activate the phone book record list.
2. Press and hold the delete button on the phone until the screen displays DELETE ALL?.
3. Press the YES Soft key to confirm the deletion.
4. The screen displays ALL DELETED .
38
Deleting a One-Touch /Memory
1. Press the DIR button.
2. Press the corresponding button (1-10) for the One-Touch/Memory Log you want to
delete.
3. Press the delete button to delete.
4. Press the YES Soft key to confirm.
NOTE: Press the exit button to cancel the “delete” function.
Dialing a Directory Record
Dial a directory record while in Talk mode:
1. Make sure the phone is ON (in Talk mode) by pressing the Talk Spk button, selecting a
line or pick up the handset from the base .
2. Press the DIR button to access the phone book.
3. Use the VOL (- or +) button to scroll to the desired record.
4. Press the DIAL Soft key to dial the number.
-OR-
Dial a directory record while reviewing it:
1. Make sure the phone is OFF (not in Talk mode).
2. Press the DIR button to access the phone book.
3. Use the VOL (- or +) button to scroll to the desired record.
4. Press the Talk or Spk button on the handset or press the speaker line 1/2 button or
pick up the handset on the base. The number dials automatically.
Dialing a One-Touch/Memory Record
(Only applicable for base)
while in Talk mode:
1. Make sure the phone is ON (in Talk mode) by pressing Spk button, selecting a Line , or
pick up handset.
2. Press the One-Touch/Memory Log button to access the memory log.
-OR-
while reviewing it:
1. Make sure the phone is OFF (not in Talk mode).
2. Press the DIR button to access the phone book.
3. Press the One-Touch/Memory Log button to select the desired record.
4. Press the speaker or line 1/2 or pick up the handset on the base. The number dials
automatically.
39
Answering System Operation
There are two mailboxes in the system. One is for Line 1 and another is for Line 2.
For memo recording, you can select which mailbox is used to record the memo.
Answering System On/Off
Press and hold the base ans sys button for 2 seconds to switch this function On or Off with
the voice prompt. The Answering system light illuminates when the function is activated.
If the ans sys button indicator is flashing, pressing it will go to the Play Message display.
When you press and hold the ans sys button to switch the answering system On, the
answering function for Line 1 and Line 2 will be activated according to the setting in the
menu. (For example, in the menu setting, L1 is set to ON and L2 is set to OFF. Press and
hold the ans sys button to switch it On. The answering function for L1 is activated, and L2
will be Off. Press and hold the ans sys button again to switch both L1 and L2 answering
function Off.
Otherwise, pressing the button will display Line 1 and Line 2 On/Off status for 3 seconds.
Recording Incoming Messages
The unit will answer incoming calls or routed calls after X rings (pickup delay set in Menu)
and play the outgoing greeting. After hearing the greeting followed by a long beep, the
caller can leave a message. If there is a new message recorded in the unit, the Answering
system indicator will flash, and the envelope icon shows in the LCD.
NOTE: Your unit will record a message up to the maximum length of time you
set as long as the caller continues speaking. To save recording capacity, your
unit will automatically stop recording after 7 seconds of silence or if there is a
steady dial tone for 7 seconds.
Your unit can record up to 60 minutes of incoming messages. The maximum recording
time for each incoming message can be set in Menu.
Monitoring Incoming Calls
Whenever an incoming message is being recorded you can hear it through the speaker
if Call Screening is On. To take the call, press Talk , speaker or line button and the system
stops recording.
40
Memo Record
You can leave a message by pressing the memo button on base or selecting memo
recording under handset menu.
1. Press the memo button on base or handset menu to enter memo record mode.
2. Use VOL (- or +) button to select Mailbox 1 or Mailbox 2 to save the recording.
3. Press SELECT Soft key to confirm. The screen displays Record memo after beep.
4. After the beep, begin speaking and the screen displays Recording .
5. Press the FINISH Soft key to end the recording.
NOTE: The maximum duration allowed for memo is the same as the message
length setting in the menu.
Memo Recording (Only applicable for handset )
From the Handset Main Menu:
1. Press the vol (- or +) button to scroll to Memo recording.
2. Use vol (- or +) button to select Mailbox 1 or Mailbox 2 to save the recording.
3. Press SELECT Soft key to confirm. The screen displays Record memo after beep.
4. After the beep, begin speaking and the screen displays Recording.
5. Press the FINISH Soft key to end the recording.
Message/Memo Playback
In idle mode, press base ans sys button when flashing or press play button on handset
or on base. The unit enters the message playback mode, and the status of messages for
each line is displayed . Use left and right key can toggle between Line 1 and Line 2, press
SELECT Soft key to play the messages.
If the unit has new messages, only the new messages will be played, otherwise all
messages will be played. Unit will play messages to the end.
During each message playback, it shows the current message information on the screen.
If the message playback is a stored incoming message from the telephone line , it shows
the message’s CID, including Date/Time, Name and Number. If it is a memo, only Display
memo and
Date/Time.
During each message playback, you can press the CID/next button to skip to the next
message OR press the DIR/prev button to replay the current message. Double press the
DIR/prev button to play the previous message.
If there are no messages, the unit will announce “You have NO messages”.
Tie the CID with ICM message only for the base. While reviewing the CID records, an
envelope icon will be shown if there is ICM associated with this CID. At this point, the
message can be played by pressing the play button. After playing the messages, the unit
will return back to the CID review mode.
41
Erasing Messages
You may erase messages in the following three ways:
To erase a message while it is playing
1. Select and play the message you want to erase.
2. Press the delete button. The unit will ask you to confirm the deletion.
3. Press the YES Soft key to confirm it.
4. The current message is erased, and the next message plays.
To erase a message after it playing
1. After playing a message to the end, the screen displays Delete message xx.
2. Press the YES Soft key to delete it and the screen displays Message Deleted.
To erase all previously played messages in a mailbox
1. Play a message.
2. Press and hold the delete button for 2 seconds, the screen displays Delete all
messages in line X mailbox?.
3. Press SELECT Soft key to delete all the old messages.
Remote Access From Remote Party
1. Dial the telephone number to which the answering system is connected.
2. Enter the security code during the outgoing announcement or after you hear the tone.
NOTE: The default security code is 000.
3. The following are the voice prompts for the remote menu:
Press two (2) to play messages, press two (2) again to stop
Press zero (0) while playing a message to erase
Press one (1) to review the previous message
Press three (3) to play the next message
Press four (4) to turn On and Off the Answering System
Press seven (7) to review menu again
4. Enter the remote commands.
5. To exit remote operation, hang up. The system will automatically disconnect the call if
the user does not enter a command within 10 seconds.
NOTE: Only the message being played can be erased in remote access mode.
42
Memory Full
full”
You should erase some messages so the answering system may record new messages.
NOTE: The unit also answers after the 10th ring if it is set to Answer Off. To
access the answering system, enter your 3-digit security code.
Changing the Battery
CAUTION: To reduce the risk of fire or personal injury, use only the Telefield NA Inc.
approved Nickel-metal Hydride (Ni-MH) battery model T-2 734 , which is
compatible with this unit.
1. Make sure the telephone is OFF (not in Talk mode) before you replace battery.
2. Remove the battery compartment door.
3. Disconnect the battery plug from the jack inside the battery compartment and remove
the battery pack from the handset.
4. Insert the new battery pack and connect the cord to the jack inside the battery
compartment.
5. Put the battery compartment door back on.
6. Place handset in the base or handset charge cradle to charge. Allow the handset
battery to properly charge (for 14 hours) prior to first use or when you install a new
battery pack. If you do not properly charge the phone, battery performance will be
compromised .
Battery Safety Precautions
•
Do not burn, disassemble, mutilate, or puncture. Like other batteries of this type, toxic
materials could be released which can cause injury.
•
Remove batteries if storing over 30 days.
NO TE: The RBRC seal on the battery used in your Telefield NA Inc. product
indicates that we are participating in a program to collect and recycle the
rechargeable battery (or batteries).
For more information go to the RBRC web site at www.rbrc.org
or call 1-800-8-BATTERY or contact a local recycling center.
43
Display Messages
The following messages show the status of the phone, provides Caller ID information, or
helps you set up and use your phone.
DELETE ALL?
Prompt asking if you want to erase all records.
DELETE?
Prompt asking if you want to erase the current record.
START/END
Indicates that it is the end of the list.
ENTER NAME
Prompt telling you to enter a name.
ENTER NUMBER
Prompt telling you to enter a telephone number.
NEW CALLS
Indicates call or calls which have not been reviewed.
HANDSET NAME
Prompt telling you to enter a user name for the handset.
UNAVAILABLE
Indicates that the function you want to initialize cannot work at that
moment or the function being worked cannot continue. The system is
busy or some other higher priority function is being performed.
For example, the message playback function will be stopped when
there is an incoming call.
NO LINE
Indicates that the telephone line is not connected.
LINE IN USE
Display on handset while the line is in use.
EMPTY
Indicates there are no CID records in memory.
OUT OF RANGE
Indicates handset is too far away from the base, and the handset is
searching for the base.
BLOCKED
Indicates the person is calling from a number which is
blocked from transmission.
UNKNOWN
Indicates incoming call is from an area not serviced by CID or the CID
information was not sent.
INCOMPLETE
Indicates incorrect CID information received.
DATA
44
Handset Sound Signals
Signal
Meaning
A long warbling tone (with ringer on)
Signals an incoming call
Two short beeps (several times)
Page signal
One beep every 14 seconds
Low battery warning
One long beep after press one key
Confirm
A short warbling tone (with ringer on)
Error
Backup Battery Operation
If the power cord is not plugged into the unit, and the battery is available, the unit enters
Battery Operation Mode. In this mode, the base is fully functional .
45
Troubleshooting Guide
Telephone Solutions
No dial tone
•
Check or repeat installation steps:
Make sure the base power cord is connected to a working electrical outlet. Make sure
the telephone line cord is connected to the base and the wall jack.
•
Connect another phone to the same jack. If it doesn’t work, the problem might be your
wiring or local service.
•
The handset may be out of range of the base. Move closer to the base.
•
Make sure the battery is properly charged (for 14 hours).
Dial tone is ok, but can’t dial out
•
Make sure the type of phone service you are subscribed to is TONE or PULSE.
Handset does not ring
•
Make sure the handset ringer is set to On.
•
The handset may be out of range of the base. Move closer to the base.
•
You may have too many extension phones on your line. Try unplugging some
extensions.
•
Check for a dial tone. If no dial tone is heard, see “No dial tone”.
You experience static, noise, or fading in and out
•
The handset may be out of range of the base. Move closer to base.
•
Make sure base is not plugged into an electrical outlet with another household
appliance. If necessary, relocate the base.
•
Charge the battery (for 14 hours).
Memory dialing doesn’t work
•
Did you follow proper dialing sequence?
Unit locks up and no communication between the base and
cordless handset
•
Unplug the power adaptor from the electrical outlet and the bottom of the base.
Remove the handset battery. Wait for 30 seconds and plug the power adaptor back
into the base and electrical outlet. Reconnect the battery and charge for 14 hours.
Out of Range... shows in the handset display
•
Move the handset closer to the base.
•
Make sure the base power cord is connected to a working electrical outlet.
Date/Time setting is restored to default setting
•
46
May be caused by power failure. Set Date/Time again.
Caller ID Solutions
No Display
•
Charge the battery (for 14 hours). Or replace the battery.
•
Make sure the unit is connected to a non-switched electrical outlet. Disconnect the
power adaptor from the base and reconnect it.
No Caller ID
•
You must be subscribed to the standard Name/Number Caller ID service from your
local telephone company to receive CID information.
Battery
If you experience any of the following problems, even after recharging the battery, you
may need to replace the battery pack:
•
Short talk time
•
Poor sound quality
•
Limited range
47
General Product Care
To keep your unit working and looking good, follow these guidelines:
•
Avoid dropping the handset, as well as other rough treatment to the phone.
•
Clean the phone with a soft cloth.
•
Never use strong cleaning agents, paint thinner, abrasive powder, alcohol, or other
chemical products to clean the unit. Doing so will damage the finish.
•
Retain the original packaging in case you need to ship the phone at a later date.
•
Periodically clean the charge contacts on the handset and base with a clean pencil
eraser.
Causes of Poor Reception
•
Aluminum siding.
•
Foil backing on insulation.
•
Heating ducts and other metal construction that can shield radio
signals.
•
You ’re too close to appliances such as microwaves, stoves, computers, etc.
•
Atmospheric conditions, such as strong storms.
•
Base is installed in the basement or lower floor of the house.
•
Base is plugged into AC outlet with other electronic devices.
•
Baby monitor is using the same frequency.
•
Handset battery is low.
•
Make sure the hook switch pops up when the handset is lifted.
•
You’re out of range of the base.
•
The 5“AAA” batteries need replacing or are improperly installed or not installed at all.
•
Intercom does not function correctly.
48
49
50
Limitation of Warranty:
• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT .
ALL OTHER WARRANTIES , EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED . N O
VERBAL OR WRITTEN INFORMATION GIVEN BY TELEFIELD NA INC., ITS AGENTS, OR EMPLOYEES
SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY .
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER . TELEFIELD NA INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF
ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT . THIS DISCLAIMER
OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF
INDIANA . EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED
TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
How state law relates to this warranty:
• Some states do not allow the exclusion nor limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts so the above limitations or exclusions may not
apply to you.
• This warranty gives you specific legal rights, and you also may have other rights that vary from
state to state.
If you purchased your product outside the USA:
• This warranty does not apply. Contact your dealer for warranty information.
51
Accessory Information
DESCRIPTION
Handset Replacement Battery
AC Power Adaptor
MODEL NO.
T-2734
T-2757 (base)/T-8BXD (charger)
To place order, have your Visa, MasterCard, or Discover Card ready and call toll-free
1- 800- 511 -318 0.
A shipping and handling fee will be charged upon ordering. We are required by law to
collect appropriate sales tax for each individual state, country, and locality to which the
merchandise is being sent. Items are subject to availability. Prices are subject to change
without notice.
Model 25255RE2
T0008003 (REV 0 Dom E)
09-08
Printed in china
25255RE2
52
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
