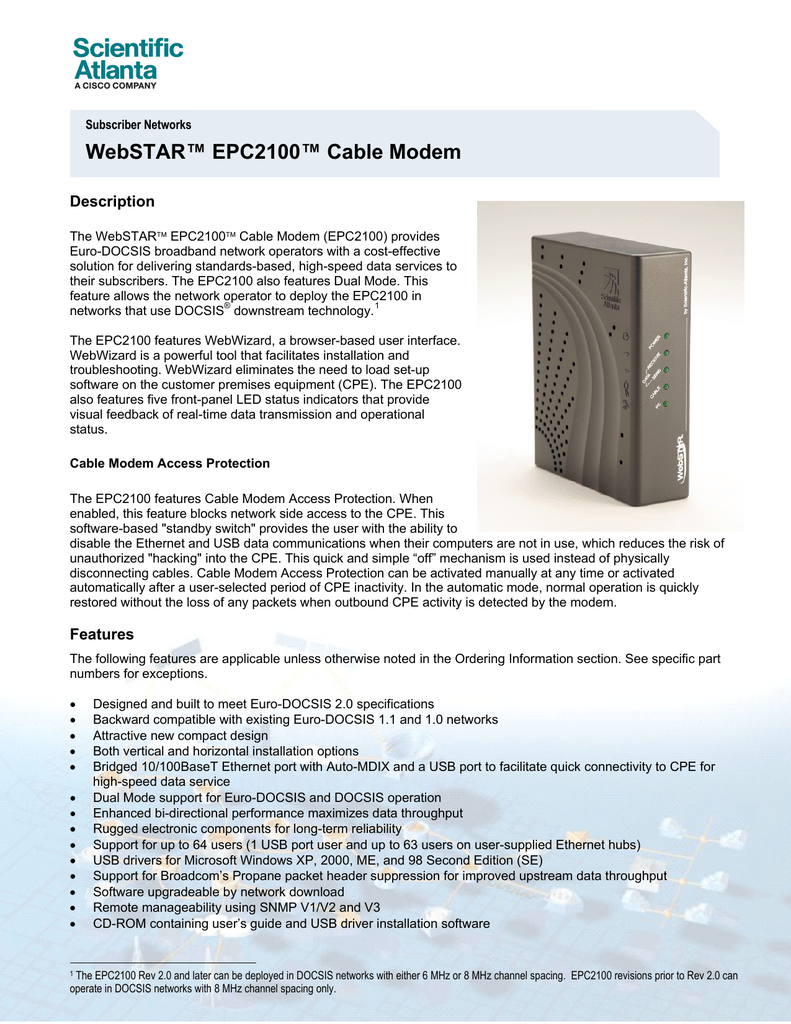

Data Sheet-WebSTAR Model EPC2100 Cable Modem

Subscriber Networks
WebSTAR™ EPC2100™ Cable Modem
Description
The WebSTAR™ EPC2100™ Cable Modem (EPC2100) provides
Euro-DOCSIS broadband network operators with a cost-effective
solution for delivering standards-based, high-speed data services to
their subscribers. The EPC2100 also features Dual Mode. This
feature allows the network operator to deploy the EPC2100 in
networks that use DOCSIS® downstream technology. 1
The EPC2100 features WebWizard, a browser-based user interface.
WebWizard is a powerful tool that facilitates installation and
troubleshooting. WebWizard eliminates the need to load set-up
software on the customer premises equipment (CPE). The EPC2100
also features five front-panel LED status indicators that provide
visual feedback of real-time data transmission and operational
status.
Cable Modem Access Protection
The EPC2100 features Cable Modem Access Protection. When
enabled, this feature blocks network side access to the CPE. This
software-based "standby switch" provides the user with the ability to
disable the Ethernet and USB data communications when their computers are not in use, which reduces the risk of
unauthorized "hacking" into the CPE. This quick and simple “off” mechanism is used instead of physically
disconnecting cables. Cable Modem Access Protection can be activated manually at any time or activated
automatically after a user-selected period of CPE inactivity. In the automatic mode, normal operation is quickly
restored without the loss of any packets when outbound CPE activity is detected by the modem.
Features
The following features are applicable unless otherwise noted in the Ordering Information section. See specific part
numbers for exceptions.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Designed and built to meet Euro-DOCSIS 2.0 specifications
Backward compatible with existing Euro-DOCSIS 1.1 and 1.0 networks
Attractive new compact design
Both vertical and horizontal installation options
Bridged 10/100BaseT Ethernet port with Auto-MDIX and a USB port to facilitate quick connectivity to CPE for
high-speed data service
Dual Mode support for Euro-DOCSIS and DOCSIS operation
Enhanced bi-directional performance maximizes data throughput
Rugged electronic components for long-term reliability
Support for up to 64 users (1 USB port user and up to 63 users on user-supplied Ethernet hubs)
USB drivers for Microsoft Windows XP, 2000, ME, and 98 Second Edition (SE)
Support for Broadcom’s Propane packet header suppression for improved upstream data throughput
Software upgradeable by network download
Remote manageability using SNMP V1/V2 and V3
CD-ROM containing user’s guide and USB driver installation software
The EPC2100 Rev 2.0 and later can be deployed in DOCSIS networks with either 6 MHz or 8 MHz channel spacing. EPC2100 revisions prior to Rev 2.0 can
operate in DOCSIS networks with 8 MHz channel spacing only.
1
WebSTAR EPC2100 Cable Modem
Ordering Information
Contact your Sales Representative for product availability in your area.
EPC2100 Hardware Revision 2.1
Description
Part Number
EPC2100 WebSTAR Cable Modem for Europe. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 2.1
• 230 VAC / 50 Hz In-line power supply with attached power cord with 2-pin connector for continental
Europe
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4013343
EPC2100 WebSTAR Cable Modem for the United Kingdom. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 2.1
• 230 VAC +/-15% / 50 Hz In-line power supply with attached power cord with 3-pin connector for the
United Kingdom
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4013707
EPC2100 WebSTAR Cable Modem with Universal Power Supply. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 2.1
• 100-240 VAC / 50-60 Hz, 12 VDC / 1A In-line universal power supply (order power cord separately)
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4014204
EPC2100 Hardware Revision 2.0
Description
Part Number
EPC2100 WebSTAR Cable Modem for Europe. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 2.0
• 230 VAC / 50 Hz In-line power supply with attached power cord with 2-pin connector for continental
Europe
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4008147
EPC2100 WebSTAR Cable Modem for the United Kingdom. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 2.0
• 230 VAC +/-15% / 50 Hz In-line power supply with attached power cord with 3-pin connector for the
United Kingdom
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4008148
EPC2100 WebSTAR Cable Modem with Universal Power Supply. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 2.0
• 100-240 VAC / 50-60 Hz, 12 VDC / 1A In-line universal power supply (order power cord separately)
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4008265
2
WebSTAR EPC2100 Cable Modem
EPC2100 Hardware Revision 1.0 (No longer in production)
Description
Part Number
EPC2100 WebSTAR Cable Modem for Europe. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 1.0
• 230 VAC / 50 Hz In-line power supply with attached power cord with 2-pin connector for continental
Europe
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4004525
EPC2100 WebSTAR Cable Modem for the United Kingdom. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 1.0
• 230 VAC +/-15% / 50 Hz In-line power supply with attached power cord with 3-pin connector for the
United Kingdom
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4004526
EPC2100 WebSTAR Cable Modem with Universal Power Supply. Includes:
• Euro-DOCSIS 2.0, Hardware Rev 1.0
• 100-240 VAC / 50-60 Hz, 12 VDC / 1A In-line universal power supply (order power cord separately)
• Ethernet and USB cables
• CD-ROM containing user’s guide and USB driver
4006871
3
WebSTAR EPC2100 Cable Modem
Replacement Components
AC Power Supplies
Linear, Class 2
230 VAC / 50 Hz, 12 VDC / 1A In-line linear power supply with attached cord and CEE7/16 Euro plug
power connector
230 VAC / 50 Hz, 12 VDC / 1A In-line linear power supply with attached cord and BS-1363 style 3-pin
power connector
Universal Switching Mode, Class 2
100-240 VAC / 50-60 Hz, 12 VDC / 1A In-line universal switching mode power supply, Class II, C7 AC
connector, 2 conductor (power cord not included, order power cord separately)
Part Number
Power Cords
Class 2
Power cord, 2 conductor, North America, NEMA 1-15 to C7, non-polarized
Power cord, 2 conductor, Japan, NEMA 1-15 to C7, non-polarized
Power cord, 2 conductor, European, Euro plug CEE7/16 to C7
Power cord, 2 conductor, United Kingdom, BS1363 to C7
Power cord, 2 conductor, Brazil Euro plug CEE7/16 to C7, INMETRO
Power cord, 2 conductor, Korea
Power cord, 2 conductor, Argentina
Part Number
Cables
Ethernet cable
USB cable
Part Number
740580
740579
User’s Guide and USB Drivers
CD-ROM with user’s guide and USB drivers
Part Number
4001911
4002193
4004768
4009116
1002239
207586
503414
1002798
4009115
4010439
4012938
Scientific Atlanta and the Scientific Atlanta logo are registered trademarks of Scientific-Atlanta, Inc.
EPC2100 and WebSTAR are trademarks of Scientific-Atlanta, Inc.
Cisco, Cisco Systems, and the Cisco Systems logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates
in the U.S. and certain other countries.
DOCSIS is a registered trademark of Cable Television Laboratories, Inc.
All other trademarks shown are trademarks of their respective owners.
Specifications and product availability are subject to change without notice.
© 2006 Scientific-Atlanta, Inc. All rights reserved.
Scientific-Atlanta, Inc.
1-800-722-2009 or 770-236-6900
www.scientificatlanta.com
Part Number 7007410 Rev C
April 2006
