PT–DZ680S
PT–DZ680LS
WUXGA
6,000 lm
PT–DZ680K
PT–DZ680LK
WUXGA
6,000 lm
PT–DW640S
PT–DW640LS
WXGA
6,000 lm
PT–DW640K
PT–DW640LK
WXGA
6,000 lm
PT–DX610S
PT–DX610LS
XGA
6,500 lm
PT–DX610K
PT–DX610LK
XGA
6,500 lm

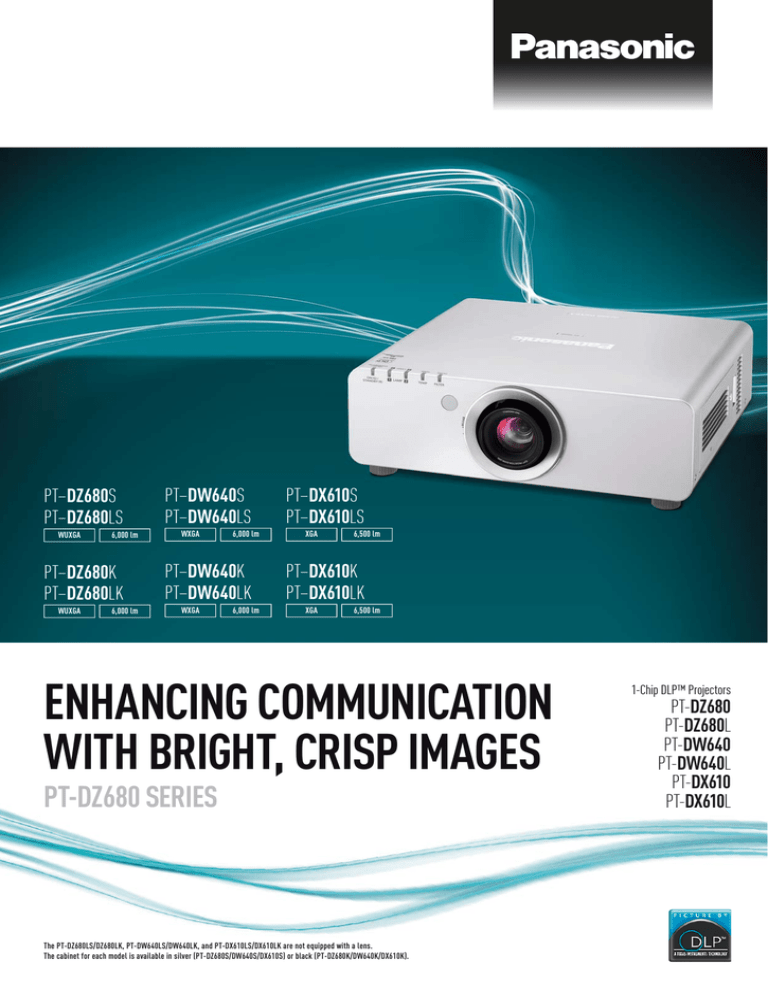

ENHANCING COMMUNICATION
WITH BRIGHT, CRISP IMAGES
PT-DZ680 SERIES
The PT-DZ680LS/DZ680LK, PT-DW640LS/DW640LK, and PT-DX610LS/DX610LK are not equipped with a lens.
The cabinet for each model is available in silver (PT-DZ680S/DW640S/DX610S) or black (PT-DZ680K/DW640K/DX610K).
1-Chip DLP™ Projectors
PT-DZ680
PT-DZ680L
PT-DW640
PT-DW640L
PT-DX610
PT-DX610L
BRIGHT, VERSATILE OPERATION
IN A COMPACT PROJECTOR
Panasonic PT-DZ680 Series 1-chip DLPTM projectors, featuring a duallamp system, are compact but powerful. The RGB Booster ensures
vivid, colourful images, and the original Eco Filter eliminates the
need for filter replacement for up to 12,000 hours. A host of terminals
and advanced management functions provides enhanced system
flexibility. Ideal for a wide variety of applications, from education
and business to museums.
WUXGA
PT-DZ680
(1,920x1,200)
PT-DW640
(1,280x800)
PT-DX610
(1,024x768)
6,000 lm
WXGA
6,000 lm
XGA
6,500 lm
VIVID PICTURE QUALITY
WITH HIGH BRIGHTNESS
High Brightness with High-Power AC Lamp
Detail Clarity Processor Brings Depth and Clarity to Detail
The high-efficiency light convergence technology and the colour wheel work together
to achieve the high brightness of 6,000 lm for the PT-DZ680/DW640 and 6,500 lm
for the PT-DX610. Clear, crisp images are reproduced even in bright rooms.
This advanced image-processing circuit analyses the video signal frequency range for
each scene by extracting data on the distribution of high, mid, and low-frequency
components, and brings out fine details accordingly. The resulting images have a
more natural, three-dimensional appearance with crisp, clear detail.
RGB Booster Significantly Improves Colour Reproduction
The RGB Booster achieves high image quality with levels of colour reproduction and
brightness that make each colour stand out. It combines Panasonic’s proprietary Vivid
Colour Control technology with a newly engineered Lamp Modulation Drive System for
a 1-chip DLPTM projector that produces bright and vivid colours.
Vivid Colour Control
This unique control technology optimises the use of the colour segment areas of the
colour wheel. It increases the brightness of each RGB colour by minimizing the
unallocated portions between the colours, to achieve truly vivid colouring.
Lamp Modulation Drive System
With the advanced lamp modulation technology, the projector is able to control the
lamp intensity for each of the red, green, blue, and white segments of the colour
wheel separately. Because the actual light output is controlled in relation to each
colour segment, light usage is optimised and colour balance is obtained without
lowering the brightness. This results in bright vivid images with increased colour fidelity.
Conventional sharpness control:
Sharpness is applied uniformly, which can
cause a halo or ring effect and diminish
the sense of depth.
Detail Clarity Processor:
Signal frequency is extracted real-time and
necessary sharpness is applied at varying
degrees for natural, life-like images.
System Daylight View 2 for Enhanced Colour Perception
Image details are less clear when a projector is used in a room with the lights on.
Panasonic’s System Daylight View 2 improves brightness perception by adjusting
sharpness, gamma curves, and colour corrections. This produces crisper, more
stunning images with vivid colours even under bright conditions.
RGB BOOSTER
Color wheel
Without System Daylight View 2
Lamp power
PT-DZ680 Series with System Daylight
View 2
DICOM
Simulation Mode*1
By modulating the lamp power, we can
maximize the colour reproduction of each
colour without sacrificing brightness. Light
usage is optimised, and colour balance is
obtained without lowering the brightness.
This imaging mode is
similar to DICOM part 14,
which is a medical imaging
standard. It reproduces
X-ray images with
remarkable clarity.
CONVENTIONAL SYSTEM
Color wheel
Normal mode
DICOM simulation mode
Lamp power
Rec. 709 Mode for HDTV Projection
Because the lamp power is fixed in
conventional projectors, colour reproduction
is enhanced by sacrificing brightness.
Optimal colour reproduction can be achieved by selecting this mode, compliant with
ITU-R Recommendation BT.709, when images from an HDTV source are projected.
Full 10-Bit Picture Processing (PT-DZ680 Only)
The use of a full 10-bit image processing system provides smooth tonal expression.
For example, skin tones appear natural and true to life.
EASY MAINTENANCE AND MAINTENANCE
SUPERIOR RELIABILITY
SYSTEM INTEGRATION FLEXIBILITY
Eco Filter that Needs No Maintenance
for up to 12,000 Hours*2
Flexible Installation
The original Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter
and a main filter, which use an ion effect to collect extremely small dust particles.
The pre-filter has a honeycomb configuration and the main filter is pleated to achieve
a large surface area that raises its dust collecting performance. Thanks to these
features, the Eco Filter has a replacement cycle of up to 12,000 hours*2, which
reduces the hassle of maintenance. And, as an environmental consideration,
the filter can be washed with water and reused*3.
The wide adjustment range of the powered
horizontal/vertical lens shift function
assures convenience and versatility during
installation. It lets you easily make
adjustments with the remote control.
The unit can also be rotated 360 degrees
vertically. This means you can install it at
any angle you want, to accommodate
different installation conditions.
360°
A Wide Selection of
Optional Lenses
Main filter
Pre-filter
Choose from a wide lineup of optional
lenses for your system, including
short-throw zoom lens, long-throw zoom
and fixed-throw lenses for rear projection
use. The additional lenses make it easy to
adapt your projector to the installation site.
ET-DLE080
Dual-Lamp System Prevents Image Interruptions
The Dual-Lamp System eliminates the
need to interrupt a presentation if a lamp
should burn out (in dual-lamp operation
mode). The Lamp Relay mode also
operates the lamps alternately to enable
24/7 projector operation. The replacement
lamp unit*4 can be used with all of the
Panasonic PT-DZ770 Series*5, PT-DZ6700
Series*6 and PT-DZ570 Series*7 projectors.
This reduces the number of lamp types
that need to be kept in stock when
multiple projectors are used.
Multi-Screen Support
System Seamlessly
Connects Multiple Screens
The Multi-Screen Support System optimally adjusts multiple screens:
Edge blending, colour matching and multi-screen processor.
Edge Blending
The edges of adjacent screens can be blended and their luminance controlled.
Colour Matching
This function corrects for slight variations in the colour reproduction range of
individual projectors.
Multi-Screen Processor
The PT-DZ680 Series projector can project large, multi-screen images without any
additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time.
Liquid Cooling System Attains a High Level of Reliability
Colour matching
Edge blending
TM
The liquid cooling system directly cools the DLP chip to improve performance and
enable operation up to 45°C (113°F).*8 This allows use in a wider variety of environments,
while stabilizing performance and keeping the unit quiet even in harsh conditions.
Enlarged radiator
Embedded pump
Source
PT-DZ21K Series
Without edge blending
DLPTM chip
Reservoir tank
Overlapping image edges
With edge blending
Side-by-Side Function*9
Other Valuable Features
The PT-DZ680 and PT-DW640 can simultaneously display images from two sources
onto a single screen. For example, you can display a PC image on the left and a video
image on the right. Taking advantage of the wide-screen projection, this function
gives you a host of new application possibilities to explore.
•
•
•
•
•
•
•
•
•
•
•
Multiple terminals with HDMI compatibility
3D colour management system
HD IP conversion
Digital noise reduction
Dynamic sharpness control
Web browser control/monitoring and e-mail
message alert
PJLinkTM (Class 1) compatibility
Scheduling function
30m long-range wireless remote control
Mechanical lens shutter
Direct Power Off allows unplugging
the power cord right after use
Multi Projector Monitoring & Control Software
Panasonic’s original freeware, “Multi Projector Monitoring & Control Software”, allows
the user to control and monitor multiple projectors at the same time via LAN. Projectors
can be scheduled to turn on and off at a certain hour everyday. When a problem occurs,
an alarm message is sent to the monitoring/controlling PC.
PT-DZ680
Series
Each model is available in both silver and black cabinet colour.
Silver models:
remote control
LAN
PT-DZ680S
Black models:
PT-DZ680K
PT-DW640S
PT-DW640K
PT-DX610S
PT-DX610K
PC
e-mail
Lens-less models are also available. The specifications are the same as those
of the projectors supplied with standard lens.
PC
Internet
PC
LAN
PC
e-mail
Silver models:
PC
Black models:
PT-DZ680LS
PT -DZ680LK
PT-DW640LS
PPT-DW640LK
PT-DX610LS
PT-DX610LK
Crestron RoomViewTM and AMX Device Discovery
The LAN terminal allows a computer connected to the network to use Crestron
RoomViewTM‚ application software to manage and control system devices. Besides,
The AMX Device Discovery technology is built in the PT-DZ680 Series projector.
The PT-DZ680 Series projector is carefully
manufactured at the Panasonic factory in Japan,
under strict quality control. This is another, very
important advantage of a Panasonic projector.
Ecology-conscious Design
Panasonic works from every angle to minimize environmental impact in the
product design, production and delivery processes, and in the performance
of the product during its life cycle. The PT-DZ680 Series projector reflects
the following ecological considerations.
Standby Mode: ECO*10
The PT-DZ680 Series projector has attained a low standby power level of 0.2 W*11
(STANDBY MODE: ECO*10). It also helps to slash running costs, and reduces
environmental impact.
•
•
•
•
No halogenated flame retardants are used in the cabinet.
Lead-free solder is used to mount components to the printed circuit boards.
Lamp power switching further reduces power consumption.
Standby power consumption of only 0.2 W*11 has been achieved
(STANDBY MODE: ECO*10).
• Auto Power Save activates standby mode when no signal is input.
TERMINALS
1
2
4
3
7
8
5
10
9
1. LAN connector
2. Video input
3. S-Video input
*1
This product is not a medical instrument. Do not use it for actual
medical diagnosis.
*2
The usage environment affects the duration of the filter.
*3
When washing with water, please follow the procedures listed in the
operating instructions. Also, we recommend replacing the filter with
a new one after it has been washed and reused twice. If the filter is
not sufficiently clean after washing, replace it with a new one.
*4
ET-LAD60A/LAD60AW
*5
PT-DZ770K/DZ770LK/DW740S/DW740LS/DX810S/DX810LS
*6
PT-DZ6710/DZ6710L/DZ6700/DZ6700L/DW6300S/DW6300LS/D6000S/
D6000LS/ D5000S/D5000LS
*7
PT-DZ570/DW530/DX500
*8
The operating temperature range is 0°C to 40°C (32°F to 104°F)
when the high altitude mode is set to on (for altitudes from
1,400m to 2,700m
(4,593ft to 8,858ft) above sea level).
*9
Featured on the PT-DZ680/DW640.
This function is not effective for some source combinations.
*10
When the STANDBY MODE is set to ECO, network functions such as
power on over the LAN will not operate. Also, only certain
commands can be received for external control using the serial
terminal.
*11
For 120 V AC power supply. 0.3 W for 200-240 V AC power supply.
6
12
11
4. RGB 1 input
5. HDMI input
6. DVI-D input
7. Remote 1 input
8. Remote 1 output
9. Remote 2 input
10. Serial input
11. Serial output
12. RGB 2 input
ET-DLE080
Zoom lens
ET-DLE350
Zoom lens
ET-DLE150
Zoom lens
ET-DLE450
Zoom lens
ET-DLE250
Zoom lens
ET-DLE055
Fixed-focus lens
OPTIONAL ACCESSORIES
ET-PKD56H
Ceiling mount bracket
for high ceilings
ET-LAD60A
Replacement lamp unit
ET-LAD60AW
Replacement lamp
unit (twin pack)
ET-EMF300
Replacement
filter unit
ET-PKD55S
Ceiling mount bracket
for low ceilings
PROJECTION DISTANCE UNIT: METERS (FEET)
PT-DZ680 (16:10 ASPECT RATIO)
Throw distance
Diagonal
image size
(throw ratio)
ET-DLE080
0.8–1.0:1
ET-DLE150
1.3–1.9:1
Supplied lens
1.7–2.4:1
ET-DLE250
2.3–3.6:1
ET-DLE350
3.6–5.4:1
ET-DLE450
5.4–8.6:1
ET-DLE055
0.8:1
min.
max.
min.
max.
min.
max.
min.
max.
min.
max.
min.
max.
1.27
0.82
1.04
1.38
2.01
1.90
2.57
2.42
3.87
3.80
5.81
5.66
9.12
0.83
(50”)
(2.7)
(3.4)
(4.5)
(6.6)
(6.2)
(8.4)
(7.9)
(12.7)
(12.5)
(19.1)
(18.6)
(29.9)
(2.7)
2.03
1.35
1.68
2.23
3.25
3.09
4.16
3.92
6.23
6.16
9.38
9.23
14.78
1.35
(80”)
(4.4)
(5.5)
(7.3)
(10.7)
(10.1)
(13.6)
(12.8)
(20.4)
(20.2)
(30.8)
(30.3)
(48.5)
(4.4)
2.54
1.70
2.11
2.81
4.08
3.88
5.22
4.92
7.81
7.74
11.76
11.62
18.55
1.70
(100”)
(5.6)
(6.9)
(9.2)
(13.4)
(12.7)
(17.1)
(16.1)
(25.6)
(25.4)
(38.6)
(38.1)
(60.8)
(5.6)
3.81
2.57
3.19
4.24
6.14
5.85
7.86
7.41
11.75
11.68
17.71
17.58
27.97
2.58
(150”)
(8.4)
(10.5)
(13.9)
(20.1)
(19.2)
(25.8)
(24.3)
(38.6)
(38.3)
(58.1)
(57.7)
(91.8)
(8.5)
5.08
3.44
4.27
5.67
8.20
7.83
10.50
9.91
15.70
15.61
23.66
23.54
37.39
3.45
(200”)
(11.3)
(14.0)
(18.6)
(26.9)
(25.7)
(34.5)
(32.5)
(51.5)
(51.2)
(77.6)
(77.2)
(122.7)
(11.3)
7.62
5.18
6.43
8.53
12.33
11.78
15.79
14.91
23.59
23.49
35.56
35.46
56.24
–
(300”)
(17.0)
(21.1)
(28.0)
(40.4)
(38.6)
(51.8)
(48.9)
(77.4)
(77.1)
(116.7)
(116.3)
(184.5)
–
10.16
6.93
8.59
11.39
16.45
15.73
21.08
19.90
31.48
31.46
47.46
47.38
75.08
–
(400”)
(22.7)
(28.2)
(37.4)
(54.0)
(51.6)
(69.2)
(65.3)
(103.3)
(102.9)
(155.7)
(155.4)
(246.3)
–
12.70
8.67
10.75
14.25
20.58
19.68
26.37
24.90
39.37
39.23
59.36
59.30
93.93
–
(500”)
(28.5)
(35.3)
(46.7)
(67.5)
(64.6)
(86.5)
(81.7)
(129.2)
(128.7)
(194.7)
(194.6)
(308.2)
–
15.24
10.42
12.91
17.11
24.70
23.63
31.66
29.89
47.25
47.11
71.25
71.22
112.77
–
(600”)
(34.2)
(42.3)
(56.1)
(81.01)
(77.5)
(103.9)
(98.1)
(155.0)
(154.6)
(233.8)
(233.7)
(370.0)
–
PT-DW640 (16:10 ASPECT RATIO)
Throw distance
Diagonal
image size
(throw ratio)
ET-DLE080
0.8–1.0:1
min.
ET-DLE150
1.4-2.0:1
max.
min.
Supplied lens
1.8–2.5:1
max.
min.
max.
ET-DLE250
2.4–3.8:1
min.
ET-DLE350
3.8–5.7:1
max.
min.
ET-DLE450
5.6–9.0:1
max.
min.
ET-DLE055
0.8:1
max.
1.27
0.87
1.09
1.45
2.12
1.92
2.56
2.54
4.06
4.0
6.11
5.96
9.60
0.87
(50”)
(2.8)
(3.6)
(4.7)
(6.9)
(6.3)
(8.4)
(8.3)
(13.3)
(13.1)
(20.1)
(19.5)
(31.5)
(2.9)
2.03
1.42
1.77
2.35
3.42
3.11
4.13
4.12
6.55
6.48
9.86
9.71
15.53
1.42
(80”)
(4.7)
(5.8)
(7.7)
(11.2)
(10.2)
(13.5)
(13.5)
(21.5)
(21.3)
(32.3)
(31.9)
(51.0)
(4.7)
2.54
1.78
2.22
2.95
4.28
3.91
5.18
5.17
8.20
8.13
12.36
12.22
19.49
1.79
(100”)
(5.9)
(7.3)
(9.7)
(14.0)
(12.8)
(17.0)
(16.9)
(26.9)
(26.7)
(40.5)
(40.1)
(63.9)
(5.9)
3.81
2.70
3.36
4.45
6.45
5.90
7.80
7.79
12.35
12.27
18.61
18.47
29.38
2.71
(150”)
(8.9)
(11.0)
(14.6)
(21.2)
(19.3)
(25.6)
(25.5)
(40.5)
(40.2)
(61.0)
(60.6)
(96.4)
(8.9)
5.08
3.62
4.49
5.95
8.61
7.88
10.42
10.41
16.49
16.40
24.85
24.73
39.28
3.63
(200”)
(11.9)
(14.7)
(19.5)
(28.3)
(25.9)
(34.2)
(34.2)
(51.1)
(53.8)
(81.5)
(81.1)
(128.9)
(11.9)
7.62
5.45
6.76
8.96
12.95
11.86
15.66
15.65
24.77
24.67
37.35
37.25
59.06
–
(300”)
(17.9)
(22.2)
(29.4)
(42.5)
(38.9)
(51.4)
(51.4)
(81.3)
(80.9)
(122.5)
(122.2)
(193.8)
–
10.16
7.28
9.02
11.96
17.28
15.83
20.90
20.90
33.06
32.94
49.84
49.76
78.85
–
(400”)
(23.9)
(29.6)
(39.2)
(56.7)
(51.9)
(68.6)
(68.6)
(108.4)
(108.1)
(163.5)
(163.3)
(258.7)
–
12.70
9.11
11.29
14.96
21.61
19.81
26.15
26.14
41.34
41.20
62.33
62.28
98.64
–
(500”)
(29.9)
(37.0)
(49.1)
(70.9)
(65.0)
(85.8)
(85.8)
(135.6)
(135.2)
(204.5)
(204.3)
(323.6)
–
15.24
10.94
13.56
17.96
25.94
23.78
31.39
31.39
49.62
49.47
74.82
74.80
118.43
–
(600”)
(35.9)
(44.5)
(58.9)
(85.1)
(78.0)
(103.0)
(103.0)
(162.8)
(162.3)
(245.5)
(245.4)
(388.5)
–
PT-DX610 (4:3 ASPECT RATIO)
Throw distance
Diagonal
image size
(throw ratio)
ET-DLE080
0.8–1.0:1
ET-DLE150
1.3–2.0:1
Supplied lens
1.8–2.5:1
ET-DLE250
2.4–3.7:1
ET-DLE350
3.7–5.6:1
ET-DLE450
5.5–8.9:1
ET-DLE055
0.8:1
min.
max.
min.
max.
min.
max.
min.
max.
min.
max.
min.
max.
1.27
0.81
1.01
1.34
1.97
1.79
2.38
2.36
3.78
3.71
5.68
5.53
8.91
0.81
(50”)
(2.6)
(3.3)
(4.4)
(6.5)
(5.9)
(7.8)
(7.7)
(12.4)
(12.2)
(18.6)
(18.1)
(29.2)
(2.7)
2.03
1.32
1.64
2.18
3.18
2.90
3.84
3.83
6.09
6.02
9.17
9.02
14.44
1.32
(80”)
(4.3)
(5.4)
(7.2)
(10.4)
(9.5)
(12.6)
(12.6)
(20.0)
(19.8)
(30.1)
(29.6)
(47.4)
(4.3)
2.54
1.66
2.07
2.74
3.98
3.64
4.82
4.80
7.63
7.56
11.50
11.35
18.12
1.66
(100”)
(5.4)
(6.8)
(9.0)
(13.1)
(11.9)
(15.8)
(15.8)
(25.0)
(24.8)
(37.7)
(37.2)
(59.5)
(5.5)
3.81
2.51
3.12
4.14
6.00
5.49
7.26
7.24
11.49
11.41
17.31
17.18
27.33
2.52
(150”)
(8.2)
(10.2)
(13.6)
(19.7)
(18.0)
(23.8)
(23.8)
(37.7)
(37.4)
(56.8)
(56.4)
(89.7)
(8.3)
5.08
3.36
4.18
5.54
8.02
7.34
9.70
9.69
15.34
15.26
23.13
23.00
36.54
3.38
(200”)
(11.0)
(13.7)
(18.2)
(26.3)
(24.1)
(31.8)
(31.8)
(50.3)
(50.1)
(75.9)
(75.5)
(119.9)
(11.1)
–
7.62
5.07
6.29
8.33
12.05
11.04
14.58
14.57
23.06
22.96
34.76
34.66
54.97
(300”)
(16.6)
(20.6)
(27.3)
(39.5)
(36.2)
(47.8)
(47.8)
(75.6)
(75.3)
(114.0)
(113.7)
(180.3)
–
10.16
6.77
8.40
11.13
16.08
14.74
19.46
19.45
30.77
30.65
46.39
46.31
73.39
–
(400”)
(22.2)
(27.5)
(36.5)
(52.8)
(48.3)
(63.8)
(63.8)
(100.9)
(100.6)
(152.2)
(151.9)
(240.8)
–
12.70
8.48
10.51
13.92
20.12
18.44
24.34
24.33
38.48
38.35
58.02
57.96
91.81
–
(500”)
(27.8)
(34.5)
(45.7)
(66.0)
(60.5)
(79.8)
(79.8)
(126.2)
(125.8)
(190.4)
(190.2)
(301.2)
–
15.24
10.18
12.62
16.72
24.15
22.14
29.22
29.22
46.19
46.05
69.65
69.61
110.23
–
(600”)
(33.4)
(41.4)
(54.9)
(79.2)
(72.6)
(95.9)
(95.9)
(151.5)
(151.1)
(228.5)
(228.4)
(361.7)
–
DIMENSIONS UNIT: MM (INCH)
175
(6-7/8)
498 (19-19/32)
440 (17-5/16)
SPECIFICATIONS
MODEL
Power
Power
consumption
DLPTM Chip
PT-DZ680/DZ680L
120 V ac, 7.3 A, 50/60 Hz
220-240 V AC, 4.0 A, 50/60 Hz
PT-DW640/DW640L
PT-DX610/DX610L
120 V AC, 6.8 A, 50/60 Hz, 220–240 V AC, 3.8 A, 50/60 Hz
120 V AC
750 W (790 VA)(0.2 W when standby mode set to eco*1,
6 W when standby mode set to normal)
710 W (740 VA) (0.2 W when standby mode set to eco*1, 6 W when standby mode set to normal)
220−240 V AC
730 W (930 VA)(0.3 W when standby mode set to eco*1,
8 W when standby mode set to normal)
690 W (860 VA) (0.3 W when standby mode set to eco*1, 8 W when standby mode set to normal)
Panel size
Display method
Pixels
Lens
PT-DZ680/DW640
/DX610
17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
16.5 mm (0.65 inches) diagonal (16:10 aspect ratio)
17.8 mm (0.7 inches) diagonal (4:3 aspect ratio)
DLP™ chip × 1, DLP™ projection system
DLP™ chip × 1, DLP™ projection system
DLP™ chip × 1, DLP™ projection system
2,304,000 (1,920 × 1,200) pixels
1,024,000 (1,280 × 800) pixels
786,432 (1,024 × 768) pixels
Powered zoom (throw ratio 1.8–2.4:1),
powered focus F 1.7–2.0, f 26.8–35.7 mm
PT-DZ680L/DW640L
/DX610L
Powered zoom (throw ratio 1.8–2.4:1), powered focus F 1.7–2.0, f 25.6–33.8 mm
Optional powered zoom/focus lenses and fixed-focus lens
Lamp
280 W UHM lamp × 2
Screen size (diagonal)
Brightness
1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with the ET-DLE055, 16:10 aspect ratio
1.27–15.24 m (50–600 in), 1.27–5.08 m
(50–200 in) with the ET-DLE055, 4:3 aspect ratio
6,000 lm (dual-lamp, lamp mode: normal)
6,500 lm (dual-lamp, lamp mode: normal)
*2
Centre-to-corner uniformity *2
Contrast*2
2,000:1 (full on/full off, contrast mode: high*3)
Resolution
Scanning
frequency
1,920 × 1,200 pixels
Video/S-Video
Vertical
Horizontal
Keystone correction range
Installation
fH: 15.75 kHz, fv: 60 Hz [525i (480i)]
fH: 31.50 kHz, fv: 60 Hz [525p (480p)]
fH: 15.63 kHz, fv: 50 Hz [625i (576i)]
fH: 31.25 kHz, fv: 50 Hz [625p (576p)]
fH: 45.00 kHz, fv: 60 Hz [750 (720)/60p]
fH: 37.50 kHz, fv: 50 Hz [750 (720)/50p]
fH: 33.75 kHz, fv: 60 Hz [1125 (1035)/60i]
fH: 33.75 kHz, fv: 60 Hz [1125 (1080)/60i]
fH: 28.13 kHz, fv: 50 Hz [1125 (1080)/50i]
fH: 28.13 kHz, fv: 25 Hz [1125 (1080)/25p]
fH: 27.00 kHz, fv: 24 Hz [1125 (1080)/24p]
fH: 27.00 kHz, fv: 48 Hz [1125 (1080)/24sF]
fH: 33.75 kHz, fv: 30 Hz [1125 (1080)/30p]
fH: 67.50 kHz, fv: 60 Hz [1125 (1080)/60p]
fH: 56.25 kHz, fv: 50 Hz [1125 (1080)/50p]
fH: 15.75 kHz, fv: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fh: 15.63 kHz, fv: 50 Hz [PAL/PAL-N/SECAM]
+50% from center of screen (powered)
±10% from center of screen (powered)
+60% from center of screen (powered)
±10% from center of screen (powered)
+50% from center of screen (powered)*6
±10% from center of screen (powered)
Vertical: ±40° (±30° with the ET-DL E055/DLE080)
When the STANDBY MODE is
set to ECO , network functions
such as power on over the
LAN will not operate. Also,
only certain commands can be
received for external control
using the serial terminal.
*2
Measurement, measuring
conditions, and method of
notation all comply with ISO
21118 international standards.
*3
Brightness becomes 3,000 lm with
CONTRAST MODE set to HIGH .
*4
Brightness becomes 3,250 lm with
CONTRAST MODE set to HIGH .
*5
Optical axis shift function
cannot be operated when used
with the ET-DLE055.
*6
+45% from center of screen
with the ET-DLE080.
*7
For the PT-DZ680/DZ680L only.
*8
Compliant with VESA CVT-RB.
*9
With legs at shortest position
*10
Average value. May differ
depending on the actual unit.
*11
The operating temperature
range is 0°C to 40ºC (32°F to
104°F) when the high altitude
mode is set to on (for altitudes
from 1,400m to 2,700m (4,593ft
to 8,858ft) above sea level).
Ceiling/floor, front/rear
HDMI 19-pin × 1 (Deep Color *7, compatible with HDCP)
525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p, 1125 (1080)/24p, 1125 (1080)/24sF,
1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p
VGA (640 × 480)–WUXGA (1,920 × 1,200)*8, compatible with non-interlaced signals only, dot clock: 25–162 MHz
DVI-D IN
DVI-D 24-pin × 1
(DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p, 1125 (1080)/24p, 1125 (1080)/24sF,
1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p
VGA (640 × 480)–WUXGA (1,920 × 1,200)*8, compatible with non-interlaced signals only, dot clock: 25–162 MHz
RGB 1IN
BNC × 5 (RGB/YPbPr/YCbCr × 1)
RGB 2IN
D-Sub HD 15-pin (female) × 1 (RGB/YPbPr/YCbCr × 1)
VIDEO IN
BNC × 5 (RGB/YPbPr/YCbCr × 1)
S-VIDEO IN
Mini DIN 4-pin × 1 (S-Video)
SERIAL IN
D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
SERIAL OUT
D-sub 9-pin (male) × 1 for link control (RS-232C compliant)
REMOTE 1 IN
M3 × 1 for wired remote control
REMOTE 1 OUT
M3 × 1 for link control (for wired remote control)
LAN
Cabinet materials
D-sub 9-pin (female) × 1 for external control (parallel)
RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
Molded plastic
Dimensions
(W × H × D)
PT-DZ680/DW640
/DX610
498 × 175*9 × 440 mm (19-19/32 × 6-7/8*9 × 17-5/16 in)(with supplied lens)
PT-DZ680L/
DW640L/DX610L
498 × 175*9 × 432 mm (19-19/32 × 6-7/8*9 × 17 in) (without lens)
PT-DZ680/DW640
/DX610
PT-DZ680L/DW640L
/DX610L
20807–PT-DZ680–MAR2013–EN–V5
fH: 15–91 kHz, fv: 50–85 Hz, dot clock: 162 MHz or lower
HDMI
REMOTE 2 IN
Weight*10
1,024 × 768 pixels (Input signals that exceed this
resolution will be converted to 1,024 × 768 pixels.)
fH: 15–91 kHz, fv: 50–85 Hz, dot clock: 25–162 MHz
RGB
Optical axis
shift*5
2,000:1 (full on/full off, contrast mode: high*4)
1,280 × 800 pixels (Input signals that exceed this
resolution will be converted to 1,280 × 800 pixels.)
HDMI/DVI-D
YPBPR (YCBCR)
Terminals
90 %
*1
Approximately 16.0 kg (35.3 lbs) (with supplied lens)
Approximately 15.1 kg (33.3 lbs) (without lens)
Operating environment
Operating temperature: 0–45 °C (32–113 °F)*11, operating humidity: 20%–80% (no condensation)
Supplied accessories
Power cord, power cord secure lock, wireless/wired remote control unit, batteries (R6/AA type × 2), software CD-ROM (Logo Transfer Software,
Multi Projector Monitoring & Control Software) (× 1)
All information included here is valid as of November 2012.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice. DLP, DLP logo and DLP
Medallion logo are trademarks or registered trademarks of Texas Instruments. The projection distances and throw ratios given in this brochure
are for use only as guidelines. For more detailed information, please consult the dealer from whom you are purchasing the product. The PJLink
trademark is an application trademark in Japan, the United States, and other countries and regions or registered trademarks. RoomView,
Crestron RoomView, and Crestron Connected are trademarks of Crestron Electronics, Inc. All other trademarks are the property of their
respective trademark owners. Projection images simulated. © 2012 Panasonic Corporation. All rights reserved.
For more information about Panasonic projectors
please visit: business.panasonic.co.uk/visual-system
Facebook: facebook.com/PanasonicVisualSolutionsEU
Twitter: twitter.com/PanasonicVisual
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
