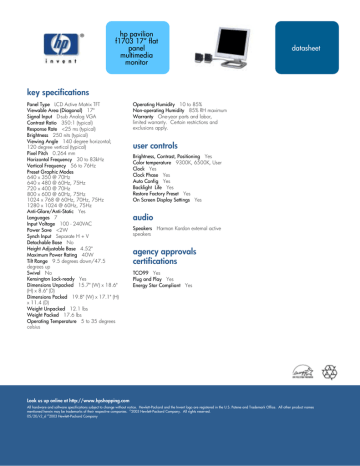

hp pavilion
f1703 17” flat
panel
multimedia
monitor
datasheet
key specifications
Panel Type LCD Active Matrix TFT
Viewable Area (Diagonal) 17"
Signal Input D-sub Analog VGA
Contrast Ratio 350:1 (typical)
Response Rate <25 ms (typical)
Brightness 250 nits (typical)
Viewing Angle 140 degree horizontal;
120 degree vertical (typical)
Pixel Pitch 0.264 mm
Horizontal Frequency 30 to 83kHz
Vertical Frequency 56 to 76Hz
Preset Graphic Modes
640 x 350 @ 70Hz
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 60Hz, 75Hz
1024 x 768 @ 60Hz, 70Hz, 75Hz
1280 x 1024 @ 60Hz, 75Hz
Anti-Glare/Anti-Static Yes
Languages 7
Input Voltage 100 - 240VAC
Power Save <2W
Synch Input Separate H + V
Detachable Base No
Height Adjustable Base 4.52"
Maximum Power Rating 40W
Tilt Range 9.5 degrees down/47.5
degrees up
Swivel No
Kensington Lock-ready Yes
Dimensions Unpacked 15.7" (W) x 18.6"
(H) x 8.6" (D)
Dimensions Packed 19.8" (W) x 17.1" (H)
x 11.4 (D)
Weight Unpacked 12.1 lbs
Weight Packed 17.6 lbs
Operating Temperature 5 to 35 degrees
celsius
Operating Humidity 10 to 85%
Non-operating Humidity 85% RH maximum
Warranty One-year parts and labor,
limited warranty. Certain restrictions and
exclusions apply.
user controls
Brightness, Contrast, Positioning Yes
Color temperature 9300K, 6500K, User
Clock Yes
Clock Phase Yes
Auto Config Yes
Backlight Life Yes
Restore Factory Preset Yes
On Screen Display Settings Yes
audio
Speakers Harman Kardon external active
speakers
agency approvals
certifications
TCO99 Yes
Plug and Play Yes
Energy Star Compliant Yes
Look us up online at http://www.hpshopping.com
All hardware and software specifications subject to change without notice. Hewlett-Packard and the Invent logo are registered in the U.S. Patene and Trademark Office. All other product names
mentioned herein may be trademarks of their respective companies. ©2003 Hewlett-Packard Company. All rights reserved.
05/20/r2_sl ©2003 Hewlett-Packard Company
