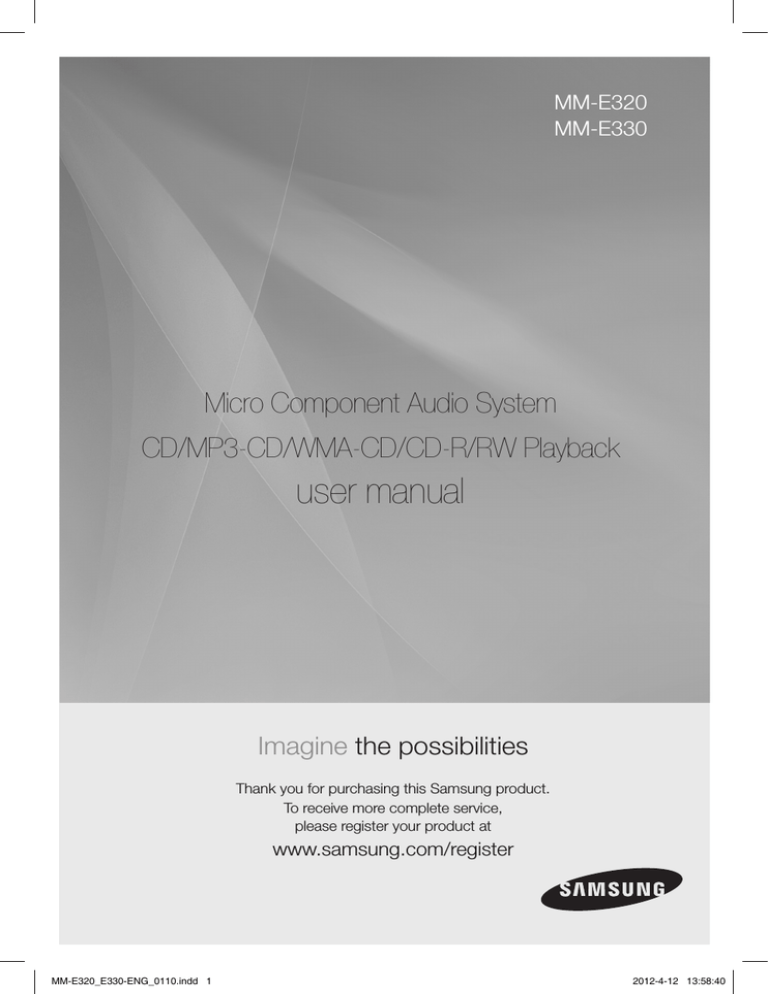

Samsung MM-E320 User manual

MM-E320
MM-E330
Micro Component Audio System
CD/MP3-CD/WMA-CD/CD-R/RW Playback
user manual
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
MM-E320_E330-ENG_0110.indd 1
2012-4-12 13:58:40
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
CAUTION : TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
WARNING
●● To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
CAUTION
●● Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
●● The Mains plug is used as a disconnect device and
shall stay readily operable at any time.
●● This apparatus shall always be connected to a AC
outlet with a protective grounding connection.
●● To disconnect the apparatus from the mains, the plug
must be pulled out from the mains socket, therefore
the mains plug shall be readily operable.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1 PRODUCTO
This symbol indicates important
instructions accompanying the product.
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
LÁSER CLASE 1
CLASS 1 LASER PRODUCT
This product is classified as a CLASS 1 LASER product.
Use of controls, adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION
●● INVISIBLE LASER R
ADIATIONWHEN O
PENAND
INTERLOCKS DEFEATED, AVOID EXPOSURE TO B
EAM.
Wiring the Main Power Supply Plug (UK Only)
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face
of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour
as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should
obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug
to a main socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.
IMPORTANT
The wires in the main lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed
as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or
BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured
BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL
, OR COLOURED GREEN OR GREEN AND YELLOW.
2
English
MM-E320_E330-ENG_0110.indd 2
2012-4-12 13:58:40
Precautions
• E
nsure that the AC power supply in your house complies
with the identification sticker located on the back of your
product.
• Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm).
• Do not place the product on amplifiers or other equipment which may become hot. Make sure the ventilation slots are not covered.
• Do not stack anything on top of the product.
• Before moving the product, ensure the Disc Insert Hole is empty.
• In order to disconnect the product completely from the power supply, remove the AC plug from the wall outlet, especially when left unused for a long period of time.
• During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the product.
• Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and malfunction of the product.
• Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric fields (i.e. speakers.).
• Disconnect the power cable from the AC supply if the product malfunctions. Your product is not intended for industrial use.
• Use of this product is for personal use only.
• Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.
• The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.
• Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes.
• Place the speakers at a reasonable distance on either side of the system to ensure good stereo sound.
• Direct the speakers towards the listening area.
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or
cause skipping.
Be especially careful not to scratch discs when handling them.
Holding discs
Handling and Storing Discs
If you get fingerprints or dirt on the disc, clean it with a mild detergent
diluted in water and wipe with a soft cloth.
• When cleaning, wipe gently from the inside to the outside of the disc.
• Condensation may form if warm air comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.
Disc Types And Disc Format
This product does not support Secure (DRM) Media files.
CD-R Discs
• Some CD-R discs may not be playable depending on the disc
recording device (CD-Recorder or PC) and the condition of the
disc.
Use
• a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minutes as they may not
be played back.
Some
CD-RW (Rewritable) media, may not be playable.
•
Only
CD-Rs that are properly "closed" can be fully played. If the
•
session is closed but the disc is left open, you may not be able to
fully play the disc.
CD-R MP3 Discs
•Only CD-R discs with MP3 files in ISO 9660 or Joliet format
can be played.
•MP3 file names should contain no blank spaces or special
characters (. / = +).
•Use discs recorded with a compression/decompression data
rate greater than 128Kbps.
•Only files with the “.mp3” and “.MP3” extensions can be
played.
•Only a consecutively written multisession disc can be
played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not
all of the recorded files may be played.
•For files encoded in Variable Bit Rate (VBR) format, i.e. files
encoded in both low bit rate and high bit rate (e.g., 32Kbps
~ 320Kbps), the sound may skip during playback.
•A maximum of 999 tracks can be played per CD.
●● Do not touch the playback side of the disc.
●● Hold the disc by the edges so that fingerprints will not get on
the surface.
●● Do not stick paper or tape on the disc.
Disc Storage
●● Do not keep in direct sunlight.
●● Keep in a cool ventilated area.
●● Keep in a clean Protection jacket.
Store vertically.
●● Do not allow the discs to become contaminated with dirt.
●● Do not load cracked or scratched discs.
English
MM-E320_E330-ENG_0110.indd 3
3
2012-4-12 13:58:41
Contents
Thank you for buying this SAMSUNG micro-compact system.
Please take time to read these instructions. They will allow you to operate your system with ease and
take full advantage of its features.
Safety Warnings...............................2
Precautions.......................................3
Cautions on Handling and Storing
Discs..................................................3
Disc Types And Disc Format ............3
Accessories......................................4
Symbols.........................................4
Description.......................................5
Front/Top Panel . ...........................5
Rear Panel.....................................5
Remote Control................................6
Installing batteries in the
Remote Control................................6
CD/MP3/WMA-CD Playback...........7
Selecting a Track..............................7
Repeating One or All Tracks on
the Compact Discs...........................8
Searching for a Specific Music
Passage on a CD..............................8
10 Skip Track....................................8
CD Programming..............................8
Check and Edit the
Programmed Tracks.........................8
Playing USB .....................................9
Selecting a Track from USB Device ......9
Searching a Folder Quicky..............9
To Use High Speed Search............9
To repeat........................................9
10 Skip Track.................................9
Listening to Radio..........................10
Selecting a Stored Station...............10
About RDS broadcasting
(optional)..................................... 10
About RDS DISPLAY function
(optional)...........................................10
PTY(Program Type) indication and
PTY-SEARCH function(Optional). ........11
Setting the Clock........................ 11
Record Function......................... 12
EQ Mode..................................... 12
Timer function............................. 13
Cancelling the Timer.................... 13
Troubleshooting..............................14
Specifications............................ 15
Accessories
Check for the supplied accessories below.
Symbols
FM Antenna
User's Manual
Remote Control/Batteries(AAA)(optional)
Important
Note
• Figures and illustrations in this User Manual are provided for reference only and may differ from
actual product appearance.
• An administration fee may be charged if either
a. an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual)
b. you bring the unit to a repair centre and there is no defect in the product
(i.e. where you have failed to read this user manual).
•The amount of such administration charge will be advised to you before any work or home visit is carried out.
4
English
MM-E320_E330-ENG_0110.indd 4
2012-4-12 13:58:44
Description
1 POWER BUTTON
2 USB REC BUTTON
Front/Top Panel
3 FUNCTION BUTTON
4S
EARCH/SKIP FUNCTION BUTTON
1 2 345 67 8
5T
UNING MODE OR STOP BUTTON
6 PLAY/PAUSE BUTTON
7S
EARCH/SKIP FUNCTION BUTTON
USB REC
8 CD OPEN/CLOSE BUTTON
9 VOLUME CONTROL BUTTON
USB REC
9
$
( Volume adjustment)
0 USB JACK
USB REC
0
5V
500mA
#
!
AUX IN PHONES
5V
500mA
5V
500mA
@
AUX IN PHONES
AUX IN PHONES
• MM-E330 only
5V
500mA
Rear Panel
AUX IN PHONES
(MM-E330)
!* HEADPHONE JACK(Only for MM-E330 )
• If you plug the headset connector into the
headset jack of the main unit, no sound will
output further from the speakers.
@ AUX IN JACK
1. Use the Audio Cable (not supplied) to
connect AUX IN on the player to Audio Out
on the external analog component.
2. Press F( ) to switch the input mode to
AUX.
# COMPACT DISC TRAY
$W
INDOW DISPLAY
% FM Aerial Connector Terminal
ONLY FOR
SERVICE
%
SPEAKERS
OUT( 8 )
&
ONLY FOR
SERVICE
SPEAKERS
OUT( 8 )
^
If reception is poor, you may need to install an
outdoor aerial.
To do so, connect an outdoor FM aerial to the
FM socket on the rear of the system using a
coaxial cable (not supplied).
ONLY FOR
SERVICE
SPEAKERS
OUT( 8 )
Rear Panel
(MM-E320)
^ ONLY FOR SERVICE
• This jack is just for testing ,please don’t
use it.
L
ONLY FOR
SERVICE
FM ANT
R
L
SPEAKERS
OUT( 8 Ω )
ONLY FOR
SERVICE
FM ANT
R
SPEAKERS
OUT( 8 Ω )
L
ONLY FOR
SERVICE
&
R
1. Connect the FM antenna to the FM port on
the rear panel.
2. Extend the antenna as appropriate and find
out the best possible reception position.
Then, fasten the antenna on a near wall.
FM ANT
%
SPEAKERS
OUT( 8 Ω )
^
&S
peaker Connector Terminals
To protect the speakers from a risk of
overvoltage, be sure to turn off the product
before connecting the speakers. For a proper
listening experience, connect the speaker
cables to the speaker terminals on the rear
panel.
• Left speaker (White)
• Right speaker (Red)
English
MM-E320_E330-ENG_0110.indd 5
5
2012-4-12 13:58:47
Remote Control
1
@
#
2
3
4
5
6
7
$
8
(
9
0
)
a
!
b
%
^
&
*
c
1 POWER
Turn the product on and off.
2 TIMER/CLOCK
3 TIMER ON/OFF
4 USB REC
5 Search backwards
6S
TOP
7 Skip
and Search/
RDS PTY*
8E
Q
9 ENTER
0 VOLUME
! MO/ST
@ FUNCTION
# SLEEP
Set a Sleep time to
shut off the product.
$ REPEAT
% +10
^ Search-forwards
& PLAY/PAUSE
* Skip and Search/ RDS DISPLAY*
( MUTE
Turn off the sound
temporarily.
) TUNING/ALBUM
a VOLUME +
bT
UNING MODE
c TUNING/ALBUM
* This product may not have the RDS function depending on your region.
Installing batteries in the Remote Control
•• Place batteries in the remote control so they match
the polarity : (+) to (+) and (–) to (–).
•• Always replace both batteries at the same time.
•• Do not expose the batteries to heat or a flame.
•• The remote control can be used up to approximately
23 feet (7 meters) in a straight line.
6
* Battery size: AAA
English
MM-E320_E330-ENG_0110.indd 6
2012-4-12 13:58:49
CD/MP3/WMA-CD Playback
You can play 12 cm compact disc without an adapter.
This product is designed to play an audio CD, CD,CD-R,CD-RW,MP3/WMA-CD.
• Gently open or close the CD tray and do not apply excessive force.
• Do not put force or place a heavy object on the product.
• Do not insert an out-of-spec. shape of CD
such as a heart or octangle shaped CD.
Otherwise, the product may be damaged.
• Care must be taken about maintenance of the
compact discs.
1. Press OPEN/CLOSE button to open the disc tray.
• If there is not one CD inserted in the disc tray,
it is indicated as “NO DISC”.
• The quality of MP3/WMA-CD playback may
vary depending on the condition of the disc
containing the music files or the condition of
the recorder with which the disc was created.
• If different types of files or unnecessary
folders are on the same disc, you will have
problems with playback.
• Keep the tray closed whenever you are not
using it, to prevent dust from entering.
• You can load or unload compact disc when the radio, usb or auxiliary source function is selected, and when you press the Open/
Close button, all of the other functions will be changed to MP3/CD mode.
• If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will be changed to stop mode.
2. Place a disc gently into the tray with the disc label faces upward.
3. Press OPEN/CLOSE button to close the disc • If no buttons are pressed on the product or tray,the disc will be played automatically.
remote control for more than 25 minutes when the product is in Stop mode, the power • For MP3/WMA-CD audio, it may take several
will automatically turn off.
minutes to complete scanning the disc tracks.
• If you play a file with an English name or a
MP3/WMA-CD medium in an English title, the
song title will be shown in the display.(Other
languages besides English may not be
indicated.)
• An English-titled track containing a special
You can select a desired track while the disc is being played.
character will not show the title in the display.
Selecting a Track
<CD/MP3/WMA-CD PlaybackDisplay>
Track Indicator
Playtime Indicator
djust the volume according to needs with the
4. A
following procedures.Press the VOLUME button
of the main unit or Press the VOLUME+or –button
of the remote control. The volume level can be
adjust in 31 steps (VOL MIN,VOL 1- VOL
29,andVOL MAX).
5. To pause playback temporarily, press the PLAY/
PAUSE (p) button
• Press PLAY/PAUSE (p) again to resume playing.
6. To end playing, press STOP (@).
To play the previous track
-Press the [ button within 3 seconds after the
current track started playing.
- Press the [ button twice at least 3 seconds
after the current track started playing.
To play the next track
- Press the ] button.
To play the current track
- Press the [ button 3 seconds later after the
current track started playing.
To play the track of your choice
- Use [ or ] to move to a desired track.
English
MM-E320_E330-ENG_0110.indd 7
7
2012-4-12 13:58:50
Repeating One or All Tracks
on the Compact Discs
You can repeat playing CD indefinitely.
●● CD containing a specific track.
●● Whole tracks of a selected CD.
ress REPEAT button.
1. P
Each time you press the REPEAT button, the
repeat mode will change as following:
MP3 : R OFF ;R TRK ; R DIR ; R DISC; R RAN .
CD : R OFF ;R TRK ; R DISC ; R RAN .(MM-E330)
CD : R OFF ;R TRK ; R ALL ; R RAN .(MM-E320)
• Depending on your product,the repeat mode display maybe different.
hen you wish to stop the Repeat function, press
2. W
REPEAT until "R OFF" is displayed.
CD Programming
(This function is not available during playback of
an MP3/WMA-CD.)
●● You can program the playback order of up to 24
tracks of your choice.
●● However, you must stop playing the CD before
selecting tracks.
hile in CD playback mode, press STOP(@) to
1. W
stop playing the CD.
2. Press the ENTER button to display the message below:
(01= program number, --= track number)
3. Use [ or ] to move to a desired track.
• Press [ to move to the previous track.
• Press ] to move to the next track.
• R TRK : Repeatedly plays the selected track.
4. Press the ENTER button to confirm your selection,the selection is stored and
displayed.
• R DIR : Repeatedly plays all tracks in the selected folder.
5. To select a different track, following the steps 3 to 4 above.
• R DISC : Repeatedly plays the entire disc
6. Press PLAY (p) to play the programmed tracks.
7. Press STOP (@) to stop playing the programmed
tracks, Press STOP (@) again to cancel playing
the programmed tracks.
• R OFF : Cancels Repeat Playback.
• R ALL : Repeatedly plays the all tracks in the disc.
• R RAN : Plays tracks in random order.
Searching for a Specific Music
Passage on a CD
When listening to a compact disc, you can quickly
search for a specific music passage on a track.
• If you open the disc tray or turn off the
product, your programming will be canceled.
Check and Edit the Programmed
Tracks
To search for
Press
You can check a list of programmed tracks and edit
them as you want.
- Fowards ...............
- Backwards ............
) button
( button
1. If a programmed track is being played, press STOP (@) once.
Press and hold the [/] button on the top panel to automatically scan for a track.
10 Skip Track
Press the +10 button while in playback mode.
This will skip the tracks as many as 10 from the current
track.
2. Press ENTER twice to display the message below:
(C=Check, 01= program number)
If a total of 24 tracks are already programmed, “C”
will be displayed rather than “P” in the display.
3. Repeat pressing ENTER until the desired track is displayed.
4. Press [ or ] to select a different track.
5. Press ENTER to confirm your selection.
6. To play the programmed tracks, press PLAY (p).
8
English
MM-E320_E330-ENG_0110.indd 8
2012-4-12 13:58:51
Playing USB
Connect an external storage device such as USB flash
memory or external HDD (Hard Disk Drive) to the product. You can play files in MP3/WMA format.
10 Skip Track
Before you begin! Read through the instructions below before using
the USB storage.
●● Connect the external USB storage device to
your product.
●● Press F( ) to select the USB mode.
●● The first track of the first directory plays automatically.
Press STOP (@) to stop playing.
Refer to the 10 Skip Track section. (Page 8)
●● Some external USB storage device may not be
compatible with this product.
●● With external HDD, FAT format can be played.
●● With USB 2.0 HDD, connect to a separate power
source.
If it’s not connected to a separate power source,
Press STOP (@) again to remove the USB it may not work.
●● If memory of an external USB storage device is
storage safely.
segmented into several parts, MP3 files of only
Do not connect a USB recharger to the USB the first hard disk drive can be played.
port of this product. Otherwise, the product may ●● DRM applied files are not played.
be damaged.
Digital Rights Management: Technology and service that protect the profit and rights of copyright
Selecting a Track from USB Device
owners by disallowing unauthorized use of digital
You can select an MP3 file during the play.
contents.
➣➣ If you want to move the next/previous(track), press ●● Even if the file name ends with .mp3, the file
the [,] buttons shortly.
does not play if actual file format is MPEG layer
1 or 2.
• It moves the next/previous file within the directory.
• If you press the [,] buttons more times than ●● Do not use a USB hub as it will not be the number of the files in the directory, it will move
recognized.
over to the next directory.
●● Up to 15 letters of MP3/WMA file name will be
Searching a Folder Quickly
shown.
1. Press the TUNING/ALBUM , or . button on the ●● Removable HDDs equipped with less than
160 Gbytes are supported. Removable HDDs
remote control to move to the previous/next folder.
equipped with 160Gbytes or more may not be
2. When the searching is done, you will see the next/
recognized, depending on the device.
previous folder name. The track will start playing.
●● When selecting USB function,file reading To Use High Speed Search
(READ-IN) may take several minutes.
You can search the desired section quickly during the ●● When playing a USB device,there may be a delay
then advancing to the next track,especially with
play.
HDD.The operation time of external USB storage
➣➣ Press the ( , ) button.
devices will vary;even when they are of the same
• Each time you press the button, you will move
capacity.
forward/backward fast.
●● If the external USB storage device supports only
USB VER1.1 and the access speed is slow,the
The sound will not output in fast playback mode.
file may not property.
To repeat
1. Press the REPEAT button.
Each time you press the REPEAT button, the
Remove the USB storage
repeat mode will change as following:
R OFF ➝ R TRK ➝ R DIR ➝ R ALL ➝ R RAN
2. W
hen you wish to stop the Repeat function, press
the REPEAT button until R OFF is displayed.
• R OFF: Cancels Repeat Playback.
• R TRK: Repeatedly plays the selected track.
• R DIR: Repeatedly plays all tracks in the selected folder.
• R ALL: Repeatedly plays all tracks.
• R RAN: Plays tracks in random order.
English
MM-E320_E330-ENG_0110.indd 9
9
2012-4-12 13:58:52
Listening to Radio
Selecting a Stored Station
You can store up to:15 FM stations.
You can listen to a stored radio station as follows:
1. Press FUNCTION to select FM mode.
1. Press FUNCTION to select FM mode.
To search
for a
satation
2.
Press TUNING MODE button
Preset
...
Manually
...
Once or more times until
“PREXX(FM XX)” is displayed.
You can search the stored
frequencies in the Preset mode.
Once or more times until
“MANUAL” is displayed.
You can search the frequencies
one by one in the manual mode.
• MM-E330 display "PRE XX" and MM-E320 display "FM XX".
3. Select the satation in any of the following ways:
◆◆
Press the TUNING/ALBUM , or . button on
the remote control.
◆◆
To fast scan for a frequency manually, press
and hold the TUNING/ALBUM , or .button.
4. Press MO/ST to switch between stereo and mono.
• In a poor reception area, select MONO for a clear, interference-free broadcast.
• This applies only when listening to an FM station.
5. If you don’t want the preset, move back to step 3 and
select a different preset.
Otherwise,
a. Press ENTER.
b. Or, press the [,] button on the top panel or
TUNING/ALBUM , or . button on the remote
control to select a program number.
c. Press ENTER to save the preset.
6. To save other radio frequency, repeat steps 2 through 5 above.
In Tuner Mode
•
•
•
10
To scan for radio frequencies in manual mode, use the [,] buttons on the top panel.
To stop scanning, press STOP (@).
To scan for a preset in preset tuning mode, use the [,] buttons.
2. Press the TUNING MODE button on the remote control until “PRE XX(FM XX)” is displayed.
• MM-E330 display "PRE XX" and MM-E320 display "FM XX".
3. Press [,] button on the top panel or TUNING/ALBUM , , . on the remote control to select a desired preset number.
About RDS broadcasting(Optional)
Using the RDS (Radio Data System) to
receive FM stations
RDS allows FM stations to send an additional signal
along with their regular program signals.
For example, the stations send their station names,
as well as information about what type of program
they broadcast, such as sports or music, etc.
When tuned to an FM station which provides the RDS
service, the RDS indicator lights up on the display.
Description on RDS function
●● PTY (Program Type) : Displays the type of
programme currently being broadcast.
●● PS NAME (Program Service Name) : Indi-
cates the name of broadcasting station and
is composed of 8 characters.
●● RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of
maximum 64 characters.
●● CT (Clock Time) : Decodes the real time
clock from the FM frequency. Some stations
may not transmit PTY, RT or CT information
therefore this may not be displayed in all
cases.
●● TA (Traffic Announcement) : When this
symbol flashes it shows that the traffic announcement is in progress.
RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak.
About RDS DISPLAY function(Optional)
You can see the RDS signals the station sends on the display.
Press the RDS DISPLAY button while listening to an FM
station.
Each time you press the button, the display change to show you the following information : PS NAME ; RT; CT ; Frequency
English
MM-E320_E330-ENG_0110.indd 10
2012-4-12 13:58:52
PS
(Program
Service)
While searching, <PS> appears
and then the station names will
be displayed. <NO PS> appears
if no signal is sent.
RT(RadioText)
While searching, <RT> appears and
then text messages the station sends
will be displayed. <NO RT> appears
if no signal is sent.
CT (Clock Time)
Decodes the real time clock from the
FM frequency.
Some stations may not transmit PTY,
RT or CT information therefore this
may not be displayed in all cases.
Frequency
Station frequency (non-RDS
service)
About characters shown in the display
When the display shows PS,or RT signals,the
following characters are used.
The display window cannot differentiate upper
case and lower case letters and always uses upper
case letters.
●● The display window cannot show accented letters,
<A,> for instance, may stands for accented <A’s> like
<À, Â, Ä, Á, Å and Ã.>
●●
●●
PTY(Program Type) indication and
PTY-SEARCH function(Optional)
One of the advantages of the RDS service is that
you can locate a particular kind of program from the
preset channels by specifying the PTY codes.
To search for a program using the PTY codes
Before you start!
• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press
the STOP button while searching.
• There is a time limit in doing the following steps.
If the setting is cancelled before you finish, start from
step 1 again.
• When pressing the buttons on the primary remote
control, make sure that you have selected the FM
station using the primary remote control.
1. Press the RDS PTY button while listening to an FM
station.
2. Press the TUNING/ALBUM ,or . buttons until
the PTY code you want appears on the display.
• The display gives you the PTY codes described
to the right.
3. Press the RDS PTY button again, while the PTY
code selected in the previous step is still on the
display.
• The centre unit searches 30 preset FM stations,
stops when it finds the one you have selected,
and tunes in that station.
Setting the Clock
For each step, you have a few seconds to set the
required options. If you exceed this time, you must
start again.
1. Switch the system on by pressing the POWER
button.
2. Press TIMER/CLOCK button and then press the
ENTER button,"CLOCK” is displayed.
3. Press ENTER,the hour flashes.
●● Increase the hours:,.
●● Decrease the hours:..
4. When the correct hour is displayed,
press ENTER, the minutes flashes.
●● Increase the minutes:,,
●● Decrease the minutes:..
5. When the correct minute is displayed, press
ENTER,
"TIME" appears in the display.
●● The current time is set now.
●● You can display the time, even when you
are using another function, by pressing the
TIMER/CLOCK button once.
●● You can also use [ or ] on the top
panel instead of TUNING/ALBUM ,or .
buttons in step 3,4.
English
MM-E320_E330-ENG_0110.indd 11
11
2012-4-12 13:58:53
Record Function
You can record the audio of a CD/Radio or external
music player to a USB storage device.
1. Connect the USB device to the USB port ( ) of the main unit.
2. Play CD/Radio to record, or connect the external
device to the main unit.
- CD
●● Press F(
) on the top panel to select MP3/
CD.
●● Press OPEN/CLOSE button to open the
disc tray.
●● Insert a CD and press OPEN/CLOSE button to close the disc tray.
●● Press [ or ] to play a desired music.
- FM Tuner
●● Use the F( ) button to select FM mode.
●● Select a radio frequency to record.
- External Device
●● Connect the external device (MP3 player) to the product.
●● Press F( ) button to select AUX mode.
●● Play the music file in the external device.
3. Press the USB REC button to start recording.
- CD
●● “TRACK RECORDING” is displayed and CD
recording starts.
●● Do not disconnect the USB or the AC Cord
during the recording as this may cause file
damage.
●● If you disconnected USB device during the
recording, the main unit will be power off and
you may not delete the recorded file, In this
case, please connect the USB device to the
PC and backup the USB data on the PC first
and then format the USB device.
●● When the USB memory is not enough, it will
be displayed “NOT ENOUGH MEMORY”.
●● The recording works if the USB device or the
HDD is formatted in the FAT file system.(The
NTFS file system is not supported.)
●● When you use CD high speed search function, the CD recording can’t work.
●● Sometimes, the recording time may be
longer with some USB devices.
●● In the program mode, you can't use the CD
recording function.
●● When the CD recording, the EQ can not
work and automatically change to OFF.
●● When the CD recording, the REPEAT function can not work and automatically changes
to OFF.
●● You can not record the radio when searching or no available frequencies in the Tuner
mode.
●● Note that setting the input level too loud
when recording music from an external
device through the AUX and USB channel
may introduce noise into the recording. In
that case, lower the external device’s volume
level.
●● No sound is heard during CD recording.
●● Press and hold the USB REC button to start
recording the all tracks of Disc.
"FULL CD RECORDING" is displayed.
●● If you record the MP3 , the file is copied into
the USB device totally. “STOP”“COPY
XX”“COPY END” is displayed. When the
recording is done, “STOP” will be displayed.
●● If there is the same file name,
“STOP”"FILE EXIST" is displayed, and the
function is canceled.
- FM /External Source
●● RECORDING is displayed.
4. P
ress STOP (@) to stop playing. Then, a mp3 file
will be created accordingly.
5. To remove the USB storage device safely, press STOP (@) again.
●● After the recording, a directory named
“RECORDING”(CD), “CD COPY”(MP3
CD), “TUNER RECORDING” or “AUX RECORDING” will be created in your device.
12
EQ Mode
The micro component system supports the predefined
equalizer settings between high and low frequencies to
be in harmonious with the current music genre.
Press EQ on the remote control.
Each time you press EQ,the EQ model will switch in
the following order:
P BASS;OFF ;FLAT;RANCHA ; SAMBA ;
CUMBIA ; HABANA; BOOMBA;REGGAE ;
PARTY ; POP ; HIPHOP; ROCK;JAZZ ; CLASS
; STA+EQ; DYN+S;MP3+ ; VIR+S .
●● The EQ button will be disabled during the
recording, and the product switches to “ OFF”
automatically.
English
MM-E320_E330-ENG_0110.indd 12
2012-4-12 13:58:53
CD/MP3 (compact disc) ........Load one compact disc.
USB............................Connect the USB device.
Timer Function
T
he timer enables you to switch the system on
or off at specific times automatically.
Before setting the timer, check that the
current time is correct.
For each step, you have a few seconds to
set the required options. If you exceed this
time, you must start again.
If you no longer want the system to be
switched on or off automatically, you must
cancel the timer by pressing TIMER ON/OFF
button.
Example: You wish to wake up to music every morning.
witch the system on by pressing the POWER
1. S
button.
2. Press TIMER/CLOCK button thrice until
is displayed.
TIME ) button,
3. Press the ENTER (
ON is displayed for a few seconds,you can
set the timer switch-on time.
8. Press the ENTER (
) button,CHK REC (Do
you want to record?) is displayed.
9. Press the ENTER (
) button, REC N
is displayed, you can press the TUNING/
ALBUM ,,or . buttons to select the REC Y
or REC N, and then press ENTER button.
1).If you select the REC N, it will cancel tuner
timing recording even if you have already
set the tuner timing recording.
2).If you select the REC Y, you can set the
tuner timing recording.
) button,
a.Press the ENTER (
ON is displayed for a few seconds, you
can set the tuner timing recording
switch-on time.
) button, OFF is
b.Press the ENTER (
displayed for a few seconds, you can set
the tuner timing recording switch-off
time.
●● The maximal tuner timing recording time is
5 hours.
4. Set the timer switch-on time.
a Press the TUNING/ALBUM ,or . buttons.
●● If the timer switch on and off times are identi-
Press the ENTER (
) button,
the minutes flash.
c Press the TUNING/ALBUM ,,or . buttons.
d Press the ENTER (
) button.
OFF is displayed for a few seconds, you can now set the timer switch-off time.
the timing recording time, only the switch-on
or -off time is effective, and the timing recording time is not applied.
●● If the auto timer is turned on,the MP3/CD or
USB function may require an additional step
to be activated depending on the disc(or
device).So it is better for you to select the
tuner function instead.
b
5. Set the timer switch-off time.
a Press the TUNING/ALBUM ,,or . buttons.
b Press the ENTER (
) button, the minutes flash.
c Press the TUNING/ALBUM ,,or . buttons.
d Press the ENTER (
) button,
VOL XX is displayed, where XX corresponds
to the volume already set.
6.
Press TUNING/ALBUM ,,or . buttons to adjust the volume level and press the ENTER (
) button,the source to be selected is displayed.
cal, the word ERROR is displayed.
●● If the switch-on or -off time is the same as
Cancelling the Timer
After having set the timer, it will start automatically as
shown by the TIMER indication on the display. If you
no longer wish to use the timer, you can cancel it.
1. To cancel the timer, press TIMER ON/OFF once, is no longer displayed.
2. To resume the timer, press TIMER ON/OFF again. is displayed again.
7. Press the TUNING/ALBUM ,,or .buttons to select the source to be played when the system switches on.
●● FM (radio) : a P
ress the ENTER(
)button.
b Select a preset station by press
the TUNING/ALBUM ,,or .
button.
English
MM-E320_E330-ENG_0110.indd 13
13
2012-4-12 13:58:55
Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed
below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest
authorized dealer or Samsung Electronics Service Center.
Symptom
Check/Remedy
I cannot eject the disc.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
Playback does not start
immediately when the
Play/Pause button is
pressed.
• Are you using a deformed disc or a disc with scratches on the
surface?
• Wipe the disc clean.
Sound is not produced.
• No sound is heard during fast playback, slow playback.
• Are the speakers connected properly? Is the speaker setup
correctly customized?
• Is the disc severely damaged?
The remote control does not
work.
• Is the remote control being operated within its operation range of
angle and distance?
• Are the batteries drained?
• The product is not working.
(Example: The power goes
out or the top panel key
doesn't work or a strange
noise is heard.)
• The product is not working
normally.
• While “NO DISC” message appears on the display of the product,
press and hold the STOP (@) button on the main unit for longer
than 5 seconds with no disc (reset function).
Can’t receive radio
broadcast.
• Is the antenna connected properly?
• If the antenna’s input signal is weak, install an external FM antenna in an
area with good reception.
14
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
English
MM-E320_E330-ENG_0110.indd 14
2012-4-12 13:58:55
Specifications
General
FM Tuner
Disc(1 Disc)
Amplifier
Weight
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
Signal/noise ratio
Usable sensitivity
Total harmonic distortion
CD : 12 cm (COMPACT DISC)
1.34 Kg(MM-E320)
1.76 Kg(MM-E330)
200 (W) x 142(H) x 207(D) mm
+5°C~+35°C
10 % to 75 %
62 dB
10 dB
0.4 %
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Speaker output
10 W/CH (8 Ω) x2(MM-E320)
Speaker output
35 W/CH (8 Ω) x2(MM-E330)
Frequency range
20Hz~20KHz
S/N Ratio
70dB
Channel separation
60dB
Input sensitivity
(AUX)900mV
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- Design and specifi cations are subject to change without prior notice.
- For the power supply and Power Consumption, refer to the label attached to the product.
Correct disposal of batteries in this product(optional)
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not
be disposed of with other household waste at the end of their working life. Where marked, the chemical
symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference
levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm
to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of
waste and recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment(optional)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
English
MM-E320_E330-ENG_0110.indd 15
15
2012-4-12 13:58:57
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Area
Contact Center
WebSite
Area
Contact Center
WebSite
0-800-555-555
0-88-555-55-55
8-10-800-500-55-500
0-800-61440
Code No. AH68-02363B(Rev 0.0)
MM-E320_E330-ENG_0110.indd 16
2012-4-12 13:58:59
