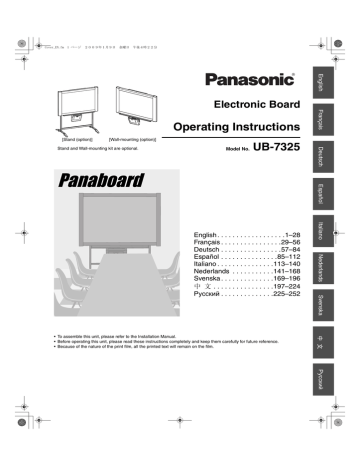

English
Operating Instructions
[Stand (option)]
Français
Electronic Board
[Wall-mounting (option)]
Model No.
UB-7325
Deutsch
Stand and Wall-mounting kit are optional.
Español
Nederlands
Svenska
中 文
• To assemble this unit, please refer to the Installation Manual.
• Before operating this unit, please read these instructions completely and keep them carefully for future reference.
• Because of the nature of the print film, all the printed text will remain on the film.
Italiano
English . . . . . . . . . . . . . . . . . .1–28
Français . . . . . . . . . . . . . . . .29–56
Deutsch . . . . . . . . . . . . . . . .57–84
Español . . . . . . . . . . . . . . .85–112
Italiano . . . . . . . . . . . . . . .113–140
Nederlands . . . . . . . . . . .141–168
Svenska . . . . . . . . . . . . . .169–196
中 文 . . . . . . . . . . . . . . . .197–224
Русский . . . . . . . . . . . . . .225–252
Русский
UB-7325_MECA.book 2 ページ
2008年1月7日 月曜日 午後4時16分
Thank you for purchasing the Panasonic Electronic Board.
For optimum performance and safety, please read these instructions carefully.
Record these items for future reference
Model number: _________________________
Date of purchase: ________________________
Serial number: _________________________
Dealer’s name: __________________________
Dealer’s address: ______________________________________________________________________
Tel:
Accessories
•
•
•
•
•
Thermal transfer film . . . . .
Markers (red, black, and blue)
Operating Instructions . . . .
Installation Manual . . . . . .
Eraser . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Q’ty
. . .1
1 each
. . .1
. . .1
. . .1
Q’ty
• Power cord . . . . . . . . . . . . . . . . . . . 1
• A4 (Letter*) size copy paper . . . . . . . . . . 20
• Software CD-ROM . . . . . . . . . . . . . . . 1
* Letter size is for U.S.A. and Canada models.
• The stand and wall-mounting kit are optional. By way of example, this manual describes an Electronic
Board which is used with the stand.
• USB cable is not included.
• Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
• IBM and AT are trademarks of International Business Machines Corporation in the United States, other countries,
or both.
• Pentium is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and
other countries.
• Adobe, Acrobat, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
• SANFORD and EXPO are registered ® U.S. trademarks of SANFORD or its Affiliates.
• All trademarks referred to in this manual are property of their respective companies.
• This software is based in part of the work of the IndependentJPEG Group.
• This software is based on the “libtiff” which has the following copyrights:
Copyright (C) 1988-1997 Sam Leffler
Copyright (C) 1991-1997 Silicon Graphics, Inc.
The information given in this Operating Instructions is subject to change without notice.
Warning about saving data
When the system storage device or any of its optional storage device is adversely effected by operational
errors, static electricity, electrical noise, vibration, dust or when the power has been cut off due to malfunction,
repair or inadvertently, the memory contents may be lost or changed. Before operating the system, make a
point of reading the precautionary notes in the Operating Instructions and the help information, and observe
them during operation.
Please observe carefully the following precaution:
• Make absolutely sure that all important data is saved by back-up or the original is saved.
The manufacturer hereby declares that it cannot be held accountable for any loss or change in any data
stored on floppy disks, hard disks, optical disks, or other memory devices.
2
UB-7325_MECA.book 3 ページ
2008年1月7日 月曜日 午後4時16分
English
Table of Contents
Page
For Your Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before
You Start
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing the Thermal Transfer Film. . . . . . . . . . . . . . . . . . . . . . . 10
Loading Copy Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Copy types and procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the Projector Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Replacing the Thermal Transfer Film . . . . . . . . . . . . . . . . . . . . . . 14
Using
Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Computer Interfacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
•
•
•
•
•
•
•
•
•
•
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contents of CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installing Drivers / Board Image Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing Quick Image Navigator / Panasonic-DMS . . . . . . . . . . . . . . . . . . . . 19
Removing Drivers / Board Image Capture / Quick Image Navigator . . . . . . . . 19
Removing Panasonic-DMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Scanning with the Board Image Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Scanning with the Quick Image Navigator / Panasonic-DMS . . . . . . . . . . . . . 21
Panaboard Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Daily Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
• Cleaning the screen and the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
• Caring for the eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
• Cleaning the printer head, platen roller and pick-up roller . . . . . . . . . . . . . . . . 24
Help
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
• Meanings of error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
• Option and Separately available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3
Precautions_2 col.fm 4 ページ
2010年2月23日 火曜日 午前9時22分
For Your Safety
For Your Safety
English
CAUTION:
TO PREVENT RISK OF ELECTRIC SHOCK
HAZARD, DO NOT REMOVE THE COVER OF THIS
PRODUCT, REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR ANY TYPE
OF MOISTURE.
THE SOCKET-OUTLET MUST BE NEAR THIS
EQUIPMENT AND MUST BE EASILY ACCESSIBLE.
The product should be used only with the power cord
that is supplied by the manufacturer.
Stop operation immediately if your product emits
smoke, excessive heat, abnormal smell or unusual
noise. These conditions can cause fire or electric
shock. Immediately turn the product off and unplug
the power cord, and contact your dealer for service.
• (220–240 V equipment)
A certified power supply cord has to be used with this
equipment. The relevant national installation and/or
equipment regulations shall be considered. A certified
power supply cord is not lighter than ordinary polyvinyl
chloride flexible cord according to IEC 60227
(designation H05VV-F 3G 1.0 mm2).
CLASS 1 LED PRODUCT
Für Benutzer in der BRD
Hinweis:
Maschinenlärminformations-Verordnung - 3. GPSGV,
der höchste Schalldruckpegel beträgt < 70 dB (A)
oder weniger gemäss EN ISO 7779.
Das Gerät ist nicht für die Benutzung im
unmittelbaren Gesichtsfeld am Bildschirmarbeitsplatz
vorgesehen.
Um störende Reflexionen am Bildschirmarbeitsplatz
zu vermeiden, darf dieses Produkt nicht im
unmittelbaren Gesichtsfeld platziert werden.
4
For users in
the United Kingdom only
Safety Information
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5 amp. fuse is fitted in this plug. Should the fuse need
to be replaced please ensure that the replacement fuse
has a rating of 5 amps. and that it is approved by ASTA
or BSI to BS1362. Check for the ASTA mark
or the
BSI mark
on the body of the fuse. If the plug
contains a removable fuse cover you must ensure that it
is refitted when the fuse is replaced. If you lose the fuse
cover the plug must not be used until a replacement
cover is obtained. A replacement fuse cover can be
purchased from your local Panasonic Dealer.
If the fitted moulded plug is unsuitable for the socket
outlet in your home then the fuse should be removed
and the plug cut off and disposed of safely.
There is a danger of severe electrical shock if the cut off
plug is inserted into any 13 amp. socket.
If a new plug is to be fitted please observe the wiring
code as shown below. If in any doubt please consult a
qualified electrician.
WARNING: This appliance must be earthed.
IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code.
Green-and-Yellow: Earth
Blue:
Neutral
Brown:
Live
As the colours of the wire in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows.
The wire which is coloured Green-and-Yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the Earth symbol
or coloured
Green or Green-and-Yellow.
The wire which is coloured Blue must be connected to
the terminal in the plug which is marked with the letter N
or coloured Black.
The wire which is coloured Brown must be connected to
the terminal in the plug which is marked with the letter L
or coloured Red.
How to replace the
fuse:
Open the fuse compartment
with a screwdriver and
replace the fuse.
UB-7325_MECA.book 5 ページ
2008年1月7日 月曜日 午後4時16分
English
Precautions
Precautions
Never remove the cover, take apart or modify the
product. This will void the warranty.
Do not position the electronic board in a location where
it is unstable.
Do not put drinks, other liquids or heavy items on the
tray or screen.
After installing or moving the electronic board, lock the
casters and set the fall-prevention extension legs.
Push to lock
Locking the casters
(Push this side)
Do not use the electronic board in an excessively
humid or dusty location.
If the electronic board is not going to be used for an
extended period of time (e.g., during extended
holidays), turn off the power and remove the plug from
the wall outlet.
5
UB-7325_MECA.book 6 ページ
2008年1月7日 月曜日 午後4時16分
Precautions
Do not lean against the screen or on the cover (lower),
even if the electronic board is mounted on the wall.
CHOKING HAZARD
Keep the marker’s cap out of reach of
children to prevent swallowing.
Have the unit installed, removed and
disposed of only by qualified service
personnel.
When the unit will no longer be used, in order
to prevent it from falling, do not leave the unit
installed, but remove it. If the unit falls, it can
cause injury.
■ CD-ROM
To prevent the CD-ROMs from accidental damages:
Do not touch or write on the surface
of the disc.
Do not leave the disc out of the
protective case.
Do not place heavy objects on the
disc case or drop the case.
To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.
Do not leave the disc in direct
sunlight or near heat sources.
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic products should not
be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be
accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local
retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human
health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority
for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
6
UB-7325_MECA.book 7 ページ
2008年1月7日 月曜日 午後4時16分
English
Precautions
Installation
• Do not install the unit where it may be exposed to direct sunlight, near heating equipment, or
near air-conditioning vents as this may cause stretching and/or discoloration of the screen.
• Do not install the unit in strong sunlight or strong lighting. Proper copying may become
impossible.
• Do not install the unit in locations where the temperature may change suddenly as this may
disable the unit’s ability to make copies.
Screen Film
• Make thick and dark lines inside the copying area.
25 mm
Note that any writing inside the shaded area (on
right) cannot be copied.
• Do not allow writing to remain on the screen for an 35 mm
Copying area
35 mm
extended period of time as it will become harder to
erase.
• Do not touch the screen, write with markers, or
25 mm
erase while the screen is moving as this may result
in damage to the unit.
• Do not erase with an overly dirty eraser (see page 24).
• Use a commercially available white board cleaner for hard-to-erase stains.
(SANFORD® EXPO® white board cleaner etc.)
• Do not attach chart paper to the screen film for copying as this may result in damage to the
unit.
Markers,
Erasers and
Thermal
Transfer Film
• Use only the included or designated markers, erasers and thermal transfer film. (See page
28.)
Use of accessories other than those included or designated (such as oil-based
markers) may damage the screen or result in hard-to-erase markings.
• Do not store the thermal transfer film in a location subject to extreme changes in
temperature (such as near air conditioning or heating equipment) as this may cause
condensation on the thermal transfer film and result in poor print quality and/or paper jams.
• The length of one roll of designated thermal transfer film (Replacement film: UG-6001) is
approximately 50 meters. One roll of thermal transfer film can make approximately 150
sheets of copies.
Note that the total number of copies may differ depending on the operating conditions.
Also note that the length of the thermal transfer film supplied with the unit is shorter
than the replacement film roll and is only approximately 10 meters.
• Store markers horizontally as vertical storage may stop the ink from coming out.
Power Cord
• The included power cord is for use with this unit only. Do not use it with other devices.
• When moving the unit, disconnect the power cord from the electrical power socket and from
the printer’s power connector and coil it for transportation as stepping on the power cord or
having it catch on something during movement may result in damage to the cord.
Replacing
the Thermal
Transfer Film
• Dispose of the used thermal transfer film in a trash receptacle for burnable trash.
• A negative of the copied image will remain on the thermal transfer film. (To protect the
security of your information, we recommend cutting up the used thermal transfer film with
scissors or shredder before disposing of it.)
USB Cable
• Use a shielded USB cable that is certified as logo by USB-IF.
• If you connect the electronic board to a USB hub, it is not guaranteed to work.
• Do not connect two or more Panasonic electronic boards to a computer. It may cause the
computer operation to become unstable.
Projector
• Light from the projector may enter the eye when using a projector to project images for the
purpose of making presentations and so on. Be very careful as direct projector light may
hurt the eyes.
7
UB-7325_MECA.book 8 ページ
2008年1月7日 月曜日 午後4時16分
Part Names and Functions
Part Names and Functions
Scanner
Screen
One screen (with no
ruled lines) of four
screens can also be
used for a projector
(see page 14).
Tray
Printer
Stand
The stand is optional.
Output Port
Control Panel
This port holds up to 10
sheets of output paper.
(See page 9 for details.)
Power Switch
ON
Printer Open Lever
OFF
Push down this lever to
open the printer door.
AC Inlet
Cord Holder
Power Cord
Printer Door
Paper Cover
USB Connector
(See page 17.)
8
Open this cover to
load copy paper.
Open this door to load a
thermal transfer film or to
remove jammed paper.
(See pages 10, 15.)
UB-7325_MECA.book 9 ページ
2008年1月7日 月曜日 午後4時16分
English
Part Names and Functions
■ Control panel
Contrast/Remaining Film
Indicator
Reverse Key
Advance Key
Contrast Key
Copy Key
Panel
Name
Multi-Copy/Stop Key
Multi-Copy/Error Indicator
Description
Contrast/
Remaining
Film
Indicator
This lamp indicator notifies the user when the time to replace the thermal transfer
film is approaching (estimated) and of the printing contrast used during copying.
Indicator off:
Normal printing contrast
Indicator on:
Darker than normal printing contrast
Indicator flashing*:
Almost time to replace the thermal transfer film
(Note that only about 15 more sheets may be
copied when this indicator starts flashing.)
Replacement film (UG-6001) is separately available
from the dealer where you purchased your unit.
* The flashing indicator will go out after the power is turned off, or the
printer has been opened and closed. (When copying is performed, this
indicator will begin flashing again.)
Contrast
Key
Each time this key is pressed, the unit will alternate between normal and dark
contrast modes (Normal/Dark).
Copy Key
This key causes the screen to be copied.
Multi-Copy/
Error
Indicator
Multi-Copy/
Stop Key
Advance
Key
Reverse
Key
This indicator displays the number of copies to be made. The display changes
each time the Multi-Copy/Stop Key is pressed.
Example: 1 → 2 → ··· → 9 →
→1 → ···
(Selecting “ ” allows you to copy 4 screens continuously.)
When an error occurred, a flashing symbol will appear in this display to
indicate the error status. (See page 27.)
When making multiple copies or copying 4 screens continuously, press this
key until the desired number of copies or “ ” is displayed on the Multi-Copy/
Error Indicator. This key can also be pressed to stop copying while executing
multiple copies or copying 4 screens continuously.
• The display changes as shown below each time the screen is copied. After
reaching 0, the display will reset to 1.
Example for multiple copies:
5 → 4 → 3 → 2 → 1 → 0 → 1 (Number is counted down.)
Example for copying 4 screens continuously:
→
→
→ → 0 → 1 (Display changes.)
Pressing this key advances the screen from right to left.
Pressing this key twice advances two screens from right to left.
Pressing this key more than 2 seconds advances the screen to the projector
screen with no ruled lines.
Pressing this key advances the screen from left to right.
Pressing this key twice advances two screens from left to right.
Pressing this key more than 2 seconds advances the screen to the projector
screen with no ruled lines.
9
UB-7325_MECA.book 10 ページ
2008年1月7日 月曜日 午後4時16分
Installing the Thermal Transfer Film
Installing the Thermal
Transfer Film
2) Insert the blue shaft into the front left hole.
Install the thermal transfer film in the printer.
1
Set the power switch to on ( I ).
Blue shaft
• “ ” will flash on the Multi-Copy/Error
Indicator when the thermal transfer film has
run out.
• The screen will move to home position and
stop.
ON
3) Place the blue gear on the front right groove.
OFF
Blue gear
2
Push down the printer open lever and open
the printer door.
4) Place the white shaft on both sides of the back
grooves.
Printer door
Install the thermal transfer film.
31) Set
the thermal transfer film, with the blue
gear in front, on the right.
Blue gear
10
White shaft
UB-7325_MECA.book 11 ページ
2008年1月7日 月曜日 午後4時16分
Tighten the film, then close the printer door.
41) Rotate
the blue gear in the direction of the
arrow to take up the slack on the film.
Loading Copy Paper
It is possible to load up to 40 sheets of A4 (Letter*)
size copy paper (assuming a paper weight of 80 g/m2).
Note that only A4 (Letter*) size paper may be used.
When the unit is first used or when “ ” flashes on the
Multi-Copy/Error Indicator to indicate that the unit is
out of paper, load copy paper as described below.
*Letter size is for U.S.A. and Canada models.
Notes on Loading Copy Paper
Blue gear
• If a slack remains, perform step 3-2) through
4-1) again.
2) Securely close the printer door by using both
hands until a click is heard.
• “ ” flashing on the Multi-Copy/Error
Indicator will go out.
Latches
Follow the guidelines below to ensure smooth and
accurate printing by the unit.
• Only use A4 (Letter) size copy paper having a
weight of 60 g/m2 to 90 g/m2 as the copy paper for
this unit.
• Do not simultaneously load paper of varying type
and thickness as this may result in paper jams.
• Before adding copy paper, be sure to remove all the
copy paper remaining inside the unit’s paper cover.
(Note that copy paper will slightly resist being
removed, but may be pulled out without problems.)
After removing the copy paper, stack the removed
paper together with the new paper, fan it thoroughly,
square it and reload.
DO NOT USE THE FOLLOWING TYPES
OF PAPER
• Extremely smooth or glossy paper
• Coated paper
• Thermal paper
• Paper that is printed on one side
• Wrinkled paper, creased paper, etc.
Note
• If “ ” is still flashing after closing the printer
door, make sure that the thermal transfer film
has been installed properly and tightened.
• The printer door should be closed to make
copies properly. Confirm both latches are
locked.
1
Set the power switch to on ( I ).
• “ ” will flash on the Multi-Copy/Error
Indicator when copy paper has run out.
• The screen will move to home position and
stop.
ON
OFF
11
English
Loading Copy Paper
UB-7325_MECA.book 12 ページ
2008年1月7日 月曜日 午後4時16分
Loading Copy Paper
2
Pull the paper cover forward as shown in the
figure.
3
To prevent paper jams such as those caused
by multiple sheets feeding at once, fan the
paper thoroughly, square it, align it with the
guide inside, and insert as far as it will go.
Guide
Maximum paper limit
Note
• Only use A4 (Letter*) size copying paper
having a weight of 60 g/m2 to 90 g/m2 as the
copy paper for this unit.
* Letter size is for U.S.A. and Canada models.
• Do not stack more copy paper in the unit
than the maximum paper limit indicated by
the guide (see the above figure) as this may
result in paper jams. (Note that the unit can
hold about 40 sheets of paper having a
weight of 80 g/m2.)
12
4
Close the paper cover until a click is heard.
Note
• Close the paper cover, or the unit will not
work properly.
• The paper cover should be closed to make
copies properly. Confirm the both latches are
locked.
UB-7325_MECA.book 13 ページ
2008年1月7日 月曜日 午後4時16分
Note
Making Copies
This section describes how to copy text and
illustrations drawn on the screen.
1
Set the power switch to on ( I ).
• “ ” will light on the Multi-Copy/Error
Indicator to indicate that the unit is ready to
copy.
• The screen will move to home position and
stop.
• Do not use paper that has been copied on
one side by this printer as copy paper in this
unit or in any other copiers or printers as this
may result in dirty rollers, degradation of
printing quality, paper jams, and streaks and
smudges on output paper.
• Do not write on the back side of the output
paper from this unit. The printed ink may be
transferred underneath the paper.
• Text or images in shades of yellow will not
copy.
■ Copy types and procedures
[A] Copying the front of the screen
ON
1) Press
OFF
*1.
[B] Copying the back of the screen
1) Press
or
to move the screen to be
copied to the front.
2
Press the Copy Key
.
• Text and illustrations on the screen will be
copied and copies emerge from the output
port.
• The output port can hold up to 10 sheets of
copy paper. (Note that exceeding the output
port’s capacity may result in paper jams.)
• For details on making multiple copies and so
on, see “Copy types and procedures” on
this page.
2) Press
*1.
[C] Copying 4 screens continuously
1) Select “
2) Press
• Press
” by pressing
.
.
to stop copying in mid-operation.
[D] Making multiple copies (up to 9)
1) Select the number of copies (1 to 9) by
pressing
as necessary.
2) Press
• Press
*1.
to stop copying in mid-operation.
*1 When copying is finished, the next screen is displayed.
13
English
Making Copies
UB-7325_MECA.book 14 ページ
2008年1月7日 月曜日 午後4時16分
Using the Projector Screen / Replacing the Thermal Transfer Film
Using the Projector
Screen
One of four screens of this electronic board can also
be used as the projector screen. The screen has no
ruled lines so the projected image is easy to see.
1
Press
or
more than 2 seconds to
move the screen to the projector screen.
• “0” is displayed on the Multi-Copy/Error
Indicator while the screen advances to the
projector screen.
or
Press
or
to move the screen to the
screen with no ruled lines.
2
Project an image on the screen.
Caution
• Light from the projector may enter the eye
when using a projector to project images for
the purpose of making presentations and so
on. Be very careful as direct projector light
may hurt the eyes.
Note
Replacing the Thermal
Transfer Film
The unit is capable of producing about 15 more copies
when the Contrast/Remaining Film Indicator begins to
flash. The unit has run out of thermal transfer film and
can no longer make copies when the Multi-Copy/Error
Indicator flashes “ ”. Separately available
replacement film (UG-6001) may be purchased from
the dealer where you purchased the unit. Thermal
transfer film is replaced as follows.
Notes on Replacing Thermal
Transfer Film
• Only use the designated product (UG-6001) from
Panasonic as the replacement film. (Note that using
another type of replacement film may result in
degraded printing quality or damage to the unit.)
• Thermal transfer film is disposable. Dispose of used
thermal transfer film as “burnable” or “nonrecyclable” rubbish.
• A negative of the copied image will remain on the
thermal transfer film. To protect the security of your
information, we recommend cutting up the used
thermal transfer film with scissors or shredder before
disposing of it.
1
Push down the printer open lever to open the
printer door, and remove the used film.
2
Refer to steps 3 and 4 in the section of
“Installing the Thermal Transfer Film” on
page 10.
• Letters can be written on the projector
screen by the marker provided. However,
they may be hard to erase stains. To erase
them, use a commercially available white
board cleaner (SANFORD® EXPO® white
board cleaner etc.).
14
UB-7325_MECA.book 15 ページ
2008年1月7日 月曜日 午後4時16分
Paper Jams
4
Remove paper jams by the following procedure when
copy paper does not come out of the output port or
when “ ” flashes on the Multi-Copy/Error Indicator.
1
Push down the printer open lever to open the
printer door.
Install the thermal transfer film.
• Refer to steps 3 and 4 in the section of
“Installing the Thermal Transfer Film” on
page 10.
• “ ” flashing on the Multi-Copy/Error
Indicator will go out.
Note
• If “ ” is still flashing after closing the printer
door, make sure that the thermal transfer film
has been installed properly and tightened.
• The printer door should be closed to make
copies properly. Confirm both latches are
locked.
If the flashing “ ” does not go out after the foregoing
procedure has been performed; this may indicate that
the paper feeder is not functioning properly.
Reload the copy paper by following the steps given
below.
2
Remove the thermal transfer film with both
hands.
1
Turn the power off.
ON
OFF
2
3
Open the paper cover and remove all the copy
paper remaining inside the unit’s paper cover.
Remove the jammed paper.
Jammed paper
Note
• The copy paper will slightly resist being
removed, but may be pulled out without
problems.
15
English
Paper Jams
UB-7325_MECA.book 16 ページ
2008年1月7日 月曜日 午後4時16分
Paper Jams
3
To prevent paper jams such as those caused
by multiple sheets feeding at once, fan the
paper thoroughly, square it, align it with the
guide inside, and insert as far as it will go.
5
Turn the power on.
• “ ” will light on the Multi-Copy/Error Indicator
to indicate that the unit is ready to copy.
• The screen will move to home position and
stop.
ON
OFF
Guide
Maximum paper limit
Note
• Do not stack more copy paper in the unit
than the maximum paper limit indicated by
the guide (see figure) as this may result in
paper jams. (Note that the unit can hold
about 40 sheets of paper having a weight of
80 g/m2.)
4
Close the paper cover until a click is heard.
Note
• Close the paper cover, or the unit will not
work properly.
• The paper cover should be closed to make
copies properly. Confirm the both latches are
locked.
16
Using_MECA_2 col.fm 17 ページ
2010年2月26日 金曜日 午後6時59分
Computer Interfacing
Drivers and software must be installed in your
computer to use Board Image Capture, Quick Image
Navigator, Panasonic-DMS, printer and TWAIN driver.
■ System requirements
Computer
IBM® PC/AT® or compatible
machine with a CD-ROM drive
CPU
Pentium® II or higher processor
Interface
USB 2.0 or USB 1.1*1
OS
Windows® 98*2 / Windows Me*3 /
Windows 2000*4 / Windows XP*5 /
Windows Vista®*6 / Windows 7*7
(Windows XP 64-bit edition is not
supported.)
Memory
128 MB or more (Windows 98 /
Windows Me)
256 MB or more (Windows 2000 /
Windows XP / Windows Vista /
Windows 7)
HD
At least 200 MB free space (except
saving space for data files)
*1 This electronic board does not function with Hi-Speed
USB 2.0. Even if using a computer equipped with HiSpeed USB 2.0, this electronic board functions with
Full Speed USB 2.0.
*2 Microsoft® Windows® 98 operating system
(hereafter Windows 98)
*3 Microsoft® Windows® Millennium Edition operating
system (hereafter Windows Me)
*4 Microsoft® Windows® 2000 operating system
(hereafter Windows 2000)
*5 Microsoft® Windows® XP operating system
(hereafter Windows XP)
*6 Microsoft® Windows Vista® operating system
(hereafter Windows Vista)
*7 Microsoft® Windows® 7 operating system
(hereafter Windows 7)
■ Contents of CD-ROM
The provided CD-ROM includes the following
items.
• USB driver
• Printer driver
• TWAIN driver
• Board Image Capture
Allows you to scan hand-written text and
diagrams on the Panaboard and save the
scanned image as a PDF file.
• Electronic board operating instructions
Note
• The “menu” window contains links to “Quick
Image Navigator”, “Panasonic-DMS” and
“Adobe® Reader®”.
Notes when connecting the
electronic board to a computer
• First install the USB, printer and TWAIN driver to
your computer, then connect the electronic board
to the computer (refer to “Installing Drivers /
Board Image Capture” on page 18.
• If you connect the electronic board to a USB hub,
it is not guaranteed to work.
• Do not connect two or more Panasonic electronic
boards to a computer. It may cause the computer
operation to become unstable.
• Use a shielded USB cable that is certified as logo
by USB-IF.
• The system requirements above do not meet the
recommended specifications of all operating
systems and of the included software.
17
English
Computer Interfacing
Using_MECA_2 col.fm 18 ページ
2010年3月8日 月曜日 午後4時12分
Computer Interfacing
■ Installing Drivers / Board Image
Capture
6
When the following window appears, check
that the electronic board is not connected to
your computer and click [OK].
The USB, printer, TWAIN driver and Board Image
Capture are installed in your computer by following
procedures.
Note
• Do not yet connect a USB cable to the
electronic board.
1
Power on your computer and start Windows*1.
• Log on as an administrator for Windows 2000,
Windows XP, Windows Vista or Windows 7.
*1 Microsoft® Windows® operating system
(hereafter Windows)
2
Insert the CD-ROM into the CD-ROM drive.
The Setup window appears automatically.
• Depending on the operating system or the
settings that you are using, the Setup
window may not appear automatically.
In such a case, execute “Menu.exe” in the
CD-ROM from the Explorer.
• If the Autoplay dialog box appears in Windows
Vista or Windows 7, click “Run Menu.exe”.
3
4
• If “Windows can't verify the publisher of this
driver software” is displayed in Windows
Vista or Windows 7, select “Install this driver
software anyway” to continue the installation.
• For Windows 98 or Windows Me, a floppy
disk or CD-ROM for installing the operating
system may be required.
• If the screen prompts to restart Windows,
restart Windows.
When “Welcome” window appears, click [Next].
Click [Install Panaboard Software].
7
• If “User Account Control” window is
displayed in Windows Vista, select
[Continue] to continue the installation.
• If “User Account Control” window is
displayed in Windows 7, click [Yes] to
continue the installation.
• To read the operating instructions in the
provided CD-ROM, the Adobe Reader or
Acrobat® Reader must be installed in your
computer. It can be downloaded from the
Adobe's Web site if Internet is available.
5
18
Read “End-User License Agreement” carefully
and click [Yes].
When the following window appears after files
are copied, power the electronic board on, and
connect a USB cable from the electronic
board to your computer.
Using_MECA_2 col.fm 19 ページ
2010年2月26日 金曜日 午後6時59分
8
• If the wizard window is displayed to select
the file (##.inf) for the printer driver in
Windows XP, select “windows\inf\oem##.inf”.
• If the wizard window is displayed to connect
to the Windows Update in Windows XP SP2,
select [No].
• If the warning dialog is displayed in
Windows 2000 / Windows XP, select [Yes] or
[Continue Anyway] to continue the
installation. In Windows Vista or Windows 7,
no warning window is displayed and
installation will continue.
• The new hardware wizard windows may be
displayed several times depending on the
operating system.
• For Windows 98 or Windows Me, a floppy
disk or CD-ROM for installing the operating
system may be required.
9
• Depending on the operating system or the
settings that you are using, the Setup
window may not appear automatically.
In such a case, double-click “Menu.exe” in
the CD-ROM from the Explorer.
• If the Autoplay dialog box appears in Windows
Vista or Windows 7, click “Run Menu.exe”.
Follow the on-screen instructions if the wizard
windows appear.
3
4
• If the Panaboard is powered on and connected
to the computer with a USB cable when [Exit] is
clicked after the installation is completed, the
Board Image Capture software will automatically
start in Windows 2000 / Windows XP / Windows
Vista / Windows 7. (For further details, refer to
“Scanning with the Board Image Capture” on
page 20.)
• To download Quick Image Navigator and
Panasonic-DMS, your computer must be
able to access the Internet.
5
6
7
■ Installing Quick Image Navigator /
Panasonic-DMS
After confirming your operating system, install the
software.
For Windows 2000 / Windows XP / Windows Vista /
Windows 7: Quick Image Navigator
For Windows 98 / Windows Me: Panasonic-DMS
If Panasonic-DMS is already installed, you do not
need to uninstall it.
Power on your computer and start Windows.
• Log on as an administrator for Windows 2000,
Windows XP, Windows Vista or Windows 7.
2
Click [Download Quick Image Navigator].
When the installation is completed, click [OK].
Note
1
When “Welcome” window appears, click [Next].
Insert the CD-ROM into the CD-ROM drive.
The Setup window appears automatically.
Download the desired software from the
appropriate download web site, then doubleclick the downloaded installer.
Follow the on-screen instructions when
messages appear.
When the setup process is completed, restart
Windows.
• For information about Quick Image Navigator
or Panasonic-DMS, refer to the
corresponding operating instructions, which
can be downloaded from the web site.
• To read the Quick Image Navigator operating
instructions or the Panasonic-DMS operating
instructions, Adobe Reader or Acrobat
Reader must be installed on your computer.
■ Removing Drivers / Board Image
Capture / Quick Image Navigator
If you need to remove the USB driver, printer driver,
TWAIN driver, Board Image Capture and Quick Image
Navigator, perform the following steps.
1
Power on your computer and start Windows.
• Log on as an administrator for Windows 2000,
Windows XP, Windows Vista or Windows 7.
19
English
Computer Interfacing
Using_MECA_2 col.fm 20 ページ
2010年2月26日 金曜日 午後6時59分
Computer Interfacing
2
3
In the Control Panel, double-click Add/
Remove Programs (Windows XP: Add or
Remove Programs, Windows Vista /
Windows 7: Uninstall a program).
Select the software you want to remove, then
remove it.
• To remove the USB and TWAIN driver, select
Panaboard UB5-7 Driver.
To remove Board Image Capture, select
Panasonic Board Image Capture.
To remove Quick Image Navigator, select
Panasonic Quick Image Navigator.
4
5
Note
• If the Panaboard Operation Panel does not
appear, check the USB cable connection or
the status of the unit.
Follows the instructions on the screen.
After uninstalling, restart your computer.
■ Removing Panasonic-DMS
4
Click the
(Scan) button.
• When scanning is completed, the Save Scan
Image dialog box appears.
If you need to remove Panasonic-DMS, perform the
following steps.
1
2
3
4
Power on your computer and start Windows.
Click [Start], move the pointer to Programs–
Panasonic–Panasonic Document
Management System–Uninstall.
Click [OK].
After uninstalling, restart your computer.
■ Scanning with the Board Image
Capture
5
Power on the Panaboard.
• When the Launch Application check box is
checked, the scanned image will be
displayed after the file is saved.
To display the scanned image successfully,
Adobe Reader or Acrobat Reader must be
installed on your computer.
Power on your computer and start Windows.
Note
Connect your computer and Panaboard with
the USB cable.
• The last 5 folders used are displayed in the
Save Folder dropdown list.
Board Image Capture allows you to scan handwritten text and diagrams on the Panaboard and
save the scanned image as a PDF file.
1
2
3
• Board Image Capture automatically starts,
then the Panaboard Operation Panel
appears.
20
Specify the folder where you want to save the
file, enter the file name, then click [OK].
6
Click [Close] on the Panaboard Operation
Panel window to end the session.
Using_MECA_2 col.fm 21 ページ
2010年3月8日 月曜日 午後4時13分
Note
• Board Image Capture cannot be started while
the Panaboard Operation Panel is displayed
using Quick Image Navigator or Panasonic-DMS.
To start Board Image Capture, click [Close] in
the Panaboard Operation Panel window, then
start Board Image Capture.
• To stop Board Image Capture from starting
automatically when the Panaboard is connected,
follow the steps below:
1) Connect your computer and Panaboard with
the USB cable.
2) Click [Start], move the pointer to Settings–
Control Panel, then double-click Scanners
and Cameras.
• For Windows XP, click [Start] and move the
pointer to Control Panel.
For Windows Vista, click [Start] and move
the pointer to Control Panel, then click
Hardware and Sound.
• For Windows 7, click [Start] and move the
pointer to Device and Printers.
3) Double-click Panaboard-UB5 USB Device
Driver and check the Disable device events
check box in the Events tab.
• For Windows 7, right-click Panaboard-UB7
(A4/LT)* and then move the pointer to Scan
properties. If the “User Account Control”
window is displayed, click [Yes].
2
3
4
■ Scanning with the Quick Image
Navigator / Panasonic-DMS
You can scan images on the screen to your
computer by operating Quick Image Navigator or
Panasonic-DMS.
1
Click [Start], move the pointer to Programs–
Panasonic–Panasonic Document
Management System–Quick Image
Navigator (for Quick Image Navigator) or
Document Manager (for Panasonic-DMS).
(For Windows XP / Windows Vista /
Windows 7, All Programs instead of
Programs.)
Select Panaboard UB5-7 USB TWAIN Driver
and click [Select].
For Quick Image Navigator: From the File
menu, click Acquire Image... - To Import
Folder... (or To Current Folder...), or click the
(scanner) icon on the Toolbar.
For Panasonic-DMS: Click the File menu, then
click Acquire Image..., or click the (scanner)
icon on the Toolbar.
• The Panaboard Operation Panel appears.
Note
* A4 or LT (Letter) changes with the models.
To start Board Image Capture, click [Start], then
move the pointer to Programs–Panasonic–
Board Image Capture–Board Image Capture.
(For Windows XP / Windows Vista / Windows 7,
All Programs is displayed instead of Programs.)
For Quick Image Navigator: From the File
menu, click Environment Setup..., click
TWAIN tab, then click Select TWAINcompliant scanning device....
For Panasonic-DMS: Click the File menu, then
click Select source....
• When the Panaboard Operation Panel is not
displayed, check the USB cable connection
or the condition of the electronic board.
5
Click the
(Scan) button.
• Scanning starts and the scanned image will
be displayed on the screen of the computer.
It is also possible to start scanning using the
(Copy Key) on the electronic board.
6
Click [Close] on the Panaboard Operation
Panel to finish scanning.
• For Quick Image Navigator, the Panaboard
Operation Panel is closed automatically after
scanning.
• For more information about Quick Image
Navigator, refer to the Quick Image Navigator
operating instructions.
• For more information about Document
Manager, refer to the Panasonic-DMS
operating instructions.
Note
• Dragging the Panaboard Operation Panel using
the mouse or activating other software programs
during scanning may cause scanning troubles.
21
English
Computer Interfacing
UB-7325_MECA.book 22 ページ
2008年1月7日 月曜日 午後4時16分
Computer Interfacing
■ Panaboard Operation Panel
It is possible to perform the same operations as with the electronic board control panel (page 9) from the following
Panaboard Operation buttons.
Note
• While the Panaboard Operation Panel is displayed, the Copy Key on the electronic board control panel is
used for scanning images into the computer.
Panel
22
Name
Description
Contrast/
Remaining Film
Indicator
This lamp indicator notifies the user when the time to replace the
thermal transfer film is approaching (estimated) and of the contrast used
during scanning or copying.
Indicator off:
Normal scanning or copying contrast
Indicator on:
Darker than normal scanning or copying contrast
Indicator flashing*:
Almost time to replace the thermal transfer film
(Note that only about 15 more sheets may be
copied when this indicator starts flashing.)
Replacement film (UG-6001) is separately
available from the dealer where you purchased
your unit.
* The flashing indicator will go out after the power is turned off, or
the printer has been opened and closed. (When copying is performed, this indicator will begin flashing again.)
Contrast Button
Each time this button is pressed, the unit will alternate between normal
and dark contrast modes (Normal/Dark).
Scan Button
This button scans the screen.
Multi-Copy/
Error Indicator
This indicator displays the number of copies to be made. The display
changes each time the Multi-Copy/Stop Button is pressed.
Example: 1 → 2 → ··· → 9 →
→1 → ···
(Selecting “ ” allows you to copy 4 screens continuously.)
When an error occurs, a flashing symbol will appear in this display to
indicate the error status. (See page 27.)
Multi-Copy/Stop
Button
When making multiple copies or copying 4 screens continuously, press
this button until the desired number of copies or “ ” is displayed on the
Multi-Copy/Error Indicator. This button can also be pressed to stop
copying while executing multiple copies or copying 4 screens
continuously.
• The display changes as shown below each time the screen is copied.
After reaching 0, the display will reset to 1.
Example for multiple copies:
5 → 4 → 3 → 2 → 1 → 0 → 1 (Number is counted down.)
Example for copying 4 screens continuously:
→
→
→ → 0 → 1 (Display changes.)
* If scanning, the setting 1 to 9 for the number of copies or “ ” for
copying 4 screens continuously is ignored.
Advance Button
Clicking this button advances the screen from right to left.
Clicking this button twice advances two screens from right to left.
Reverse Button
Clicking this button advances the screen from left to right.
Clicking this button twice advances two screens from left to right.
Using_MECA_2 col.fm 23 ページ
2010年3月8日 月曜日 午後4時14分
Panel
Name
Copy Button
Description
This button causes the screen to be copied.
The status box displays the status of the TWAIN driver and the
electronic board.
Stand by:
Status Box
The electronic board is stand by.
Both of the Panaboard Operation Panel and the electronic
board control panel are operational.
Rotating: The electronic board is rotating the screen.
Copying: The electronic board is copying the screen.
Scanning: The electronic board is now scanning the images on the
screen.
Converting: Indicates that the image data is being converted so that the
computer will be able to display the scanned data.
Busy:
The electronic board is processing jobs.
Error:
An error has occurred with the electronic board.
About Button
Click to display information about the TWAIN driver.
Help Button
Click to display help information.
Close Button
Click to close the Panaboard Operation Panel.
■ Printing
To print documents from the computer to the printer, select the Print menu of the application software and select
the printer name set when installing.
For Windows 98 or Windows Me, the standard printer name is “Panaboard-UB7 USB Printer (A4/LT)*”.
For Windows 2000, Windows XP, Windows Vista or Windows 7, the standard printer name is “Panaboard-UB7
(A4/LT)*”.
* A4 or LT (Letter) changes with the models.
Note
• The Multi-Copy/Error Indicator flashes when printing.
After printing, all the panel keys are disabled until the Multi-Copy/Error Indicator lights.
• You cannot stop printing after printing starts. Do not attempt to stop printing.
• Do not turn off the power of the electronic board or unplug the USB cable before printing finishes. It may cause
the computer operation to become unstable.
• A maximum 9 copies are available.
• The output port can hold up to 10 sheets of copied paper. (Note that exceeding the output port’s capacity may
result in paper jams.)
• The Contrast Key is not effective for adjusting the contrast of print.
• When printing almost black pages continuously uniform colour density and light line streaks may appear. In
such a case, try again after waiting a while.
• When the unit falls in abnormal condition during printing, printing jobs (jobs in the spooler) may be lost. In such
a case, print again.
23
English
Computer Interfacing
UB-7325_MECA.book 24 ページ
2008年1月7日 月曜日 午後4時16分
Daily Care and Maintenance
Daily Care and
Maintenance
Always turn off the power switch and unplug the
power plug when cleaning outside and inside the
unit.
■ Caring for the eraser
When the erasing surface of the eraser becomes
dirty, hold down the sheet under the top sheet with
your finger and peel off the dirty sheet (white or gray
sheet) by pulling in the direction of the arrow.
■ Cleaning the screen and the unit
Gently wipe the screen film and unit with a waterdampened cloth that has been thoroughly wrung.
White or gray
sheet
Note
• Be sure to peel off only one sheet; white or
gray sheet of the eraser.
• When the eraser becomes thin, make sure
that the corners of the eraser do not strike the
screen during erasing as this may damage
the screen.
■ Cleaning the printer head, platen
roller and pick-up roller
Note
• Use a commercially available white board
cleaner for hard-to-erase stains.
(SANFORD® EXPO® white board cleaner
etc.)
If you accidentally write on the screen with an
oil-based marker, wipe with a small amount of
ethyl alcohol.
• Do not use thinner, benzine or cleaners
containing abrasives as this may result in
discoloration.
• Do not wipe the screen film with a dry cloth as
this may generate a static charge.
If black streaks appear on the copy, clean the printer
head and the platen roller.
If paper jams occur frequently, clean the pick-up
roller.
1
Push down the printer open lever and open the
printer door.
Printer door
24
UB-7325_MECA.book 25 ページ
2008年1月7日 月曜日 午後4時16分
2
Clean the Printer Head
4
Install the thermal transfer film in its original
position and close the printer door.
Dampen the tip of a cotton swab in ethyl
alcohol and gently wipe the printer head.
Latches
Cotton swab
Printer head
(Gold)
Note
Note
• Never touch the printer head or the
surrounding area with your hands as this may
disable copying.
3
• For details on installing the thermal transfer
film, see pages 10.
• Close the printer door firmly until a click is
heard.
Clean the Platen Roller and the
Pick-up Roller
• If “ ” is still flashing after closing the printer
door, make sure that the thermal transfer film
has been installed properly and tightened.
• The printer door should be closed to make
copies properly. Confirm both latches are
locked.
Remove the thermal transfer film with both
hands and carefully wipe any dirt or stains off
the platen roller and pick-up roller.
Pick-up roller
Platen roller
• For details on removing the thermal transfer
film, see page 14.
• Dampen a soft cloth with neutral kitchen
cleaner diluted in water, wring the cloth
thoroughly, and wipe the entire surface of the
rollers while rotating them. If this does not
remove all dirt, wipe with a cloth dampened
with ethyl alcohol.
25
English
Daily Care and Maintenance
UB-7325_MECA.book 26 ページ
2008年1月7日 月曜日 午後4時16分
Troubleshooting
Troubleshooting
Treat problems according to the information given in the table below. If problems still persist, call your dealer for
service.
Symptom
Power switch is on but the
indicator is off.
Copied copy paper will not come
out.
Nothing is printed on the paper or
copies are faint or blurred.
Black streaks or blank (unprinted)
spots appear on the copy (copy
paper is dirty).
A black or white horizontal line
appears, or the page prints in
black or blank.
The screen does not advance
when the Copy, Advance or
Reverse Key is pressed.
26
Care and Remedy
Check that the power plug is securely plugged in.
(If the indicator still does not light, turn the power off and on again.)
The unit is out of copy paper or thermal transfer film. (The Error
Indicator flashes “ ” or “ ”.)
Insert copy paper or replace the thermal transfer film.
The printer door is open. (The Error Indicator flashes “ ”.)
Close the printer door firmly until a click is heard.
The paper cover is open.
Close the paper cover firmly until a click is heard.
Paper is jammed in the printer. (The Error Indicator flashes “ ”.)
Open the printer door and remove the jammed paper.
The platen roller and pick-up roller are dirty.
Open the printer door and wipe the platen roller and the pickup roller to clean them.
The writing on the screen is too thin or light.
Make thicker, darker lines or change to a new marker.
The printer door is slightly open.
Close the printer door firmly until a click is heard.
The printer head or platen roller is dirty.
Open the printer door and clean any dirt off the printer head
and platen roller.
The thermal transfer film is wrinkled because it was set in place
without removing excess slack.
Rewind the used portion of the thermal transfer film to remove
the excess slack, then reattach it.
See
Page
–
11
14
11
12
15
24
–
11
24
10
The unit is in strong sunlight or strong lighting.
Change the direction of the screen or block the light.
–
Static electricity was generated when the screen film was wiped.
Turn off the power and slowly move the screen by hand.
–
Contrast/Remaining
Film Indicator flashes.
The time to replace the thermal transfer film is approaching. (Only
about 15 more sheets may be copied.)
Prepare a new replacement film (UG-6001).
14
When connecting a USB cable
after installing the driver, the
warning message is displayed to
require the Panaboard UB5-7
Driver Disk.
The necessary file is not found in Windows 98.
Click the location’s box and select the path
“UB5-7\UsbDrv\Win98-Me” in the pull down menu.
–
The software installed before is
deleted from the Programs menu
or cannot be used after installing
the Panasonic-DMS.
After the existing Panasonic-DMS software is uninstalled, the new
Panasonic-DMS is installed.
Install the new Panasonic-DMS again as follows.
1. Uninstall the current Panasonic-DMS.
2. Install the old Panasonic-DMS.
3. Install the new Panasonic-DMS in the same folder with the
old one.
19-20
UB-7325_MECA.book 27 ページ
2008年1月7日 月曜日 午後4時16分
Panasonic Document
Management System menu is
remained in the Programs menu
even if Panasonic-DMS is
uninstalled.
The USB driver or printer driver
does not work properly
immediately after the installation
of the software.
The computer does not recognize
the electronic board.
The old Panasonic-DMS is not uninstalled if the old version of the
Panasonic-DMS has been installed before installing the new one.
Uninstall the old Panasonic-DMS from the Add / Remove
Programs of the Control Panel. (Refer to “Removing Drivers /
Board Image Capture / Quick Image Navigator” on page 19
and remove Panasonic-DMS instead of Panasonic UB5-7
Driver.)
The Panaboard has not been registered in [Control Panel]–
[Scanners and Cameras] and [Printers].
Run “UB5-7\Uninstall\UB5-7Uninst.exe” in the CD-ROM to
uninstall the drivers from the computer. Then, install the
drivers.
Check that the electronic board is in the condition that enables
operation or that the USB cable is connected properly.
The electronic board is connected via a USB hub.
Do not connect via a USB hub.
19
18
–
–
■ Meanings of error codes
The following table describes the meaning of each of the symbols which may flash in the Multi-Copy/Error
Indicator.
Indication
Cause
Remedy
See
Page
Data transfer error
Connect the USB cable securely.
17
The screen will not move.
Turn off the power and slowly move
the screen by hand.
–
The printer door is not closed
securely.
Close the printer door securely.
11
Paper jam
Open the printer door and remove
the jammed paper.
15
The thermal transfer film is slack, has
run out or is not installed.
Remove the slack from the thermal
transfer film, replace or install the
thermal transfer film.
10
14
Out of paper
Load copy paper.
11
The scanner or screen is in strong
sunlight or strong lighting.
Change the direction of the screen or
block the light.
–
(Error)
(Screen)
(door)
(Jam)
(ribbon)
(Paper)
(Scanner Failure)
If other indications such as “
” appear, call your dealer.
27
English
Troubleshooting
UB-7325_MECA.book 28 ページ
2008年1月7日 月曜日 午後4時16分
Specifications
Specifications
Model No.
General
Input
Block
Output
Block
UB-7325
Power supply
Refer to the name plate on the printer
Power consumption (Operational)
Refer to the name plate on the printer
External dimensions
(Height × Width × Depth,
without stand)
1396 mm × 1648 mm × 264 mm
Mass (without stand)
42.5 kg
Ambient operating conditions
Temperature: 10–35° C (50–95°F)
Humidity: 30–80% RH
Ambient storage conditions
Temperature: -20–60° C (-4–140°F)
Humidity: 15–80% RH
Writing implements
Dry erase felt-tipped markers (black, red, and blue)
PC interface
USB 1.1
Panel dimensions (Height × Width)
900 mm × 1400 mm (1664 mm diagonal)
Panel surfaces
4 screens (1 screen can also be used for the projector.)
Panel advance system
Endless scroll type
Copying area (Height × Width)
850 mm × 1330 mm
Scanning system
Image sensors
Scanning resolution (Height x Width)
A4:
1.6 x 1.7 dots/mm
Letter: 1.7 x 1.6 dots/mm
Printing system
Fusion thermal transfer type
Printing resolution
8 dots/mm
Copy paper
Standard or recycled paper (60 – 90 g/m2)
Copy paper size
A4 / Letter*1
Copy colour
Black
Contrast adjustment
Two levels: Normal/Dark
Time required for copying
15 s/sheet
Continuous copies
1 to 9 sheets
Paper empty indication
Yes
■ Option and Separately available
Option
Stand: KX-B061
Wall-mounting kit: KX-B063
Separately
Available
Replacement film:
Markers:
UG-6001 (Set of 2 rolls [50 m])
KX-B031 (set of 10 black markers),
KX-B032 (set of 10 red markers),
KX-B033 (set of 10 blue markers)
Erasers:
KX-B042 (set of 6 erasers)
Marker and eraser set: KX-B035 (contains one black, one red, and one blue markers and
one eraser)
*1Letter size is for U.S.A. and Canada models.
28
