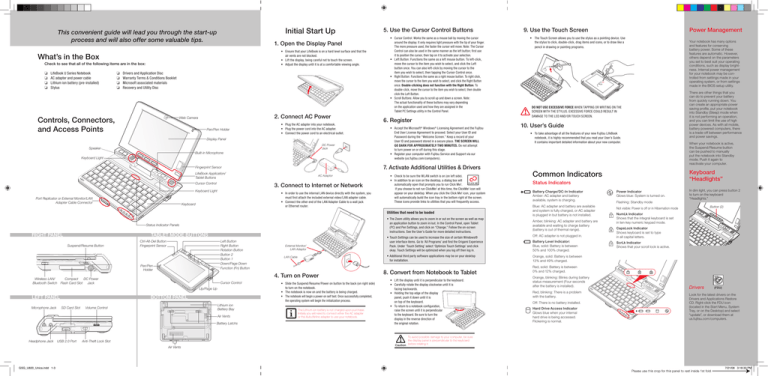

Controls, Connectors, and Access Points Initial Start Up

Controls, Connectors, and Access Points Initial Start Up
Initial Start Up
This convenient guide will lead you through the start-up
process and will also offer some valuable tips.
1. Open the Display Panel
• Ensure that your LifeBook is on a hard level surface and that the
air vents are not blocked.
• Lift the display, being careful not to touch the screen.
• Adjust the display until it is at a comfortable viewing angle.
What’s in the Box
Check to see that all of the following items are in the box:
o
o
o
o
LifeBook U Series Notebook
AC adapter and power cable
Lithium ion battery (pre-installed)
Stylus o
o
o
o
Drivers and Application Disc
Warranty Terms & Conditions Booklet
Microsoft associated materials
Recovery and Utility Disc
Controls, Connectors,
and Access Points
2. Connect AC Power
Web Camera
Pen/Pen Holder
• Plug the AC adapter into your notebook.
• Plug the power cord into the AC adapter.
• Connect the power cord to an electrical outlet.
Display Panel
DC Power
Jack
Speaker
Built-in Microphone
Keyboard Light
LifeBook Application/
Tablet Buttons
3. Connect to Internet or Network
Keyboard Light
Port Replicator or External Monitor/LAN
Adapter Cable Connector
AC Adaptor
• In order to use the internal LAN device directly with the system, you
must first attach the included external video/LAN adapter cable.
• Connect the other end of the LAN Adapter Cable to a wall jack
or Ethernet router.
Keyboard
DO NOT USE EXCESSIVE FORCE WHEN TAPPING OR WRITING ON THE
SCREEN WITH THE STYLUS. EXCESSIVE FORCE COULD RESULT IN
DAMAGE TO THE LED AND/OR TOUCH SCREEN.
6. Register
10. User’s Guide
• Accept the Microsoft ® Windows® Licensing Agreement and the Fujitsu
End User License Agreement to proceed. Select your User ID and
Password during the “Welcome Screen.” Keep a record of your
User ID and password stored in a secure place. THE SCREEN WILL
GO DARK FOR APPROXIMATELY TWO MINUTES. Do not attempt
to turn power on or off during this stage.
• Register your computer with Fujitsu Service and Support via our
website (us.fujitsu.com/computers).
• T o take advantage of all the features of your new Fujitsu LifeBook
notebook, it is highly recommended that you read your User’s Guide.
It contains important detailed information about your new computer.
Status Indicators
Battery Charge/DC-In Indicator
Amber: AC adapter and battery
available, system is charging.
1
Utilities that need to be loaded
RIGHT PANEL
TABLET MODE BUTTONS
Suspend/Resume Button
Ctrl-Alt-Del Button
Fingerprint Sensor
Left Button
Right Button
Rotation Button
Button 2
Button 1
Down/Page Down
Function (Fn) Button
Pen/Pen
Holder
Cursor Control
Up/Page Up
Microphone Jack
Bottom PANEL
SD Card Slot
Lithium ion
Battery Bay
Volume Control
Air Vents
Battery Latchs
Headphone Jack
USB 2.0 Port
Anti-Theft Lock Slot
Air Vents
GSG_U820_Unica.indd 1-3
External Monitor/
LAN Adaptor
2
2
Battery Level Indicator:
Blue, solid: Battery is between
50% and 100% charged.
1
1
• Slide the Suspend/Resume/Power on button to the back (on right side)
to turn on the notebook.
• The notebook is now on and the battery is being charged.
• The notebook will begin a power-on self test. Once successfully completed,
the operating system will begin the initialization process.
The Lithium ion battery is not charged upon purchase.
Initially you will need to connect either the AC adapter
or the Auto/Airline adapter to use your notebook.
8. Convert from Notebook to Tablet
• Lift the display until it is perpendicular to the keyboard.
• Carefully rotate the display clockwise until it is
facing backwards.
• Holding the top edge of the display
panel, push it down until it is
on top of the keyboard.
• To return to a notebook configuration,
raise the screen until it is perpendicular
to the keyboard. Be sure to turn the
display in the reverse direction of
the original rotation.
Amber, blinking: AC adapter and battery are
available and waiting to charge battery
(battery is out of thermal range).
Off: AC adapter is not plugged in.
• Touch Settings can be used to increase the size of certain Windows®
user interface items. Go to ‘All Programs’ and find the Origami Experience
Pack. Under ‘Touch Setting’ select ‘Optimize Touch Settings’ and click
okay. Touch Settings will be optimized when you log off then log in.
• Additional third party software applications may be on your desktop
for installation.
LAN Cable
4. Turn on Power
Wireless LAN/
Compact
DC Power
Bluetooth Switch Flash Card Slot
Jack
LEFT PANEL
1
Blue: AC adapter and battery are available
and system is fully charged, or AC adapter
is plugged in but battery is not installed.
2
2
Your notebook has many options
and features for conserving
battery power. Some of these
features are automatic. However,
others depend on the parameters
you set to best suit your operating
conditions, such as display brightness. Internal power management
for your notebook may be controlled from settings made in your
operating system, or from settings
made in the BIOS setup utility.
There are other things that you
can do to prevent your battery
from quickly running down. You
can create an appropriate power
saving profile, put your notebook
into Standby (Sleep) mode when
it is not performing an operation,
and you can limit the use of high
power devices. As with all mobile,
battery powered computers, there
is a trade-off between performance
and power savings.
When your notebook is active,
the Suspend/Resume button
can be pushed to manually
put the notebook into Standby
mode. Push it again to
reactivate your computer.
Keyboard
“Headlights”
Common Indicators
• Check to be sure the WLAN switch is on (on left side).
• In addition to an icon on the desktop, a dialog box will
CLICK ME
automatically open that prompts you to run Click Me!.
If you choose to not run ClickMe! at this time, the ClickMe! icon will
appear on your desktop. When you click the Click Me! icon, your system
will automatically build the icon tray in the bottom right of the screen.
These icons provide links to utilities that you will frequently access.
• The Zoom utility allows you to zoom in or out on the screen as well as map
an application button to zoom in/out. In the Control Panel, open Tablet
(PC) and Pen Settings, and click on “Change.” Follow the on-screen
instructions. See the User’s Guide for more detailed instructions.
Status Indicator Panels
Power Management
• The Touch Screen allows you to use the stylus as a pointing device. Use
the stylus to click, double-click, drag items and icons, or to draw like a
pencil in drawing or painting programs.
• Cursor Control: Works the same as a mouse ball by moving the cursor
around the display. It only requires light pressure with the tip of your finger.
The more pressure used, the faster the cursor will move. Note: The Cursor
Control can also be used in the same manner as the left button; first use
it to position the cursor, then tap on it to activate your selection.
• Left Button: Functions the same as a left mouse button. To left-click,
move the cursor to the item you wish to select, and click the Left
button once. You can also left-click by moving the cursor to the
item you wish to select, then tapping the Cursor Control once.
• Right Button: Functions the same as a right mouse button. To right click,
move the cursor to the item you wish to select, and click the Right Button
once. Double-clicking does not function with the Right Button. To
double-click, move the cursor to the item you wish to select, then double
click the Left Button.
• Scroll Buttons: Allow you to scroll up and down a screen. Note:
The actual functionality of these buttons may vary depending
on the application used and how they are assigned in the
Tablet PC Settings utility in the Control Panel.
7. A
ctivate Additional Utilities & Drivers
Fingerprint Sensor
Cursor Control
9. Use the Touch Screen
5. Use the Cursor Control Buttons
Power Indicator
Glows blue: System is turned on.
Flashing: Standby mode
In dim light, you can press button 2
to turn on the keyboard
“Headlights.”
Button (2)
Not visible: Power is off or in Hibernation mode
NumLk Indicator
Shows that the integral keyboard is set
in ten-key numeric keypad mode.
CapsLock Indicator
Shows keyboard is set to type
in all capital letters.
ScrLk Indicator
Shows that your scroll lock is active.
Orange, solid: Battery is between
13% and 49% charged.
Red, solid: Battery is between
0% and 12% charged.
Orange, blinking: Blinks during battery
status measurement (Four seconds
after the battery is installed).
Red, blinking: There is a problem
with the battery.
Off: There is no battery installed.
Hard Drive Access Indicator
Glows blue when your internal
hard drive is being accessed.
Flickering is normal.
Drivers
(FDU)
Look for the latest drivers on the
Drivers and Applications Restore
CD. Right-click the FDU icon
(located in the Start Menu, System
Tray, or on the Desktop) and select
“update”, or download them at
us.fujitsu.com/computers.
To avoid possible damage to your computer, be sure
the display panel is perpendicular to the keyboard
Caution before rotating it.
7/21/08 3:18:33 PM
SAVE THESE INSTRUCTIONS
All repairs must be accomplished by an Authorized Repair Technician.
IMPORTANT SAFETY WARNINGS, CAUTIONS and INSTRUCTIONS
This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class 2 Adapters with an output rating of 16 VDC,
with a minimum current of 2.5A (40W)
AC adapter output polarity:
When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
•Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
• Avoid using a modem during an electrical storm. There may be a remote risk of electric shock from lightning.
• Do not use a modem to report a gas leak in the vicinity of the leak.
•Use only the power cord and batteries indicated in the User’s Guide or this Getting Started Guide. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.
• To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.
•For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, make sure that
the outer shield of the coaxial cable is connected to earth (grounded) at the building premise as close to the
point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have
questions about your CATV installation, contact your service provider.
For Authorized Repair Technicians Only
DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED
BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION
Warning
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE
AND RATING FUSE.
Popular Accessories
Additional Main Battery
Auto/airline adapter
Additional AC adapter
Battery Charger
Battery Charger with AC Adapter
External USB DVD/CD-RW Combo Drive
External USB DVD+RW Drive
External monitor/LAN Adapter Cable
Have questions or need help?
• Visit our website at us.fujitsu.com/computers
• Call us anytime at 1.800.8FUJITSU
• Email us at [email protected]
Carrying cases
Fujitsu extended service plans available.
• Executive Leather Portfolio
• Duo Travel Bag
• Protégé Case
• Director Leather Case
• Convertible Bump Case
• Diplomat Nylon Case
• Tablet Mode Bump Case
Want more information on Fujitsu products?
• Visit our website at www.shopfujitsu.com
• Call us anytime at 1.800.FUJITSU
Visit us.fujitsu.com/computers
to purchase any of these accessories
or to get more information.
Docking Cradle
Notebook Guardian lock
USB Optical Mouse
Caution
Getting Started
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this
is a natural occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*.
If you replace it, it is important that you dispose of the old battery properly because batteries contain materials
that could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery
Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment
by recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada.
To find the location nearest you, go to www.RBRC.org or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative
website (http://EIAE.org/) and search for a convenient disposal location.
Remember—protecting the environment is a cooperative effort, and you should make every effort to protect
it for current and future generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com
in the US or www.fujitsu.ca/products/notebooks in Canada.
**RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way
affiliated with Fujitsu.
Record your notebook serial number here:
Serial #______________________
(see bottom of computer)
Fujitsu Computer Systems Corporation
1250 E. Arques Avenue M/S 122
Sunnyvale, CA 94085
Get Started with your
®
LifeBook U820 Notebook
This guide will lead you through the start-up process for your new LifeBook notebook and will also provide
some valuable tips. To learn about all the exciting features that your new LifeBook notebook has to offer,
please see the User’s Guide that can be accessed after completing the start-up procedure.
Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of
Fujitsu Limited. Microsoft Windows and Windows Vista are registered
trademarks of Microsoft Corporation in the United States and/or
other countries. All other trademarks mentioned herein are the
property of their respective owners. Product description data
represents Fujitsu design objectives and is provided for comparative
purposes; actual results may vary based on a variety of factors.
Specifications are subject to change without notice.
©2008 Fujitsu Computer Systems Corporation. All rights reserved.
GSG_U820_Unica.indd 4-6
7/21/08 3:18:34 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
