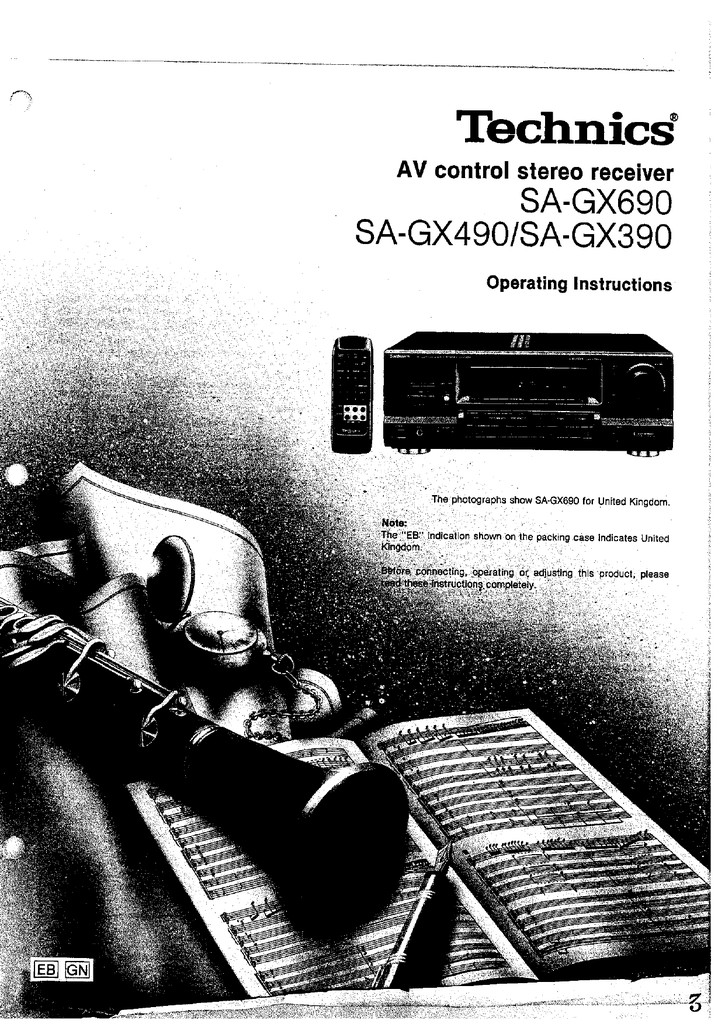

Technics AV control stereo receiver — SA-GX690 SA-GX490/SA-GX390 Operating Instructions in di cation shown on the packing case Indicates United + I - adjusting this ‘product ; please Dear Customer Thank you for purchasing this Technics product. For optimum performance and safety, please read these instructions carefully. These operating instructions are applicable to models SA-GX690, SA-GX490 and SA-GX390. These operating instructions, however, are intended primarily for model SA-GX690. Caution for AC mains lead (For United Kingdom) ("EB” area code model only) For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LET- TER E, BY THE EARTH SYMBOL -L OR COLOURED GREEN OR GREEN/YELLOW. À S-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the THIS PLUG 15 NOT WATERPROOF —KEEP DRY. replacement fuse has a rating of 5-ampere and that it is ap- Before use proved by ASTA or BSI to BS1362. Remove the connector cover as follows. Check for the ASTA mark @ or the BSI mark Y on the body of the fuse. RJA0042-P VJA0733 If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. FU, A replacement fuse cover can be purchased from your How to replace the fuse аа local dealer. 1. Open the fuse cover with a screwdriver. | В1А0042-Р CAUTION! Ty IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR MESS THE SOCKET QUTLET IN YOUR HOME THEN THE FUSE | Yai SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET. If a new plug is to be fitted please observe the wiring code as shown below. if in any doubt please consult a qualified electrician. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured mark- ings identifying the terminals in your plug, proceed as follows: Fuse cover J. espe TAN a _- a em 2. Replace the fuse and close or attach the fuse cover. The wire which is coloured Blue must be connected to the ter- RJA0042-P minal which is marked with the letter N or coloured Black or Blue. + The wire which is coloured Brown must be connected to the € D . Fuse terminal which is marked with the letter L or coloured Brown № = (5 ampere) or Red < Fuse (5 ampere) (For Australia and N 2) “THIS TUNER/RECEIVER IS CAPABLE OF RECEIVING. THE NEW AM STEREO BROADCASTS FROM THE AM BAND RADIO STATIONS. "HOWEVER LIKE MANY TUNERS AND RECEIVERS CURRENTLY AVAILABLE ON THE MARKET IT WILL REPRODUCE THIS AM STEREO SIGNAL ONLY IN AM MONO, WHICH, IN EFFECT, 1S OF NO LESSER QUALITY THAN YOUR EXISTING AM MONO TUNER/RECEIVER. - TA NY £7 Before use Adjusting the sound field Accessories ......................... i 3 Enjoying sound with DOLBY PRO LOGIC... 17 Suggestions forsafety........ .................. 4 SURROUND LL... ce, 17 Front panel controls. .............. rie... 5 3 STEREO narara rea an carerecocrerarirnananendeaora 17 | Settingthe centermode .............................. 17 Adjusting speaker output level ....................... ... 18 C . Adjusting the delay time УЖЕ |... 19 onnections | Enjoying with SURROUND or 3 STEREO................. 19 Enjoying sound with SFC EXE... 20 Equipment connections......................... 6 Adjusting fieldof sound... ....................... 20 Antenna connectlons............................. 8 Speaker connections ............................. 10 - Recording Listening Makingarecording............................... 21 Recording onthetapedeck............................ 21 Basic operations PA 12 Recording onthe VCR (VCR 1)................ eee, 21 If sound output stops during use or if you are unsure what to do.......... . .ereecreeeeeeaacoonorerciarecia 13 Wh th t b bl To adjust the tone quality . ................... cov i... 13 en ere seems to be a pr ontem Tomutethesoundlevel ......................... ...... 13 To adjust the sound balance ................. 13 About the HELP function........................ 22 To emphasize low frequency sound EFECTO... 13 Troubleshooting guide ........................... 23 To listen through headphones .......................... 13 Listening to radio broadcasts................... 14 Directaccess tuning ............... co. oii... 14 Reference Sequential tuning... AR 14 Preset tuning RR a aa ane aa a 15 Technical specifications LL. Back cover » Accessories Please check and identify the supplied accessories [ | AC power supply cord ......... 1 pc. [| Remote control transmitter... .. 1 pc. | | Attachment plug (SJP9009). .... 1 pc. (United Kingdom only) (For United Kingdom) — (For Australla and NZ) For SA-GX690/ For SA-GX690 (VJAO733 or RJAQ042-P) (RJA0036-K) SA-GX490/ {For Australia SA-GX390 and N.Z.) (RAK-SA603MH) N Antenna plug (RFE0014)....... 1 pc. (RAK-SA179XH) (Australia and N.Z. only) I I F F 1 I I | I 1 E F For details on remote control transmitter operation, refer to “How to use the remote control transmitter” in the separate booklet. [ | AM loop antenna set (RSA0010) * AM loop antenna ............ 1 pc. [] Batteries * AM antenna holder .......... 1 pc. (UM-4, “AAA” RO3).......... 2 pcs. a ) LE e ALA ECT CL A IATA ENT A Placement Avoid placing the unit in areas of: e direct sunlight * high temperature e high humidity e excessive vibration * Uneven surfaces (Place the unit on a flat level surface.) Such conditions might damage the cabinet and/or other compo- nent parts and thereby shorten the unit’s service life. Ventilation * Place the unit in a well ventilated position at least 10 cms away from wall surfaces etc. e Ensure that curtains and similar materials do not obstruct the ventilation holes. Stacking Never place heavy items on top of the unit or the power cord. Voltage * |t is very dangerous to use an AC power source of high voltage such as for an air conditioner, Á fire might be caused by such a connection. * A DC power source can not be used. Be sure to check the power source carefully, especially on a ship or other place where DC is used. Foreign materials * Ensure that no foreign objects, such as needles, coins, screwdrivers etc., accidentally fall into the unit or through the ventilation holes. Otherwise, a serious electric shock or malfunction could occur. * Be extremely careful about spilling water or liquid on/into the unit, as a fire or electric shock could occur. (Disconnect the power plug and contact your dealer immediate- by if this occurs.) | | * Avoid spraying insecticides onto the unit as they contain flam- mable gases which can be ignited. *in secticides, alcohol, paint thinner and similar chemicals should never be used to clean the unit as they can causs flaking or cloudiness to the cabinet finish. Maintenance Clean the cabinet, panel and controls with a soft cloth lightly moistened with mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. Service Power cord protection ¢ Avoid cuts, scratches or poor connection of the AC mains cord, as this may result in fire or electric shock hazard. Excessive bending, pulling or slicing of the cord should also be avoided. * Do not puil on the cord when you are disconnecting the power, as this could cause an electric shock. Grasp the plug firmly when you disconnect the power supply. * Never touch the plug with wet hands or a serious electric shock could result. | * Never attempt to repair, disassemble or reconstruct the unit if there seems to be a problem. A serious electric shock could result if you ignore this precau- tionary measure. e If à problem occurs during operation {the sound is interrupted, indicators fail to illuminate, smoke is detected, etc) contact your dealer or Authorized Service Center immediately. * Disconnect the power supply if the unit will not be used for a long time. Otherwise the operation life could be shortened. CAUTION Do not place a tape deck or CD player on top of this unit. Heat radiated from the top of this unit may cause damage to the tape or CD software. NO TY TRERE VOLUME For SA-GX490/GX390 Ref. page =DOLEY PRO LOGIC = SURROUND} 3 STEREQ | 18 ay No. Name Ref. page No. Name (D Power “STANDBY (h JON” switch (8 (POWER, STANDBY cb /ON) 12 Press to switch the unit from on to standby mode or vice ver- sa. In standby mode, the unit is still consuming a эта! amount of power, (2 Tuning control (TUNING) 14 (3) Band select button (BAND) 14 @ FM mode select button (FM AUTO/MONO) 14 O) Direct tuning button (DIRECT TUNING) 14 Help/reset button (-HELP —RESET) 13,22 (7) Numeric buttons (1—0, >10) 14,16 Remote control signal receptor — (9) “STANDBY” Indicator _ When the unit is connected to the AC mains supply, this in- dicator tights up in standby mode and goes out when the unit is turned on. (9 Display — {D Memory button (MEMORY) 15,16 (2 Bass control (BASS) 13 (3 Treble control (TREBLE) 13 (4 Volume control (VOLUME) 12 (5 Headphone jack (PHONES) 13 ® Speaker select buttons (SPEAKERS) 12 Speaker button (SPEAKERS) 12 (7 Input select buttons 12,19,21,22 TS © . . LA ae ae rbd e POROTOS hm EE EPL RE IE RT a LT ai me Se DAL CEA AL LEE DOLBY PRO LOGICISFC OFF ON button (OFF/ON) | 19,20 Surround button (SURROUND) (9 DOLBY PRO LOGIC mode select button 17,18,19 (PRO LOGIC) 17,18,19 3 stereo button (3 STEREO) 17,18,19 @ SFC mode select button (SFC) 20 @D Test signal button (TEST) 18 @ Tape monitor button {TAPE MONITOR) 12,21 @ Center level adjust button (CENTER) 18,20 24 Surround level adjust button (SURROUND) 18,20 @ Center mode select button (CENTER MODE) 17 28 Delay time adjust button (DELAY TIME) 19 vi) Muting/loudness button (MUTING — LOUDNESS) 13 Muting button (MUTING) 13 78 Balance control (BALANCE) 13 Connecting audio equipment Stereo connection cable (not included) MU я > Do not place books, etc., on top of this unit or block the heat radiation vents in any way. CD changer (or CD player) {not included) Tape deck (not included) CO OUTPUT Le La L— Only for turntable — with ground terminal SA-GX690 АС № Co) er] ee EE Antenna terminais Subwoofer terminals See pages 8-9. See page 11. Speaker terminals GND OUTPUT See pages 10—11. а — Turntable | ) а ==! (not included) ъ x LY L — For SA-GX490/GX390 7 “REMOTE CONTROL OUT” terminal CD player Tape deck (or CD changer) (not included) (not included) — — REMOTE CONTROL REMOTE RIE desde | OUT EN Ф © OUT Го! CONTROL Connection cables for remote control For SA-GX390 (not included) Connect the connection cable for remote control to a Technics tape deck and/or CO changer (or CD player) which has the appropriate remote controi terminal as shown above. If a tape deck is not being used, the CD changer (or CD player) can be connected directly (dotted line). REMOTE CONTROL For a tape deck and/or CD changer (or CD player) with a A Oh 9 0000C 99 90906 ©. 0580 TEN! [RIFE] HER Meile remote control sensor, this connection Is not necessary, Connecting video equipment Stereo connection cable (not included) White (L) Red (В) Second VCR (for playback oniy) or video CD changer (not included) TV {not included) с = Video connection cables (not included) o af | Las — 906606 вор VIDEO AUDIO VIDEO № OUT OUT | IL ] ee] т в < | SA-GX690 a I в Cooling fan Y (United Kingdom only) The cooling fan operates at high power output levels only. — В tt — video connection cables Approx. 6 mm {not included) o Appliance inlet AUDIO AUDIO . VIDEO VIDEO Even when the connector is IN QUT OUT IN perfectly inserted, the front part of the connector jut out as [J = shown in the drawing. Г Эс | o a VCR AC power supply cord ha 3.70 problem ue = (included) ; TA 000070] (not included) — J Connect this cord after all other cables and I cords are connected. To connect a video deck with 21 pin scart ter- — € I) Household minal AC outlet This unit —7 {United Kingdom only) ; BE SURE TO READ THE CAUTION FOR THE AC luded VER (not included) e POWER SUPPLY CORD ON PAGE 2 BEFORE CON. NECTION. AV IN LJ LI To AUDIO VIDED ¥ viDED IN OUT OUT IN = у 21 pin scart cabie (not included) TT Lae i DEA FM indoor antenna (included) This antenna is normally sufficient for reception of FM broad- casts, EM indoor antenna (included) = in —— Tape т Ï FM ANT 750 Ф=) FM outdoor antenna (not included) The outdoor antenna should be used when using the main unit in mountainous areas or in spaces enclosed by reinforced concrete where the FM indoor antenna (included) does not provide satisfactory reception. An outdoor antenna should be installed by a qualified technician only. (For United Kingdom) {For Australia and N.Z.) FM outdoor antenna FM outdoor antenna (not included) (not included) 75-0hms coaxial cable (not included) Attachment ” q (Inciuded) .. 300-ohms plug (ses figure feeder wire (included) at the right.) | (not included) ES ÉMANT O 750 [Li OÙ LE 9 (For Australia and N.Z.) № Ном to use the antenna plug (Included) Two types of wire are most commonly used for connection from the antenna: 300-ohms parallel feeder wire or 75-ohms coaxial cable. For best resistance to outside interference, the use of 75- ohms coaxiai cable is suggested. ~To connect a 75-0hms coaxial cable (© Remove a piece of the outer vinyl insulator. — à cE 20 mm 10 mm @ Remove the cover while pulling the tabs. If the tabs are pulled too hard, the casing may be damag- ed. < Plastic bar Clamp the cable conductor, and wind It on so that it doesn't contact anything else. with pliers. (5) Attach the cover. -To connect a 300-ohms feeder wire 300-ohms feeder wire (not included) Loosen the screw to connect the feeder wire and tighten it to secure the connection. AM loop antenna (included) This antenna is normally sufficient for reception of MW/LW (For Australia and N.Z.: AM) broadcasts. AM loop antenna à | (included) " — rire AM ANT ga) Ia — AM LOOP ANT a ———_——————] Install the AM loop antenna holder (included) at the rear panel of this unit and then attach the AM loop antenna to the AM loop antenna holder (facing in the direction of best reception). Insert the tab into the hole and then push the holder ee downward. Rear panel of this unit AM loop antenna holder (included) When mounting the antenna to a column, a wall or rack | Mount it vertically. -AM toop antenna holder (included) \ Screw (included) — Pay attention to the following polnts when mounting the antenna. * Do not mount it horizontally (Doing so will impair reception). * Do not mount it close to power cords, speaker wires or metal surfaces (Doing so will result in noise). * Do not mount it close to à tape deck. When the tape deck is be- ing used, chirping or beeping sounds may result. AM outdoor antenna (not included) The outdoor antenna should be used when using the main unit in mountainous areas or in spaces enclosed by reinforced concrete where the AM loop antenna (included) does not provide satisfac- tory reception. kb-—5-12 mM—4 AM outdoor antenna I ’ (not included) AM loop antenna Vinyl-covered wire (included) (not included) U AM LOOP ANT Stretch 5—12 m of vinyl-covered wire horizontally across a win- dow frame or other convenient location, keeping it as high as possible from the ground. When the unit is not in use, disconnect the outdoor antenna to prevent possible damage that may be caused by lightning. Never use an outdoor antenna during an electrical storm. Be sure to connect the AM loop antenna even when an outdoor antenna is used, Placement of speakers As well as enjoying normal stereo reproduction with the left and right front speakers, a center speaker and surround speakers can also be connected to the main unit in order to enjoy the sound performance of Dolby Pro Logic Systems and the SFC function, The illustration below shows where to place the speakers so as to best enjoy sound with Dolby Pro Logic systems and the SFC func- tion. We recommend that surround speakers be placed on the side of or slightly behind the listener, and about one meter higher than ear level, However the position should be adjusted to your personal preference, because the effect varies to some degree depending upon the type of music and the music source. Front speaker Front speaker (not included) (not included) (Left) Po] (Right) Center speaker (not included) X Subwoofer (not included) Surround speaker Surround speaker (not included) (not included) (Left) (Right) X The subwoofer can be placed in any position. Connection of front speakers To connect to the “A” terminals ESA CRIVERCEN Right speaker Left speaker (not included) (not included) о © OS Speaker cables (not included) TT This unit SUARO © ÓN To prevent damage to circuitry, never short-circuit positive (+) and negative (—) speaker wires. J Right speaker Left speaker (not included) (not included) Speaker cables (not included) DS eee This unit SURROUND ® © © 0 CENTER FRONT о O o © To connect to the “B” terminals SA-GX690/GX490 only For connection to a second pair of speakers. I Speaker impedance A or B (For United Kingdom) 4-160 (For Australia and N.Z.) 8-16 © A and B 8-15 Q (For United Kingdom) 4-16 Q (For Australia and М№.2.) 8—16 Q Connection of surround speakers For SA-GX690/GX490 Right speaker (not included) © © Left speaker (not included) О © Speaker cables (not included) This unit SURROUND ® © © O O | For SA-GX390 Right speaker {not included) Left speaker (not included) O © SES Speaker cables dr {not included) LM This unit 1. Before sound can be heard, both surround Speakers must be connected. 2. Donotconnect the surround speakers to the front speaker ter- minals. The surround speakers may be damaged if connected to the front terminals due to the output power difference bet- ween the front and surround terminals. IN Speaker Impedance The impedance of any speaker used with this unit must be 4— 16 Q. Connection of center speaker Before sound can be heard, the SURROUND mode or 3 STEREO mode (of the Dolby Pro Logic system) must be on, For SA-GX690/GX490 | For SA-GX390 | Center speaker Center speaker (not included) (not included) © © 00 Speaker cable (not included) Speaker cable _(not included) This unit This unit o ELL) e LAO 140 Le |] ee J Ш Speaker impedance The impedance of any speaker used with this unit mustbe 8-161}, Connection of subwoofer SA-GX690 only The subwoofer is connected when bass sounds are inadequately reproduced because front speakers are too small. When connected, the subwoofer can be placed in any position. This unit has no ampiifier section designed especially for the sub- woofer, so it is necessary to purchase a subwoofer with a built in amplifier or buy the two separately. Subwoofer with built-in amplifier (not included) ©- Stereo connection cable (not included) This unit SUB WOOFER p ©-— le > © a L 1 Connecting a subwoofer which does not have a built-in amplifier Connect an optional amplifier to the “SUBWOOFER” terminals of this unit and then connect a subwoofer to the speaker terminals of the amplifier. For your reference: | The level of sound output from the subwoofer will always be at 80 Hz or less, regardless of the settings of the speaker select but- tons on this unit, thus the intensity of the low frequency range will be maintained. When adjusting the volume of the subwoofer After setting the volume control on the subwoofer or on the amplifler which is connected to the subwoofer, make any further adjustments with the volume control on this unit. 11 * Before operation, set VOLUME to the “MIN" position. * When viewing a video, turn on the power supply for the TV and set the TV to video mode. | | 7 wen Press POWER?” "a LA = 1 ra EE 9 For SA-GX690/GX490 ASPEAKERSB Press A and/or B to select O the speaker system(s) to be used. | A and B refer to the speaker terminais at the rear of the unit. QUARTZ LUCK STEREO Fi LI m LIC Ll — ! — Lights up If the button is pressed once more, the indicator will switch off and no sound Will be heard from the speakers, | For SA-GX390 SPEAKERS Press SPEAKERS and check the “ON” Indication fights Lights up If the button is pressed once more, the indicator will switeh off and no sound wilt be heard from the speakers. When the tape monitor indicator is ilt or flashing This indicates that the tape monitor function of this unit is ON. TO listen to sources other than a tape, be sure to press TAPE MONITOR | and check the indicator goes out. source. Source Button Video tapes (VCR 1) VCR 1 Video tapes (VCR 2) VCR 2/VIDEO CD Video CD YCR 2/VIDEO CD TAPE MONITOR Tape The tape monitor indicator will light up. Compact discs CD Radio broadcasts TUNER Phono discs PHONO The selected video source is output from the “TV (MONITOR QUT)" terminal on the back of the unit. arenes FM LCR 15 a LILY Toe, «TT Video source . + 11191 EE 14 21 1 7 = 0 à . я" 4 Start the desired source. {Refer to the appropriate operating instructions for detalis.) HE 425 8a Wax чан = 4 CA и + чин 5 [ Tum VOLUME to adjust the volume level. After listening Is finished ; Be sure to reducs the volume level, and switch the power to the standby condition by pressing POWER, Lit or flash ing aya Lack FM CIC 1 D LILLE Elmo vena - HELP TREBLE O BASS —RESET | Y VOLUME css [es y ——— | 57 B3 @ Pr ] 7 SPEAKERS NU, ING BALANCE Headphones — LOUDNESS O (not included) 5 ; Plug type: Е 1/4 inch phone plug stereo type If sound output stops during use or if you are unsure what to do = Press -HELP. (Touch only) The help function can be used to display opera- tions you are expected to do. A For details, see page 22. To adjust the tone quality TREBLE x Tum TREBLE to adjust the high fre- quency sound. BASS : x Turn BASS to adjust the low tre- quency sound. To mute the sound level For SA-GX490/GX390 MUTING Press MUTING. ES For SA-GX690 -MUTING Press -MUTING. (Touch only.) =LOUDNESS QUARTZ LOCK STERED a | vez | The message "MUTING ON NOW" runs repeatedly from right to left across the display as long as the muting function is on, Press once again to return to the previous volume level. To adjust the sound balance BALANCE A Turn BALANCE to adjust the O left/right sound balance. To emphasize low frequency sound SA-GX690 only -MUTING -Lowness Press —LOUDNESS until the “LOUDNESS?” lights up. QUARTZ LOCK STEREO FM PIC II LOUDNESS ® LHL Ta Von | Lights up To return to the previous condition, hold down the button until the “LQUDNESS” indication turns off, To listen through headphones Use VOLUME to reduce the volume level, and connect the headphones. For SA-GX690/GX490 if you do not want sound from the speakers, press SPEAKERS (A) and (B) and check the speaker select indicators go out. If you do not want sound from the speakers, press SPEAKERS and check the “ON” indication goes out. Avoid listening for prolonged periods of time to prevent hearing damage. TEA, ET ES ЦА 13 14 Direct access tuning Specify the frequency using the numeric buttons to directly tune to the desired broadcast station. Ordo FM AUTO! MONO + 1 101 5 6 = TE унии 1] me "AY hom oE EEN AoE AN FFE FoR LE oa «nm Press TUNER. а ини т и + а ARTE TE 01 1 Ad EE 4 A EU 4 A A4 8 2 2 BAND Press BAND to select “EMP, “MW” or “LW”, (For Australla and N.Z.: FM or AM) CFM a { Lights up 9 / °recTowe Press DIRECT TUNING. — Г. @ wr rity | Flashes While cursor display Is flashing {approx. 10 seconds) LEE IE EL EY + = Fd oom 4 [TEs the appropriate numeric buttons to enter the frequency. If the desired FM frequency is 107.90 MHz Lights up when tuned It the frequency has been input correctly, the displayed frequency will blink once. | 1. If no button is pressed while the cursor display is flashing, the display will return to the frequency which is currently being received. To re-specify the frequency, repeat the procedure from step 3. 2. if the frequency has not been input correctly, “ERROR” In- dication will be displayed. In this case, re-enter the frequency. IT TT. Pr EL еее д Neem Sequential tuning If the frequency is not known, use the tuning buttons to search for it. TF TE + Ld EE EFF EEA og тии + 2 BAND Press BAND to select “FM” “MW” or “L y”. (For Australia and N.Z.: FM or AM FM a Lights up 3 Y TUNING A Press Vor Ato tune to the desired broadcast. If either button is held down for an ins- tant until the frequency begins to scroll, the broadcast stations can be tuned in automatically when a broad- cast station is found. Tuning may stop automatically if any jamming is encountered. When the FM stereo broadcast is received This unit will automatically switch to FM stereo reception and the “STEREO” indication will light up. | QUARTZ LACK TERE _ Ia @ LO SN IY Lights up when a stereo broadcast is tuned in If noise Is excessive in the FM stereo mode Press FM AUTO/MONO. (The FM stereo indicator will switch off.) The broadcast will be monaural, but noise will be reduced. If the button Is pressed once more, the stereo mode will be resumed. To change the MW frequency step Press and hold BAND for about 3 seconds, (The frequency step changes to 10 kHz per step.) To return to the previous step, press and hold BAND for about 3 seconds again. o Preset tuning By presetting the desired broadcast stations into the memory channels of this unit, broadcast stations can be selected simply by pressing numeric button(s). (Refer to page 16 for tuning.) Automatic memory presetting "Before presetting How many broadcast stations can be preset? For United Kingdom À total of 30 FM, MW and LW stations can be preset. For Australla and N.Z, A total of 30 FM and AM stations can be preset. How is presetting done? The two following methods are available. * Automatic memory presetting Automatic memory presetting allows this unit to automatical- ly search for broadcast stations and then preset them into memory. With this function, searching proceeds from the frequency currently being displayed and continues through higher fre- quency, and broadcast stations are preset In the order In which they are located. With this method, the channels that can be presst Into the memory are set as follows for different bands, For United Kingdom Channel For Australia and N.Z. Channel 1 | 2 | 20/21! 3 + AM > + FM , For example, after presetting the FM band, if the MW (or AM) band is preset, the previous presettings in the sections in the above illustration which overlap will be erased and the subsequent settings will be preset. Therefore, the FM band stations will be kept for channels 1 —20 and the MW (or AM) band stations will be preset to channels 21—30. * Manual memory presetting The desired broadcast stations can be preset Into the desired channels by the user, This can also be used as a method for changing selected broadcast stations that were preset in “Automatic memory presetting”. If a new broadcast station is preset into a channel, the set- ting for the broadcast station which was previously entered in that channel will be automatically erased. + EEE EE 4 тени ны LA TY оо чении кина че чин она 4 1 48 4 Set to the frequency from which you want to start automatic memory preset. ting. (See page 14.) ATOUT RETOUR EE 1 EE 1 C1 4 0 2 A 11 1 A1 4 2140 à Press MEMORY until the fre- quency begins to change. (Automatic memory presetting will start.) During automatic memory presetting, the memory indicator will flash while the frequency scrolls. Flashes a | IN su LI 11 ® Г) NA ме VGA — To stop, press MEMORY once again. When a broadcast station is preset The memory indicator and the preset channel number will be displayed for approximately 1 second. EL ! a Li ! | Lights up When presetting is completed The last broadcast station to be preset will be displayed. Frequencies may not be preset correctly in cases where the broadcast waves are too strong or too weak. in such cases, carry out presetting manually. 15 6 Preset tuning (continued) Manual memory presetting FOR EEE + 1 Set to the desired broadcast. (See page 14.) If interference or static is keeping you from enjoying an FM broadcast, press FM AUTO/MONO and change to monaurual. You can preset the memory in monaurual just as in stereo, 2/ ; TERED FM NOT ® Hit a | Lights up To cancel the memory function, press MEMORY again. / DL Specify the desired channel 3 el To Pre be preset using the numeric button(s) (com- pletes presetting). To designate channels 1—9 Press the appropriate (1 — 9) preset-tuning button. To designate channels 10-30 (Example: Channel 12) (ZW) — — CD (within 10 sec.) (within 10 sec.) (M) NY. _ a Loran (M) NP, a irr or Once completed step 3, the display reverts back to step 1, To continue presetting Repeat steps 1 through 3. - Specify the preset channel (Че To E using the numeric button(s). To designate channels 1—9 Press the appropriate (1 —9) preset-tuning button. To designate channels 10— 30 (Example: Channel 12) (2140) ———— (CT) —> (C2) (within 10 sec.) (within 10 sec.) @ 11 ГОР 1 ® L H PORN Preset channel Fer e a LIC After the preset channel is displayed, the frequency of the selected channel is displayed. To confirm the channel number of the broadcast station being received Press TUNER. (The channel number will be displayed for about one second.) The channel number is not displayed if you change the reception frequency or FM mode setting. For your reference Even if the power ig switched to standby or the power cord is disconnected from the household AC outlet, the memory will re- tain its contents for approximately one month. If frequency presettings are accidentally erased Make the presettings once again. The power cord should remain connected for one hour or more for the memory back-up to be effective. | By combining front, center and surround speakers, you can enjoy the SURROUND mode which conveys a feeling of presence or the 3 STEREO mode which conveys a feeling of orientation. SURROUND By reproducing the feeling of depth and movement of sound, video software or compact discs recorded with Dolby Surround provide the listener with a feeling of presence like that of a movie theater. Te enjoy SURROUND, be sure to connect the surround speakers, Front Front speaker (L) TY | speaker A) = Ce Ne speaker — > Surround speaker (R) al Surround speaker (L) ) EX ( 3 STEREO _— You can enjoy audio/visual sources with clear sound, more presence and a good feeling of orientation, 3 STEREO can be us- ed with sources not recorded in DOLBY SURROUND. To enjoy 3 STEREO, be sure to connect the center speaker. Front Center Front speaker (L) speaker speaker (R) 3556 Surround Surround speaker (L) speaker (R) Em “о” Setting the center mode For Dolby Pro Logic systems, center mode setting is necessary to play back bass sounds effectively. Set the center mode in accordance with the size of your center speaker. For SA-GX690 "+. FERMI ETA NEN a aE EE er ve EE harasses 1 For SA-GX690 _protouc Press PRO LOGIC to turn on the Dolby Pro Logic systems and select the desired mode. When the button is pressed, the cur- rent mode is displayed. Pressing it again changes the Dolby Pro Logic mode. ‘For SA-GX490/GX390 SURROUND Press S U R RO U N D or 3 STEREO to tum on the desired mode. | or | 3 STEREO Pressing the same button again turns: off the activated listening mode. For SURROUND mode For 3 STEREO mode (ere |= Lights up Lights up AG « LOG VENZ EEN += + 4 A CCE 1 * =» 9 —CENTERMODE Press CENTER MODE to Manufactured under license from Dolby Laboratories Licens- ing Corporation. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. select the correct center mode. PRAT hifi na @ Ги! Е venz When the button is pressed, the current center mode Is displayad. Pressing it again changes the center mode. NORM (NORMAL) When the center speaker Is smaller than the front speakers WIDE (WIDEBAND) When the center speaker is the same or larger size as the front speakers PHAN (PHANTOM) When no center speaker is connected. In the PHANTOM mode, the sound which would have been sent to the center speaker will be divided equal- ty between both the left and right front speakers. 17 Adjusting speaker output level In order to reproduce the movement of the sound and its clear orientation, it is important to adjust the output level of each Speaker. Adjust output to the correct levels while listening to the test signal. For SA-GX690 AN 7 ASPEAKERS BE Ip SA-GX690/GX490 e Press A or B to select the Speaker system to be used. SPEAKERS For SA-GX390 Press SPEAKERS and check the “ON” indication lights up. 5 … ES НО | -rrotooe Press PRO LOGIC to turn on the Dolby Pro Logic systems and select the desired mode. For SA-GX190/G X390 or 3 STEREO Pressing the same button again turns off the activated listening mode. TREE Ra aa hr, VOLUME OEA mada SURROUND EEX) PEN Press TEST to output a test signal. I TECT a PL O4 8 = VOR? The test signal is emitted in the follow- Ing order: For SURROUND mode Front speaker —— Center speaker (left) Î Surround speakers +— Front speaker (left, right) (right) The test signal is not emitted from the center speaker when the center mode is on PHANTOM. For 3 STEREO mode Front speaker -——» Center speaker (left) Lo ront speaker (right) J Te et ra Turn VOLUME to set the volume level normally used for enjoying the source. PERTE E EEE ae ea a ee a a au 4 Press CENTER (-) or (+) or SURROUND (-) or (+) to ad- Just the Output level balance. Adjust the Output level of each Speaker from the listening position un- til they are ail identical. : Decrease the output level. [+): increase the output level. I “le E F i ven2 Output level can be varied within a range of — 12 dB to +12 dB according to that output from the front speakers. 1. The test signal Is output only by the Speaker you are now adjusting and does not repeat the sequence until adjustments are complete. 2. Remember you cannot adjust out- put leve! of the surround speakers if you selected the 3 stereo mode in step 2. Press SURROUND or 3 STEREO to turn on the desired mode. TEST To stop the test signal Press TEST. SEIN m ete е LN Fe aE Adjusting the delay time When enjoying with SURROUND only Adjust the sound from the surround speakers until the proper ef- fect is produced. ses | ве С | |Q y 1/ —rrotomc | Press PRO LOGIC to turn on the Dolby Pro Logic systems and select the SURROUND mode. 9 DELAYTIVE Press DELAY TIME to set to the suitable timo. When the button is pressed, the cur- rent delay time is displayed, pressing it again changes the delay time, a Hohts up DOT 1“ I 1 № UCA? Each time the button Is pressed, the delay time will increase by 5 ms. To calculate the delay time, refer to the calculation methods below. The standard setting is 20 ms. Front Center Front Speaker (L) speaker speaker (R) Surround speaker (L) Surround speaker (R) D:: Distance from front speakers | Dz: Distance from surround speakers * if Di 1s equal to or less than Dz Set to 15 ms, * If D2 Is [ess than D: Start at 15 ms and Increase by 5 ms for every 1.5 m of difference bet- ween D+ and Ds. Enjoying with SURROUND or 3 STEREO For SA-GX690 Before trying anything, have you set the center mode and ag- usted speaker output level {and adjusted the delay time SA-GX690 only)? 7 EE NU | Doce | Press PRO LOGIC to turn on -PRO LOGIC the Dolby Pro Logic systems and select the desired mode. For SA-G X190/GX390 Press SURROUND or 3 STÈREO to turn on the desired mode. | or Pressing the same button again turns _estenzo | off the activated listening mode, 2jes =]=\{]==]Select the desired source. AN When employing SURROUND, use software recorded in Dolby Surround. OFF/ON To turn off the Dolby Pro Logic systems Press OFF/ON. Press once again to turn it on. 19 The SFC function gives presence and spread thereby enhancing and enriching the music or movie. 1 SFC Press SFC to turn on the SFC function and select the desired mode. When the button is pressed, the cur- rent mode is displayed. Pressing it again changes the SFC mode. HALL D———— HALL » LIVE 1 } VEZ SIMULATED +—— —— THEATER HALL This mode imparts a reflection and spread which will make you feel as if you are In a large concert hall, - LIVE Primarily for vocal pieces, this mode adds gloss to the vocals and you'll feel as though you were hearing a live stage performance. THEATER You can clearly perceive the directions and source of the movie. Real ambience of sound can also be recreated naturally using this mode. THEATER mode can be used with stereo sources not encoded with DOLBY SURROUND. When using Dolby surround encoded source materials, select the DOLBY PRO LOGIC SURROUND. SIMULATED Choose this mode if little or no sound will be heard from the sur- round speakers. You can feel as if you were in a more expanded space adding to the actual sound from the source. This mode also adds effect to monaural sources by outputting the sound from surround speakers: You can adjust center speaker volume only In the theater mode. The center speaker is not used in the hall, and simulated modes. a AAA ARA MONTE EEE TAN AA 3 Start the desired source. To turn off the SFC function Press OFF/ON. ls Press once again to turn it on. Adjusting field of sound With this unit, you can adjust speaker volume and select delay time. Adjust the field of sound while listening to a source. CENTER | DELAY TIME SURROUND To adjust center speaker volume CENTER In the theater mode only -1]+] Press CENTER (—) or (+). To adjust surround speaker volume SURROUND Press SURROUND (=) or (+). Lr {—1: Decrease the output level. [+]: Increase the output level. u {of VCR? | | Output levels can be varied within a range of —12 dB to +12 dB according to that output from the front speakers. To adjust the delay time CELAYTIME Press DELAY TIME to set to the sultable time. When the button is pressed, the current delay time is displayed, pressing it again changes the delay time. As the time display increases, the feeling of TL the sound becomes wider. Es Recording on the tape deck Before recording, prepare the tape deck for recording (recording level adjustment, etc). See the tape deck's operating instructions for details. 1 [= T\G= T= Select the audio/video | source to be recorded. * кни тая я * = ll". vr vom am aan A AA EA а кии + к 1 5 = 2a 8 & * = Begin recording. Follow your tape deck's operating in- structions. LA oa * nom #4 CE “Begin the audio/video source to be recorded. To check the sound recorded while a recording is being made | With a tape deck with 3 head system, it is possible to check the sound recorded on the tape. Press [TAPE MONITOR] on this unit and set the monitor button on the tape deck to “TAPE". Lit — Te {TAPE MONITOR] > Ee Fa CU IN a He РЕЙ мн: VEAZ Press [TAPE MONITOR! once again to turn it off. Recording on the VCR (VCR 1 _ Before recording, prepare the VCR (VCR1) for recording (recor- ding level adjustment, input selector setting, etc.). See the VCR's operating instructions for details. Recording from VCR 2 “a LC 1 C1 8 1 + + EE ù 4 5 LE HE 4 4 1 5 #1 X 2 Begin recording on the VCR | 1 and playback the tape on the VCR 2. Follow your YCR's operating instruc- ‘tions. For your reference If a video CD changer is connected to the “VCR 21VIDEO CD" ter- minals, recording from the video CD changer is possible by foltow- ing the above procedure. 21 Recording on the VCR (VCR 1) Recording from an audio source Recording from the tape deck is not possible. i FEE If you make a mistake in operation or if sound output stops due to some operation which was performed, the HELP function displays information which can be useful for indicating the method by which this condition can be remedied. If “ERROR” or scrolling characters (for instance, “TAPE MONITOR ON NOW”) appears ori the display during operation, carry out the following operation. - HELP Era HE + 71. 1 Select the audio source to be recorded. xa EARL LO {hu = = = = now I man ua EEE ar. 2 Begin recording on the VCR 1. Follow your VCR's operating instruc- tions. add #4 FoF RES og на кт чин =... "6 kb EE source to be | 3 recorded. Precautions in recording a audio source If not recording the picture from VCR2 or a video CD player, either turn the unit OFF or select VCRi. The unit is set such that video signals input at video input ter- minals “VCR2” and “VIDEO CD” are output from the “VCR1" vi- deo output terminal on the back of the stereo. Therefore, when recording an audio source, if the VCR2 source or video CD player is playing, the picture will be recorded through VCR. | - HELP Press -HELP. (Touch only.) The method for remedying this situation will be displayed, —A For your reference if the above button is pressed for 2 second or more until “RESET” appears on the display, the operation settings for the unit will be initialized to the settings made at the time of ship- ment. However, any broadcasting stations which have been preset into memory will not be erased at this time, Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing, Some sim- ple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of authorized service centers (enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions. | Problem Probable cause(s) Suggested remedy While listening to FM broadcasts An unusual hissing noise is heard when listening to the broadcast in stereo, but not heard when listening monaurally. A slight noise may be heard because the method used for modulation of FM stereo broadcasts is different than that used for monaural broadcasts. Noise is excessive in both stereo and monaural broad- casts. Poor location and/or direction of the antenna Transmitting station is too far away. * Try reducing the treble sound by using the treble con. trol. * Try changing the location, height and/or direction of the antenna. * If an indoor antenna is being used, change to an outdoor antenna, * Try using an antenna with more elements. The FM stereo indicator or the quariz lock indicator flickers, without completely INuminating. Poor location and/or direction of the antenna Transmitting station is too far away. Excessive distortion In the sound of stereo broad- casts. Nearby building or mountain * Try changing the location, height and/or direction of the antenna, * If an indoor antenna Is being used, change to an outdoor antenna. * Try using an antenna with more elements. While listening to MW/LW (For Australia and N.Z.: AM) broadcasts An unusual “beat” sound Is heard. The unit is being used at the same time as the television set. * Turn off the television set, or use this unit farther away from it. Interference from adjacent broadcast signals * Try reducing the treble sound by using the treble con- trol. A low-pitched “hum” sound is heard when the broadcast is tuned. The AM loop antenna connection wires are too close to the power cord. * Place the antenna connection wires and the power cord farther apart. A strange hissing noise is produced continuousiy or Intermittently, Caused by the "discharge phenomenon” and the “oscillation phenomenon” of electric appliances (such as fluorescent lights, TV, small series-type motors, rectification equipment, etc.). * Try placing this unit farther away from such equip- ment. Problems noted at all times Power will not switch ON. The power cord plug is not completely inserted. * Confirm that the power cord plug is connected completely. No sound Is heard. Both A and B speakers are turnd OFF. The tape monitor function is ON. The muting function is ON. * Press the HELP button. (The display will scroll through the causes of the problem.) Use this display as a guide to remedy the problem. Connections are incomplete or incorrect to the speaker systems, etc. * Check to be sure that all connection wires are correctly connected. The incorrect input selector has been pressed. * Check to be sure that the correct selector is pressed. Sound stops during a performance, or no sound Is heard when the power is switched ON. (The word “OVERLOAD” appears on the display.) The protection circuitry has functioned because the positive and negative speaker connection wires are “shorted”. Speaker systems with an impedance less than the indicated rated impedance of this unit are used or under severe use, such as loud volume, excessive power and in an excessively hot environment. e Switch off the power, and after determining and correcting the cause, switch ON the power once again. * Use a speaker system of the proper Impedance rating. The word “ERROR” appears on the display. When the Dolby Pro Logic system is ON, both A and B speakers are turnd ON. When both A and B speakers are being used simultanecusiy, the Dolby Pro Logic system is turned ON. e Press the HELP button. (The display will scroll through the causes of the pro- blem.) Use this dispiay as a guide to remedy the problem. 23 NM AMPLIFIER SECTION Power output (at 240 V) DIN 1 kHz (T.H.D. 1%) (For United Kingdom) [SA-GX690] 2 x 100 W (4 ©) [SA-GX390] 2 x 50 W (4 Y) {For Australia and N.Z.) [SA-GX690] 2 x 100 W (8 ©) [SA-GX490] 2 x 100 W (8 Q) [SA-GX390] 2 x 60 W (8 N) 20 Hz—20 kHz continuous power output both channels driven (For United Kingdom) [SA-GX690] 2 x 65 W (8 ©) (For Australia and N.Z.) [SA-GX690] 2 x 90 W (8 ©) [SA-GX490] 2 x 80 W (8 N) 40 Hz— 20 kHz continuous power output both channels driven (For United Kingdom) [SA-GX380] 2x30 W (8 QO) (For Australia and N.Z.) [SA-GX390] 2 x 40 W (8 9) Total harmonic distortion rated power at 20 Hz-- 20 kHz [SA-GXB90/SA-GX490] 0.05% (8 ©) rated power at 40 Hz—20 kHz [SA-GX390] 0.5% (8 QQ) half power at 1 kHz 0.03% (8 ©) Power output at the Dolby Pro Logic operation | DIN 4 kHz (T.H.D. 1%) Front (For United Kingdom) [SA-GX690] 2 х 60 W (4 ©) [SA-GX390] 2 x 40 W (4 9) (For Australia and N.Z.) [SA-GX690] 2 x 70 W (8 OY) [SA-GX490] 2x55 W (8 Q) [SA-GX390] 2 x 40 W (8 Y Center (For United Kingdom) [SA-GX690] 60 W (8 Q) [SA-GX390] 40 W (8 Q) (For Australia and N.Z.) [SA-GX690] 70 W (8 ©) [SA-GX490] 55 W (8 Q) [SA-GX390] 40 W (8 QQ) Surround (For United Kingdom) [SA-GX690] 60 W (8 Q) [SA-GX390] 40 W (8 N) (For Australla and N.2.) [SA-GX690] 70 W (8 M) [SA-GX490] 55 W (8 QO) {SA-GX390] 40 W (8 Q) Intermodulation distortion rated power at 60 Hz: 7 kHz=4:1, SMPTE 0.5% (8 Q) Power bandwidth both channels driven, —3 dB SIN at rated power (8 Q) PHONO 70 dB (IHF, A: 80 dB) CD, VCR 1, YCR 2/VIDEO CD, TAPE | 75 dB (IHF, A: 88 dB) Frequency response PHONO RIAA standard curve (30 Hz—15 kHz) £0.8 dB CD, VCR 1, VCR 2/VIDEO CD, TAPE 10 Hz—40 kHz, +3 dB Tone controls BASS 50 Hz, +10 to —10 dB TREBLE 20 kHz, +10 to — 10 dB Loudness control {volume at — 30 dB) [SA-GX6890 only] 50 Hz, +9 dB Output voltage VCR 1 OUT, TAPE REC (OUT) 200 mV Channel balance (250 Hz— 6.3 kHz) +1 dB Channel separation 55 dB Headphones output level and Impedance Load impedance Front [SA-GX690/SA-GX490] A or B (For United Kingdom) 4-16 Q (For Australia and N.2.) 8-16 © A and B 8-16 © [SA-GX390] {For United Kingdom) 4-16 0 (For Australia and N.2.) 8-16 © Center 8-15 Q Surround 4-16 0 Ш FM TUNER SECTION Frequency range 87.50— 108.00 MHz Sensitivity SIN 30 da 1.5 uV/75 Q S/N 26 dB 1.3uV/75 Q S/N 20 dB 1.2 4VI75 Q IHF usable sensitivity (IMF '58) 1.5 uvr75 Q IHF 46 dB stereo quleting sensitivity 22 HYI75 Q Total harmonic distortion MONO 0.2% STEREO 0.3% SIN MONO 60 dB (75 dB, IHF) STEREO 58 dB (71 dB, IHF) Frequency response 20 Hz—15 kHz, +1 dB, —2 dB Alternate channel selectivity +400 kHz 65 dB Capture ratio 1 dB Image rejection at 98 MHz 40 dB IF rejection at 98 MHz 70 dB Spurious response rejection at 98 MHz 430 т\//330 © Channel balance (250 Hz— 6.3 kHz) +1.5 dB Limiting point 1.2 pv Bandwidth IF amplifier 180 kHz FM demodulator 1000 kHz Antenna terminal(s) 75 {1 (unbalanced) HE AM TUNER SECTION Frequency range MW (AM) 522-1611 kHz (9 kHz steps) 530— 1620 kHz (10 kHz steps) LW (For United Kingdom only) 144— 288 kHz Sensitivity MW (AM) 20 НУ, 330 pvim LW (For United Kingdom only) 45 pv Selectivity MW (AM) (at 999 kHz) 55 dB LW (For United Kingdom only) (at 252 kHz) 55 dB Image rejection MW (AM) (at 999 kHz) 40 dB LW {For United Kingdom only) (at 252 kHz) 40 de IF rejection MW (AM) (at 999 kHz) 55 dB LW (For United Kingdom only) (at 252 kHz) 55 dB IN VIDEO SECTION Output voltage at 1 Y Input (unbalanced) 1 +0.1 Vo-p Maximum input voltage 1.5 Vp-p Inputioutput impedance 75 Q (unbalanced) E GENERAL Power consumption (For United Kingdom) [SA-GX690] 235 W [SA-GX380] 220 W (For Australia and N Z.) [SA-GX690] 225 W [SA-GX490] 200 W [SA-GX380] 190 W Power supply AC 50/60 Hz, 230-240 Y Dimensions (W x H x D} [SA-GX690] 430 x 158 x 352 mm [SA-GX490/SA-GX390] 430 x 136 x 352 mm Weight [SA-GX690] 9.8 kg [SA-GX490] 9.2 kg [SA-GX390] 7.8 kg Notes: 1. Specifications are subject to change without notice. Weight and dimensions are approximate. 2. Total harmonic distortion is measured by the digital spectrum analyzer. For United Kingdom only 70 dB 10 Hz— 40 kHz (8 Q) AM suppression 50 dB This apparatus was produced to BS 800. Damping factor 30 (8 2) Stereo separation Input sensitivity and impedance 1 kHz 40 dB PHONO 3 MV/A7 kQ Carrler leak CD, VCR 1, YCR 2/VIDEO CD, ТАРЕ 19 kHz —30 dB (—35 dB, IHF) | — 200 MV/22 KQ 38 kHz —- 50 dB (—55 de, IHF) Watsushita Electric Industrial Co., Ltd. entrai P ox 288, Osaka. 530- 91, Japan ROT3013-B ©. Printed'in Japan .. —— —— HO395C0 ">
