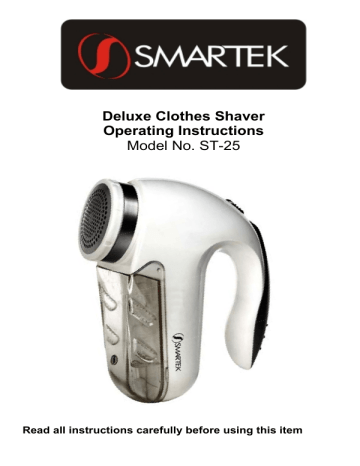

Deluxe Clothes Shaver
Operating Instructions
Model No. ST-25
Read all instructions carefully before using this item
• This device is equipped with sharp cutting blade, do not
use it to shave your hair or skin to prevent cut and
damage to your skin.
• Do not operate this device for more than 1 minute to
prevent damage to the motor.
• Please tuck in exposed thread before you shave your
woolen sweater or other fabrics to prevent damage to the
fabrics.
• When the result of fabric regeneration cannot be predetermined, you should shave the hidden or unexposed
area first to determine the result before you shave the
entire fabric.
• Do not use this device to shave easily damaged fabrics
like Angolan. An intricate design or pattern on some
fabrics may disappear during the process of shaving.
• Use only damp cloth to clean the surface; do not allow
water or other liquids to enter the inner part of the device.-
SPECIAL FEATURES:
• After some period of use almost all fabrics will become
full of lint, fuzz and pills caused by friction and pulled
threads. They make your garments look old and difficult to
clean. Smartek Deluxe Clothes Shaver can shave off
these fuzz threads and pills easily.
• Even your favorite old garment may be revitalized to
regain their new look forever.
HOW TO OPERATE:
• When battery power is in use, hold both sides of the
removable fuzz bin at the bottom and slide it out. Open
the cover of the battery compartment upwards and install
4C batteries and close the cover. Slide in the removable
fuzz bin properly and turn the shaver on.
• When using AC adapter just plug in one end to the DC
socket at the back of the device and the other end to an
electrical outlet.
• Place the fabric you wish to renew on a flat surface, hold
the device by its handle and gently move it over the fabric.
Do not press heavily to prevent damage to the fabric.
HOW TO OPERATE:
• Pull the fabric as straight as possible to increase the
efficiency of the device and the result of the fabric repair.
• It is recommended to put a small amount of lubricating
oil on the inner side of the metal screen cover to allow
maximum operation condition of this device.
• When the efficiency of the device becomes low, open
the screen cover anti-clockwise then carefully take out the
cutting blade, then clean the blade and also the inner
compartment of the device using a soft brush. When you
finished cleaning reinstall the blade and screen cover
properly and then you could restart your shaver.
• After each use pull out the removable fuzz bin to clean.
• This device is equipped with safety equipment to stop
the operation when the screen cover is loose or open.
• Remove the batteries from their compartments in case
the device is not being used for a long period of time to
prevent damage caused by battery leakage.
COMPONENTS IDENTIFICATION:
FEATURES:
Removable Fuzz Bin
Screen Cover
On/Off Switch
Handle
6 MONTH LIMITED WARRANTY:
This product has a warranty for 6 months from provable
date of purchase against defects in material and
workmanship.
During this period such defects will be repaired, or the
product will be replaced without charge.
This warranty does not cover damage caused by misuse,
negligence or improper installation. Warranty is also
invalid in any case that the product is taken apart or
serviced by an unauthorized service station.
Send your package postage prepaid with a copy of your
proof of purchase. You will also need to enclose a letter
explaining the nature of your difficulty in detail. Please
allow 2-4 weeks for return shipping.
Thank You for purchasing our Smartek Deluxe
Clothes Shaver.
SPECIFICATIONS:
Power Source
Power Consumption
Rated Voltage
Rotation Speed
Net Weight
120V
5W, 4C Batteries
DC,6V
7000/Minute
455g,1 lb
