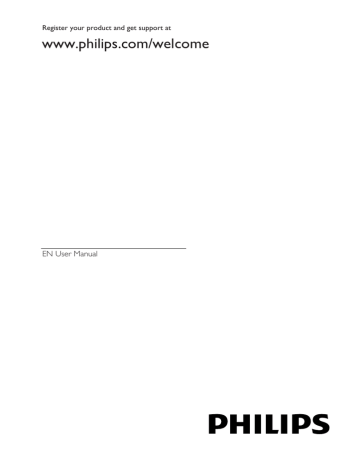

Register your product and get support at
www.philips.com/welcome
EN User Manual
Contents
1 2 3 4 5 6 EN
Get started
3 TV tour
TV controls
Important information
Sustainability
Help and support
3 3 5 8 9 Use your TV
10 Watch TV
View programme guide
View media
10 13 13 Use more of your TV
15 Professional mode
Play games
View Text
Set locks and timers
Use EasyLink
View Scenea
15 19 19 20 21 24 Set up your TV
25 Picture and sound
Channel settings
Language settings
Universal access settings
Other settings
Update software
Restore default settings
25 26 28 29 30 30 31 Connect your TV
32 About cables
Connect devices
Connect more devices
Watch a connected device
Common interface
32 34 41 43 44 Troubleshooting
45 General issues
Channel issues
Picture issues
Sound issues
Connection issues
Contact Philips
45 45 46 46 47 47 2
7 8 Product specifications
48 Power and reception
Display and sound
Display resolutions
Multimedia
Connectivity
Supported TV mounts
Help version
48 48 48 49 50 50 51 Index
52 TV controls
TV tour
Rear controls
High Definition TV
If your TV is equipped with a High Definition
(HD) display, you can watch HD video in
the following ways and more:

a Blu-ray disc player, connected with an
HDMI cable, playing a Blu-ray disc

an upscaling DVD player, connected
with an HDMI cable, playing a DVD
disc

an over-the-air HD broadcaster (DVBT MPEG4)

a digital HD receiver, connected with
an HDMI cable, playing HD content
from a cable or satellite operator

an HD game console, connected with
an HDMI cable, playing an HD game
Media playback
If you connect your TV to a USB storage
device, you can enjoy your movies, music
and pictures on a wide screen TV with
excellent sound.
Programme guides
You can find out what's on and what's
coming up with the now and next EPG
(Electronic Programme guide) or eight day
EPG.
Intuitive menus
With the TV's intuitive menus, you can easily
access the channel or media file that you
want or tweak the TV settings to suit your
needs.
English
1 Get started
1
2
3
4
1. (Standby): Switch the TV on or off.
2. CH +/- (Channel +/-): Switch to the next
or previous channel.
3. (Source): Access a connected device.
+/- (Volume +/-): Increase or
4.
decrease volume.
Side controls (For 22HFL3007D
and 26HFL3007D only)
1
2
3
4
5
EN
3
1.
+/- (Volume +/-): Increase or
decrease volume.
(Channel
): Switch to the
2. CH
next or previous channel.
3. No function.
(Source): Access a connected device.
4.
5. (Standby): Switch the TV on or off.
Sensors
1. Remote control sensor
Point the remote control at the sensor.
Make sure that the line-of-sight between the
remote control and the TV is not blocked by
furniture or other objects.
Remote control
1
2
3
5
1. (Standby): Switch the TV on or to
standby.
2. MyChoice: Access customised menu.
3. GUIDE: Access TV Guide.
4. ThemeTV: Access ThemeTV options.
TV: Switch source to watch TV.
5.
6
7
1
For HFL3017 - 32- to 42-inch TVs only
4
8
9
CHANNEL GRID: Access the TV
6.
channel list.
7.
SOURCE: Access a connected device.
8. CLOCK: Access the TV clock.
FORMAT: Change picture format.
9.
10
11
12
1
EN
4
10. (Home): Access the Home menu.
11. OK: Confirm an entry or selection.
(Navigation buttons): Navigate
12.
through menus and select items.
13
15
14
16
13. LIST: Access the TV channel list.
14. ADJUST: Adjust TV settings.
INFO: Display information about
15.
current activity.
16. OPTIONS: Access currently available
options.
17
18
Access EasyLink controls
1. While you view content from a connected
HDMI-CEC device, press OPTIONS.
2. Select [Show remote control], then press
OK.
3. Select the EasyLink control button, then
press OK.
Read more about EasyLink in Use more of
your TV > Use EasyLink (Page 21).
Important information
19
20
17. (Back): Return to the previous menu
page or exit from a TV function.
18. CH - / CH +: Change channels.
19. +/- (Volume): Adjust volume.
(Mute): Mute or restore audio.
20.
21
23
22
Note: EasyLink controls are available when
the connected device is HDMI-CEC
compliant.
With EasyLink controls, you can control your
TV and other HDMI-CEC devices with one
remote control.
24
21. Colour buttons: Select tasks or options.
The buttons function according to the
services offered by the service provider.
22. SUBTITLE: Switch subtitles on or off.
23. 0-9 (Numeric buttons): Select TV
channels or enter text.
24. TEXT: Enable or disable text.
Safety
Read and understand all instructions before
you use your TV. If damage is caused by
failure to follow the instructions, the
warranty does not apply.
Risk of electric shock or fire!

Never expose the TV to rain or water.
Never place liquid containers, such as
vases, near the TV. If liquids are spilt on
or into the TV, disconnect the TV from
the power outlet immediately. Contact
Philips Consumer Care to have the TV
checked before use.

Never place the TV, remote control or
batteries near naked flames or other
heat sources, including direct sunlight.
To prevent the spread of fire, keep
candles or other flames away from the
TV, remote control and batteries at all
times.
EN
5
English
EasyLink controls





Never insert objects into the ventilation
slots or other openings on the TV.
Never expose the remote control or
batteries to rain, water or excessive
heat.
Avoid force coming onto power plugs.
Ensure that the power plug is fully
inserted into the power socket. Loose
power plugs can cause arcing or fire.
When the TV is swivelled, ensure that
no strain is exerted on the power cord.
Strain on the power cord can loosen
connections and cause arcing.
To disconnect the TV from the mains
power, the power plug of the TV must
be disconnected. When disconnecting
the power, always pull the power plug,
never the cord. Ensure that you have
full access to the power plug, power
cord and outlet socket at all times.
Risk of damage to the TV!

Two people are required to lift and
carry a TV that weighs more than 25kg
or 55lbs.

When stand mounting the TV, use only
the supplied stand. Secure the stand to
the TV tightly. Place the TV on a flat,
level surface that can support the
combined weight of the TV and the
stand.

When wall mounting the TV, use only a
wall mount that can support the weight
of the TV. Secure the wall mount to a
wall that can support the combined
weight of the TV and wall mount. TP
Vision Netherlands B.V. bears no
responsibility for improper wall
mounting that result in accident, injury
or damage.


EN
If you need to store the TV,
disassemble the stand from the TV.
Never lay the TV on its back with the
stand installed.
Before you connect the TV to the
power outlet, ensure that the power
voltage matches the value printed on
the back of the TV. Never connect the
TV to the power outlet if the voltage is
different.
6

Parts of this product may be made of
glass. Handle with care to avoid injury
and damage.
Risk of injury to children!
Follow these precautions to prevent the TV
from toppling over and causing injury to
children:

Never place the TV on a surface
covered by a cloth or other material
that can be pulled away.

Ensure that no part of the TV hangs
over the edge of the surface.

Never place the TV on tall furniture,
such as a bookcase, without anchoring
both the furniture and TV to the wall
or a suitable support.

Educate children about the dangers of
climbing on furniture to reach the TV.
Risk of swallowing batteries!

The product/remote control may
contain a coin-type battery, which can
be swallowed. Keep the battery out of
reach of children at all times!
Risk of overheating!

Never install the TV in a confined
space. Always leave a space of at least 4
inches or 10 cm around the TV for
ventilation. Ensure that curtains or
other objects never cover the
ventilation slots on the TV.
Risk of injury, fire or power cord damage!

Never place the TV or any objects on
the power cord.

Disconnect the TV from the socket and
aerial before lightning storms. During
lightning storms, never touch any part
of the TV, power cord or aerial cable.
Risk of hearing damage!

Avoid using earphones or headphones
at high volumes or for prolonged
periods of time.
Low temperatures

If the TV is transported in temperatures
below 5°C or 41°F, unpack the TV and
wait until the TV temperature matches
room temperature before connecting
the TV to the power outlet.





Risk of damage to the TV screen!
Never touch, push, rub or strike the
screen with any object.
Unplug the TV before cleaning.
Clean the TV and frame with a soft
damp cloth. Never use substances such
as alcohol, chemicals or household
cleaners on the TV.
To avoid deformations and colour
fading, wipe off water drops as soon as
possible.
Avoid stationary images as much as
possible. Stationary images are images
that remain onscreen for extended
periods of time. Stationary images
include onscreen menus, black bars,
time displays, etc. If you must use
stationary images, reduce screen
contrast and brightness to avoid screen
damage.
Terms of warranty

Risk of injury, damage to TV or void of
warranty! Never attempt to repair the
TV yourself.

Use the TV and accessories only as
intended by the manufacturer.

The caution sign printed on the back of
the TV indicates risk of electric shock.
Never remove the TV cover. Always
contact Philips Customer Care for
service or repairs.

Notice
2012 © TP Vision Netherlands B.V. All rights
reserved. Specifications are subject to change
without notice. Trademarks are the property
of Koninklijke Philips Electronics N.V or their
respective owners. TP Vision Netherlands
B.V. reserves the right to change products at
any time without being obliged to adjust
earlier supplies accordingly.
The material in this manual is believed
adequate for the intended use of the system.
If the product, or its individual modules or
procedures, are used for purposes other
than those specified herein, confirmation of
their validity and suitability must be obtained.
TP Vision Netherlands B.V. warrants that the
material itself does not infringe any United
States patents. No further warranty is
expressed or implied.
TP Vision Netherlands B.V. cannot be held
responsible neither for any errors in the
content of this document nor for any
problems as a result of the content in this
document. Errors reported to Philips will be
adapted and published on the Philips support
website as soon as possible.
Any operation expressly prohibited in
this manual, or any adjustments and
assembly procedures not
recommended or authorised in this
manual shall void the warranty.
Pixel characteristics
This LCD/LED product has a high number of
colour pixels. Although it has effective pixels
of 99.999% or more, black dots or bright
points of light (red, green or blue) may
appear constantly on the screen. This is a
structural property of the display (within
common industry standards) and is not a
malfunction.
CE compliance
This product is in compliance with the
essential requirements and other relevant
provisions of Directives 2006/95/EC (Low
Voltage) and 2004/108/EC (EMC).
\\
Compliance with EMF
TP Vision Netherlands B.V. manufactures
and sells many products targeted at
consumers which, like any electronic
apparatus, in general have the ability to emit
and receive electromagnetic signals.
EN
7
English
Screen care
One of Philips’ leading Business Principles is
to take all necessary health and safety
measures for our products, to comply with
all applicable legal requirements and to stay
well within the Electro Magnetic Field (EMF)
standards applicable at the time of producing
the products.
Philips is committed to develop, produce
and market products that cause no adverse
health effects. TP Vision confirms that, as
long as its products are handled properly for
their intended use, they are safe to use
according to scientific evidence available
today.
Philips plays an active role in the
development of international EMF and safety
standards, enabling Philips to anticipate
further developments in standardisation for
early integration in its products.
Trademarks and copyrights
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
Manufactured under licence from Dolby
Laboratories. Dolby and the double D
symbol are trademarks of Dolby
Laboratories.
The terms HDMI and HDMI High-Definition
Multimedia Interface and the HDMI Logo are
trademarks or registered trademarks of
HDMI Licensing LLC in the United States
and other countries.
Kensington and Micro Saver are registered
US trademarks of ACCO World
Corporation with issued registrations and
pending applications in other countries
throughout the world.
All other registered and unregistered
trademarks are the property of their
respective owners.
EN
8
Sustainability
Energy efficiency
This TV is designed with energy-efficient
features. To access these features, press the
green button on the remote control.

Energy saving picture settings: You can
apply a combination of energy-saving
picture settings. While you watch TV,
press the Green button, then select
[Energy saving].

Screen off: If you only want to listen to
audio from the TV, you can switch off
the TV display. Other functions
continue to operate normally.

Low standby power: The advanced
power circuitry reduces the power
consumption of the TV to an extremely
low level, without losing out on the
constant standby functionality.
End of use
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Please act according to your local rules and
do not dispose of your old products with
your normal household waste. Correct
disposal of your old product helps to
prevent potential negative consequences for
the environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal
household waste. Please inform yourself
about the local rules on separate collection
of batteries because correct disposal helps to
prevent negative consequences for the
environment and human health.
EU energy label
The European Energy Label informs you on
the energy efficiency class of the product.
The greener the energy efficiency class of
this product is, the lower the energy it
consumes.
On the label, you can find the energy
efficiency class, the average power
consumption of the product in use and the
average energy consumption for 1 year. You
can also find the power consumption values
for the product on the Philips website for
your country at www.philips.com/TV.
Help and support
Visit the Philips website
If you can't find what you need in the
onscreen [Help], visit the Philips support
website at www.philips.com/support.
On the Philips support website, you can also:

Find answers to Frequently Asked
Questions (FAQ)

Download a printable PDF version of
this user manual

Email us a specific question

Chat online with Philips Consumer
Care (available in certain countries
only)
Search the TV forum
Your question may have already been
answered by the Philips TV community of
users. Visit www.supportforum.philips.com.
Contact Philips
You can contact Philips Consumer Care in
your country for support. The number is
available in the leaflet accompanying this
product or online at
www.philips.com/support.
Before you contact Philips, write down the
model and serial number of your TV. You
can find this information on the back of your
TV or on the TV packaging.
EN
9
English
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European
Directive 2002/96/EC. Please inform yourself
about the local separate collection system
for electrical and electronic products.
2 Use your TV
Watch TV
Switch TV on or off
To disable automatic switch off
1. While you watch TV, press the Green
button on the remote control.
2. Select [Auto switch off], then press OK.
3. Use the Navigation buttons to make a
selection, then press OK.
Adjust TV volume
Increase or decrease the TV volume

Press +/- on the remote control, or
+/- on the side or back of the

Press
TV.
Switch the TV on

Press the power switch on the TV.

If the TV is in standby, press on the
remote control.
Note: There is a short delay before the TV
responds.
Tip: If you cannot find your remote control
and want to switch the TV on from standby,
press CH +/- or CH
on the TV.
Switch TV to standby
Press on the remote control.
The remote control sensor on the TV
switches to red.
Switch off the TV
Press on the TV.
The TV switches off.
Note: Though your TV consumes very little
energy when it is in standby or switched off,
it does use some energy. If you are not going
to use the TV for an extended period of
time, disconnect the TV from the mains plug.
Automatic switch off
You can save energy with this TV's energy
efficiency settings. The settings are enabled
by default, so that if there is no user
interaction (such as pressing a remote
control button or a control on the rear
panel) for four hours, the TV will
automatically switch to standby.
EN
10
Mute or unmute the TV volume

Press
on the remote control to
mute the volume.
again to restore the volume.

Press
Adjust headphone volume
1. Press > [Setup] > [TV settings] >
[Sound].
2. Select [Headphone volume], then press
OK.
Switch TV channels



Press CH +/- on the remote control, or
Press CH +/- or CH
on the side
or back of the TV.
Press the Numeric buttons to enter a
channel number.
You can view all channels or only a list of
your favourite channels so that you can find
them easily.
Press LIST to access the channel list.
Create a list of your favourite channels
1. Press LIST.
2. Select the channel to mark as a favourite,
then press OPTIONS.
3. Select [Mark as favourite], then press OK.
The selected channel is marked.
To deselect a channel, select [Unmark as
favourite], and then press OK.
Select a channel list
1. Press LIST, then press OPTIONS.
2. Select [Select list] > [Favourite] to
display channels in the favourite list or [All]
to display all channels.
3. Press OK to confirm.
Manage channel lists
After the channels have been installed, you
can manage them:

Rename channels

Reorder channels

Listen to digital radio
Rename channels
You can rename channels. The name
appears when the channels are selected.
1. While you watch TV, press LIST.
The channel list is displayed.
2. Select the channel to rename, then press
OPTIONS.
3. Select [Rename], then press OK.
4. Press the Navigation buttons to select
each character, then press OK.

Press OK in the entry screen to enable
the Onscreen Keyboard, or

Press [ABC] or [abc] to select an
uppercase or lowercase letter.
5. Once complete, select [Done], then press
OK to confirm when prompted.
6. Press to exit.
Reorder channels
After the channels have been installed, you
can reorder the channel list.
1. While you watch TV, press LIST.
The channel list is displayed.
2. Press OPTIONS.
3. Select [Reorder], then press OK.
4. Select the channel to reorder, then press
OK.
5. Press the Navigation buttons to move the
highlighted channel to another location, then
press OK.
6. Press OPTIONS.
7. Select [Done reordering], then press OK.
Listen to digital radio
If digital radio channels are available, you can
listen to them. They are installed
automatically when you install the TV
channels.
1. While you watch TV, press LIST.
The channel list is displayed.
2. Press OPTIONS.
3. Select [Select list] > [Radio], then press
OK.
4. Select a radio channel, then press OK.
Select a source
You can watch a connected device in one of
the following ways:

Add its icon to the Home menu for
easy access, then select it from the
Home menu.

Select from the Source menu.
Note: If you connect an HDMI-CEC
compliant device to the TV, it is
automatically added to the Home menu.
Add new device
1. Connect and switch on the device.
2. Press .
3. Select [Add new device], then press OK.
4. Follow the onscreen instructions.

If you are prompted to select the TV
connection, select the connector that
this device uses.
EN
11
English
Manage favourites
View from Home menu
After you have added the new device to the
Home menu, you can select its icon to start
using it.
1. Press .
2. Select the device icon from the Home
menu.
3. Press OK to confirm.
View from Source menu
SOURCE to display a
You can also press
list of connector names. Select the
connector that connects the device to the
TV.
SOURCE.
1. Press
2. Press the Navigation buttons to select a
connector in the list.
3. Press OK to confirm.
Use smart settings
Your TV comes with smart picture and
sound settings. You can apply these settings
or customise them.
Select your preferred picture setting
1. While you watch TV, press ADJUST.
2. Select [Smart picture].
3. Select an option, then press OK:

[Personal]: Apply your personalised
picture settings.

[Vivid]: Rich and dynamic settings, ideal
for daytime viewing.







[Natural]: Natural picture settings.
[Cinema]: Ideal settings for movies.
[Game]: Ideal settings for games.
[Energy saving]: Settings that conserve
the most energy.
[Standard]: Default settings that suit
most environments and types of video.
[Photo]: Ideal settings for photos.
[Custom]: Customise and store your
own picture settings.
Select your preferred sound setting
1. While you watch TV, press ADJUST.
2. Select [Smart sound].
3. Select an option, then press OK:

[Personal]: Apply your personalised
sound setting.

[Standard]: Settings that suit most
environments and types of audio.

[NEWS]: Ideal settings for spoken
audio, such as the news.




Change picture format
You can change the picture format to suit
the video source.
1. Press
FORMAT.
2. Select a picture format, then press OK to
confirm.
The available picture formats depend on the
video source:

[Auto fill]: Adjust the picture to fill the
screen (subtitles remain visible).
Recommended for minimal screen
distortion but not for HD or PC.






EN
12
[Cinema]: Ideal settings for movies.
[Game]: Ideal settings for games.
[DRAMA]: Ideal settings for drama
programmes.
[SPORTS]: Ideal settings for sports.
[Auto zoom]: Enlarge the picture to fill
the screen. Recommended for minimal
screen distortion but not for HD or PC.
[Super zoom]: Remove the black bars
on the sides of 4:3 broadcasts. Not
recommended for HD or PC.
[4:3]: Display the classic 4:3 format.
[Movie expand 16:9]: Scale 4:3 format
to 16:9. Not recommended for HD or
PC.
[Wide screen]: Stretch 4:3 format to
16:9.
[Unscaled]: Provide maximum detail for
PC. Only available when PC mode is
selected in the Picture menu.
View media
You can view information about digital TV
channels using programme guides provided
by broadcasters. This information can
include:

Channel schedules for the day ('Now
and next') or up to 8 days, if supported
by your broadcaster

Synopsis of programmes
Note: Programme guides are available in
certain countries only.
Set programme guide
What you can do
Before you use the programme guide, check
the following settings:
1. Press .
2. Select [Programme guide].
Access the TV programme guide
1. Press .
2. Select [Programme guide], then press
OK.
Use TV programme guide options
You can customise the displayed information
to:

Remind you when programmes start

Display only preferred channels
1. In the programme guide, press
OPTIONS.
2. Select an option, then press OK:







[Set reminder]: Set programme
reminders.
[Clear reminders]: Clear programme
reminders.
[Change day]: Select the day to display.
[Show info]: Display programme
information.
[Search by genre]: Search TV
programmes by genre.
[Scheduled reminders]: List
programme reminders.
[Acquire EPG data]: Update the latest
programme information.
English
View programme guide
You can play videos, photos and music on
your TV from a USB device connected to
the TV.
Play files from USB
If you have photos, videos or music files on a
USB storage device, you can play the files on
TV.
Caution:

TP Vision is not responsible if the USB
hard drive is not supported, nor is it
responsible for damage to or loss of
data in the device.

Do not overload the USB port. If you
connect a USB storage device that
consumes more than 500mA power,
make sure that it is connected to its
own external power supply.
View USB contents
1. Connect the USB device to the USB
connector on the TV.
2. Press , select [Browse USB], then press
OK.
3. Select a file from the content browser,
then press OK to start play.
on the remote
4. Press the OK or
control to control play. See Use your TV >
View Media > Play options (Page 13).
Play options
Watch video
Press the Navigation buttons to select a
video file, then press OKto control play.

Press / to search backward or
forward.

Press to exit the content browser.
Video playback options
While you play video, press OPTIONS to
access the following video options:

[Subtitles]: Select the available subtitles
settings.

[Audio language]: Select the available
audio language.
EN
13



[Repeat]: Repeat a video, track or
album.
[Show info]: Display the file name.
[Eco settings]: Select energy-saving
modes.
Listen to music
Press the Navigation buttons to select a
video file, then press OK to control play.

Press / to search backward or
forward within a music track.

Press to exit content browser.
Music playback options
Press OPTIONS to access or exit the
following music options:

[Repeat]: Repeat a track or an album.

[Play once]: Play the track once.

[Shuffle on] / [Shuffle off]: Enable or
disable random play of tracks.

[Show info]: Display the file name.

[Eco settings]: Select energy-saving
modes.
View pictures
Press the Navigation buttons to select a
picture, then press OK to start the
slideshow.

Press Navigation buttons to search for
a picture.

Press to exit content browser.
EN
14
Picture slideshow options
Press OPTIONS to access or exit the
following picture options:

[Slideshow transitions]: Select the
transition from one picture to the next.

[Slideshow frequency]: Select the
display time for each picture in the
slideshow.

[Repeat] / [Play once]: View slideshow
once or repeatedly.

[Shuffle off] / [Shuffle on]: Enable or
disable random display of pictures in
the slideshow.

[Rotate image]: Rotate the picture.

[Show info]: Display the picture
information.

[Set as Scenea]: Load the selected
picture as the TV wallpaper. See Use
more of your TV > View Scenea (Page
24).
Professional mode
What you can do
With professional mode, you can configure
this TV for commercial use. This includes:

Blocking guests from modifying the TV
channels or settings

Programming the TV to switch on to a
specific channel and volume

Limiting the maximum volume

Blocking specific channels

Locking buttons on the remote control

Controlling on-screen information
Note: In professional mode, most of the
mainstream features are replaced by similar
features for commercial use.
Enter Professional mode
1. Press on the remote control.
2. Press 3, 1, 9, 7, 5, 3, .
The professional setup menu appears.
Switch on
1. In the professional setup menu, select
[Professional setting] > [Professional
mode].
2. Use the Navigation buttons to select a
setting to change, then press OK:

[On]: Switch on professional mode
Hospitality features are enabled.

[Off]: Switch off professional mode The
TV operates as a normal consumer TV.
3. Press to store all professional mode
settings and exit.
4. Restart the TV
Display hotel information
To enhance hotel services, you can store
and display information about your hotel on
TV sets, including a:

Welcome logo

Welcome message

Hotel information page
Display a welcome screen
You can create a welcome screen with, for
example, your hotel's logo.
1. Create a welcome screen in .jpeg format
and save the file to a USB storage device.
2. Connect the USB storage device to the
TV, then switch on the TV.
3. In the professional setup menu, select
[Welcome logo] > [USB to TV].
4. Select the file, then press OK to load the
logo.
5. Select [Welcome logo] > [Display logo]
> [On] to display the logo.
Display a welcome message
Create and display a welcome message for
your guests - a welcome message can consist
of up to two lines of text, each containing a
maximum of 20 alphanumeric characters.
1. In the professional setup menu, select
[Welcome msg] > [Display Msg] > [On].
2. Select a setting to change:

[Line 1] / [Line 2]: Enter the content
for the welcome message.

[Clear]: Clear [Line 1] and/or [Line 2].

[Message Time-out]: Set how long to
display the message.
3. Press OK to display the on-screen
keyboard and use the Navigation buttons to
compose the welcome message.
Display a hotel information screen
Create and display a static information
screen about your hotel. The information
page appears as an icon in the home menu
and can also be accessed by pressing
INFO.
EN
15
English
3 Use more of
your TV
1. Create a welcome screen in .jpeg format
and save the file to a USB storage device.
2. Connect the USB storage device to the
TV, then switch on the TV.
3. In the professional setup menu, select
[Hotel information] > [USB to TV].
4. Select the file to display, then press OK.
5. Select [Hotel information] > [Display
information] > [On]to display the hotel
information.
To view the hotel information screen by
INFO, in the professional setup
pressing
menu, select [Hotel information] > [Info
key enable] > [On].
Change professional mode settings
Professional mode settings
Use professional mode settings to speed up
installation of Philips TVs for commercial use.
1. In professional setup menu, select
[Professional mode], then press OK.
2. Select a setting to change, then press OK:

[Room ID]: Set a Room ID for the TV.

[Channel setup]: Shortcut to the
channel list where you can change the
order of, rename and hide channels.

[Consumer setup]: Shortcut to the full
TV menu, for example, to install all the
TV settings.

[USB to TV]: Clone settings stored on
a USB storage device from another
Philips TV.

[TV to USB]: Copy the current TV's
settings to a USB storage device. These
settings can be cloned onto another
Philips TV.

[RF to TV]: Copy settings from a Philips
TV using RF signal.

[Reset]: Reset all professional mode
settings to the factory default.
Channel settings
Change TV channel settings
1. In the professional setup menu, select
[Installation].
2. Select a setting to change, then press OK:

[Blank channel]: Select a channel to
play audio only.
EN
16



[Auto channel update]: Automatically
update channels.
[Auto software update]: Automatically
update your TV software.
[Skip scrambled signals]: Enable or
disable scrambled channels in the
channel list.
Pairing TVs to a remote control
Pair a maximum of four TVs to one remote
control.
1. In professional setup menu, select
[Installation] > [Multi remote control], then
press OK.
2 Press .
3. Press and hold a coloured button for
more than four seconds. The coloured
button is used to access the paired TV.
Note: If the batteries in the remote control
are replaced after pairing, you will need to
re-perform pairing to assign a particular
colour button to a TV - otherwise, use the
blue coloured button to access any of the
TVs.
Power settings
Customise the way the TV behaves when it
is switched on.
1. In the professional setup menu, select
[Switch on setting].
2. Select a setting to change, then press OK:

[Switch on channel]: When switched
on, the TV switches to a pre-defined
channel.

[Switch on vol]: When switched on,
the TV switches to a pre-defined
volume.

[Max volume]: Limit the maximum
volume of the TV.

[Switch on picture format]: When
switched on, the TV switches to a predefined picture format. If the source
does not support the pre-defined
format, [Auto format] is enabled.

[Power On]: When switched on, the
TV switches to a customised mode:
- [On]: If the mains power is switched
on, the TV automatically switches on.
- [Standby]: If the mains power is
switched on, the TV automatically
switches to standby.
- [Last status]: If the mains power is
switched on, the TV automatically
switches to the last status (i.e. on or to
standby).
[Smart power]: When switched on,
energy saving mode is enabled or
disabled.
Control user access
You can control user access to the TV with
the following features:

Lock remote control buttons

Limit access through USB, HDMI-CEC
or SCART

Customise guest view
Enable Auto SCART
Use this feature to control the TV through a
connected SCART device. When the
SCART device is switched on, the TV
automatically switches on.
1. Switch on the TV and the connected
SCART device.
2. Enter the professional setup menu, select
[Control settings] > [Auto SCART] > [On]
> [Power on scart], then press OK.
Enable HDMI-CEC
If connected HDMI devices are HDMI-CEC
compliant, control these devices with the
TV's remote control. For more details on
how to use HDMI-CEC, see Use more of
your TV > Use EasyLink (Page 21).
1. Switch on the TV and all connected
HDMI-CEC devices.
2. Press , select [Setup] > [TV settings] >
[EasyLink] > [On], then press OK.
3. Enter the professional setup menu, select
[Control settings] > [HDMI-CEC IN] >
[On], then press OK.
Enable or disable access to a USB storage
device
1. In the professional setup menu, select
[Control settings] > [Enable USB] > [On]
or [Off], then press OK.
Direct USB access
Automatically display the content of a USB
storage device when the device is
connected.
1. In the professional setup menu, select
[Control settings] > [USB break-in] >
[On], then press OK.
Change other control settings
1. In the professional setup menu, select
[Control settings].
2. Select a setting to change, then press OK:

[Lock KB lock]: Select [On] to lock all
TV buttons except . Select [Off] or
[All] to unlock or lock all buttons
respectively.

[RC lock]: Select [On] to disable all
buttons on the remote control. Note
that you can still enter the professional
setup menu by pressing 3, 1, 9, 7, 5,
3, .

[OSD display]: Enable or disable onscreen information.

[High security]: Select [On] to restrict
access to the professional setup menu.







[Enable teletext]: Select [On] to
enable text.
[Enable MHEG]: Select [On] to enable
MHEG channels. Applicable to UK only.
[Enable EPG]: Select [On] to enable
the programme guide.
[Enable subtitles]: Select [On] to
enable subtitles.
[Blue mute]: Select [On] to change the
background colour to blue when no
signal is received. The default colour is
black.
[Digital timeout]: Set the maximum
interval time between selection of each
numeric button on the remote control.
[Selectable AV]: Select which external
sources are available when
SOURCE is pressed.
EN
17
English

Load clock
In Professional mode, you can load the local
time according to the channel or country.
For general clock features, see Use more of
your TV > Set locks and timers (Page 20).
1. In the professional setup menu, select
[Clock setup].
2. Select a setting to change, then press OK:

[Download program]: Select a channel
to load the clock.

[Country selection]: Select a country
for the local time to be based on.

[Time offset]: Select the number of
hours to offset.
Change speaker settings
Set the audio output and volume of the TV.
1. In Professional setup menu, select
[Speaker settings].
2. Select a setting to edit, then press OK.

[TV speaker enable]: Select [Off] to
output audio through headphone.

[Independent main speaker mute]: If
the TV speaker is enabled, you can
select:
- [On]: Control the TV speaker and
headphone volume separately. You can
only mute the TV volume.
- [Off]: Control both TV speaker and
headphone volume together.

[Default main speaker volume]: If the
TV speaker and headphone volume are
controlled separately, you can set the
volume range to avoid sudden loud
volumes when the TV speaker is
enabled.
MyChoice and ThemeTV
Install MyChoice
You can customise a list of premium
channels for your hotel guests, accessible
with an authorised PIN code only.
1. In Professional setup menu, select
[Installation].
2. Select [MyChoice] > [On], then press
OK.
MyChoice button on the remote control is
activated.
EN
18
Setup MyChoice
1. In Professional setup menu, select
[MyChoice setup].
2. Select the list of channels, then press OK.

[R0]: List of MyChoice and normal
channels. Channels marked with [X]
require an authorised PIN code.

[R1]: List of all available channels
accessible to hotel guests.
Watch MyChoice channels
1. Press MyChoice.
2. Enter the authorised PIN code to watch
the channels.
Install ThemeTV
You can create a maximum of six theme lists
for your hotel guests.
1. In Professional setup menu, select
[Installation].
2. Select [ThemeTV] > [On], then press
OK.
ThemeTV button on the remote control is
activated.
Tips: To enable ThemeTV at TV startup,
select [ThemeTV] > [Startup].
Setup ThemeTV
1. In Professional setup menu, select
[ThemeTV Configuration].
2. Select a channel group to edit.
3. Select [ThemeTV Configuration] >
[ThemeTV Channel setup].
4. Select the channels to add to your channel
group.
Guest menu
Here are a few settings that hotel guests can
change.
Picture settings
1. Press , select [Guest menu] > [Picture]:

[Picture format]: Change the picture
format.

[Brightness]: Change the intensity and
details of the dark areas.

[Contrast]: Change the intensity of the
bright areas, keeping dark areas
unchanged.

[Colour]: Change colour saturation.

[Sharpness]: Change sharpness.
View Text
Features
1. Press , select [Guest menu] > [Features]:

[Subtitle mode]: Select the available
subtitle language.

[Sleep timer]: Set the timer.
While you watch channels that broadcast
text, you can view the text.
1. Select a channel that broadcasts text, then
press TEXT.
2. Select a page in one of the following ways:

Enter the page number with the
Numeric buttons.

Press CH + / CH - to view the next or
previous page.

Press the Colour buttons to select a
colour coded item.
3. Press to exit.
Play games
Add a game console
You can play games consoles projected on a
wide screen TV with excellent sound. Before
you start, connect your game console to this
TV. See Connect your TV > Connect
devices > Game console (Page 38).
For easy access, add the game console to
the Home menu.
1. Press .
2. Select [Add your devices] > [Game
console], then press OK.
3. Follow the onscreen instructions to add
the game console.
Game setting
The Game option in the Smart picture
settings optimises the TV display for gaming
without picture lag.

If you add the game console to the
Home menu as [Game console], the
TV switches to the game setting
automatically.

If your game console is automatically
added to the Home menu as a Blu-ray
disc player or DVD player, set the
[Smart picture] setting to [Game]
before you start playing.
Switch to Game setting
1. Press ADJUST.
2. Select [Smart picture] > [Game], then
press OK. The TV is ready for gaming.
Note: When your gaming session ends,
switch back to your usual Smart Picture
setting.
English
Sound settings
1. Press , select [Guest menu] > [Sound]:

[Audio language]: Select the preferred
audio language.
Select a page
Text options
1. While you view text, press OPTIONS.
2. Select an option:

[Freeze page] / [Unfreeze page]:
Freeze or unfreeze the current page.

[Dual screen] / [Full screen]: Enable or
disable dual screen text. Dual screen
displays both the current channel and
the text broadcast on two halves of the
TV screen.

[T.O.P. overview]: Table Of Pages
(T.O.P.) text broadcasts allow you to
jump from one subject to another
without entering page numbers.

[Enlarge] / [Normal view]: Zoom in on
the page. Press the Navigation buttons
to move around the enlarged view.

[Reveal]: Hide or reveal hidden
information on a page, such as solutions
to riddles or puzzles.

[Cycle subpages]: If subpages are
available, each is shown automatically.

[Language]: Switch to a different
language group to correctly display
different character sets.
3. Press OPTIONS to exit.
EN
19
Text language
For digital TV channels where the
broadcasters provide different text
languages, you can select your preferred
primary and secondary language.
1. Press .
2. Select [Setup] > [Channel settings].
3. Select [Languages] > [Primary Text] or
[Secondary Text].
4. Select a language, then press OK.
Subpages
If the text page contains several subpages,
you can view each subpage in succession.
These subpages are shown on a bar next to
the main page number.
If subpages are available, press or to
select them.
Digital text
If a digital TV channel's broadcaster offers
dedicated digital text or interactive services,
you can view digital text. Such channels, such
as BBC1, may have digital text with more
interactive features.
Note: Digital text services are blocked when
subtitles are broadcast and switched on. See
Set up your TV > Language settings >
Subtitles (Page 28).
When in digital text:

Press the Navigation buttons to select
or highlight items.

Press the Colour buttons to select an
option, then press OK to confirm or
activate.
Text 2.5
With Text 2.5, you can view text with more
colours and better graphics than normal text.
If Text 2.5 is broadcast by a channel, it is
switched on by default.
To switch Text 2.5 on or off
1. Press .
2. Select [Setup] > [TV settings] >
[Preferences].
3. Select [Text 2.5] > [On] or [Off], then
press OK.
Set locks and timers
Clock
You can display a clock on the TV. The clock
displays the time that is broadcast by your
TV service operator.
Display the TV clock
1. While you watch TV, press CLOCK.
The clock is displayed at the top right-hand
corner of the TV screen.
Change the clock mode
You can change the clock mode to
automatic or manual. By default, it is set to
automatic mode, which automatically
synchronises it to Coordinated Universal
Time (UTC). If your TV cannot receive UTC
transmissions, change the clock mode to
[Manual].
1. While you watch TV, press .
2. Select [Setup] > [TV settings] >
[Preferences].
3. Select [Clock] > [Auto clock].
4. Select [Automatic] or [Manual], then
press OK.
Enable or disable daylight saving time
You can enable or disable daylight saving
time depending on your region. Before you
enable or disable daylight saving time, set the
clock mode to [Auto clock] > [Manual].
1. In the [Clock] menu, select [Daylight
saving].
2. Select [Daylight saving time] or [Standard
time], then press OK.
Daylight saving time is enabled or disabled.
Set the clock manually
You can set the date and time manually.
Before you start, set the clock mode to
[Manual].
EN
20
Sleeptimer
You can switch the TV to standby after a
specified time. During the countdown to the
specified time, you can switch off your TV
earlier or reset the sleeptimer.
1. Press .
2. Select [Setup] > [TV settings] >
[Preferences] > [Sleep timer].
3. Press the Navigation buttons to set the
sleeptimer.
The sleeptimer can be set up to 180
minutes, in steps of ten minutes. To switch
off the sleeptimer, set it to zero minutes.
4. Press OK to activate the sleep timer.
After the specified time, the TV switches to
standby.
Child lock
To protect children from unsuitable TV
programmes, you can lock the TV or block
age rated programmes.
Set or change the child lock code
1. Press .
2. Select [Setup] > [Channel settings] >
[Child lock].
3. Select [Set code] or [Change code].
4. Enter the code with the Numeric buttons.
Tip: If you forget your code, enter '8888' to
override any existing codes.
Lock or unlock channels
1. In the child lock menu, select [Channel
lock].
2. Select the channel to lock or unlock, then
press OK.
3. If prompted, enter the child lock code
with the Numeric buttons.
4. Restart the TV to activate the lock.
Note:
If you access the channels from the channel
list, you are prompted to enter your lock
code.
Parental rating
You can set your TV to display only
programmes with age ratings lower than
your child's age. This restriction only applies
to digital channels from broadcasters that
rate their programmes according to age.
1. Press .
2. Select [Setup] > [Channel settings].
3. Select [Child lock] > [Parental rating].
You are prompted to enter the child lock
code.
4. Enter the child lock code with the
Numeric buttons.
5. Select an age rating, then press OK.
All programmes above the selected age
rating are blocked.
For information on child lock codes, see Use
more of your TV > Set locks and timers >
Child lock (Page 21).
Use EasyLink
What you can do
You can get the most out of your HDMICEC-compliant devices with Philips EasyLink
enhanced control features. Connect your
HDMI-CEC compliant devices through
HDMI to your TV and control them at the
same time with your TV remote control.
Note: Other brands describe HDMI-CEC
functionality differently. Some examples are
Anynet (Samsung), Aquos Link (Sharp) or
BRAVIA Sync (Sony). Not all brands are fully
compatible with Philips EasyLink.
After you have switched on Philips EasyLink,
the following features are available:
One-touch play
When you play an HDMI-CEC compliant
device, the TV switches on from standby and
switches to the correct source.
One-touch standby
When you press on the TV remote
control, the TV and all HDMI-CEC
compliant devices switch to standby mode.
EN
21
English
1. In the [Clock] menu, select [Date] or
[Time], then press OK.
2. Use the Navigation buttons to make your
selection.
3. Select [Done], then press OK.
EasyLink remote control
You can control multiple HDMI-CEC
compliant devices with your TV remote
control.
System audio control
If you connect an HDMI-CEC compliant
device that includes speakers through the
HDMI ARC connector, you can choose to
hear the TV audio from those speakers
instead of the TV speakers.
Synchronise audio
If you connect your TV to a home theatre,
you can synchronise the audio and video to
avoid lag between the picture and sound.
Retain picture quality
If your TV picture quality is affected by the
picture-processing features of other devices,
you can switch on Pixel Plus Link to retain
picture quality.
Maximise display for subtitled video
Some video subtitles can create a separate
subtitle bar under the video, which limits the
video display area. To maximise the video
display area, you can switch on auto subtitle
shift and display the subtitles on top of the
video image.
Switch off connecting device
If your connecting device is not the active
source, you can save energy by setting the
TV to switch it to standby.
What you need

Connect at least two HDMI-CEC
compliant devices through HDMI. See
Connect your TV > Connect devices
(Page 34).

Configure each HDMI-CEC compliant
device properly

Switch on EasyLink
Switch on EasyLink
1. Press .
2. Select [Setup] > [TV settings] >
[EasyLink] > [EasyLink].
3. Select [On] or [Off], then press OK.
EN
22
Control devices simultaneously
If you connect multiple HDMI-CEC devices
that support this setting, you can control all
such devices through the TV remote control.
Note: This is an advanced setting. Devices
that do not support this setting will not
respond to the TV remote control.
1. Press .
2. Select [Setup] > [TV settings] >
[EasyLink].
3. Select [EasyLink remote control] > [On]
or [Off].
4. Press OK to activate.
Tips:

To switch back to TV control, press ,
then select [Watch TV].

To control another device, press ,
then select the device from the Home
menu.

To exit, press .
EasyLink buttons
You can control HDMI-CEC compliant
devices with the following buttons on the TV
remote control:
: Switch the TV and the connected

device on or to standby.

OK: Control video or music play.

Numeric buttons: Select a title, chapter
or track.

OK: Start, pause or resume play on the
connected device, activate a selection,
or access the device menu.

/ : Search backwards and forwards
on the connected device.
: Display the TV Home menu.

You can also control devices through other
EasyLink buttons that are available through
the On-Screen Remote Control (OSRC).
To access the OSRC
1. While you view content from a connected
device, press OPTIONS.
2. Select [Show remote control], then press
OK.
3. Select an onscreen button, then press OK.
4. Press to exit.
If a connected device is HDMI Audio Return
Channel (HDMI ARC) compliant, you can
output TV audio through an HDMI cable.
Additional audio cables are not required.
Make sure you connect the device to the
HDMI ARC connector on the TV. See
Connect your TV > About cables > HDMI
(Page 32).
Configure TV speakers
1. Press .
2. Select [Setup] > [TV settings] >
[EasyLink] > [TV speakers].
3. Select an option, then press OK:

[Off]: Switch off TV speakers.

[On]: Switch on TV speakers.

[EasyLink]: Stream TV audio through
the HDMI-CEC device. Switch the TV
audio to the connected HDMI-CEC
audio device through the Adjust menu.

[EasyLink autostart]: Switch off TV
speakers automatically and stream TV
audio to the connected HDMI-CEC
audio device.
Select speaker output with the adjust menu
If [EasyLink] or [EasyLink autostart] is
selected, you can change how the TV audio
is streamed to the connected HDMI-CEC
device.
1. While you watch TV, press ADJUST.
2. Select [Speakers], then press OK.
3. Select one of the following, then press
OK:

[TV]: On by default.
Stream TV audio through TV and the
connected HDMI-CEC audio device
until the connected device switches to
system audio control. TV audio is then
streamed through the connected
device.

[Amplifier]: Stream audio through the
connected HDMI-CEC device. If system
audio mode is not enabled on the
device, audio continues to stream from
the TV speakers. If [EasyLink autostart]
was selected, the TV prompts the
connected device to switch to system
audio mode.
With HDMI ARC compliant device
If an HDMI-ARC compliant device is
connected through an HDMI ARC
connector to the TV, you can output TV
audio through the HDMI cable. You will not
need an additional audio cable.
1. Press .
2. Select [Setup] > [TV settings] >
[EasyLink].
3. Select [HDMI1 - audio out] > [On].
4. Select one of the following, then press
OK.

[On]: Hear the TV audio through the
connected ARC compliant device.

[Off]: Hear the TV audio through the
TV speakers, or through a device
connected through the digital audio out
connector.
5. Control playback with the TV remote
buttons.
control
Listen to another device when TV is in
standby
If available,you can press ADJUST to
receive audio from a connected Philips
EasyLink device while the TV is in standby
mode.
Synchronise audio
If your TV is connected to a home theatre
and there is a lag between the picture and
the sound, you can synchronise them.

If you are using a Philips home theatre,
the audio and video are automatically
synchronised.

For other home theatre brands, you
need to switch on the audio sync delay
on the TV to synchronise the audio and
video.
Switch on Audio Out Delay
1. Press .
2. Select [Setup] > [TV settings] > [Sound].
3. Select [Audio out delay] > [On], then
press OK.
Retain picture quality
If your TV picture quality is affected by the
picture-processing features of other devices,
you can switch on Pixel Plus Link.
EN
23
English
Select speaker output
Switch on Pixel Plus Link
1. Press .
2. Select [Setup] > [TV settings] >
[EasyLink].
3. Select [Pixel Plus Link] > [On], then press
OK.
Maximise video display
Some subtitles create a separate subtitle bar
under the video that limits the video display
area. To maximise the video display area,
you can switch on auto subtitle shift. The
subtitles are then displayed over the video
image.
Switch on auto subtitle shift
1. Press .
2. Select [Setup] > [TV settings] >
[EasyLink] > [Auto subtitle shift].
3. Select [On], then press OK to activate.
Note: Make sure that the picture format of
the TV is set to [Auto format] or [Movie
expand 16:9].
Switch off connecting device
You can set the TV to switch off connecting
HDMI-CEC compliant devices if they are not
the active source. The TV switches the
connecting device to standby after 10
minutes of inactivity.
1. Press .
2. Select [Setup] > [TV settings] >
[EasyLink].
3. Select [Auto switch off devices] > [On],
then press OK to activate.
EN
24
View Scenea
What you can do
With Scenea, you can display a picture as the
wallpaper on your TV. Display the default
picture or load your own picture as the
wallpaper.
The wallpaper is displayed for 240 minutes
or for the duration of the sleeptimer.
Switch on
1. Press .
2. Select [Scenea], then press OK.
The default picture is displayed.
Note: The wallpaper is displayed for 240
minutes or for the duration of the
sleeptimer. For information about the
sleeptimer, see Use more of your TV > Set
locks and timers > Sleeptimer (Page 21).
Load TV wallpaper
You can also load your own picture as the
wallpaper.
Note: When you load a new picture, it
overrides the existing picture.
1. Connect the USB storage device to the
TV.
2. Press .
3. Select [Browse USB], then press OK.
4. Select a picture, then press OPTIONS.
5. Select [Set as Scenea], then press OK.
6. Press any button to exit Scenea.

[Digital Crystal Clear]: Control
advanced settings to fine-tune each
pixel to match surrounding pixels.
Produce a brilliant, high definition
image.
- [Advance sharpness]: Enable superior
sharpness, especially on lines and
contours in the picture
- [Dynamic contrast]: Set the level at
which the TV automatically enhances
details in the dark, middle and light
areas of the picture.
- [Dynamic backlight]: Reduce power
consumption by dimming the TV
backlight to match the room lighting
conditions.
- [MPEG artifact reduction]: Smooth
the digital transitions in the picture.
- [Colour enhancement]: Change the
colours to be more vivid and improve
the resolution of details in bright
colours.
- [Gamma]: Non-linear setting for
picture luminance and contrast.

[PC mode]: When a PC is connected
through HDMI, change the picture
format to [Unscaled] to display
maximum detail.
[Picture format]: Change the picture
format.
[Screen edges]: Change the picture
size.
[Picture shift]: Move the position of the
picture. You cannot select this setting if
the selected picture format is [4:3],
[Auto fill], [Auto zoom] or [Wide
screen].
Picture and sound
Settings assistant
You can select picture and sound settings
with the help of the settings assistant, which
demonstrates the effect of your chosen
setting immediately.
1. While you watch TV, press .
2. Select [Setup] > [Quick picture and
sound settings], then press OK.
3. Select [Continue], then press OK.
4. Follow the onscreen instructions to
choose your preferred settings.
More picture settings
You can change the settings in the Picture
menu.
1. Press .
2. Select [Setup] > [TV settings] >
[Picture], then press OK.
3. Select a setting to adjust, then press OK.










[Smart picture]: Access predefined
smart picture settings.
[Reset]: Reset to default factory
settings.
[Backlight]: Change the brightness of
the TV to match the lighting condition.
[Video contrast]: Change the intensity
of the bright areas, keeping dark areas
unchanged.
[Brightness]: Change the intensity and
details of the dark areas.
[Colour]: Change colour saturation.
[Sharpness]: Change sharpness.
[Noise reduction]: Filter and reduce
noise.
[Tint]: Change the colour balance.
[Custom tint]: Customise tint setting.
(Only available if [Tint] > [Custom] is
selected)



More sound settings
You can change the settings in the Sound
menu.
1. Press .
2. Select [Setup] > [TV settings] > [Sound],
then press OK.
3. Select a setting to change, then press OK:

[Smart sound]: Access predefined
smart sound settings.
EN
25
English
4 Set up your TV












[Reset]: Reset to factory default
settings.
[Clear Sound]: Enhance the sound
quality.
[Bass]: Change the bass level.
[Treble]: Change the treble level.
[Surround]: Switch on spatial sound.
[Auto volume levelling]: Automatically
reduce sudden volume changes, for
example when switching channels.
[Headphone volume]: Change
headphone volume.
[Balance]: Change the balance of the
left and right speakers.
[Audio out delay]: Automatically sync
the image on the TV to the audio from
a connected home theatre.
[Audio out offset]: Change the setting
for audio output delay. You cannot
select this setting if [Audio out delay] is
not switched on.
[Digital output format]: Select audio
output through the digital audio
connector. Select [PCM] to convert
non-PCM audio or [Multichannel] to
output to home theatre.
[Digital output level]: Set the sampling
rate for PCM audio.
[Normal] - No loss in intensity or signal
strength; [Low] - Certain amount of
loss in intensity or signal strength.
Select audio format
If a digital TV channel broadcaster streams
audio in several formats, you can select an
audio format.
1. Press .
2. Select [Setup] > [Channel settings] >
[Language].
3. Select a setting, then press OK:

[Preferred audio format]: Receive
standard audio format (MPEG) or
advanced audio formats (AAC, EAC-3
or AC-3 if available).

[Mono/Stereo]: If stereo broadcasting is
available, select mono or stereo audio.
4. Press
to exit.
EN
26
Reset picture and sound
You can restore the default picture and
sound settings, while the channel installation
settings remain the same.
1. While you watch TV, press .
2. Select [Setup] > [TV settings] > [Factory
settings], then press OK.
All TV settings (except for channel settings)
are reset to the default factory settings..
Channel settings
Automatic install
When the TV was switched on for the first
time, a full installation of channels was
performed. To change your language,
country and reinstall all available TV
channels, you can run this full installation
again.
Start installation
1. Press .
2. Select [Setup] > [Search for channels] >
[Reinstall channels], then press OK.
The Country menu is displayed.
3. Select your country, then press OK.
4. Select your network, then press OK:

[Antenna]: Access free-to-air antenna
or digital DVB-T channels.

[Cable]: Access cable, digital DVB-C
channels or digital DVB-T channels.
5. Follow the onscreen instructions to select
other options, if any.
The start menu for channel search is
displayed.
6. Start channel search:

If your channel service provider
instructs you to change settings, select
[Settings], then press OK. Follow the
service provider's instructions to
complete the installation.

Otherwise, select [Start], then press
OK.
7. Once the channel search is complete,
select [Finish], then press OK.
Tip: Press
LIST to see the channel list.
Install analogue channels
You can search and store analogue TV
channels one by one.
Step 1: Select your system
Note: Skip this step if your system settings
are correct.
1. While you watch TV, press .
2. Select [Setup] > [Channel settings] >
[Channel installation].
3. Select [Analogue: Manual antenna
installation] > [System], then press OK.
4. Select the system for your country or
region, then press OK.
Step 2: Search and store new TV channels
1. In the [Analogue: Manual antenna
installation] menu, select [Find channel],
then press OK.
2. Find the channel:

If you know the channel frequency,
enter it with the Navigation buttons or
Numeric buttons.

If you do not know the channel
frequency, search for the next
frequency that has a strong signal.
Select [Search], and then press OK.
3. After you have found the correct channel,
select [Done], then press OK.
4. Select [Store as new channel], then press
OK to store the new TV channel.
Note: If the reception is poor, reposition
your antenna and repeat the procedure.
Install digital channels
If you know the channel frequency of the
channels you want to install, you can search
and store digital channels one-by-one. For
best results, contact the service provider.
1. Press .
2. Select [Setup] > [Channel settings] >
[Channel installation].
3. Select [Digital: Reception test] > [Find
channel], then press OK.
4. Press the Numeric buttons to enter the
channel frequency.
5. Select [Search], then press OK.
6. When the channel is found, select [Store],
then press OK.
7. Press to exit.
Note: If your cable provider does not
provide you with a specific symbol rate value
for DVB-C channels, select [Automatic] in
[Symbol rate mode].
Fine-tune analogue channels
If the reception of an analogue TV channel is
poor, you can fine-tune the TV channel.
1. Press .
2. Select [Setup] > [Channel settings] >
[Channel installation].
3. Select [Analogue: Manual antenna
installation] > [Fine tune], and then press
OK.
4. Press or to fine-tune the channel.
5. When you have selected the correct
channel frequency, select [Done], and then
press OK.
6. Select an option, then press OK.

[Store current channel]: Store the
channel as the current channel number.

[Store as new channel]: Store the
channel as a new channel number.
EN
27
English
Note: When digital TV channels are found,
the list of installed channels may display
empty channel numbers. You can rename,
reorder or uninstall these channels.
Update channel list
Audio language
When the TV was switched on for the first
time, a full installation of channels was
performed.
By default, when there are changes to these
channel lists, the TV updates them
automatically. You can also switch off the
automatic update or manually update the
channels.
Note: If you are prompted to enter a code,
enter '8888'.
Automatic update
To add or remove digital channels
automatically, leave the TV in standby mode.
The TV updates channels and stores new
channels everyday. Empty channels are
removed from the channel list.
Set default audio language
For digital channels that are broadcast with
multiple audio languages, you can set your
preferred audio languages. The TV
automatically switches to one of these
languages, if they are available.
1. Press .
2. Select [Setup] > [Channel settings] >
[Language].
3. Select [Primary audio language] or
[Secondary audio language] to set the
preferred audio languages, then press OK.
4. Select the language, then press OK.
Switch off the channel update message
If a channel update is performed, a message
is displayed at startup. You can switch off this
message.
1. Press .
2. Select [Guest menu] > [Channel
settings].
3. Select [Channel installation] > [Channel
update message].
4. Select [Off], then press OK.
To switch off automatic updates
In the [Channel installation] menu, select
[Automatic channel update] > [Off].
Update channels manually
1. Press .
2. Select [Setup] > [Search for channels] >
[Update channels], then press OK.
3. Follow the onscreen instructions to
update the channels.
Language settings
Menu language
1. While you watch TV, press .
2. Select [Setup] > [TV settings] >
[Preferences] > [Menu language].
3. Select a menu language from the list, then
press OK.
EN
28
Select audio language
If the TV channel broadcasts multiple or dual
audio languages, you can select the preferred
audio language.
1. While you watch TV, press OPTIONS.
2. Select [Audio language] for digital
channels or [Dual I-II] for analogue channels,
then press OK.
3. Select from the available languages, then
press OK.
Subtitles on analogue channels
1. While you watch an analogue TV channel,
press TEXT.
2. Enter the three-digit page number of the
subtitles page (usually '888').
If available, subtitles are switched on.
3. Press to exit text.
Subtitles on digital channels
1. While you watch a digital TV channel,
press OPTIONS.
2. Select [Subtitles], then press OK.
3. Select [Subtitles off], [Subtitles on] or
[On during mute], then press OK.
If you select [On during mute], subtitles are
to mute
displayed only when you press
the sound.
Note: If an MHEG application is activated,
subtitles are not displayed.
Visually impaired access
For certain digital channels, you can change
the subtitle language.
1. While you watch TV, press .
2. Select [Setup] > [Channel settings] >
[Language].
3. Select [Primary subtitle language] or
[Secondary subtitle language] for the
preferred language.
4. Press OK to confirm.
Tip: Press OPTIONS > [Subtitle
language] to change the subtitle language for
a specific channel.
Tip: To make sure that a visually impaired
audio language is available, press
OPTIONS, then select [Audio language].
Languages with an eye icon support visually
impaired audio.
To switch on visually impaired audio
1. While you watch TV, press OPTIONS.
2. Select [Universal access].
3. Press the Green button to select [Visually
impaired].
4. Press a button to select an option:
Universal access settings
Switch on
Some digital TV broadcasters provide special
audio and subtitle features for people who
are hearing or visually impaired. You can
switch these features on or off.
1. Press .
2. Select [Setup] > [TV settings] >
[Preferences].
3. Select [Universal access] > [On] or [Off]
then press OK.
Hearing impaired access
Tip: To make sure that a hearing impaired
audio language is available, press
OPTIONS, then select [Audio language].
Languages with an ear icon support hearing
impaired audio.
To switch on hearing impaired audio and
subtitles
1. While you watch TV, press OPTIONS.
2. Select [Universal access] > [Hearing
impaired].
3. Press a button to select an option:

Red: Switch off hearing impaired
features.

Green: Switch on hearing impaired
audio and subtitles.
4. Press to exit.

Red button - [Off]: Switch off visually
impaired audio.

Green button - [On]: Switch on visually
impaired audio.
5. Press to exit.
Note: If the EasyLink remote control is
switched on, you cannot select the Green
button. To switch off EasyLink, see Use
more of your TV > Use EasyLink > What
you need (Page 22).
Select audio from speakers or headphones
You can choose to hear the visually impaired
audio through the TV speakers, headphones
or both.
1. Press .
2. Select [Setup] > [Channel settings] >
[Languages] > [Visually impaired] >
[Speakers/ Headphones].
3. Select a setting, then press OK.

[Speaker]: Hear visually impaired audio
from speakers only.

[Headphone]: Hear visually impaired
audio from headphones only.

[Speaker + headphone]: Hear visually
impaired audio from speakers as well as
headphones.
Change volume for visually impaired audio
1. Press .
2. Select [Setup] > [Channel settings] >
[Languages] > [Visually impaired] > [Mixed
volume].
2. Press the Navigation buttons to change
the volume, then press OK.
3. Press to exit.
EN
29
English
Subtitle language
Audio feedback for the visually impaired
When you press a button on the remote
control or TV, you can set the TV to play a
beep.
1. In the [Universal access] menu, press the
Blue button to select [Key beep].
2. Press the Green button to turn on audio
feedback or press the Red button to turn it
off.
3. Press to exit.
1. While you watch TV, press .
2. Select [Setup] > [TV settings] >
[Preferences].
3. Select [Location] > [Home] or [Shop],
then press OK.
4. Restart the TV.
Enable audio effects
1. Press .
2. Select [Setup] > [Channel settings] >
[Languages] > [Visually impaired] > [Audio
effects].
3. Select a setting, then press OK.

[On]: Enable audio effects in the visually
impaired audio.

[Off]: Disable audio effects in the
visually impaired audio.

Choose type of speech
1. Press .
2. Select [Setup] > [Channel settings] >
[Languages] > [Visually impaired] >
[Speech].
3. Select a setting, then press OK.

[Descriptive]: Hear descriptive speech
in the visually impaired audio.

[Subtitles]: Hear subtitles in the visually
impaired audio.
Stand mount or wall mount
You can apply the best settings for your TV
by selecting wall mount or stand mount.
1. In the [Preferences] menu, select [TV
position].
2. Select [On a TV stand] or [Wall
mounted], then press OK.
Other settings
Check version
Location
To make sure that the correct TV settings
are applied, you can select where the TV is
used.
Shop or home mode
Select [Home] mode to access all TV
settings. In [Shop] mode, you can access only
limited settings.
EN
30
Placement



Before you position the TV, read all
safety precautions. See Get Started >
Important > Safety (Page 5).
Position the TV where light does not
shine directly on the screen.
The ideal viewing distance of this TV is
three times its diagonal screen size. For
example, if the diagonal screen size of
the TV is 81 cm / 32", the ideal viewing
distance is ~2.5 m / ~92" from the
front of the screen.
While seated, your eyes should be level
with the centre of the screen.
Update software
1. Press .
2. Select [Setup] > [Software settings] >
[Current software inf], then press OK.
The version of the current software is
displayed.
Caution: Do not install a lower version of
software than the current version installed
on your product. TP Vision cannot be held
liable or be made responsible for problems
caused by a software downgrade.
Update the software through one of these
methods:

update with USB storage device

update from digital broadcast
Before you update the software, make sure
that you have:

A USB storage device that has at least
256 megabytes of storage space, is FAT
or DOS formatted and has its write
protection disabled.

Access to a computer with a USB
connector and Internet access.
Note: Do not use a USB hard drive.
Restore default settings
You can reset all picture and sound settings
and reinstall all TV channels on your TV.
1. Press .
2. Select [Setup] > [TV settings] >
[Reinstall TV], then press OK.
3. Follow the onscreen instructions.
1. Connect a USB storage device.
2. Press .
3. Select [Setup] > [Update software], then
press OK.
The update assistant starts.
4. Follow the onscreen instructions to start
the update.
Note: The update assistant directs you to
the Philips support website. See the
installation instructions on the website to
complete the update.
Update from digital broadcast
When available, the TV can receive software
updates through digital broadcasts. When a
software update is received, you are
prompted to update the software. We
strongly recommend that you update the
software when prompted.
Follow the onscreen instructions.
Note: To update the software later, select
> [Setup] > [Software settings] > [Local
updates].
Select the file that you downloaded and
follow the onscreen instructions to complete
the update.
EN
31
English
Update with USB
5 Connect your
TV

Connect HDMI cables shorter than 5
meters/16.4 feet.
HDMI
About cables
Cable quality
Overview
Before you connect devices to the TV, check
the available connectors on the device.
Connect the device to the TV with the
highest quality connection available. Good
quality connectors transfer picture and
sound better.
The connections shown in this user manual
are recommendations only. Other solutions
are possible.
Tip: If your device only has composite or
RCA connectors, use a SCART-cinch
adapter to connect the device to a SCART
connector on the TV.
HDMI
An HDMI connection has the best picture
and sound quality.

An HDMI cable combines video and
audio signals. Connect HDMI for highdefinition (HD) TV signals and to switch
on EasyLink.

An HDMI Audio Return Channel
(ARC) connector allows output of TV
audio to an HDMI ARC compliant
device.
HDMI
Y Pb Pr
Component video (Y Pb Pr) only transmits
video. For sound, also connect to Audio
Left/Right.

The Y Pb Pr connection can handle
high-definition (HD) TV signals.

Match the Y Pb Pr connector colours
to the cable plugs.
YPbPr
AUDIO L/R
YPbPr
AUDIO L/R
EN
32
VGA
A SCART connection combines video and
audio signals.
SCART connectors can handle RGB video
signals but cannot handle high-definition
(HD) TV signals.
You can connect VGA to display PC content
on the TV.
VGA only transmits video. For sound, also
connect to AUDIO IN.
VGA
SCART
AUDIO IN
DVI/VGA
VGA
Scart
AUDIO IN
DVI/VGA
CVBS
CVBS only transmits video. For sound, also
connect to Audio Left/Right.

CVBS connections provide standard
picture quality.

On certain models, the video input
socket on your TV is labelled as
VIDEO, AV IN or COMPOSITE.
CVBS
AUDIO L/R
CVBS
AUDIO L/R
EN
33
English
SCART
Connect devices
Blu-ray or DVD disc player
Connect the disc player to the TV with an HDMI cable.
HDMI
HDMI
Connect the disc player to the TV with a component video cable (Y Pb Pr) and an audio L/R cable.
YPbPr
AUDIO L/R
AUDIO L/R
YPbPr
Connect the disc player to the TV with a composite cable (CVBS) and an audio L/R cable.
CVBS
EN
34
AUDIO L/R
TV receiver
English
Connect the digital TV receiver with an antenna cable to the TV.
ANTENNA
TV ANTENNA
Connect the digital TV receiver to the TV with an HDMI cable.
HDMI
HDMI
Connect the digital TV receiver to the TV with a SCART cable.
SCART
Scart
EN
35
Connect the digital TV receiver to the TV with a component video cable (Y Pb Pr) and an audio
L/R cable.
YPbPr
AUDIO L/R
AUDIO L/R
YPbPr
Connect the digital TV receiver to the TV with a composite cable (CVBS) and an audio L/R cable.
CVBS
AUDIO L/R
Video recorder
Connect the recorder to the TV with an antenna cable.
ANTENNA
TV ANTENNA
EN
36
English
Connect the recorder to the TV with a SCART cable.
SCART
Scart
Connect the recorder to the TV with a component video cable (Y Pb Pr) and an audio L/R cable.
YPbPr
AUDIO L/R
AUDIO L/R
YPbPr
Connect the recorder to the TV with a composite cable (CVBS) and an audio L/R cable.
CVBS
AUDIO L/R
EN
37
Game console
Connect the game console to the TV with an HDMI cable.
HDMI
HDMI
Connect the game console to the TV with a component video cable (Y Pb Pr) and an audio L/R
cable.
YPbPr
AUDIO L/R
AUDIO L/R
YPbPr
Connect the game console to the TV with a composite cable (CVBS) and an audio L/R cable.
CVBS
EN
38
AUDIO L/R
Home theatre
HDMI
English
Connect the home theatre to the TV with an HDMI cable and an optical audio cable.
DIGITAL
AUDIO OUT
Digital
Audio Out
HDMI
Connect the home theatre to the TV with a SCART cable.
SCART
Scart
Connect the home theatre to the TV with a component video cable (Y Pb Pr) and an audio L/R
cable.
YPbPr
AUDIO L/R
AUDIO L/R
YPbPr
EN
39
Connect the home theatre to the TV with a composite cable (CVBS) and an audio L/R cable.
CVBS
AUDIO L/R
Digital camera
NonPublish
Connect the digital camera to the TV with a USB cable. (For certain camera models only)
USB
USB
Digital camcorder
Connect the digital camcorder to the TV with an HDMI cable.
HDMI
HDMI
EN
40
YPbPr
AUDIO L/R
AUDIO L/R
YPbPr
Connect the digital camcorder to the TV with a composite cable (CVBS) and an audio L/R cable.
CVBS
AUDIO L/R
AUDIO L/R
CVBS
Connect more devices
USB hard drive
Connect the USB hard drive to the TV with a USB cable.
USB
USB
EN
41
English
Connect the digital camcorder to the TV with a component video cable (Y Pb Pr) and an audio L/R
cable.
Computer
Connect the computer to the TV with an HDMI cable.
HDMI
HDMI
Connect the computer to the TV with a DVI-HDMI cable and an audio cable.
HDMI
AUDIO IN
DVI/VGA
AUDIO IN
DVI/VGA
Connect the computer to the TV with a VGA cable and an audio cable.
VGA
AUDIO IN
DVI/VGA
AUDIO IN
DVI/VGA
EN
42
HDMI
Set-top box
English
Connect the set-top box to the TV with a RJ-48 cable. (DATA connector is only available on
certain models)
DATA
DATA
External speakers
Connect the 2W external speakers (sold separately) to the 8 ohm AUDIO OUT connector on the
TV with an audio cable. (8 ohm AUDIO OUT connector is available on certain models only)
AUDIO
OUT
AUDIO OUT
Watch a connected device
Add new device
Before you can watch a connected device,

Add its icon to the Home menu for
easy access. See Connect your TV >
Connect device (Page 34).

Select from the Source menu.
Note: If you connect an HDMI-CEC
compliant device to the TV through the
HDMI connector and switch it on, the
device will be automatically added to the
Home menu.
1. Connect and switch on the device.
2. Press .
3. Select [Add new device], then press OK.
4. Follow the onscreen instructions.

If you are prompted to select the TV
connection, select the connector that
this device uses.
Rename device
After you have added a new device to the
Home menu, you can rename it.
1. Press .
2. Select the device icon from the Home
menu.
3. Press OPTIONS.
EN
43
4. Select [Rename], then press OK.
A text input box appears.
5. Press the Numeric buttons and the
Navigation buttons to select and enter the
name.
6. When complete, select [Done], then
press OK.
Select a source
From Home menu
After you have added the new device to the
Home menu, you can select the new device
icon to view its contents.
1. Press .
2. Select the device icon from the Home
menu.
3. Press OK to confirm.
From Source menu
SOURCE to display a
You can also press
list of connector names. Select the
connector that connects the device to the
TV.
SOURCE.
1. Press
2. Press the Navigation buttons to select a
connector in the list.
3. Press OK to confirm.
Common interface
What you can do
You can watch scrambled digital TV channels
with a Conditional Access Module (CAM).
After the CAM is inserted and subscription
fees are paid, you can watch the programme.
This TV supports CI as well as CI+. CI+
supports premium HD digital programmes
with a high level of copy protection.
Note: The applications, functions, content
and onscreen messages depend on the CAM
service provider.
What you need
Caution: To protect the CAM from damage,
insert the CAM as instructed.
Note: Refer to the documentation from
your service operator on how to insert a
smart card into the Conditional Access
Module.
Remove device
If the device is no longer connected to the
TV, you can remove it from the Home
menu.
1. Press .
2. Select the device icon from the Home
menu.
3. Press OPTIONS.
4. Select [Remove device], then press OK.
5. Select [Remove], then press OK.
The selected device is removed from the
Home menu.
1. Switch off the TV.
2. Follow the directions printed on the CAM
to insert the CAM into the Common
Interface slot at the side of the TV.
Push the CAM in as far as it will go.
3. Switch on the TV, then wait for the CAM
to be activated. This takes a few minutes.
To maintain access to encrypted digital TV
channels, leave the CAM in the slot.
Watch CAM services
1. After you insert and activate the CAM,
press OPTIONS.
2. Select [Common interface], then press
OK.
3. Select the CAM provider, then press OK.
EN
44
General issues
The TV does not switch on:

Disconnect the power cable from the
power outlet. Wait for one minute
then reconnect it.

Make sure that the power cable is
securely connected.
The TV does not respond to remote
control or front controls when switched
on:
The TV requires some time to start up.
During this time, the TV does not respond
to the remote control or front controls. This
is normal behaviour.
When you are turning the TV on, off or to
standby, you hear a creaking sound from
the TV chassis:
No action is required. The creaking sound is
due to the normal expansion and
contraction of the TV as it cools and warms
up. This does not affect performance.
When the TV is in standby, a startup splash
screen is displayed, then returns to standby
mode:
This is normal behaviour. When the TV is
disconnected and reconnected to the power
supply, the startup screen is displayed at the
next startup.
To switch on the TV from standby, press
on the remote control or press any key on
the TV.
The standby light on the TV blinks red:
Disconnect the power cable from the power
outlet. Wait until the TV cools down before
you reconnect the power cable. If the
blinking reoccurs, contact Philips Consumer
Care.
You forgot the 4-digit code to unlock the
channel blocking feature (child lock):
Enter ‘8888’.
The TV menu is in the wrong language:
Change the menu to your preferred
language.
For more information, see Set up your TV >
Language settings > Menu language (Page
28).
Subtitles are not visible when you play a
movie file from a USB storage device:
Subtitle files that are not hard-coded into a
video file (for example, *.srt, *.sub, *.idx) are
not supported.
You want to upgrade your TV software:
Visit www.philips.com/support and
download the latest software package for
your TV. Software installation instructions
and release notes indicating what's been
updated are also available at the site. Full
instructions on how to upgrade your TV
software are also available at Set up your TV
> Update software.
Channel issues
You want to install TV channels
See Set up your TV > Channel settings
(Page 26) for instructions on installing
analogue or digital channels.
No digital channels were found during the
installation:
See the technical specifications to make sure
that your TV supports DVB-T or DVB-C in
your country.

Make sure that all cables are properly
connected and that the correct
network is selected.
Previously installed channels do not appear
in the channel list:
Make sure that the correct channel list is
selected.
You want to rearrange or reorder the
channel list:
After channels have been installed, they
appear in the channel list. For information
about managing channel lists, including
rearranging channels, see Use your TV >
Watch TV > Manage channel lists (Page
11).
EN
45
English
6 Troubleshooting
Picture issues
The TV is on, but there is no picture or the
picture is distorted:

Make sure that the antenna is properly
connected to the TV.

Make sure that the correct device is
selected as the display source.

Make sure that the external device or
source is properly connected.
There is sound but no picture:
Make sure that the picture settings are set
correctly.
There is poor TV reception from an
antenna connection:

Make sure that the antenna is properly
connected to the TV.

Loud speakers, unearthed audio
devices, neon lights, high buildings and
other large objects can influence
reception quality. If possible, try to
improve the reception quality by
changing the antenna direction or
moving devices away from the TV.

If reception on only one channel is
poor, fine-tune this channel.
There is poor picture quality from
connected devices:

Make sure that the devices are
connected properly.

Make sure that the picture settings are
set correctly.
The TV did not save your picture settings:
Make sure that the TV location is set to
Home. You can change and save settings in
this mode.
The picture does not fit the screen; it is
too big or too small:
Change the picture format.
The picture format keeps changing with
different channels:
Instead of the picture format [Auto zoom],
select a different picture format.
EN
46
The picture position is incorrect:
Picture signals from some devices may not fit
the screen correctly. Check the signal output
of the device.
The picture from broadcasts is scrambled:
You may need a Conditional Access Module
to access content. Check with your service
operator.
An "e-sticker" banner displaying
information appears on the TV display:
The TV is in [Shop] mode. To remove the
e-sticker, set the TV to [Home] mode, then
restart the TV. See Set up your TV > Other
settings > Location (Page 30).
The computer display on the TV is not
stable:

Make sure that your PC uses the
supported resolution and refresh rate.
See Product specifications > Display
resolutions (Page 48).

Change the TV picture format to
[Unscaled].
Sound issues
There is a picture but sound quality is
poor:
If no audio signal is detected, the TV
automatically switches the audio output off
— this does not indicate malfunction.

Make sure that all cables are properly
connected.

Make sure that the volume is not
muted or set to zero.

Make sure that the TV speaker setting
is selected. Press ADJUST, select
[Speakers], and then select TV.

Make sure that the TV audio output is
connected to the audio input on the
HDMI-CEC enabled or EasyLink
compliant home theatre device. Sound
should be heard from the home theatre
speakers.
Some devices may require you to
manually enable HDMI audio output. If
HDMI audio is already enabled but you
still cannot hear audio, try changing the
digital audio format of the device to
PCM ('Pulse Code Modulation'). Refer
to the documentation accompanying
your device for instructions.
There is a picture but the sound quality is
poor:
Make sure that the sound settings are
correctly set.
There is a picture but sound comes from
one speaker only:
Make sure that sound balance is set to the
centre.
Connection issues
There are problems with HDMI devices:

Note that HDCP (High-bandwidth
Digital Content Protection) support can
delay the time taken for a TV to display
content from an HDMI device.

If the TV does not recognise the HDMI
device and no picture is displayed,
switch the source from one device to
another and back again.

If there are intermittent sound
disruptions, make sure that output
settings from the HDMI device are
correct.

If you use an HDMI-to-DVI adapter or
HDMI to DVI cable, make sure that an
additional audio cable is connected to
AUDIO L/R or AUDIO IN (mini-jack
only).
You cannot use EasyLink features:
Make sure that your HDMI devices are
HDMI-CEC compatible. EasyLink features
only work with devices that are HDMI-CEC
compatible.
If an HDMI-CEC compliant audio device is
connected to the TV and the TV does not
display any mute or volume icon when the
volume is muted, increased or decreased:
When a HDMI-CEC audio device is
connected this behaviour is normal.
USB device content is not displayed:

Make sure that the USB storage device
is set to Mass Storage Class compliant,
as described in the storage device's
documentation.

Make sure that the USB storage device
is compatible with the TV.

Make sure that the audio and picture
file formats are supported by the TV.
Audio and picture files on your USB
storage device do not play or display
smoothly:
The transfer performance of the USB
storage device may limit the data transfer
rate to the TV which causes poor playback.
Contact Philips
Warning: Do not attempt to repair the TV
yourself. This may cause severe injury,
irreparable damage to your TV or void
your warranty.
If are not able to resolve your problem, refer
to the frequently asked questions (FAQs) for
this TV at www.philips.com/support. You
can also consult and contribute to the Philips
TV community at
www.supportforum.philips.com.
If you wish to speak to or email a Philips
representative, contact the Philips Consumer
Care in your country. You can find the
contact details in the leaflet accompanying
this TV or at www.philips.com/support.
Note your TV model and serial number
before you contact Philips. These numbers
are printed on the back of the TV and on
the packaging.
EN
47
English

7 Product
specifications
Power and reception
Product specifications are subject to change
without notice.
Power

Mains power : AC 220-240 V~, 50-60
Hz

Standby power consumption : < 0.3 W

Ambient temperature: 5 to 40 degrees
Celsius

For power consumption, see the
product specifications at
www.philips.com/support.
The power rating stated on the product
typeplate is the power consumption for this
product during normal household use (IEC
62087 Ed.2). The maximum power rating,
stated between brackets, is used for
electrical safety (IEC 60065 Ed. 7.2).
Reception

Antenna input: 75 ohm coaxial (IEC75)

TV system: DVB COFDM 2K/8 K

Video playback: NTSC, PAL, SECAM

Digital TV: MPEG-4, DVB-T
(Terrestrial), DVB-C (Cable).

Tuner bands: VHF, UHF, S-Channel,
Hyperband
* Available on certain models only.
Display and sound
Picture/Display

Display type: edge LCD/LED backlight
Diagonal size:
- 48 cm / 19 inch
- 56 cm / 22 inch
- 66 cm / 26 inch
- 81 cm/32 inch
- 107 cm/42 inch
EN
48




Aspect ratio: 16:9 (widescreen)
Panel resolution:
For HD models: 1366 X 768 p
For FHD models: 1920 X 1080 p
Digital Crystal Clear
Perfect Motion Rate (PMR):100 Hz
Sound

Output power (RMS):
- For 19": 6 W
- For 22HFL3017: 10 W
- For 22HFL3007: 6 W
- For 26": 10 W
- For 32" to 42": 20 W

Incredible Surround

Clear Sound

Mono / Stereo / NICAM
Display resolutions
Computer formats - HDMI
(Resolution - refresh rate)
640 x 480 - 60 Hz
800 x 600 - 60 Hz
1024 x 768 - 60 Hz
1280 x 720 - 60 Hz
1280 x 768 - 60 Hz
1280 x 1024 - 60 Hz
1360 x 768 - 60 Hz
For Full HD TV only:
1680 x 1050 - 60 Hz
1920 x 1080 - 60 Hz
Computer formats - VGA
(Resolution - refresh rate)
640 x 480 - 60 Hz
800 x 600 - 60 Hz
1024 x 768 - 60 Hz
1280 x 1024 - 60 Hz
1360 x 768 - 60 Hz
For Full HD TV only:
1920 x 1080 - 60 Hz
Multimedia
480i - 60 Hz
480p - 60 Hz
576i - 50 Hz
576p - 50 Hz
720p - 50Hz, 60 Hz
1080i - 50Hz, 60 Hz
1080p - 24Hz, 25Hz, 30Hz, 50Hz, 60 Hz
Supported multimedia connections

USB: Connect only USB devices which
consume 500mA of power or less.
- NTFS, FAT 16 (Read only)
- FAT 32

Ethernet LAN RJ-48
Supported image files

JPEG (*.jpg)

Supported audio/video files
Multimedia file names must not exceed 128 characters.
File Extensions
Container
.mpg
.mpeg
.vob
PS
.ts
MPEG1
TS
.mp4
(.mov and .3gpp
extensions are
not supported)
.mkv
Video codec
MP4
MKV
Maximum resolution Max. Frame Rate (fps) Max. Bit Rate (Mbps)
768x576
Audio codec
1.8 Mbps
30
USB
YES
MP1 Layer1/2, MP3, AC3, DVD LPCM
MPEG2 [email protected]
1920x1080
30
40 Mbps
MPEG2 [email protected]
1920x1080
30
40 Mbps
VC-1
1920x1080
30
40 Mbps
H.264 BP/MP/HP
LV 4.0
1920x1080
30
40 Mbps
H.264 BP/MP/HP
LV 4.0
1920x1080
30
40 Mbps
MPEG4 [email protected] 3.0/
[email protected] 4.0
1920x1080
30
40 Mbps
H.263
1408x1152
30
40 Mbps
YES
Motion JPEG
(*.mov only)
1280x720
30
30 Mbps
YES
H.264 BP/MP/HP
LV 4.0
1920x1080
30
40 Mbps
MPEG4 [email protected] 3.0/
[email protected] 4.0
1920x1080
30
40 Mbps
WMV9
1920x1080
30
40 Mbps
VC-1
1920x1080
30
40 Mbps
YES
MPEG1 Layer1/2, AC3
MPEG2 AAC-LC, MPEG4 AAC-LC/
HE-AAC, AC3
YES
YES
YES
YES
MPEG1 Layer1/2, MP3, MPEG2
AAC-LC, MPEG4 AAC-LC/HE-AAC
YES
YES
wav:PCM/ADPCM/A-law PCM/u-law
PCM, MPEG1 Layer1/2, MP3, MPEG2
AAC-LC, MPEG4 AAC-LC/HE-AAC,
AC3, WMAv8
YES
YES
YES
Supported audio/video files
Multimedia file names must not exceed 128 characters.
File Extensions
Container
Video codec
XviD
.mp4
.avi
.flv
.mp3
AVI
FLV
MP3
Maximum resolution Max. Frame Rate (fps) Max. Bit Rate (Mbps)
1920x1080
30
40 Mbps
MPEG1
768x576
30
1.8 Mbps
MPEG2 [email protected]
1920x1080
30
40 Mbps
H.264 BP/MP/HP
LV 4.0
1920x1080
30
40 Mbps
MPEG4 [email protected] 3.0/
[email protected] 4.0
1920x1080
30
40 Mbps
Motion JPEG
1280x720
30
30 Mbps
Audio codec
USB
YES
YES
wav:PCM/ADPCM/A-law PCM/u-law
PCM, MPEG1 Layer 1/2, MP3, MPEG2
AAC-LC, MPEG4 AAC-LC/HE-AAC,
AC3, WMAv8
YES
YES
YES
YES
Sorenson
352x288
30
40 Mbps
H.264 BP/MP/HP
LV 4.0
1920x1080
30
40 Mbps
NA
NA
NA
32/40/48/56/64/80/96/
112/128/160/192/224/
256/320 kbits/s
MP3
PCM/ADPCM/A-law PCM/
u-law PCM
YES
ACC-LC/HE-AAC
YES
.wav
MKV
NA
NA
NA
16bit PCM(big/little
endian)
24bit PCM(big endian)
.aac
.mp4
.m4a
AAC
NA
NA
NA
16-576 kbits/s
MPEG1 Layer1/2, MP3, MPEG2 AAC-LC,
MPEG4 AAC-LC/HE-AAC
YES
YES
YES
EN
49
English
Video formats
(Resolution - refresh rate)
Connectivity
Rear

AUDIO OUT: 8 ohm Audio Out*

DATA: Communication*

Service port: SERV.U

VGA: PC input

AUDIO IN: DVI/VGA (stereo 3.5mm
mini-jack)

Composite and Audio: CVBS/Y, Audio
L/R

Component and Audio: CVBS/Y Pb Pr,
Audio L/R

DIGITAL AUDIO OUT: Cinch

SCART: SCART (RGB/CVBS)

HDMI 1 / 2

Antenna: 75 ohm coaxial
*Available on certain models only.
Side




Common Interface: CI
USB
Headphones: stereo 3.5mm mini-jack
HDMI
You can mount your TV on the wall with a
compatible TV mount (sold separately).
Select the type of TV mount for your TV
screen size:
107 cm / 42 inches:
- For HFL3016D and HFL3007D: 400mm x
400mm, M6
- For HFL3017D: 400mm x 400mm, M6
Warning: Follow all instructions provided
with the TV mount. TP Vision Netherlands
B.V. bears no responsibility for improper
TV mounting that results in accident, injury
or damage.
To prevent damage to cables and
connectors, leave a gap of at least 5.5 cm /
2.2 inches from the back of the TV.
For HFL3007D - 22 inch TVs:
Before you mount the TV on the wall, find
the correct length of the screw.
To find the length of screw, add the
thickness of your wall mount to the screw
length, as shown in the graphic.
HDMI features

Audio Return Channel (HDMI 1 only)
Supported TV mounts
You can mount your TV on the wall with a
compatible TV mount (sold separately)*.
Select the type of TV mount for your TV
screen size:
48 cm / 19 inches: 75 mm x 75 mm, M4
56 cm / 22 inches: 75mm x 75mm, M4
66 cm / 26 inches:
- For HFL3007D: 100mm x 100mm, M4
- For HFL3017D, HFL3017W: 100mm x
100mm, M4
81 cm / 32 inches:
- For HFL3017D: 200mm x 200mm, M6
- For HFL3016D and HFL3007D: 200mm x
100mm, M4
EN
50
8 mm
Before you mount the TV on the wall, find
the correct length of the screw.
To find the length of screw, add the
thickness of your wall mount to the screw
length, as shown in the graphic.
For 32HFL3017D and 26HFL3007D:
Before you mount the TV on the wall, find
the correct length of the screw.
To find the length of screw, add the
thickness of your wall mount to the screw
length, as shown in the graphic.
18 mm
9 mm
10 mm
For HFL3017D - 42 inch TVs:
For HFL3007D - 32 to 42 inch TVs:
For HFL3016D - 32 inch TVs:
Before you mount the TV on the wall, find
the correct length of the screw.
To find the length of screw, add the
thickness of your wall mount to the screw
length, as shown in the graphic.
Before you mount the TV on the wall, find
the correct length of the screw.
To find the length of screw, add the
thickness of your wall mount to the screw
length, as shown in the graphic.
17 mm
16 mm
Help version
UMv 123017102321 - 20120720
EN
51
English
For HFL30x7D, HFL3017W - 19 to 26 inch
TVs:
8 Index
connect, PC - 42
A connect, set-top box - 43
age rating - 21
amplifier, select output - 23
analogue channels, fine-tune - 27
analogue channels, subtitles - 28
audio language - 28
audio sync - 23
C connect, recorder - 36
connect, speaker - 43
connect, TV receiver - 35
connect, USB - 13
connected device, add - 43
connected device, remove - 44
connected device, rename - 43
connectors - 32
contact information, on Internet - 9
CAM, enable - 44
CAM, insert - 44
CAM, see Conditional Access Module - 44
channel list - 11
channels - 10
channels, favourites - 11
channels, fine-tune (analogue) - 27
channels, install (automatic) - 26
channels, install (digital) - 27
channels, install (manual) - 27
channels, reinstall - 31
channels, rename - 11
channels, reorder - 11
channels, switch - 10
channels, update - 28
contact Philips - 9
controls - 3
D devices - 34
devices, add - 43
devices, watch - 44
digital camcorder - 40
digital camera - 40
digital channels - 27
digital channels, subtitles - 28
digital radio - 11
disc player, connect - 34
display - 48
display resolution - 48
child lock - 21
E clock - 20
EasyLink - 21
common interface - 44
EasyLink, controls - 22
Conditional Access Module - 44
EasyLink, enable - 22
connect devices - 32
EasyLink, features - 21
connect, digital camcorder - 40
EasyLink, onscreen control - 5
connect, digital camera - 40
EasyLink, remote control buttons - 22
connect, disc player - 34
EasyLink, TV speakers - 23
connect, external hard disk - 41
end of use - 8
connect, game console - 38
energy efficient, settings - 8
connect, home theatre system - 39
EN
52
picture format - 12
EPG, Electronic Programme Guide - 3
picture settings - 25
external hard disk - 41
picture settings, reset - 26
F Pixel Plus link - 23
placement, stand or wall mount - 30
favourite channels, list - 11
position - 30
G power - 48
game console - 38
games - 19
H HDMI - 32
HDMI ARC - 32
hearing impaired - 29
Help, version - 51
high-definition (HD), content - 3
home mode - 30
home theatre system, connect - 39
hotel information - 15
I install channels, automatic - 26
L language, menu - 28
language, subtitles - 29
location, home or shop - 30
product support - 9
professional mode - 15
R rear controls - 3
recorder, connect - 36
recycle - 8
reinstall - 31
remote control - 4
remove, connected device - 44
rename channels - 11
rename, connected device - 43
S safety - 5
SCART - 33
Scenea, enable - 24
Scenea, load wallpaper - 24
screen care - 7
screen saver - 24
sensors - 4
M settings, assistant - 25
mode, home or shop - 30
settings, audio format - 26
multimedia, play files - 13
settings, game - 19
multimedia, supported formats - 49
settings, picture - 25
MyChoice - 18
settings, sound - 25
P English
Energy label - 9
shop mode - 30
sleeptimer - 21
parental rating - 21
smart settings - 12
PC, connect - 42
software, check version - 30
PC, display resolutions - 48
EN
53
software, digital update - 31
software, USB - 31
sound settings, reset - 26
standby - 10
subtitles, analog - 28
subtitles, digital - 28
subtitles, language - 29
sustainability - 8
switch on, professional mode - 15
switch TV on, off - 10
T text 2.5 - 20
text, digital text - 20
text, dual screen - 19
text, enlarge - 19
text, language - 20
text, subpages - 20
text, Table Of Pages - 19
ThemeTV - 18
trademarks and copyrights - 8
TV receiver, connect - 35
TV speakers, mute - 10
U universal access, enable - 29
universal access, hearing impaired - 29
universal access, visually impaired - 29
V VGA - 33
visually impaired - 29
volume - 10
W wall mount - 50
wallpaper - 24
EN
54
Y YPbPr, component video - 32
© 2012 TP Vision Netherlands B.V.
All rights reserved.
Document order number 123017102321
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
