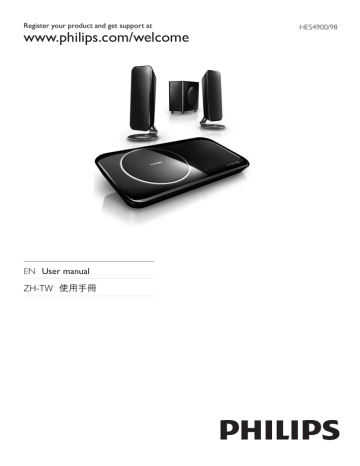

Register your product and get support at
HES4900/98
www.philips.com/welcome
EN User manual
=+7: Ԛ͂ʹ˫
1 Important
Safety
Notice
2 Your DVD Home Theater System
Introduction
What’s in the box
Overview of the main unit
Overview of the remote control
3 Connect
Connect speakers
Connect TV
Connect external audio devices
Connect FM antenna
Place the unit
Prepare the remote control
Connect power
25
25
26
26
27
General setup
Audio setup
Video setup
Preference setup
4
4
5
7
7
7
8
9
11
11
11
12
14
14
15
16
8 Adjust volume level and sound effect
29
Adjust volume level
Select a sound effect
Adjust treble/bass level
Mute sound
29
29
29
29
9 Product information
30
30
31
31
Specifications
Supported disc formats
USB playability information
10 Troubleshooting
32
11 Appendix
34
34
Mount to a wall
4 Get started
Turn on
Find the correct viewing channel
Select menu display language
Use Philips EasyLink
Turn on Progressive Scan
5 Play
Select source
Watch video
Listen to music
Play MP3/WMA/picture files
6 Tune to FM radio stations
Program radio stations automatically
Program radio stations manually
Tune to a preset radio station
17
17
17
18
18
18
20
20
20
22
23
24
24
24
24
EN
3
Eng l i sh
7 Adjust settings
Contents
1 Important
Safety
Know these safety symbols
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The ‘exclamation point’ calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING: To reduce the risk of fire or electric
shock, this apparatus should not be exposed to
rain or moisture and objects filled with liquids,
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
4
EN
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
i For countries with a polarized mains,
do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
is provided for your safety. If the provided
plug does not fit into your outlet, consult
an electrician for replacement of the
obsolete outlet.
Caution: To prevent electric shock, match
the wide blade of the plug to the wide
slot, fully insert.
j Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
k Only use attachments/accessories
specified by the manufacturer.
l Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
n Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
o Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
apparatus:
• Install all batteries correctly, + and - as
marked on the apparatus.
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries when the unit is not
used for a long time.
• The batteries shall not be exposed to
excessive heat such as sunshine, fire
or the like.
p Apparatus shall not be exposed to
dripping or splashing.
q Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
r This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
Never look into the laser beam inside the unit.
Warning
Eng l i sh
m Unplug this apparatus during lightning
storms or when unused for long periods
of time.
• Where the MAINS plug or an appliance coupler is used
as the disconnect device, the disconnect device shall
remain readily operable.
Wall mounting of the unit should only be
performed by qualified personnel. The unit
must only be mounted on an appropriate wall
bracket and on a wall that can safely hold the
weight of the unit. Improper wall mounting
can result in severe injury or damage. Do not
attempt to wall mount the unit yourself.
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
EN
5
HDMI, and HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks.
Note
DivX, DivX Certified, and associated logos are
trademarks of DivX, Inc. and are used under
license.
Official DivX® Ultra Certified product.
Plays all versions of DivX® video (including
DivX® 6) with enhanced playback of DivX®
media files and the DivX® Media Format.
Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital
Surround are registered trademarks and the
DTS logos and Symbol are trademarks of DTS,
Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, inc.
• This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This apparatus includes this label:
Manufactured under license from Dolby
Laboratories.
Dolby, Pro Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
Note
Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
6
EN
• The type plate is located on the back of the apparatus.
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
This DVD Home Theater System is designed
to complement your home perfectly. Enjoy the
DVD Home Theater System with multi-channel
surround sound and excellent picture quality.
Introduction
With this unit, you can:
• watch video from DVD/VCD/SVCD or
USB devices
• enjoy audio from discs or USB devices
• view pictures from discs or USB devices
• listen to FM radio
• Control EasyLink-compliant devices
through a single remote control
• Sync audio output with the video output
You can enrich sound output with these
sound effects:
• Surround sound exprience
• Preset sound modes
The unit supports these media/disc formats:
Eng l i sh
2 Your DVD
Home Theater
System
Recordable
ReWritable
You can play DVD discs with the following
region codes:
DVD region code Countries
Asia Pacific, Taiwan, Korea
Australia, New Zealand
What’s in the box
Check and identify the contents of your
package:
• Main unit
• Speakers (x 2)
• Digital wireless subwoofer
• Remote control (with batteries)
• Power adapter for the main unit
• Power cord
• FM wire antenna
• AV cable (red/white/yellow)
• MP3 Link cable
• Wall mount bracket and screws (x4)
EN
7
Overview of the main unit
a
j
bc d
e
f g
h
i
r
q
k
l
m
n
o
p
8
EN
b Remote control sensor
Overview of the remote
control
Eng l i sh
a Disc compartment
c
•
Open the disc compartment.
a
d SOURCE
• Select a source.
e VOL -/+
• Adjust volume.
f
•
Start or pause play.
b
c
w
d
g
e
•
•
Turn on the unit.
Switch to normal standby mode or
low-power-consumption standby
mode.
h Display panel
• Display current status.
i MP3 LINK
• Jack for an external audio device.
f
g
h
v
u
i
j
t
k
j
•
USB socket.
k FM ANT
• FM antenna socket.
l AUX IN L/R
• Sockets for external audio input.
s
l
m OPTICAL IN
• Optical audio input socket.
n COMPONENT OUT
• Socket for component video output.
o AV OUT
• Socket for audio/video output.
r
m
q
n
p
o
p HDMI OUT
• HDMI output socket.
q SPEAKER L/R
• Socket for left/right speaker
connection.
r DC
• Socket for power connection.
EN
9
a
•
•
Turn on the unit.
Switch to normal standby mode or
low-power-consumption standby
mode.
b Source selection keys
• Select a source.
c OPTIONS
• Access or exit the system setup menu.
d
/
•
•
•
For menus: navigate up/down.
Move an enlarged picture up/down.
Rotate or invert pictures.
e OK
• Confirms an entry or selection.
f
/ ( / )
• For menus, navigate left/right.
• Search within a track or disc.
• Move an enlarged picture left/right.
• Tune to a radio station.
g INFO
• For video/audio play, display
information about the current status
or the disc.
• For pictures, display a thumbnail view
of picture files.
h
/
•
•
Skip to the previous/next title/
chapter/track.
Select a preset radio station.
•
Start or pause play.
•
•
Stop play.
Erase a preset radio station.
i
j
k TREBLE/BASS
• Adjust treble/bass level.
l Numeric keypad
• Select a title/chapter/track directly.
• Select a preset radio station directly.
10
EN
m AUDIO SYNC
• Access audio delay setting.
n SOUND
• Selects a predefined sound effect.
o ZOOM
• For pictures or video: zoom in/out.
p REPEAT A-B
• Repeat a specific section within a
track/disc.
q REPEAT/PROGRAM
• Selects or turns off repeat or shuffle
mode.
• Program radio stations.
r SUBTITLE
• Select DVD or DivX subtitle language.
s SURROUND
• Enable/disable Dolby Virtual Speakers
(DVS) sound effect.
t +
•
Adjust volume.
u
•
Mute or restore volume.
v MENU/BACK
• Return to the previous screen.
• For video discs: access or exit the disc
menu.
• For video discs with playback
control(PBC): turn on/off PBC.
w AUDIO
• For VCD, select stereo, mono-left or
mono-right channel.
• For DVD/DivX video, select an audio
language.
Note
Eng l i sh
3 Connect
• To use Philips EasyLink, you must have HDMI
Connect speakers
connection (see ‘Use Philips EasyLink’ on page 19).
• This unit is HDMI CEC compatible. It enables the
connected TV/device to control each other over HDMI.
TV
a Insert the speaker plug into the SPEAKER
L/R sockets.
HDMI IN
Connect TV
Option 1: Connect through HDMI Highest quality
If you want to experience full high-definition
video, use HDMI connection. HDMI provides an
uncompressed, digital interface between your
TV and the unit. Both audio and video signals
are combined in one HDMI cable.
a Connect an HDMI cable (not supplied)
to:
• - the HDMI OUT socket on this unit.
• - the HDMI input socket on the TV.
Tip
• If your TV has only a DVI connection, connect through
a HDMI/DVI adaptor. An extra audio connection is
needed to complete this connection.
EN
11
Option 2: Connect through
component video - Higher quality
Component video provides better picture
quality than AV out connections.Though
component video supports high-definition
signals, picture quality is lower than HDMI and
is analog.
VIDEO
L
R
TV
AV IN
a Connect the supplied AV cable to:
• - the AV OUT socket on this unit.
• - the AV In sockets on the TV.
TV
Tip
• If you want to listen to sound from the unit instead of
a Connect a component video cable (red/
blue/green - not supplied) to:
• - theCOMPONENT OUT socket on
this unit.
• - the component input sockets on
the TV.
from TV, connect the video cable (yellow) only. Do not
connect the audio cable (red and white).
Connect external audio
devices
Option 3: Connect through AV out Basic quality
You can play music from external audio devices
such as MP3 player, portable CD player etc.
AV out provides basic analog connectivity.
Connect through Aux in
For audio device with red/white audio output
sockets:
12
EN
b Press MP3 LINK.
c Operate the controls of the connected
device to play music (see the user manual
of the device).
Connect digital amplifier/receiver
TV
1
2
3
connect an audio cable (red/white - not
supplied) to:
• - the AUX IN L/R sockets on this unit.
• - the audio output sockets on the
device.
Press AUX on the remote control.
Operate the controls of the connected
device to play music (see the user manual
of the device).
OPTICAL OUT
Connect through MP3 Link
For audio device with headphone socket:
a Connect an optical cable (not supplied)
to:
• - the OPTICAL IN socket on this unit.
• - the Optical output socket on the
digital amplifier/receiver.
EN
13
Eng l i sh
a Connect the supplied MP3 link cable to:
• - the MP3 LINK socket on the main
unit.
• - the headphone socket on an
external device.
Connect FM antenna
Tip
• This unit does not support MW radio reception.
2
1
Connect the supplied FM antenna to the
FM ANT socket on the unit.
Place the unit
Note
• To avoid magnetic interference or unwanted noise,
•
•
never place this apparatus and speakers too close to
any radiation devices.
Never place this unit in an enclosed cabinet.
Install this unit near the AC outlet where the AC power
plug can be easily reached.
1
Complete the connections (see above),
then mount on the back panel to keep the
back smooth.
14
EN
Mount on the stand and place the main
unit near to the TV.
Mount on the speaker stands and position
the speakers at the normal listening earlevel and directly parallel to the listening
area.
Prepare the remote control
Eng l i sh
3
Caution
• Risk of explosion! Keep batteries away from heat,
sunshine or fire. Never discard batteries in fire.
• Risk of decreased battery life! Never mix different
brands or types of batteries.
• Risk of product damage! When the remote control is
not used for long periods, remove the batteries.
Note
• Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
1
2
3
Open the battery compartment.
Insert two R03 or AAA batteries with
correct polarity (+/-) as indicated.
Close the battery compartment.
1
4
Place the subwoofer at the corner of the
room or at least 1m (3.3ft) away from the
TV.
2
3
EN
15
Connect power
Caution
• Risk of product damage! Ensure that the power supply
•
voltage corresponds to the voltage printed on the back
or the underside of the product.
Risk of electric shock! When you unplug the AC power,
always pull the plug from the socket. Never pull the
cord.
Note
• Before connecting AC power, ensure you have
completed all other connections.
1
Connect the power adaptor to the DC
socket on the unit and a wall outlet.
c
b
2
Connect the power plug of the digital
wireless subwoofer to a wall outlet.
16
EN
Eng l i sh
4 Get started
Caution
• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
back of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Set up wireless connection manually
1
In standby mode, press and hold SOURCE
on the main unit for 3 seconds.
» [PAIRING] (pairing) flashes.
2
Press and hold PAIR on the subwoofer for
3 seconds.
» The blue and green indicators on the
subwoofer flash alternately.
Turn on
1
Press .
» The unit switches to the last selected
source.
2
Wait for automatic setup of wireless
connection between the main unit and
subwoofer.
» [PAIRING] (pairing) flashes.
» If the connection succeeds, [PAIR OK]
(pair OK) is displayed and the blue
indicator on the subwoofer lights up.
» If the connection fails, [PAIR FAIL]
(pair fail) is displayed and the green
indicator on the subwoofer lights up.
» If wireless connection succeeds, [PAIR
OK] (pair OK) is displayed and the
blue indicators on the subwoofer lights
up.
3
Turn on the main unit again.
Note
• If the wireless connection fails again, check whether
there is any conflict or strong interference (for example,
interference from other electronic devices) around
your location. After removal of the conflict or strong
interference, repeat the above procedures.
» If the wireless connection fails, set up
the connection manually.
Find the correct viewing
channel
1
Press DISC to switch to disc mode.
EN
17
2
Turn on the TV and switch to the correct
video-in channel. (See the TV user manual
on how to select the correct input.)
Select menu display language
1
2
3
4
5
Press
OPTIONS.
Select [General Setup].
Select [OSD Language] and then press .
Select a setting and then press OK.
To exit the menu, press
OPTIONS.
Use Philips EasyLink
This unit supports Philips EasyLink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
One touch play[Auto Wakeup TV]
When you press
, this unit will wake up
from standby mode and start disc play (if a
video disc is found in the disc compartment).
At the same time, your TV will also be turned
on and be switched to the correct viewing
channel.
One touch power-off[System Standby]
When you connect this unit to devices that
support standby mode, you can use the
remote control of this unit to switch this unit
and all connected HDMI devices to standby
mode. You can also use the remote control
from any of the connected HDMI devices to
perform one-touch standby .
One touch audio play[System Audio Control]
When you connect this unit to HDMI
CEC compliant devices, the unit can switch
automatically to play audio from the
connected device.
Turn on Progressive Scan
Note
• Philips does not guarantee 100% interoperability with
all HDMI CEC devices.
1
Turn on the HDMI CEC operations on the
TV or other connected devices. See TVs/
devices manual for details.
2
You can now enjoy the following Philips
EasyLink controls.
Progressive scan displays twice the number of
frames per seconds than interlaced scanning
(ordinary TV system). With nearly double the
number of lines, progressive scan offers higher
picture resolution and quality.
Before you turn on this feature, ensure that:
• The TV supports progressive scan
signals.
• You have connected this unit with the
TV through component video.
1
2
18
EN
Turn on the TV.
Ensure that the TV progressive scan mode
is deactivated (see the TV user manual).
3
Switch the TV to the correct viewing
channel for this unit.
4
5
6
Press DISC.
Press
OPTIONS.
Press / to select [Video Setup] in the
menu, then press .
Select [Progressive] > [On], then press
OK.
» A warning message is displayed.
8
To proceed, select [Ok] and press OK.
» The progressive setup is complete.
Eng l i sh
7
Note
• If a blank/distorted screen is displayed, wait for 15
seconds for auto recovery or turn off progressive scan
manually.
9
Turn on the progressive scan mode on the
TV.
Turn off progressive scan manually
1
Turn off the progressive scan mode on the
TV.
2
3
Press
OPTIONS.
Press / to select [Video Setup] in the
menu, then press .
4
Select [Progressive] > [Off], then press
OK.
5
To exit the menu, press
OPTIONS.
EN
19
5 Play
Note
• Ensure that the USB device contains playable music,
pictures or video.
Note
• With some disc/file types, play may differ.
a Insert the USB device to the
socket.
Select source
You can enjoy video, audio or picture files from
DVD/VCD/SVCD disc or USB devices.
For disc
Caution
• Never look at the laser beam inside the unit.
• Risk of product damage! Never play discs with
•
accessories such as disc stabilizer rings or disc
treatment sheets.
Never put any objects other than discs into the disc
compartment.
b Press USB to select the USB source.
• A contents menu is displayed.
For connected MP3 device (see ‘Connect
through MP3 Link’ on page 14)
a Press on the main set to open the disc
compartment.
b Place a disc into the disc compartment.
• Ensure that the label faces upwards.
Watch video
a Select source. (see ‘Select source’ on page
21)
b For disc, press
CD Printing
c Press
to close the disc compartment.
d Press DISC to select the DISC source.
For USB device
20
EN
to start play.
c For USB device: select a folder first, then
select a file, and then press OK.
• To return to the main menu, press
until the ‘Previous’ folder is selected,
then press OK.
d To stop play, press
.
e To pause or resume play, press
.
f To skip to the previous/next title/chapter/
track, press / .
If play does not start automatically:
Select a title/chapter/track and then press
.
Tip
Select an audio language
You can select an audio language on DVDs,
DiVx video or VCDs.
1
• To play a locked DVD, enter the 4-digit parental control
Eng l i sh
•
During disc play, press AUDIO.
» The language options appear.
password.
Note
• For some DVDs, the language can only be changed
Use the disc menu
from the disc menu. Press MENU/BACK to access the
menu.
When you load a DVD/(S)VCD disc, a menu
may be displayed on the TV screen.
To return to the menu during play:
1
Press MENU/BACK.
Select a subtitle language
Note
Note
• To see the disc menu of a VCD disc, you must turn on
• This feature is only available for DVDs/DivX videos
PlayBack Control (PBC) feature of the disc.
Fast forward/backward
1
During play, press / ( / ) repeatedly
to select a search speed.
• To resume play at normal speed, press
.
recorded with multiple audio languages.
a During play, press SUBTITLE repeatedly
to select an available subtitle language.
Tip
• For some DVDs, the language can only be changed
from the disc menu. Press MENU/BACK to access the
menu.
Resume video play from last stopped
point
Sync audio output with video play
Note
• This feature is only available for video play.
1
In stop mode and when the disc has not
been removed, press OK.
To cancel resume mode and stop play
completely:
1
In stop mode, press
.
If the video play is slower than the audio output
(sound does not match with the pictures), you
can delay the audio output to match the video.
1
Press and hold AUDIO SYNC until
‘AUDIO SYNC XXX’ is displayed.
» ‘XXX’ denotes the delay time.
2
Within five seconds, press
+/- to set
the delay time for audio output.
EN
21
Repeat A-B (DVD/VCD/CD/MP3/
WMA)
Note
• You can only play DivX videos rented or purchased
1
During music or video play, press REPEAT
A-B at the start point.
• Subtitle files with the following filename extensions (.srt,
2
Press REPEAT A-B at the end point.
» The selected section starts to play
repeatedly.
•
•
through the DivX registration code of this unit.
To cancel repeat play, press REPEAT
A-B again.
Note
• The section A and B can be set only within the same
track/title.
Listen to music
1
2
3
Zoom in/out image
1
.smi, .sub, .ssa, .ass) are supported but do not appear on
the file navigation menu.
The subtitle filename has to be the same as the file
name of the video.
During video/picture play, press ZOOM
repeatedly to zoom in/out the image.
• When the image is zoomed in, you
can press / / / to pan through
the image.
4
5
6
Select source.
For disc, press
to start play.
For MP3, select a folder first, then select a
file, and then press OK.
• To return to the main menu, press
until the ‘Previous’ folder is selected,
then press OK.
To stop play, press
.
To pause or resume play, press
.
To skip to the previous/next file, press /
.
Display play information
1
During play, press INFO repeatedly to
display play information.
Select repeat/shuffle play options
1
Play DivX video
You can play DivX files copied onto a CD-R/
RW, recordable DVD or USB device.
1
2
3
22
During play, press REPEAT/PROGRAM
repeatedly to select a repeat option or the
shuffle play mode.
• To resume normal play, press
REPEAT/PROGRAM repeatedly until
[Repeat Off] is displayed.
Insert a disc or connect a USB device.
Select a source:
• For discs, press DISC.
• For USB devices, press USB.
Select a title to play, then press
.
• To stop play, press .
• To pause or resume play, press
.
• To change a subtitle language, press
SUBTITLE.
EN
Change the audio channel
Note
• This feature is only available for VCD/DivX play.
1
During play, press AUDIO repeatedly to
select an audio channel available on the
disc:
• Mono Left
Mono Right
Stereo
Tip
• See the respective pages for below play options:
• Fast forward/backward (see ‘Fast forward/backward’ on
•
To display the selected photo only,
press OK.
Eng l i sh
•
•
Rotate picture
1
page 22)
During play, press / to rotate the
picture anti-clockwise/clockwise.
• Repeat A-B (see ‘Repeat A-B (DVD/VCD/CD/MP3/
WMA)’ on page 22)
• Display play information
Play MP3/WMA/picture files
You can play MP3/WMA/picture files copied
onto a CD-R/RW, recordable DVD or USB
device.
1
2
3
4
Start musical slideshow
You can play MP3/WMA music files and JPEG
photo files simultaneously to create musical
slideshow. The MP3/WMA and JPEG files must
be stored on the same disc or USB device.
1
2
Insert a disc or connect a USB device.
Select a file to play, then press
.
• To return to the main menu, press
until the ‘Previous’ folder is selected,
then press OK.
• To stop play, press .
• To pause or resume play, press
.
• To skip to the previous/next file, press
/ .
Navigate to the photo folder/album and
press
to start slideshow play.
» Slideshow begins and continues till the
end of the photo folder or album.
» Audio continues to play till the end of
the disc.
Select a source:
• For discs, press DISC.
• For USB devices, press USB.
• A contents menu is displayed.
Select a folder, then press OK.
Play MP3/WMA music.
» To return to the menu, press MENU/
BACK.
3
4
To stop slideshow play, press
To stop music play, press
.
again.
Start slideshow of pictures
1
During play, press OPTIONS.
» The thumbnails of 12 pictures are
displayed.
2
Select a file, then press
to start
slideshow play.
• To go to previous or next screen
display, press / .
• To select a picture, press the cursor
buttons.
EN
23
6 Tune to FM
radio stations
Program radio stations
manually
Note
1
Ensure that you have connected and fully
extended the supplied FM antenna.
2
3
4
Press RADIO.
Press and hold / (
/
).
When the frequency indication starts to
change, release the button.
» The FM tuner tunes to a station with
strong reception automatically.
5 Repeat steps 3-4 to tune to more stations.
To tune to a weak station:
Press / ( / ) repeatedly until you find
optimal reception.
Program radio stations
automatically
• You can program a maximum of 20 preset radio
stations.
1
2
Tune to a radio station.
Press REPEAT/PROGRAM to activate
programming.
3
Press / to allocate a number from
1 to 20 to this radio station, then press
REPEAT/PROGRAM to confirm.
» The preset number and the frequency
of the preset station are displayed.
4
Repeat the above steps to program other
stations.
Note
• To overwrite a programmed station, store another
station in its place.
Note
• You can program a maximum of 20 preset radio
stations.
1
Press / to select a preset number to
start programing.
2
Press and hold REPEAT/PROGRAM
for 2 seconds to activate automatic
programming.
» [AUTO] (auto) is displayed briefly.
» All available stations are programmed
in the order of waveband reception
strength.
» The last programed radio station is
broadcast automatically.
24
EN
Tune to a preset radio station
1
Press / to select a preset number
that you want.
Tip
• You can also use the numerical keypad to select a
preset station directly.
Note
Eng l i sh
7 Adjust settings
• Philips does not guarantee 100% interoperability with
1
2
3
4
Press OPTIONS .
Select a setup page.
Select an option and then press .
Select a setting and then press OK.
• To return to the previous menu, press
.
• To exit the menu, press OPTIONS .
General setup
On [General Setup Page], you can set the
following options:
[Disc Lock]
Set play restriction for specific discs. Before you
start, place the disc in the disc compartment
(maximum 40 discs can be locked).
• [Lock] – Restrict access to the
current disc. You need to enter a
password to unlock and play the disc.
• [Unlock] – Play all discs.
Tip
• To set or change the password, go to [Preference
Setup] > [Password].
[OSD Language]
Select the preferred language for on-screen
display.
This unit supports Philips EasyLink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
all HDMI CEC devices.
[EasyLink]
• [Auto Wakeup TV] - Turn on or off
one touch play.
• [System Standby] - Turn on or off one
touch power-off.
• [System Audio Control] - Turn on or
off one touch audio play.
[Display Dim]
Turn on or off adjustment of display brightness
level.
[Screen Saver]
The screen saver protects the TV screen
damage due to prolonged exposure to a static
image.
• [On] – Enable the screen saver.
• [Off] – Disable the screen saver.
[Sleep Timer]
Switches to standby automatically after the
preset time.
• [15 mins], [30 mins], [45 mins], [60
mins] – select the count down time
before the apparatus switches to
standby.
• [Off] – disable sleep mode.
Switch to standby mode
[Standby Mode]
Set the standby mode.
• [Normal] - power consumption <4W.
• [Low Power] - power consumption
<1W. However, it requires longer time
to power up.
[DivX(R) VOD Code]
Display the DivX® registration code.
EN
25
Tip
•
•
• Enter this DivX registration code when you rent or
purchase video from www.divx.com/vod. The DivX
videos rented or purchased through the DivX® VOD
(Video On Demand) service can be played only on the
device to which it is registered.
Audio setup
On [Audio Setup Page], you can set the
following options:
[HDMI Audio]
When you connect this apparatus and TV with
an HDMI cable, select the audio output setting
for this connection.
• [On] – the sound is output through
both your TV and this apparatus. If
the audio format on the disc is not
supported, it is downmixed to twochannel sound (Linear-PCM).
• [Off] – disable audio output from the
TV. The sound is only output through
this apparatus.
[Night Mode]
Make loud sound level softer and soft sound
level louder so that you can watch the DVD
movies at a low volume, without disturbing
others.
• [Off] – enjoy surround sound with its
full dynamic range.
• [On] – enjoy quiet viewing at night
(DVDs only).
Video setup
On [Video Setup Page], you can set the
following options:
[TV Type]
Change this setting if the video does not appear
correctly. By default, this setting matches the
most common setting for TVs in your country.
26
EN
•
[PAL] – For TV with PAL color system.
[NTSC] – For TV with NTSC color
system.
[Multi] – For TV that is compatible
with both PAL and NTSC.
[TV Display]
The TV format determines the aspect ratio of
display according to the type of TV you have
connected.
4:3 Pan Scan (PS)
•
•
•
4:3 Letter Box (LB)
16:9 (Wide Screen)
[4:3 Pan Scan] – For 4:3 screen TV:
full-height display with the trimmed
sides.
[4:3 Letter Box] – For 4:3 screen TV:
wide-screen display with black bars on
the top and bottom of the screen.
[16:9 Wide Screen] – For widescreen TV: display ratio 16:9.
[Progressive]
Turn on or off progressive scan mode.
[Picture Settings]
Select a predefined set of picture color settings
or customize your personal setting.
• [Standard] – original color setting.
• [Bright] – vibrant color setting.
• [Soft] – warm color setting.
• [Personal] – customize the color
setting. Adjust the level of brightness,
contrast, sharpness/tint and color
saturation.
[Closed Caption]
Turn off or on display captions.
• [On] – show the sound effects in
subtitles. Applicable only to discs with
Closed Caption information included
and the TV that supports this feature.
• [Off] – turn off closed caption.
On [Preference Page], you can set the following
options:
[Audio]
Select the preferred audio language for disc play.
[Subtitle]
Select the preferred subtitle language for disc
play.
[Disc Menu]
Select the preferred disc menu language.
Note
• If the language you have set is not available on the disc,
the disc uses its own default language.
• For some discs, the subtitle/audio language can only be
changed from the disc menu.
• To select the languages that are not listed in the menu,
select [Others]. Then check the Language Code list at
the back of this user manual and enter the respective
4-digit language code.
[Parental]
Restricts access to discs that are unsuitable for
children. These types of discs must be recorded
with ratings.
1) Press OK.
2) Select a rating level, then press OK.
3) Press the numeric keys to enter the
password.
Note
• Rated discs above the level you set in [Parental]
•
•
require a password to be played.
The ratings are country-dependent. To allow all discs to
play, select ‘8’.
Some discs have ratings printed on them but are not
recorded with ratings. This function has no effect on
such discs.
Tip
Eng l i sh
Preference setup
• You can set or change the password (see [Preference
Setup] > [Password]).
[PBC]
Turns on or off the content menu of VCDs/
SVCDs with PBC (playback control) feature.
• [On] - display index menu when you load
a disc for play.
• [Off] - skip the menu and start play from
the first title.
[MP3/JPEG Nav]
Select to display the folders or display all the
files.
• [With Menu] – display the folders of MP3/
WMA files.
• [Without Menu] – display all the files.
[Password]
Set or change the password for locked discs
and play restricted DVDs.
1) Press the numeric keys to enter ‘0000’ or
your last set password at [Old Password] field.
2) Enter the new password at [New
Password] field.
3) Enter the new password again at [Confirm
PWD] field.
4) Press OK to exit the menu.
Note
• If you forget the password, enter ‘0000’ before you set
a new password.
[DivX Subtitle]
Select a character set that supports the DivX
subtitle.
EN
27
[Standard] English, Irish, Danish, Estonian,
Finnish, French, German, Italian,
Portuguese, Luxembourgish,
Norwegian (Bokmål and
Nynorsk), Spanish, Swedish,
Turkish
[Central
Polish, Czech, Slovak, Albanian,
Europe]
Hungarian, Slovene, Croatian,
Serbian (Latin script), Romanian
[Cyrillic]
Belarusian, Bulgarian, Ukrainian,
Macedonian, Russian, Serbian
[Greek]
Greek
[Hebrew] Hebrew
Note
• Ensure that the subtitle file has the exact same file
name as the movie file. If for example the file name of
the movie is ‘Movie.avi’, then you will need to name the
text file ‘Movie.sub’ or ‘Movie.srt’.
[Version Info]
Display the software version of this apparatus.
Tip
• This information is required when you want to find out
if a newest software version is available at the Philips
website that you may download and install on this
apparatus.
[Default]
Resets all the settings of this apparatus to
factory default, except for [Disc Lock],
[Password] and [Parental] settings.
28
EN
2
Adjust volume level
1
1
Within 5 seconds, press
+/- to set the
level for high tones (treble) or low tones
(bass).
Mute sound
During play, press
sound.
to mute/unmute
During play, press +
- to increase/
decrease the volume level.
Select a sound effect
Note
• You cannot use different sound effects at the same
time.
Select a preset sound effect
1
During play, press SOUND repeatedly to
select:
• [CLASSIC] (Concert)
• [ROCK] (Action)
• [Sports] (Gaming)
• [Lounge] (Drama)
• [Night]
Select surround sound effect
DVS (Dolby Virtual Speaker) technology
creates a highly compelling 5.1-channel listening
experience from as few as two speakers. It is an
ideal entertainment solution for locations where
space for multiple speaker setup is limited.
1
During play, press SURROUND to turn
on/off surround sound effect.
Adjust treble/bass level
1
Press TREBLE or BASS.
EN
29
Eng l i sh
8 Adjust volume
level and sound
effect
9 Product
information
Note
• Product information is subject to change without prior
Tuner (FM)
Tuning Range
Tuning grid
Sensitivity
- Mono, 26dB S/N Ratio
Search Selectivity
Total Harmonic Distortion
Signal to Noise Ratio
87.5 - 108MHz
50KHz
<22dBf
>28dBf
<3%
>50dB
notice.
Speakers
20 -20000Hz, +/-3dB
Speaker Impedance
Speaker Driver,
subwoofer
Speaker Driver, woofer
Speaker Driver, tweeter
Sensitivity
- Subwoofer
>67dB
- Woofer/Tweeter
Specifications
Amplifier
Rated Output
Power
Frequency
Response
Signal to Noise
Ratio
Aux Input
2X100W+200W RMS
1.00v RMS 20kohm
Disc
Laser Type
Disc Diameter
Video Decoding
Video DAC
Signal System
Video Format
Video S/N
Audio DAC
Total Harmonic
Distortion
Frequency
Response
S/N Ratio
30
EN
Semiconductor
12cm/8cm
MPEG-1 / MPEG-2 /
DivX
12Bits
PAL / NTSC
4:3 / 16:9
>48dB
24Bits / 96kHz
<1%
4Hz - 20kHz (44.1kHz)
4Hz - 22kHz (48kHz)
4Hz - 24kHz (96kHz)
>67dBA
2 x 8ohm + 3ohm
6.25” subwoofer
2 x 3” woofer
19mm tweeter
>84dB/m/W ±
4dB/m/W
>82dB/m/W ±
4dB/m/W
General information
AC power
Operation Power
Consumption
- Main unit
- Subwoofer
Normal standby Power
Consumption
Low Standby Power
Consumption
Composite Video Output
Optical Output
HDMI (CEC) Output
USB Direct
Dimensions
- Main Unit (W x H x D)
- Speakers
- Wireless Subwoofer Box
(W x H x D)
Weight
- With Packaging
- Main Unit
- Speaker Box
- Wireless Subwoofer Box
110 - 127 V / 220
- 240 V, ~50/60
Hz
32W
38W
<4W
•
<1W
1.0Vp-p, 75ohm
0.5Vpp ± 0.1Vpp
75ohm
1.3a
Version 2.0
360 x 190 x
65mm
135 x 330 x
135mm
170 x 330 x
340mm
14kg
1.2 kg
0.8kg x 2
5.5 kg
Supported disc formats
•
•
•
•
•
Max. album number: 32.
Max. MP3 track number: 999.
Supported sampling frequencies for MP3
disc: 32 kHz, 44.1 kHz, 48 kHz.
Supported Bit-rates of MP3 disc are: 32, 64,
96, 128, 192, 256 (kbps).
The following formats are not supported:
• Files like *.VMA, *.AAC, *.DLF, *.M3U,
• *.PLS, *.WAV
• Non-English Album/Title name
• Discs recorded in Joliet format
• MP3 Pro and MP3 with ID3 tag
Digital Video Discs (DVDs)
Video CDs (VCDs)
Super Video CDs (SVCDs)
Digital Video Discs + Rewritable
(DVD+RW)
• Compact Discs (CDs)
• Picture (Kodak, JPEG) files on CDR(W)
• DivX(R) disc on CD-R(W):
• DivX 3.11, 4.x and 5.x
• WMA
Supported MP3-CD formats:
• ISO 9660
• Max. title/album name: 12 characters
• Max. title number plus album: 255.
• Max. nested directory: 8 levels.
USB playability information
Compatible USB devices:
• USB flash memory (USB 2.0 or
USB1.1)
• USB flash players (USB 2.0 or USB1.1)
• memory cards (requires an additional
card reader to work with this
apparatus)
•
•
•
•
•
•
•
•
•
•
•
•
•
Supported formats:
USB or memory file format FAT12,
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps
and variable bit rate
WMA v9 or earlier
Directory nesting up to a maximum
of 8 levels
Number of albums/ folders: maximum
99
Number of tracks/titles: maximum 999
ID3 tag v2.0 or later
File name in Unicode UTF8
(maximum length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an
album that does not contain MP3/
WMA files, and is not be shown in the
display.
Unsupported file formats are skipped.
For example, Word documents (.doc)
or MP3 files with extension .dlf are
ignored and not played.
AAC, WAV, PCM audio files
DRM protected WMA files (.wav,
.m4a, .m4p, .mp4, .aac)
WMA files in Lossless format
EN
31
Eng l i sh
•
•
•
10 Troubleshooting
Warning
• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
•
Ensure that the AC cord of the apparatus
is connected properly.
•
Ensure that there is power at the AC
outlet.
•
As a power-saving feature, the system
switches off automatically 15 minutes after
track play reaches the end and no control
is operated.
Remote control does not work
•
Before pressing any function button, first
select the correct source with the remote
control.
•
Reduce the distance between the remote
control and the system.
•
Aim the remote control directly at the
sensor on the front of the main unit.
•
Insert the batteries with their polarities
(+/– signs) aligned as indicated.
•
Replace the battery.
Wireless connection fails.
•
Set up wireless connection manually (see
‘Set up wireless connection manually’ on
page 18).
USB device or SD/MMC card not supported
•
The USB device or SD/MMC card is
incompatible with the apparatus. Try
another one.
32
EN
No disc detected or disc does not play
•
Insert a disc.
•
Check if the disc is inserted upside down.
•
Check the disc type, color system and
regional code.
•
Disable the password for parental control
or change the rating level.
•
Check for any scratches or smudges on the
disc.Replace or clean the disc.
•
Moisture has condensed inside the system.
Wait until the moisture is cleared.
No picture
•
Check the video connection.
•
Turn on the TV to the correct Video-In
channel.
•
Progressive scan is activated but the TV
does not support progressive scan.
No picture on HDMI connection.
• Check if the HDMI cable is faulty. Replace a
new HDMI cable.
• If this happens when you change the
HDMI video resolution, select the correct
resolution until the picture appears.
Black and white or distorted picture
•
The disc does not match the TV color
system standard (PAL/NTSC).
•
Sometimes a slight picture distortion may
appear. This is not a malfunction.
•
Clean the disc.
•
A distorted picture may appear during
progressive scan setup.
Audio or subtitle languages cannot be set
•
The disc is not recorded with sound or
subtitles in multiple languages.
•
The audio or subtitle language setting is
prohibited on the disc.
Unable to select Progressive Scan
•
Ensure the video output mode is set to
[Pr/Cr Pb/Cb Y].
Eng l i sh
The aspect ratio of the TV screen cannot be
changed even though you have set the TV
display format.
•
The aspect ratio if fixed on the loaded
DVD disc.
•
The aspect ratio may not be changed for
some TV systems.
Cannot display some files in USB device or
SD/MMC card
•
The number of folders or files in the USB
device or SD/MMC card has exceeded
a certain limit. This phenomenon is not a
malfunction.
•
The formats of these files are not
supported.
No sound or poor sound
•
Adjust the volume.
•
Ensure the wireless subwoofer is
connected.
No sound on HDMI connection.
• You may not hear any sound if the
connected device is non-HDCP compliant
or only DVI-compatible.
Poor radio reception
•
Increase the distance between the main
unit and your TV or VCR.
•
Fully extend the FM antenna.
•
Connect an outdoor FM antenna instead.
EN
33
11 Appendix
Mount to a wall
212m
m
Caution
• Risk of product damage! Always consult professional
personnel to safely mount the product to a wall.
• Risk of injury! Ensure that no supply ducts such as gas,
water or electricity are harmed when you drill the
holes.
2
Screw on the supplied mounting screws.
3
If you have installed the back bracket on
the back of the main unit, take it off.
4
Mount the back bracket on the back
bottom side of the main unit.
What’s in the supplied mounting kit
4 x wall mount screws (2 for main unit, 2 for
speakers)
What else you’ll need
•
•
•
Electric drill
Screwdriver
Pencil
Mount the main unit and speakers
Caution
• Mount the main unit and speakers to a solid concrete
wall or plaster board wall only!
You can mount the main unit and speakers to
the wall.
1
Use a pencil to mark the drilling positions,
the drill holes as marked.
34
EN
Eng l i sh
5
Hook the main unit and speakers in place.
EN
35
12 Glossary
Analog sound can only be transmitted through
two channels.
A
Disc menu
A screen display that allows election of images,
sounds, subtitles, multi-angles, etc., recorded on
a DVD.
Analog audio
Sound that has not been turned into numbers.
Analog sound is available when you use the
AUDIO LEFT/RIGHT. These red and white jacks
send audio through two channels, the left and
right.
DivX®
The DivX® codec is a patent-pending, MPEG-4
based video compression technology developed
by DivX®, Inc. It can shrink the file size of digital
video and still maintain the high visual quality.
Aspect ratio
Aspect ratio refers to the length to height ratio
of TV screens. The ratio of a standard TV is 4:3,
while the ratio of a high-definition or wide TV
is 16:9. The letter box allows you to enjoy a
picture with a wider perspective on a standard
4:3 screen.
Dolby Digital
A surround sound system developed by Dolby
Laboratories that contains up to six channels of
digital audio (front left and right, surround left
and right, center and subwoofer.)
B
HDMI
High-Definition Multimedia Interface is a
high-speed digital interface that can transmit
uncompressed high definition video and digital
multichannel audio. It delivers high quality
picture and sound quality, completely free from
noise. HDMI is fully backward-compatible with
DVI.
As required by the HDMI standard, connecting
to HDMI or DVI products without HDCP
(High-bandwidth Digital Content Protection)
will result in no Video or Audio output.
Bit rate
Bit rate is the number of bits that are conveyed
or processed per unit of time. The bit rate is
usually measured in some multiple of bits per
second (kilobits per second: kbps). The term
bit rate is a synonym for data transfer rate (or
simply data rate).
C
Chapter
Chapter
Sections of a picture or a music piece on
a DVD that are smaller than titles. A title is
composed of several chapters. Each chapter is
assigned a chapter number that enables you to
locate a specific chapter.
D
Digital Audio
Digital Audio is a sound signal that has been
converted into numerical values. Digital sound
can be transmitted through multiple channels.
36
EN
H
J
JPEG
A very common digital still picture format. A
still-picture data compression system proposed
by the Joint Photographic Expert Group, which
features small decrease in image quality in
spite of its high compression ratio. Files are
recognized by their file extension ‘.jpg’ or ‘.jpeg.’
S
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
than a regular CD.
Surround
A system that creates realistic, threedimensional sound fields. It is usually achieved
with multiple speakers that are arranged around
the listener.
Multichannel
Usually DVD is specified to have each sound
track constitute one sound field. Multichannel
refers to a structure of sound tracks having
three or more channels.
P
Parental control
A function of the DVD to limit playback of the
disc by the age of the users according to the
limitation level in each country. The limitation
varies from disc to disc; when it is activated,
playback will be prohibited if the software’s level
is higher than the user-set level.
PBC
Playback Control. A system where you navigate
through a Video CD/Super VCD with on-screen
menus that are recorded onto the disc. You can
enjoy interactive playback and search.
R
Region code
A system that allows discs to be played only in
the region designated. This unit only plays discs
that have compatible region codes. You can find
the region code of your unit on the product
label. Some discs are compatible with more
than one region (or ALL regions.)
EN
37
Eng l i sh
M
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: HES4900_98_UM_V2.0
