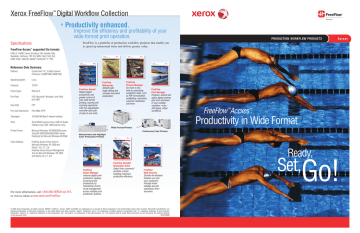

Xerox FreeFlow™ Digital Workflow Collection
TM
Productivity enhanced.
Improve the efficiency and profitability of your
wide-format print operation.
PRODUCTION WORKFLOW PRODUCTS
Accxes
FreeFlow is a portfolio of production workflow products that enable you
to speed up turnaround times and deliver greater value.
Specifications
FreeFlow Accxes™ supported file formats
HPGL/2, FileNET, Xerox Emulation 150, Versatec Data
Standards, CalComp, TIFF 6.0, NIRS, CALS 1&2, RLE,
CGM, VCGL. Optional: Adobe® PostScript® 3™, PDF.
Reference Data Summary
Platform:
Custom Dell™ PC, 2.5GHz Celeron®
Processor, 512MB RAM, 80GB HDD
PRODUCTION WORKFLOW PRODUCTS
ACCXES
FreeFlow Accxes:
Productivity in Wide Format
Ready,
Operating System:
Linux
Protocols:
TCP/IP
Frame Types:
Ethernet II
Print Path:
LPD, Microsoft® Windows® port 9100,
port 2000
Scan Path:
FTP
Print Job Submission:
Port 2000, HTTP
Topologies:
10/100/1000 BaseT network interface
Ports:
Serial RS232 (service only); USB 2.0 (folder
interface only); IEEE 1394 (scanner only)
Printer Drivers:
Microsoft Windows: XP/2000/2003 server;
AutoCAD 2002/2004/2005/2006, Adobe
PostScript for Microsoft Windows XP/2000
Set,
Go!
FreeFlow Accxes®
Realize higher
productivity and
greater control of
your wide-format
printing, copying and
scanning operations
with this upgradeable
controller and suite
of easy-to-use tools.
FreeFlow
Makeready
Simplify latestage editing and
complex document
preparation.
FreeFlow
Process Manager
Do more in less
time by automating
production steps, such
as PDF normalization,
preflighting, imposition,
customer notification
and more.
FreeFlow
Print Manager
Program, submit and
status digital printing
jobs from anywhere
in your existing
workflow—even
JDF-based, offset
workflows.
FreeFlow ™Accxes™:
Productivity in Wide Format
Wide Format Printers
Client Software:
Continuous Feed Printers
Monochrome and Highlight
Color Production Printers
FreeFlow Accxes Client Tools for
Microsoft Windows: XP, 2000 and
Solaris™ 2.6, 2.7, 2.8;
FreeFlow Accxes Account Management
Tool for Microsoft Windows: XP, 2000
and Solaris 2.6, 2.7, 2.8
For more information, call 1-800-ASK-XEROX ext. 874,
or visit us online at www.xerox.com/FreeFlow.
Ready,
FreeFlow
Output Manager
Improve digital print
production capacity,
turnaround and
productivity by
centralizing control
of job management
across multiple print
production systems.
FreeFlow Variable
Information Suite
Select from a powerful
portfolio of tools
enabling maximum
production efficiency.
FreeFlow
Web Services
Shorten the distance
between you and
your customers
through online
catalogs and job
submission from
anywhere.
© 2005 Xerox Corporation. All rights reserved. XEROX®, FreeFlow™, Accxes™, 6050™ and 6030™ are trademarks of or licensed to Xerox Corporation in the United States and/or other countries. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation in the United States and other countries. Adobe®, PostScript® and 3™ are trademarks of Adobe Systems Incorporated. Dell™ is a registered trademark of Dell Computer
Corporation. Celeron® is a registered trademark of Intel Corporation. Sun™ and Solaris™ are trademarks of Sun Microsystems, Inc. The products used to create these documents are not necessarily the products featured
610P720500
in this document. 8/05
Set,
Go!
Take command
of your wide-format production
Once again, Xerox brings a whole
new level of productivity to wideformat production. The Xerox
FreeFlow Accxes controller offers
major improvements in processing
speed, while maintaining the
same features and functionality
as earlier releases.
Like its predecessors, the FreeFlow Accxes
Controller includes a dedicated hardware
server that runs the unique FreeFlow Accxes
Controller firmware, including a set of printer
drivers for use with graphics, business or
engineering applications. In addition, every
FreeFlow Accxes Controller comes with a suite
of supporting client tools for PCs or Sun™
Solaris™ workstations.
Keep your system up-to-date
Instead of buying new hardware every time
you want new performance, the FreeFlow
Accxes Controller lets you simply upgrade by
downloading new features, often at no cost.
This makes the FreeFlow Accxes Controller
a great value. Plus, there’s no need to schedule
a service call for upgrades and enhancements,
except in rare cases, such as adding a scanner.
with FreeFlow™ Accxes™.
The FreeFlow Accxes Controller powers the fleet.
Send your jobs from a variety of network environments.
Gain from a tradition of
productivity advances—
today and well into the future.
The FreeFlow Accxes Controller
Unparalleled concurrency. You’ll get more
work done per unit of time than with any
other controller in this class. One reason
is that FreeFlow Accxes fully overlaps
copying, printing, and scan-to-file jobs.
Device Manager
Document Submit
Superior rendering. Customized imaging
algorithms optimize the performance
and image output quality of every printer
it supports, as well as the Wide Format
Scan System.
Print drivers. The print drivers convert
Microsoft® Windows® display data into
formats the FreeFlow Accxes controller
can interpret and use to ensure a
printer’s output matches the application
display. The drivers also embed PJL
code in files containing specific printer
or product information. Drivers include
GDI, HDI, and PostScript.
Web Print Management Tool. This
tool simplifies the work of system
administrators. From any networked
computer that has a browser, the
administrator can maintain overall
control of any FreeFlow Accxes solution.
Wide-format printing at its best
Web Print
Management
Tool
The FreeFlow Accxes controller configures to a broad
range of Xerox wide format printers and scanners:
• Xerox 510
• Xerox 8825, 8830, 8850
• Xerox 6050™/6030™
• Xerox Scan System
• Xerox 721
Every FreeFlow Accxes Controller comes with these four Accxes Client Tools:
No need to learn a new workflow
With FreeFlow Accxes, you won’t be working
at the operating system level. The operating
system is completely hidden, so there’s no
graphical or command line interface to deal
with. Everything can be done using the Web
Print Management Tool, Accxes Client Tools,
or the copier user interface. And because
we use a Linux operating system, FreeFlow
Accxes provides a greater level of security.
Document Submit Tool (DST)
Creates and prints jobs
containing one or more print
files. Allows you to specify
options, including plot labels
and raster stamps. Can view
with third-party viewer.
Document Retrieve Tool (DRT)
Retrieves and stores images
locally or on the network from
controllers supporting the full
Scan-to-Net option.
Device Manager
Allows you to tailor your
desktop with connections
to just the printers and/or
scanners you use. Also lets
you specify a default device
to be used with DST, DRT
and Printer Queue
operations.
Printer Queue
Makes it easy to check the
selected printer queue from
a workstation. Lets you view
each job in the queue and
display media and status
information.
Account Management Tool (AMT)
When used with the Account Data Tracking
option, the Account Management Tool
continuously tracks and maintains a job log
file with scan, print and copy job information,
media usage, time, and finishing data. Tracks
up to 9,999 accounts, 9,999 users, and 999
printers in any combination.
High security. FreeFlow Accxes has a builtin firewall to inhibit electronic invasion and
protect it against worms and viruses. In
addition, an optional three-pass image
overwrite feature ensures information is
erased from the hard drive.
Excellent fidelity. Xerox uses both
independent test suites and its own extensive
testing to ensure FreeFlow Accxes interprets
each format with high integrity. It also supports
most engineering and graphic formats, both
vector and raster.
Easy-to-use client software. It’s hard to overestimate how much the Accxes Client Tools boost
productivity. For example, the Document Submit
Tool makes it easy to print complex, collated sets
that used to require manual assembly and copying.
Flexible printer drivers. Users can print directly
from a broad range of business and engineering
applications.
Intuitive production or walk-up copying. You’ll have
a consistent interface for copying that’s rich enough
for complex production, yet easy enough for casual
copying. And users won’t have to push any buttons
to make a simple copy.
Xerox FreeFlow™ Digital Workflow Collection
TM
Productivity enhanced.
Improve the efficiency and profitability of your
wide-format print operation.
PRODUCTION WORKFLOW PRODUCTS
Accxes
FreeFlow is a portfolio of production workflow products that enable you
to speed up turnaround times and deliver greater value.
Specifications
FreeFlow Accxes™ supported file formats
HPGL/2, FileNET, Xerox Emulation 150, Versatec Data
Standards, CalComp, TIFF 6.0, NIRS, CALS 1&2, RLE,
CGM, VCGL. Optional: Adobe® PostScript® 3™, PDF.
Reference Data Summary
Platform:
Custom Dell™ PC, 2.5GHz Celeron®
Processor, 512MB RAM, 80GB HDD
PRODUCTION WORKFLOW PRODUCTS
ACCXES
FreeFlow Accxes:
Productivity in Wide Format
Ready,
Operating System:
Linux
Protocols:
TCP/IP
Frame Types:
Ethernet II
Print Path:
LPD, Microsoft® Windows® port 9100,
port 2000
Scan Path:
FTP
Print Job Submission:
Port 2000, HTTP
Topologies:
10/100/1000 BaseT network interface
Ports:
Serial RS232 (service only); USB 2.0 (folder
interface only); IEEE 1394 (scanner only)
Printer Drivers:
Microsoft Windows: XP/2000/2003 server;
AutoCAD 2002/2004/2005/2006, Adobe
PostScript for Microsoft Windows XP/2000
Set,
Go!
FreeFlow Accxes®
Realize higher
productivity and
greater control of
your wide-format
printing, copying and
scanning operations
with this upgradeable
controller and suite
of easy-to-use tools.
FreeFlow
Makeready
Simplify latestage editing and
complex document
preparation.
FreeFlow
Process Manager
Do more in less
time by automating
production steps, such
as PDF normalization,
preflighting, imposition,
customer notification
and more.
FreeFlow
Print Manager
Program, submit and
status digital printing
jobs from anywhere
in your existing
workflow—even
JDF-based, offset
workflows.
FreeFlow ™Accxes™:
Productivity in Wide Format
Wide Format Printers
Client Software:
Continuous Feed Printers
Monochrome and Highlight
Color Production Printers
FreeFlow Accxes Client Tools for
Microsoft Windows: XP, 2000 and
Solaris™ 2.6, 2.7, 2.8;
FreeFlow Accxes Account Management
Tool for Microsoft Windows: XP, 2000
and Solaris 2.6, 2.7, 2.8
Ready,
FreeFlow
Output Manager
Improve digital print
production capacity,
turnaround and
productivity by
centralizing control
of job management
across multiple print
production systems.
FreeFlow Variable
Information Suite
Select from a powerful
portfolio of tools
enabling maximum
production efficiency.
FreeFlow
Web Services
Shorten the distance
between you and
your customers
through online
catalogs and job
submission from
anywhere.
Springstar Limited, Park House, Greenhill Crescent, Watford, Hertfordshire WD18 8PH
Tel: 01923 819999 Email: [email protected] Web: www.springstar.co.uk
© 2005 Xerox Corporation. All rights reserved. XEROX®, FreeFlow™, Accxes™, 6050™ and 6030™ are trademarks of or licensed to Xerox Corporation in the United States and/or other countries. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation in the United States and other countries. Adobe®, PostScript® and 3™ are trademarks of Adobe Systems Incorporated. Dell™ is a registered trademark of Dell Computer
Corporation. Celeron® is a registered trademark of Intel Corporation. Sun™ and Solaris™ are trademarks of Sun Microsystems, Inc. The products used to create these documents are not necessarily the products featured
610P720500
in this document. 8/05
Set,
Go!
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
