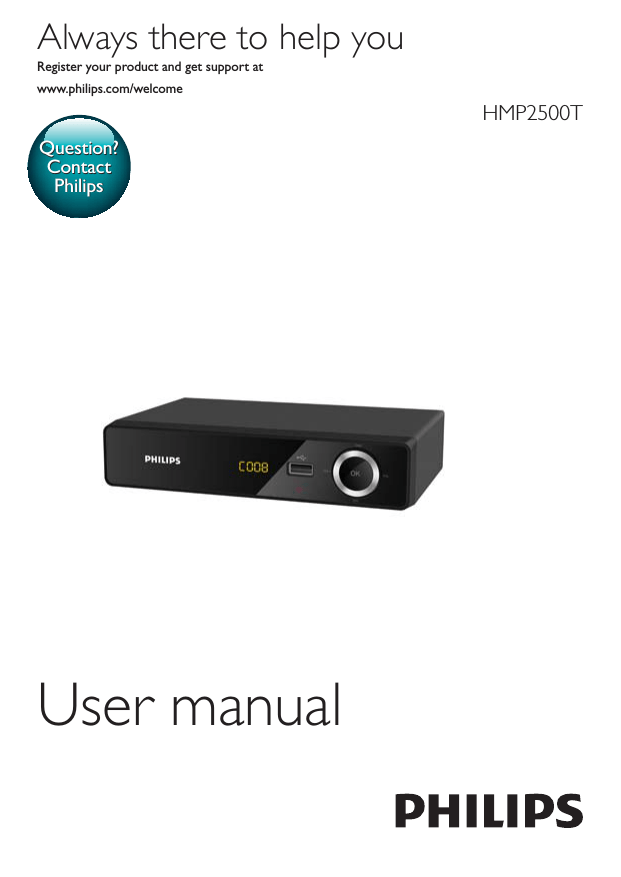

Always there to help you
Register your product and get support at
www.philips.com/welcome
HMP2500T
Question?
Contact
Philips
User manual
Contents
1 Safety and notice
3
Safety
3
Compliance
4
Care of the environment
5
Copyright
5
Warranty
6
Trademark notice
6
2 Overview
8
Main unit
8
Remote control
9
3 Get started
12
Connect
12
Switch on or off
13
4 Play from DVB services
15
First-time setup
15
Tune in to TV/radio services
16
Use the Electronic Program Guide (EPG)
19
Use the Personal Video Recorder (PVR)
21
5 Play from a USB mass storage device
24
EN
1
6 Setup
Program
25
25
26
Channel Search
26
Time
26
Option
26
System
27
28
29
2
EN
1
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
This 'bolt of lightning' indicates uninsulated material within the device may cause
an electrical shock. For the safety of everyone in your household, please do not
remove the covering.
The 'exclamation mark' calls attention to features for which you should read the
enclosed literature closely to prevent operating and maintenance problems.
!"#$
not be placed on the device.
CAUTION: To prevent electric shock, fully insert the plug. (For regions with
polarized plugs: To prevent electric shock, match wide blade to wide slot.)
%&!*&!+
The product shall not be exposed to dripping or splashing.
;&<=+<+$"
lighted candles).
EN
3
other unsafe operation.
Warning
>
>
>
>
>
>
Never remove the casing of this product.
Never lubricate any part of this product.
$!+
?#&!<@!+
Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Compliance
!#$!B
Community.
Class II equipment symbol:
This symbol indicates that this product has a double insulation system.
!"
#"
approved by Philips Consumer Lifestyle may void the user’s authority to operate
the equipment.
Note
> The type plate is located on the bottom of the product.
4
EN
Care of the environment
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
<<<<!$!+
D<!#<$&!
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and
electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
<$!!+
Copyright
EN
5
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
K"<#+
!&
of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves
the right to change products at any time without being obliged to adjust earlier
supplies accordingly.
Warranty
>
>
>
>
Never attempt to repair the product, this could lead to the risk of injury,
damage to the product and will void your warranty.
Use the product and accessories only as intended by the manufacturer. The
caution sign printed on the back of the product indicates risk of electric
shock.
Never remove the cover of the product. Always contact Philips Customer
Support for service or repairs.
Any operation expressly prohibited in this manual, or any adjustments and
assembly procedures not recommended or authorized in this manual shall
void the warranty.
Trademark notice
®
Q;XQ;X<Q<Z;X!!
or registered trademarks of HDMI licensing LLC in the United States and other
countries.
6
EN
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, Inc.
EN
7
2
Overview
Through HMP2500T&#<&<Z
^=Q;
^_
> Receive digital TV/ radio programs from the latest Digital Video
Broadcasting (DVB-T2) services;
> Schedule your watching, listening, or recording of the programs;
> Play media that you store on the USB device.
Main unit
i
OK
j
h
k
g
a
f
e dc b
a
MAINS ~
> AC power cord
b
L/R
> Connectors for audio output
c
Pr / Pb / Y
> Connectors for component video output
d
VIDEO
> Connector for video output
e
HDMI
> HDMI connector for audio/ video output
f
RF LOOP THROUGH
> Output connector for external TV antenna
8
EN
g
RF IN
> Input connector for external TV antenna
h
>
i
USB connector for media play and power charging of a USB mass
storage device
Status display
j
>
Press the button to switch on; To switch off, press and hold the button
for more than three seconds.
CH+/CH-/
/
> Navigate through the list of options
OK
> Select an option
CH+/CH> DVB: Select the next or previous service
/
> Increase or decrease the volume
k
Power indicator
Remote control
Switch HMP2500T on or to standby mode
> Press
Select TV resolutions
> Press TV MODE repeatedly
Select media sources
TV / RADIO
> Press the button repeatedly to switch between the TV and Radio
modes
USB
> Switch to the USB mode
EN
9
Navigate through options
> Navigate through options
OK
> q!
/ EXIT
> Exit
> USB: Back one level
Select a TV/ radio service
(CH+) / (CH-)
> Switch to the next or previous channel
0-9
> Numeric keys for the entry of channel numbers
EPG (Electronic Program Guide)
> List of all TV/ radio programs
> Create your watching/ listening schedule
FAV
> Access the list of your favorite services
Use the PVR (Personal Video Recorder)
LIST
> Access the recorded programs
REC
> Record current program
> Access the programs in your watching/listening/recording schedule
$"
>
Start, pause, or resume the play
/ EXIT
> Stop the play
/
> K!
/
> K###
> Press repeatedly to select a search speed
GOTO
> Skip to a point of time for media play
Red / Green buttons
> Rotate a photo
10
EN
> USB: Zoom in or out the image
> TV: Select the aspect ratio options
REPEAT
> Select the repeat options
INFO
> ;&!<!*<&
SUBTITLE
> Access subtitle options
AUDIO
> Access the options of audio languages
> Access the options of audio tracks
TTX
> TV/ Radio: Switch teletext on or off
Change the volume
/
> Increase or decrease the volume
> Mute/ unmute
Select setup options
> Press SETUP
EN
11
3
Get started
Connect
Cable
3
HDMI
HDMI IN
SOURCE
TV
a
%$&'**,
7,8;%<,8=
%<>
cable (not supplied).
b
Connect your TV antenna cable (not supplied) to RF IN.
c
Connect the power cord to power.
To connect to a TV through AV cables
Audio/video cables (not supplied):
AV
L
VIDEO
12
VIDEO L
R
EN
R
Component video cables (not supplied):
AV
Pr
VIDEO
>
Pb
L
Y
R
Pr/Cr
Pb/Cb
Y
Make sure that the plugs and sockets match in color.
Switch on or off
1
On HMP2500T, press on the remote control to switch on.
> Alternatively, press on the main unit.
OK
2
On the TV, switch to the input source of HMP2500T:
> On the remote control of your TV, use the source button to select the
input source of HMP2500T.
AV
HDMI 1
HDMI 2
HDMI 3
Side HDMI
Side AV
SOURCE
TV
3
To switch HMP2500T to standby mode, press
control.
» The power indicator lights up red.
again on the remote
EN
13
>
Alternatively, press and hold
seconds to switch off.
on the main unit for more than three
Auto standby
If there is no button press or media play on HMP2500T for three hours,
HMP2500T can switch to standby mode automatically to save power.
On the remote control, press SETUP. Go to to switch on [Auto Standby].
14
EN
4
Play from DVB services
First-time setup
!&HMP2500T, do the following setup:
Installation Guide
OSD Language
English
Country
England
Channel Search
EXIT
1
2
3
EXIT
OK
Confirm
In [OSD Language], select the language for the onscreen menus.
In [Country], select the country of your current location.
In [Channel Search], press or OK to start auto search.
» HMP2500T starts to search for available services.
» !
^
play.
Auto search
When you move to a new place (such as a new city or country), restart auto
search for better reception.
1
2
On the remote control, press SETUP.
Go to and select [Auto Search].
» HMP2500T starts to search for available services.
» !
^&+
EN
15
Manual search
D&!$&+
1
2
On the remote control, press SETUP.
Go to
and select [Manual Search].
Tune in to TV/radio services
1
On HMP2500T, switch to the TV or radio mode.
> On the remote control, press TV / RADIO repeatedly.
» You switch to the last played service.
2
To tune in to a service by channel,
> Press (CH+) / (CH-), or
> Use the numeric keys 0-9 to enter channel numbers.
To tune in to a service by service information,
> Press EPG. Press
to switch between services.
To tune in to your favorite services,
> Press FAV.
Select from the list of services
1
In the TV or Radio mode, press EPG.
» You can select from the list of available TV/ radio services.
2
Press
to switch between services.
Sort services in the EPG
To display services as needed, you can sort the services in different ways.
1
On the remote control, press SETUP.
16
EN
Program
Program Edit
EPG
Sort
LCN
EXIT
Return
By Service Name
Off
OK
Confirm
2
Select
> [Sort]:
[By LCN]: Services are sorted by Logical Channel Number (LCN).
[By ONID]: Services are sored by Original Network ID (ONID).
[By Service Name]: Services are sorted by service name.
[By Service ID]: Services are sorted by service ID.
3
Press
to switch between options.
Create a list of favorites
On the remote control, press FAV. You can access the services that you have
added to the list of favorites.
To add/ remove a service
1
2
On the remote control, press SETUP.
Select
> [Program Edit].
> Enter your password (000000 by default).
» A list of services is displayed.
EN
17
3
To add a service,
> Select a service. Press FAV.
» A pop-up screen is displayed for you to select the program type.
» The Favorite icon is added next to the service.
4
To remove the service,
> Select the service. Press FAV again.
» The Favorite icon is removed.
To access a favorite service
1
On the remote control, press FAV.
» A pop-up screen is displayed for you to select a service.
2
3
To switch between program types, press
To select a service, press
.
and OK.
Re-assign channel numbers
1
Switch off the logical channel number (LCN).
a On the remote control, press SETUP.
b In
2
> LCN, press
to select [Off].
Move a service to the channel number that you want to assign:
a In
> [Program Edit], select a service.
Enter your password (000000 by default).
b On the remote control, press the Red button.
» The Move icon is added next to the service.
c Press
/
to move the service.
d To stop moving, press the Red button again.
» The Move icon is removed.
18
EN
Edit the program list
By editing the program list, you can lock services, skip services, or change the
service name.
1
2
On the remote control, press SETUP.
Select
> [Program Edit].
> Enter your password (000000 by default).
» A list of services is displayed.
» You can edit the program list as needed.
Lock a service
You can set a password for some services.
1
2
Select a service.
Lock the service:
> On the remote control, press the Yellow button.
» The Lock icon is added next to the service.
» To watch the locked service, enter your password (000000 by
default).
3
To unlock the service:
> Select the service. Press the Yellow button again.
Use the Electronic Program Guide (EPG)
With the Electronic Program Guide (EPG), you can get the information about
current and upcoming programs, such as introduction and schedules.
EN
19
Create your watching /listening schedule
With the EPG, you can create a schedule for the TV/ radio programs that you
want to watch or listen to.
1
Go to the EPG.
> On the remote control, press EPG.
> Alternatively, press SETUP, and then, select
2
Select a program:
a Press
b Press
> EPG.
to select a service.
/
to navigate through the programs.
Program Guide
001 TV ONE
25/05 14: 05-14:55 Program 1
25/05 14: 55-14:25 Program 2
Fri 25/05/2001 14:39
Page: 1 / 1
Book
OK
3
Book list
Page Down
Page Up
On your selected program, press OK.
» The event is added to your schedule.
» A pop-up screen is displayed for you to edit the event.
Schedule
Event
01
Program
Mode
OK
20
Date
Time
Repeat Status
Event14:55-15:25
Eidt
TV ONE
25/05
Once
Channel Type
TV
Channel No.
0004
Channel Name
TV ONE
Start Date(D/M/Y) 25/05/2001
Start Time
14:55
End Time
15:25
Repeat
Weekly
EN
Confirm
View
EXIT
EXIT
4
Edit the event:
In [Repeat]: Select how often event repeats, once, daily, or weekly.
In [Mode]: Select whether to view or record the program.
» At the scheduled time, the play or recording starts automatically
(see 'Record as scheduled' on page 21).
To add, edit, or delete an event
1
On the remote control, press .
» The schedule is displayed.
2
On the remote control, press the red, green, or blue buttons to add, edit, or
delete a selected event.
Use the Personal Video Recorder (PVR)
With the Personal Video Recorder (PVR), you can record a program at the
scheduled time, or record the program during watching.
The recordings are saved to the USB device that you have connected to
HMP2500T.
OK
Record as scheduled
1
2
On HMP2500T, connect a USB mass storage device.
On the remote control, press .
» Your watching/ listening schedule is displayed.
EN
21
Schedule
Event
01
Program
TV ONE
Add
3
Edit
Date
Time
25/05
14:55-15:25
Repeat Status
Delete
Once
EXIT
To change an event to the recording mode,
a On the selected event, press the Green button to edit the event.
» A pop-up screen is displayed for you to edit the event.
b In [Mode], press
to switch to [Record].
Schedule
Event
01
Program
Date
Time
Repeat Status
Event14:55-15:25
Eidt
TV ONE
25/05
Once
Channel Type
TV
Channel No.
0004
Channel Name
TV ONE
Start Date(D/M/Y) 25/05/2001
Start Time
14:55
End Time
15:25
Repeat
Weekly
Mode
OK
Confirm
Record
EXIT
EXIT
To add an event for recording,
> Press the Red button. In the pop-up screen, add an event and select
[Record] in [Mode].
» At the scheduled time, recording starts.
Record during watching/listening
1
2
On HMP2500T, connect a USB mass storage device.
22
EN
When you watch or listen to a program, press REC on the remote control.
» You start to record current program.
Play recorded programs
1
Make sure that you have connected the USB mass storage device to
HMP2500T.
2
On the remote control, press LIST.
» The list of recordings is displayed.
3
Select a recording to start play.
EN
23
5
1
Play from a USB mass storage
device
On HMP2500T, connect a USB mass storage device.
OK
2
Switch to the USB mode.
> On the remote control, press USB.
3
K&+
24
EN
6
Setup
You can change the setup options of HMP2500T.
1
On the remote control, press SETUP.
» The setup menu is displayed.
Program
Program Edit
EPG
Sort
LCN
EXIT
2
By Service Name
Off
Return
OK
Confirm
To select an option,
a Press
to switch to a menu: [Program],
[Channel Search], [Time],
[Option], and
b Press
c Press
3
/
[Picture],
[System].
to select a menu item.
to select an option.
To exit, press EXIT.
Program
[Program Edit]B+D<$
services, change the service names, and lock, skip, and delete some services.
EPG: Check the program information and schedules, and create your schedule of
watching, listening and recording
[Sort]: Sort the list of services in different ways (see 'Sort services in the EPG' on
page 16).
EN
25
LCN: Select whether to keep the logical channel numbers of the services. To reassign channel numbers to the services, switch off LCN.
[Aspect Ratio]: Select display aspect ratio.
[Resolution]: Select the video resolution that your TV supports. See your TV
manual for details.
[TV Format]: Select the TV color system of your country. See your TV manual for
details.
Channel Search
[Auto Search]: Start the auto search of available TV/ radio services.
[Manual Search]K
^*&!$&+
[Country]: Select the country of your current location.
[Antenna Power]: Increase the power of the external antenna.
Time
[Time Offset]: Select [Auto] to use the time of the TV/ radio services. Select
[Manual] to select your time zone in [Time Zone].
[Country Region]: Select the country of your current location.
[Time Zone]: To select your time zone, select [Manual] in [Time Offset].
[Auto Standby]: Switch HMP2500T off automatically when there is no button
press or media play for three hours.
Option
[OSD Language]: Select languages for the onscreen menus.
[Subtitle Language]: Select languages for the subtitle.
[Audio Language]: Select languages for the audio.
26
EN
HDMI Audio: Select options for HDMI audio output. If you use TV speakers for
audio output, select [PCM]+&!<[RAW
HDMI On]. To switch off HDMI audio output, select [Off].
System
Parental Guidance
In [Parental Guidance], you can set password to programs with age restrictions. By
default, the password is 000000.
You can also lock some services in
> [Program Edit].
Set Password
In [Set Password], you can set your password that you use in [Program Edit]and
[Parental Guidance].
Restore factory default
In [Restore Factory Default], restore the factory defaults of the HMP2500T.
Information
In [Information], check the information about your HMP2500T. Before you
<!#!&HMP2500T.
EN
27
7
1
Update the firmware through
a USB storage device
On your computer, do the following:
a Go to www.philips.com/support
^
b Search for your model and click on "Software and drivers".
c <
directory of a USB storage device.
2
On HMP2500T, do the following:
a Connect the USB storage device.
b On remote control, press SETUP, and then, select [System] >
[Software Update] > [USB Upgrade].
» !#&!
update.
» HMP2500T restarts automatically and then, the update starts.
3
Follow onscreen instructions to complete the update.
» When the update is complete, HMP2500T switches off automatically.
Caution
> Keep HMP2500T #<!!#
complete.
28
EN
8
Specification
Note
> K<"<#+
AC power
Voltage information is printed on the bottom of HMP2500T.
Power consumption 9 - 9.5 W
Power consumption in standby mode < 0.5 W
Supported formats:
> Video: MPEG 1/2, H.264, MPEG 4, Xvid (1.00, 1.01, 1.03,
1.10-beta1/2),JPEG, DAT, MPG, MPEG, TS, TRP, TP, M2TS, VOB, MP4, MKV,
AVI, DMF (0, 1, 2,), Motion JPEG
> Audio: Dolby Digital, MPEG Audio, AC3, EAC3, AAC, HEAAC, LPCM,
IMP/MS ADPCM, LBR, MP3, M4A
> Picture: JPEG, PNG, BMP
HDD & USB support
> NTFS, FAT32, FAT16
> USB MSC support
> Q;;€
‚Kƒ+„…B#$€+†‡‡
2.5'' HDD
Subtitle support
> .srt, .sub, .smi, .ssa, idx+.sub
Video
> HDMI output: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Audio
> Signal to noise ratio (1 kHz): > 90 dB (A-weighted)
> Dynamic Range (1 kHz): > 80 dB (A-weighted)
> ‰$&Š*Z€
Main Unit
> Dimensions (L x W x H): 180 x 113 x 45 mm
> Net Weight: 0.48 Kg
EN
29
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
HMP2500T_12_UM_V1.0wk42.3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
