HP Compaq dx2300 Microtower Business PC
Overview
HP recommends
Windows Vista® Business
Microtower

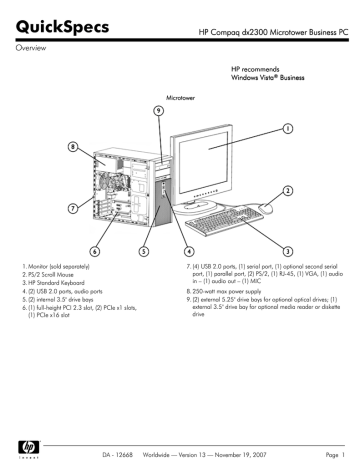

1. Monitor (sold separately)
2. PS/2 Scroll Mouse
3. HP Standard Keyboard
4. (2) USB 2.0 ports, audio ports
5. (2) internal 3.5" drive bays
6. (1) full-height PCI 2.3 slot, (2) PCIe x1 slots,
(1) PCIe x16 slot
DA - 12668
7. (4) USB 2.0 ports, (1) serial port, (1) optional second serial
port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA, (1) audio
in – (1) audio out – (1) MIC
8. 250-watt max power supply
9. (2) external 5.25" drive bays for optional optical drives; (1)
external 3.5" drive bay for optional media reader or diskette
drive
Worldwide — Version 13 — November 19, 2007
Page 1
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Overview
At A Glance
Intel® Core™ 2 Duo processors, Intel Pentium® D processors, Intel Pentium 4 processors, or Intel Celeron® D processors
Choice of operating systems:
Genuine Windows Vista Business 32
Genuine Windows Vista Home Basic 32
Genuine Windows XP Professional
Genuine Windows XP Home
Red Flag Linux (China Only)
FreeDOS
Intel 946GZ Express Chipset
Intel I/O Controller Hub 7 (ICH7)
Intel Graphics Media Accelerator 3000
PCI Express I/O bus
Serial ATA controller
Intel PRO/100 VE Network Connection
Choice of hard drives and optical drives
DDR2 SDRAM system memory
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 2
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Standard Features and Configurable Components
Processor and Speed
One of the following
Intel Celeron D Processors
Intel Celeron D 331 Processor (2.66-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 336 Processor (2.80-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 347 Processor (3.06-GHz, 512-KB L2 cache, 533-MHz FSB)
Intel Celeron D 352 Processor (3.20-GHz, 512-KB L2 cache, 533-MHz FSB)
Intel Celeron D 356 Processor (3.33-GHz, 512-KB L2 cache, 533-MHz FSB)
Intel Celeron D 360 Processor (3.46-GHz, 512-KB L2 cache, 533-MHz FSB)
Intel Celeron D 420 Processor (1.60-GHz, 512-KB L2 cache, 800-MHz FSB)
Intel Celeron D 430 Processor (1.80-GHz, 512-KB L2 cache, 800-MHz FSB)
Intel Celeron D 440 Processor (2.00-GHz, 512-KB L2 cache, 800-MHz FSB)
Intel Pentium 4 Processors
Intel Pentium 4 531 Processor (3.00-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Pentium 4 541 Processor (3.20-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Pentium 4 631 Processor (3.00-GHz, 2-MB L2 cache, 800-MHz FSB)
Intel Pentium 4 641 Processor (3.20-GHz, 2-MB L2 cache, 800-MHz FSB)
Intel Pentium 4 651 Processor (3.40-GHz, 2-MB L2 cache, 800-MHz FSB)
Intel Pentium D Processors
Intel Pentium D 915 Processor (2.80-GHz, 4-MB L2 cache, 800-MHz FSB)
Intel Pentium D 925 Processor (3.00-GHz, 4-MB L2 cache, 800-MHz FSB)
Intel Pentium D 935 Processor (3.20-GHz, 4-MB L2 cache, 800-MHz FSB)
Intel Pentium D 945 Processor (3.40-GHz, 4-MB L2 cache, 800-MHz FSB)
Intel Pentium dual-core Processors
Intel Pentium Dual-Core E2140 Processor (1.60-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Pentium Dual-Core E2160 Processor (1.80-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Pentium Dual-Core E2180 Processor (2.00-GHz, 1-MB L2 cache, 800-MHz FSB)
Intel Core 2 Duo Processors
Intel Core 2 Duo E4300 Processor (1.80-GHz, 2-MB L2 cache, 800-MHz FSB)
Intel Core 2 Duo E4500 Processor (2.20-GHz, 2-MB L2 cache, 800-MHz FSB)
Intel Core 2 Duo E6300 Processor (1.86-GHz, 2-MB L2 cache, 1066-MHz FSB)
Intel Core 2 Duo E6320 Processor (1.86-GHz, 4-MB L2 cache, 1066-MHz FSB)
Intel Core 2 Duo E6400 Processor (2.13-GHz, 2-MB L2 cache, 1066-MHz FSB)
Intel Core 2 Duo E6420 Processor (2.13-GHz, 4-MB L2 cache, 1066-MHz FSB)
Intel Core 2 Duo E6600 Processor (2.40-GHz, 4-MB L2 cache, 1066-MHz FSB)
Intel Core 2 Duo E6700 Processor (2.66-GHz, 4-MB L2 cache, 1066-MHz FSB)
NOTE: Intel processor numbers are not a measure of performance. Processor numbers differentiate
features within each processor family, not across different processor families.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 3
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Standard Features and Configurable Components
Operating Systems and
Application Software
(availability varies by
region)
Genuine Windows Vista Business 32*
Genuine Windows Vista Home Basic 32*
Genuine Windows XP Professional SP2
Genuine Windows XP Home SP2
Red Flag Linux (China Only)
Free DOS
SUSE Linux Enterprise Desktop 10 (certified)
Microsoft Office 2007 Basic
Microsoft Office 2007 Small Business
Microsoft Office 2007 Professional
Microsoft Works 8.5
HP Backup and Recovery Manager
Roxio Easy Media Creator 9.1**
Intervideo WinDVD Player**
Symantec AntiVirus 10
Sun Java Runtime Environment
Google Toolbar
* Certain Windows Vista product features require advanced or additional hardware. See
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit http://www.windowsvista.com/upgradeadvisor.
** Supporting software available with certain optical drive configurations
Hard Drives
80-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
160-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
250-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
System Memory
256-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 256-MB)
NOTE: 256-MB configurations not supported by Windows Vista
512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 512-MB)
1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 1-GB)
2-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 1-GB)
Storage –
One or more of the
following (see Storage
section below)
Diskette Drive
1.44-MB Diskette Drive
Media Reader
HP 16-in-1 Media Reader and additional USB 2.0 port
Optical Drives (Serial ATA)
SATA CD-ROM drive (available in APJ only; not supported by Windows Vista)
SATA DVD-ROM Drive
SATA CD-RW/DVD-ROM Combo Drive
SATA DVD+/-RW (DL/DF) LightScribe Drive
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 4
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Standard Features and Configurable Components
Input Devices
Keyboard – One of the following
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
Mouse – One of the following
PS/2 2-Button Scroll Mouse
PS/2 2-Button Optical Scroll Mouse
USB 2-Button Optical Scroll Mouse
Audio
Realtek ALC888 High Definition audio codec
3D audio compliant with AC'97 Rev. 2.3 and HD Audio compatible
Internal PC speaker
Communication
Intel PRO/1000 PT Gigabit PCIe Adapter (full height)
Intel PRO/100 VE Network Connection
Agere 56K PCI Modem
Graphics
Intel Graphics Media Accelerator 3000
ATI Radeon X1300 (256MB SH) PCIe Graphics
ATI Radeon X1300 Pro (256MB DH) PCIe Graphics
Miscellaneous
HP FireWire / IEEE 1394 PCI Card (full height)
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 5
QuickSpecs
HP Compaq dx2300 Microtower Business PC
System Details
Base Unit
Slots
Micro ATX microtower chassis, including power supply and front bezel
Five (5) drive bays and four expansion slots
Microsoft operating system CD
Active type heatsink
92 x 92 x 25 mm chassis fan
System board with Intel 946GZ Express chipset, Intel I/O Controller Hub 7 (ICH7), Intel PRO/100
VE Network Connection, Intel GMA 3000 graphics, and Realtek audio, 1 full-height PCI 2.3 slot,
2 PCI Express x1 slots, 1 PCI Express x16 slot, 2 DDR2 DIMM memory slots
(4) Serial ATA data connectors
Product documentation on CD
HP system restore CD
Power cord
PCI
Memory Expansion
One (1) full-height PCI 2.3 slot on PCA
Two (2) full-height PCI Express x1 slots on PCA
One (1) full-height PCI Express x16 slot on PCA (for graphic cards)
Two (2) DDR2 SDRAM DIMM slots (4 GB maximum memory support)
Bays
Internal
External
USB Support
EHCI high-speed USB 2.0 controller
Two (2) front ports; Four (4) rear ports, Two (2) internal ports on motherboard
Interfaces (Legacy)
One (1) parallel port
One (1) serial port
One (1) optional second serial port
One (1) PS/2 keyboard port
One (1) PS/2 mouse port
One (1) analog VGA video port
One (1) line in; one (1) line out; one (1) mic in
One (1) RJ45 network port
Weight & Dimensions
Chassis Dimensions
(H x W x D)
Packaged Dimensions
(L x W x H)
System Weight
Shipping Weight
DA - 12668
Two (2) 3.5”
Two (2) 5.25”
One (1) 3.5”
13.90 x 6.89 x 16.38 in (353 x 175 x 416 mm)
22.25 x 19.63 x 16.31 in (565.15 x 498.5 x 414.3 mm) (NA)
21.10 x 19.53 x 15.008 in (536.0 x 496.0 x 383.0 mm) (EMEA)
21.16 lb (9.6 kg)
30.86 lb (14.0 kg)
Worldwide — Version 13 — November 19, 2007
Page 6
QuickSpecs
HP Compaq dx2300 Microtower Business PC
System Details
Technology and Features Memory Type
Hard Drive Interfaces
Supported
Chassis
Front Panel
Cooling Solutions
Supported
Slots Supported
Front I/O
Rear I/O
Drive Bays
Internal Speaker
Security
Power Supply
Unit Environment and
Operating Conditions
PC2-5300 DDR2 SDRAM (667-MHz) non-ECC
Up to 2-GB system memory standard
Up to 4-GB system memory supported
Serial ATA
Power button
Power On LED
HDD Activity LED
Power Supply Fan (variable speed)
Active heatsink (variable speed)
Chassis fan (variable speed)
Four (4) full-height expansion slots
Two (2) USB 2.0 ports
Standard Micro ATX I/O connectors, including four (4 ) USB 2.0 ports
Two (2) 5-1/4” external
One (1) 3-1/2” external
Two (2) 3-1/2” internal
Standard
Padlock loop
Kensington Lock Support
250-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line switch
(varies by country/region)
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and
cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer.
Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
50° to 95° F (10° to 35° C)
Temperature Range
Operating
-22° to 140° F( -30° to 60° C)
Non-operating
10% to 90% (non-condensing at ambient)
Relative Humidity
Operating
5% to 95% (non-condensing at ambient)
Non-operating
10,000 ft (3048 m)
Maximum Altitude
Operating
(unpressurized)
30,000 ft (9000 m)
Non-operating
NOTE: Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m) above
sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be
limited by the type and number of options installed.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 7
QuickSpecs
HP Compaq dx2300 Microtower Business PC
System Details
System Board
Processor
Socket T; LGA775 industry standard Micro ATX form factor
Support single Intel Core 2 Duo, Pentium D, Pentium 4 or Celeron D
PWM
Intersil 6312 3 phase
Chipset
Intel 946GZ Express
Intel I/O Controller Hub 7 (ICH7)
Super I/O
W83627DHG
Front Side Bus Frequency 533/800 MHz
Memory
DDR2 SDRAM
2 x DIMM slots
Clock Generator
CY505YC56DT
Intel Graphics Media Accelerator (GMA) 3000
Integrated Graphics
Realtek ALC888 HD Audio compatible codec with two channel audio 3D
Audio
audio compliant with AC'97 rev. 2.3
Intel PRO/100 VE Network Connection
LOM
Four Serial ATA interfaces
Serial
1 x PCI 2.3 slot
Expansion Slots
2 x PCI Express x1 slots
1 x PCI Express x16 slot
LPC EEPROM
BIOS
PCI 2.3 compliant
Industrial Standard
USB 2.0
1 x PS/2 keyboard port
Rear Side I/O Ports
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x RJ-45 10/100 port
1 x serial port
1 x optional second serial port
1 x parallel port
1 x DB 15 pin analog VGA port
3 x audio ports
On Board I/O Interfaces 1 x ATX power connector
1 x +12V power connector
1 x Floppy connector
1 x Front panel connector, Switch, LED (ON/Flash/OFF)
2 x Fan headers for CPU, chassis, with voltage/fan speed control
1 x header to support 2 USB 2.0 ports at front side
1 x header to support USB media reader
1 x serial header to support optional second serial port
Micro-ATX, PCB Size: 9.6 x 9.0 in (24.38 x 22.86 cm)
Board Size
4-layer PCB with green color
Bootable without keyboard, mouse or monitor
Additional Features
Keyboard/mouse/USB wake up
Support S1, S3, S4 and S5
ACPI status
Hardware monitor capability
CPU fan speed control
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 8
QuickSpecs
HP Compaq dx2300 Microtower Business PC
System Details
Network Interface
Intel PRO/100 VE
Network Connection
Intel PRO/1000 PT
Gigabit PCIe Adapter
Wireless
Power Supply
Hardware Highlights
Features
Hardware Highlights
Features
PCI interfaces
10-Mbps and 100-Mbps operation
PCI Express interface
10-Mbps, 100-Mbps and 1000-Mbps operation
Wireless A+G PCI Card (full height bracket)
ATX Power Supply – Passive PFC/non-PFC with a 115v/230v line switch
Passive Power Factor Correction (PFC) – with line switch set to 230V – No PFC in 115V line switch
position
90 to 140VAC, or 180 to 264VAC operating voltage range
100 to 127VAC, or 200 to 240VAC rated voltage range
50–60 Hz rated line frequency
47–63 Hz operating line frequency range
250 watt maximum rated power
80-mm power supply fan – variable speed for optimum acoustics
Power Conservation
‘Energy Saver‘
APM 1.2 support
Screen blanking
Hard drive 'Idle' mode
System Idle mode
~2 watt power consumption in ES mode – suspend to RAM (S3) (instantly available PC)
Processor/Cache memory power-down (S3)
System Environmental
Specs
Values are subject to change without notification and are for reference only.
Performance of system, options, and ancillary equipment will vary depending on the system
configuration.
Levels presented do not account for non-HP/Compaq installed hardware.
50° to 95°F (10° to 35°C) at sea level with an
Ambient Air Temperature Operating
altitude de-rating of 1.0°C per every 1000 ft
(300 m) above sea level to a maximum of 8000
ft (2500 m), no direct sustained sunlight.
Maximum rate of change is 77°F/Hr (25°C/Hr).
The upper limit may be limited by the type and
number of options installed.
-22° to 140°F (-30° to 60°C) –
Storage
Maximum rate of change: 410°F/Hr (210°C/Hr).
10% to 90% relative humidity (Rh), 86°F (30°C)
Humidity
Operating
maximum wet bulb temperature, non-condensing
10% to 95% relative humidity (Rh), 101.66°F
Storage
(38.7°C) maximum wet bulb temperature, noncondensing
0 to 10,000 feet (0 to 3048 meters) – This value
Altitude
Operating
may be limited by the type and number of
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 9
QuickSpecs
HP Compaq dx2300 Microtower Business PC
System Details
Shock
Vibration
Acoustic Noise
Service and Support
options installed. Maximum allowable altitude
change rate is 1,000 ft/min (304.8 m/min).
Non-Operating
0 to 30,000 feet (0 to 9,144 meters) – Maximum
allowable altitude change rate is 1200 ft/min
(365.76 m/min).
Listed are the levels of shock the product can withstand with NO damage
being incurred. The values represent peak input acceleration during an 2~3
ms half-sine shock pulse, 11 ms trapezoidal shock pulse.
35G's (Half-sine Shock)
Non-Operating
35G's (Trapezoidal Shock)
Listed are the levels of vibration the product can withstand with NO damage
being incurred. The values represent a flat random vibration input
acceleration profile across the given frequency range.
Random vibration at [email protected]/Hz,
Operating
[email protected]/Hz, [email protected]/Hz,
[email protected]/Hz
5Hz to 300Hz, (0.25G's nominal).
Random vibration at 0.008G²/Hz,
Non-Operating
10Hz to 500Hz, (2 Grms nominal).
Listed are the declared A-WEIGHTED SOUND POWER LEVELS (LWAd) and
declared average desktop seated operator position A-WEIGHTED SOUND
PRESSURE LEVELS (LpAm) when the product is operating in a 73.4°F (23°C)
ambient environment. Noise emissions were measured in accordance with
ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA
109).
LWAd = 4.3 Bels,
IDLE (Fixed disk drive
spinning)
Desktop Average LpAm = 32 dBA
LWAd = 4.8 Bels,
FIXED DISK (Random
write)
Desktop Average LpAm = 37dBA
LWAd = 5.0 Bels,
CD-ROM (Sequential
Reads)
Deskside Average LpAm = 39dBA
On-site Warranty1: One-year (1-1-1) limited warranty delivers one year of on-site, next business-day2
service for parts and labor and includes free telephone support3 24 x 7. Global coverage2 ensures that
any product purchased in one country and transferred to another non-restricted country will remain fully
covered under the original warranty and service offering. One-year onsite and labor are not available in
all countries.
1 Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty
variations may be offered in your region.
2 On-site service may be provided pursuant to a service contract between HP and an authorized HP
third-party provider, and is not available in certain countries. Global service response times are based
on commercially reasonable best effort and may vary by country.
3 Technical telephone support applies only to HP-configured Compaq and third-party HP-qualified
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 10
QuickSpecs
HP Compaq dx2300 Microtower Business PC
After-Market Options
Communications
Hard Disk Drives
Removable Storage
Devices
Input Devices
NICs
Intel PRO/1000 PT Gigabit PCIe Adapter (full height)
Wireless LAN
HP Wireless A+G PCI Card (North America only)
HP Wireless A+G PCI Card (WW except North America)
Modems
Agere 2006 PCI High-Speed 56K International SoftModem
EH352AA
EA118AA
PZ928AA
EK694AA
HP 250-GB SATA 3.0-Gb/s Hard Drive
PY278AA
HP 160-GB SATA 3.0-Gb/s Hard Drive
HP 80-GB SATA 3.0-Gb/s Hard Drive
PY277AA
PY276AA
Diskette Drive
HP 1.44-MB Internal Diskette Drive
HP 1.44-MB USB Diskette Drive – External
16-in-1 Media Reader
USB Drive Key
HP 1-GB Drive Key II Flash Drive
HP (APJ) 512-MB Drive Key II Flash Drive
AG295AA
DC141B
EM718AA
AG382AA
ED516AA
Keyboards
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
Mice
HP PS/2 2-Button Scroll Mouse
HP PS/2 2-Button Optical Scroll Mouse
HP USB 2-Button Optical Scroll Mouse
DD440B
EY703AA
DC172B
Memory
HP 1-GB PC2-5300 (DDR2-667 MHz) DIMM
HP 512-MB PC2-5300 (DDR2-667 MHz) DIMM
HP 256-MB PC2-5300 (DDR2-667 MHz) DIMM
PX976AA
PX975AA
PX974AA
Audio
HP Satellite Speakers
ZD929AA
Graphics
ATI Radeon X1300 Pro (256MB DH) PCIe Graphics
ATI Radeon X1300 (256MB SH) PCIe Graphics
AH050AT
AG392AA
DA - 12668
Worldwide — Version 13 — November 19, 2007
DT527A
DT528A
Page 11
QuickSpecs
HP Compaq dx2300 Microtower Business PC
After-Market Options
Optical Drives
HP SATA CD-ROM Drive (available in Asia Pacific and Japan only)
HP SATA CD-RW/DVD-ROM Combo Drive
HP SATA DVD-ROM Drive
HP SATA DVD+/-RW (DL/DF) LightScribe Drive
AH045AA
AH046AA
AH047AA
AH048AA
Security
HP Business PC Security Lock Kit
PV606AA
Miscellaneous
Accessories
HP FireWire / IEEE 1394 PCI Card
Monitors
CRTs
HP s7540 17" (16.0" vis) CRT Monitor
HP v7650 17" (16.0" vis) Flat-face CRT Monitor
TFTs
HP L1506 15" TFT Flat Panel Monitor – Analog only
HP L1706 17" TFT Flat Panel Monitor – Analog only
HP L1740 17" TFT Flat Panel Display – Analog/Digital
HP L1755 17" TFT Flat Panel Display – Analog/Digital
HP L1906 19" TFT Flat Panel Display – Analog only
HP L1940T 19" TFT Flat Panel Display – Analog/Digital
HP L1955 19" TFT Flat Panel Display – Analog/Digital
HP L2065 20" TFT Flat Panel Display – Analog/Digital
HP LP2465 24" TFT Widescreen Flat Panel Display – Analog/Digital
GSA Monitors
HP L717g 17" GSA Flat Panel Monitor
HP L919g 19" GSA Flat Panel Monitor
Options
HP Flat Panel Speaker Bar
HP CRT Monitor Multimedia Base
DA - 12668
Worldwide — Version 13 — November 19, 2007
PA997A
PF997AA#XXX
PF996AA#XXX
PX848AA#XXX
PX849AA#XXX
PL766AA#XXX
PL777AA#XXX
PX850AA#XXX
EM869AA#XXX
PD974AA#XXX
EF227A4#XXX
EF224A4#XXX
EE191AA#ABA
EE192AA#ABA
EE418AA
PM552AA
Page 12
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Memory
DDR SYNCH DRAM NON-ECC MEMORY
The Intel 946GZ Express chipset supports non-ECC DDR2 memory up to PC2-5300 (667-MHz). Memory upgrades are
accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory
configurations.
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules.
Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an
active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board.
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric
performance, the total amount of memory in each channel must be equal. If speeds are mixed, speed will default to the slowest
DIMM.
STANDARD MEMORY
256-MB, 512-MB, 1-GB, or 2-GB DDR2 SYNCH DRAM
OPTIONAL MEMORY UPGRADES
Supports up to 4-GB of DDR2 SYNCH DRAM. Not all memory configurations possible are represented below.
DIMM Size
256-MB
512-MB
512-MB (dual-channel symmetric)
1-GB
1-GB (dual-channel symmetric)
2-GB (dual-channel symmetric)
4-GB (dual-channel symmetric)
DA - 12668
Slot 1
256-MB
512-MB
256-MB
1-GB
512-MB
1-GB
2-GB
Worldwide — Version 13 — November 19, 2007
Slot 2
256-MB
512-MB
1-GB
2-GB
Page 13
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Storage
HP Compaq dx2300 Microtower Business PC
Drive Support
Diskette Drives
Media Reader
CD-ROM Drives
DVD-ROM Drives
CD-RW/Combo Drives
DVD+/-RW Drives
3.5” Serial ATA Hard Drives
DA - 12668
Maximum Quantity
Supported
Position Supported
Controller
1
1
2
2
2
2
2
3
3
1, 2
1, 2
1, 2
1, 2
4,5
SIO
Internal USB 2.0 port
SATA
SATA
SATA
SATA
SATA
Worldwide — Version 13 — November 19, 2007
Page 14
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Audio
Integrated Realtek
ALC888 Audio
Type
HD Audio compatible
codec
Sampling
Audio Jacks
Power Support
Other
DA - 12668
Integrated
Yes
Supports 48/96 KHz
Mic-In
Line-In
Line-Out / Headphone Out
Digital: 3.3V
Analog: 5V
Meets performance requirements for audio on PC99/2001 systems
High-performance DACs with 97dB SNR(A-Weighting)
ADCs with 90dB NR(A-Weighting)
Worldwide — Version 13 — November 19, 2007
Page 15
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Communications
Intel PRO/1000 PT PCIe
Gigabit NIC
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data transfer mode
Hardware certifications
RJ-45
Intel 82572EI Gigabit Ethernet Controller
Integrated Dual 48K configurable transmit receive FIFO Buffers
10/100/1000 Mbps
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
PCI Express 1.0a
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Power requirement
Boot ROM support
Network transfer rate
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Yes
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Environmental
32° to 131°F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
6.4 x 2.6 x 0.8 in (16.3 x 6.6 x 1.9 cm)
Management capabilities ASF, WOL, PXE, DMI, WFM 2.0.
HP Wireless A+G PCI
Dimensions
Weight
Controller
system interface
Network standard
Frequency band
Operating temperature
Storage temperature
Humidity
Operating voltage
Power consumption
Output power
(approximately)
Receive sensitivity
Data transfer rate
DA - 12668
4.99 x 2.54 x 0.71 in (126.8 x 64.4 x 18.0 mm)
0.268 lb (65 g)
Atheros AR5414X chipset
PCI Spec 2.2
IEEE 802.11a/b/g
5.1500 to 5.8500 GHz
2.4000 to 2.4835 GHz
2.4465 to 2.4835 GHz (Europe, Middle East, Asia and Asia Pacific –
excluding Japan)
2.4000 to 2.4697 GHz (Japan)
32° to 140° F (0° to 60° C), operating
-4° to 176° F (-20° to 80° C), non-operating
10% to 85% non-condensing
5V ± 5%
Tx/Rx peak 560/250mA @ 3.3V (max.)
15 dBM ±2dB
-90dBm at 11 Mbps (typical)
Standard rates of 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 48, 54 and Super AG
Mode108-Mbps
Worldwide — Version 13 — November 19, 2007
Page 16
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Communications
Spreading
Security
Antenna
Throughput
Certifications
Certifications for use by
country
Agere 56K PCI Modem
Data Transmission
Data Speeds
Data Standards
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Power
DA - 12668
DSSS (Direct Sequence Spread Spectrum)
64(40h) bit, 128(104h) bit, WPA, IEEE802.1X, AES-OCB, AES-CCM,
Microsoft PEAP,TKIP, WEP
External 5dBi antenna
200 ft (60.96 m) – Indoor
108 Mbps (only with
Belkin 54G or above
router that supports 108
Mbps speed)
200 ft (60.96 m) – Indoor
54 Mbps
200 ft (60.96 m) – Indoor
11 Mbps
Wi-Fi certified
North America: United States, Canada
Europe: Austria, Belgium, Cyprus, Denmark, Finland, France, Germany,
Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg, Netherlands,
Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom
Australia
New Zealand
56,000 Kbps maximum downstream data
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem
speed. FCC limitations allow a maximum of 53 Kbps during download
transmissions.
(Upload only)
33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/
12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,
and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Worldwide — Version 13 — November 19, 2007
Page 17
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Communications
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Telecom
Health
Other
DA - 12668
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers
and CardBus support
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and
supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
Worldwide — Version 13 — November 19, 2007
Page 18
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Graphics
Integrated Graphics
3D/2D Controller
Media Accelerator 3000
VGA Controller
Bus Type
RAMDAC
Memory
Microsoft DirectX® 9 based with support for Pixel Shader 2.0, 4:1
anisotropic filtering, Gaussian texture filtering, shadow maps, volumetric
textures, double-sided stencil buffers, and 4 pixel pipes.
Integrated
PCI Express™ x16 (If an external graphics card is installed in a PCI slot, the
internal graphics can be enabled or disabled using the system's BIOS setup
utility. If an external graphics card is installed in the PCI Express™ slot, the
internal graphics cannot be enabled).
Integrated, 400 MHz
Graphics memory is shared with system memory. Graphics memory usage
varies depending on the amount of system memory installed and system
load. 8 MB is pre-allocated for graphics use at system boot time. Additional
memory is allocated for graphics as needed using Intel's Dynamic Video
Memory Technology (DVMT), to provide an optimal balance between
graphics and system memory use.
System memory equal or greater than 512 MB
8 MB pre-allocated + 248 MB DVMT = max frame buffer of 256 MB
Controller Clock Speed 400 MHz
Overlay Planes
Single overlay support with 5x3 filtering
Maximum Color Depth
32 bits/pixel
Maximum Vertical Refresh 85 Hz at up to 1920x1440, 85 Hz at 2048x1536. Varies with mode and
Rate
configuration. See table below.
Multi-display Support
Support for one CRT via the motherboard's VGA connector. Support for an
additional DVI-D display via the optional DVI ADD2 card. Dual independent
displays and dual synchronous (Twin or Clone mode) displays are supported.
Graphics/Video API
Microsoft DirectX®9, DirectXVA®, VMR9, GDI/GDI+; OpenGL® 1.4.
Support
Resolutions Supported1
Resolution
Maximum Refresh Rate (Hz)
Analog Monitor
Digital Monitor
640 x 480
85
60
800 x 600
85
60
1024 x 768
85
60
1280 x 1024
85
60
1600 x 1200
85
60
1920 x 1080
85
60
1920 x 1200
85
60
1920 x 1440
85
60
2048 x 1536
85
60
1 Modes listed are supported with a single active display. The supported mode list for multiple active displays is a subset of this list.
Not all modes will support video playback and some supported modes may use software MC (motion compensation) rather than
hardware MC. Not all modes will support 3D acceleration depending on the system configuration (e.g., resolution selected, size of
frame buffer, number of installed memory modules, etc.).
NOTE: Other resolutions and refresh rates may be selectable but are not recommended.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 19
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Graphics
ATI Radeon X1300
(256MB SH) PCIe
Graphics Card
(256 MB)
Bus type
Maximum vertical refresh
rate
Display support
Display max resolution
Board display options
PCI Express (x16 lanes)
85 Hz
Board configuration
Specification
Description
Graphics Chip
RV515
Core clock
450 MHz
Memory clock
250 MHz
Frame buffer
256 MB DDR2
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese,
Russian, Spanish, Swedish, Thai, Turkish
25 W (Max board power)
ATI RADEON X1300 PCIe graphics card with full height bracket
attached
Low profile bracket
DVI-to-VGA Adapter
Software CD with graphics drivers
Warranty documentation
EMC Emissions:
a) FCC Part 15, Subpart B – Unintentional Radiators, Class B Computing
Devices for Home & Office Use
b) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of
measurement of radio disturbance characteristics of Information Technology
Equipment
c) Canadian Standard ICES-003 is equivalent to CISPR22
d) Taiwanese Standard BSMI
e) Japanese VCCI
f) Australian C-Tick
Languages supported
Core power
Option kit contents
Compliance standards
Integrated 400 MHz RAMDAC
2048 x 1536
DVI-I + TV
DVI-I supports analog CRT or flat panel or digital flat panel (using DVI-A,
DVI-D or DVI-I connector)
DVI-I supports analog CRT or flat panel (with VGA connector and DVI-I to
VGA dongle)
TV connector is a 4-pin mini-DIN S-video connector
EMC Immunity:
CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –
Immunity Characteristics – Limits and Methods of Measurement.
Safety:
UL 60950 (USA) & EN 60950 (EU): Safety of Information Technology
Equipment, Including Electrical Business Equipment. All boards meet UL PCB
flammability requirements.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 20
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Graphics
ATI Radeon X1300 Pro
(256MB DH) PCIe
Graphics Card
Bus Type
Maximum Vertical Refresh
Rate
Display Support
Display Max Resolution
Board Display Options
Board Configuration
128 MB Frame Buffer
Languages supported
Core Power
Option kit contents
Compliance standards
PCI Express (x16 lanes)
85 Hz
Integrated 400 MHz RAMDAC
2048 x 1536
Supports 2 displays via included DMS-59 to dual VGA cable or 2 DVI
monitors via optional DMS-59 to dual DVI monitor kit #DL139A.
Support TV connection via 7 pin mini Din S-video connector
Specification
Description
Graphics Chip
RV516
Core clock
600 MHz
Memory clock
400 MHz
Frame buffer
256 MB DDR2 (128 bits wide)
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese,
Russian, Spanish, Swedish, Thai, Turkish
25 W (Max board power)
ATI Radeon X1300 Pro (256MB DH) PCIe Graphics Card with full
height bracket attached
DMS-59 Dual VGA
NOTE: The Optional DMS-59 DVI cable can be ordered with HP
Option Kit #DL139A
Software CD with graphics drivers
Low profile bracket to convert the card for using in a low profile
chassis
Warranty documentation
EMC Emissions:
a) FCC Part 15, Subpart B – Unintentional Radiators, Class B Computing
Devices for Home & Office Use
b) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of
measurement of radio disturbance characteristics of Information Technology
Equipment
c) Canadian Standard ICES-003 is equivalent to CISPR22
d) Taiwanese Standard BSMI
e) Japanese VCCI
f) Australian C-Tick
g) Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –
Immunity Characteristics – Limits and Methods of Measurement.
Safety:
UL 60950 (USA) & EN 60950 (EU): Safety of Information Technology
Equipment, Including Electrical Business Equipment. All boards meet UL PCB
flammability requirements.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 21
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Input Devices
HP PS/2 or USB Standard Physical
Keyboard
characteristics
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
ESD
EMI – RFI
Electrical
MicrosoftPC
MicrosoftPC 99 – 2001
Languages
Keycaps
Switch actuation
Switch life
Mechanical
Environmental
Approvals
Ergonomic compliance
DA - 12668
104, 105, 106, 107, 109 layout (depending
upon country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
Worldwide — Version 13 — November 19, 2007
Page 22
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Input Devices
HP 2-Button Scroll Mouse Scroll Wheel
(PS/2)
Maximum Rotation Speed
Switch Type
Switch Life
Mechanical Life
Environmental
Electrical
Mechanical
Regulatory Approvals
DA - 12668
8 mm
30 mm/s
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
Operating Temperature 50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
Non-operating
Temperature
10% to 90% (non condensing at ambient)
Operating Humidity
Non-operating Humidity 20% to 80% (non condensing at ambient)
40 g, 6 surfaces
Operating Shock
Non-operating Shock
Operating Vibration
Non-operating Vibration
Operating Voltage
Power Consumption
System Consumption
ESD
EMI-RFI
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
+ 5VDC ± 10%
15mA
PS/2 mini-din connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
PC98
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s maximum
Acceleration
100 in/s
Switch Actuation
85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified
tester)
Cable Length
2m
PC98-99
Mechanically compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
Worldwide — Version 13 — November 19, 2007
Page 23
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Hard Drives
Serial ATA Hard Drives
(7200 rpm)
80 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12668
80,026,361,856 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
1.5 Gb/s
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
156,301,488
32° to 140° F (0° to 60° C)
160,041,885,696 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
1.5 Gb/s
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
312,581,808
32° to 140° F (0° to 60° C)
Worldwide — Version 13 — November 19, 2007
Page 24
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Hard Drives
250 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12668
250,059,350,016 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
1.5 Gb/s
8 MB
Single Track
0.8 ms
Average
<9.0 ms
Full-Stroke
=17 ms
7,200 rpm
488,397,168
41° to 131° F (5° to 55° C)
Worldwide — Version 13 — November 19, 2007
Page 25
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Optical Storage
SATA DVD-ROM Drive
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Read speeds
Removable Storage Media Compatibility DVD-ROM
Access times
(typical reads, including
setting)
Power
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 16X
DVD-ROM
DVD-RAM
CD-ROM, CD-R
CD-RW
Media
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DVD-R
DVD-RW
DVD-R DL
Random
Full Stroke
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
DA - 12668
Up to 4X
Up to 48X
Up to 32X
Write
Read
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
maximum
12 VDC -< 600 mA typical, < 1400 mA
maximum
Worldwide — Version 13 — November 19, 2007
Page 26
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Optical Storage
Environmental
(all conditions
non-condensing)
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
SATA CD-RW/DVD-ROM Height
Combo Drive
Orientation
Interface type
Disc capacity
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
Dimensions (W x H x D)
Weight (max)
Write speeds
Read speeds
Access times
(typical reads, including
setting)
Power
Environmental
(all conditions
non-condensing)
DA - 12668
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 48X
CD-R
Up to 32X
CD-RW
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 16X
DVD-ROM
Up to 48X
CD-ROM, CD-R
Up to 32X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (typical), CD: < 210 ms
Full Stroke
(typical)
SATA DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
12 VDC ± 5%-200 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
DC Current
maximum
12 VDC -< 600 mA typical, < 1400 mA
maximum
41° to 122° F (5° to 50° C)
Temperature
10% to 90%
Relative Humidity
86° F (30° C)
Maximum Wet Bulb
Temperature
Worldwide — Version 13 — November 19, 2007
Page 27
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Optical Storage
SATA DVD+/-RW
LightScribe Drive
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Write speeds
Read speeds
Access times
(typical reads, including
setting)
Power
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 16X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 4X
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
DVD-RAM
DVD+R/-R/+RW/
-RW/+R DL /-R DL
DVD-ROM
CD-ROM, CD-R
CD-RW
Random
Full Stroke
Source
DC Power Requirement
DC Current
Environmental
(all conditions
non-condensing)
DA - 12668
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
Up to 16X
Up to 6X
Up to 48X
Up to 32X
Up to 4X
Up to 8X
Up to 16X
Up to 48X
Up to 32X
DVD: < 130 ms (typical), CD: < 120 ms
(typical)
DVD: < 240 ms (seek), CD: < 200 ms (seek)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
maximum
12 VDC -< 600 mA typical, < 1400 mA
maximum
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
Worldwide — Version 13 — November 19, 2007
Page 28
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Removable Storage
HP 1.44-MB Diskette
Drive
Size
LED Indicators (front
panel)
Read/Write Capacity per
Diskette (high/low)
Drive Height
Drive Rotation
Transfer Rate (high/low)
Bytes/Sector
Sectors/Track (high/low)
3.5 in (8.89 cm)
Green
Tracks/Side (high/low)
Access Times
80/80
Track-to-Track (high/low)
Average
(high/low)
Settling Time
Latency Average
80/80
Two
Cylinders (high/low)
Read/Write Heads
HP 16-in-1 Media Card
Reader
1.44 MB/720 KB
One-third
300 rpm
500/250 KB/s
512
18/9
3/6 ms
94/173 ms
15 ms
100 ms
USB interface
USB 2.0 High-speed device via PCI card or pass -through via internal USB
port of system board
Advance protocol support
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50 MHz SD 4-bit card (version 1.1)
Support high-speed 52 MHz MMC 8-bit card (version 4.x)
Supported media types
Supports CompactFlash Card Type I (CF I), CompactFlash Card Type
II (CF II),MicroDrive (MD)
Supports 3.3V SmartMedia Card (SM), SmartMedia ROM (SM ROM),
xD-Picture Card (xD)
Supports Secure Digital Card (SD), Secure Digital ROM Card (SD
ROM), miniSD, MultiMediaCard (MMC), Secure MultiMediaCard
(Secure MMC), ROM Type MultiMediaCard (MMC ROM), Reduced
Size MultiMediaCard (RS MMC), MultiMediaCard 4.0 (MMC Plus),
Reduced Size MultiMediaCard 4.0 (MMC Mobile)
Support Memory Stick (MS), Memory Stick ROM (MS ROM),
MagicGate Memory Stick (MG), Memory Stick Select, Memory Stick
Duo (MS Duo), Memory Stick PRO (MS-PRO), Memory Stick PRO Duo
(MS PRO Duo)
Mechanical
124.7 cm
Length (3.5")
101.6 cm
Width (3.5")
25.4 cm
Height (3.5")
171.6 cm
Length (5.25")
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 29
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Removable Storage
Environmental
Width (5.25")
Height (5.25")
Operational
environmental extremes
148.9 cm
42.7 cm
Test Parameters/Conditions - Power applied, unit
operating on system ±5%
nominal supply voltage.
10°C 10% R.H. = 24 hours
10°C 90% R.H. = 24 hours
20°C 90% R.H. = 24 hours
30°C 90% R.H. = 24 hours
40°C 90% R.H. = 24 hours
50°C 90% R.H. = 24 hours
50°C 10% R.H. = 24 hours
Storage environmental
extremes
Approvals
DA - 12668
Test Parameters/Conditions
60°C @ 80% R.H. for 96 hours
-30°C @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport
Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design
Guide V. 1.2
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
Worldwide — Version 13 — November 19, 2007
Page 30
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Environmental Data
Eco-Label Certifications & This product has received or is in the process of being certified to the following approvals and may be
declarations
labeled with one or more of these marks:
US Federal Energy Management Program (FEMP)
Taiwan Green Mark
China Energy Conservation Program
IT ECO declaration
EPEAT
Korea Ecolabel
Longevity and Upgrading This product is designed to be upgraded, possibly extending its useful life by several years. Spare parts
are available throughout the warranty period and for up to 15 months after the end of production.
Upgradeability features contained in the product include:
6 external USB ports
2 internal USB ports
2 external 5.25" drive bays
2 internal 3.5" drive bays
1 external 3.5" drive bay
1 empty standard PCI slot
2 empty standard PCIe x1 slots
1 empty standard PCIe x16 slot
2 memory slots
1 Serial port
1 Optional second serial port
1 Parallel port
Batteries
Spare parts are available throughout the warranty period and for up to 5 years after the end of
production.
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –
2002/95/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Silver level, see
http://www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 31
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Environmental Data
ISO1043.
This product contains 0% recycled materials (by wt.)
This product is >90% recyclable when properly disposed of at end of life.
Packaging Materials
Corrugated Paper – TBD g
EPE Foam – TBD g
LDPE Bag –TBD g
The EPE foam packaging material is made from 30–60% recycled content.
The corrugated paper packaging materials contains at least 80% recycled content.
RoHS Compliance
Material Usage
Packaging
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,
including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to
exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.
By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for
all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is
no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 32
QuickSpecs
HP Compaq dx2300 Microtower Business PC
Technical Specifications - Environmental Data
End-of-life Management
and Recycling
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to: http://www.hp.com/recycle or contact your nearest HP sales
office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental
Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
© Copyright 2007 Hewlett-Packard Development Company, L.P.
All rights reserved.
The information contained herein is subject to change without notice.
Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of
Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not
be liable for technical or editorial errors or omissions contained herein.
DA - 12668
Worldwide — Version 13 — November 19, 2007
Page 33
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
