White paper | Xperia™ E dual

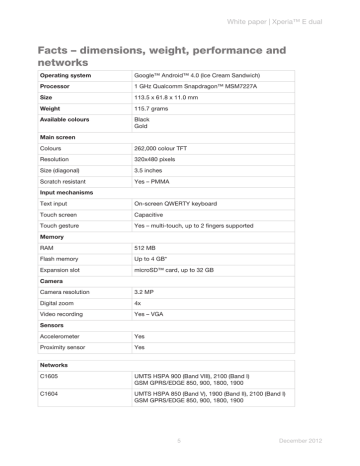

Facts – dimensions, weight, performance and networks

Operating system

Google™ Android™ 4.0 (Ice Cream Sandwich)

Processor

Size

Weight

Available colours

1 GHz Qualcomm Snapdragon™ MSM7227A

113.5 x 61.8 x 11.0 mm

115.7 grams

Black

Gold

Main screen

Colours

Resolution

Size (diagonal)

Scratch resistant

Input mechanisms

Text input

Touch screen

Touch gesture

Memory

RAM

Flash memory

Expansion slot

Camera

Camera resolution

Digital zoom

Video recording

Sensors

Accelerometer

Proximity sensor

262,000 colour TFT

320x480 pixels

3.5 inches

Yes – PMMA

On-screen QWERTY keyboard

Capacitive

Yes – multi-touch, up to 2 fingers supported

512 MB

Up to 4 GB* microSD™ card, up to 32 GB

3.2 MP

4x

Yes – VGA

Yes

Yes

Networks

C1605

C1604

UMTS HSPA 900 (Band VIII), 2100 (Band I)

GSM GPRS/EDGE 850, 900, 1800, 1900

UMTS HSPA 850 (Band V), 1900 (Band II), 2100 (Band I)

GSM GPRS/EDGE 850, 900, 1800, 1900

5 December 2012

White paper | Xperia™ E dual

Data transfer speeds

GSM GPRS

GSM EDGE

Up to 86 kbps (download and upload)

Up to 237 kbps (download and upload)

UMTS HSDPA cat 8 (download) Up to 7.2 Mbps

Talk time

(GSM)

Standby time

(GSM)

Up to 6 hours 12 min**

Up to 530 hours**

Talk time

(UMTS)

Standby time

(UMTS)

Music listening time

Video playback time

Battery

Up to 6 hours 18 min**

Up to 530 hours**

Up to 33 hours on PHF mode**

Up to 8 hours**

1530 mAh typical

1500mAh minimum

* Memory comprises approximately 650 MB of firmware, 750 MB of “Phone memory” for downloaded applications and 2 GB of “Internal storage” for music, pictures, movies and some application data. For a more detailed description of the different types of memory and how they are used, see “Memory in

Android phones” on page 17.

** Values are according to GSM Association Battery Life Measurement Technique as performed in controlled laboratory conditions. Actual time may vary.

Note:

Battery performance may vary depending on network conditions and configurations, and phone usage.

Note:

Performance metrics were measured under laboratory conditions.

6 December 2012

White paper | Xperia™ E dual

Categorised feature list

Camera

3.2 megapixel camera

4x digital zoom

Geotagging

Self-timer

Send to web

Touch capture

Video recording

Music

3D surround sound (VPT)

Album art

Bluetooth™ stereo (A2DP)

Manual equalizer

PlayNow™ service*

Music player

TrackID™ music recognition* xLoud™ Experience

Internet

Bookmarks

Google Play™

Google™ search*

Google Voice™ Search*

Google Maps™ for mobile with

Street View and Latitude™*

NeoReader™ barcode scanner

Pan & zoom

Web browser (WebKit™)

Communication

Call list

Conference calls

Google Talk™ application

HD voice

Noise suppression

Speakerphone

Xperia™ Timescape™

Xperia™ with Facebook™

Messaging

Conversations

Email

Gmail™*

Handwriting recognition

Instant messaging

Multimedia messaging (MMS)

Predictive text input

Text messaging (SMS)

Design

Auto rotate

Gesture input

On-screen 12-key keyboard

On-screen QWERTY keyboard

Picture wallpaper

Touch screen

Voice input

Wallpaper animation

7 December 2012

White paper | Xperia™ E dual

Entertainment

3D games

Media browser

Motion gaming

Music unlimited

Radio (FM radio with RDS)

Sony Entertainment Network*

Video streaming

YouTube™*

Organiser

Alarm clock

Airplane mode

Calculator

Calendar

Contacts

E-Manual

Infinite button

Notes

Setup wizard

Tasks

Xperia™ Gallery

Connectivity

3.5 mm audio jack (CTIA) aGPS*

Bluetooth™ wireless technology

DLNA Certified®

Media Go™

Media Transfer Protocol support

Micro USB support

Native USB tethering

PC Companion

Synchronisation via Facebook™

Synchronisation via Google™

Synchronisation via Exchange

ActiveSync®

Synchronisation via SyncML™

USB High speed 2.0 support

USB mass storage

Wi-Fi®

Wi-Fi® Hotspot functionality

*This service is not available in all markets.

8 December 2012

White paper | Xperia™ E dual

Technologies in detail

NOTE

: The information outlined below is general, and levels of compliance to standards and specifications may vary between products and markets. For more information, contact Sony Mobile

Developer World or your Sony contact person where applicable.

Device-to-device communications (local)

Bluetooth wireless technology

Bluetooth™ profiles supported Advanced Audio Distribution Profile v1.2

Audio/Video Remote Control Profile v1.3

Handsfree Profile v1.5

Headset Profile v1.2

Object Push Profile v1.2

Phonebook Access Profile v1.0

2.1+EDR Core version and supported core features

Connectable devices Products which support at least one of the profiles above.

More information: www.sonymobile.com/developer www.bluetooth.com

9 December 2012

White paper | Xperia™ E dual

Wi-Fi®

Supported standards

Connectable devices

Frequency band

Data transfer rate

Security

Encryption

Power save

IEEE 802.11b/g/n and Wi-Fi®

Wi-Fi® access points

2.4 GHz

Up to 72 Mbit/s

WEP 64 bit

WEP 128 bit

TKIP

CCMP (AES)

Open Authentication

Shared Authentication

EAP-TLS

EAP-TTLS/MSCHAPv2

EAP-SIM

PEAPv0/EAP-MSCHAPv2

PEAPv1/EAP-GTC

WPA Personal and WPA2 Personal

WPA Enterprise and WPA2 Enterprise

WEP, TKIP and AES

WMM-UAPSD

10 December 2012

White paper | Xperia™ E dual

Messaging

MMS (Multimedia Messaging Service)

According to OMA Multimedia Messaging Service v1.0 + SMIL

Email

Bearer type (IP)

Character sets

Protocols

Push email

Secure email

HTML mail

GPRS, EGPRS, UMTS, Wi-Fi®

BIG5 Traditional Chinese

GB2312 Simplified Chinese

GB18030

ISO-2022-JP Japanese

ISO-8859-1

ISO-8859-2 Eastern Europe

ISO-8859-5 Cyrillic

ISO-8859-7 Greek

ISO-8859-9 Turkish

ISO 8859-11

KOI8-R Cyrillic

Shift_JIS Japanese

USASCII

UTF-16

UTF-8

Windows® 874

Windows® 1251 Cyrillic

Windows® 1252

Windows® 1254 Turkish

Windows® 1258 Vietnamese

POP3 and IMAP4

Microsoft® Exchange ActiveSync® (EAS)

SSL/TLS, both port methods (POPS/IMAPS) and START-

TLS

Yes (read only)

More information: www.sonymobile.com/developer www.openmobilealliance.org

11 December 2012

White paper | Xperia™ E dual

Positioning – location based services

Supported standards:

• OMA Secure User Plane Location (SUPL)

• 3GPP™ Control Plane location (including Emergency location) – only supports E911

• Qualcomm® GPSOneXtra

Supported satellite systems:

• GPS

Provisioning (OMA CP)

OMA CP version 1.1

12 December 2012

White paper | Xperia™ E dual

Multimedia (audio, image and video)

Audio Playback

Audio Recording

Image Playback

Image Capture

Video Playback

Decoder format

Audio decoding MPEG-1/2/2.5, audio layer 3

AAC, AAC+, eAAC+

AMR-NB, AMR-WB

General MIDI (GM)

Linear PCM 16bit

OTA vorbis

Encoder format

AMR-NB, AMR-WB

Supported in file format

MP3 (.mp3), 3GPP (.3gp),

MP4 (.mp4, .m4a)

3GPP (.3gp), MP4 (.mp4)

3GPP (.3gp), MP4 (.mp4)

SMF (.mid)

WAV (.wav)

OTA (.ota)

Ogg (.ogg)

Supported in file format

3GPP (.3gp), MP4 (.mp4),

AMR (.amr)

3GPP (.3gp), MP4 (.mp4) AMR-NB, AMR-WB, AAC-LC stereo

Sample rate: 48 kHz

Bit rate: 128 kbps

Decoder format

1, 4, 8, 16, 24 and 32 bpp and

RLE encoded formats

Single and multi frame, bitmap mask support (GIF87a format and GIF89a format)

Joint Photographic Experts

Group

Portable Network Graphics Bitmap mask support

Wireless Bitmap

Encoder format

Joint Photographic Experts

Group

Decoder format

MPEG-4 Visual Simple Profile

H.264

H.263 Profile 0

Supported in file format

BMP (.bmp)

GIF (.gif)

JPEG (.jpg)

PNG (.png)

WBMP (.wbmp)

Supported in file format

JPEG (.jpg)

Supported in file format

3GPP (.3gp), MP4 (.mp4)

3GPP (.3gp), MP4 (.mp4)

3GPP (.3gp)

13 December 2012

Video Recording

Audio/Video Streaming

DRM

White paper | Xperia™ E dual

Encoder format

- Video H.263 Profile 0, H.264

Baseline Profile

- Audio: AAC-LC stereo

Sample rate: 48 kHz

Bit rate: 128 kbps,

AMR-NB

Streaming transport

Supported in file format

3GPP (.3gp), MP4 (.mp4)

DRM (Digital Rights Management) — features the rights and copy protection of downloaded content.

RTSP according to 3GPP™

HTTP streaming

OMA DRM 1.0

14 December 2012
