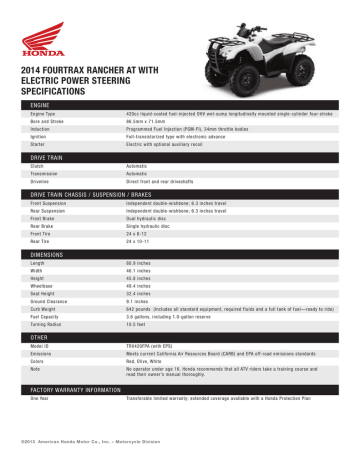

2014 FOURTRAX RANCHER AT WITH
ELECTRIC POWER STEERING
SPECIFICATIONS
ENGINE
Engine Type
420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore and Stroke
86.5mm x 71.5mm
Induction
Programmed Fuel Injection (PGM-FI), 34mm throttle bodies
Ignition
Full-transistorized type with electronic advance
Starter
Electric with optional auxiliary recoil
DRIVE TRAIN
Clutch
Automatic
Transmission
Automatic
Driveline
Direct front and rear driveshafts
DRIVE TRAIN CHASSIS / SUSPENSION / BRAKES
Front Suspension
Independent double-wishbone; 6.3 inches travel
Rear Suspension
Independent double-wishbone; 6.3 inches travel
Front Brake
Dual hydraulic disc
Rear Brake
Single hydraulic disc
Front Tire
24 x 8-12
Rear Tire
24 x 10-11
DIMENSIONS
Length
80.9 inches
Width
46.1 inches
Height
45.8 inches
Wheelbase
49.4 inches
Seat Height
32.4 inches
Ground Clearance
9.1 inches
Curb Weight
642 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
3.6 gallons, including 1.0-gallon reserve
Turning Radius
10.5 feet
OTHER
Model ID
TRX420FPA (with EPS)
Emissions
Meets current California Air Resources Board (CARB) and EPA off-road emissions standards
Colors
Red, Olive, White
Note
No operator under age 16. Honda recommends that all ATV riders take a training course and
read their owner’s manual thoroughly.
FACTORY WARRANTY INFORMATION
One Year
Transferable limited warranty; extended coverage available with a Honda Protection Plan
©2013 American Honda Motor Co., Inc. – Motorcycle Division
