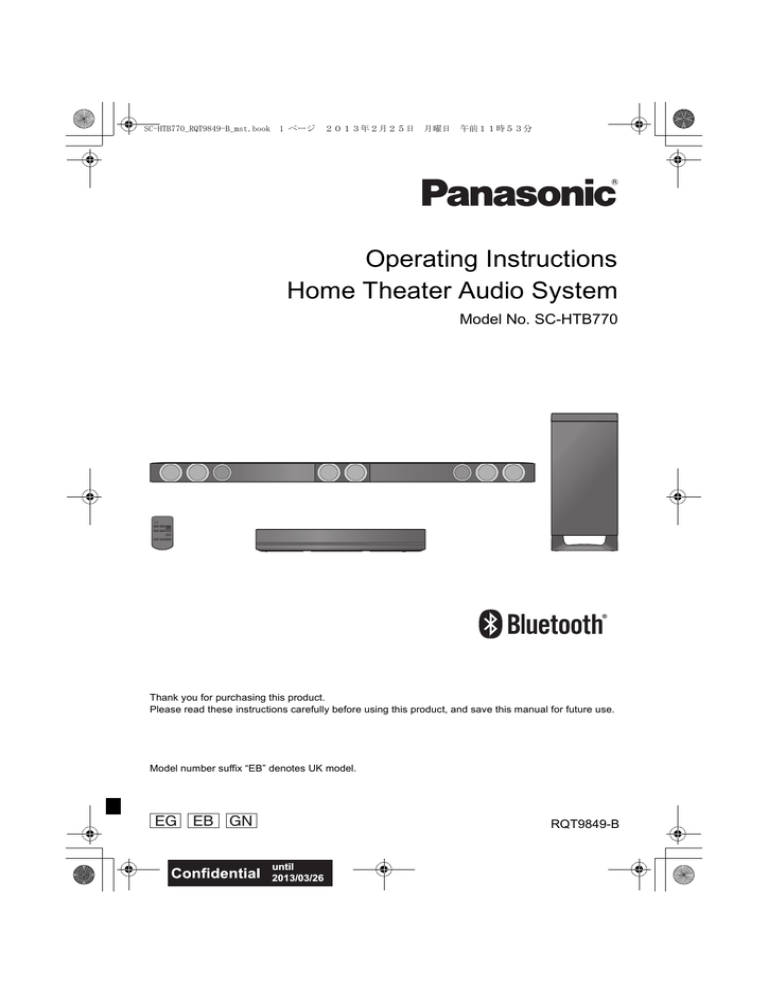

Operating Instructions
Home Theater Audio System
Model No. SC-HTB770
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future use.
Model number suffix “EB” denotes UK model.
EG
EB
GN
RQT9849-B
until
2013/03/26
SC-HTB770_RQT9849-B_mst.book 2 ページ
2013年2月25日 月曜日 午前11時53分
Safety precautions
Table of contents
WARNING
CAUTION
Unit
Unit
≥ To reduce the risk of fire, electric shock or
product damage,
jDo not expose this unit to rain, moisture,
dripping or splashing.
jDo not place objects filled with liquids, such
as vases, on this unit.
jUse only the recommended accessories.
jDo not remove covers.
jDo not repair this unit by yourself. Refer
servicing to qualified service personnel.
≥ Do not place sources of naked flames, such as
lighted candles, on this unit.
≥ This unit may receive radio interference caused
by mobile telephones during use. If such
interference occurs, please increase separation
between this unit and the mobile telephone.
≥ This unit is intended for use in moderate
climates.
AC mains lead
≥ To reduce the risk of fire, electric shock or
product damage,
jEnsure that the power supply voltage
corresponds to the voltage printed on this
unit.
jInsert the mains plug fully into the socket
outlet.
jDo not pull, bend, or place heavy items on the
lead.
jDo not handle the plug with wet hands.
jHold onto the mains plug body when
disconnecting the plug.
jDo not use a damaged mains plug or socket
outlet.
≥ The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not
recharge, disassemble, heat above 60 oC or
incinerate.
≥ Keep the Button-Type battery out of the reach of
children. Never put Button-Type battery in
mouth. If swallowed call your doctor.
2
RQT9849
Placement
≥ Place this unit on an even surface.
≥ To reduce the risk of fire, electric shock or
product damage,
jDo not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
jDo not obstruct this unit’s ventilation openings
with newspapers, tablecloths, curtains, and
similar items.
jDo not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
Button-type battery (Lithium battery)
≥ Danger of explosion if battery is incorrectly
replaced. Replace only with the type
recommended by the manufacturer.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte
leakage and may cause a fire.
jRemove the battery if you do not intend to use
the remote control for a long period of time.
Store in a cool, dark place.
jDo not heat or expose to flame.
jDo not leave the battery(ies) in a car exposed
to direct sunlight for a long period of time with
doors and windows closed.
≥ When disposing the batteries, please contact
your local authorities or dealer and ask for the
correct method of disposal.
2013年2月25日 月曜日 午前11時53分
Caution for AC Mains
Lead
(For the AC mains plug of three pins)
For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three
pin mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating of
5-ampere and that it is approved by ASTA or BSI
to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì
on the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be
used until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(5 ampere)
About Bluetooth®
Precautions
SC-HTB770_RQT9849-B_mst.book 3 ページ
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
∫ Frequency band used
This system uses the 2.4 GHz frequency band.
∫ Certification of this device
≥ This system conforms to frequency restrictions
and has received certification based on frequency
laws. Thus, a wireless permit is not necessary.
≥ The action below are punishable by law in some countries:
jTaking apart or modifying the unit.
jRemoving specification indications.
∫ Restrictions of use
≥ Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
≥ All devices must conform to standards set by
Bluetooth SIG, Inc.
≥ Depending on the specifications and settings of
a device, it can fail to connect or some
operations can be different.
≥ This system supports Bluetooth® security
features. But depending on the operating
environment and/or settings, this security is
possibly not sufficient. Transmit data wirelessly
to this system with caution.
≥ This system cannot transmit data to a Bluetooth® device.
∫ Range of use
Use this device at a maximum range of 10 m.
The range can decrease depending on the
environment, obstacles or interference.
∫ Interference from other devices
≥ This system may not function properly and
troubles such as noise and sound jumps may
arise due to radio wave interference if the main
unit is located too close to other Bluetooth®
devices or the devices that use the 2.4 GHz band.
≥ This system may not function properly if radio waves
from a nearby broadcasting station, etc. are too strong.
Fuse
∫ Intended usage
(5 ampere) ≥ This system is for normal, general use only.
≥ Do not use this system near equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc.).
RQT9849
3
SC-HTB770_RQT9849-B_mst.book 4 ページ
2013年2月25日 月曜日 午前11時53分
Table of contents
Safety precautions ........................................................................................... 2
Caution for AC Mains Lead ............................................................................. 3
About Bluetooth® ............................................................................................. 3
Before use
Supplied items .................................................................................................. 5
This system (SC-HTB770) .................................................................................................. 5
Accessories ........................................................................................................................ 5
Control reference guide ................................................................................... 6
This system (Front) ............................................................................................................. 6
This system (Rear) ............................................................................................................. 7
Remote control ................................................................................................................... 8
Getting started
Step 1 Selecting the placement method ....................................................... 9
The speaker system ......................................................................................................... 10
The active subwoofer ....................................................................................................... 10
Wireless interference ........................................................................................................ 10
Step 2 Assembling the speakers ................................................................. 11
When attaching the speakers to a wall ............................................................................. 11
When placing the speakers on a table ............................................................................. 18
Additional speaker fall prevention measures .................................................................... 23
Step 3 Connections ....................................................................................... 25
Connection with the TV .................................................................................................... 25
Connection with other devices .......................................................................................... 26
Speaker cable connection ................................................................................................ 27
AC mains lead connection ................................................................................................ 27
Active subwoofer wireless connection .............................................................................. 28
Bluetooth® connection ...................................................................................................... 28
Operations
Using this system .......................................................................................... 29
3D sound ......................................................................................................... 30
Sound modes ................................................................................................................... 30
Linked operations with the TV (VIERA Link “HDAVI ControlTM”) .............. 31
Advanced operations ..................................................................................... 32
Reference
Troubleshooting ............................................................................................. 34
Indicator illumination ..................................................................................... 37
Specifications ................................................................................................. 38
Unit care .......................................................................................................... 39
Licenses .......................................................................................................... 39
Limited Warranty (ONLY FOR AUSTRALIA) ................................................ 43
4
RQT9849
SC-HTB770_RQT9849-B_mst.book 5 ページ
2013年2月25日 月曜日 午前11時53分
Before use
≥ The illustrations shown may differ from your unit.
≥ These operation instructions are applicable to model SC-HTB770 for variety of regions.
Unless otherwise indicated, illustrations in these operating instructions are of the model for the United Kingdom and Ireland.
≥ Operations in this operating instructions are described mainly with the remote control, but you can
perform the operations on the main unit if the controls are the same.
Precautions
Supplied items
This system (SC-HTB770)
∏ 1 Active subwoofer
(SB-HWA770)
∏ 1 Centre speaker
(SB-HTB770)
∏ 2 Front speakers
(SB-HTB570)
Before use
∏ 1 Main unit
(SU-HTB770)
Accessories
Check the supplied accessories before using this system.
∏ 1 Remote control
(with a battery)
(N2QAYC000083)
∏ AC mains lead
2 For the United
Kingdom and Ireland
(K2CT2YY00097)
∏ 3 Speaker cables
(REE1789: RED)
(REE1790: WHITE)
Length: 3 m
(REE1791: GREEN)
Length: 2 m
∏ 1 Metal bracket
(RML0760)
∏ 2 Stand necks
(RGK2444)
∏ 2 Support legs
(RGK2464)
∏ 2 Leg stands
(RGK2463)
∏ 2 Side caps
(RGK2445: R)
(RGK2446: L)
∏ 2 Hook brackets
(RML0763)
∏ 2 Speaker bases
(RGK2465)
∏ 6 Screws (XYN5+J14FJK)
∏ 2 Speaker feet
(RKAX0042-K)
Operations
Getting started
2 For Australia and
New Zealand
(K2CJ2YY00093)
Reference
2 For Continental
Europe
(K2CQ2YY00119)
≥ Product numbers are correct as of February 2013. These may be subject to change.
≥ The supplied AC mains lead is for use with this system only.
Do not use it with other equipment. Also, do not use cords from other equipment with this system.
RQT9849
5
SC-HTB770_RQT9849-B_mst.book 6 ページ
2013年2月25日 月曜日 午前11時53分
Control reference guide
This system (Front)
4
5
6
7
1
2
3
Main unit
1
2
3
4
*1
*2
6
Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
Adjust the volume of this system
Select the input source
“TV”---------#“BD/DVD”---------#“AUX1”
^-- “ ”(- “AUX3”(- “AUX2”(}
Input selector indicators*1
A Bluetooth® indicator
Lights blue when the Bluetooth® device is
the audio source
B TV indicator
Lights green when the TV is the audio
source
C BD/DVD indicator
Lights amber when the device connected
to the BD/DVD terminal is the audio
source
D AUX1 indicator
Lights amber when the device connected
to the AUX1 terminal is the audio source
E AUX2 indicator
Lights amber when the device connected
to the AUX2 terminal is the audio source
F AUX3 indicator
Lights amber when the device connected
to the AUX3 terminal is the audio source
5
6
7
Active subwoofer
Sound mode indicators*1
G STANDARD indicator
Lights when STANDARD is the current
sound mode
H STADIUM indicator*2
Lights when STADIUM is the current
sound mode
I MUSIC indicator*2
Lights when MUSIC is the current sound
mode
J CINEMA indicator
Lights when CINEMA is the current
sound mode
K NEWS indicator
Lights when NEWS is the current sound
mode
L STEREO indicator
Lights when STEREO is the current
sound mode
Remote control signal sensor (> 8)
WIRELESS LINK indicator (> 28)
The indicators will also blink in various conditions. (> 37)
The indicator blinks for 5 sec when the main unit detects an audio format.
To manually verify the current audio format and the corresponding indicators, refer to page 32 (Audio
format indicator).
RQT9849
SC-HTB770_RQT9849-B_mst.book 7 ページ
2013年2月25日 月曜日 午前11時53分
This system (Rear)
*
AUX2
(HDMI3)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
TV
(ARC)
AV OUT
Before use
AV IN
AUX2
(HDMI3)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AV IN
1
2
AC IN terminal (> 27)
Speaker terminals (> 27)
3
4
5
TV terminal (> 25)
AUX3 terminal (> 26)
USB port (for service use only)
6
7
8
9
10
TV
(ARC)
AV OUT
AUX2 terminal (> 26)
AUX1 terminal (> 26)
BD/DVD terminal (> 26)
HDMI OUT terminal (ARC compatible) (> 25)
Active subwoofer on/off button (> 28)
* The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 36)
RQT9849
7
SC-HTB770_RQT9849-B_mst.book 8 ページ
2013年2月25日 月曜日 午前11時53分
Remote control
∫ Before using for the first time
Remove the insulation sheet A.
3
1
2
4
DIALOG LEVEL
5
6
INPUT
SELECTOR
∫ To replace a button-type battery
LINK MODE
SOUND
----PAIRING
Battery type: CR2025 (Lithium battery)
8

7
1
2
3
4
5
6
7
8
Turn the main unit on or off (> 29)
Adjust the dialog effect level (> 29)
Adjust the output level of the active
subwoofer (bass sound) (> 29)
Adjust the volume of this system (> 29)
Mute the sound (> 29)
Select the input source (> 29)
“TV”---------#“BD/DVD”---------#“AUX1”

^--- “ ”( “AUX3”( “AUX2”(}
Select the Bluetooth® device as the source
(> 29)
Select the sound mode (> 30)
“STANDARD” ----#“STADIUM” -----#“MUSIC”
^- “STEREO”( “NEWS”( “CINEMA”(}
≥ Set the button-type battery with its (i) mark
facing upward.
≥ Keep the button-type battery out of reach of
children to prevent swallowing.
∫ Remote control operation range
The remote control signal sensor is located on the main unit.
≥Use the remote control within the correct operation range.
B Remote control signal sensor
≥ Operation range
Distance: Within approx. 7 m
directly in front
Angle: Approx. 30o left and right

8
RQT9849
SC-HTB770_RQT9849-B_mst.book 9 ページ
2013年2月25日 月曜日 午前11時53分
Step 1 Selecting the placement method
Getting started
≥Choose a placement method that suits you best.
When attaching the speakers to a wall
Place the speakers
horizontally
Before use
Page 11
Place the front speakers
vertically
Getting started
Page 14
When placing the speakers on a table
Place the speakers using
the leg stands
Page 18
Place the speakers using
the support legs and
speaker feet
Page 19
Place the front speakers
using the speaker bases
Page 20
RQT9849
9
SC-HTB770_RQT9849-B_mst.book 10 ページ
2013年2月25日 月曜日 午前11時53分
Caution
≥ This system is to be used only as indicated in these instructions. Failure to do so may lead to damage to the amplifier and/
or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you
experience a sudden change in performance.
≥ Do not attempt to attach the speakers to a wall using methods other than those described in this manual.
The speaker system
≥Use a screwdriver (i) for assembling the speakers.
≥Do not hold the speakers in one hand to avoid injury, you may drop the speakers when carrying them.
∫ When attaching the speakers to a wall
The wall or pillar on which the speakers are to be attached should be capable of supporting 33 kg per screw. Consultation with
a qualified installation specialist is recommended when attaching the speakers to a wall. Improper attachment may result in
damage to the wall and speakers, and personal injury.
∫ When placing the speakers in front of the TV
The speakers may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic Tracking System) sensor,
remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D compatible TV.
≥ If the leg stands are being used
Change the height of the leg stands and/or move the speakers further away from the TV. If the TV still does not function
correctly, try removing the leg stands.
≥ If the leg stands are not used
Move the speakers further away from the TV. If the TV still does not function properly, try placing them beside the TV (> 9).
The active subwoofer
When carrying the active subwoofer
A Do not hold the active subwoofer from this
opening.
The parts inside may get damaged.
B Always hold the bottom of the active subwoofer when
moving it.
A
B
Wireless interference
To avoid interference, maintain the following distances between the main unit/active subwoofer
and other electronic devices that use the same radio frequency (2.4 GHz band).
C
≥
≥
≥
≥
≥
D
C Main unit/active subwoofer
D Wireless router, cordless phone and other
electronic devices: approx. 2 m
Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel facing upward.
Do not use the main unit or the active subwoofer in a metal cabinet.
Placing the active subwoofer too close to the walls and corners can result in excessive bass. Cover walls and windows with thick curtains.
If irregular colouring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the speakers further away from the TV.
Keep magnetised items away. Magnetised cards, watches, etc., can be damaged if placed too close to the active subwoofer and the speakers.
10
RQT9849
SC-HTB770_RQT9849-B_mst.book 11 ページ
2013年2月25日 月曜日 午前11時53分
Step 2 Assembling the speakers
When attaching the speakers to a wall
Place the speakers horizontally
The speakers can be wall mounted by drilling screws into the wall, etc.
Make sure that the screw used and the wall are strong enough to support the weight of at least 33 kg.
The screws and other items are not supplied as the type and size will vary with each installation.
≥For details about the required screws, refer to the diagram below the step “Drive a screw into the wall.”(> 12).
∏ 2 Front
speakers
∏ 1 Centre
speaker
∏ 1 Metal bracket
∏ 4 Screws
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Centre
Getting started
≥For a safety measure to prevent the speakers from falling, refer to page 23.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers.
≥ There is no left and right for the centre speaker.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.

A Screw (supplied)
≥ Tighten securely.
RQT9849
11
SC-HTB770_RQT9849-B_mst.book 12 ページ
2013年2月25日 月曜日 午前11時53分
Connect the speaker cables.
*

Push
45

 Green
 Red
1 Insert the wire fully.
r: White
s: Blue line
 White
A Right speaker connector
B Centre speaker connector
C Left speaker connector
≥ Insert the wire fully, taking care not to insert
beyond the wire insulation.
2 Press into the groove.
* If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm from the tip, at an angle of approx. 45o (as illustrated above).
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm of space above and on each side of the speaker to allow enough space for fitting the speaker.
≥ Keep the screws out of reach of children to prevent swallowing.


A
B
C
D
E



At least 30 mm
‰4.0 mm
‰7.0 mm to ‰9.4 mm
Wall or pillar
5.5 mm to 6.5 mm
Front view (semi-transparent image)



F 238 mm
J Wall mounting hole
12
RQT9849




G 745 mm


H 248 mm
I 20 mm
SC-HTB770_RQT9849-B_mst.book 13 ページ
2013年2月25日 月曜日 午前11時53分
Wall mount the speakers:
Fit the speaker securely onto the screw(s).
Red connector: The speaker attached to the red connector cable is to be placed on the right side.
Getting started
White connector:The speaker attached to the white connector cable is to be placed on the left side.
 White
 Red
A Right speaker connector
B Left speaker connector
DO
≥ Move the speaker so
that the screw is in
this position.
DO NOT
≥ In this position, the
speaker will likely fall
if moved to the left or
right.
RQT9849
13
SC-HTB770_RQT9849-B_mst.book 14 ページ
2013年2月25日 月曜日 午前11時53分
Place the front speakers vertically
The speakers can be wall mounted by drilling screws into the wall, etc.
Make sure that the screw used and the wall are strong enough to support the weight of at least 33 kg.
The screws and other items are not supplied as the type and size will vary with each installation.
≥For details about the required screws, refer to the diagram below the step “Drive a screw into the wall.”(> 16).
∏ 2 Front
speakers
∏ 1 Centre
speaker
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Centre
∏ 2 Stand necks
∏ 2 Side caps
∏ 4 Screws
∏ 2 Hook
brackets
≥For a safety measure to prevent the speakers from falling, refer to page 23.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the centre speaker:
Attach the side caps and hook brackets to the speaker.
≥ There is no left and right for the centre speaker.
≥ Keep the screws out of reach of children to prevent swallowing.

A Hook bracket (supplied)
B Screw (supplied)
≥ Tighten securely.
14
RQT9849
SC-HTB770_RQT9849-B_mst.book 15 ページ
2013年2月25日 月曜日 午前11時53分
Assemble the centre speaker:
Connect the speaker cable.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
A Centre speaker
connector
1 Insert the wire fully.
r: White
s: Blue line
Green
Push
Assemble the front speakers:
Attach the stand neck.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.
Getting started

A Screw (supplied)
≥ Tighten securely.
Assemble the front speakers:
Connect the speaker cables.
1 Insert the wire fully.
r: White
s: Blue line
*
Push
45

≥ Insert the wire fully,
taking care not to insert
beyond the wire
insulation.
2 Press into the groove.

* If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm from the tip, at an angle of approx. 45o (as illustrated above).
RQT9849
15
SC-HTB770_RQT9849-B_mst.book 16 ページ
2013年2月25日 月曜日 午前11時53分
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm of space above and on each side of the speaker to allow enough space for fitting the speaker.
≥ Keep the screws out of reach of children to prevent swallowing.
Front speakers









Centre speaker





F Front speaker
(Rear view)
G 100 mm
H 436 mm
I 34 mm
J Wall mounting hole


K At least 30 mm
L ‰4.0 mm
M ‰7.0 mm to
‰9.4 mm
N Wall or pillar
O 1.6 mm to 2.5 mm
P Max. 3.5 mm





Q Centre speaker
(Rear view)
R 18 mm
S 147 mm
T 13 mm
U 19.6 mm
V 50.2 mm

16
A At least 30 mm
B ‰4.0 mm
C ‰7.0 mm to
‰9.4 mm
D Wall or pillar
E 5.5 mm to 6.5 mm
RQT9849
SC-HTB770_RQT9849-B_mst.book 17 ページ
2013年2月25日 月曜日 午前11時53分
Fit the speaker(s) securely onto the screw(s).
Red connector: The speaker attached to the red connector cable is to be placed on the right side.
White connector:The speaker attached to the white connector cable is to be placed on the left side.
 White
Red
B Right speaker connector
Getting started
A Left speaker connector

DO
Front speaker
DO NOT
Centre speaker
≥ Move the speaker so that the screw is in this
position.
Front speaker
Centre speaker
≥ In this position, the speaker will likely fall if moved
to the left or right.
RQT9849
17
SC-HTB770_RQT9849-B_mst.book 18 ページ
2013年2月25日 月曜日 午前11時53分
When placing the speakers on a table
Place the speakers using the leg stands
∏ 2 Front
Speakers
∏ 1 Centre speaker
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Centre
∏ 1 Metal
bracket
∏ 2 Leg stands
∏ 6 Screws
≥For a safety measure to prevent the speakers from falling, refer to page 23.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 and 2 of “Place the speakers
horizontally” (> 11, 12).
Attach the leg stands.
Red connector:
With the speaker facing down, the speaker attached to the red connector cable is
to be placed on the left side.
White connector:
With the speaker facing down, the speaker attached to the white connector cable
is to be placed on the right side.
≥ Keep the screws out of reach of children to prevent swallowing.

 White
 Red

A Screw (supplied)
≥ Tighten securely.
B Screw hole
18
RQT9849
Align the higher or lower holes with the projecting parts on
the speaker.
≥ By changing the position that the stand is attached to the
projecting parts, the height can be adjusted by 9 mm.
C Right speaker connector
D Left speaker connector
SC-HTB770_RQT9849-B_mst.book 19 ページ
2013年2月25日 月曜日 午前11時53分
Place the speakers using the support legs and
speaker feet
∏ 2 Front
Speakers
∏ 1 Centre speaker
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Centre
∏ 1 Metal
bracket
∏ 2 Support legs
∏ 6 Screws
∏ 2 Speaker feet
≥For a safety measure to prevent the speakers from falling, refer to page 23.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Attach the support legs and speaker feet.
Red connector:
With the speaker facing down, the speaker attached to the red connector cable is
to be placed on the left side.
White connector:
With the speaker facing down, the speaker attached to the white connector cable
is to be placed on the right side.
≥ Keep the screws and the speaker feet out of reach of children to prevent swallowing.




Align the projecting
parts on the speaker
with support leg.
 White
Red 
A Screw (supplied)
≥ Tighten securely.
B Screw hole
C Speaker foot (supplied)
D Right speaker connector
E Left speaker connector
RQT9849
19
Getting started
Assemble the speakers following steps 1 and 2 of “Place the speakers
horizontally” (> 11, 12).
SC-HTB770_RQT9849-B_mst.book 20 ページ
2013年2月25日 月曜日 午前11時53分
Place the front speakers using the speaker
bases
∏ 2 Front
Speakers
∏ 1 Centre speaker
∏ 2 Stand necks
∏ 2 Speaker bases
∏ 6 Screws
∏ 2 Speaker feet
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Centre
∏ 2 Side caps
≥For a safety measure to prevent the speakers from falling, refer to page 23.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the centre speaker:
Attach the side caps and speaker feet to the speaker and connect the
speaker cable.
≥ There is no left and right for the centre speaker.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
≥ Keep the screws and the speaker feet out of reach of children to prevent swallowing.
Green
Push
A Screw (supplied)
≥ Tighten securely.
B Speaker foot (supplied)
C Centre speaker connector
20
RQT9849
1 Insert the wire fully.
r: White
s: Blue line
SC-HTB770_RQT9849-B_mst.book 21 ページ
2013年2月25日 月曜日 午前11時53分
Assemble the front speakers:
Attach the stand neck.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.

A Screw (supplied)
≥ Tighten securely.
Getting started
Assemble the front speakers:
Insert the speaker cable through the speaker base and connect the
speaker cables.
≥ Be sure to insert the speaker cable through the threading hole as indicated in the illustration.
1 Insert the wire
fully.
r: White
s: Blue line

Push
*

≥ Insert the wire fully,
taking care not to
insert beyond the wire
insulation.
2 Press into the
groove.
45
* If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm from the tip, at an angle of approx. 45o (as illustrated above).
RQT9849
21
SC-HTB770_RQT9849-B_mst.book 22 ページ
2013年2月25日 月曜日 午前11時53分
Assemble the front speakers:
Attach the speaker base.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.
Screw (supplied)
≥ Tighten securely.
Align the projecting
parts with the holes
on the speaker.
Press into the groove.
Red connector: The speaker attached to the red connector cable is to be placed on the right side.
White connector: The speaker attached to the white connector cable is to be placed on the left side.
22
RQT9849
SC-HTB770_RQT9849-B_mst.book 23 ページ
2013年2月25日 月曜日 午前11時53分
Additional speaker fall prevention measures
To prevent the speakers from falling, it is recommended, as an additional protection measure, to
attach the speakers to the wall or table with a fall prevention cord (hereafter “cord”).
≥ Consultation with a qualified installation specialist concerning the appropriate procedure when attaching to a concrete wall or
a surface that may not have strong enough support is recommended (> 12, 16). Improper attachment may result in damage
to the wall and speakers, and personal injury.
≥ Use a cord that is capable of supporting over 10 kg (with a diameter of about 1.5 mm).
≥ The speaker fall prevention measure is to minimize the possibility of damage and harm, but it does not completely guarantee this effect.
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Make sure that the slack of the cord is minimal.
≥ Depending on the placement of the speakers, the screwing position of the screw eye may differ.
When attaching the speakers horizontally
Wall mounting
B
A
A
Getting started
C
C
On a table


A Cord*
B Screw eye
C Wall
* If the cord cannot be threaded through the holes, try bending the cord in 2 locations, about
10 mm apart from the tip, at an angle of 45o (as illustrated above).
RQT9849
23
SC-HTB770_RQT9849-B_mst.book 24 ページ
2013年2月25日 月曜日 午前11時53分
When attaching the speakers vertically
Wall mounting
B
A
C
A
C
*
B
*
A
C
A
On a table





*
*


A Cord*1,2
B Screw eye
*1
*2
24
C Wall
D Approx. 150 mm
If the cord cannot be threaded through the holes, try bending the cord in 2 locations, about
10 mm apart from the tip, at an angle of 45o (as illustrated above).
When attaching the cord to the centre speaker, make sure that the cord does not touch the
speaker cable lead wire.
RQT9849
SC-HTB770_RQT9849-B_mst.book 25 ページ
2013年2月25日 月曜日 午前11時53分
Step 3 Connections
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are completed.
∫ HDMI
≥ The HDMI connection supports VIERA Link “HDAVI Control” (> 31) when used with a compatible Panasonic TV.
≥ Use the ARC compatible High Speed HDMI Cables. Non-HDMI-compliant cables cannot be utilised.
≥ It is recommended that you use Panasonic’s HDMI cable.
Connection with the TV
Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.
Connection differs depending on the label printed next to the HDMI terminal.
Labelled “HDMI (ARC)”: Connection [A]
Not Labelled “HDMI (ARC)”: Connection [B]
∫ What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labelled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
Make the connection.
[A] Labelled “HDMI (ARC)”
TV
Be sure to connect to the
TV’s ARC compatible
terminal. (Refer to the
operating instructions for
the TV.)
Getting started
HDMI IN (ARC)
A
TV
(ARC)
AV OUT
DIGITAL
AUDIO
IN
AC IN
TV
(ARC)
AV OUT
A HDMI cable
[B] Not labelled “HDMI (ARC)”
HDMI IN
A
DIGITAL
AUDIO
IN
TV
(ARC)
TV
(OPT1)
TV
OPTICAL
OUT
B
AV OUT
DIGITAL
AUDIO
IN
AC IN
TV
(ARC)
SPEAKERS
TV
(OPT1)
AV OUT
A HDMI cable
B Optical digital audio cable
≥ When you use the optical digital audio cable, insert the tip correctly into the terminal.
RQT9849
25
SC-HTB770_RQT9849-B_mst.book 26 ページ
2013年2月25日 月曜日 午前11時53分
Connection with other devices
You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc. to
this system.
When the device has an HDMI terminal
Preparation
≥Connect the main unit to the TV (> 25).
HDMI OUT
e.g., Blu-ray Disc player
HDMI OUT
A
e.g., Set top box
AUX2
(HDMI3)
AV IN
HDMI OUT
e.g., Video game console
BD/DVD
(HDMI1)
AUX1
(HDMI2)
DIGITAL
AUDIO
IN
AC IN
AUX2
(HDMI3)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AV IN
A HDMI cable
∫ HDMI standby pass-through
Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the BD/DVD, AUX1 or
AUX2 terminal will be sent to the TV connected to the HDMI OUT terminal (the sound will not be output from this system).
When devices are connected to all BD/DVD, AUX1 and AUX2 terminals, audio and/or video signal of the device whose input
is lastly selected is output.
∫ 3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc player.
≥ The main unit can pass-through the 3D video signal from a 3D compatible Blu-ray Disc player to a FULL HD 3D TV.
When the device has an optical digital audio output terminal
e.g., Set top box
TV
B
C
OPTICAL OUT
DIGITAL
AUDIO
IN
AUX3
(OPT2)
AC IN
DIGITAL
AUDIO
IN
AUX3
(OPT2)
B Refer to the operating instructions of the respective devices for the optimal connection.
C Optical digital audio cable
26
RQT9849
SC-HTB770_RQT9849-B_mst.book 27 ページ
2013年2月25日 月曜日 午前11時53分
Speaker cable connection
Match the connector shape and connect to the terminals of the same colour.
6
R
6
CENTER
6
L
DIGITAL
AUDIO
IN
AC IN
6
R
6
CEN
TER
6
L
SPE
AK
ERS

A RED
Right speaker connector


B GREEN
Centre speaker connector
C WHITE
Left speaker connector
AC mains lead connection
Getting started
≥ Connect only after all other connections are completed.


AC IN

DIGITAL
AUDIO
IN
AC IN
D To a household mains socket
E AC mains lead (supplied)
≥This system consumes a small amount of AC power (> 38) even when it is turned off. In the interest
of power conservation, if you will not be using this system for a long time, unplug it from the household
mains socket.
[For]customers]in]United]Kingdom]and]Ireland]
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE
CONNECTION.
Saving energy
The main unit is designed to conserve its power consumption and save energy.
≥ The main unit will automatically switch to standby mode when no signal is input and no operation is
performed for approx. 2 hours. Refer to page 33, “Auto standby function” to turn this function off.
RQT9849
27
SC-HTB770_RQT9849-B_mst.book 28 ページ
2013年2月25日 月曜日 午前11時53分
Active subwoofer
wireless connection
Preparation
≥ Turn on the main unit.
Press [BÍ CI].
Bluetooth® connection
By using the Bluetooth® connection, you can
listen to the sound from the Bluetooth® audio
device from this system wirelessly.
Preparation
≥ Turn on the Bluetooth® feature of the device
and place the device near the main unit.
Bluetooth® pairing
Press [ ] to select “ ”.
≥ If the “
” indicator flashes quickly, go to step 3.
Press and hold [ ] until the “ ”
indicator flashes quickly.
≥ If the “
Active subwoofer on/off button [B Í C I]
Use this button to turn the active subwoofer on
and off.
C I:
The active subwoofer is on.
B Í:
The active subwoofer is off.
The active subwoofer will still consume a small
amount of power even when it is turned off (B, Í).
” indicator flashes slowly, repeat step 2.
Select “SC-HTB770” from the
Bluetooth® device’s Bluetooth®
menu.
≥ If prompted for the passkey on the Bluetooth® device,
enter “0000”.
≥ Once the Bluetooth® device is connected, the “ ”
indicator stops flashing and lights up.
Connecting a Bluetooth®
device
Check that the wireless link is
activated.
Press [ ] to select “ ”.
≥ If the “ ” indicator lights, a Bluetooth® device is already
connected with this system. Disconnect it. (> below)
Select “SC-HTB770” from the
Bluetooth® device’s Bluetooth®
menu.
∫ Disconnecting a Bluetooth® device
Press and hold [
slowly.
WIRELESS LINK indicator
Lights red:
The wireless link is not activated.
Lights green:
The wireless link is activated.
Blinks green:
The active subwoofer is trying to activate the
wireless link with the main unit.
The wireless link will be activated when the main unit and the
active subwoofer are both turned on.
28
RQT9849
] until the “
” indicator flashes
≥ When “ ” is selected as the source, this system will
automatically try and connect to the last connected
Bluetooth® device.
≥ The Bluetooth® device will be disconnected if a different
audio source (e.g. “TV”) is selected.
≥ Refer to the operating instructions of the Bluetooth® device
for further instruction on how to connect a Bluetooth®
device.
≥ This system can only be connected to one device at a
time.
≥ You can register up to 8 devices with this system. If a 9th
device is paired, the device that has not been used for the
longest time will be replaced.
≥ To change the sound quality, refer to “Bluetooth®
communication mode” on page 32.
SC-HTB770_RQT9849-B_mst.book 29 ページ
2013年2月25日 月曜日 午前11時53分
Using this system
Operations
Adjust the volume and sound effect
level.
Preparation
≥ Turn on the active subwoofer.
≥ Turn on the TV and/or connected device.
∫ To adjust the volume of this system
Press [i VOL j].
≥ Volume range: 0 to 100*
∫ To adjust the dialog effect level
DIALOG LEVEL
INPUT
SELECTOR
LINK MODE
SOUND
----PAIRING
This setting will change the level of the Clearmode dialog effect. (> 30)
1 Press [i DIALOG LEVEL j] to display the
current level.
2 While the level is displayed:
Press [i DIALOG LEVEL j] to adjust the
level.
Indication
4
Press [Í] to turn on the main unit.
Select the source.
Highest
3
To select
“TV”--------#“BD/DVD”--------#“AUX1”
^- “
“
2
”(- “AUX3”(- “AUX2”(}
” (Bluetooth®)
≥ This remote control cannot be used to control the
operations of the connected devices.
1
Getting started
Press
[INPUT
SELECTOR]
[ ]
Effect level
Lowest
∫ When “ ” is selected as the source
∫ When “BD/DVD”, “AUX1” or “AUX2”
is selected as the source
∫ To adjust the subwoofer level
1
2
Press [i SUBWOOFER j] to display the
current level.
While the level is displayed:
Press [i SUBWOOFER j] to adjust the
level.
On the TV and the connected device:
Select the TV’s input for this system and start the
playback on the connected device.
≥ The level indication pattern is the same as dialog effect
level.
∫ When “AUX3” is selected as the
source
Press [MUTE].
On the TV and the connected device:
Select the TV’s input for the device connected to “AUX3”
terminal and start the playback on the connected device.
Operations
On the Bluetooth® device:
Select this system as the output source of the
connected Bluetooth® device and start the
playback.
∫ To mute the sound
≥ While muting, the sound mode indicators blink
simultaneously.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is cancelled if the main unit is turned off.
If this system does not operate as expected or sound is unusual, returning the settings to
the factory preset may solve the problem. (> 34)
* The sound mode indicators blink from left to right (i) or from right to left (s) while adjusting.
The indicators will not blink when it has reached the maximum or minimum.
≥ If there is sound coming out of the TV’s speakers, reduce the volume of the TV to its minimum.
≥ If the main unit is turned off with the volume setting in the greater half (above 50), the main unit will automatically lower the
volume to the middle (50) when the main unit is turned on (Volume limitation).
To turn this function off, refer to page 34.
RQT9849
29
SC-HTB770_RQT9849-B_mst.book 30 ページ
2013年2月25日 月曜日 午前11時53分
3D sound
This system provides a feeling that the sound and
the image are as one.
≥ To change the applied effect, refer to “Sound
modes”. (> right)
e.g., Image of 3D sound field
Sound modes
By changing the sound mode, it is possible to
enjoy the sound that is suitable to the TV program
or image from the connected device.
∫ To select the sound mode
Press [SOUND].
“STANDARD” -----#“STADIUM” -----#“MUSIC”
^- “STEREO”( “NEWS”( “CINEMA”(}
≥ The indicator for the selected sound mode
lights.
e.g., “STEREO”
Dolby® Virtual
Speaker
3D surround
effect
Clear-mode
dialog
3D sound
With this effect you can enjoy
a surround sound effect
similar to 5.1ch.
Adding to the Dolby Virtual
Speaker effect, Panasonic
has applied its own sound
field controlling technology to
expand the sound field
forwards, backwards,
upwards, and downwards,
providing a sound with depth
and force that better matches
3D images.
Sports commentary and
dialogs from TV dramas are
heard as if the sound is
coming from the TV, giving
the feeling that the sound and
the image are one.
Also, the dialog will stand out
from the other sounds during
normal volume playback and
when the volume is lowered
for night time viewing.
“STANDARD”
“STADIUM”
“MUSIC”
“CINEMA”
“NEWS”
“STEREO”
(Factory preset)
Sound mode
Produces a sound best
suited for dramas and
comedy shows.
Produces a highly realistic
sound for live broadcasts of
sports.
Re-creates the sound of
musical instruments and
songs with an expansive
sound.
Produces a powerful, threedimensional sound unique to
movies.
Enhances the voices of news
and sports commentaries for
clearer hearing.
You can play any source in
stereo. Dolby Virtual Speaker
and 3D surround effects are
turned off.
The setting is maintained until it is changed again.
≥ To turn off Dolby Virtual Speaker and the 3D surround
effects, select “STEREO” as the sound mode. (> right)
≥ To turn off the 3D surround and the Clear-mode dialog
effects, refer to “Using the Dolby Virtual Speaker effect”.
(> 33)
30
RQT9849
SC-HTB770_RQT9849-B_mst.book 31 ページ
2013年2月25日 月曜日 午前11時53分
Linked operations with the TV
(VIERA Link “HDAVI ControlTM”)
What is VIERA Link “HDAVI
Control”?
Preparation
1 Confirm that the HDMI connection has been
made. (> 25, 26)
2 Set the “HDAVI Control” operations on the
connected equipment (e.g., TV).
3 For the optimal “HDAVI Control” operations
change the following settings on the
connected TV*1.
≥ Set the default speaker settings to this system.*2
≥ Set the speaker selection settings to this system.
4 Turn on all “HDAVI Control” compatible
equipment and select the TV’s input for this
system so that the “HDAVI Control” function
works properly.
5 If a device is connected to the HDMI IN
terminal, start play to check that the picture is
displayed on the TV correctly.
When the connection or settings are changed,
repeat this procedure.
*1
The availability and function of the settings may vary
depending on the TV. Refer to the operating instructions
for the TV for details.
*2
If the TV has a default speaker setting within the VIERA
Link setting items, choosing this system as the default
speaker will automatically change the speaker selection to
this system.
≥ VIERA Link “HDAVI Control”, based on the control
functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a
unique function that we have developed and added. As
such, its operation with other manufacturers’ equipment
that supports HDMI CEC cannot be guaranteed.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the standard for Panasonic’s HDAVI
Control compatible equipment. This standard is
compatible with Panasonic’s conventional HDAVI
equipment.
≥ Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
To make sure that the audio is output from this
system, turn the main unit on by using the TV’s
remote control and selecting home cinema from
the speaker menu of VIERA Link menu.
The availability and function of the settings may
vary depending on the TV. Refer to the operating
instructions for the TV for details.
∫ Speaker control
You can select whether audio output is from this system
or the TV speakers by using the TV menu settings.
Home cinema
This system is active.
≥ When the main unit is in standby mode, changing the TV
speakers to this system in the VIERA Link menu will
automatically turn the main unit on.
≥ You can control the volume setting of this system using the
volume or mute button on the TV remote control.
≥ If you turn off the main unit, TV speakers will be
automatically activated.
≥ Audio will automatically be output from this system if the
TV is compatible to VIERA Link “HDAVI Control 4” or later.
TV
TV speakers are active.
≥ The volume of this system is set to its minimum.
∫ Automatic input switching
When the following operations are performed, the
main unit will automatically change the input to
the corresponding source.
jWhen play starts on an HDMI connected device.*3
jWhen the TV input or the TV channel is changed.
*3
If the speaker output setting on the TV is set to
this system, the TV and the main unit turn on
automatically (Power on link).
∫ Power off link
When the TV is turned off, the main unit also
turns off automatically. (This function does not
work when Bluetooth® is the source.)
∫ Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically
adjusted by adding time-lag to the audio output,
enabling you to enjoy smooth audio for the picture.
The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and the
VIERA Link is set to on.
RQT9849
31
Operations
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
system, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.
What you can do with
VIERA Link “HDAVI Control”
SC-HTB770_RQT9849-B_mst.book 32 ページ
2013年2月25日 月曜日 午前11時53分
Advanced operations
Audio format indicator
To display the current audio format.
Press and hold [SOUND] for more than
4 sec.
Auto gain control
With this function, you can prevent sudden loud
sounds. The output will be reduced automatically
when the input exceeds a certain level.
Press and hold [INPUT SELECTOR] on
the remote control for more than 4 sec.
≥ The current audio format is indicated for 5 sec.
“STADIUM” indicator blinks:
Dolby Digital is the audio format.
“STANDARD” indicator blinks:
Auto gain control is on.
“MUSIC” indicator blinks:
DTS is the audio format.
“STEREO” indicator blinks:
Auto gain control is off.
(Factory preset)
“CINEMA” indicator blinks:
PCM is the audio format.
Audio format is not indicated when “
source.
” is selected as the
Changing the dual audio
Change the dual audio from main to secondary.
≥ This setting will only work if the audio output
setting on the connected TV or player, etc. is
set to “Bitstream” and dual audio is available in
the audio source.
Press and hold [MUTE] for more
than 4 sec.
“STANDARD” indicator blinks (A):
Main (Factory preset)
“STEREO” indicator blinks (B):
Secondary
(SAP: Secondary Audio Program)
When A and B both blink: Main and
secondary
While the setting is displayed, press
[MUTE] to change the setting.
≥ The setting changes each time [MUTE] is pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
While the setting is displayed, press
[INPUT SELECTOR] on the remote
control to change the setting.
≥ The setting changes each time [INPUT SELECTOR] is
pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
Bluetooth®
communication mode
You can select different modes to suit the type of
connections with emphasis on connectivity or
high quality audio.
≥ Make sure that a Bluetooth® device is already
paired with this system. (> 28)
Press [ ] to select “ ”.
≥
“
” indicator will blink slowly. If the indicator lights, a
Bluetooth® device is already connected with this system.
Disconnect it. (> 28)
Press [ ] to display the current mode.
“STANDARD” indicator blinks:
MODE1 (Factory preset)
Emphasis on connectivity
“STEREO” indicator blinks:
MODE2
Emphasis on audio quality
While the mode is displayed, press
[ ] to select the mode.
≥ The setting changes each time [ ] is pressed.
≥ The indicator for the selected setting blinks for 10 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
32
RQT9849
2013年2月25日 月曜日 午前11時53分
Using the Dolby Virtual
Speaker effect
Depending on your preference, It is possible to
turn off the 3D surround effect and the clearmode dialog effect.
Auto standby function
With this function turned on, this unit can be set to
automatically switch to standby mode if there is no
signal input and no operation is performed for 2 hours.
While pressing and holding
[DIALOG LEVEL j] on the remote
control, press and hold [INPUT
SELECTOR] on the main unit for
more than 4 sec.
While pressing and holding
[SOUND] on the remote control,
press and hold [VOL r] on the main
unit for more than 4 sec.
“STANDARD” indicator blinks:
3D surround effect and clear-mode
dialog effect is on.
≥ The indicator for the current setting blinks for 20 sec.
“STANDARD” indicator blinks:
Auto standby function is on.
“STEREO” indicator blinks:
3D surround effect and clear-mode
dialog effect is off.
“STEREO” indicator blinks:
Auto standby function is off.
While the setting is displayed, press
[SOUND] to change the setting.
≥ The setting changes each time [SOUND] is pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ This setting will be reset to on when the main unit is turned
off.
≥ When off is selected, the dialog effect level cannot be
adjusted.
Dimmer mode
You can turn off dimmer mode and keep the LED
indicators bright.
While pressing and holding [INPUT
SELECTOR] on the remote control,
press and hold [s VOL] on the main unit
for more than 4 sec to turn off Dimmer
mode.
While the indicator is blinking,
press [DIALOG LEVEL j] to change
the setting.
≥ The setting changes each time [DIALOG LEVEL j] is
pressed.
≥ The setting is maintained until it is changed again.
Others
∫ Remote control code
When other Panasonic devices respond to this
system’s remote control, change the remote control
code on this system and the remote control.
Preparation
≥ Turn off all other Panasonic products.
≥ Turn on the main unit.
Operations
SC-HTB770_RQT9849-B_mst.book 33 ページ
≥ The indicator for the current condition will turn brighter.
≥ The setting is maintained until it is changed again.
≥ Default setting of this function is on.
Change the remote control code to code 2:
1 Aim the remote control at the main unit’s
remote control sensor.
2 Press and hold [MUTE] and [ ] on the
remote control for more than 4 sec.
≥ All the indicators will blink for 10 sec when the
code of this system is changed.
To turn on dimmer mode, repeat the operation above.
After performing the operation, the indicator for the current
condition will be dim.
≥ The setting is maintained until it is changed again.
≥ If the main unit does not operate after changing the code,
repeat steps 1 and 2.
≥ To change the remote control code to code 1, repeat the
steps above, but replace [ ] with [INPUT SELECTOR].
RQT9849
33
SC-HTB770_RQT9849-B_mst.book 34 ページ
2013年2月25日 月曜日 午前11時53分
∫ To reduce the clear-mode dialog effect
When the dialog does not sound natural while the
volume is set low, it is possible to reduce the
dialog enhancing effect as follows:
While pressing and holding [SOUND] on the
remote control, press and hold [s VOL] on the
main unit for more than 4 sec.
≥ All the indicators will blink once when the clear-mode
dialog effect is reduced.
≥ Even if clear-mode dialog effect is reduced, dialog effect
level is still adjustable.
To reset the setting, return to the factory preset. (> right)
∫ To turn off VIERA Link “HDAVI Control”
When “HDAVI Control” compatible equipment
does not work well with this system, for example,
it is possible to turn off this function as follows:
≥ When VIERA Link is turned off, the ARC
function is not available. Be sure to connect the
optical digital audio cable. (> 25)
1
2
While pressing and holding [MUTE] on the
remote control, press and hold [s VOL] on
the main unit for more than 4 sec.
After the setting has changed, turn off all the
connected devices and then turn them on again.
≥ All the indicators will blink once when VIERA Link “HDAVI
Control” is turned off.
To reset the setting, return to the factory preset. (> right)
∫ To turn off the volume limitation
If a state of the lowered volume disturbs you
every time the main unit turns on, for example, it
is possible to turn off this function as follows:
While pressing and holding [MUTE] on the
remote control, press and hold [VOL r] on the
main unit for more than 4 sec.
≥ All the indicators will blink once when the volume limitation
is turned off.
To reset the setting, return to the factory preset. (> right)
34
RQT9849
Troubleshooting
Reference
Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated in the following guide do not solve the
problem, consult your dealer for instructions.
To return to the factory preset.
While the main unit is on, press [Í/I] on the main
unit for more than 4 sec.
(All the indicators will blink twice when this
system is reset.)
If this system does not operate as expected,
returning the settings to the factory preset
may solve the problem.
≥ The remote control code will return to “1” when this
system is returned to the factory preset. To change
the remote control code, refer to page 33.
General operation
No power.
≥ Insert the AC mains lead securely. (> 27)
≥ After turning the main unit on, if the indicators blink
and the main unit immediately turns off, unplug the
AC mains lead and consult your dealer.
The remote control does not work properly.
≥ The battery is depleted. Replace it with a new one. (> 8)
≥ It is possible that the insulation sheet has not been
removed. Remove the insulation sheet. (> 8)
≥ It may be necessary to set the code of the
remote control again after changing the battery
of the remote control. (> 33)
≥ Use the remote control within the correct
operation range. (> 8)
The “TV” indicator blinks.
Remove the AC mains lead and consult your dealer. If
there are any other indicators blinking, be sure to
inform your dealer about the blinking indicators.
The main unit is automatically switched to
standby mode.
The auto standby function is on.
The main unit will automatically switch to standby
mode when no signal is input and no operation is
performed for approx. 2 hours. Refer to page 33
to turn this function off.
The main unit is turned off when the TV’s
speakers are selected in the speaker control.
This is a normal feature when using VIERA Link (HDAVI
Control 4 or later). Please read the operating instructions for
the TV for details about its power save feature. (> 31)
SC-HTB770_RQT9849-B_mst.book 35 ページ
2013年2月25日 月曜日 午前11時53分
HDMI
This system does not operate correctly.
If the HDMI cable is connected to the wrong
terminal (HDMI IN or HDMI OUT), this system will
not operate correctly. Turn the main unit off,
disconnect the AC mains lead and reconnect the
HDMI cable(s). (> 25, 26)
VIERA Link related operations no longer
function properly.
≥ Check the VIERA Link setting on the connected
devices.
≥ Have you turned the VIERA Link settings off?
(> 34)
≥ When the HDMI connections are changed,
after a power failure or after the AC mains lead
has been removed, VIERA Link operations may
not function properly.
jTurn on all the devices that are connected to
the TV with an HDMI cable and then turn the
TV on.
jTurn off the VIERA Link settings of the TV
and turn it on again. For details refer to the
operating instructions for the TV.
jWhile the main unit and the TV are
connected with the HDMI cable, turn on the
TV and then remove the main unit’s AC
mains lead and reconnect it again.
Bluetooth®
Pairing cannot be done.
Check the Bluetooth® device condition.
The device cannot be connected.
≥ The pairing of the device was unsuccessful or
the registration has been replaced. Try pairing
the device again. (> 28)
≥ This system might be connected to a different
device. Disconnect the other device and try
pairing the device again.
The device is connected but audio cannot be
heard through this system.
For some built-in Bluetooth® devices, you have to set
the audio output to “SC-HTB770” manually. Read the
operating instructions for the device for details.
The sound is interrupted.
≥ The device is out of the 10 m communication range.
Bring the Bluetooth® device closer to the main unit.
≥ Remove any obstacle between the main unit
and the device.
≥ Other devices that use the 2.4 GHz frequency
band (wireless router, microwaves, cordless
phones, etc.) are interfering. Bring the
Bluetooth® device closer to the main unit and
distance it from the other devices.
≥ Select “MODE1” for stable communication. (> 32)
Operations
The first few seconds of audio cannot be
heard when using the HDMI connection.
This may occur during DVD-Video chapter
playback. Change the digital audio output setting
on the connected device from “Bitstream” to
“PCM”.
Reference
When operating an HDMI compatible device
of a different brand, the main unit reacts in an
unwanted manner.
HDAVI Control commands may use a different
signal depending on the brand of the device. In
this case, turn VIERA Link off. (> 34)
RQT9849
35
SC-HTB770_RQT9849-B_mst.book 36 ページ
2013年2月25日 月曜日 午前11時53分
Sound
No sound (or image).
≥ Turn muting off. (> 29)
≥ Check the connections to the other devices. (> 25, 26)
≥ Make sure that the received audio signal is
compatible with this system. (> 38)
≥ Turn this system off and then on again.
≥ If the main unit is connected to the TV with only an
HDMI cable, make sure that the TV’s HDMI
terminal is labelled “HDMI (ARC)”. If not, connect
using the optical digital audio cable. (> 25)
≥ If the main unit is connected to a Panasonic TV
and turned on using the button on the main unit or
the remote control, sound might not be output
from this system. In this case, turn the main unit
on using the TV’s remote control. (> 31)
≥ If the connections are correct, there might be a
problem with the cables. Redo the connections
with different cables.
≥ Check the audio output settings on the
connected device.
≥ If the BD/DVD indicator flashes and there is no
audio output, try the following.
1 Turn the connected device off and then on.
2 Turn off the main unit, remove the HDMI
cable, then reconnect the HDMI cable and
turn the main unit back on.
The dual audio cannot be changed from main
to secondary.
If the audio received from the connected device is not
“Dolby Dual Mono” or the output setting is not
“Bitstream”, the setting cannot be changed from this
system. Change the setting on the connected device.
The volume is lowered when the main unit is
turned on.
If the main unit is turned off with the volume setting
in the greater half (above 50), the main unit will
automatically lower the volume to the middle (50)
when the main unit is turned on. (> 34)
The dialog is too persistent or the dialog does
not sound natural.
This system has a function to make the dialog
stand out when the volume is low. (> 34)
There is no audio.
The power of the main unit turns off
automatically.
(When the main unit detects a problem, a safety
measure is activated and the main unit
automatically switches to standby mode.)
≥ There is a problem with the amplifier.
36
RQT9849
≥ Is the volume extremely high?
If so, lower the volume.
≥ Is this system placed in an extremely hot place?
If so, move this system to a cooler place and wait a
few moments and then try to turn it on again.
If the problem persists, confirm the TV indicator and
BD/DVD indicator blink, turn this system off, remove
the AC mains lead cord and consult your dealer.
Please be sure to remember the indicators that
were blinking and inform the dealer.
Active Subwoofer
No power.
Ensure the AC mains lead of the active
subwoofer is connected properly.
After turning the subwoofer on, it immediately
turns off.
Unplug the AC mains lead and consult your
dealer.
No sound from the subwoofer.
≥ Check that the active subwoofer is turned on.
≥ Check that the WIRELESS LINK indicator lights
green. (> 28)
The WIRELESS LINK indicator lights red.
≥ There is no link between the main unit and the
active subwoofer.
jCheck that the main unit is turned on.
jTurn the active subwoofer off and then back
on. Alternatively, turn the active subwoofer
off, disconnect the AC mains lead and then
reconnect it.
≥ The active subwoofer and the main unit may
not be paired correctly. Try the following
operation. (Wireless pairing)
1 Turn on the main unit and active subwoofer.
2 Press [ID SET] on the rear of the active
subwoofer for more than 3 sec.
(The WIRELESS LINK indicator will blink in
red.)
3 While pressing and holding [INPUT
SELECTOR] on remote control, press and
hold [VOL r] on the main unit for more than
4 sec. (The BD/DVD indicator will blink and
sound mode indicators light up in
sequence.)
≥ When the wireless pairing is successful, BD/DVD
indicator will stop flashing and WIRELESS LINK
indicator lights green.
4 Turn the main unit off and on.
≥ Consult your dealer if the problem persists.
SC-HTB770_RQT9849-B_mst.book 37 ページ
2013年2月25日 月曜日 午前11時53分
Indicator illumination
The indicators display the condition of this system by flashing. The indicator patterns illustrated below
are displayed during normal operational conditions. They do not refer to the indications of a problem.
Indicator
Description
The BD/DVD indicator blinks*2 and sound mode
indicators light up in sequence for 1 minute.
≥ When the main unit is in wireless pairing mode with
the active subwoofer (> 36)
The indicator blinks for 10 sec.
≥ When the Bluetooth® communication is mode 1 (> 32)
The indicator blinks for 20 sec.
≥ When 3D surround effect and clear-mode dialog
effect are on (> 33)
≥ When the dual audio setting is Main (> 32)
≥ When the auto gain control is on (> 32)
≥ When the auto standby function is on (> 33)
*1
The indicator blinks for 5 sec.
≥ When the audio format is Dolby Digital (> 32)
*1
The indicator blinks for 5 sec.
≥ When the audio format is DTS (> 32)
*1
The indicator blinks for 5 sec.
≥ When the audio format is PCM*3 (> 32)
The indicator blinks for 10 sec.
≥ When the Bluetooth® communication is mode 2 (> 32)
The indicator blinks for 20 sec.
≥ When 3D surround effect and clear-mode dialog
effect are off (> 33)
≥ When the dual audio setting is Secondary
(SAP: Secondary Audio Program) (> 32)
≥ When the auto gain control is off (> 32)
≥ When the auto standby function is off (> 33)
The indicators blink for 20 sec.
≥ When the dual audio setting is Main and Secondary (> 32)
The indicators blink once.
≥ When changing the setting (“To reduce the clear-mode
dialog effect”, “To turn off VIERA Link “HDAVI Control””,
and “To turn off the volume limitation”) (> 34)
The indicators blink twice.
≥ When the main unit is reset (> 34)
*1
*1
*2
*3
Bluetooth® indicator blinks quickly.
≥ When the main unit is ready for pairing
Bluetooth® indicator blinks slowly.
≥ When the main unit is waiting to connect
Bluetooth® indicator turns on.
≥ When the main unit is connected with a Bluetooth® device
The indicator for the current status remains lit.
The BD/DVD indicator stops blinking and lights once the wireless pairing is successful.
The indicator blinks only when [SOUND] is pressed for more than 4 sec and the audio format is PCM.
RQT9849
37
Reference
The indicators blink for 10 sec.
≥ When the remote control code is changed (> 33)
SC-HTB770_RQT9849-B_mst.book 38 ページ
2013年2月25日 月曜日 午前11時53分
Specifications
AMPLIFIER SECTION
RMS output power: Dolby Digital Mode
Front ch (L, R ch)
60 W per channel (6 ≠), 1 kHz, 10 % THD
Centre ch (C ch)
60 W per channel (6 ≠), 1 kHz, 10 % THD
Subwoofer ch
120 W per channel (8 ≠), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power
300 W
WIRELESS SECTION
Wireless module
Frequency Range
No. of channels
2.40335 GHz to 2.47735 GHz
38
TERMINAL SECTION
HDAVI Control
This unit supports “HDAVI Control 5” function.
HDMI AV input
(BD/DVD, AUX1, AUX2)
3
Input connector
Type A (19 pin)
HDMI AV output
(TV (ARC))
1
Output connector
Type A (19 pin)
Digital audio input
Optical digital input
(TV, AUX3)
2
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
88.2 kHz, 96 kHz (only LPCM)
Audio format
LPCM, Dolby Digital, DTS Digital Surround
USB Port
For service use only.
SPEAKER SECTION
Front speakers
3 way, 3 speaker system (Bass reflex type)
Speaker unit(s)
Impedance 6 ≠
Woofer
5.7 cm cone type
Tweeter
2.5 cm semi-dome type
Super tweeter
Piezo type
Output sound
pressure
78 dB/W (1 m)
Frequency range 90 Hz to 32 kHz (`16 dB)
100 Hz to 23 kHz (`10 dB)
Centre speaker
2 way, 2 speaker system (Bass reflex type)
Speaker unit(s)
Impedance 6 ≠
Woofer
5.7 cm cone type
Super tweeter
Piezo type
Output sound
pressure
78 dB/W (1 m)
Frequency range 110 Hz to 20 kHz (`16 dB)
150 Hz to 16 kHz (`10 dB)
Active subwoofer
1 way, 1 speaker system (Bass reflex type)
Woofer
16 cm cone type
Output sound
pressure
80 dB/W (1 m)
Frequency range 30 Hz to 180 Hz (`16 dB)
35 Hz to 160 Hz (`10 dB)
GENERAL
Power consumption
Main unit
33 W
Active subwoofer
19 W
In standby condition
Main unit (When the other connected devices are turned off)
Approx. 0.25 W
Active subwoofer
(Power switch release)
Approx. 0.25 W
Power supply
AC 220 V to 240 V, 50 Hz
Dimensions (WkHkD)
Main unit
310 mmk45 mmk188 mm
Active subwoofer
180 mmk408 mmk306 mm
Mass
Main unit
Approx. 1.15 kg
Active subwoofer
Approx. 4.76 kg
Operating temperature range
0 oC to i40 oC
Operating humidity range
20 % to 80 % RH (no condensation)
38
RQT9849
SC-HTB770_RQT9849-B_mst.book 39 ページ
2013年2月25日 月曜日 午前11時53分
Unit care
SPEAKER GENERAL
∫ Clean this system with a soft, dry cloth
For wall mounting layout
Horizontal placement
Dimensions (WkHkD)
1230 mmk68 mmk41 mm
Mass
1.98 kg
Vertical placement of front speakers
Front speaker
Dimensions (WkHkD)
68 mmk541 mmk41 mm
Mass
0.78 kg
Centre Speaker
Dimensions
178 mmk70 mmk45 mm
(WkHkD)
Mass
0.37 kg
For table top layout
Horizontal placement using the leg stands (High)
Dimensions (WkHkD)
1230 mmk96 mmk68 mm
Mass
2.04 kg
Horizontal placement using the leg stands (Low)
Dimensions (WkHkD)
1230 mmk87 mmk68 mm
Mass
2.04 kg
Horizontal placement using the support legs
and the speaker feet
Dimensions (WkHkD)
1230 mmk71 mmk60 mm
Mass
2 kg
Vertical placement of front speakers
Front Speaker
Dimensions (WkHkD)
148 mmk552 mmk148 mm
Mass
0.89 kg
Centre Speaker
Dimensions
178 mmk71 mmk44 mm
(WkHkD)
Mass
0.37 kg
≥ When dirt is heavy, wring a cloth moistened in
water tightly to wipe the dirt, and then wipe it
with a dry cloth.
≥ When cleaning the speakers, use a fine cloth.
Do not use tissues or other materials (towels,
etc.) that can fall apart. Small grains may get
stuck inside the speaker cover.
≥ Never use alcohol, paint thinner or benzine to
clean this system.
≥ Before using chemically-treated cloth, carefully
read the instructions that came with the cloth.
∫ To dispose or transfer this system
This system may keep the user settings information in
the main unit. If you discard the main unit either by
disposal or transfer, then follow the procedure to return
all the settings to the factory presets to delete the user
settings. (> 34, “To return to the factory preset.”)
≥ The operation history may be recorded in the memory
of the main unit.
Licenses
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide
patents issued & pending. DTS, the Symbol, & DTS and the
Symbol together are registered trademarks & DTS Digital
Surround and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
HDAVI ControlTM is a trademark of Panasonic Corporation.
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other trademarks
and trade names are those of their respective owners.
Bluetooth® SECTION
Bluetooth® system specification
Version 3.0
Wireless equipment classification
Reference
Class 2
Supported profiles
A2DP
Frequency band
2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Operating distance
10 m Line of Sight
≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum analyzer.
RQT9849
39
SC-HTB770_RQT9849-B_mst.book 40 ページ
2013年2月25日 月曜日 午前11時53分
Safety information for customers in the EU
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our
R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Germany
This product is intended for general consumer. (Category 3)
Ελληνικά
Δήλωση συμμόρφωσης (DoC)
Με την παρούσα, η “Panasonic Corporation” δηλώνει ότι το
προϊόν αυτό είναι σύμφωνο με τις βασικές απαιτήσεις και άλλες
σχετικές διατάξεις της οδηγίας 1999/5/ΕC.
Οι πελάτες μπορούν να κατεβάσουν ένα αντίγραφο του
πρωτοτύπου DoC για τα R&TTE προϊόντα μας από τον DoC
server μας:
http://www.doc.panasonic.de
Στοιχεία επικοινωνίας Eξουσιοδοτημένου Aντιπροσώπου:
Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Γερμανία
Αυτό το προϊόν προορίζεται για καταναλωτές. (Κατηγορία 3)
Português
Declaração de Conformidade (DoC)
Com o presente documento, a “Panasonic Corporation” declara
que este produto é conforme os requisitos específicos e demais
especificações referentes à Directriz 1999/5/EC.
Os clientes podem baixar uma cópia da declaração de
conformidade (DoC) para nossos produtos R&TTE do Server
DoC:
http://www.doc.panasonic.de
Contacte o representante autorizado: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Alemanha
Este produto destina-se ao consumador geral. (Categoria 3)
40
RQT9849
Lietuviškai
Atitikties deklaracija (AD)
Bendrovė “Panasonic Corporation” patvirtina, kad šis gaminys
tenkina direktyvos 1999/5/EB esminius reikalavimus ir kitas
taikytinas nuostatas.
Mūsų R&TTE gaminių originalios atitikties deklaracijos kopiją
klientai gali atsisiųsti iš mūsų AD serverio:
http://www.doc.panasonic.de
Įgaliotojo atstovo adresas: “Panasonic Marketing Europe GmbH”,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Vokietija.
Šis gaminys skirtas bendrajam vartojimui. (3 kategorija.)
Slovensko
Izjava o skladnosti (DoC)
S pričujočo izjavo podjetje “Panasonic Corporation” izjavlja, da so
svoji izdelki skladni s poglavitnimi zahtevami in drugimi
odgovarjajočimi predpisi direktive 1999/5/ES.
Stranka lahko naloži izvod izvirnega DoC o naših izdelkih R&TTE
s strežnika DoC:
http://www.doc.panasonic.de
Pooblaščeni zastopnik: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Nemčija
Izdelek je namenjen splošni uporabi. (Razred 3)
Slovensky
Vyhlásenie o zhode (DoC)
“Panasonic Corporation” týmto prehlasuje, že tento výrobok je v
zhode so základnými požiadavkami a ďalšími príslušnými
ustanoveniami smernice 1999/5/ES.
Zákazníci si môžu stiahnuť kópiu pôvodného DoC na naše
R&TTE výrobky z nášho servera DoC:
http://www.doc.panasonic.de
Kontakt na splnomocneného zástupcu: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Nemecko
Tento produkt je určený pre všeobecného spotrebiteľa. (Kategória 3)
SC-HTB770_RQT9849-B_mst.book 41 ページ
2013年2月25日 月曜日 午前11時53分
Norsk
Samsvarserklæring (DoC)
Български
Декларация за съответствие (DoC)
“Panasonic Corporation” erklærer at utstyret er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
Kundene kan laste ned en kopi av den originale
samsvarserklæringen (DoC) for vårt R&TTE utstyr fra vår DoC
server:
http://www.doc.panasonic.de
Kontakt vår autoriserte representant: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Tyskland
“Panasonic Corporation” декларира, че този продукт
съответства на съществените изисквания и другите
приложими разпоредби на Директива 1999/5/EC.
Потребителите могат да свалят копие от оригиналните DoC
към нашите продуктите от типа R&TTE от сървъра, на който
се съхраняват DoC:
http://www.doc.panasonic.de
За контакт с оторизиран представител: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Германия
Utstyret er beregnet på den vanlige forbruker (klasse 3).
Eesti keel
Vastavusdeklaratsioon (DoC)
“Panasonic Corporation” kinnitab käesolevaga, et see toode on
vastavuses põhiliste nõuete ja muude direktiivi 1999/5/EÜ
asjakohaste sätetega.
Kliendid saavad koopia meie R&TTE toodetele kehtiva
originaalvastavusdeklaratsiooni koopia alla laadida meie DoCserverist:
http://www.doc.panasonic.de
Võtke ühendust volitatud esindajaga: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Germany
See toode on mõeldud tavakasutajale. (III kategooria)
Този продукт е предназначен за обща употреба. (Категория 3)
Român
Declaraţie de Conformitate (DoC)
Prin prezenta, societatea “Panasonic Corporation” declară că
produsul este conform cu cerinţele esenţiale şi cu alte norme
corespunzătoare Directivei 1999/5/EC.
Clienţii pot descărca o copie a DoC-ului original al produselor
noastre R&TTE de la adressa noastră DoC din Internet:
http://www.doc.panasonic.de
Contact la Reprezentanţa autorizată: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Germania
Acest produs a fost proiectat pentru clientela generală. (Categoria 3)
Magyar
Megfelelőségi Nyilatkozat (DoC)
Kompānija “Panasonic Corporation” ar šo paziņo, ka šis
izstrādājums atbilst būtiskām prasībām un citām saistošām
Direktīvas 1999/5/EK prasībām.
Pircēji var lejupielādēt oriģinālo DoC kopiju mūsu R&TTE
izstrādājumos no mūsu DoC servera:
http://www.doc.panasonic.de
Lūdzam sazināties ar pilnvaroto parstāvi Panasonic
Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525
Hamburg, Germany
Ezennel a , “Panasonic Corporation” kijelenti, hogy a jelen termék
kielégíti az 1999/5/EK Irányelv létfontosságú követelményeit és
más vonatkozó rendelkezéseit.
A vásárlók letölthetik az R&TTE termékek eredeti DoC másolatát
a DoC szerverünkről:
http://www.doc.panasonic.de
Forduljon a hivatalos márkaképviselethez: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Németország
Šis izstrādājums ir paredzēts parastam patērētājam. (3. kategorija)
A terméket általános fogyasztóknak szánták. (3-as kategória)
Reference
Latviski
Atbilstības deklarācija (DoC)
RQT9849
41
SC-HTB770_RQT9849-B_mst.book 42 ページ
2013年2月25日 月曜日 午前11時53分
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries should not be mixed
with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save
valuable resources and prevent any potential negative effects on human health and
the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these
items, please contact your local authorities or dealer and ask for the correct method
of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Cd
Safety information for customers in Norway
NORSK
ADVARSEL
FORSIKTIG
Produkt
Produkt
≥ For å redusere faren for brann, elektrisk støt
eller skade på apparatet:
jUtsett ikke produktet for regn, fukt, drypping
eller sprut.
jIkke plasser objekter som er fylt med væske,
som vaser, på apparatet.
jBruk kun anbefalt tilbehør.
jFjern ikke deksler.
jReparer ikke denne enheten selv, overlat
service til kvalifisert servicepersonell.
≥ Plasser ikke åpen ild, slik som levende lys,
oppå apparatet.
≥ Dette apparatet er beregnet for bruk under
moderate klimaforhold.
Vekselstrømnett
≥ Nettstøpselet er trukket ut fra denne enheten.
Installer denne enheten slik at nettstøpselet
umiddelbart kan trekkes fra stikkontakten.
42
RQT9849
Plassering
≥ For å redusere faren for brann, elektrisk støt
eller skade på apparatet:
jIkke plasser apparatet i en bokhylle, et
innebygget kabinett eller et annet lukket sted.
Pass på at produktet er godt ventilert.
jApparatets ventilasjonsåpninger må ikke
dekkes til med aviser, duker, gardiner eller
lignende.
SC-HTB770_RQT9849-B_mst.book 43 ページ
2013年2月25日 月曜日 午前11時53分
Limited Warranty (ONLY FOR AUSTRALIA)
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as
noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal
domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation,
accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations),
introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the
product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s)
(e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes
(f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices
(g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries
(h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual;
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or
any other device.
6. To claim warranty service, when required, you should:
Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre
Locator for the name/address of the nearest Authorised Service Centre.
Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of
purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged
by you.
Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the
normal operating areas of the nearest Authorised Service Centres:
Plasma/LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and
do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone
our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have
the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are
also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a
major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair
or replace the product and will do so in a reasonable period of time from receiving notice from you.
Reference
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic Australia
website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 4.0
01-01-2011
RQT9849
43
SC-HTB770_RQT9849-B_mst.book 37 ページ
2013年2月25日 月曜日 午前11時53分
For the United Kingdom and Ireland customers
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0844 844 3899
≥ For customers within Ireland: 01 289 8333
≥ Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
≥ For further support on your product, please visit our website:
www.panasonic.co.uk
Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your product with ease and confidence by phoning our
Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a
browse on our website for further details.
EU
Pursuant to the applicable EU legislation
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://panasonic.net
C Panasonic Corporation 2013
EU
p
RQT9849-B
F0213TA0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
