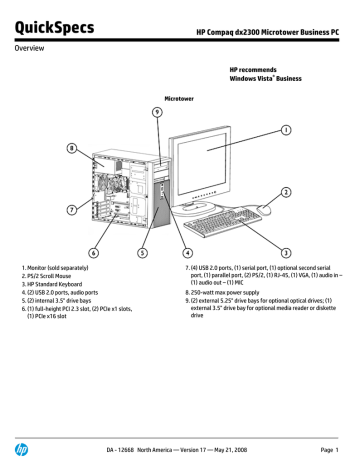

QuickSpecs

Overview

Microtower

HP Compaq dx2300 Microtower Business PC

HP recommends

Windows Vista

®

Business

1. Monitor (sold separately)

2. PS/2 Scroll Mouse

3. HP Standard Keyboard

4. (2) USB 2.0 ports, audio ports

5. (2) internal 3.5" drive bays

6. (1) full-height PCI 2.3 slot, (2) PCIe x1 slots,

(1) PCIe x16 slot

7. (4) USB 2.0 ports, (1) serial port, (1) optional second serial port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA, (1) audio in –

(1) audio out – (1) MIC

8. 250-watt max power supply

9. (2) external 5.25" drive bays for optional optical drives; (1) external 3.5" drive bay for optional media reader or diskette drive

DA - 12668 North America — Version 17 — May 21, 2008 Page 1

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Overview

At A Glance

Intel® Core™ 2 Duo processors, Intel Pentium® D processors, Intel Pentium 4 processors, or Intel Celeron® D processors

Choice of operating systems:

Genuine Windows Vista Business 32

Genuine Windows Vista Home Basic 32

Genuine Windows XP Professional

Genuine Windows XP Home

Intel 946GZ Express Chipset

Intel I/O Controller Hub 7 (ICH7)

Intel Graphics Media Accelerator 3000

PCI Express I/O bus

Serial ATA controller

Serial ATA optical and hard drives

Intel PRO/100 VE Network Connection

Choice of hard drives and optical drives

DDR2 SDRAM system memory

Protected by HP Services. Certain restrictions and exclusions apply.

DA - 12668 North America — Version 17 — May 21, 2008 Page 2

QuickSpecs

Configurable Components - Select Models

HP Compaq dx2300 Microtower Business PC

Model Key and Example

NOTE: This diagram is an example that illustrates how to read the model number. It is not intended to give every available configuration choice specified in the body of this document and may include references to modules that are out of date and no longer available.

DA - 12668 North America — Version 17 — May 21, 2008 Page 3

QuickSpecs

Standard Features and Configurable Components

Processor and Speed

One of the following

HP Compaq dx2300 Microtower Business PC

Intel Celeron D Processors

Intel Celeron D 331 Processor (2.66-GHz, 256-KB L2 cache, 533-MHz FSB)

Intel Celeron D 336 Processor (2.80-GHz, 256-KB L2 cache, 533-MHz FSB)

Intel Celeron D 347 Processor (3.06-GHz, 512-KB L2 cache, 533-MHz FSB)

Intel Celeron D 352 Processor (3.20-GHz, 512-KB L2 cache, 533-MHz FSB)

Intel Celeron D 356 Processor (3.33-GHz, 512-KB L2 cache, 533-MHz FSB)

Intel Celeron D 360 Processor (3.46-GHz, 512-KB L2 cache, 533-MHz FSB)

Intel Celeron D 420 Processor (1.60-GHz, 512-KB L2 cache, 800-MHz FSB)

Intel Celeron D 430 Processor (1.80-GHz, 512-KB L2 cache, 800-MHz FSB)

Intel Celeron D 440 Processor (2.00-GHz, 512-KB L2 cache, 800-MHz FSB)

Intel Pentium 4 Processors

Intel Pentium 4 631 Processor (3.00-GHz, 2-MB L2 cache, 800-MHz FSB)

Intel Pentium 4 641 Processor (3.20-GHz, 2-MB L2 cache, 800-MHz FSB)

Intel Pentium 4 651 Processor (3.40-GHz, 2-MB L2 cache, 800-MHz FSB)

Intel Pentium D Processors

Intel Pentium D 915 Processor (2.80-GHz, 4-MB L2 cache, 800-MHz FSB)

Intel Pentium D 925 Processor (3.00-GHz, 4-MB L2 cache, 800-MHz FSB)

Intel Pentium D 935 Processor (3.20-GHz, 4-MB L2 cache, 800-MHz FSB)

Intel Pentium D 945 Processor (3.40-GHz, 4-MB L2 cache, 800-MHz FSB)

Intel Pentium dual-core Processors

Intel Pentium Dual-Core E2140 Processor (1.60-GHz, 1-MB L2 cache, 800-MHz FSB)

Intel Pentium Dual-Core E2160 Processor (1.80-GHz, 1-MB L2 cache, 800-MHz FSB)

Intel Pentium Dual-Core E2180 Processor (2.00-GHz, 1-MB L2 cache, 800-MHz FSB)

Intel Core 2 Duo Processors

Intel Core 2 Duo E4300 Processor (1.80-GHz, 2-MB L2 cache, 800-MHz FSB)

Intel Core 2 Duo E4500 Processor (2.20-GHz, 2-MB L2 cache, 800-MHz FSB)

Intel Core 2 Duo E6300 Processor (1.86-GHz, 2-MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo E6320 Processor (1.86-GHz, 4-MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo E6400 Processor (2.13-GHz, 2-MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo E6420 Processor (2.13-GHz, 4-MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo E6600 Processor (2.40-GHz, 4-MB L2 cache, 1066-MHz FSB)

Intel Core 2 Duo E6700 Processor (2.66-GHz, 4-MB L2 cache, 1066-MHz FSB)

NOTE: Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different processor families.

DA - 12668 North America — Version 17 — May 21, 2008 Page 4

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Standard Features and Configurable Components

Operating Systems and

Application Software

(availability varies by region)

Genuine Windows Vista Business 32*

Genuine Windows Vista Home Basic 32*

Genuine Windows XP Professional SP2

Genuine Windows XP Home SP2

SUSE Linux Enterprise Desktop 10 (certified)

Microsoft Office 2007 Basic

Microsoft Office 2007 Small Business

Microsoft Office 2007 Professional

Microsoft Works 8.5

HP Backup and Recovery Manager

Roxio Easy Media Creator 9.1**

Intervideo WinDVD Player**

Symantec AntiVirus 10

Sun Java Runtime Environment

Google Toolbar

HP Backup and Recovery Manager Software

* Certain Windows Vista product features require advanced or additional hardware. See http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit http://www.windowsvista.com/upgradeadvisor .

** Supporting software available with certain optical drive configurations

Hard Drives

System Memory

80-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)

160-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)

250-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)

256-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 256-MB)

NOTE: 256-MB configurations not supported by Windows Vista

512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 512-MB)

1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 512-MB)

1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 1-GB)

2-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 1-GB)

DA - 12668 North America — Version 17 — May 21, 2008 Page 5

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Standard Features and Configurable Components

Storage

One or more of the following (see Storage section below)

Diskette Drive

1.44-MB Diskette Drive

Media Reader

HP 16-in-1 Media Reader and additional USB 2.0 port

Optical Drives (Serial ATA)

SATA CD-ROM Drive (not supported by Windows Vista)

SATA DVD-ROM Drive

SATA CD-RW/DVD-ROM Combo Drive

SATA DVD+/-RW (DL/DF) LightScribe Drive

Input Devices

Audio

Communication

Graphics

Keyboard – One of the following

HP PS/2 Standard Keyboard

HP USB Standard Keyboard

Mouse – One of the following

PS/2 2-Button Scroll Mouse

PS/2 2-Button Optical Scroll Mouse

USB 2-Button Optical Scroll Mouse

Realtek ALC888 High Definition audio codec

3D audio compliant with AC'97 Rev. 2.3 and HD Audio compatible

Internal PC speaker

Intel PRO/1000 PT Gigabit PCIe Adapter (full height)

Intel PRO/100 VE Network Connection

Agere 56K PCI Modem

Intel Graphics Media Accelerator 3000

ATI Radeon X1300 (256MB SH) PCIe Graphics

ATI Radeon X1300 Pro (256MB DH) PCIe Graphics

HP FireWire / IEEE 1394 PCI Card (full height)

Miscellaneous

DA - 12668 North America — Version 17 — May 21, 2008 Page 6

QuickSpecs

System Details

Base Unit

HP Compaq dx2300 Microtower Business PC

Micro ATX microtower chassis, including power supply and front bezel

Five (5) drive bays and four expansion slots

Microsoft operating system CD

Active type heatsink

92 x 92 x 25 mm chassis fan

System board with Intel 946GZ Express chipset, Intel I/O Controller Hub 7 (ICH7), Intel PRO/100 VE

Network Connection, Intel GMA 3000 graphics, and Realtek audio, 1 full-height PCI 2.3 slot, 2 PCI

Express x1 slots, 1 PCI Express x16 slot, 2 DDR2 DIMM memory slots

(4) Serial ATA data connectors

Product documentation on CD

Power cord

Slots PCI

One (1) full-height PCI 2.3 slot on PCA

Two (2) full-height PCI Express x1 slots on PCA

One (1) full-height PCI Express x16 slot on PCA (for graphic cards)

Two (2) DDR2 SDRAM DIMM slots (4 GB maximum memory support)

Memory Expansion

Bays

USB Support

Interfaces (Legacy)

Internal

External

Two (2) 3.5”

Two (2) 5.25”

One (1) 3.5”

EHCI high-speed USB 2.0 controller

Two (2) front ports; Four (4) rear ports, Two (2) internal ports on motherboard

One (1) parallel port

One (1) serial port

One (1) optional second serial port

One (1) PS/2 keyboard port

One (1) PS/2 mouse port

One (1) analog VGA video port

One (1) line in; one (1) line out; one (1) mic in

One (1) RJ45 network port

One (1) microphone (front); one (1) headphone (front)

Weight & Dimensions Chassis Dimensions

(H x W x D)

Packaged Dimensions

(L x W x H)

System Weight

Shipping Weight

13.90 x 6.89 x 16.38 in (353 x 175 x 416 mm)

22.25 x 19.63 x 16.31 in (565.15 x 498.5 x 414.3 mm)

21.16 lb (9.6 kg)

30.86 lb (14.0 kg)

DA - 12668 North America — Version 17 — May 21, 2008 Page 7

QuickSpecs

System Details

Technology and Features Memory Type

HP Compaq dx2300 Microtower Business PC

Hard Drive Interfaces

Supported

PC2-5300 DDR2 SDRAM (667-MHz) non-ECC

Up to 2-GB system memory standard

Up to 4-GB system memory supported

Serial ATA

Chassis Front Panel

Cooling Solutions

Supported

Slots Supported

Front I/O

Rear I/O

Drive Bays

Internal Speaker

Security

Power Supply

Power button

Power On LED

HDD Activity LED

Power Supply Fan (variable speed)

Active heatsink (variable speed)

Chassis fan (variable speed)

Four (4) full-height expansion slots

Two (2) USB 2.0 ports

Standard Micro ATX I/O connectors, including four (4 ) USB 2.0 ports

Two (2) 5-1/4” external

One (1) 3-1/2” external

Two (2) 3-1/2” internal

Standard

Padlock loop

Kensington Lock Support

250-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line switch

Unit Environment and

Operating Conditions

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.

Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required airflow.

Never restrict airflow into the computer by blocking any vents or air intakes.

Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re-circulated or preheated air.

Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign matter can block the vents and limit the airflow.

If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.

Temperature Range Operating

50° to 95° F (10° to 35° C)

Relative Humidity

Non-operating

Operating

-22° to 140° F( -30° to 60° C)

10% to 90% (non-condensing at ambient)

Maximum Altitude

(unpressurized)

Non-operating

Operating

Non-operating

5% to 95% (non-condensing at ambient)

10,000 ft (3048 m)

30,000 ft (9000 m)

NOTE: Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m) above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.

DA - 12668 North America — Version 17 — May 21, 2008 Page 8

QuickSpecs

System Details

System Board

HP Compaq dx2300 Microtower Business PC

Processor

PWM

Chipset

Intel 946GZ Express

Intel I/O Controller Hub 7 (ICH7)

Super I/O

W83627DHG

Front Side Bus Frequency 533/800 MHz

Memory

Socket T; LGA775 industry standard Micro ATX form factor

Support single Intel Core 2 Duo, Pentium D, Pentium 4 or Celeron D

Intersil 6312 3 phase

Clock Generator

Integrated Graphics

DDR2 SDRAM

2 x DIMM slots

CY505YC56DT

Intel Graphics Media Accelerator (GMA) 3000

Audio

LOM

Realtek ALC888 HD Audio compatible codec with two channel audio 3D audio compliant with AC'97 rev. 2.3

Intel PRO/100 VE Network Connection

Serial

Expansion Slots

BIOS

Industrial Standard

Four Serial ATA interfaces

1 x PCI 2.3 slot

2 x PCI Express x1 slots

1 x PCI Express x16 slot

LPC EEPROM

PCI 2.3 compliant

USB 2.0

Rear Side I/O Ports

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0 ports

1 x RJ-45 10/100 port

1 x serial port

1 x optional second serial port

1 x parallel port

1 x DB 15 pin analog VGA port

3 x audio ports

On Board I/O Interfaces

1 x ATX power connector

1 x +12V power connector

1 x Floppy connector

1 x Front panel connector, Switch, LED (ON/Flash/OFF)

2 x Fan headers for CPU, chassis, with voltage/fan speed control

1 x header to support 2 USB 2.0 ports at front side

1 x header to support USB media reader

1 x serial header to support optional second serial port

Board Size

Micro-ATX, PCB Size: 9.6 x 9.0 in (24.38 x 22.86 cm)

4-layer PCB with green color

DA - 12668 North America — Version 17 — May 21, 2008 Page 9

QuickSpecs

System Details

Additional Features

Network Interface

Bootable without keyboard, mouse or monitor

Keyboard/mouse/USB wake up

Support S1, S3, S4 and S5

ACPI status

Hardware monitor capability

CPU fan speed control

Intel PRO/100 VE Network

Connection

Hardware Highlights

Features

Intel PRO/1000 PT Gigabit

PCIe Adapter

Hardware Highlights

Features

PCI interfaces

10-Mbps and 100-Mbps operation

PCI Express interface

10-Mbps, 100-Mbps and 1000-Mbps operation

Wireless A+G PCI Card (full height bracket)

Wireless

HP Compaq dx2300 Microtower Business PC

Power Supply

Power Conservation

‘Energy Saver‘

ATX Power Supply – Passive PFC/non-PFC with a 115v/230v line switch

Passive Power Factor Correction (PFC) – with line switch set to 230V – No PFC in 115V line switch position

90 to 140VAC, or 180 to 264VAC operating voltage range

100 to 127VAC, or 200 to 240VAC rated voltage range

50–60 Hz rated line frequency

47–63 Hz operating line frequency range

250 watt maximum rated power

80-mm power supply fan – variable speed for optimum acoustics

APM 1.2 support

Screen blanking

Hard drive 'Idle' mode

System Idle mode

~2 watt power consumption in ES mode – suspend to RAM (S3) (instantly available PC)

Processor/Cache memory power-down (S3)

DA - 12668 North America — Version 17 — May 21, 2008 Page 10

QuickSpecs

System Details

System Environmental

Specs

HP Compaq dx2300 Microtower Business PC

Values are subject to change without notification and are for reference only.

Performance of system, options, and ancillary equipment will vary depending on the system configuration.

Levels presented do not account for non-HP/Compaq installed hardware.

Ambient Air Temperature Operating

Storage

50° to 95°F (10° to 35°C) at sea level with an altitude de-rating of 1.0°C per every 1000 ft (300 m) above sea level to a maximum of 8000 ft

(2500 m), no direct sustained sunlight. Maximum rate of change is 77°F/Hr (25°C/Hr). The upper limit may be limited by the type and number of options installed.

-22° to 140°F (-30° to 60°C) –

Maximum rate of change: 410°F/Hr (210°C/Hr).

Humidity Operating

Altitude

Storage

Operating

Non-Operating

10% to 90% relative humidity (Rh), 86°F (30°C) maximum wet bulb temperature, non-condensing

10% to 95% relative humidity (Rh), 101.66°F

(38.7°C) maximum wet bulb temperature, noncondensing

0 to 10,000 feet (0 to 3048 meters) – This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1,000 ft/min (304.8 m/min).

0 to 30,000 feet (0 to 9,144 meters) – Maximum allowable altitude change rate is 1200 ft/min

(365.76 m/min).

Shock

Vibration

Listed are the levels of shock the product can withstand with NO damage being incurred. The values represent peak input acceleration during an 2~3 ms half-sine shock pulse, 11 ms trapezoidal shock pulse.

Non-Operating

35G's (Half-sine Shock)

35G's (Trapezoidal Shock)

Listed are the levels of vibration the product can withstand with NO damage being incurred. The values represent a flat random vibration input acceleration profile across the given frequency range.

Operating

Random vibration at [email protected]

2

/Hz,

[email protected]

2

/Hz, [email protected]

2

/Hz,

[email protected]

2

/Hz

5Hz to 300Hz, (0.25G's nominal).

Non-Operating

Random vibration at 0.008G²/Hz,

10Hz to 500Hz, (2 Grms nominal).

DA - 12668 North America — Version 17 — May 21, 2008 Page 11

QuickSpecs

System Details

Acoustic Noise

Service and Support

HP Compaq dx2300 Microtower Business PC

Listed are the declared A-WEIGHTED SOUND POWER LEVELS (LWAd) and declared average desktop seated operator position A-WEIGHTED SOUND

PRESSURE LEVELS (LpAm) when the product is operating in a 73.4°F (23°C) ambient environment. Noise emissions were measured in accordance with ISO

7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

IDLE (Fixed disk drive spinning)

LWAd = 4.3 Bels,

Desktop Average LpAm = 32 dBA

FIXED DISK (Random write) LWAd = 4.8 Bels,

Desktop Average LpAm = 37dBA

CD-ROM (Sequential

Reads)

LWAd = 5.0 Bels,

Deskside Average LpAm = 39dBA

On-site Warranty

1

: One-year (1-1-1) limited warranty delivers one year of on-site, next business-day service for parts and labor and includes free telephone support

3

24 x 7. Global coverage

2

2

ensures that any product purchased in one country and transferred to another non-restricted country will remain fully covered under the original warranty and service offering.

1 Terms and conditions may vary by country. Certain restrictions and exclusions apply.

2 On-site service may be provided pursuant to a service contract between HP and an authorized HP thirdparty provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

3 Technical telephone support applies only to HP-configured Compaq and third-party HP-qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

DA - 12668 North America — Version 17 — May 21, 2008 Page 12

QuickSpecs

After-Market Options

Communications

HP Compaq dx2300 Microtower Business PC

NICs

Intel PRO/1000 PT PCIe Gigabit NIC Card

Wireless LAN

HP Wireless A+G PCI Card

Modems

Agere 2006 PCI High-Speed 56K International SoftModem

Connectivity

Bundle Connectivity Starter Kit – Surge Protector/LAN cable/Printer cable

EH352AA

EA118AA

EK694AA

RT174AA

Office 2007 Media-less

License Kits (MLKs)

MS Office Basic Edition 2007 – Media-less License Kit

MS Office Small Business Edition 2007 – Media-less License Kit

MS Office Professional Edition 2007 – Media-less License Kit

Hard Disk Drives

Removable Storage

Devices

HP 250-GB SATA 3.0-Gb/s Hard Drive

HP 160-GB SATA 3.0-Gb/s Hard Drive

HP 80-GB SATA 3.0-Gb/s Hard Drive

Diskette Drive

HP 1.44-MB Internal Diskette Drive

HP 1.44-MB USB Diskette Drive – External

16-in-1 Media Reader

Input Devices

Memory

Keyboards

HP PS/2 Standard Keyboard

HP USB Standard Keyboard

Mice

HP PS/2 2-Button Scroll Mouse

HP PS/2 2-Button Optical Scroll Mouse

HP USB 2-Button Optical Scroll Mouse

HP USB 2-Button Laser Mouse

HP 1-GB PC2-5300 (DDR2-667 MHz) DIMM

HP 512-MB PC2-5300 (DDR2-667 MHz) DIMM

HP 256-MB PC2-5300 (DDR2-667 MHz) DIMM

RZ361A#ABA

RZ365A#ABA

RZ363A#ABA

PY278AA

PY277AA

PY276AA

AG295AA

DC141B

EM718AA

DT527A#ABA

DT528A#ABA

DD440B

EY703AA

DC172B

GW405AA

PX976AA

PX975AA

PX974AA

DA - 12668 North America — Version 17 — May 21, 2008 Page 13

QuickSpecs

After-Market Options

Audio

HP USB Powered Speakers

Thin USB Powered Speakers

Graphics

Optical Drives

ATI RADEON X1300 (256MB DH) PCIe Graphics Card

ATI RADEON X1300 (256MB SH) PCIe Graphics Card

HP DMS59 DVI Dual-head Connector Cable

HP SATA CD-RW/DVD-ROM Combo Drive

HP SATA DVD-ROM Drive

HP PATA DVD+/-RW SuperMulti LightScribe Drive

HP Business PC Security Lock Kit

Kensington Compaq Security Lock – Single

HP Smart Data Protection Service

Security

Cables and Adapters

HP USB to Serial Adapter, 3ft

HP DVI to DVI Cable

Local Area Network (LAN) cable

HP Firewire (1394) Cable

HP 7-outlet Surge Protector

HP DMS59 DVI Dual-head Connector Cable (supports AH050AA)

Chassis Enhancements

HP 5.25" Blank Bezel Kit (Carbonite 50/Bulk Pack)

Miscellaneous

Accessories

HP FireWire / IEEE 1394 PCI Card

HP Compaq dx2300 Microtower Business PC

EM449AA

DC198A

AH122AA

AH123AA

AG290AA#ABA

DL139A

DC177B

PA997A

RD628AA

KK912AA

(launching

4/14/08)

AH050AA

AG392AA

DL139A

AH046AA

AH047AA

GF343AA

TBD

PC766A

BB731UT

DA - 12668 North America — Version 17 — May 21, 2008 Page 14

QuickSpecs

HP Compaq dx2300 Microtower Business PC

After-Market Options

Monitors CRTs

Business LCD Monitors

HP L1506 15-inch LCD Monitor

HP L1710 17-inch LCD Monitor

HP L1750 17-inch LCD Monitor

HP L1745 17-inch LCD Monitor

HP L1910 19-inch LCD Monitor

HP L1950 19-inch LCD Monitor

HP LP1965 19-inch LCD Monitor

HP LP2065 20-inch LCD Monitor

Business Widescreen LCD Monitors

HP L1908w 19-inch Widescreen LCD Monitor

HP L2045w 20-inch Widescreen LCD Monitor

HP L2208w 22-inch Widescreen LCD Monitor

HP L2245w 22-inch Widescreen LCD Monitor

HP LP2465 24-inch Widescreen LCD Monitor

HP LP3065 30-inch Widescreen LCD Monitor

Business Widescreen LCD Monitor with Integrated Speakers

HP L1908wm 19-inch Widescreen LCD Monitor with Built in Integrated Speakers

Business GSA Monitors

Business Touchscreen LCD Monitor

HP L5006tm 15-inch Touch Screen LCD Monitor

Business LCD Monitor with Integrated Work Stand

HP L1908wi 19-inch Widescreen LCD Monitor plus Integrated Work Stand

HP L1910i 19-inch LCD Monitor plus Integrated Work Stand

Options

HP Flat Panel Speaker Bar

HP Quick Release Kit

HP Integrated Work Stand (stand alone)

3PO Offering

PX848AA#ABA

GS917AA#ABA

GF904AA#ABA

GE178AA#ABA

GS918AA#ABA

GG458AA#ABA

RA373AA#ABA

EF227A4#ABA

GX007AA#ABA

GP536AA#ABA

RD125AA#ABA

GX007AA#ABA

GX008AA#ABA

EF224A4#ABA

EZ320A4#ABA

KA214AA#ABA

3PO Offering

RB146AA#ABA

GP537AA#ABA

GS581AA#ABA

EE418AA

EM870AA

GN783AA

DA - 12668 North America — Version 17 — May 21, 2008 Page 15

QuickSpecs

Memory

HP Compaq dx2300 Microtower Business PC

DDR SYNCH DRAM NON-ECC MEMORY

The Intel 946GZ Express chipset supports non-ECC DDR2 memory up to PC2-5300 (667-MHz). Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations.

CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet.

Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

HP recommends dual-channel symmetric configurations for maximum performance.

For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal. If speeds are mixed, speed will default to the slowest DIMM.

STANDARD MEMORY

256-MB, 512-MB, 1-GB, or 2-GB DDR2 SYNCH DRAM

OPTIONAL MEMORY UPGRADES

Supports up to 4-GB of DDR2 SYNCH DRAM. Not all memory configurations possible are represented below.

DIMM Size Slot 1 Slot 2

256-MB

512-MB

512-MB (dual-channel symmetric)

1-GB

1-GB (dual-channel symmetric)

2-GB (dual-channel symmetric)

4-GB (dual-channel symmetric)

256-MB

512-MB

256-MB

1-GB

512-MB

1-GB

2-GB

256-MB

512-MB

1-GB

2-GB

DA - 12668 North America — Version 17 — May 21, 2008 Page 16

QuickSpecs

Storage

HP Compaq dx2300 Microtower Business PC

HP Compaq dx2300 Microtower Business PC

Drive Support

Diskette Drives

Media Reader

CD-ROM Drives

DVD-ROM Drives

CD-RW/Combo Drives

DVD+/-RW Drives

3.5” Serial ATA Hard Drives

Maximum Quantity

Supported

2

2

2

2

2

1

1

Position Supported

3

3

1, 2

1, 2

1, 2

1, 2

4,5

Controller

SIO

Internal USB 2.0 port

SATA

SATA

SATA

SATA

SATA

DA - 12668 North America — Version 17 — May 21, 2008 Page 17

QuickSpecs

Technical Specifications - Audio

Integrated Realtek

ALC888 Audio

Type

HD Audio compatible codec

Sampling

Audio Jacks

Power Support

Other

HP Compaq dx2300 Microtower Business PC

Integrated

Yes

Supports 48/96 KHz

Mic-In

Line-In

Line-Out / Headphone Out

Digital: 3.3V

Analog: 5V

Meets performance requirements for audio on PC99/2001 systems

High-performance DACs with 97dB SNR(A-Weighting)

ADCs with 90dB NR(A-Weighting)

DA - 12668 North America — Version 17 — May 21, 2008 Page 18

QuickSpecs

Technical Specifications - Communications

HP Compaq dx2300 Microtower Business PC

Intel PRO/1000 PT PCIe

Gigabit NIC

Connector

Controller

Memory

RJ-45

Intel 82572EI Gigabit Ethernet Controller

Integrated Dual 48K configurable transmit receive FIFO Buffers

Data rates supported

Compliance

Environmental

10/100/1000 Mbps

IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x

flow control

PCI Express 1.0a

Bus architecture

Data transfer mode

Bus-master DMA

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for

European Union

Power requirement

Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T

Boot ROM support

Network transfer rate

Yes

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)

Operating temperature

32° to 131°F (0° to 55° C)

Operating humidity

85% at 131° F (55° C)

Dimensions

6.4 x 2.6 x 0.8 in (16.3 x 6.6 x 1.9 cm)

Management capabilities ASF, WOL, PXE, DMI, WFM 2.0.

HP Wireless A+G PCI Dimensions

Weight

Controller system interface

4.99 x 2.54 x 0.71 in (126.8 x 64.4 x 18.0 mm)

0.268 lb (65 g)

Atheros AR5414X chipset

PCI Spec 2.2

Network standard

Frequency band

2.4000 to 2.4835 GHz

Operating temperature

32° to 140° F (0° to 60° C), operating

Storage temperature

-4° to 176° F (-20° to 80° C), non-operating

Humidity

Operating voltage

Power consumption

Output power

(approximately)

Receive sensitivity

Data transfer rate

IEEE 802.11a/b/g

5.1500 to 5.8500 GHz

10% to 85% non-condensing

5V ± 5%

Tx/Rx peak 560/250mA @ 3.3V (max.)

15 dBM ±2dB

-90dBm at 11 Mbps (typical)

Standard rates of 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 48, 54 and Super AG Mode108-

Mbps

DA - 12668 North America — Version 17 — May 21, 2008 Page 19

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Communications

Spreading

Security

Antenna

Throughput

Certifications

Certifications for use by country

DSSS (Direct Sequence Spread Spectrum)

64(40h) bit, 128(104h) bit, WPA, IEEE802.1X, AES-OCB, AES-CCM, Microsoft

PEAP,TKIP, WEP

External 5dBi antenna

108 Mbps (only with Belkin

54G or above router that supports 108 Mbps speed)

200 ft (60.96 m) – Indoor

54 Mbps

11 Mbps

200 ft (60.96 m) – Indoor

200 ft (60.96 m) – Indoor

Wi-Fi certified

North America: United States, Canada

Agere 56K PCI Modem Data Transmission

Data Speeds

Data Standards

Upgradeability

Video

56,000 Kbps maximum downstream data

NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed.

FCC limitations allow a maximum of 53 Kbps during download transmissions.

(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/

12,000/9,600/7,200/4,800/2,400/1,200/300

ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A, and

Bell 103

14,400/12,000/9,600/7,200/4,800/2,400/300 b/s

Fax Speeds

Fax Mode Capabilities

Error Correction and Data

Compression

Power Management

ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2

V.44, 42bis, V.42 and MNP2-5

ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3

requirements and PC 2001 requirements

Driver upgradeable for future enhancements

ITU-T V.80 video ready interface

Other

TIA/EIA 602 standard AT command set

Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a

UART-compatible interface

Optional ring wakeup signal

Operating Temperature

32° to 158° F (0° to 70° C)

Operating Humidity

Power

20% to 90%, non-condensing

Chipset

Dimensions (L X H)

Requires a 3.3-V auxiliary power rail on PCI bus

Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one electrical load

Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers and CardBus support

Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and supports high- and low-profile brackets

DA - 12668 North America — Version 17 — May 21, 2008 Page 20

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Communications

Connection

Other Features

Safety

EMC

Telecom

Health

Other

Single RJ-11 connector

Digital line protection, call progress monitoring via on-board piezo device, support for high profile and low profile brackets, PnP ID support

UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV, NEMKO,

DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark

FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-4-

6, EN 61000-4-8

FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals

Bare PCB material compliant to 94V-0 or better (marked as such)

PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant

DA - 12668 North America — Version 17 — May 21, 2008 Page 21

QuickSpecs

Technical Specifications - Graphics

HP Compaq dx2300 Microtower Business PC

Integrated Graphics

Media Accelerator 3000

3D/2D Controller

VGA Controller

Bus Type

RAMDAC

Memory

Microsoft DirectX® 9 based with support for Pixel Shader 2.0, 4:1 anisotropic filtering, Gaussian texture filtering, shadow maps, volumetric textures, double-sided stencil buffers, and 4 pixel pipes.

Integrated

PCI Express™ x16 (If an external graphics card is installed in a PCI slot, the internal graphics can be enabled or disabled using the system's BIOS setup utility. If an external graphics card is installed in the PCI Express™ slot, the internal graphics cannot be enabled).

Integrated, 400 MHz

Graphics memory is shared with system memory. Graphics memory usage varies depending on the amount of system memory installed and system load.

8 MB is pre-allocated for graphics use at system boot time. Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory

Technology (DVMT), to provide an optimal balance between graphics and system memory use.

System memory equal or greater than 512 MB

8 MB pre-allocated + 248 MB DVMT = max frame buffer of 256 MB

Controller Clock Speed

400 MHz

Overlay Planes

Single overlay support with 5x3 filtering

Maximum Color Depth

Maximum Vertical

Refresh Rate

Multi-display Support

Graphics/Video API

Support

32 bits/pixel

85 Hz at up to 1920x1440, 85 Hz at 2048x1536. Varies with mode and configuration. See table below.

Support for one CRT via the motherboard's VGA connector. Support for an additional DVI-D display via the optional DVI ADD2 card. Dual independent displays and dual synchronous (Twin or Clone mode) displays are supported.

Microsoft DirectX®9, DirectXVA®, VMR9, GDI/GDI+; OpenGL® 1.4.

Resolutions Supported

1

Resolution

Maximum Refresh Rate (Hz)

Analog Monitor Digital Monitor

640 x 480

800 x 600

1024 x 768

1280 x 1024

1600 x 1200

1920 x 1080

1920 x 1200

1920 x 1440

2048 x 1536

85

85

85

85

85

85

85

85

85

60

60

60

60

60

60

60

60

60

1

Modes listed are supported with a single active display. The supported mode list for multiple active displays is a subset of this list.

Not all modes will support video playback and some supported modes may use software MC (motion compensation) rather than hardware MC. Not all modes will support 3D acceleration depending on the system configuration (e.g., resolution selected, size of frame buffer, number of installed memory modules, etc.).

NOTE: Other resolutions and refresh rates may be selectable but are not recommended.

DA - 12668 North America — Version 17 — May 21, 2008 Page 22

QuickSpecs

Technical Specifications - Graphics

HP Compaq dx2300 Microtower Business PC

ATI Radeon X1300 (256MB

SH) PCIe Graphics Card

(256 MB)

Bus type

Maximum vertical refresh rate

PCI Express (x16 lanes)

85 Hz

Display support

Integrated 400 MHz RAMDAC

Display max resolution

2048 x 1536

Board display options

Board configuration

Languages supported

Core power

Option kit contents

Compliance standards

DVI-I + TV

DVI-I supports analog CRT or flat panel or digital flat panel (using DVI-A, DVI-D or DVI-I connector)

DVI-I supports analog CRT or flat panel (with VGA connector and DVI-I to VGA dongle)

TV connector is a 4-pin mini-DIN S-video connector

Specification

Graphics Chip

Description

RV515

Core clock

Memory clock

450 MHz

250 MHz

Frame buffer 256 MB DDR2

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,

Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian,

Spanish, Swedish, Thai, Turkish

25 W (Max board power)

ATI RADEON X1300 PCIe graphics card with full height bracket attached

Low profile bracket

DVI-to-VGA Adapter

Software CD with graphics drivers

Warranty documentation

EMC Emissions:

a) FCC Part 15, Subpart B – Unintentional Radiators, Class B Computing

Devices for Home & Office Use b) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information Technology

Equipment c) Canadian Standard ICES-003 is equivalent to CISPR22

EMC Immunity:

CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –

Immunity Characteristics – Limits and Methods of Measurement.

Safety:

UL 60950 (USA) & EN 60950 (EU): Safety of Information Technology

Equipment, Including Electrical Business Equipment. All boards meet UL PCB flammability requirements.

DA - 12668 North America — Version 17 — May 21, 2008 Page 23

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Graphics

ATI Radeon X1300 Pro

(256MB DH) PCIe Graphics

Card

Bus Type

Maximum Vertical

Refresh Rate

PCI Express (x16 lanes)

85 Hz

Display Support

Integrated 400 MHz RAMDAC

Display Max Resolution

2048 x 1536

Board Display Options

Board Configuration

128 MB Frame Buffer

Languages supported

Core Power

Option kit contents

Compliance standards

Supports 2 displays via included DMS-59 to dual VGA cable or 2 DVI monitors via optional DMS-59 to dual DVI monitor kit #DL139A.

Support TV connection via 7 pin mini Din S-video connector

Specification

Graphics Chip

Description

RV516

Core clock

Memory clock

600 MHz

400 MHz

Frame buffer 256 MB DDR2 (128 bits wide)

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,

Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian,

Spanish, Swedish, Thai, Turkish

25 W (Max board power)

ATI Radeon X1300 Pro (256MB DH) PCIe Graphics Card with full height bracket attached

DMS-59 Dual VGA

NOTE: The Optional DMS-59 DVI cable can be ordered with HP Option

Kit #DL139A

Software CD with graphics drivers

Low profile bracket to convert the card for using in a low profile chassis

Warranty documentation

EMC Emissions:

a) FCC Part 15, Subpart B – Unintentional Radiators, Class B Computing

Devices for Home & Office Use b) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information Technology

Equipment c) Canadian Standard ICES-003 is equivalent to CISPR22

EMC Immunity:

CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –

Immunity Characteristics – Limits and Methods of Measurement.

Safety:

UL 60950 (USA) & EN 60950 (EU): Safety of Information Technology

Equipment, Including Electrical Business Equipment. All boards meet UL PCB flammability requirements.

DA - 12668 North America — Version 17 — May 21, 2008 Page 24

QuickSpecs

Technical Specifications - Input Devices

HP Compaq dx2300 Microtower Business PC

HP PS/2 or USB Standard

Keyboard

Physical characteristics

Electrical

Mechanical

Environmental

Keys

Dimensions (L x W x H)

Weight

Operating voltage

104, 105, 106, 107, 109 layout (depending upon country)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

2 lb (0.9 kg) minimum

Power consumption

ESD

EMI – RFI

+ 5VDC ± 5%

50-mA maximum (with three LEDs ON)

CE level 4, 15-kV air discharge

MicrosoftPC 99 – 2001

Languages

Keycaps

Switch actuation

Conforms to FCC rules for a Class B computing device

Functionally compliant

38 available

Low-profile design

55-g nominal peak force with tactile feedback

Switch life

Switch type

20 million keystrokes (using Hasco modified tester)

Contamination-resistant switch membrane

Key-leveling mechanisms For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 – 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

Operating vibration

80 g, six surfaces

2-g peak acceleration

Non-operating vibration 4-g peak acceleration

Drop (out of box)

Drop (in box)

26 in (66 cm) on carpet, six-drop sequence

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

DA - 12668 North America — Version 17 — May 21, 2008 Page 25

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Input Devices

HP 2-Button Scroll Mouse

(PS/2)

Scroll Wheel

8 mm

Maximum Rotation Speed 30 mm/s

Switch Type

Switch Life

Mechanical Life

Environmental

Light force micro-switch

1 million operations

Minimum 200,000 revolutions

Operating Temperature

50° to 122° F (10° to 50° C)

Non-operating

Temperature

-22° to 140° F (-30° to 60° C)

Operating Humidity

10% to 90% (non condensing at ambient)

Electrical

Mechanical

Regulatory Approvals

Non-operating Humidity 20% to 80% (non condensing at ambient)

Operating Shock

40 g, 6 surfaces

Non-operating Shock

Operating Vibration

80 g, 6 surfaces

2 g peak acceleration

Non-operating Vibration 4 g peak acceleration

Operating Voltage

Power Consumption

System Consumption

+ 5VDC ± 10%

15mA

PS/2 mini-din connector

ESD

EMI-RFI

PC98

Resolution

Tracking Speed

CE level 4, 15 kV air discharge

Conforms to FCC rules for a Class B computing device

Functionally compliant

400 ± 20% DPI

Acceleration

Switch Actuation

10 in/s maximum

100 in/s

85 g nominal peak force

Switch Life

1,000,000 operations (using Hasco modified tester)

2 m

Cable Length

PC98-99

Mechanically compliant

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick

DA - 12668 North America — Version 17 — May 21, 2008 Page 26

QuickSpecs

Technical Specifications - Hard Drives

Serial ATA Hard Drives

(7200 rpm)

80 GB

160 GB

HP Compaq dx2300 Microtower Business PC

Capacity

Height

Width

Interface

Synchronous Transfer

Rate (Maximum)

Buffer

80,026,361,856 bytes

1 in (2.6 cm)

Media diameter: 3.5 in (8.9 cm)

Physical size: 4 in (10.2 cm)

Serial ATA

1.5 Gb/s

Seek Time (typical reads, includes controller overhead, including settling)

Rotational Speed

Logical Blocks

Height

Width

Interface

Synchronous Transfer

Rate (Maximum)

8 MB

Single Track

Average

Full-Stroke

7,200 rpm

156,301,488

Operating Temperature

32° to 140° F (0° to 60° C)

Capacity

160,041,885,696 bytes

1 in (2.6 cm)

1.0 ms

8.5 ms

18 ms

Media diameter: 3.5 in (8.9 cm)

Physical size: 4 in (10.2 cm)

Serial ATA

1.5 Gb/s

Buffer

Seek Time (typical reads, includes controller overhead, including settling)

Rotational Speed

Logical Blocks

8 MB

Single Track

Average

Full-Stroke

7,200 rpm

312,581,808

Operating Temperature

32° to 140° F (0° to 60° C)

1.0 ms

8.5 ms

18 ms

DA - 12668 North America — Version 17 — May 21, 2008 Page 27

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Hard Drives

250 GB Capacity

Height

Width

Interface

Synchronous Transfer

Rate (Maximum)

250,059,350,016 bytes

1 in (2.6 cm)

Media diameter: 3.5 in (8.9 cm)

Physical size: 4 in (10.2 cm)

Serial ATA

1.5 Gb/s

Buffer

Seek Time (typical reads, includes controller overhead, including settling)

Rotational Speed

Logical Blocks

8 MB

Single Track

Average

Full-Stroke

7,200 rpm

488,397,168

Operating Temperature

41° to 131° F (5° to 55° C)

0.8 ms

<9.0 ms

=17 ms

DA - 12668 North America — Version 17 — May 21, 2008 Page 28

QuickSpecs

Technical Specifications - Optical Storage

SATA DVD-ROM Drive

HP Compaq dx2300 Microtower Business PC

Height

Orientation

Interface type

Disc capacity

Dimensions (W x H x D)

Weight (max)

Read speeds

Removable Storage -

Media Compatibility -

DVD-ROM

Access times

(typical reads, including setting)

Power

5.25-inch, half-height, tray-load

Either horizontal or vertical

SATA/ATAPI

Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)

Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

2.6 lb (1.2 kg)

Up to 8X

DVD+R/-R/+RW/

-RW/+R DL /-R DL

DVD-ROM

DVD-RAM

CD-ROM, CD-R

CD-RW

Media

Up to 16X

Up to 4X

Up to 48X

Up to 32X

Read

CD-ROM

CD-R

CD-RW

Yes

Yes

Yes

Write

No

No

No

DVD-ROM

DVD-ROM DL

DVD-RAM

DVD+R

DVD+R DL

DVD+RW

DVD-R

DVD-RW

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

No

No

No

DVD-R DL

Random

Full Stroke

Cache Buffer

Yes No

DVD: < 140 ms (typical), CD: < 125 ms (typical)

DVD: < 250 ms (seek), CD: < 210 ms (seek)

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode 3 (44.4

MB/s -default)

Source

DC Current

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

5 VDC - <1000 mA typical, < 1600 mA maximum

12 VDC -< 600 mA typical, < 1400 mA maximum

DA - 12668 North America — Version 17 — May 21, 2008 Page 29

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Optical Storage

Environmental

(all conditions non-condensing)

Temperature

Relative Humidity

Maximum Wet Bulb

Temperature

41° to 122° F (5° to 50° C)

10% to 90%

86° F (30° C)

SATA CD-RW/DVD-ROM

Combo Drive

Height

Orientation

Interface type

Disc capacity

Dimensions (W x H x D)

Weight (max)

Write speeds

Read speeds

Access times

(typical reads, including setting)

Power

Environmental

(all conditions non-condensing)

5.25-inch, half-height, tray-load

Either horizontal or vertical

SATA/ATAPI

Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)

Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

2.6 lb (1.2 kg)

CD-R

CD-RW

DVD+R/-R/+RW/

-RW/+R DL /-R DL

DVD-ROM

CD-ROM, CD-R

CD-RW

Random

Up to 48X

Up to 32X

Up to 8X

Up to 16X

Up to 48X

Up to 32X

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Full Stroke

DVD: < 250 ms (typical), CD: < 210 ms (typical)

Source

Maximum Wet Bulb

Temperature

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA maximum

12 VDC -< 600 mA typical, < 1400 mA maximum

Temperature

Relative Humidity

41° to 122° F (5° to 50° C)

10% to 90%

86° F (30° C)

DA - 12668 North America — Version 17 — May 21, 2008 Page 30

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Optical Storage

SATA DVD+/-RW

LightScribe Drive

Height

Orientation

Interface type

Disc capacity

Dimensions (W x H x D)

Weight (max)

Write speeds

Read speeds

Access times

(typical reads, including setting)

Power

Environmental

(all conditions non-condensing)

5.25-inch, half-height, tray-load

Either horizontal or vertical

SATA/ATAPI

Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)

Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

2.6 lb (1.2 kg)

DVD+R

DVD+RW

DVD+R DL

DVD-R DL

DVD-R

DVD-RW

CD-R

CD-RW

DVD-RAM

DVD+R/-R/+RW/

-RW/+R DL /-R DL

DVD-ROM

CD-ROM, CD-R

CD-RW

Random

Up to 16X

Up to 8X

Up to 8X

Up to 4X

Up to 16X

Up to 6X

Up to 48X

Up to 32X

Up to 4X

Up to 8X

Up to 16X

Up to 48X

Up to 32X

DVD: < 130 ms (typical), CD: < 120 ms (typical)

Full Stroke

DVD: < 240 ms (seek), CD: < 200 ms (seek)

Source

Maximum Wet Bulb

Temperature

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA maximum

12 VDC -< 600 mA typical, < 1400 mA maximum

Temperature

Relative Humidity

41° to 122° F (5° to 50° C)

10% to 90%

86° F (30° C)

DA - 12668 North America — Version 17 — May 21, 2008 Page 31

QuickSpecs

Technical Specifications - Removable Storage

HP Compaq dx2300 Microtower Business PC

HP 1.44-MB Diskette Drive Size

LED Indicators (front panel)

Read/Write Capacity per

Diskette (high/low)

Drive Height

3.5 in (8.89 cm)

Green

1.44 MB/720 KB

One-third

Drive Rotation

300 rpm

Transfer Rate (high/low) 500/250 KB/s

Bytes/Sector

512

Sectors/Track (high/low) 18/9

Tracks/Side (high/low) 80/80

Access Times

Track-to-Track (high/low) 3/6 ms

Average

(high/low)

Settling Time

94/173 ms

15 ms

100 ms

Cylinders (high/low)

Read/Write Heads

Latency Average

80/80

Two

HP 16-in-1 Media Card

Reader

USB interface

Advance protocol support

Supported media types

USB 2.0 High-speed device via PCI card or pass -through via internal USB port of system board

Supports hardware ECC (Error Correction Code) function

Supports hardware CRC (Cyclic Redundancy Check) function

Supports MS 4-bit parallel transfer mode

Supports MS-PRO 4-bit parallel transfer mode

Supports SD 4-bit parallel transfer mode

Supports high-speed 50 MHz SD 4-bit card (version 1.1)

Support high-speed 52 MHz MultiMediaCard 8-bit card (version 4.x)

Supports CompactFlash Card Type I (CF I), CompactFlash Card Type II

(CF II),MicroDrive (MD)

Supports 3.3V SmartMedia Card (SM), SmartMedia ROM (SM ROM),

Picture Card

Supports Secure Digital Card (SD), Secure Digital ROM Card (SD ROM), miniSD, MultiMediaCard, Secure MultiMediaCard (Secure

MultiMediaCard), ROM Type MultiMediaCard (MultiMediaCard ROM),

Reduced Size MultiMediaCard (RS MultiMediaCard), MultiMediaCard 4.0

(MultiMediaCard Plus), Reduced Size MultiMediaCard 4.0

(MultiMediaCard Mobile)

Support Memory Stick (MS), Memory Stick ROM (MS ROM), MagicGate

Memory Stick (MG), Memory Stick Select, Memory Stick Duo (MS Duo),

Memory Stick PRO (MS-PRO), Memory Stick PRO Duo (MS PRO Duo)

Mechanical

Length (3.5")

Width (3.5")

124.7 cm

101.6 cm

DA - 12668 North America — Version 17 — May 21, 2008 Page 32

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Removable Storage

Environmental

Approvals

Height (3.5")

Length (5.25")

25.4 cm

171.6 cm

Width (5.25")

Height (5.25")

148.9 cm

42.7 cm

Operational environmental extremes

Storage environmental extremes

Test Parameters/Conditions - Power applied, unit operating on system ±5% nominal supply voltage.

10°C 10% R.H. = 24 hours

10°C 90% R.H. = 24 hours

20°C 90% R.H. = 24 hours

30°C 90% R.H. = 24 hours

40°C 90% R.H. = 24 hours

50°C 90% R.H. = 24 hours

50°C 10% R.H. = 24 hours

Test Parameters/Conditions

60°C @ 80% R.H. for 96 hours

-30°C @ 20% R.H. for 48 hours

No power applied

Delta °C < 1.0°C/min

Delta % R.H. < 1.5% R.H./min

USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport

Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design

Guide V. 1.2

FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T

DA - 12668 North America — Version 17 — May 21, 2008 Page 33

QuickSpecs

Technical Specifications - Environmental Data

HP Compaq dx2300 Microtower Business PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

US Federal Energy Management Program (FEMP)

IT ECO declaration

EPEAT

Longevity and Upgrading This product is designed to be upgraded, possibly extending its useful life by several years. Spare parts are available throughout the warranty period and for up to 15 months after the end of production.

Upgradeability features contained in the product include:

6 external USB ports

2 internal USB ports

2 external 5.25" drive bays

2 internal 3.5" drive bays

1 external 3.5" drive bay

1 empty standard PCI slot

2 empty standard PCIe x1 slots

1 empty standard PCIe x16 slot

2 memory slots

1 Serial port

1 Optional second serial port

1 Parallel port

Batteries

Additional Information

Spare parts are available throughout the warranty period and for up to 5 years after the end of production.

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Lead greater than 4000ppm by weight.

Battery size: CR2032 (coin cell)

Battery type: Lithium

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –

2002/95/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)

Directive – 2002/96/EC.

This product is in compliance with the IEEE 1680 (EPEAT) standard at the Silver level, see http://www.epeat.net

Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.

This product contains 0% recycled materials (by wt.)

This product is >90% recyclable when properly disposed of at end of life.

Packaging Materials

Corrugated Paper – TBD g

EPE Foam – TBD g

LDPE Bag –TBD g

DA - 12668 North America — Version 17 — May 21, 2008 Page 34

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Environmental Data

The EPE foam packaging material is made from 30–60% recycled content.

RoHS Compliance

Material Usage

The corrugated paper packaging materials contains at least 80% recycled content.

Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1,

2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

This product does not contain any of the following substances in excess of regulatory limits (refer to the

HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html

):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel – finishes must not be used on the external surface designed to be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

HP follows these guidelines to decrease the environmental impact of product packaging:

Packaging

End-of-life Management and Recycling

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.

To recycle your product, please go to: http://www.hp.com/recycle or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

DA - 12668 North America — Version 17 — May 21, 2008 Page 35

QuickSpecs

HP Compaq dx2300 Microtower Business PC

Technical Specifications - Environmental Data

Hewlett-Packard

Corporate Environmental

Information

For more information about HP's commitment to the environment:

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

© Copyright 2008 Hewlett-Packard Development Company, L.P.

All rights reserved.

The information contained herein is subject to change without notice.

Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of

Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 12668 North America — Version 17 — May 21, 2008 Page 36

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals
